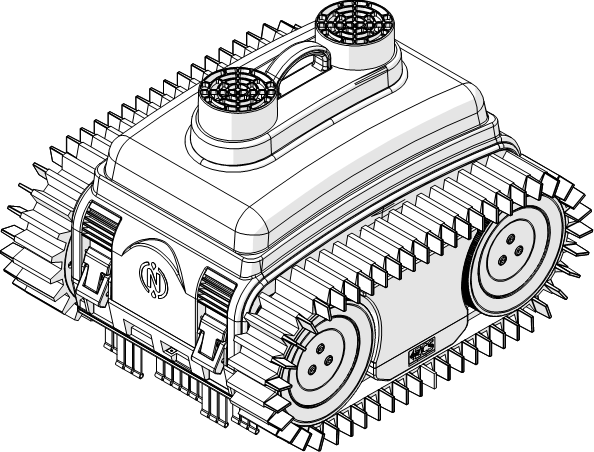

Zucchetti NEMH2O Spare Parts


Zucchetti NEMH2O Spare Parts
Zucchetti NEMH2O Spare Parts
NEMH2O - General Accessories
NEMH2O - General Accessories
NEMH2O - Main Body
NEMH2O - Main Body
NEMH2O - Motors
NEMH2O - Motors
NEMH2O - Electronics
NEMH2O - Electronics

Spare Parts for Zucchetti NEMH2O Spare Parts

Zucchetti NEMH2O Spare Parts
Previous Revision 1.0
Current Revision 1.1

From 2017-12
Models Type Included
045BA0 NEMH2O Robot - Rev3-Rev4
5045BA0 NEMH2O Classic
5045DE0 NEMH2O Deluxe
5045EL0 NEMH2O Elite
--- -

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

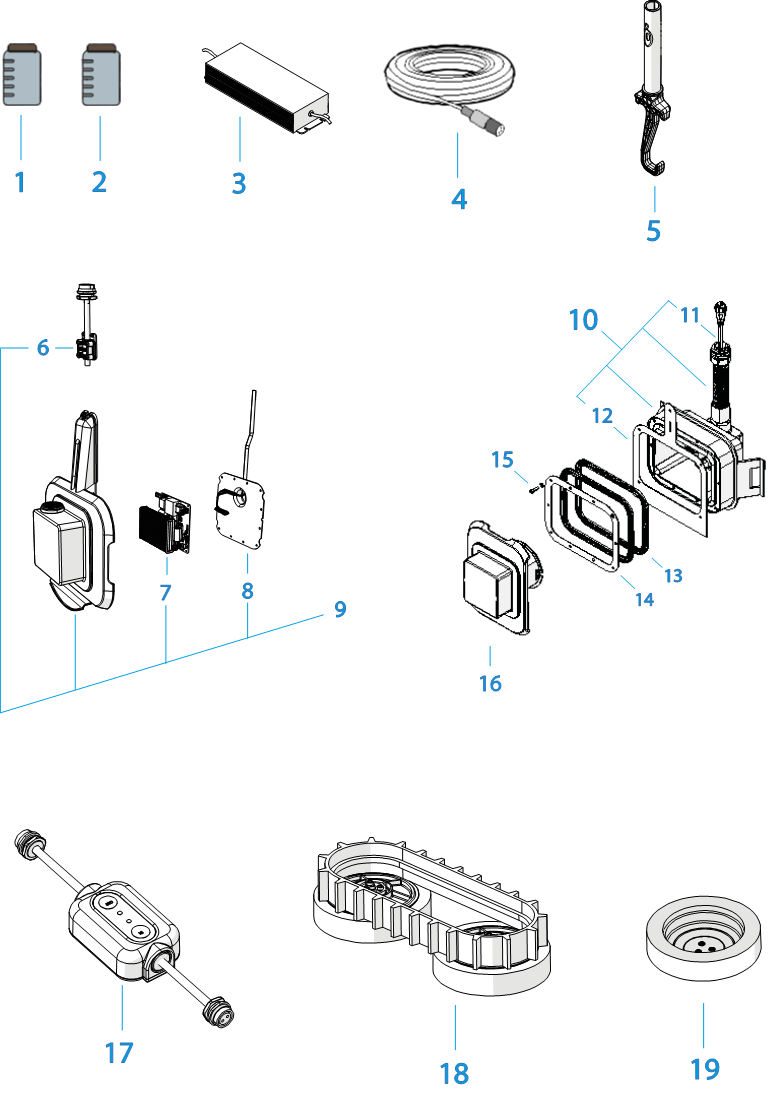

Spare Parts for NEMH2O - General Accessories

NEMH2O - General Accessories
--- -
1Ambrogio Grease Seal 045D0016A       (Grasso Per Guarnizione Vasett0 20G)Ref: 045D0016A
Ambrogio Grease Seal 045D0016A (Grasso Per Guarnizione Vasett0 20G)
Price: £16.32
Special Order
Qty:
2Ambrogio Anti-Seize 045D0018A       (Antigrippante Vasett0 10G Antigrippante)Ref: 045D0018A
Ambrogio Anti-Seize 045D0018A (Antigrippante Vasett0 10G Antigrippante)
Price: £13.92
Special Order
Qty:
3Ambrogio Battery Charger C01516       (Caricabatteria  Hlg-320Hg-30 Power Supply (36V-12A))Ref: C01516
Ambrogio Battery Charger C01516 (Caricabatteria Hlg-320Hg-30 Power Supply (36V-12A))
Price: £242.40
Special Order
Qty:
3Ambrogio Battery Charger C01461       (Caricabatteria  Hlg-185G-30 Power Supply (30V-6.2A))Ref: C01461
Ambrogio Battery Charger C01461 (Caricabatteria Hlg-185G-30 Power Supply (30V-6.2A))
Price: £138.00
Special Order
Qty:
3Ref: ELG-240-30H2
Not found
4Ambrogio Power Prong CB02_PRNEM       ((V3 Robot) Prolunga Ricarica Cablaggio Prolunga V.3 Nemo)Ref: CB02-PRNEM
Ambrogio Power Prong CB02_PRNEM ((V3 Robot) Prolunga Ricarica Cablaggio Prolunga V.3 Nemo)
Price: £53.28
Special Order
Qty:
5Ambrogio Recovering Hook 045Z40200A       (Gancio Di Recupero Gancio Nemo Con Fermo -Recovering Hook)Ref: 045Z40200A
Ambrogio Recovering Hook 045Z40200A (Gancio Di Recupero Gancio Nemo Con Fermo -Recovering Hook)
Price: £10.86
Special Order
Qty:
6Ambrogio Pendulum Recharge Hook 045Z24800A       (Gancio Pendolo Kit Gancio Ricarica Appesa)Ref: 045Z24800A
Ambrogio Pendulum Recharge Hook 045Z24800A (Gancio Pendolo Kit Gancio Ricarica Appesa)
Price: £15.84
Special Order
Qty:
7Ref: 045Z20000E-R
Not found
8Ref: 045Z30600A-R
Not found
9Ref: 045A0050D
Not found
9Ref: 045A0055D
Not found
9Ref: 045A0045D
Not found
10Ref: 045Z29500A-R
Not found
11Ambrogio Plate 045Z06800A       (Piastra Dima Montaggio Nemo Kit Muratura)Ref: 045Z06800A
Ambrogio Plate 045Z06800A (Piastra Dima Montaggio Nemo Kit Muratura)
Price: £15.48
Special Order
Qty:
12Ambrogio Pendulum Cable 045Z0L0002       (Cavo Pendolo)Ref: 045Z0L0002
Ambrogio Pendulum Cable 045Z0L0002 (Cavo Pendolo)
Price: £43.68
Special Order
Qty:
13Ambrogio Gasket 045Z19800A       (Guarnizione Guarnizione Ricarica -  Gasket)Ref: 045Z19800A
Ambrogio Gasket 045Z19800A (Guarnizione Guarnizione Ricarica - Gasket)
Price: £6.42
Special Order
Qty:
14Ambrogio Plate 045Z28600A       (Piastra Rinforzo Lamiera Ric.Estraibile Nemo)Ref: 045Z28600A
Ambrogio Plate 045Z28600A (Piastra Rinforzo Lamiera Ric.Estraibile Nemo)
Price: £24.72
Special Order
Qty:
15Ambrogio Screw Vite C02047Ref: C02047
Ambrogio Screw Vite C02047
Price: £12.00
Special Order
Qty:
16Ref: 045A0070D
Not found
16Ref: 045A0065D
Not found
16Ref: 045A0060D
Not found
17Ref: 045Z41600A
Not found
18Ref: 045Z25400A
Not found
18Ref: 045Z25400B
Not found
19Ref: 045Z25000A-K4
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

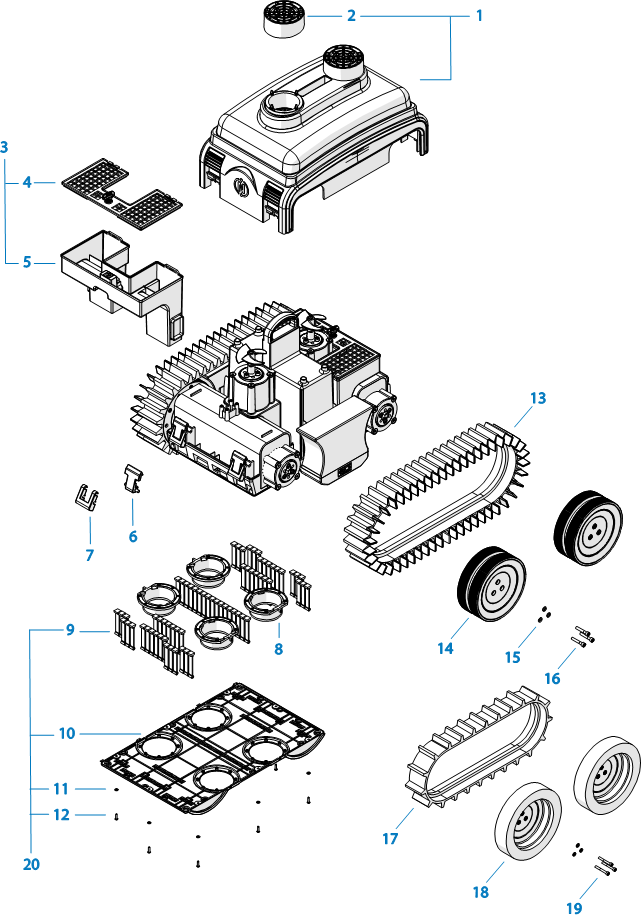

Spare Parts for NEMH2O - Main Body

NEMH2O - Main Body
--- -
1Ambrogio Esternal Cover 045Z18500A       (Scocca Esterna Ass.Copertura Nemo - Esternal Cover)Ref: 045Z18500A
Ambrogio Esternal Cover 045Z18500A (Scocca Esterna Ass.Copertura Nemo - Esternal Cover)
Price: £130.80
Special Order
Qty:
2Ambrogio Propeller Cap 045Z18600A       (Coperchio Turbina Sicurezza Turbina - Propeller Cap)Ref: 045Z18600A
Ambrogio Propeller Cap 045Z18600A (Coperchio Turbina Sicurezza Turbina - Propeller Cap)
Price: £6.18
Special Order
Qty:
3Ambrogio Filter 045Z17000A       (Filtro Assieme Filtro - Filter)Ref: 045Z17000A
Ambrogio Filter 045Z17000A (Filtro Assieme Filtro - Filter)
Price: £22.44
Special Order
Qty:
4Ambrogio Filter Cap 045Z17900A       (Coperchio Filtro Coperchio Filtro Foglie - Filter Cap)Ref: 045Z17900A
Ambrogio Filter Cap 045Z17900A (Coperchio Filtro Coperchio Filtro Foglie - Filter Cap)
Price: £9.84
Special Order
Qty:
5Ambrogio Filter Housing 045Z17600A       (Contenitore Filtro Supporto Filtro - Filter Housing)Ref: 045Z17600A
Ambrogio Filter Housing 045Z17600A (Contenitore Filtro Supporto Filtro - Filter Housing)
Price: £13.56
Special Order
Qty:
6Ambrogio Upper Closing 110Z01000A       (Chiusura Superiore Elemento Superiore Chiusura A Scatto)Ref: 110Z01000A
Ambrogio Upper Closing 110Z01000A (Chiusura Superiore Elemento Superiore Chiusura A Scatto)
Price: £7.58
Special Order
Qty:
7Ambrogio Lower Closing 110Z01100A       (Chiusura Inferiore Elemento Inferiore Chiusura A Scatto)Ref: 110Z01100A
Ambrogio Lower Closing 110Z01100A (Chiusura Inferiore Elemento Inferiore Chiusura A Scatto)
Price: £7.58
Special Order
Qty:
8Ambrogio Water Conveyor 045Z16100A       (Convogliatore Acqua Convogliatore Acqua Fondo)Ref: 045Z16100A
Ambrogio Water Conveyor 045Z16100A (Convogliatore Acqua Convogliatore Acqua Fondo)
Price: £7.62
Special Order
Qty:
9Ambrogio 3-Row Brush 045Z16700A       (Spazzole 3 Fili)Ref: 045Z16700A
Ambrogio 3-Row Brush 045Z16700A (Spazzole 3 Fili)
Price: £1.20
Special Order
Qty:
10Ref: 045Z16500C
Not found
11Ambrogio Washer Rondella  C00972Ref: C00972
Ambrogio Washer Rondella C00972
Price: £3.60
Special Order
Qty:
12Ambrogio Screw C00351       (Vite Vite Tub.Bom.Iso7380 -M3X12 A4)Ref: C00351
Ambrogio Screw C00351 (Vite Vite Tub.Bom.Iso7380 -M3X12 A4)
Price: £2.40
3 in stock ready to go
Qty:
13Ambrogio External Belt 045Z07500A       (Cingolo Cinghia Silicone - External Belt)Ref: 045Z07500A
Ambrogio External Belt 045Z07500A (Cingolo Cinghia Silicone - External Belt)
Price: £63.84
Special Order
Qty:
14Ambrogio Wheel 045Z07100B       (Ruota Assieme Ruota T10 Nemo)Ref: 045Z07100B
Ambrogio Wheel 045Z07100B (Ruota Assieme Ruota T10 Nemo)
Price: £24.12
Special Order
Qty:
15Ambrogio Washer Rondella C01759 (8 pack)Ref: C01759
Ambrogio Washer Rondella C01759 (8 pack)
Price: £6.62
10+ in stock ready to go
Qty:
16Ambrogio Screw Vite  C01742Ref: C01742
Ambrogio Screw Vite C01742
Price: £4.80
Special Order
Qty:
17Ambrogio External Belt X Pva 045Z25500A       (Cingolo X Pva Cinghia Silicone Senza Peneri)Ref: 045Z25500A
Ambrogio External Belt X Pva 045Z25500A (Cingolo X Pva Cinghia Silicone Senza Peneri)
Price: £63.84
Special Order
Qty:
18Ambrogio Pva Wheel 045Z25000A       (Ruota In Pva Assieme Ruota In Pva)Ref: 045Z25000A
Ambrogio Pva Wheel 045Z25000A (Ruota In Pva Assieme Ruota In Pva)
Price: £59.04
Special Order
Qty:
19Ambrogio Screw Vite  C00419Ref: C00419
Ambrogio Screw Vite C00419
Price: £7.20
Special Order
Qty:
20Ambrogio Brush & Support 045Z16600C       (Supporto E Spazzole Cinghia Silicone Senza Peneri)Ref: 045Z16600C
Ambrogio Brush & Support 045Z16600C (Supporto E Spazzole Cinghia Silicone Senza Peneri)
Price: £129.42
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

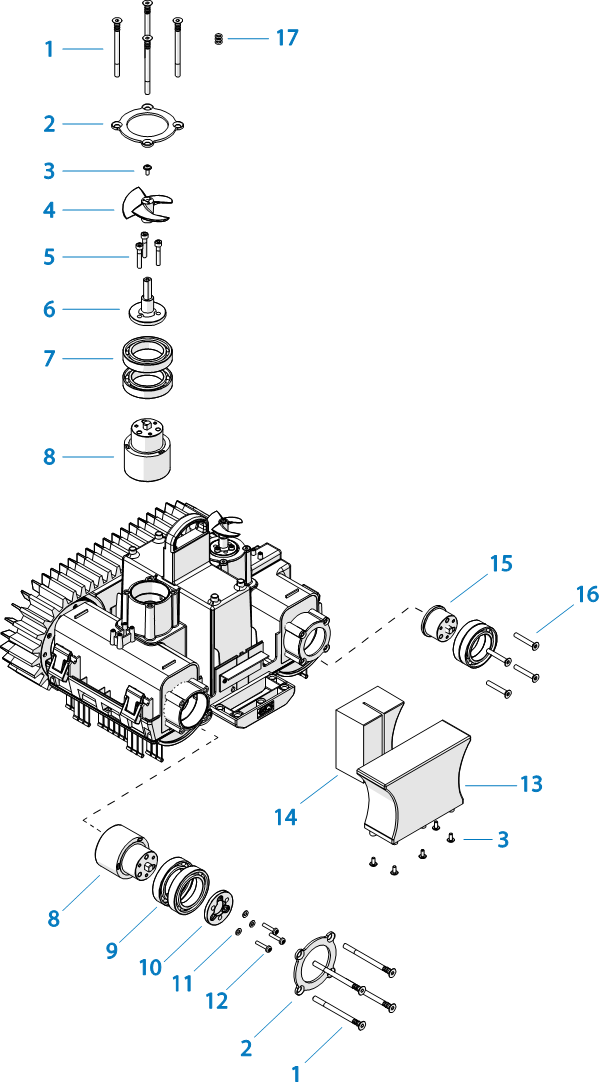

Spare Parts for NEMH2O - Motors

NEMH2O - Motors
--- -
1Ref: 045Z10700A
Not found
2Ambrogio Closing Flange 045Z10400A       (Flangia Chiusura Flangia Chiusura Cuscinetti-Clos.Flange)Ref: 045Z10400A
Ambrogio Closing Flange 045Z10400A (Flangia Chiusura Flangia Chiusura Cuscinetti-Clos.Flange)
Price: £8.88
Special Order
Qty:
3Ambrogio Screw C00908       (Vite T.Larga.-M4X10 A4 Torx)Ref: C00908
Ambrogio Screw C00908 (Vite T.Larga.-M4X10 A4 Torx)
Price: £2.40
5 in stock ready to go
Qty:
4Ref: 045Z13200B
Not found
5Ambrogio Screw Vite  C01742Ref: C01742
Ambrogio Screw Vite C01742
Price: £4.80
Special Order
Qty:
6Ref: 045Z13100A.01
Not found
7Ambrogio Bearing 61908_C       (Cuscinetto Cuscinetto Ceramica New)Ref: 61908-C
Ambrogio Bearing 61908_C (Cuscinetto Cuscinetto Ceramica New)
Price: £63.84
Special Order
Qty:
8Ambrogio Magnetic Transmission 045Z10100B       (Trasmissione Magnetica Cuscinetto Ceramica New)Ref: 045Z10100B
Ambrogio Magnetic Transmission 045Z10100B (Trasmissione Magnetica Cuscinetto Ceramica New)
Price: £105.60
Special Order
Qty:
9Ambrogio Bearing BRG61908_P       (Cuscinetto Cuscinetto Peek)Ref: BRG61908-P
Ambrogio Bearing BRG61908_P (Cuscinetto Cuscinetto Peek)
Price: £39.36
Special Order
Qty:
10Ambrogio Transmission Flange 045Z10300B       (Flangia Trasmissione Attacco Ruota)Ref: 045Z10300B
Ambrogio Transmission Flange 045Z10300B (Flangia Trasmissione Attacco Ruota)
Price: £8.64
Special Order
Qty:
11Ambrogio Fixing washer Rondella fissaggio C00900 Ref: C00900
Ambrogio Fixing washer Rondella fissaggio C00900
Price: £2.52
Special Order
Qty:
12Ambrogio Screw C01469       (Vite Tsei Uni 5933-M4X14-Screw)Ref: C01469
Ambrogio Screw C01469 (Vite Tsei Uni 5933-M4X14-Screw)
Price: £2.40
Special Order
Qty:
13Ref: 045Z18100A
Not found
14Ref: 045Z18200A
Not found
15Ambrogio Free Transmission 045Z12100C       (Trasmissione Libera Albero Cuscinetti Ruota Folle)Ref: 045Z12100C
Ambrogio Free Transmission 045Z12100C (Trasmissione Libera Albero Cuscinetti Ruota Folle)
Price: £13.56
Special Order
Qty:
16Ambrogio Screw Vite  C01075Ref: C01075
Ambrogio Screw Vite C01075
Price: £11.76
Special Order
Qty:
17Ref: C02321-K-N
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

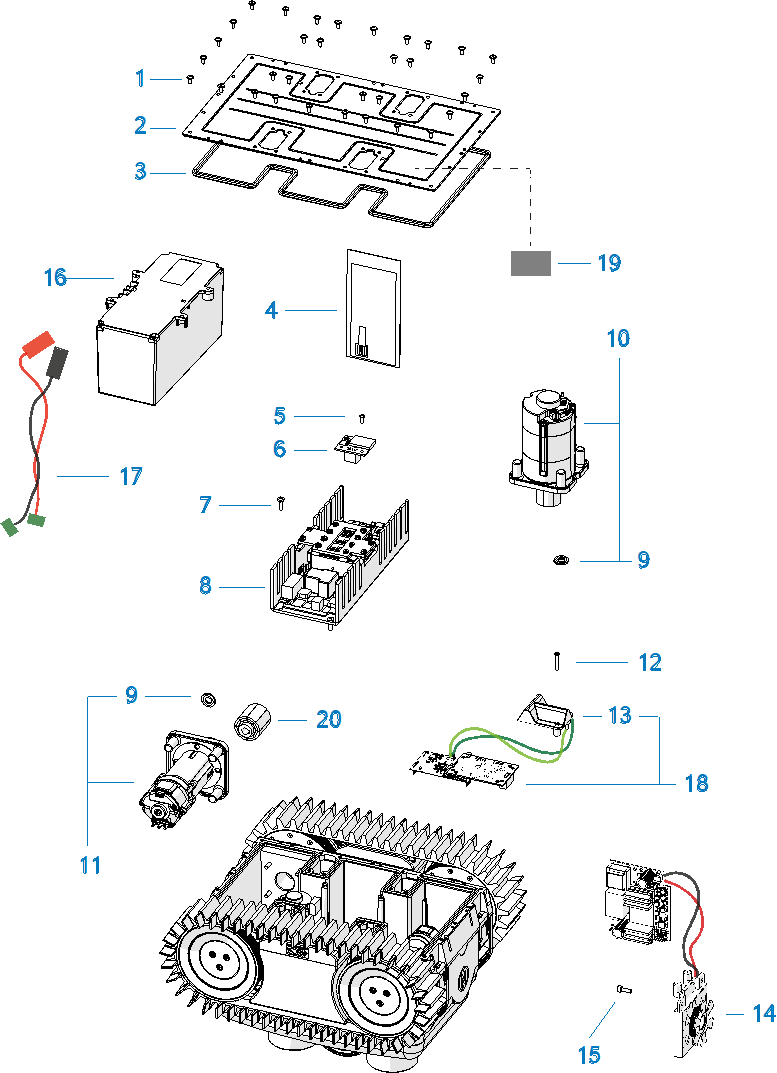

Spare Parts for NEMH2O - Electronics

NEMH2O - Electronics
--- -
1Ambrogio Screw C00908       (Vite T.Larga.-M4X10 A4 Torx)Ref: C00908
Ambrogio Screw C00908 (Vite T.Larga.-M4X10 A4 Torx)
Price: £2.40
5 in stock ready to go
Qty:
2Ref: 045Z16400A.01
Not found
3Ambrogio Gasket 045Z15300A       (Guarnizione Guarnizione Fondo - Gasket)Ref: 045Z15300A
Ambrogio Gasket 045Z15300A (Guarnizione Guarnizione Fondo - Gasket)
Price: £11.58
Special Order
Qty:
4Ambrogio Water Sensor 045Z29900A       (Sensore Acqua Sensore Capacitivo - Water Sensor)Ref: 045Z29900A
Ambrogio Water Sensor 045Z29900A (Sensore Acqua Sensore Capacitivo - Water Sensor)
Price: £41.76
Special Order
Qty:
5Ambrogio Screw Vite  C02205Ref: C02205
Ambrogio Screw Vite C02205
Price: £7.68
Special Order
Qty:
6Ambrogio Bluetooth Receiver 051E01000A       (Ricevitore Bluetooth  V.4 ( V17))Ref: 051E01000A
Ambrogio Bluetooth Receiver 051E01000A (Ricevitore Bluetooth V.4 ( V17))
Price: £151.68
Special Order
Qty:
7Ambrogio Screw Vite  C01141Ref: C01141
Ambrogio Screw Vite C01141
Price: £4.80
Special Order
Qty:
8Ref: 045Z14000A-R
Not found
9Ambrogio Gasket 045Z08400A       (Guarnizione Guarnizione Per Vite- Gasket)Ref: 045Z08400A
Ambrogio Gasket 045Z08400A (Guarnizione Guarnizione Per Vite- Gasket)
Price: £4.92
Special Order
Qty:
10Ref: 045Z09000B-R
Not found
11Ref: 045Z08000B-R
Not found
12Ambrogio Screw Vite  C01142Ref: C01142
Ambrogio Screw Vite C01142
Price: £3.84
Special Order
Qty:
13Recall sensor coilRef: 045Z15900A
Recall sensor coil
Price: £20.64
Special Order
Qty:
14Ref: 045Z19200E
Not found
15Ambrogio Screw Vite C02172   SINGLERef: C02172
Ambrogio Screw Vite C02172 SINGLE
Price: £2.52
10+ in stock ready to go
Qty:
16Ref: 045Z298000A
Not found
17Ambrogio Battery Wire  CB03_NEMO       (Cavo Batteria Cablaggio Alimentazione Nemo)Ref: CB03-NEMO
Ambrogio Battery Wire CB03_NEMO (Cavo Batteria Cablaggio Alimentazione Nemo)
Price: £8.04
Special Order
Qty:

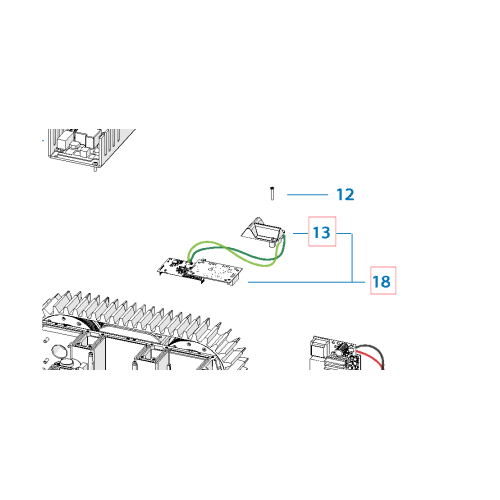

18Ref: 045Z15800B
Not found
19Ambrogio Desiccant Bag Q1020005       (Busta Disidratante Silica Gel 5Gr. Tyvek)Ref: Q1020005
Ambrogio Desiccant Bag Q1020005 (Busta Disidratante Silica Gel 5Gr. Tyvek)
Price: £1.80
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
