  • What Pitch of Chain Do I Have ?

    What Pitch of Chain Do I Have ?

    Simply use a ruler ot tape measure to find the distance in mm across three consecutive rivets - this will tell you the chain pitch. To find out how many links, just count the links.

    3/8" - this type of chain saw has a distance between three consecutive rivets of about 19.2 mm and is available with a thickness of 1.1mm, 1.3mm, 1.5mm.

    .325" - this type of chain saw has a distance between three consecutive rivets of about 16.7 mm and is available with a thickness of 1.3mm, 1.5mm, 1.6mm.

    1/4" - this type of chain saw has a distance between three consecutive rivets of about 12.8 mm and is only available with a thickness of 1.3 mm.
  • How to find the chain thickness and pitch - the easy way

    How to find the chain thickness and pitch - the easy way

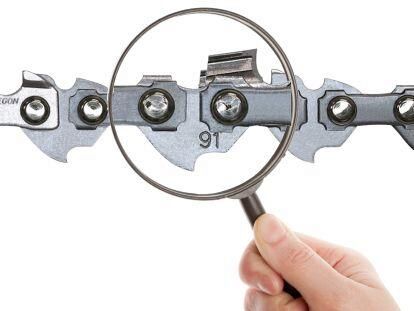

    We have found that the easiest way to find both the pitch and thickness of a chain is to just look at the code stamped onto one of the links. Every chain should have an identifying code - look at the example pic.

    Just find the code and compare it to our table below. For example a code "91" as shown, is a 3/8 pitch at 1.3mm thickness - easy! (On some Stihl chains we have found the number is split between the cutting tooth and drive link.)

    Then it's just a case of counting the "links" - a link being the downward protruding bit, as shown with the "91" on our picture.
  • 1/4 x 1.3mm3/8 x 1.1mm3/8 x 1.3mm3/8 x 1.5mm3/8 x 1.6mm.325 x 1.3mm.325 x 1.5mm.325 x 1.6mm
    Oregon259091 or 72737595 or 202122
    CarltonE1N4N1 or A1A2A3K1K2K3
    Stihl136163 or 33RM35RM1 or 35RS136RM23RM225RS26RM2
    Windsor50K43RG50AG, 50R or 50RG58AG or 58APLG63AG50J58J or 58JL63J
    HusqvarnaH00H51, H35 or H36H49 or H42H44H30 or H22H25 or H21H28
    McCullochM370 or PM370PM378 or SPR378PM373PM320SPR328
