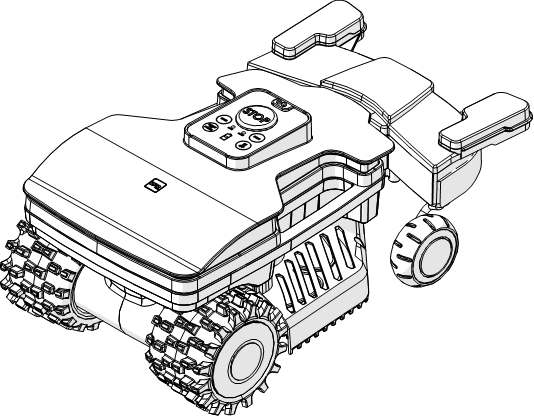

Spare Parts for Zucchetti Ambrogio Twenty ZR EVO Spare Parts

Zucchetti Ambrogio Twenty ZR EVO Spare Parts
Current Revision 1.0

From 2023-12

Models Included:

D020DEZ: Ambrogio Twenty ZR EVO
--- -

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

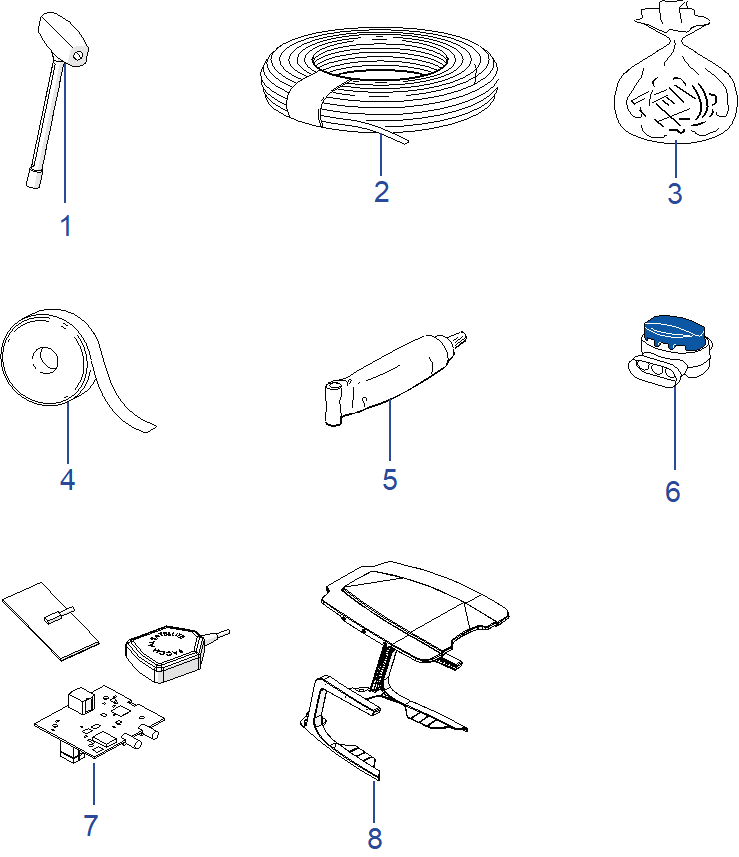

Spare Parts for Ambrogio Twenty ZR EVO - General Accessories

Ambrogio Twenty ZR EVO - General Accessories
--- -
1Ambrogio Screwdriver C01416       (Chiave Cacciavite T 1/4 + Ph1)Ref: C01416
Ambrogio Screwdriver C01416 (Chiave Cacciavite T 1/4 + Ph1)
Price: £14.28
3 in stock ready to go
Qty:
2Ambrogio Cable CS_E025_15       (Cavo Fr/2 Wr 1X0.75Stg 2,5 Mt.150)Ref: CS-E025-15
Ambrogio Cable CS_E025_15 (Cavo Fr/2 Wr 1X0.75Stg 2,5 Mt.150)
Price: £69.60
Special Order
Qty:
2Ambrogio Cable CS_E025_1       (Cavo Fr/2 Wr 1X0.75Stg 2,35 Mt.100)Ref: CS-E025-1
Ambrogio Cable CS_E025_1 (Cavo Fr/2 Wr 1X0.75Stg 2,35 Mt.100)
Price: £46.44
Special Order
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack  (200Z22000B)Ref: 200A00200A
Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack (200Z22000B)
Price: £27.84
10+ in stock ready to go
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)Ref: 200A00100A
Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)
Price: £15.00
10+ in stock ready to go
Qty:
4Ambrogio Stretch Electrical Tape CS_C0111       (Nastro Agglomerante Autoagglomerante Filo Perimetrale)Ref: CS-C0111
Ambrogio Stretch Electrical Tape CS_C0111 (Nastro Agglomerante Autoagglomerante Filo Perimetrale)
Price: £32.88
Special Order
Qty:
5Ambrogio Grease CS_C0109       (Grasso Tubetto Grasso 200Gr)Ref: CS-C0109
Ambrogio Grease CS_C0109 (Grasso Tubetto Grasso 200Gr)
Price: £26.04
Special Order
Qty:
6Ambrogio Connector 200A00050    (50 Pcs) - Connettore 3M Scotchlok 314Ref: 200A00050
Ambrogio Connector 200A00050 (50 Pcs) - Connettore 3M Scotchlok 314
Price: £72.60
Special Order
Qty:
6Ambrogio Connector 200A00001  SINGLE ITEM - Connettore 3M ScotchlokRef: 200A00001
Ambrogio Connector 200A00001 SINGLE ITEM - Connettore 3M Scotchlok
Price: £1.75
10+ in stock ready to go
Qty:
6ConnectorRef: 200A00003
Connector
Price: £6.00
Special Order
Qty:
7Ambrogio Connect Module  Kit 4G f015E01300A_R Ref: 015E01300A-R
Ambrogio Connect Module Kit 4G f015E01300A_R
Price: £407.64
3 in stock ready to go
Qty:
8Ambrogio Docking Station Cover Shelter 015Z11800A  L15 20       (Copertura Base Di Ricarica)Ref: 015Z11800A
Ambrogio Docking Station Cover Shelter 015Z11800A L15 20 (Copertura Base Di Ricarica)
Price: £176.28
Not in stock
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

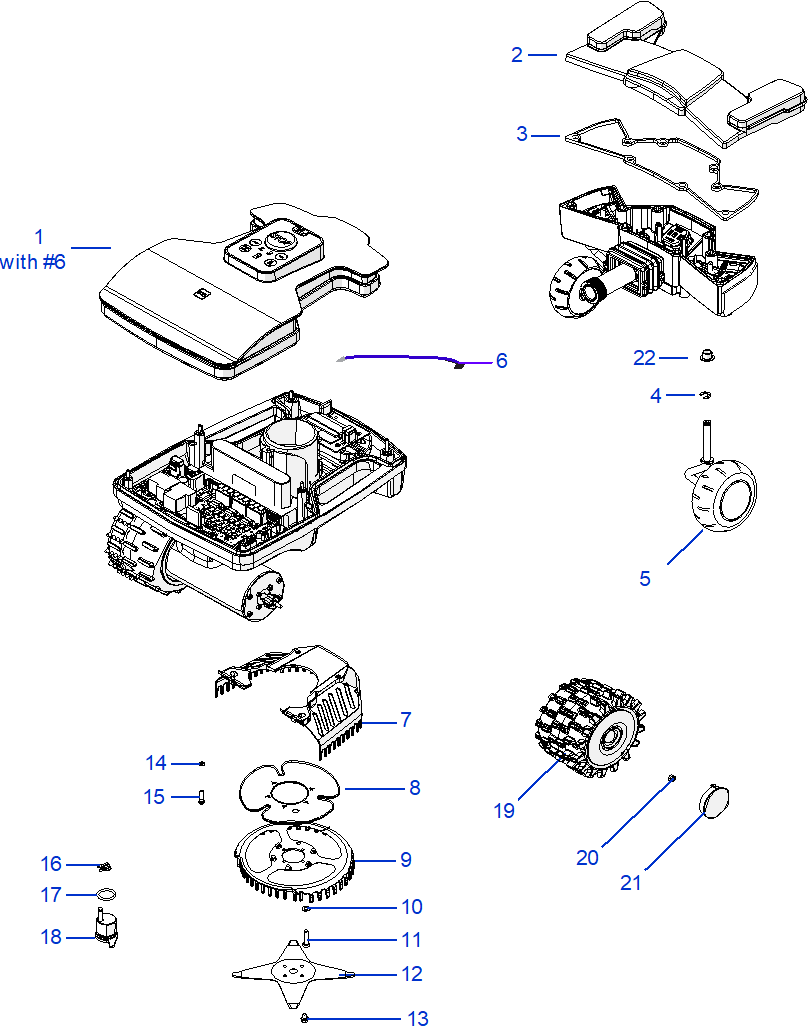

Spare Parts for Ambrogio Twenty ZR EVO - Body

Ambrogio Twenty ZR EVO - Body
--- -
1ZR Lid Cap 020A210050_RRef: 020A210050-R
ZR Lid Cap 020A210050_R
Price: £106.80
3 in stock ready to go
Qty:
2Ref: L20Z95431A-R
Not found
3Ambrogio Bumper gasket Guarnizione bumper L20Z16400ARef: L20Z16400A
Ambrogio Bumper gasket Guarnizione bumper L20Z16400A
Price: £2.28
4 in stock ready to go
Qty:
4Ambrogio Seger C02268Ref: C02268
Ambrogio Seger C02268
Price: £2.40
8 in stock ready to go
Qty:
5Ref: L20Z20200A-R 1 Left / Sinistro Gruppo ruota anteriore sinistra - Front left wheel group
Not found
5Ref: L20Z19900A-R 1 Right / Destro Gruppo ruota anteriore destra - Front right wheel group
Not found
6Ambrogio Rain Sensor Cabling CB13_L400.1       (Cablaggio Sensorer Pioggia)Ref: CB13-L400.1
Ambrogio Rain Sensor Cabling CB13_L400.1 (Cablaggio Sensorer Pioggia)
Price: £6.61
Special Order
Qty:
7Ambrogio External Blade Guard L20Z00100C       (Protezione Lama Esterna)Ref: L20Z00100C
Ambrogio External Blade Guard L20Z00100C (Protezione Lama Esterna)
Price: £15.48
Special Order
Qty:
8Ambrogio Internal Rubber Blade Guard L20Z01900B       (Protezione  Lama Interna Mobile)Ref: L20Z01900B
Ambrogio Internal Rubber Blade Guard L20Z01900B (Protezione Lama Interna Mobile)
Price: £7.72
Not in stock
Qty:
9Ambrogio Internal Blade Guard L20Z01500C       (Protezione Lama Interna)Ref: L20Z01500C
Ambrogio Internal Blade Guard L20Z01500C (Protezione Lama Interna)
Price: £8.40
10+ in stock ready to go
Qty:
10Ambrogio Washer Rondella C00016 (100 pack)Ref: C00016
Ambrogio Washer Rondella C00016 (100 pack)
Price: £13.20
Special Order
Qty:
11Ambrogio Screw Vite C01933Ref: C01933
Ambrogio Screw Vite C01933
Price: £5.40
Special Order
Qty:
12Ambrogio Standard Blade - 18cm Star - TWENTY L20 L15  L20Z13600A_RRef: L20Z13600A-R
Ambrogio Standard Blade - 18cm Star - TWENTY L20 L15 L20Z13600A_R
Price: £26.16
10+ in stock ready to go
Qty:
13Ambrogio Screw Vite C00212Ref: C00212
Ambrogio Screw Vite C00212
Price: £2.40
Not in stock
Qty:
14Ambrogio Washer Rondella C00070 Ref: C00070
Ambrogio Washer Rondella C00070
Price: £2.52
Special Order
Qty:
15Ambrogio Screw Vite C00029Ref: C00029
Ambrogio Screw Vite C00029
Price: £15.60
Special Order
Qty:
16Ambrogio Seger C01936 Ref: C01936
Ambrogio Seger C01936
Price: £9.84
Special Order
Qty:
17Ambrogio Gasket Guarnizione C01440 Ref: C01440
Ambrogio Gasket Guarnizione C01440
Price: £2.52
Special Order
Qty:
18EccentricRef: 051Z00900B
Eccentric
Price: £12.84
Special Order
Qty:
19Ambrogio Rubber Wheel L20Z02400A       (Ruota In Gomma)Ref: L20Z02400A
Ambrogio Rubber Wheel L20Z02400A (Ruota In Gomma)
Price: £36.00
10+ in stock ready to go
Qty:
20Ambrogio Nut Dado CS-C0026Ref: CS-C0026
Ambrogio Nut Dado CS-C0026
Price: £7.68
Special Order
Qty:
21Ambrogio Wheel Cap 015Z06700A       (Coperchio Ruote)Ref: 015Z06700A
Ambrogio Wheel Cap 015Z06700A (Coperchio Ruote)
Price: £2.94
Special Order
Qty:
22Ambrogio C02253  Bearing CuscinettoRef: C02253
Ambrogio C02253 Bearing Cuscinetto
Price: £8.40
4 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

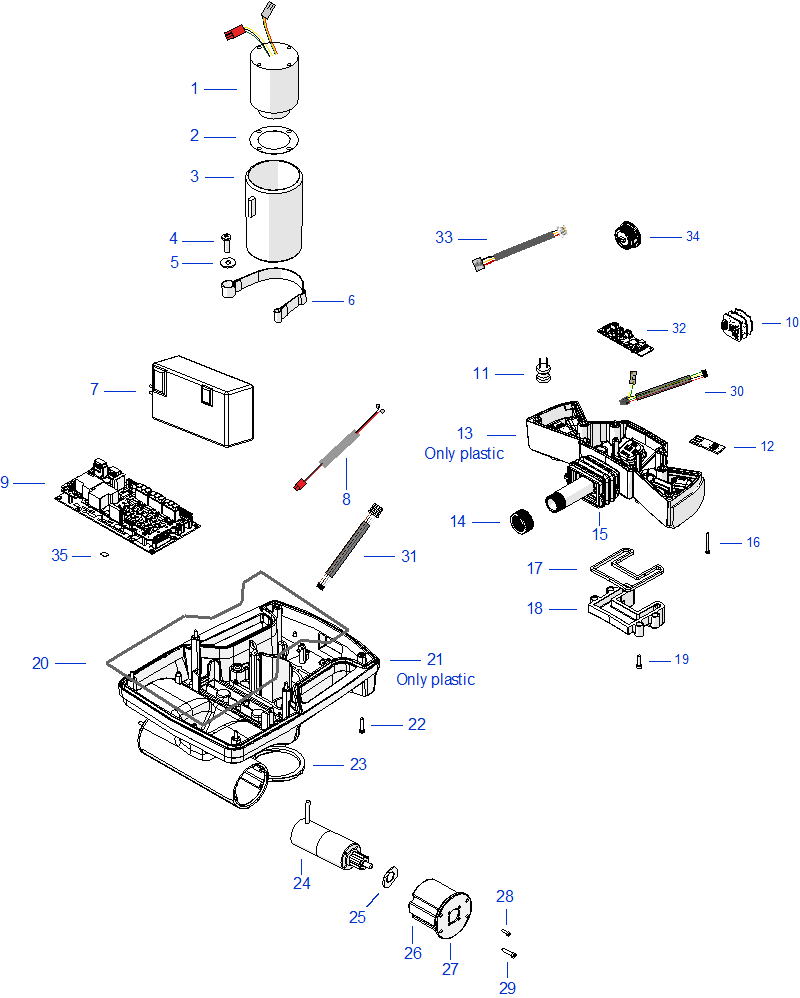

Spare Parts for Ambrogio Twenty ZR EVO - Electronics

Ambrogio Twenty ZR EVO - Electronics
--- -
1Ambrogio Blade Motor C02264       (Motore Lama)Ref: C02264
Ambrogio Blade Motor C02264 (Motore Lama)
Price: £203.04
5 in stock ready to go
Qty:
2Ambrogio Gasket Guarnizione 051Z15700B (single)Ref: 051Z15700B
Ambrogio Gasket Guarnizione 051Z15700B (single)
Price: £5.40
5 in stock ready to go
Qty:
3Ambrogio Motor Support 015Z03600A       (Supporto Motore)Ref: 015Z03600A
Ambrogio Motor Support 015Z03600A (Supporto Motore)
Price: £8.81
Special Order
Qty:
4Ambrogio Screw Vite C00691Ref: C00691
Ambrogio Screw Vite C00691
Price: £6.00
Special Order
Qty:
5Ambrogio Washer Rondella C00026Ref: C00026
Ambrogio Washer Rondella C00026
Price: £2.52
Special Order
Qty:
6Ambrogio Spring 015Z07300A       (Molla)Ref: 015Z07300A
Ambrogio Spring 015Z07300A (Molla)
Price: £41.16
Special Order
Qty:
7Zucchetti Ambrogio Battery 5.0Ah - L20 L60 Battery 5.0Ah  (was 015E00600A)Ref: 075Z60900A
Zucchetti Ambrogio Battery 5.0Ah - L20 L60 Battery 5.0Ah (was 015E00600A)
Price: £239.00
3 in stock ready to go
Qty:
8Ambrogio Recharge Cable 015CB01.01       (Cablaggio Ricarica)Ref: 015CB01.01
Ambrogio Recharge Cable 015CB01.01 (Cablaggio Ricarica)
Price: £7.34
Special Order
Qty:
9MotherboardRef: 015E00400A
Motherboard
Price: £573.48
Special Order
Qty:
10Ambrogio Radar Quad 075Z54700A_RRef: 075Z54700A-R
Ambrogio Radar Quad 075Z54700A_R
Price: £205.68
10+ in stock ready to go
Qty:
11Ambrogio Coil 015E00200A       (Bobina)Ref: 015E00200A
Ambrogio Coil 015E00200A (Bobina)
Price: £51.36
Special Order
Qty:
12Ambrogio Lift Board Group 015E00100A       (Gruppo Scheda Lift)Ref: 015E00100A
Ambrogio Lift Board Group 015E00100A (Gruppo Scheda Lift)
Price: £18.48
1 in stock ready to go
Qty:
13Ref: L20Z15500A-R
Not found
14Ambrogio Bumper nut Dado bumper L20Z17800CRef: L20Z17800C
Ambrogio Bumper nut Dado bumper L20Z17800C
Price: £14.40
Special Order
Qty:
15Ambrogio Bellow Kit L20Z16100A       (Kit Soffietto L20)Ref: L20Z16100A
Ambrogio Bellow Kit L20Z16100A (Kit Soffietto L20)
Price: £21.60
Special Order
Qty:
16Ambrogio Screw Vite C02620Ref: C02620
Ambrogio Screw Vite C02620
Price: £12.36
Special Order
Qty:
17Ambrogio Gasket Guarnizione L20Z16500ARef: L20Z16500A
Ambrogio Gasket Guarnizione L20Z16500A
Price: £9.60
Special Order
Qty:
18Ref: L20Z10800B-R
Not found
19Ambrogio Screw Vite C01536 Ref: C01536
Ambrogio Screw Vite C01536
Price: £10.08
Special Order
Qty:
20Ambrogio Main gasket Guarnizione principale 015Z10100ARef: 015Z10100A
Ambrogio Main gasket Guarnizione principale 015Z10100A
Price: £3.01
10+ in stock ready to go
Qty:
21Ambrogio Chassis 015Z04000D       (Chassis)Ref: 015Z04000D
Ambrogio Chassis 015Z04000D (Chassis)
Price: £87.36
Special Order
Qty:
22Ambrogio Screw Vite C02297Ref: C02297
Ambrogio Screw Vite C02297
Price: £3.11
4 in stock ready to go
Qty:
23Ambrogio Gasket Guarnizione L20Z06700BRef: L20Z06700B
Ambrogio Gasket Guarnizione L20Z06700B
Price: £1.64
10+ in stock ready to go
Qty:
24Wheel motorRef: 015Z13600A
Wheel motor
Price: £194.04
Special Order
Qty:
25Ambrogio Gasket Guarnizione 015Z14700ARef: 015Z14700A
Ambrogio Gasket Guarnizione 015Z14700A
Price: £2.76
10+ in stock ready to go
Qty:
26Ambrogio Counterweight 015Z13000A       (Zavorra)Ref: 015Z13000A
Ambrogio Counterweight 015Z13000A (Zavorra)
Price: £35.40
Special Order
Qty:
27Ambrogio Flange 015Z05100E       (Flangia)Ref: 015Z05100E
Ambrogio Flange 015Z05100E (Flangia)
Price: £19.32
Special Order
Qty:
28Ambrogio Screw Vite C00032Ref: C00032
Ambrogio Screw Vite C00032
Price: £15.60
Special Order
Qty:
29Ambrogio Screw Vite C02297Ref: C02297
Ambrogio Screw Vite C02297
Price: £3.11
4 in stock ready to go
Qty:
30Ref: 015CB06.01
Not found
31Ref: 015CB03.02
Not found
32Ref: 075E03001A
Not found
33Ref: 075CB09.01
Not found
34Ref: 075Z95421A
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

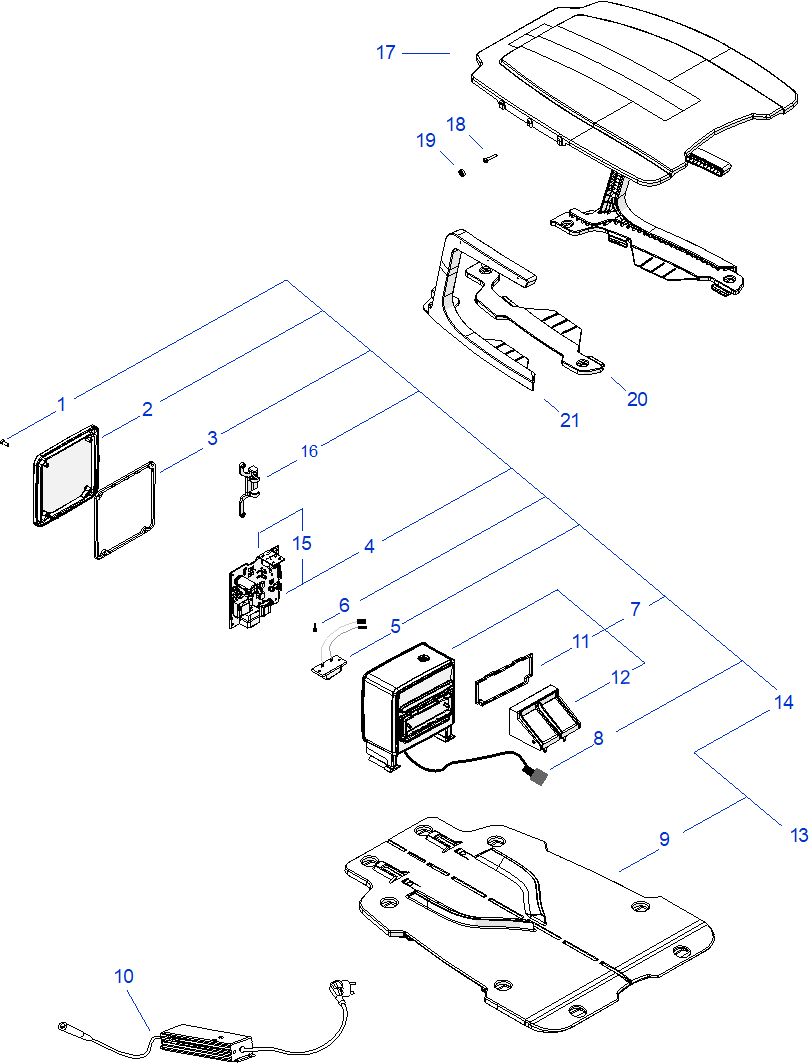

Spare Parts for Ambrogio Twenty ZR EVO - Base Station

Ambrogio Twenty ZR EVO - Base Station
--- -
1Ambrogio Screw Vite C02188Ref: C02188
Ambrogio Screw Vite C02188
Price: £1.44
10+ in stock ready to go
Qty:
2Ambrogio Turret Box 015Z08700A    XRef: 015Z08700A
Ambrogio Turret Box 015Z08700A X
Price: £16.80
2 in stock ready to go
Qty:
3015Z08900A Ambrogio Turret Gasket  XRef: 015Z08900A
015Z08900A Ambrogio Turret Gasket X
Price: £4.20
4 in stock ready to go
Qty:
4Ambrogio Transmitter 015E00700A_R       (Trasmettitore)Ref: 015E00700A-R
Ambrogio Transmitter 015E00700A_R (Trasmettitore)
Price: £155.52
6 in stock ready to go
Qty:
5Ambrogio Connector A222522       (Connettore Terminals 2 Poli Rohs Cod.10Ht021)Ref: A222522
Ambrogio Connector A222522 (Connettore Terminals 2 Poli Rohs Cod.10Ht021)
Price: £7.34
Special Order
Qty:
6Ambrogio Screw Vite C00364Ref: C00364
Ambrogio Screw Vite C00364
Price: £14.40
Special Order
Qty:
7Ambrogio Transmitter Box with Spring Contacts L20Z22584A_R   (was L20Z22559A_R)  Ref: L20Z22584A-R
Ambrogio Transmitter Box with Spring Contacts L20Z22584A_R (was L20Z22559A_R)
Price: £82.44
10+ in stock ready to go
Qty:
8Ambrogio Docking Station Wiring 042CHS01.04       (Cablaggio Base Ricarica)Ref: 042CHS01.04
Ambrogio Docking Station Wiring 042CHS01.04 (Cablaggio Base Ricarica)
Price: £48.24
1 in stock ready to go
Qty:
9Ambrogio Docking Station Botton 015Z08300G       (Pianale Base Ricarica)Ref: 015Z08300G
Ambrogio Docking Station Botton 015Z08300G (Pianale Base Ricarica)
Price: £79.68
6 in stock ready to go
Qty:
10Ambrogio Battery Charger C02412  2.0Ah Caricabatteria )Ref: C02412
Ambrogio Battery Charger C02412 2.0Ah Caricabatteria )
Price: £87.36
7 in stock ready to go
Qty:
11Ambrogio Gasket Guarnizione L20Z04400ARef: L20Z04400A
Ambrogio Gasket Guarnizione L20Z04400A
Price: £16.80
Special Order
Qty:
12Ref: L20Z22549A
Not found
13Ref: 015Z09100A-R
Not found
14015Z10400B-R Transmitter Box Complete   Twenty 20Ref: 015Z10400B-R
015Z10400B-R Transmitter Box Complete Twenty 20
Price: £242.40
2 in stock ready to go
Qty:
15015A00700A Primary Transmittor TX L15Ref: 015A00700A
015A00700A Primary Transmittor TX L15
Price: £12.56
Not in stock
Qty:
16Ref: L20Z22571A
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
