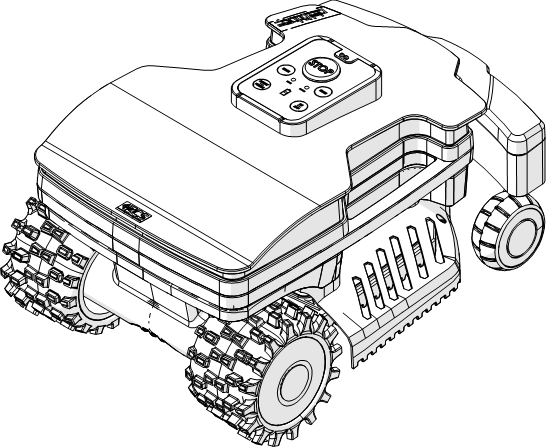

Name: Zucchetti Ambrogio Twenty TwentyFive 25 Spare Parts
Brand: Ambrogio

Spare Parts for Zucchetti Ambrogio Twenty TwentyFive 25 Spare Parts

Spare Parts Catalogue Current Revision 1.2
From 2023-01

B025DE0 Twenty 25 Deluxe
B025EL0 Twenty 25 Elite

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for 20-25 View 1

Quick link to the part:
-	-	-	-
1		Ref: C01416 Ambrogio Screwdriver C01416 (Chiave Cacciavite T 1/4 + Ph1)	Price: £14.28 3 in stock ready to go	Qty:
2		Ref: CS-E025-15 Ambrogio Cable CS_E025_15 (Cavo Fr/2 Wr 1X0.75Stg 2,5 Mt.150)	Price: £69.60 Special Order	Qty:
2		Ref: CS-E025-1 Ambrogio Cable CS_E025_1 (Cavo Fr/2 Wr 1X0.75Stg 2,35 Mt.100)	Price: £46.44 Special Order	Qty:
3		Ref: 200A00200A Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack (200Z22000B)	Price: £27.84 10+ in stock ready to go	Qty:
3		Ref: 200A00100A Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)	Price: £15.00 10+ in stock ready to go	Qty:
4		Ref: CS-C0111 Ambrogio Stretch Electrical Tape CS_C0111 (Nastro Agglomerante Autoagglomerante Filo Perimetrale)	Price: £32.88 Special Order	Qty:
5		Ref: CS-C0109 Ambrogio Grease CS_C0109 (Grasso Tubetto Grasso 200Gr)	Price: £26.04 Special Order	Qty:
6		Ref: 200A00050 Ambrogio Connector 200A00050 (50 Pcs) - Connettore 3M Scotchlok 314	Price: £72.60 Special Order	Qty:
6		Ref: 200A00001 Ambrogio Connector 200A00001 SINGLE ITEM - Connettore 3M Scotchlok	Price: £1.75 10+ in stock ready to go	Qty:
6		Ref: 200A00003 Connector	Price: £6.00 Special Order	Qty:
7		Ref: L25A00001A	Not found
8		Ref: L29Z04410A L29Z04410A Ambrogio Shelter L25 - L29	Price: £204.12 1 in stock ready to go	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

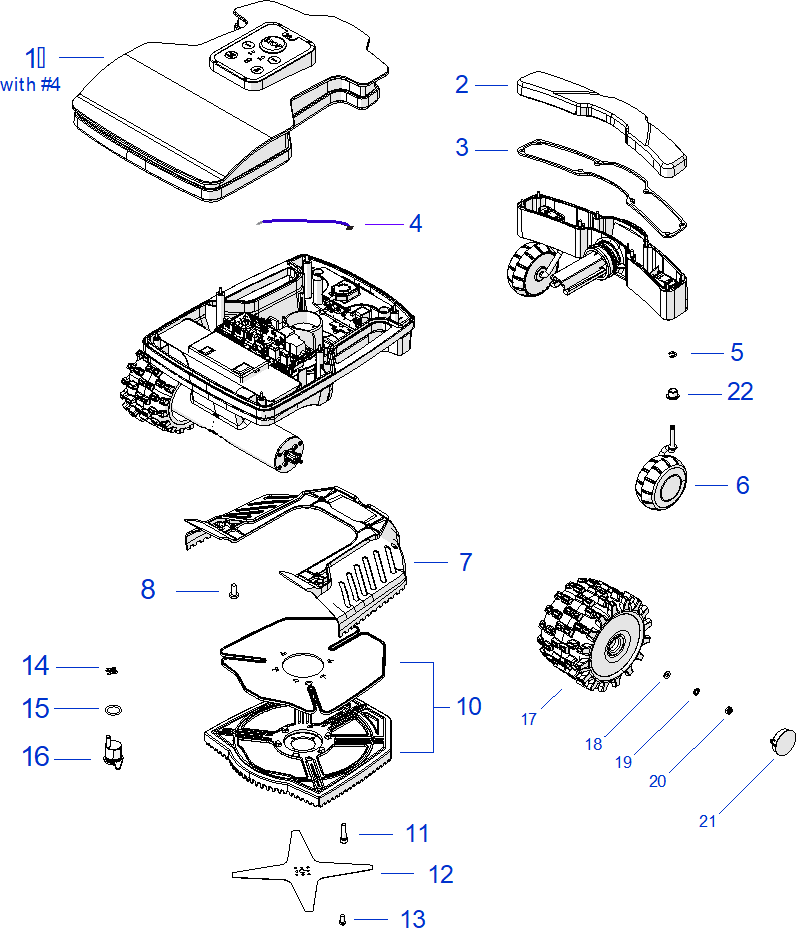

Spare Parts for 20-25 View 2

Quick link to the part:
-	-	-	-
1		Ref: L25Z07100A-R L25Z07100A_R Cover with Keyboard L25 L29	Price: £185.76 3 in stock ready to go	Qty:
2		Ref: L25Z03400A-R	Not found

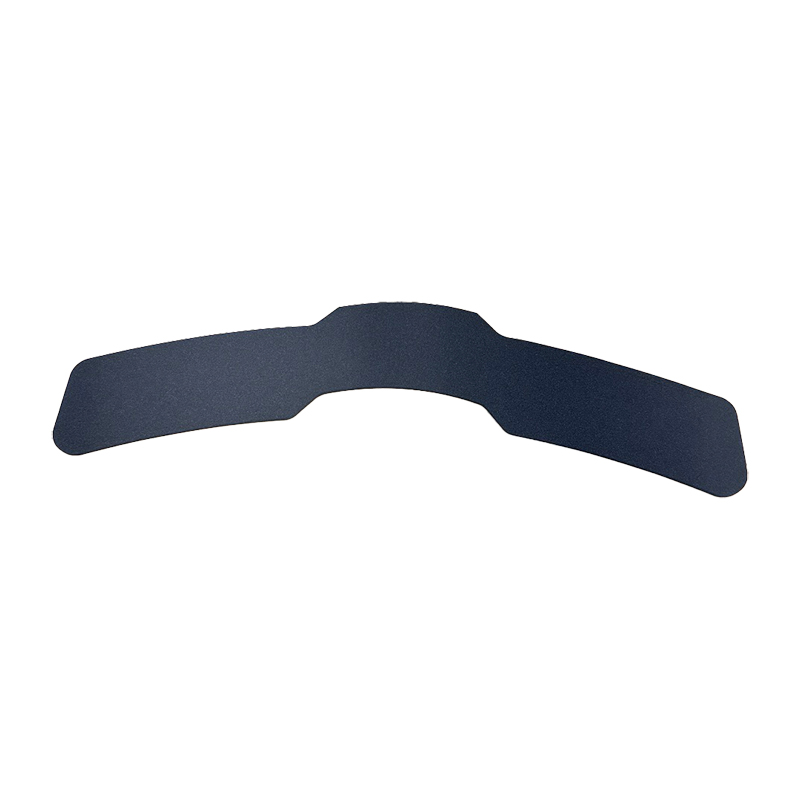

3		Ref: L25Z03500A Ambrogio Bumper gasket Guarnizione bumper L25Z03500A	Price: £2.16 4 in stock ready to go	Qty:
4		Ref: CB13-L400.1 Ambrogio Rain Sensor Cabling CB13_L400.1 (Cablaggio Sensorer Pioggia)	Price: £6.61 Special Order	Qty:
5		Ref: C02268 Ambrogio Seger C02268	Price: £2.40 8 in stock ready to go	Qty:
6		Ref: L25Z02200A-R L25Z02200A_R FRONT WHEEL LEFT	Price: £52.92 Special Order	Qty:
6		Ref: L25Z01900A-R L25Z01900A_R FRONT WHEEL RIGHT	Price: £52.92 Special Order	Qty:
7		Ref: L25Z08300A-R	Not found
8		Ref: C02584 Ambrogio Screw Vite C02584	Price: £3.36 Special Order	Qty:
9		Ref: L25Z03000B L25Z03000B Rubber Dust Cover Blade Protection L25 L29	Price: £18.00 1 in stock ready to go	Qty:
10		Ref: L25Z00400C-R L25Z00400C_R INNER BLADE PROTECTOR TWENTY 25	Price: £14.40 2 in stock ready to go	Qty:
11		Ref: C02222 Ambrogio Metric screw Vite metrica C02222	Price: £10.32 Special Order	Qty:
12		Ref: 075Z07800A-R-R	Not found
13		Ref: C02650 Ambrogio Screw Vite C02650	Price: £3.60 Special Order	Qty:
14		Ref: C01936 Ambrogio Seger C01936	Price: £9.84 Special Order	Qty:
15		Ref: C01440 Ambrogio Gasket Guarnizione C01440	Price: £2.52 Special Order	Qty:
16		Ref: L20Z06500A	Not found
17		Ref: L25Z01200A-R L25Z01200A_R Rear Wheel L25 L29	Price: £47.88 5 in stock ready to go	Qty:
18		Ref: C02349 Ambrogio Flat washer Rosetta C02349	Price: £2.64 Special Order	Qty:
19		Ref: C00128 Ambrogio Toothed washer Rosetta dentellata C00128	Price: £5.16 Special Order	Qty:
20		Ref: C02223 Ambrogio Nuts Dado C02223	Price: £3.96 Special Order	Qty:
21		Ref: 015Z06700A Ambrogio Wheel Cap 015Z06700A (Coperchio Ruote)	Price: £2.94 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

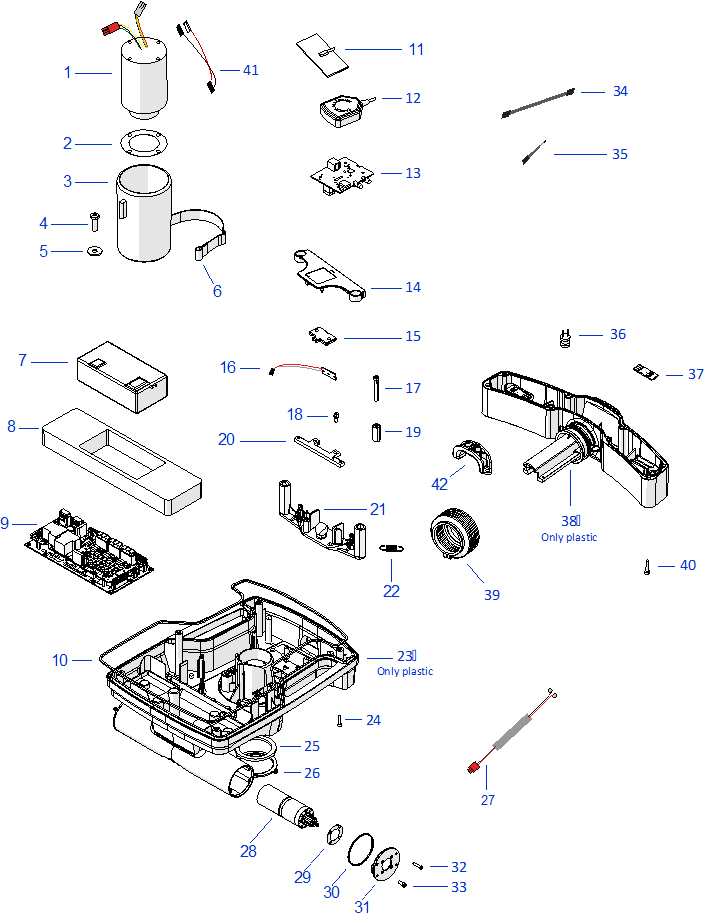

Spare Parts for 20-25 View 3

Quick link to the part:
-	-	-	-
1		Ref: C02362-25-R	Not found
2		Ref: 015Z13400A Ambrogio Gasket Guarnizione 015Z13400A	Price: £10.32 Special Order	Qty:
3		Ref: 015Z03600B-R	Not found
4		Ref: C00691 Ambrogio Screw Vite C00691	Price: £6.00 Special Order	Qty:
5		Ref: C00026 Ambrogio Washer Rondella C00026	Price: £2.52 Special Order	Qty:
6		Ref: 015Z07300B	Not found
7		Ref: 075Z60900A Zucchetti Ambrogio Battery 5.0Ah - L20 L60 Battery 5.0Ah (was 015E00600A)	Price: £239.00 3 in stock ready to go	Qty:
8		Ref: L25Z01300B	Not found
9		Ref: 015E00400A-R Ambrogio Motherboard 015E00400A_R (Scheda Madre)	Price: £585.00 Not in stock	Qty:

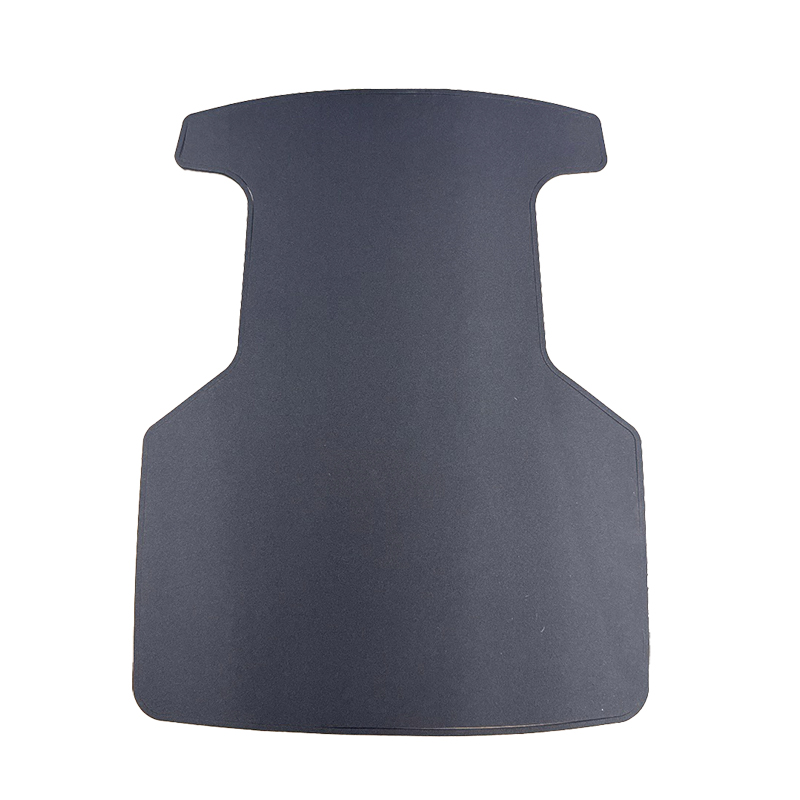

10		Ref: L25Z04000A Ambrogio Gasket Guarnizione L25Z04000A	Price: £3.90 3 in stock ready to go	Qty:
11		Ref: C02455 GSM antenna	Price: £11.64 Special Order	Qty:
12		Ref: 051Z54700A Ambrogio Gps Antenna 051Z54700A (Antenna Gps)	Price: £38.52 3 in stock ready to go	Qty:
13		Ref: 015E01300A Ambrogio Connect Module 4G 015E00800A (PCB only)	Price: £382.80 4 in stock ready to go	Qty:
14		Ref: L25Z04500A-R	Not found
15		Ref: L20Z06300A	Not found
16		Ref: CS-E0031-A Ambrogio Bump Board CS_E0031_A (Scheda Sensore Urto Con Cavo 33Cm)	Price: £24.60 3 in stock ready to go	Qty:
17		Ref: C02246 Ambrogio Screw Vite C02246	Price: £9.60 Special Order	Qty:
18		Ref: C02488 Ambrogio Screw Vite C02488	Price: £9.60 Special Order	Qty:
19		Ref: 015Z04300B Ambrogio Bumper Stop 015Z04300B (Battuta Bumper)	Price: £10.28 Special Order	Qty:
20		Ref: L25Z10003A	Not found
21		Ref: 015Z04600B Ambrogio Bump Group Support 015Z04600B (Supporto Gruppo Urto)	Price: £10.28 Special Order	Qty:
22		Ref: L25Z10004A	Not found
23		Ref: L25Z00300C-R	Not found
24		Ref: C02297 Ambrogio Screw Vite C02297	Price: £3.11 4 in stock ready to go	Qty:
25		Ref: L20Z06700B Ambrogio Gasket Guarnizione L20Z06700B	Price: £1.64 10+ in stock ready to go	Qty:
26		Ref: L25Z03600A	Not found
27		Ref: 025CB01.02	Not found

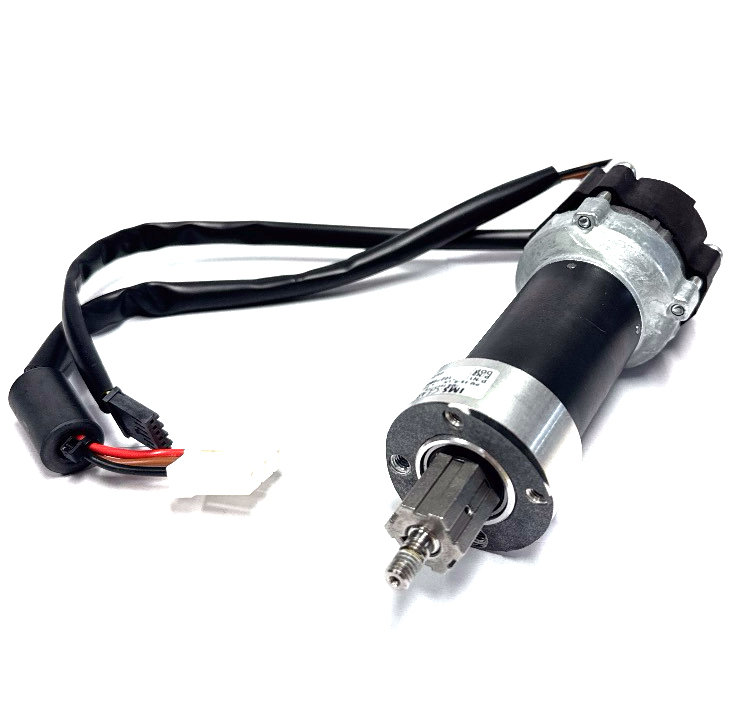

28		Ref: L25Z10026A-R L25Z10026A_R Ric Assmotore Ruota L25 Con Esagono	Price: £274.68 2 in stock ready to go	Qty:

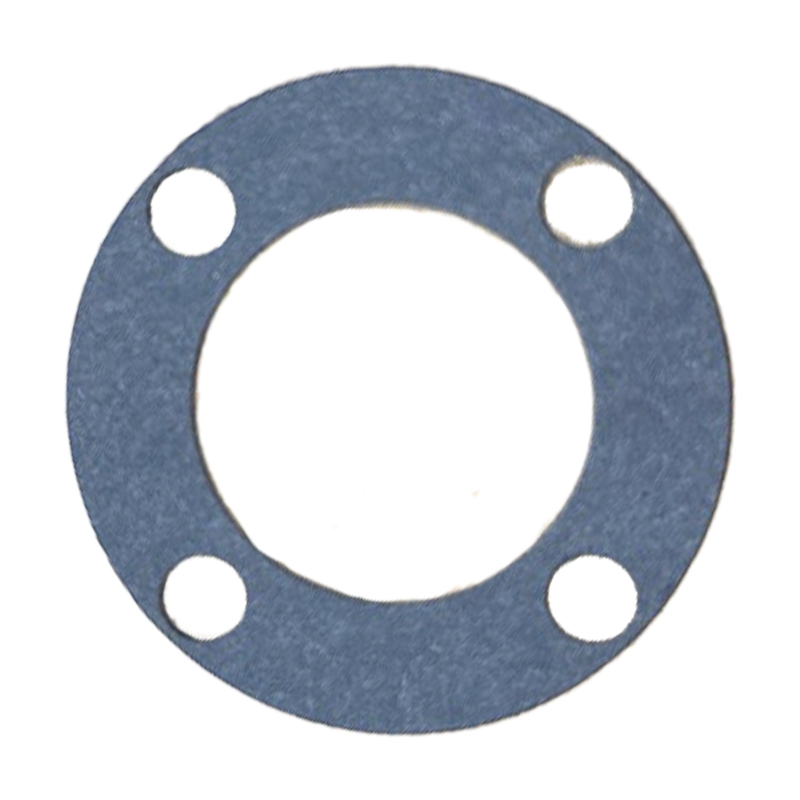

29		Ref: L25Z05700A Ambrogio Gasket Guarnizione L25Z05700A	Price: £1.76 -3 in stock ready to go	Qty:

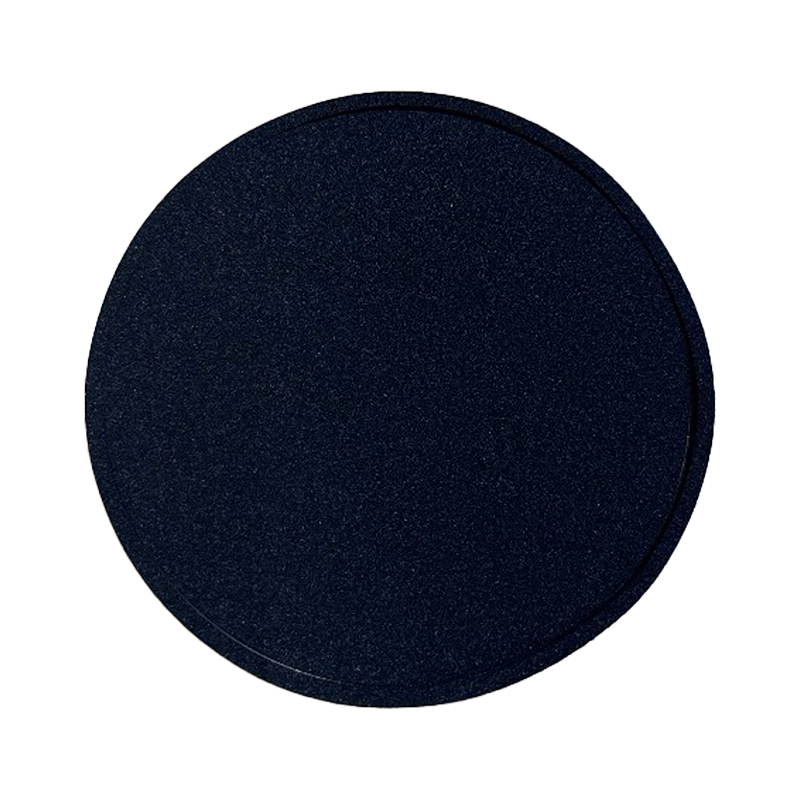

30		Ref: 015Z14800B Ambrogio Gasket Guarnizione 015Z14800B	Price: £2.02 10+ in stock ready to go	Qty:
31		Ref: L25Z04700A	Not found
32		Ref: C02272 Ambrogio Screw Vite C02272	Price: £5.16 Special Order	Qty:
33		Ref: C02552 Ambrogio Screw Vite C02552	Price: £10.32 Special Order	Qty:
34		Ref: CB09-CONNECT Ambrogio Wiring CB09_CONNECT (Cablaggio Scheda Connect V1)	Price: £8.57 2 in stock ready to go	Qty:
35		Ref: 110E01100A Ambrogio Can Termination Cable 110E01100A (Cablaggio Terminazione Can Cablaggio Bus Can Cb11_Terminatorecan.1)	Price: £6.00 6 in stock ready to go	Qty:
36		Ref: 051E01400A Coil	Price: £50.40 Special Order	Qty:
37		Ref: L25E00400A	Not found
38		Ref: L25Z06600A	Not found
39		Ref: L25Z07200A	Not found
40		Ref: C02394 Ambrogio Screw Vite C02394	Price: £9.96 Special Order	Qty:
41		Ref: 051CB04.01 Ambrogio Motor Cabling Adapter 051CB04.01 (Adattatore Cablaggio Motore)	Price: £23.64 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

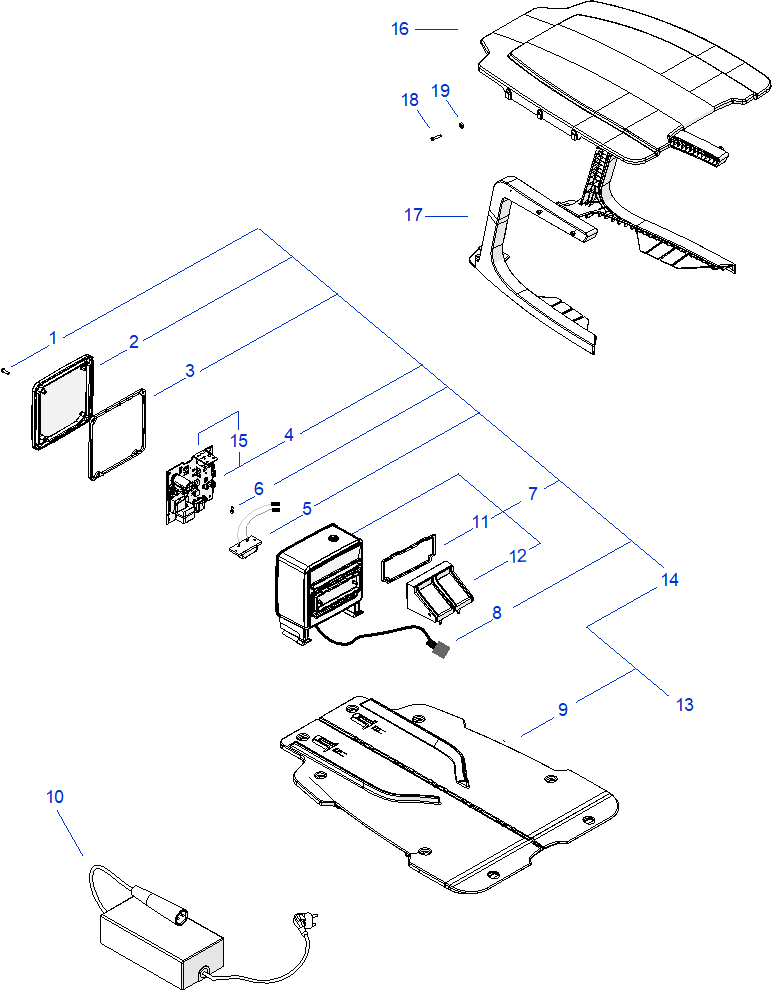

Spare Parts for 20-25 View 4

Quick link to the part:
-	-	-	-
1		Ref: C02188 Ambrogio Screw Vite C02188	Price: £1.44 10+ in stock ready to go	Qty:
2		Ref: 015Z08700A Ambrogio Turret Box 015Z08700A X	Price: £16.80 2 in stock ready to go	Qty:
3		Ref: 015Z08900A 015Z08900A Ambrogio Turret Gasket X	Price: £4.20 4 in stock ready to go	Qty:
4		Ref: 015E00700A-R Ambrogio Transmitter 015E00700A_R (Trasmettitore)	Price: £155.52 6 in stock ready to go	Qty:
5		Ref: A222522 Ambrogio Connector A222522 (Connettore Terminals 2 Poli Rohs Cod.10Ht021)	Price: £7.34 Special Order	Qty:
6		Ref: C00364 Ambrogio Screw Vite C00364	Price: £14.40 Special Order	Qty:
7		Ref: L20Z22559A-R	Not found
8		Ref: 042CHS01.04 Ambrogio Docking Station Wiring 042CHS01.04 (Cablaggio Base Ricarica)	Price: £48.24 1 in stock ready to go	Qty:
9		Ref: L25Z05500A-R L25Z05500A_R Base Floor	Price: £89.66 Not in stock	Qty:
10		Ref: C02311 Ambrogio Power Supply C02311 OWA60E30 (Alimentatore)	Price: £126.00 2 in stock ready to go	Qty:
11		Ref: L20Z04400A Ambrogio Gasket Guarnizione L20Z04400A	Price: £16.80 Special Order	Qty:
12		Ref: L20Z22549A	Not found
13		Ref: L25Z08800B-R	Not found
14		Ref: 015Z10400B-R 015Z10400B-R Transmitter Box Complete Twenty 20	Price: £242.40 2 in stock ready to go	Qty:
15		Ref: 015A00700A 015A00700A Primary Transmittor TX L15	Price: £12.56 Not in stock	Qty:
