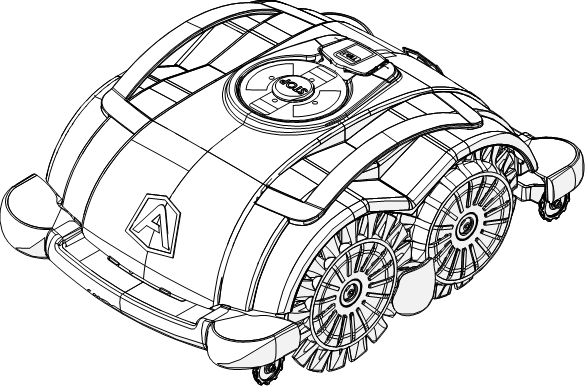

Zucchetti Ambrogio L60 Deluxe Spare Parts


Zucchetti Ambrogio L60 Deluxe Spare Parts
Zucchetti Ambrogio L60 Deluxe Spare Parts
Ambrogio L60 Deluxe - General Accessories
Ambrogio L60 Deluxe - General Accessories
Ambrogio L60 Deluxe - Body
Ambrogio L60 Deluxe - Body
Ambrogio L60 Deluxe - Battery & Motors
Ambrogio L60 Deluxe - Battery & Motors
Ambrogio L60 Deluxe - Electronics
Ambrogio L60 Deluxe - Electronics
Zucchetti Ambrogio L60 Deluxe Spare Parts

Zucchetti Ambrogio L60 Deluxe Spare Parts

MD-CO-RO-21 - Rev. 4.1 - 02/10/2017 - Ambrogio Robot L60

Current Revision 4.1
From 2017-12

Models Type Included
7060BA0 Ambrogio Robot L60 B

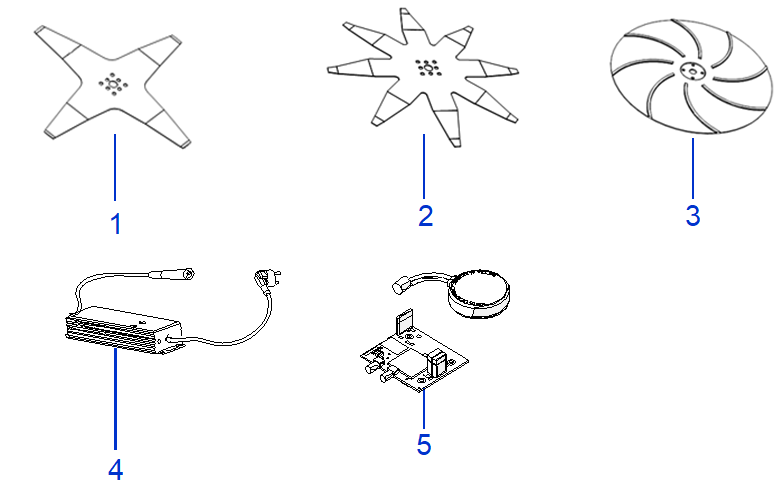

Spare Parts for Ambrogio L60 Deluxe - General Accessories

Ambrogio L60 Deluxe - General Accessories
--- -
1Ambrogio Standard Blade - 24cm 4 Knives Bent 50_D0018_02       (Lama Piegata A 4 Punte Di Taglio)Ref: 50-D0018-02
Ambrogio Standard Blade - 24cm 4 Knives Bent 50_D0018_02 (Lama Piegata A 4 Punte Di Taglio)
Price: £27.12
8 in stock ready to go
Qty:
2Ambrogio Standard Blade - 8 Knives Bent 050Z06000A       (Lama Piegata A 8 Punte Di Taglio)Ref: 050Z06000A
Ambrogio Standard Blade - 8 Knives Bent 050Z06000A (Lama Piegata A 8 Punte Di Taglio)
Price: £33.36
2 in stock ready to go
Qty:
3Ambrogio Cleaning Plate 50_D0056_00       (Disco Pulente Disco Pulisci Lama L50)Ref: 50-D0056-00
Ambrogio Cleaning Plate 50_D0056_00 (Disco Pulente Disco Pulisci Lama L50)
Price: £22.20
Special Order
Qty:
4Ambrogio Kit For Charging 50_E0011_00       (Kit Ricarica  Ricarica Linea 50 (Cb07_L50_V1))Ref: 50-E0011-00
Ambrogio Kit For Charging 50_E0011_00 (Kit Ricarica Ricarica Linea 50 (Cb07_L50_V1))
Price: £50.40
Special Order
Qty:
5Ambrogio Battery Charger 2.0Ah Caricabatteria  Owa-60 29.4V/2.1A 60WRef: OWA60E30
Ambrogio Battery Charger 2.0Ah Caricabatteria Owa-60 29.4V/2.1A 60W
Price: £127.20
Special Order
Qty:
6Ambrogio Cavo Programmazione AMBCAPROG       (Programming Cable Cavo Prog. Etflash)Ref: AMBCAPROG
Ambrogio Cavo Programmazione AMBCAPROG (Programming Cable Cavo Prog. Etflash)
Price: £22.56
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

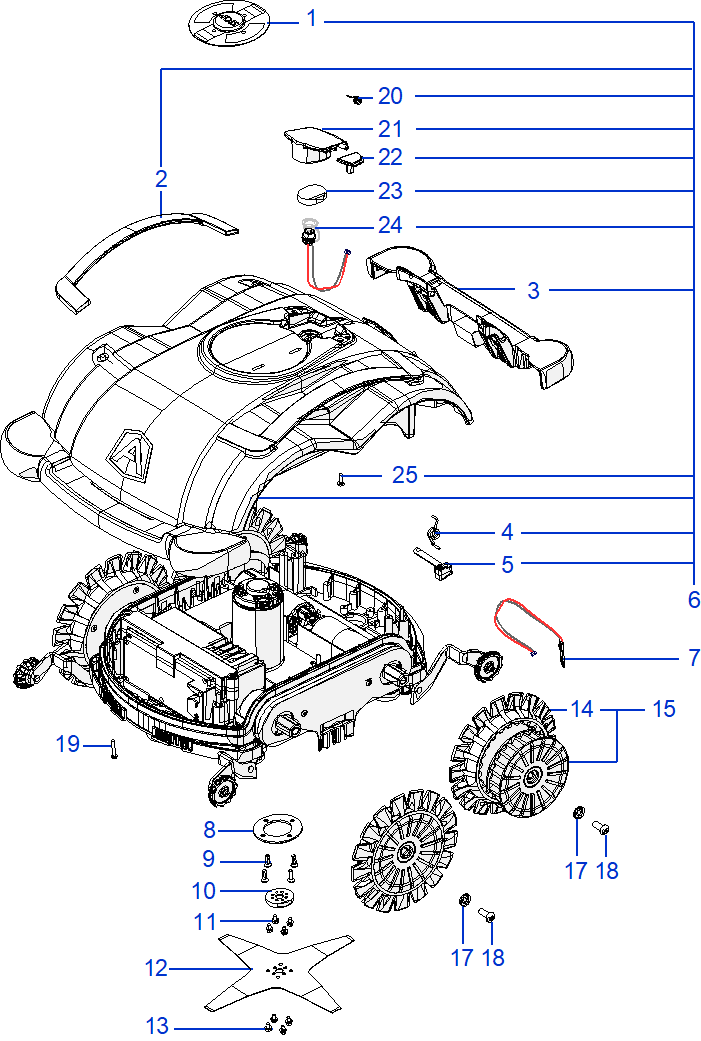

Spare Parts for Ambrogio L60 Deluxe - Body

Ambrogio L60 Deluxe - Body
--- -
1Ambrogio Button Assembly (On-Off-Start-Pause) 050Z27800A XRef: 050Z27800A
Ambrogio Button Assembly (On-Off-Start-Pause) 050Z27800A X
Price: £41.76
1 in stock ready to go
Qty:
2Ambrogio Lifting Handle 050Z02800A       (Maniglia Maniglia Lizard / Autoclip)Ref: 050Z02800A
Ambrogio Lifting Handle 050Z02800A (Maniglia Maniglia Lizard / Autoclip)
Price: £41.28
Special Order
Qty:
3Ambrogio Bumper 050Z32300A       (Paraurti Mob.L60 V17 Gri.7042)Ref: 050Z32300A
Ambrogio Bumper 050Z32300A (Paraurti Mob.L60 V17 Gri.7042)
Price: £35.04
Special Order
Qty:
4Ambrogio Spring Molla 050Z31200A (4 pack)Ref: 050Z31200A
Ambrogio Spring Molla 050Z31200A (4 pack)
Price: £3.07
Special Order
Qty:
5Ambrogio Support Staffa 050Z31300A (4 pack)Ref: 050Z31300A
Ambrogio Support Staffa 050Z31300A (4 pack)
Price: £7.34
Special Order
Qty:
6Ambrogio Cap Set 050Z28600BR       (Gruppo Calotta Ambrogio Linea 60 V17)Ref: 050Z28600BR
Ambrogio Cap Set 050Z28600BR (Gruppo Calotta Ambrogio Linea 60 V17)
Price: £186.00
Special Order
Qty:
7Ambrogio Hall Effect Sensor 050E00900A       (Sensore Effetto Hall Scheda Sensore Hall L60 Urto)Ref: 050E00900A
Ambrogio Hall Effect Sensor 050E00900A (Sensore Effetto Hall Scheda Sensore Hall L60 Urto)
Price: £18.48
Special Order
Qty:
8Ambrogio Motor Support 50_D0016_00       (Supporto Motore Piastra Esterna Motore Lama)Ref: 50-D0016-00
Ambrogio Motor Support 50_D0016_00 (Supporto Motore Piastra Esterna Motore Lama)
Price: £9.30
Special Order
Qty:
9Ambrogio Screw Vite C00041Ref: C00041
Ambrogio Screw Vite C00041
Price: £26.40
Special Order
Qty:
10Ambrogio Spacer 50_D0019_00       (Distanziale Distanziale Spessore Lama)Ref: 50-D0019-00
Ambrogio Spacer 50_D0019_00 (Distanziale Distanziale Spessore Lama)
Price: £17.88
3 in stock ready to go
Qty:
11Ambrogio Screw Vite C00212Ref: C00212
Ambrogio Screw Vite C00212
Price: £2.40
6 in stock ready to go
Qty:
12Ambrogio Standard Blade - 24cm 4 Knives Bent 50_D0018_02       (Lama Piegata A 4 Punte Di Taglio)Ref: 50-D0018-02
Ambrogio Standard Blade - 24cm 4 Knives Bent 50_D0018_02 (Lama Piegata A 4 Punte Di Taglio)
Price: £27.12
8 in stock ready to go
Qty:
13Ambrogio Screw Vite C00212Ref: C00212
Ambrogio Screw Vite C00212
Price: £2.40
6 in stock ready to go
Qty:
14Ambrogio Tire 050Z04800A       (176 - Copertone Copertone Ruota L50 Diam.176)Ref: 050Z04800A
Ambrogio Tire 050Z04800A (176 - Copertone Copertone Ruota L50 Diam.176)
Price: £18.48
Special Order
Qty:
15Ambrogio External Wheel Teeth 050Z05100A_G       (Denti Ruota Esterni Assieme Ruota L50 Dx - D176 (Grigia))Ref: 050Z05100A-G
Ambrogio External Wheel Teeth 050Z05100A_G (Denti Ruota Esterni Assieme Ruota L50 Dx - D176 (Grigia))
Price: £38.28
Special Order
Qty:
15Ambrogio Internal Wheel Teeth 050Z05000A_G       (Denti Ruota Interni Assieme Ruota L50 Sx - D176 (Grigia))Ref: 050Z05000A-G
Ambrogio Internal Wheel Teeth 050Z05000A_G (Denti Ruota Interni Assieme Ruota L50 Sx - D176 (Grigia))
Price: £38.28
Special Order
Qty:
16Ambrogio Charging Bolt 50_D0017_00       (Pomelli Ricarica Boccola Di Ricarica)Ref: 50-D0017-00
Ambrogio Charging Bolt 50_D0017_00 (Pomelli Ricarica Boccola Di Ricarica)
Price: £15.00
Special Order
Qty:
17Ambrogio Washer Rondella C00217Ref: C00217
Ambrogio Washer Rondella C00217
Price: £9.84
Special Order
Qty:
18Ambrogio Screw Vite C00161Ref: C00161
Ambrogio Screw Vite C00161
Price: £36.00
Special Order
Qty:
19Ambrogio Screw Vite C00580Ref: C00580
Ambrogio Screw Vite C00580
Price: £36.00
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

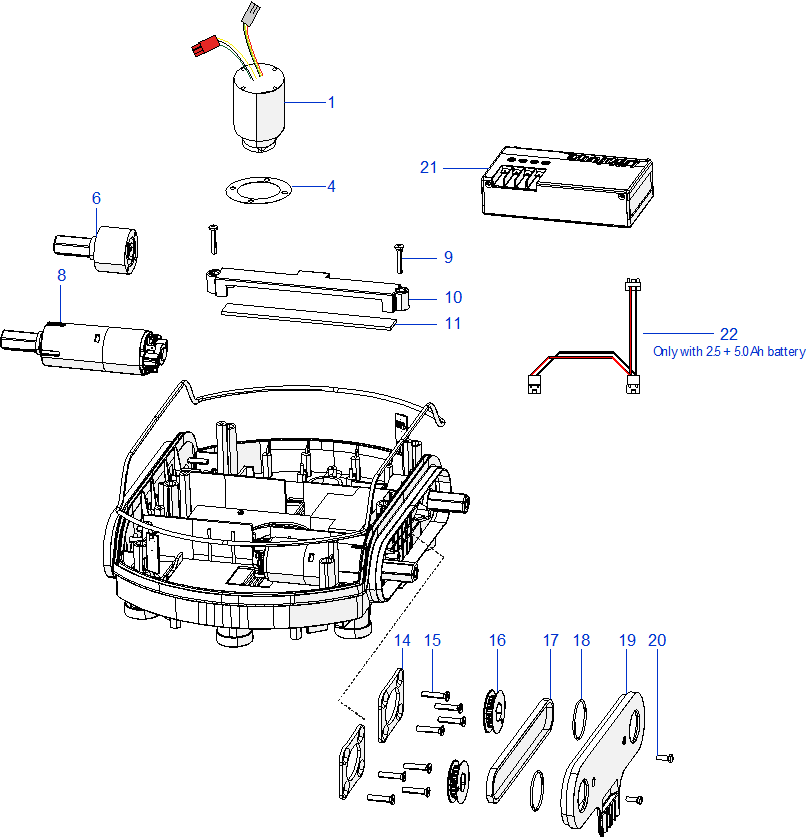

Spare Parts for Ambrogio L60 Deluxe - Battery & Motors

Ambrogio L60 Deluxe - Battery & Motors
--- -
1Ambrogio Cutting Motor CS_C0009/F       (Motore Di Taglio Motore Taglio 24V - M5930C)Ref: CS-C0009/F
Ambrogio Cutting Motor CS_C0009/F (Motore Di Taglio Motore Taglio 24V - M5930C)
Price: £189.60
Special Order
Qty:
2Ambrogio Blade Encoder 50_E0003_00       ((Fs) - Encoder Lama (Fs) Cabl.+Enc.(Corto) Motore Lama)Ref: 50-E0003-00
Ambrogio Blade Encoder 50_E0003_00 ((Fs) - Encoder Lama (Fs) Cabl.+Enc.(Corto) Motore Lama)
Price: £31.68
Special Order
Qty:
3CS_C0121_01    Ambrogio Brush / Housing     Kit Spazzole E Portaspazzole Taglio XRef: CS-C0121-01
CS_C0121_01 Ambrogio Brush / Housing Kit Spazzole E Portaspazzole Taglio X
Price: £35.76
2 in stock ready to go
Qty:
4Ambrogio Gasket 050Z06700A       (Guarnizione Per Motore Lama L50)Ref: 050Z06700A
Ambrogio Gasket 050Z06700A (Guarnizione Per Motore Lama L50)
Price: £24.36
Special Order
Qty:
5Ambrogio Spring 050Z04400A       (Molla Per Contatto Ricarica L50)Ref: 050Z04400A
Ambrogio Spring 050Z04400A (Molla Per Contatto Ricarica L50)
Price: £4.44
Special Order
Qty:
6Ambrogio Free Wheel Pin 50_A0002_00       ((Eu) - Perno Ruota Libero Perno Ruota Libero Eu)Ref: 50-A0002-00
Ambrogio Free Wheel Pin 50_A0002_00 ((Eu) - Perno Ruota Libero Perno Ruota Libero Eu)
Price: £63.24
Special Order
Qty:
7Ambrogio Brush 075_D0014       ((Fs) - Spazzola 11,5X5X5 M.R.Spa000000014)Ref: 075-D0014
Ambrogio Brush 075_D0014 ((Fs) - Spazzola 11,5X5X5 M.R.Spa000000014)
Price: £2.94
Special Order
Qty:
8Ambrogio L50 L60 Drive Motor Reducer 50_A0008_00  Clearance Sale XRef: 50-A0008-00
Ambrogio L50 L60 Drive Motor Reducer 50_A0008_00 Clearance Sale X
Price: £132.00
1 in stock ready to go
Qty:
9Ambrogio Screw Vite C00580Ref: C00580
Ambrogio Screw Vite C00580
Price: £36.00
Special Order
Qty:
10Ambrogio Battery Clamp 50_D0041_00       (Fissaggio Batteria Piastrina Bloccaggio Batteria)Ref: 50-D0041-00
Ambrogio Battery Clamp 50_D0041_00 (Fissaggio Batteria Piastrina Bloccaggio Batteria)
Price: £8.57
Special Order
Qty:
11Ambrogio Gasket Guarnizione 50-D0049-00Ref: 50-D0049-00
Ambrogio Gasket Guarnizione 50-D0049-00
Price: £13.20
Special Order
Qty:
12Ambrogio Spacer 050Z31700A       (Distanziale Modulo Per Staffa Batteria)Ref: 050Z31700A
Ambrogio Spacer 050Z31700A (Distanziale Modulo Per Staffa Batteria)
Price: £2.40
Special Order
Qty:
14Ambrogio Plate 50_D0003_00       (Piastra Piastrina Esterna)Ref: 50-D0003-00
Ambrogio Plate 50_D0003_00 (Piastra Piastrina Esterna)
Price: £6.85
Special Order
Qty:
15Ambrogio Screw Vite C00205Ref: C00205
Ambrogio Screw Vite C00205
Price: £26.40
Special Order
Qty:
16Ambrogio Pulley (Use Only With C00536) 050Z06300A.3       (Puleggia Z20 X Cinghia Optibelt Hp425)Ref: 050Z06300A.3
Ambrogio Pulley (Use Only With C00536) 050Z06300A.3 (Puleggia Z20 X Cinghia Optibelt Hp425)
Price: £11.02
Not in stock
Qty:
17Ambrogio Belt (Use Only With 050Z06300A.3) C00536       (Cinghia Omega Hp 425 5M Larg.6Mm Optibel)Ref: C00536
Ambrogio Belt (Use Only With 050Z06300A.3) C00536 (Cinghia Omega Hp 425 5M Larg.6Mm Optibel)
Price: £15.12
5 in stock ready to go
Qty:
18Ambrogio O-Ring  50-C0002-00   SINGLE ITEMRef: 50-C0002-00
Ambrogio O-Ring 50-C0002-00 SINGLE ITEM
Price: £2.40
10+ in stock ready to go
Qty:
19Ambrogio Carter 50_D0027_01       (Carter Con Bordo Maggiorato)Ref: 50-D0027-01
Ambrogio Carter 50_D0027_01 (Carter Con Bordo Maggiorato)
Price: £16.44
Special Order
Qty:
20Ambrogio Screw Vite C00210Ref: C00210
Ambrogio Screw Vite C00210
Price: £24.00
Special Order
Qty:
21Ref: 075Z01300A
Not found
22Ref: CS-C0106/1
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio L60 Deluxe - Electronics

Ambrogio L60 Deluxe - Electronics
--- -
1Ambrogio Body 50_D0021_00       (Scocca Inferiore Europa)Ref: 50-D0021-00
Ambrogio Body 50_D0021_00 (Scocca Inferiore Europa)
Price: £82.80
Special Order
Qty:
2Ambrogio Ring 050Z27500A       (Anello Anello Anti-Usura Sensore Erba L50)Ref: 050Z27500A
Ambrogio Ring 050Z27500A (Anello Anello Anti-Usura Sensore Erba L50)
Price: £22.08
Special Order
Qty:
3Ambrogio Gasket 050Z22800A       (Guarnizione 4Mm 1113Mm Silic.Lev 250)Ref: 050Z22800A
Ambrogio Gasket 050Z22800A (Guarnizione 4Mm 1113Mm Silic.Lev 250)
Price: £8.20
1 in stock ready to go
Qty:
4Ambrogio Grass Sensor 50_E0007_00       (Sensore Erba Scheda Sensori Antenna (Cv010560303))Ref: 50-E0007-00
Ambrogio Grass Sensor 50_E0007_00 (Sensore Erba Scheda Sensori Antenna (Cv010560303))
Price: £16.32
Special Order
Qty:
5Ambrogio Gasket Guarnizione 50-D0048-00Ref: 50-D0048-00
Ambrogio Gasket Guarnizione 50-D0048-00
Price: £9.60
Special Order
Qty:
6Ambrogio Gasket Guarnizione 50-D0047-00Ref: 50-D0047-00
Ambrogio Gasket Guarnizione 50-D0047-00
Price: £9.60
Special Order
Qty:
7Ambrogio Gasket 50_D0050_00       (Guarnizione Cn22 152X103 Sp2 A/2111)Ref: 50-D0050-00
Ambrogio Gasket 50_D0050_00 (Guarnizione Cn22 152X103 Sp2 A/2111)
Price: £2.57
Special Order
Qty:
8Ambrogio Fuse Fusibile A210540Ref: A210540
Ambrogio Fuse Fusibile A210540
Price: £13.20
Special Order
Qty:
9Ambrogio Fuse A210541       (Fusibile Fusibile F2F3 - 32V 20A Al32.20 Omega)Ref: A210541
Ambrogio Fuse A210541 (Fusibile Fusibile F2F3 - 32V 20A Al32.20 Omega)
Price: £13.08
Special Order
Qty:
10Ambrogio L60 Mother Board PCB 050E00700A Clearance Sale XRef: 050E00700A
Ambrogio L60 Mother Board PCB 050E00700A Clearance Sale X
Price: £240.00
2 in stock ready to go
Qty:
11Ambrogio Bluetooth Receiver 051E00400A       (Ricevitore Bluetooth  V.3)Ref: 051E00400A
Ambrogio Bluetooth Receiver 051E00400A (Ricevitore Bluetooth V.3)
Price: £141.60
Special Order
Qty:
12Ambrogio Screw Vite C00214Ref: C00214
Ambrogio Screw Vite C00214
Price: £36.00
Special Order
Qty:
13Ambrogio Recharging Wire  50_E0005_00       (Cavo Ricarica Cablaggio Ricarica Cb05_L50_V1)Ref: 50-E0005-00
Ambrogio Recharging Wire 50_E0005_00 (Cavo Ricarica Cablaggio Ricarica Cb05_L50_V1)
Price: £8.81
Special Order
Qty:
14Ambrogio Battery Wire  50_E0004_00       (Cavo Batteria Cablaggio Batteria Cb04_L50_V2)Ref: 50-E0004-00
Ambrogio Battery Wire 50_E0004_00 (Cavo Batteria Cablaggio Batteria Cb04_L50_V2)
Price: £8.04
Special Order
Qty:
15Ambrogio Wheel Motor Wire 50_E0010_00       (Cavo Motore Ruota Cablaggio Motore Ruota Cb02_L50_V1)Ref: 50-E0010-00
Ambrogio Wheel Motor Wire 50_E0010_00 (Cavo Motore Ruota Cablaggio Motore Ruota Cb02_L50_V1)
Price: £7.44
Special Order
Qty:
16Ambrogio Wire 50_E0006_00       (Cavo Cablaggio Sensori Cb01_L50_V2)Ref: 50-E0006-00
Ambrogio Wire 50_E0006_00 (Cavo Cablaggio Sensori Cb01_L50_V2)
Price: £11.75
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
