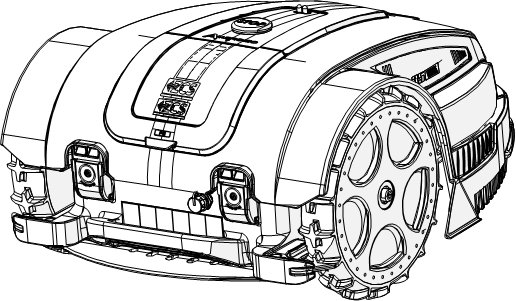

Name: Zucchetti Ambrogio L35 Spare Parts
Brand: Ambrogio

Spare Parts for Zucchetti Ambrogio L35 Spare Parts

Previous Revision 1.0 Current Revision 1.1
From: 2019-07
Models Type Included 9035DE0, L35 Deluxe

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

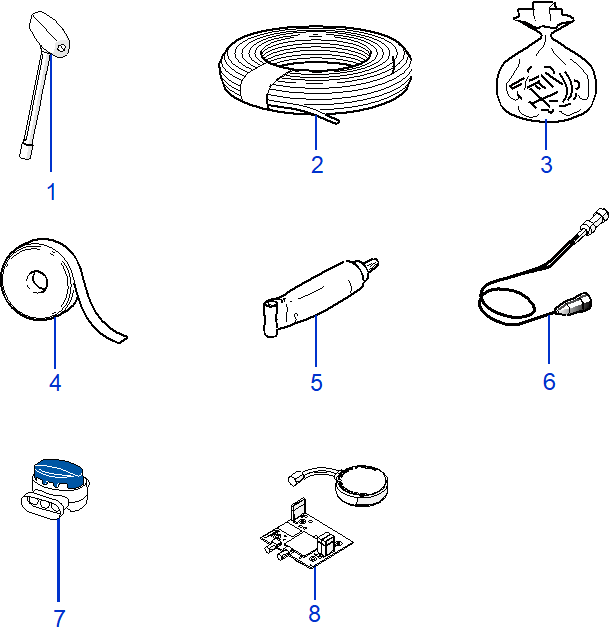

Spare Parts for Ambrogio L35 - General Accessories

Quick link to the part:
-	-	-	-
1		Ref: 051Z20600A Ambrogio Screwdriver 051Z20600A (Chiave Cacciavite Graduato (Grigio) L30)	Price: £14.28 Special Order	Qty:
2		Ref: 20032689-P Dynamow Premium Robot Mower Perimeter Wire 500m x 3.4mm - Made in Britain	Price: £240.00 10+ in stock ready to go	Qty:
2		Ref: 20012636-P Dynamow Premium Robot Mower Perimeter Wire 800m x 3.4mm - Made in Britain	Price: £370.00 10+ in stock ready to go	Qty:
2		Ref: 20052694-P Dynamow Premium Robot Mower Perimeter Wire 250m 3.8mm Extra Tough Break-Resist - Made in Britain	Price: £178.99 2 in stock ready to go	Qty:
2		Ref: 20012694-P Dynamow Premium Robot Mower Perimeter Wire 250m x 3.4mm - Made in Britain	Price: £120.00 10+ in stock ready to go	Qty:
2		Ref: 20052696-P	Not found
2		Ref: 20032688	Not found
2		Ref: 20052688	Not found
2		Ref: 20072694	Not found
2		Ref: 20082694	Not found
3		Ref: 200A00200A Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack (200Z22000B)	Price: £27.84 10+ in stock ready to go	Qty:
3		Ref: 200A00100A Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)	Price: £15.00 10+ in stock ready to go	Qty:
4		Ref: CS-C0111 Ambrogio Stretch Electrical Tape CS_C0111 (Nastro Agglomerante Autoagglomerante Filo Perimetrale)	Price: £32.88 Special Order	Qty:
5		Ref: CS-C0109 Ambrogio Grease CS_C0109 (Grasso Tubetto Grasso 200Gr)	Price: £26.04 Special Order	Qty:
6		Ref: CB01-RICEX Ambrogio External Recharge CB0_RICEX	Price: £34.08 1 in stock ready to go	Qty:
7		Ref: 200A00050 Ambrogio Connector 200A00050 (50 Pcs) - Connettore 3M Scotchlok 314	Price: £72.60 Special Order	Qty:
7		Ref: 200A00003 Connector	Price: £6.00 Special Order	Qty:
7		Ref: 200A00001 Ambrogio Connector 200A00001 SINGLE ITEM - Connettore 3M Scotchlok	Price: £1.75 10+ in stock ready to go	Qty:
8		Ref: 015E01300A-R Ambrogio Connect Module Kit 4G f015E01300A_R	Price: £407.64 3 in stock ready to go	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

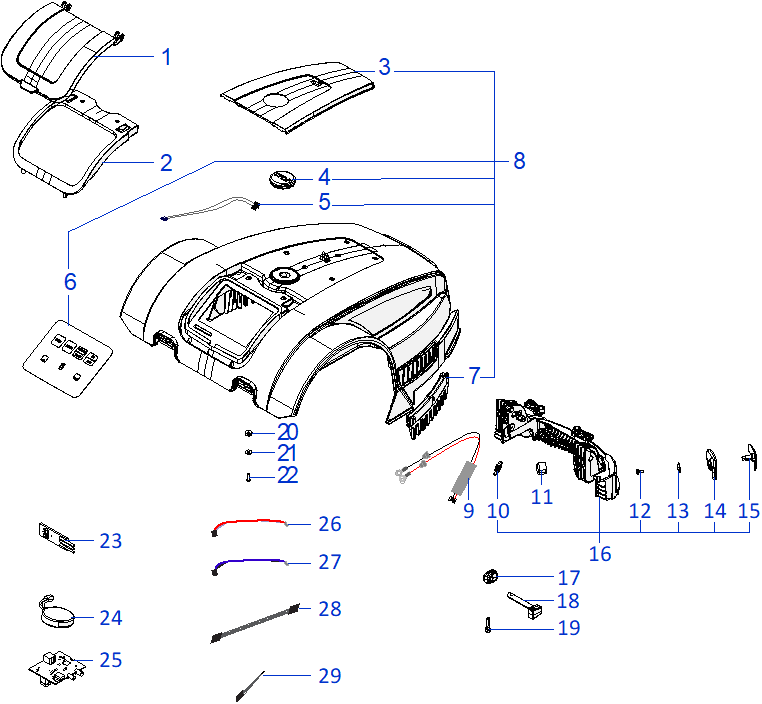

Spare Parts for Ambrogio L35 - Cover & Bumper

Quick link to the part:
-	-	-	-
1		Ref: 051Z47800A Ambrogio Keyboard Cover 051Z47800A (Cover Tastiera)	Price: £15.48 Special Order	Qty:
2		Ref: 051Z47600A Ambrogio Falp Support 051Z47600A (Supporto Sportellino)	Price: £8.69 Special Order	Qty:
3		Ref: 051Z47100A Ambrogio Cover Pad 051Z47100A (Tampografia Cover)	Price: £9.06 Special Order	Qty:
4		Ref: 110E01300A Stop key	Price: £38.76 Special Order	Qty:
5		Ref: CB010-L30 Ambrogio Rain Sensor Cabling CB010_L30 (Cabalggio Sensore Pioggia)	Price: £5.88 Special Order	Qty:
6		Ref: 051Z44400A Ambrogio Keyboard 051Z44400A (Tastiera)	Price: £41.16 Special Order	Qty:
7		Ref: 051Z16600A Ambrogio Protection 051Z16600A (Protezione Sx In Gomma)	Price: £4.28 Special Order	Qty:
7		Ref: 051Z16500A Ambrogio Protection 051Z16500A (Protezione Dx In Gomma)	Price: £4.28 Special Order	Qty:
8		Ref: 035A200005-R	Not found
9		Ref: 051CB01.02 Ambrogio Recharging Cable 051CB01.02 (Cablaggio Ricarica)	Price: £8.81 Special Order	Qty:
10		Ref: 051Z49100A Ambrogio Spring 051Z49100A (Molla)	Price: £2.57 Special Order	Qty:
11		Ref: C02182 Ambrogio Sfot cap Tappo morbido C02182	Price: £10.80 Special Order	Qty:
12		Ref: C01320 Ambrogio Screw Vite C01320	Price: £38.40 Special Order	Qty:

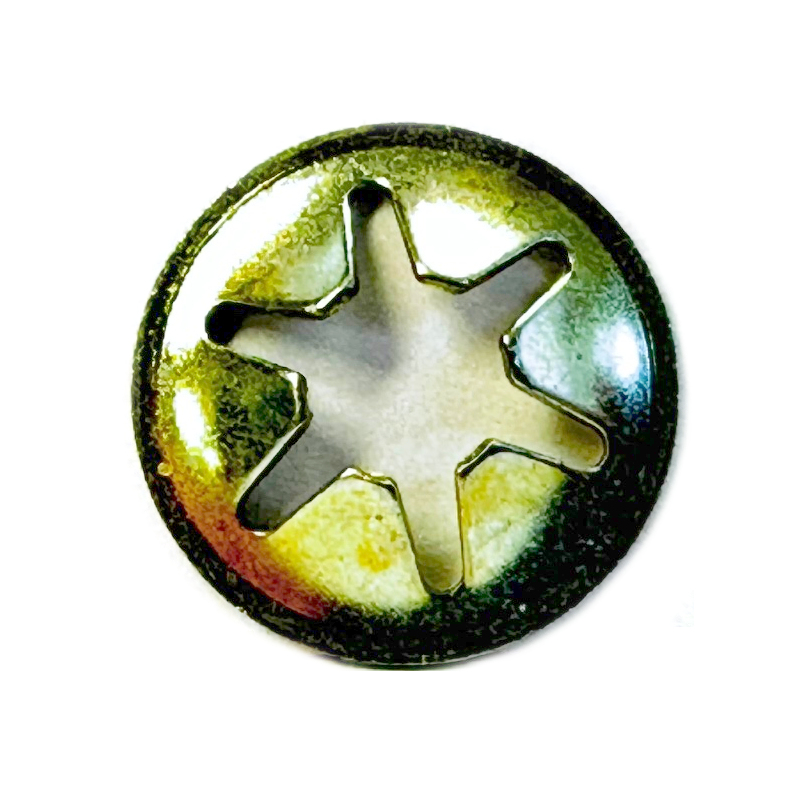

13		Ref: C02318 Ambrogio Ring Anello C02318	Price: £2.51 3 in stock ready to go	Qty:
14		Ref: 051Z27100A Ambrogio Support 051Z27100A (Supporto Supporto Placca Ricarica Gwt 850)	Price: £2.57 Special Order	Qty:
15		Ref: 051D18001 Ambrogio Charging Contact 051D18001 (Contatto Ricarica Kit Placca Di Ricarica L30 Stampata)	Price: £27.00 Special Order	Qty:
16		Ref: 051Z46900A Ambrogio Bump Group 051Z46900A (Gruppo Urto)	Price: £66.84 Special Order	Qty:
17		Ref: 050Z31400A Ambrogio Bumper Stop 050Z31400A (Battuta Bumper)	Price: £15.48 Special Order	Qty:
18		Ref: 050Z31300A Ambrogio Support Staffa 050Z31300A (4 pack)	Price: £7.34 Special Order	Qty:
19		Ref: C01269 Ambrogio Screw Vite C01269	Price: £16.20 Special Order	Qty:
20		Ref: 051Z20100A Gasket	Price: £10.32 Special Order	Qty:
21		Ref: C02161 Ambrogio Washer Rosetta piana C02161	Price: £9.00 Special Order	Qty:
22		Ref: C01627 Ambrogio Screw Vite C01627	Price: £6.24 Special Order	Qty:
23		Ref: 075E00700A Ambrogio Bump Sensor 075E00700A (Scheda Urto Scheda Bump L85 (Spm_Bump_V01) Cm65)	Price: £15.48 Special Order	Qty:
24a		Ref: C02455 GSM antenna	Price: £11.64 Special Order	Qty:
24b		Ref: 051Z54700A Ambrogio Gps Antenna 051Z54700A (Antenna Gps)	Price: £38.52 3 in stock ready to go	Qty:
25		Ref: 015E01300A Ambrogio Connect Module 4G 015E00800A (PCB only)	Price: £382.80 4 in stock ready to go	Qty:
26		Ref: 042CB03.02 Ambrogio Stop Cabling 042CB03.02 (Cablaggio Stop)	Price: £20.88 Special Order	Qty:
27		Ref: 051CB03.01 Ambrogio Rain Cable Extension 051CB03.01 (Prolunga Cabalggio Pioggia)	Price: £5.51 Special Order	Qty:
28		Ref: 051CB02.01 Ambrogio Canbus Cable 051CB02.01 (Cabalggio Canbus)	Price: £6.85 Special Order	Qty:
29		Ref: 110E01100A Ambrogio Can Termination Cable 110E01100A (Cablaggio Terminazione Can Cablaggio Bus Can Cb11_Terminatorecan.1)	Price: £6.00 6 in stock ready to go	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

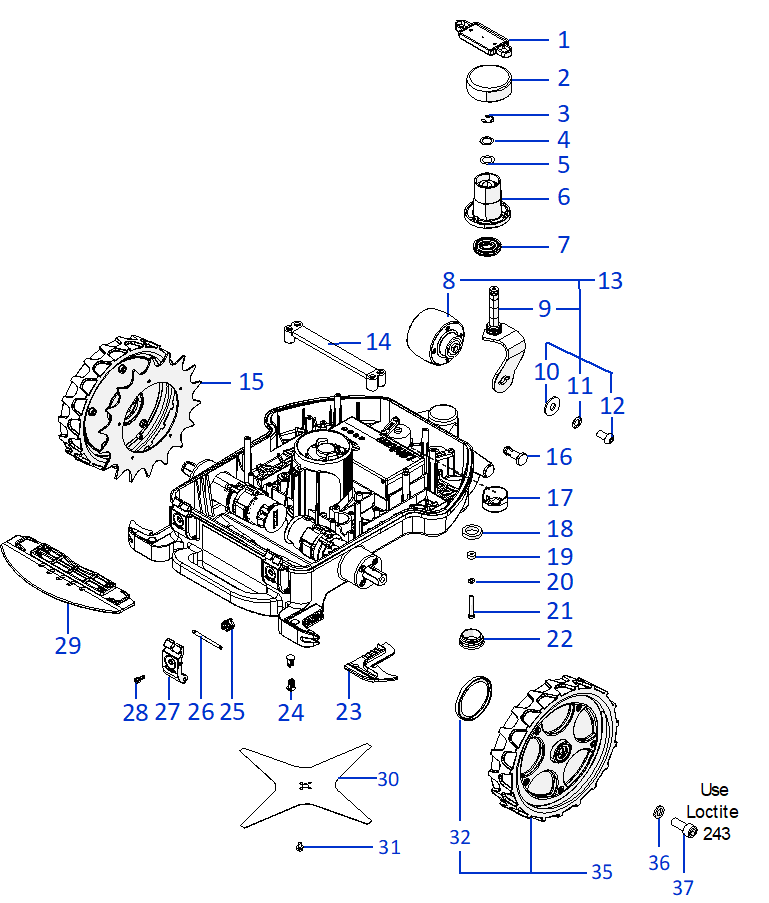

Spare Parts for Ambrogio L35 - Wheel & Blade Assembly

Quick link to the part:
-	-	-	-
1		Ref: 051Z49900A Ambrogio Baord Lift 051Z49900A (Scheda Lift)	Price: £20.52 Special Order	Qty:
2		Ref: C01491 Ambrogio Cover C01491 (Copertura Cappuccio Terminali Corto Rosso L30)	Price: £2.57 Special Order	Qty:
3		Ref: CS-C0030 Ambrogio Seger CS-C0030 - SINGLE ITEM	Price: £1.56 10+ in stock ready to go	Qty:
4		Ref: C02049 Ambrogio Washer Rondella C02049	Price: £4.32 7 in stock ready to go	Qty:
5		Ref: C00616 Ambrogio Washer Rondella C00616 Single Item	Price: £4.32 10+ in stock ready to go	Qty:
6		Ref: 051Z31000A Ambrogio Shaft Guide 051Z31000A (Guida Albero Supporto Ruota L30 Ant.Boccole Inserite)	Price: £15.84 2 in stock ready to go	Qty:
7		Ref: 110Z43500A Ambrogio Bellows 110Z43500A (Soffietto Per Lift Con Labbro Interno)	Price: £4.04 Not in stock	Qty:
8		Ref: 075Z03700A Ambrogio Front Wheel 075Z03700A (Ruota Anteriore Assieme Ruota Diam.75 Con Magneti)	Price: £34.20 Special Order	Qty:
9		Ref: 051Z34300A Ambrogio Wheel Shaft 051Z34300A (Albero Ruota Assieme Braccetto Ruota Con Magnete)	Price: £16.56 Special Order	Qty:
10		Ref: C00361 Ambrogio Washer Rondella C00361 (8 pack)	Price: £8.16 Special Order	Qty:
11		Ref: C00360 Ambrogio Toothed Washer Rondella Dentata C00360 (8 pack)	Price: £8.16 Special Order	Qty:
12		Ref: C00678 Ambrogio Screw Vite C00678 (C02218)	Price: £13.44 10+ in stock ready to go	Qty:
13		Ref: 051Z29500A Ambrogio Front Wheel Group 051Z29500A (Gruppo Ruota Posteriore)	Price: £48.84 Special Order	Qty:
14		Ref: 051Z14700A Ambrogio Battery Bracket 051Z14700A (Staffa Batteria Staffa Fermo Batteria L30)	Price: £8.57 Special Order	Qty:
15		Ref: 051Z50900A Ambrogio Spike 051Z50900A (Artiglio)	Price: £36.00 Special Order	Qty:
16		Ref: 051Z08700B Ambrogio Pivot 051Z08700B (Perno Perno Di Fissaggio Scocche)	Price: £4.52 Special Order	Qty:
17		Ref: 051E01500A Ambrogio Motion Sensor 051E01500A (Sensore Moviemnto)	Price: £41.16 Special Order	Qty:
18		Ref: 051Z20000A Ambrogio Gasket Guarnizione 051Z20000A	Price: £15.60 Special Order	Qty:
19		Ref: 051Z20100A Gasket	Price: £10.32 Special Order	Qty:
20		Ref: C00070 Ambrogio Washer Rondella C00070	Price: £2.52 Special Order	Qty:
21		Ref: C00610 Ambrogio Screw Vite C00610	Price: £7.68 Special Order	Qty:
22		Ref: C02300 Ambrogio Lateral closure cap Tappo chiusura laterale C02300	Price: £9.00 Special Order	Qty:
23		Ref: 051Z52800A Ambrogio Wheel cleaner Pulisci ruota 051Z52800A	Price: £24.00 Special Order	Qty:
24		Ref: C01240 Ambrogio Clips Clips C01240 (8 pack)	Price: £5.47 Special Order	Qty:
25		Ref: C01185 Ambrogio Spring Molla C01185	Price: £10.56 Special Order	Qty:
26		Ref: 051Z01000A Ambrogio Pin 051Z01000A (Perno Perno Chiusura)	Price: £2.40 Special Order	Qty:
27		Ref: C01240 Ambrogio Clips Clips C01240 (8 pack)	Price: £5.47 Special Order	Qty:
28		Ref: C00087 Ambrogio Screw Vite C00087	Price: £2.52 Special Order	Qty:
29		Ref: 051Z28200A Ambrogio Protection 051Z28200A (Protezione Scivolo Posteriore Nor.60335)	Price: £7.96 Special Order	Qty:
30		Ref: 075Z07800A-R Ambrogio Standard Blade - 25cm 4 Knives Flat 075Z07800A (Lama Piana A 4 Punte Di Taglio)	Price: £28.08 10+ in stock ready to go	Qty:
31		Ref: A850460 Ambrogio Screw Vite A850460	Price: £26.40 Special Order	Qty:
32		Ref: VCW50625 Ambrogio Oring VCW50625 (Oring Anello Guarnizione Vc-W50-62-5)	Price: £10.03 Special Order	Qty:
35		Ref: 051Z52700A Ambrogio Flex Rubber Wheel 051Z52700A X	Price: £67.44 2 in stock ready to go	Qty:
36		Ref: C00217 Ambrogio Washer Rondella C00217	Price: £9.84 Special Order	Qty:
37		Ref: C01518 Ambrogio Screw Vite C01518	Price: £13.44 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

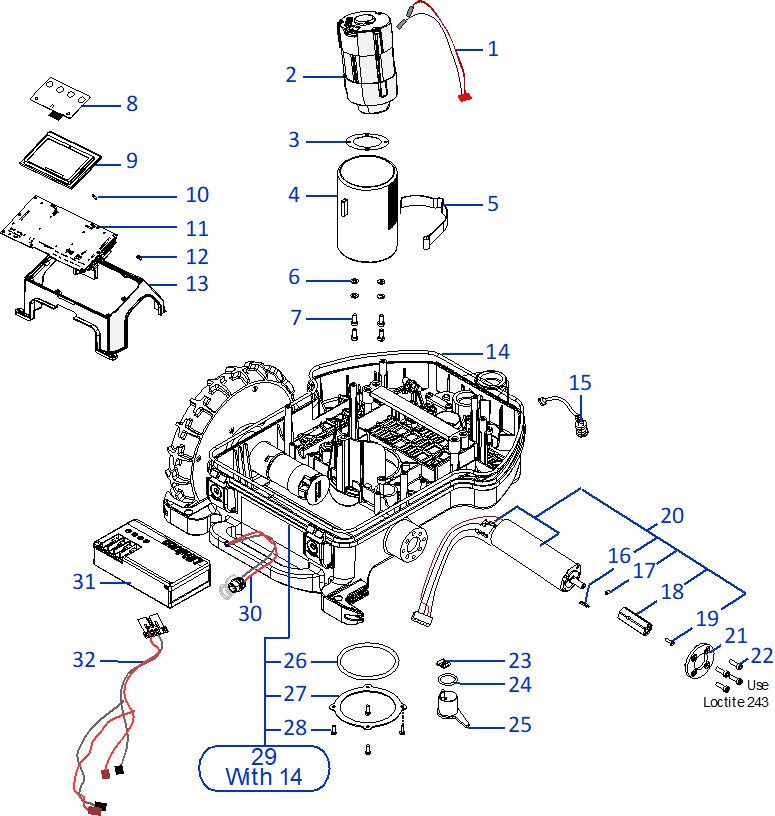

Spare Parts for Ambrogio L35 - Electronics

Quick link to the part:
-	-	-	-
1		Ref: 051CB04.01 Ambrogio Motor Cabling Adapter 051CB04.01 (Adattatore Cablaggio Motore)	Price: £23.64 Special Order	Qty:
1		Ref: CB01BL0035 Ambrogio Blade Motor Cable CB01BL0035 (Cabalggio Motore Lama)	Price: £23.64 Special Order	Qty:
2		Ref: 051A00010A Ambrogio Motore lama (no cablaggio) - Blade Motor L32 L35 (was 051z29100A C02362 110A00030A)	Price: £228.72 1 in stock ready to go	Qty:
2		Ref: C02193 Blade motor (no cable)	Price: £302.40 Special Order	Qty:
3		Ref: 051Z15700B Ambrogio Gasket Guarnizione 051Z15700B (single)	Price: £5.40 5 in stock ready to go	Qty:
4		Ref: 200Z18500A Ambrogio Motor Support 200Z18500A (Supporto Motore Contenitore Lama)	Price: £16.92 Special Order	Qty:
5		Ref: 110Z29100A Ambrogio Elastic Plate 110Z29100A (Piastra Elastica Molla Freno Allungata Per Guarnizione)	Price: £51.36 Special Order	Qty:
6		Ref: C00016 Ambrogio Washer Rondella C00016 (100 pack)	Price: £13.20 Special Order	Qty:
7		Ref: C00035 Ambrogio Screw Vite C00035	Price: £38.40 Special Order	Qty:
8		Ref: 051E01300A Ambrogio Actuator Board 051E01300A (Scheda Attuatore)	Price: £41.16 Special Order	Qty:
9		Ref: 051Z44600A Ambrogio Actuator Board Support 051Z44600A (Supporto Scheda Attuatore)	Price: £9.06 Special Order	Qty:
10		Ref: C01001 Ambrogio Screw Vite C01001	Price: £9.00 Special Order	Qty:
11		Ref: 015E00400A Motherboard	Price: £573.48 Special Order	Qty:
12		Ref: C00690 Ambrogio Screw Vite C00690	Price: £7.44 Special Order	Qty:
13		Ref: 051Z45200A Ambrogio Motherboard Support 051Z45200A (Supporto Scheda Madre)	Price: £10.52 Special Order	Qty:
14		Ref: 051Z29100A Ambrogio Gasket 051Z29100A (Guarnizione Scocca Inf L30 Ricambio V16)	Price: £10.52 Special Order	Qty:
15		Ref: 051Z51600A Ambrogio Coil 051Z51600A (Bobina)	Price: £51.36 Special Order	Qty:
16		Ref: C00752 Ambrogio Key Chiavetta C00752 - SINGLE	Price: £1.44 10+ in stock ready to go	Qty:
17		Ref: C00343 Ambrogio Grain Grano C00343	Price: £3.96 Special Order	Qty:
18		Ref: 075Z10900A Ambrogio Hexagon 075Z10900A (Esagono Maschio L75 Motore Ims)	Price: £8.45 Special Order	Qty:
19		Ref: C00364 Ambrogio Screw Vite C00364	Price: £14.40 Special Order	Qty:
20		Ref: 051Z50400A Ambrogio Wheel Motor 051Z50400A (Motore Ruota)	Price: £244.20 Special Order	Qty:
21		Ref: 075Z06900A Ambrogio Wheel Support 075Z06900A (Supporto Ruota Rondella Tenuta Motori Ruota)	Price: £13.20 Special Order	Qty:
22		Ref: C01317 Ambrogio Screw Vite C01317	Price: £26.40 Special Order	Qty:
23		Ref: C01936 Ambrogio Seger C01936	Price: £9.84 Special Order	Qty:
24		Ref: C01440 Ambrogio Gasket Guarnizione C01440	Price: £2.52 Special Order	Qty:
25		Ref: 051Z00700A2 Ambrogio Fixing Plate 051Z00700A2 (Piastra Fissaggio Eccentrico Blocco Lama) X	Price: £13.68 2 in stock ready to go	Qty:
26		Ref: 051Z21900B Ambrogio Gasket 051Z21900B (Guarnizione Per Motore Lama L30)	Price: £2.57 Special Order	Qty:
27		Ref: 051Z24600B Ambrogio Plate 051Z24600B (Piastra Ghiera Per Tenuta Guarnizione L30)	Price: £7.96 Special Order	Qty:
28		Ref: C00208 Ambrogio Screw Vite C00208	Price: £24.00 Special Order	Qty:
29		Ref: 051A23500A Ambrogio Body 051A23500A (Scocca Inferiore L30(Pp) V17+Ghiera)	Price: £110.52 Special Order	Qty:
30		Ref: CB07-L2RICEXT Ambrogio Wiring CB07_L2RICEXT (Cablaggio Ricarica Esterna L250R)	Price: £25.32 Special Order	Qty:

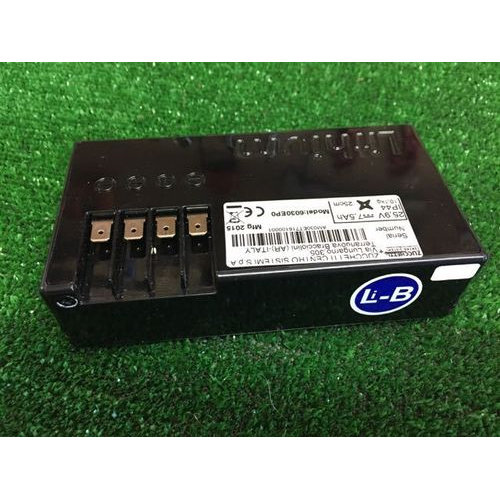

31		Ref: 075Z01300A	Not found
32		Ref: CB01-ALIM Ambrogio Cabling Cpu-Battery CB01_ALIM (Cpu-Batteria Cablaggio Alimentazione L200/4000 (V4))	Price: £14.16 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

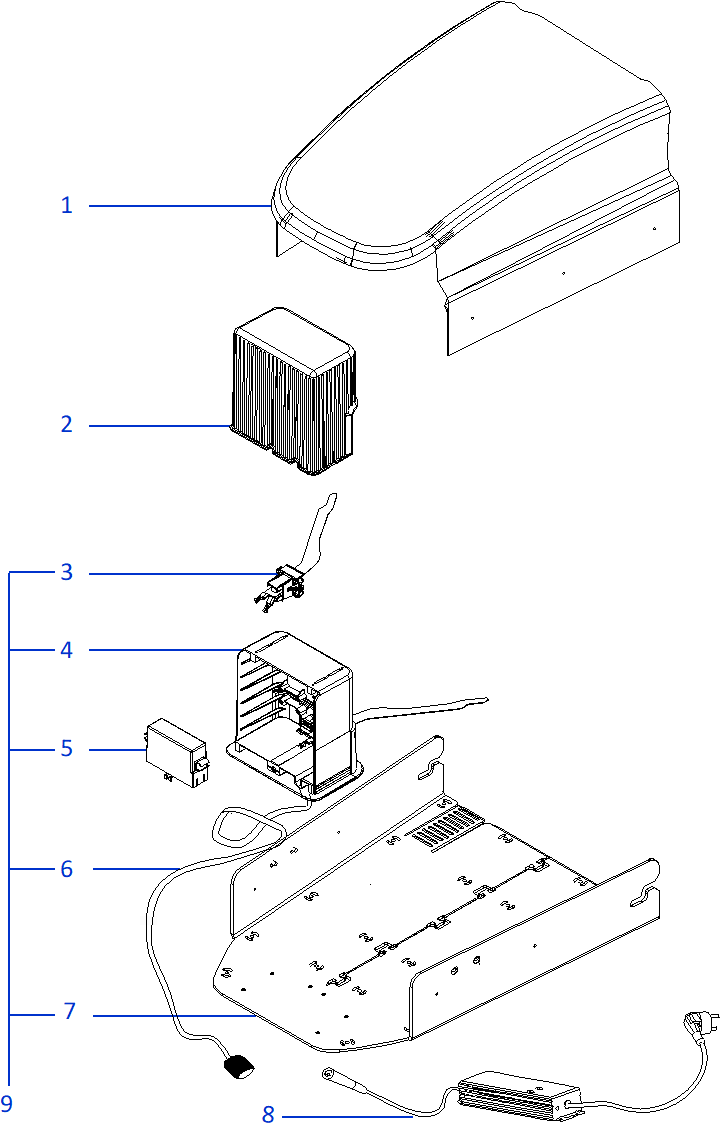

Spare Parts for Ambrogio L35 - Base Station

Quick link to the part:
-	-	-	-
1		Ref: 051A00050A Ambrogio Garage Cover 051A00050A (Copertura Garage Assieme L30 Nero Lucido)	Price: £126.00 Special Order	Qty:
2		Ref: 051D0085 Ambrogio Cover 051D0085 (Copertura Montante Ric.Rosso)	Price: £24.84 Special Order	Qty:
2		Ref: 051Z03800B Ambrogio Cover 051Z03800B (Copertura Copertura Montante Di Ricarica)	Price: £24.84 Special Order	Qty:
3		Ref: 051Z52101A Ambrogio Recharging Plate Group Left 051Z52101A (Gruppo Lama Ricarica Sinistra)	Price: £43.68 Special Order	Qty:
3		Ref: 051Z52100A Ambrogio Recharging Plate Group Right 051Z52100A (Gruppo Lama Ricarica Destra)	Price: £43.68 Special Order	Qty:
4		Ref: 051Z03700B Ambrogio Support 051Z03700B (Supporto Montante Base Ricarica L30)	Price: £20.76 Special Order	Qty:
5		Ref: 051Z32500A Ambrogio Transmitter 051Z32500A ((Tx-C1) Trasmettitore Trasmettitore Tx/C1 Senza Bluetooth)	Price: £141.36 Special Order	Qty:
6		Ref: CB01-23S2 Ambrogio Recharging Supply Cable CB01_23S2 (Cavo Alimentazione Ricarica )	Price: £47.64 3 in stock ready to go	Qty:
7		Ref: 051Z02100A Ambrogio Base 051Z02100A (Base Pianale Di Ricarica Linea 30)	Price: £68.40 Special Order	Qty:
8		Ref: OWA60E30 Ambrogio Battery Charger 2.0Ah Caricabatteria Owa-60 29.4V/2.1A 60W	Price: £127.20 Special Order	Qty:
9		Ref: 051Z52200A Ambrogio Complete Station (Black) 051Z52200A (Base Completa (Nera))	Price: £347.04 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
