Zucchetti Ambrogio L250 Spare Sparts


Zucchetti Ambrogio L250 Spare Parts
Zucchetti Ambrogio L250 Spare Parts
Ambrogio L250 - General Accessories
Ambrogio L250 - General Accessories
Ambrogio L250 - Wheels & Blade Assembly
Ambrogio L250 - Wheels & Blade Assembly
Ambrogio L250 - Main Body & Battery
Ambrogio L250 - Main Body & Battery

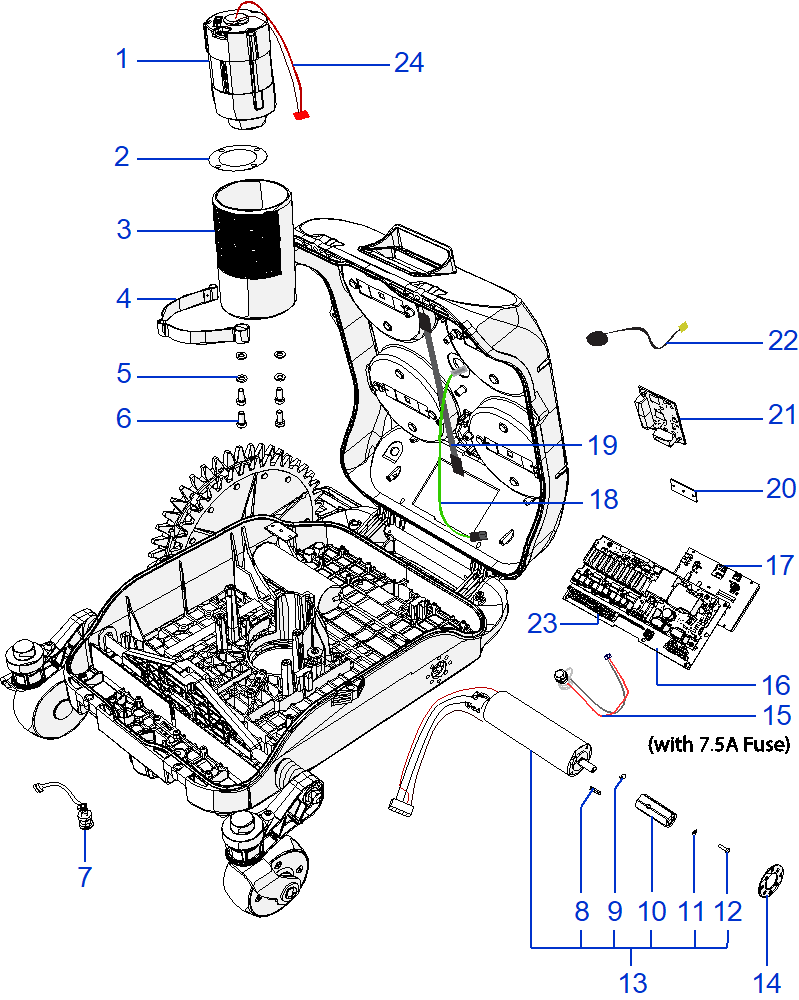

Ambrogio L250 - Electronics
Ambrogio L250 - Electronics

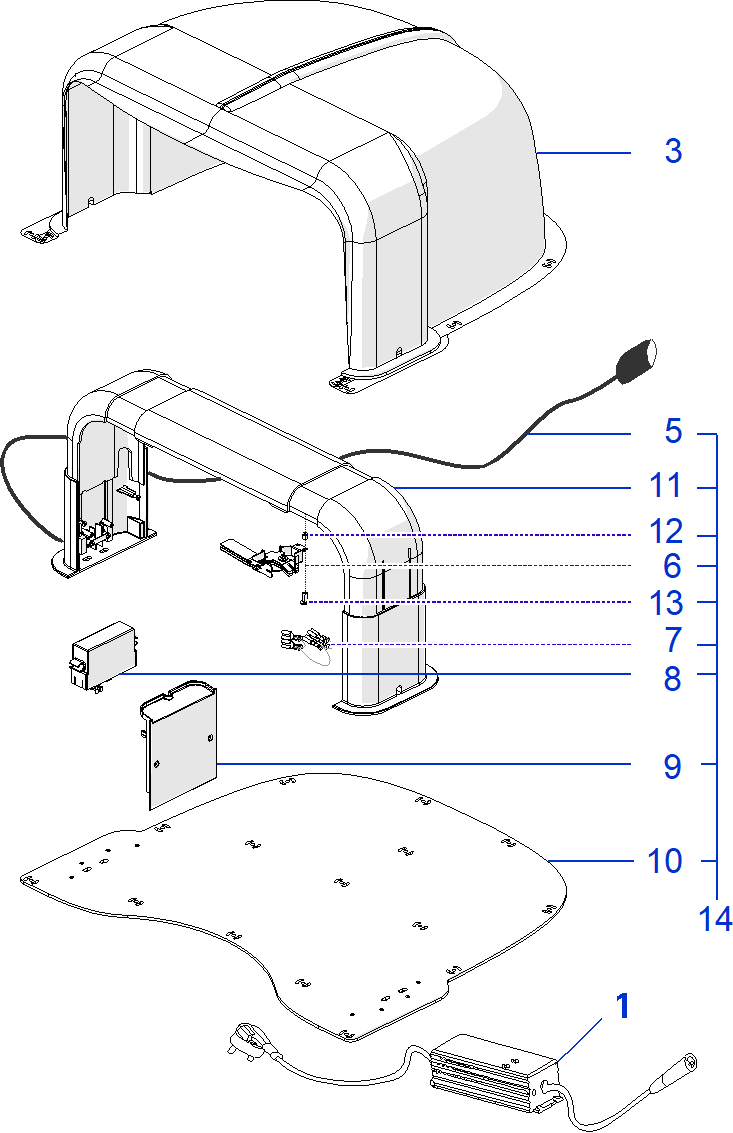

Ambrogio L250 - Base Station
Ambrogio L250 - Base Station
Battery Test Kit
Battery Test Kit

Spare Parts for Zucchetti Ambrogio L250 Spare Parts

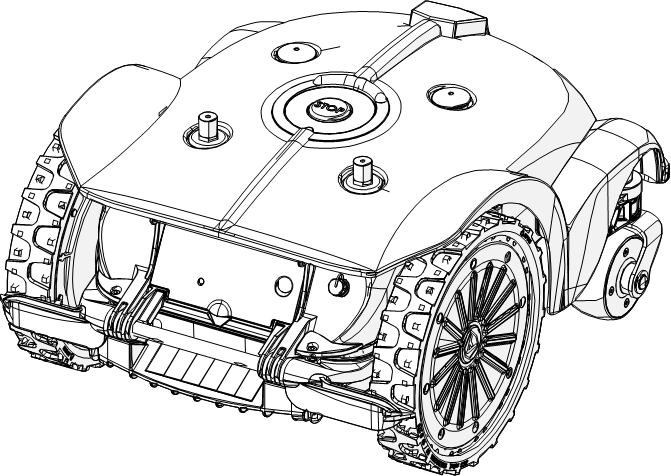

Zucchetti Ambrogio L250 Spare Parts
Previous Revision 2.0
Current Revision 2.1
From 2022-09
Models Type Included
7250DE0 Ambrogio Robot L250 Deluxe
7250EL0 Ambrogio Robot L250i Elite
8250ES0 Ambrogio Robot L250i Elite S+
--- -

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

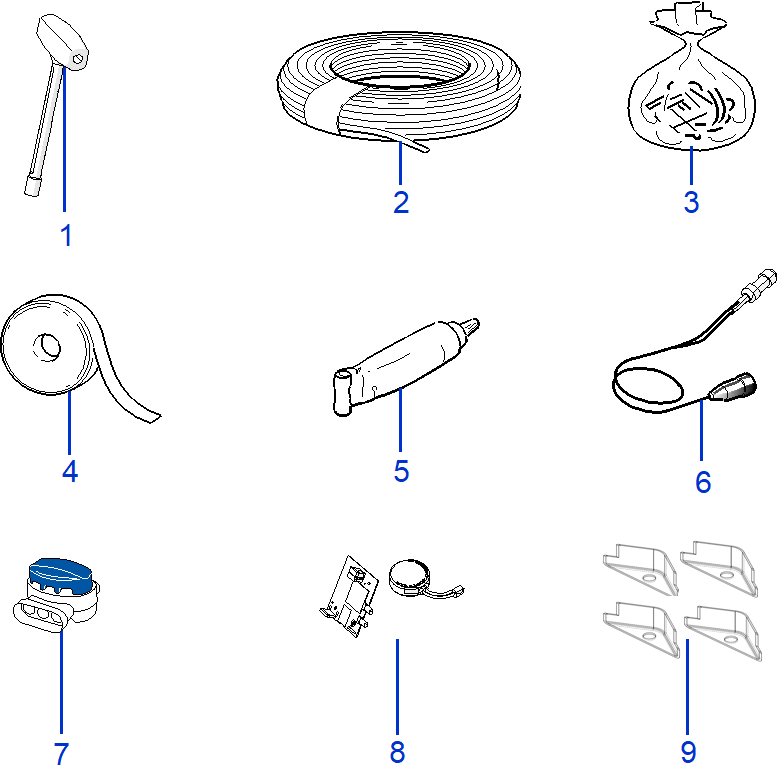

Spare Parts for Ambrogio L250 - General Accessories

Ambrogio L250 - General Accessories
--- -
1Ambrogio Screwdriver 110Z23900A       (Chiave Cacciavite Graduato (Bia) L200R)Ref: 110Z23900A
Ambrogio Screwdriver 110Z23900A (Chiave Cacciavite Graduato (Bia) L200R)
Price: £14.28
Special Order
Qty:
2Ambrogio Cable CS_E0002_10       (Cavo Tipo Fr/2 Mt.1000)Ref: CS-E0002-10
Ambrogio Cable CS_E0002_10 (Cavo Tipo Fr/2 Mt.1000)
Price: £648.84
Special Order
Qty:
2Ambrogio Cable CS_E0002_5       (Cavo Tipo Fr/2 Mt.500 (Bobina Cartone))Ref: CS-E0002-5
Ambrogio Cable CS_E0002_5 (Cavo Tipo Fr/2 Mt.500 (Bobina Cartone))
Price: £324.36
Special Order
Qty:
2Ambrogio Cable CS_E0002       (Cavo Tipo Fr/2 Mt.150)Ref: CS-E0002
Ambrogio Cable CS_E0002 (Cavo Tipo Fr/2 Mt.150)
Price: £94.44
Special Order
Qty:
2Ambrogio Cable CS_E0002OS       (Cavo Tipo Fr/2 Mt.100)Ref: CS-E0002OS
Ambrogio Cable CS_E0002OS (Cavo Tipo Fr/2 Mt.100)
Price: £63.24
Special Order
Qty:
2Ambrogio Cable CS_E0002_3       (Cavo Tipo Fr/2 Mt.300)Ref: CS-E0002-3
Ambrogio Cable CS_E0002_3 (Cavo Tipo Fr/2 Mt.300)
Price: £191.04
Special Order
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack  (200Z22000B)Ref: 200A00200A
Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack (200Z22000B)
Price: £27.84
10+ in stock ready to go
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)Ref: 200A00100A
Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)
Price: £15.00
Not in stock
Qty:
4Ambrogio Stretch Electrical Tape CS_C0111       (Nastro Agglomerante Autoagglomerante Filo Perimetrale)Ref: CS-C0111
Ambrogio Stretch Electrical Tape CS_C0111 (Nastro Agglomerante Autoagglomerante Filo Perimetrale)
Price: £32.88
Special Order
Qty:
5Ambrogio Grease CS_C0109       (Grasso Tubetto Grasso 200Gr)Ref: CS-C0109
Ambrogio Grease CS_C0109 (Grasso Tubetto Grasso 200Gr)
Price: £26.04
Special Order
Qty:
6Ambrogio External Recharge CB0_RICEX  Ref: CB01-RICEX
Ambrogio External Recharge CB0_RICEX
Price: £34.08
1 in stock ready to go
Qty:
7Ambrogio Connector 200A00050    (50 Pcs) - Connettore 3M Scotchlok 314Ref: 200A00050
Ambrogio Connector 200A00050 (50 Pcs) - Connettore 3M Scotchlok 314
Price: £72.60
Special Order
Qty:
7ConnectorRef: 200A00003
Connector
Price: £6.00
Special Order
Qty:
7Ambrogio Connector 200A00001  SINGLE ITEM - Connettore 3M ScotchlokRef: 200A00001
Ambrogio Connector 200A00001 SINGLE ITEM - Connettore 3M Scotchlok
Price: £1.75
10+ in stock ready to go
Qty:
8Ref: 110A00070A-R
Not found
9Ambrogio Main Closure Kit 110A00050A       (Kit Chiusura Principale)Ref: 110A00050A
Ambrogio Main Closure Kit 110A00050A (Kit Chiusura Principale)
Price: £23.16
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

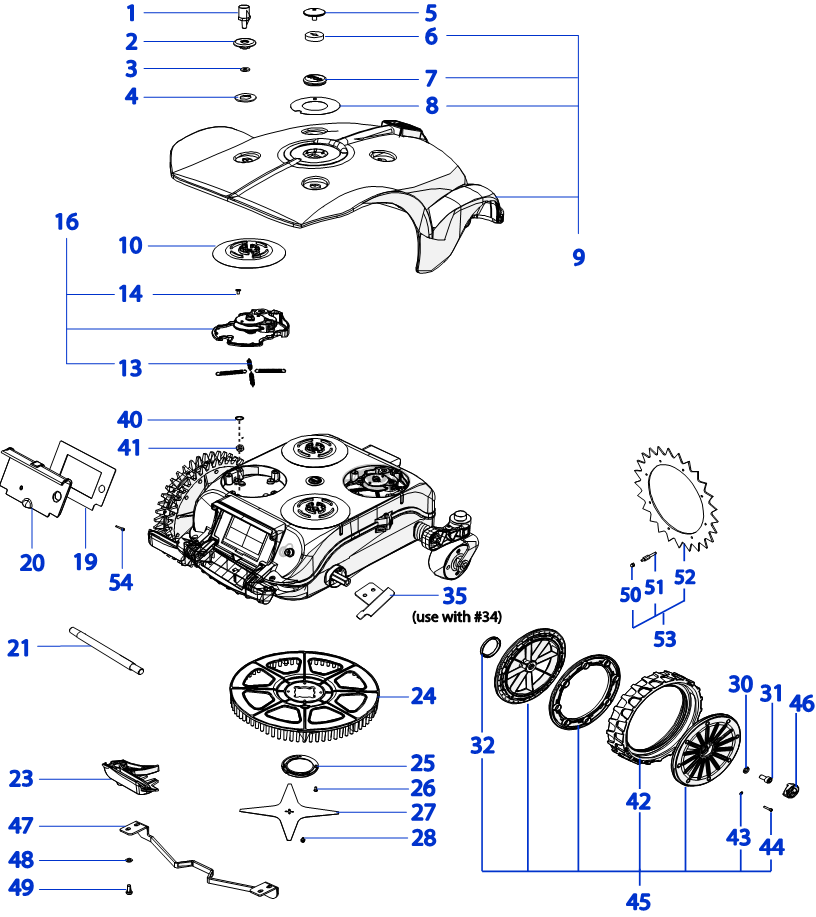

Spare Parts for Ambrogio L250 - Wheels & Blade Assembly

Ambrogio L250 - Wheels & Blade Assembly
--- -
1Ambrogio Recharging Bolt 030Z03400A       (Pomello Di Ricarica 200R/Wl)Ref: 030Z03400A
Ambrogio Recharging Bolt 030Z03400A (Pomello Di Ricarica 200R/Wl)
Price: £15.00
8 in stock ready to go
Qty:
2Ambrogio Ring 110Z33700C       (Anello Superiore Per Pomello Ricarica)Ref: 110Z33700C
Ambrogio Ring 110Z33700C (Anello Superiore Per Pomello Ricarica)
Price: £7.96
2 in stock ready to go
Qty:
3Ambrogio Gasket Guarnizione CS_D0071Ref: CS-D0071
Ambrogio Gasket Guarnizione CS_D0071
Price: £5.04
10+ in stock ready to go
Qty:
4Ambrogio Ring 110Z44600A       (Anello Spessore Sotto Pomello)Ref: 110Z44600A
Ambrogio Ring 110Z44600A (Anello Spessore Sotto Pomello)
Price: £3.60
4 in stock ready to go
Qty:
5Ambrogio Screw 400Z10900A       (Vite Pomello Fissaggio Scocca Non Ricarica)Ref: 400Z10900A
Ambrogio Screw 400Z10900A (Vite Pomello Fissaggio Scocca Non Ricarica)
Price: £15.00
2 in stock ready to go
Qty:
6Ambrogio Gasket Guarnizione 025-D0080Ref: 025-D0080
Ambrogio Gasket Guarnizione 025-D0080
Price: £10.08
6 in stock ready to go
Qty:
7Ambrogio Stop Button Key 110E01300B   (was 110E01300A)   (Tasto Stop)Ref: 110E01300B
Ambrogio Stop Button Key 110E01300B (was 110E01300A) (Tasto Stop)
Price: £39.48
2 in stock ready to go
Qty:
8Ambrogio Adhesive 110Z38700A       (Adesivo Adesivo Sede Tasto Stop)Ref: 110Z38700A
Ambrogio Adhesive 110Z38700A (Adesivo Adesivo Sede Tasto Stop)
Price: £3.43
Special Order
Qty:
9Ambrogio Cap Set 110A20005AR       (Gruppo Calotta)Ref: 110A20005AR
Ambrogio Cap Set 110A20005AR (Gruppo Calotta)
Price: £191.52
Special Order
Qty:
10Ambrogio Disk 110Z47900A       (Disco Spessore Sotto Calotta X Iniezione)Ref: 110Z47900A
Ambrogio Disk 110Z47900A (Disco Spessore Sotto Calotta X Iniezione)
Price: £6.85
Special Order
Qty:
13SpringRef: 110Z03100A
Spring
Price: £24.36
Special Order
Qty:
14Ambrogio Screw Vite C00605Ref: C00605
Ambrogio Screw Vite C00605
Price: £6.24
Special Order
Qty:
16Ambrogio Bump Set 110Z21500AF       (Gruppo Urto Assieme Gruppo Urto V18)Ref: 110Z21500AF
Ambrogio Bump Set 110Z21500AF (Gruppo Urto Assieme Gruppo Urto V18)
Price: £61.68
Special Order
Qty:
17Ambrogio Recharging Cable 110E00300A       (Cavo Ricarica Cablaggio Interno Urto Ricarica V.1)Ref: 110E00300A
Ambrogio Recharging Cable 110E00300A (Cavo Ricarica Cablaggio Interno Urto Ricarica V.1)
Price: £4.52
Special Order
Qty:
19Ambrogio Display Film 110Z30800D       (Pellicola Display Protezione Per Display Touch + Tasto)Ref: 110Z30800D
Ambrogio Display Film 110Z30800D (Pellicola Display Protezione Per Display Touch + Tasto)
Price: £34.20
2 in stock ready to go
Qty:
20Ref: 110Z50200A-R
Not found
21Ref: 110Z63700A
Not found
23Ambrogio Wheel Cleaning Spindle  110Z56100A       Left - Pulisci Ruota Sx Ruota L250 PneumaticoRef: 110Z56100A
Ambrogio Wheel Cleaning Spindle 110Z56100A Left - Pulisci Ruota Sx Ruota L250 Pneumatico
Price: £11.26
3 in stock ready to go
Qty:
23Ambrogio Wheel Cleaning Spindle  110Z56200A       Right - Pulisci Ruota Dx Ruota L250 PneumaticoRef: 110Z56200A
Ambrogio Wheel Cleaning Spindle 110Z56200A Right - Pulisci Ruota Dx Ruota L250 Pneumatico
Price: £11.26
10+ in stock ready to go
Qty:
24Ambrogio Blade Guard 110Z22300AB (was 110Z22300A)  290Ref: 110Z22300AB
Ambrogio Blade Guard 110Z22300AB (was 110Z22300A) 290
Price: £19.68
2 in stock ready to go
Qty:
25Ambrogio Support 200Z18300C       (Supporto Corona Fissaggio Proteggi Lama)Ref: 200Z18300C
Ambrogio Support 200Z18300C (Supporto Corona Fissaggio Proteggi Lama)
Price: £13.20
Special Order
Qty:
26Ambrogio Screw Vite C00603Ref: C00603
Ambrogio Screw Vite C00603
Price: £0.60
10+ in stock ready to go
Qty:
27Ambrogio 8 Knives Flat Blade 200Z05100A       (Lama Piana A 8 Punte Di Taglio-Blade D242 8P)Ref: 200Z05100A
Ambrogio 8 Knives Flat Blade 200Z05100A (Lama Piana A 8 Punte Di Taglio-Blade D242 8P)
Price: £36.48
Special Order
Qty:
27Ambrogio Standard Blade - 29cm 4 Knives Flat CS_D0112_02       (Lama Piana A 4 Punte L200 - Disco Di Taglio)Ref: CS-D0112-02
Ambrogio Standard Blade - 29cm 4 Knives Flat CS_D0112_02 (Lama Piana A 4 Punte L200 - Disco Di Taglio)
Price: £29.40
10+ in stock ready to go
Qty:
27Ambrogio 8 Knives Flat Blade 200Z05300A       (Lama Piana A 8 Punte Di Taglio-Blade D290 8P)Ref: 200Z05300A
Ambrogio 8 Knives Flat Blade 200Z05300A (Lama Piana A 8 Punte Di Taglio-Blade D290 8P)
Price: £44.88
2 in stock ready to go
Qty:
28Ambrogio Screw Vite C00212Ref: C00212
Ambrogio Screw Vite C00212
Price: £2.40
6 in stock ready to go
Qty:
30Ambrogio Washer Rondella C00217Ref: C00217
Ambrogio Washer Rondella C00217
Price: £9.84
Special Order
Qty:
31Ambrogio Screw Vite A850550  XRef: A850550
Ambrogio Screw Vite A850550 X
Price: £2.99
8 in stock ready to go
Qty:
35Ambrogio Wheel Cleaning Spindle  110Z03500C       ((Left) - Pulisci Ruota Pulisci Ruota In Lamiera Sx)Ref: 110Z03500C
Ambrogio Wheel Cleaning Spindle 110Z03500C ((Left) - Pulisci Ruota Pulisci Ruota In Lamiera Sx)
Price: £11.26
Special Order
Qty:
35Ambrogio Wheel Cleaning Spindle  110Z03300C       (Right - Pulisci Ruota  In Lamiera Dx)Ref: 110Z03300C
Ambrogio Wheel Cleaning Spindle 110Z03300C (Right - Pulisci Ruota In Lamiera Dx)
Price: £11.26
Special Order
Qty:
40Ambrogio gasket Guarnizione C02127 Ref: C02127
Ambrogio gasket Guarnizione C02127
Price: £7.68
Special Order
Qty:
41Ambrogio Plate Piastra C02128Ref: C02128
Ambrogio Plate Piastra C02128
Price: £10.32
Special Order
Qty:
42Ambrogio Tire 110Z53400A       (Copertone Copertone 270-50)Ref: 110Z53400A
Ambrogio Tire 110Z53400A (Copertone Copertone 270-50)
Price: £23.16
Special Order
Qty:
43Ambrogio Washer Rondella C00071Ref: C00071
Ambrogio Washer Rondella C00071
Price: £5.16
Special Order
Qty:
44Ambrogio Screw Vite C02087Ref: C02087
Ambrogio Screw Vite C02087
Price: £7.68
8 in stock ready to go
Qty:
45Ambrogio Wheel With Tire 110Z54500A       (Ruota Con Copertone Ruota Pneumatico 270/50)Ref: 110Z54500A
Ambrogio Wheel With Tire 110Z54500A (Ruota Con Copertone Ruota Pneumatico 270/50)
Price: £100.20
Special Order
Qty:
46Ambrogio Boss HubCap Hub Cap110Z58200A    A Logo - Borchia  TampografataRef: 110Z58200A
Ambrogio Boss HubCap Hub Cap110Z58200A A Logo - Borchia Tampografata
Price: £6.00
6 in stock ready to go
Qty:
47Ambrogio Blade Guard 110Z52100A       (Protezione Lama )Ref: 110Z52100A
Ambrogio Blade Guard 110Z52100A (Protezione Lama )
Price: £26.64
Special Order
Qty:

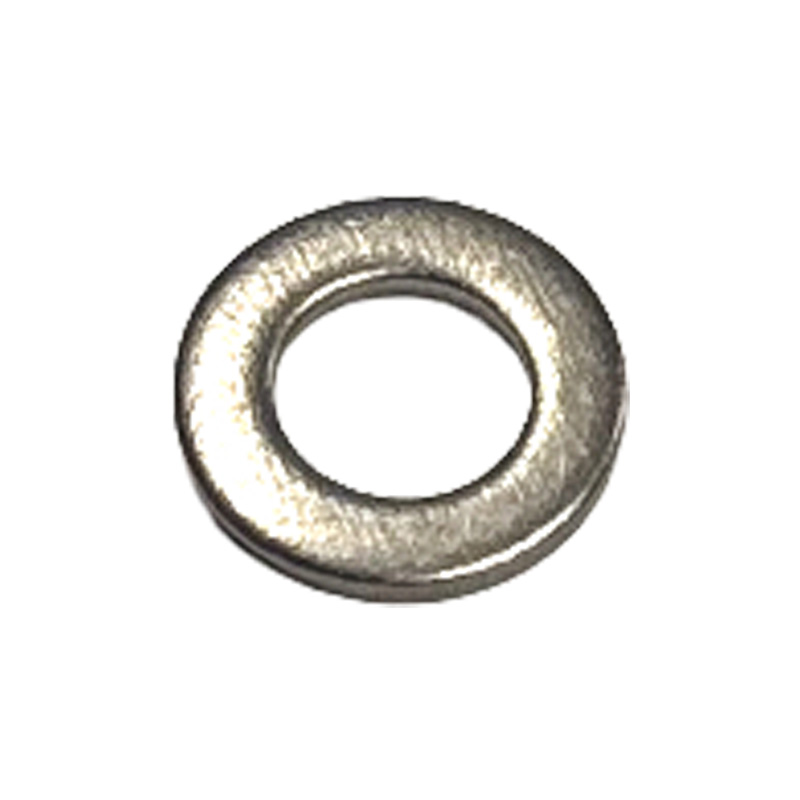

48Ambrogio Washer Rondella C01759 (8 pack)Ref: C01759
Ambrogio Washer Rondella C01759 (8 pack)
Price: £6.62
10+ in stock ready to go
Qty:
49Ambrogio Screw Vite C00060Ref: C00060
Ambrogio Screw Vite C00060
Price: £10.32
Special Order
Qty:
50Ambrogio Nut Dado C01273 Ref: C01273
Ambrogio Nut Dado C01273
Price: £3.96
Special Order
Qty:
51Ambrogio pin Perno 300Z41100A (8 pack)Ref: 300Z41100A
Ambrogio pin Perno 300Z41100A (8 pack)
Price: £18.24
Special Order
Qty:

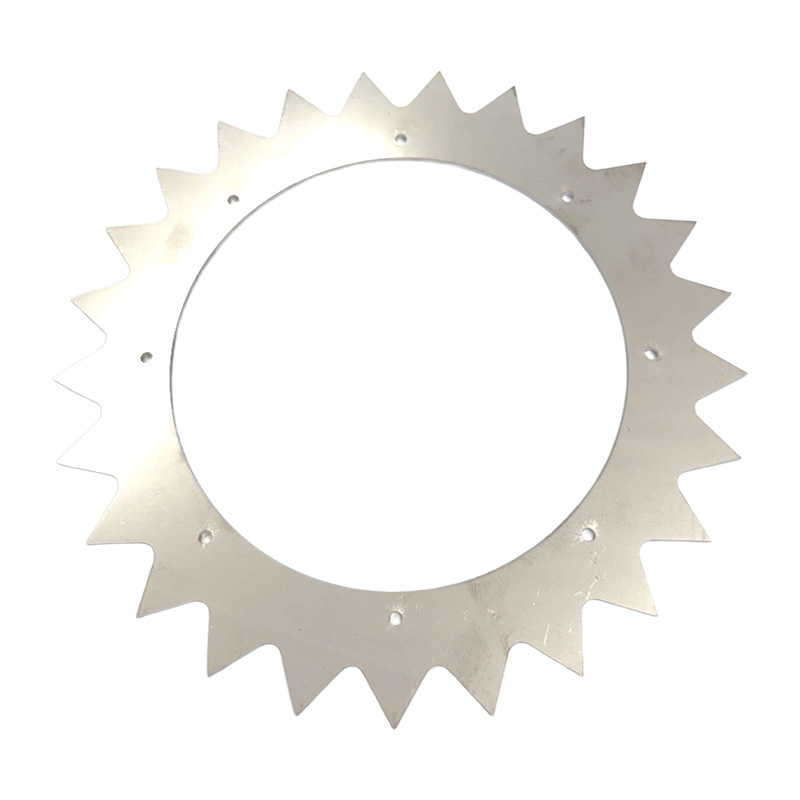

52Ambrogio Wheel Spike 110Z54001A       (Artiglio Ruota )Ref: 110Z54001A
Ambrogio Wheel Spike 110Z54001A (Artiglio Ruota )
Price: £74.52
2 in stock ready to go
Qty:
53Ambrogio Wheel Spike Kit 110Z62600A  SINGLE     (Kit Artiglio Ruota Costo Non Presente)Ref: 110Z62600A
Ambrogio Wheel Spike Kit 110Z62600A SINGLE (Kit Artiglio Ruota Costo Non Presente)
Price: £92.52
Special Order
Qty:
54Ambrogio Screw Vite C02107Ref: C02107
Ambrogio Screw Vite C02107
Price: £4.92
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

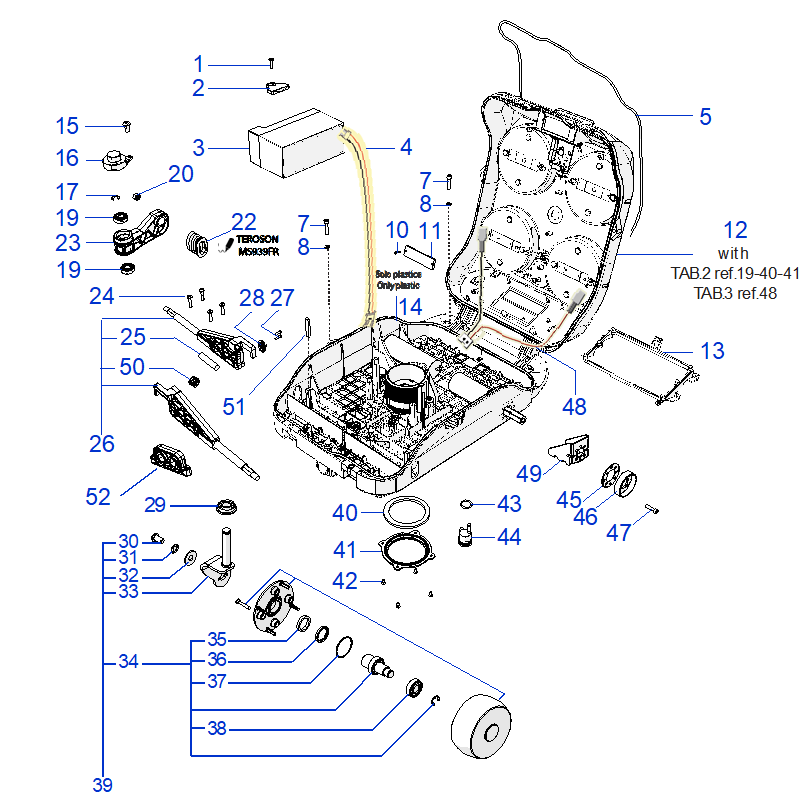

Spare Parts for Ambrogio L250 - Main Body & Battery

Ambrogio L250 - Main Body & Battery
--- -
1Ambrogio Screw Vite C00691Ref: C00691
Ambrogio Screw Vite C00691
Price: £6.00
Special Order
Qty:
2Ambrogio Battery Clamp 110Z12900A       (Fissaggio Batteria Fissaggio Batteria)Ref: 110Z12900A
Ambrogio Battery Clamp 110Z12900A (Fissaggio Batteria Fissaggio Batteria)
Price: £6.24
1 in stock ready to go
Qty:
3Zucchetti Ambrogio Battery 7.5Ah    CS_C0106_BT_R    (was CS_C0106/2)Ref: CS-C0106-BT-R
Zucchetti Ambrogio Battery 7.5Ah CS_C0106_BT_R (was CS_C0106/2)
Price: £329.00
6 in stock ready to go
Qty:
4Ambrogio Cabling Cpu-Battery CB01_ALIM       (Cpu-Batteria Cablaggio Alimentazione L200/4000 (V4))Ref: CB01-ALIM
Ambrogio Cabling Cpu-Battery CB01_ALIM (Cpu-Batteria Cablaggio Alimentazione L200/4000 (V4))
Price: £14.16
Special Order
Qty:
5Ambrogio Gasket 110Z16300A       (Guarnizione 4Mm Bisco Silic.Lev 250)Ref: 110Z16300A
Ambrogio Gasket 110Z16300A (Guarnizione 4Mm Bisco Silic.Lev 250)
Price: £10.52
1 in stock ready to go
Qty:

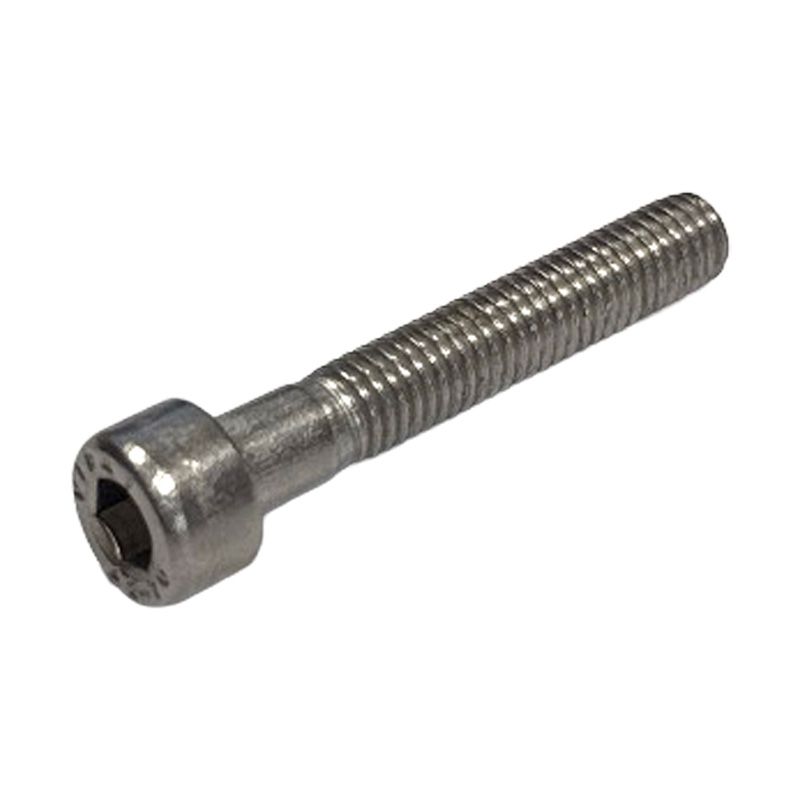

7Ambrogio Screw Vite C01723Ref: C01723
Ambrogio Screw Vite C01723
Price: £4.32
5 in stock ready to go
Qty:
8Ambrogio Washer Rondella C01759 (8 pack)Ref: C01759
Ambrogio Washer Rondella C01759 (8 pack)
Price: £6.62
10+ in stock ready to go
Qty:
10Ambrogio Screw Vite C00162Ref: C00162
Ambrogio Screw Vite C00162
Price: £4.68
Special Order
Qty:
11Ambrogio Spacer 400Z04900A       (Distanziale Pcb Urti L400)Ref: 400Z04900A
Ambrogio Spacer 400Z04900A (Distanziale Pcb Urti L400)
Price: £2.57
Special Order
Qty:
12Ambrogio Upper Cover 110Z57000A_R      (Copertura Superiore Kit Scocca L250)Ref: 110Z57000A-R
Ambrogio Upper Cover 110Z57000A_R (Copertura Superiore Kit Scocca L250)
Price: £167.76
Special Order
Qty:
13Ambrogio Support 110Z33100B       (Supporto Maschera Sostegno Am 4000 L250R)Ref: 110Z33100B
Ambrogio Support 110Z33100B (Supporto Maschera Sostegno Am 4000 L250R)
Price: £9.30
Special Order
Qty:
14Ambrogio Lower Cover 110A30000A       (Copertura Inferiore)Ref: 110A30000A
Ambrogio Lower Cover 110A30000A (Copertura Inferiore)
Price: £138.84
Special Order
Qty:
14Ref: 110Z68000A-R
Not found

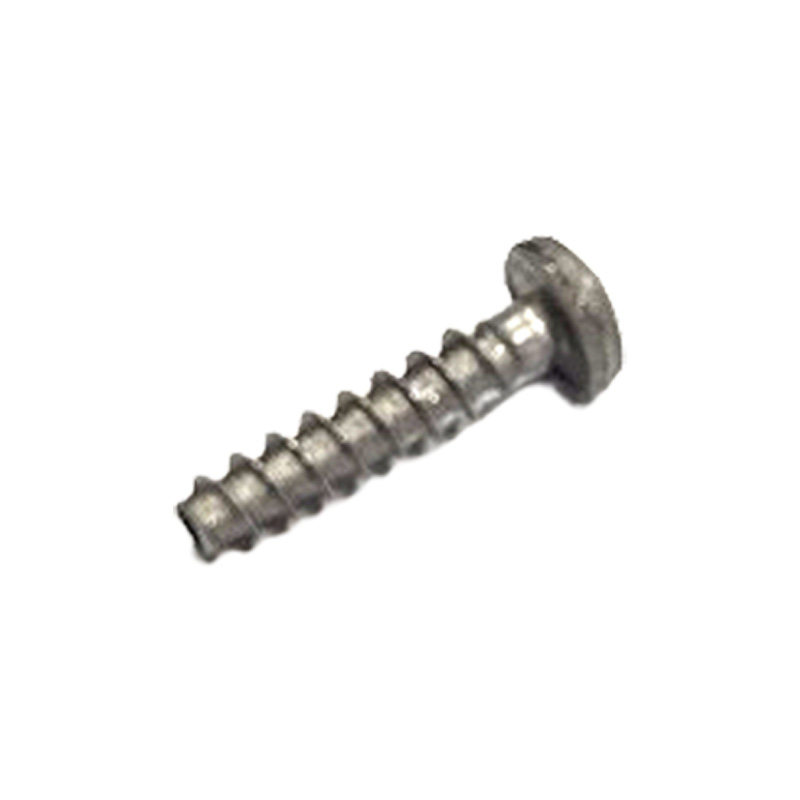

15Ambrogio Screw C00351       (Vite Vite Tub.Bom.Iso7380 -M3X12 A4)Ref: C00351
Ambrogio Screw C00351 (Vite Vite Tub.Bom.Iso7380 -M3X12 A4)
Price: £2.40
3 in stock ready to go
Qty:
16Ambrogio Cover 200Z04900A       (Copertura Protezione Cuscinetto)Ref: 200Z04900A
Ambrogio Cover 200Z04900A (Copertura Protezione Cuscinetto)
Price: £7.10
Special Order
Qty:
17Ambrogio Seger CS-C0030  - SINGLE ITEMRef: CS-C0030
Ambrogio Seger CS-C0030 - SINGLE ITEM
Price: £1.56
10+ in stock ready to go
Qty:
19Ambrogio Bearing C00119       (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)Ref: C00119
Ambrogio Bearing C00119 (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)
Price: £7.96
2 in stock ready to go
Qty:
20Ambrogio Bolt C02078       (Dado Dado M8 Autob.Fla.Din 6926 A2)Ref: C02078
Ambrogio Bolt C02078 (Dado Dado M8 Autob.Fla.Din 6926 A2)
Price: £10.40
Special Order
Qty:
22Ambrogio Bellows 110Z33300A       (Soffietto 250R)Ref: 110Z33300A
Ambrogio Bellows 110Z33300A (Soffietto 250R)
Price: £3.96
2 in stock ready to go
Qty:
22Ambrogio Bellow 110Z67000A       (Soffietto Bilanciere)Ref: 110Z67000A
Ambrogio Bellow 110Z67000A (Soffietto Bilanciere)
Price: £4.90
4 in stock ready to go
Qty:
23Ambrogio Wheel Support 110Z46700A       (Supporto Ruota Semiasse + Flangia)Ref: 110Z46700A
Ambrogio Wheel Support 110Z46700A (Supporto Ruota Semiasse + Flangia)
Price: £15.84
1 in stock ready to go
Qty:
24Ambrogio Screw Vite C00911Ref: C00911
Ambrogio Screw Vite C00911
Price: £7.97
Special Order
Qty:
25Ambrogio Contrast Rubber 110Z36100A       (Gomma Di Contrasto Gommino Di Contrasto)Ref: 110Z36100A
Ambrogio Contrast Rubber 110Z36100A (Gomma Di Contrasto Gommino Di Contrasto)
Price: £4.04
Special Order
Qty:
26Ambrogio Balancer 110Z47500A       (Bilanciere Bilancere Con Cilindro In Gomma)Ref: 110Z47500A
Ambrogio Balancer 110Z47500A (Bilanciere Bilancere Con Cilindro In Gomma)
Price: £47.28
Special Order
Qty:
27Ambrogio Screw Vite C02076Ref: C02076
Ambrogio Screw Vite C02076
Price: £6.24
Special Order
Qty:
28Ambrogio Switch CB05_LIFT       (Interruttore Cablaggio S.Sollevamento L200/4000 (V2))Ref: CB05-LIFT
Ambrogio Switch CB05_LIFT (Interruttore Cablaggio S.Sollevamento L200/4000 (V2))
Price: £15.48
6 in stock ready to go
Qty:
29CS-A0005-D BEARING PROTECTION FLANGERef: CS-A0005-D
CS-A0005-D BEARING PROTECTION FLANGE
Price: £7.67
1 in stock ready to go
Qty:
30Ambrogio Screw Vite C00678 (C02218)Ref: C00678
Ambrogio Screw Vite C00678 (C02218)
Price: £13.44
4 in stock ready to go
Qty:
31Ambrogio Toothed Washer Rondella Dentata C00360 (8 pack)Ref: C00360
Ambrogio Toothed Washer Rondella Dentata C00360 (8 pack)
Price: £8.16
Special Order
Qty:
32Ambrogio Washer Rondella C00361 (8 pack)Ref: C00361
Ambrogio Washer Rondella C00361 (8 pack)
Price: £8.16
Special Order
Qty:
33Ambrogio Left Shaft 110Z28400A       (Albero Sinistro Assieme Staffa Ruota Sx Perno Corto)Ref: 110Z28400A
Ambrogio Left Shaft 110Z28400A (Albero Sinistro Assieme Staffa Ruota Sx Perno Corto)
Price: £24.84
Special Order
Qty:
33Ambrogio Right Shaft 110Z28700A       (Albero Destro  Assieme Staffa Ruota Dx Perno Corto)Ref: 110Z28700A
Ambrogio Right Shaft 110Z28700A (Albero Destro Assieme Staffa Ruota Dx Perno Corto)
Price: £24.84
Special Order
Qty:
34Ambrogio Front Wheel 110Z34200A       ((No Magn.) Ruota Anteriore Assieme Ruota Anteriore Senza Magneti)Ref: 110Z34200A
Ambrogio Front Wheel 110Z34200A ((No Magn.) Ruota Anteriore Assieme Ruota Anteriore Senza Magneti)
Price: £49.32
Not in stock
Qty:
35Ambrogio Ring Anello 300Z02500A (Single)Ref: 300Z02500A
Ambrogio Ring Anello 300Z02500A (Single)
Price: £3.24
3 in stock ready to go
Qty:
36Ambrogio Ring Anello C00124 (8 pack)Ref: C00124
Ambrogio Ring Anello C00124 (8 pack)
Price: £18.24
8 in stock ready to go
Qty:
37Ambrogio O-Ring  C00121 (8 pack)Ref: C00121
Ambrogio O-Ring C00121 (8 pack)
Price: £8.16
Special Order
Qty:
38Ambrogio Bearing C00119       (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)Ref: C00119
Ambrogio Bearing C00119 (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)
Price: £7.96
2 in stock ready to go
Qty:
39Ambrogio Left Wheel Group 110Z28300A       (Gruppo Ruota Sinistra Gruppo Anteriore Sx L250R V17)Ref: 110Z28300A
Ambrogio Left Wheel Group 110Z28300A (Gruppo Ruota Sinistra Gruppo Anteriore Sx L250R V17)
Price: £69.84
1 in stock ready to go
Qty:
39Ambrogio Right Wheel Group 110Z28600A       (Gruppo Ruota Destro Anteriore Dx L250R V17)Ref: 110Z28600A
Ambrogio Right Wheel Group 110Z28600A (Gruppo Ruota Destro Anteriore Dx L250R V17)
Price: £69.84
2 in stock ready to go
Qty:
40Ambrogio Gasket 051Z21900B       (Guarnizione Per Motore Lama L30)Ref: 051Z21900B
Ambrogio Gasket 051Z21900B (Guarnizione Per Motore Lama L30)
Price: £2.57
Special Order
Qty:
41Ambrogio Plate 051Z24600B       (Piastra Ghiera Per Tenuta Guarnizione L30)Ref: 051Z24600B
Ambrogio Plate 051Z24600B (Piastra Ghiera Per Tenuta Guarnizione L30)
Price: £7.96
Special Order
Qty:
42Ambrogio Screw Vite C02301Ref: C02301
Ambrogio Screw Vite C02301
Price: £5.16
Special Order
Qty:
43Ambrogio Gasket Guarnizione C01440 Ref: C01440
Ambrogio Gasket Guarnizione C01440
Price: £2.52
Special Order
Qty:
44Ambrogio Fixing Plate 051Z00700A       (Piastra Fissaggio Eccentrico Blocco Lama L30)Ref: 051Z00700A
Ambrogio Fixing Plate 051Z00700A (Piastra Fissaggio Eccentrico Blocco Lama L30)
Price: £13.68
Special Order
Qty:
45Ambrogio Heat Gasket 051Z28400A  XRef: 051Z28400A
Ambrogio Heat Gasket 051Z28400A X
Price: £3.18
2 in stock ready to go
Qty:
46Ambrogio Wheel Support 300_D0037_01       (Supporto Ruota Supporto Ruota Post.L300)Ref: 300-D0037-01
Ambrogio Wheel Support 300_D0037_01 (Supporto Ruota Supporto Ruota Post.L300)
Price: £13.20
Special Order
Qty:
47Ambrogio Screw C01465       (Vite Tcei Uni 5931 -M5X25- Screw)Ref: C01465
Ambrogio Screw C01465 (Vite Tcei Uni 5931 -M5X25- Screw)
Price: £2.40
10+ in stock ready to go
Qty:
48Ambrogio Recharge Cabling  110Z51000A       (Cavo Ricarica Cab.Connet.Ricarica Cb02_Ric.3 X L250)Ref: 110Z51000A
Ambrogio Recharge Cabling 110Z51000A (Cavo Ricarica Cab.Connet.Ricarica Cb02_Ric.3 X L250)
Price: £8.57
Special Order
Qty:
49Ambrogio Support Kit 110A00090A       (Kit Flangia)Ref: 110A00090A
Ambrogio Support Kit 110A00090A (Kit Flangia)
Price: £45.60
2 in stock ready to go
Qty:
49Ambrogio Internal Motoreducer Flange 110Z63300A       (Flangia Interna Motoriduttore)Ref: 110Z63300A
Ambrogio Internal Motoreducer Flange 110Z63300A (Flangia Interna Motoriduttore)
Price: £14.16
Special Order
Qty:
50Ambrogio Balancer Washer Kit 110A00130A       (Kit Rondelle Bilancere)Ref: 110A00130A
Ambrogio Balancer Washer Kit 110A00130A (Kit Rondelle Bilancere)
Price: £8.75
3 in stock ready to go
Qty:
51Ambrogio Gasket Guarnizione 110Z34600ARef: 110Z34600A
Ambrogio Gasket Guarnizione 110Z34600A
Price: £10.92
4 in stock ready to go
Qty:
52Balancer supportRef: 110Z34300A
Balancer support
Price: £5.04
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio L250 - Electronics

Ambrogio L250 - Electronics
--- -
1Ambrogio Motore lama (no cablaggio) - Blade Motor   L32 L35   (was 051z29100A C02362 110A00030A)Ref: 051A00010A
Ambrogio Motore lama (no cablaggio) - Blade Motor L32 L35 (was 051z29100A C02362 110A00030A)
Price: £228.72
3 in stock ready to go
Qty:
10Ambrogio Hexagon 110Z63400A       (Esagono)Ref: 110Z63400A
Ambrogio Hexagon 110Z63400A (Esagono)
Price: £8.45
Special Order
Qty:
11Ambrogio Washer Rondella C00031Ref: C00031
Ambrogio Washer Rondella C00031
Price: £2.52
Special Order
Qty:
12Ambrogio Screw Vite C00364Ref: C00364
Ambrogio Screw Vite C00364
Price: £14.40
Special Order
Qty:

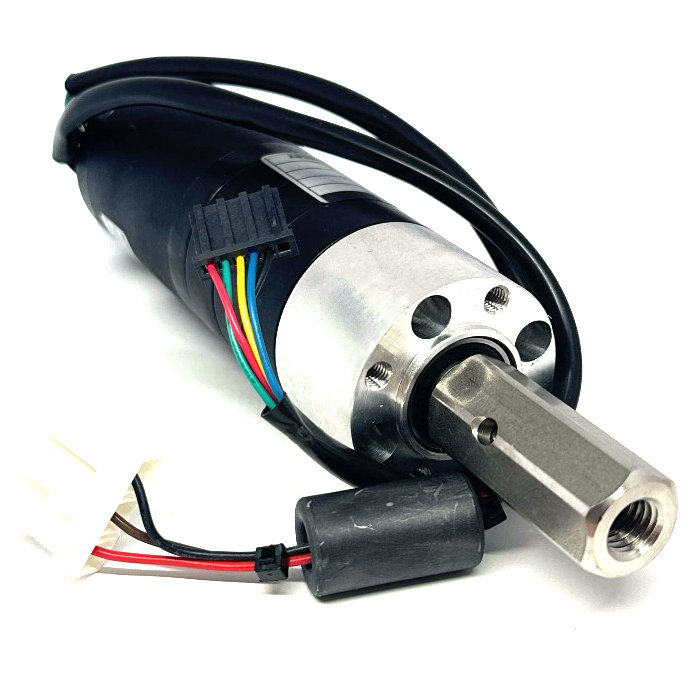

13aAmbrogio Motor Reducer 110Z52400A       (Motoriduttore Assieme Motore Brushless P42Ln-4000)Ref: 110Z52400A
Ambrogio Motor Reducer 110Z52400A (Motoriduttore Assieme Motore Brushless P42Ln-4000)
Price: £336.72
3 in stock ready to go
Qty:
13bAmbrogio (Hybrid) Motor Reducer 110Z63800A       ((Ibrido) Motoriduttore)Ref: 110Z63800A
Ambrogio (Hybrid) Motor Reducer 110Z63800A ((Ibrido) Motoriduttore)
Price: £282.72
1 in stock ready to go
Qty:
13cAmbrogio Motor Reducer 110Z64200A       (Motoriduttore)Ref: 110Z64200A
Ambrogio Motor Reducer 110Z64200A (Motoriduttore)
Price: £340.08
Special Order
Qty:
2Ambrogio Gasket Guarnizione 051Z15700B (single)Ref: 051Z15700B
Ambrogio Gasket Guarnizione 051Z15700B (single)
Price: £5.40
10+ in stock ready to go
Qty:
3Ambrogio Motor  Support 200Z18500A       (Supporto Motore Contenitore Lama)Ref: 200Z18500A
Ambrogio Motor Support 200Z18500A (Supporto Motore Contenitore Lama)
Price: £16.92
Special Order
Qty:
4Ambrogio Elastic Plate 110Z29200A       (Piastra Elastica Molla Freno Con Guarnizione)Ref: 110Z29200A
Ambrogio Elastic Plate 110Z29200A (Piastra Elastica Molla Freno Con Guarnizione)
Price: £51.36
Special Order
Qty:
5Ambrogio Washer Rondella C00016 (100 pack)Ref: C00016
Ambrogio Washer Rondella C00016 (100 pack)
Price: £13.20
Special Order
Qty:
6Ambrogio Screw Vite C00035Ref: C00035
Ambrogio Screw Vite C00035
Price: £38.40
Special Order
Qty:
7Ambrogio Bumper Coil Cable 110Z46000A       (Gruppo Bobina)Ref: 110Z46000A
Ambrogio Bumper Coil Cable 110Z46000A (Gruppo Bobina)
Price: £54.00
2 in stock ready to go
Qty:
8Ambrogio Key Chiavetta C00752  - SINGLERef: C00752
Ambrogio Key Chiavetta C00752 - SINGLE
Price: £1.44
10+ in stock ready to go
Qty:
9Ambrogio Grain Grano C01009 Ref: C01009
Ambrogio Grain Grano C01009
Price: £3.96
8 in stock ready to go
Qty:
14Ambrogio Heat Gasket 051Z28300A    XRef: 051Z28300A
Ambrogio Heat Gasket 051Z28300A X
Price: £2.94
4 in stock ready to go
Qty:
15Ambrogio Wiring CB07_L2RICEXT       (Cablaggio Ricarica Esterna L250R)Ref: CB07-L2RICEXT
Ambrogio Wiring CB07_L2RICEXT (Cablaggio Ricarica Esterna L250R)
Price: £25.32
Special Order
Qty:
16Mother BoardRef: 046E00500A
Mother Board
Price: £573.96
Special Order
Qty:
17Ambrogio Display 110E00800A       (Display Display Touch Ps258R00 X Am4000)Ref: 110E00800A
Ambrogio Display 110E00800A (Display Display Touch Ps258R00 X Am4000)
Price: £194.40
1 in stock ready to go
Qty:
18Ambrogio Wiring CB10_EMERCY       (Cablaggio Tasto Stop Cb10_Emergency.4)Ref: CB10-EMERCY
Ambrogio Wiring CB10_EMERCY (Cablaggio Tasto Stop Cb10_Emergency.4)
Price: £25.32
Special Order
Qty:
19Ambrogio Wiring CB09_CONNECT       (Cablaggio Scheda Connect V1)Ref: CB09-CONNECT
Ambrogio Wiring CB09_CONNECT (Cablaggio Scheda Connect V1)
Price: £8.57
2 in stock ready to go
Qty:
20Ambrogio Bump Board CS_E0031_A       (Scheda Sensore Urto Con Cavo 33Cm)Ref: CS-E0031-A
Ambrogio Bump Board CS_E0031_A (Scheda Sensore Urto Con Cavo 33Cm)
Price: £24.60
1 in stock ready to go
Qty:
21Ambrogio Connect Module 4G 015E00800A (PCB only)Ref: 015E01300A
Ambrogio Connect Module 4G 015E00800A (PCB only)
Price: £382.80
4 in stock ready to go
Qty:
22aGSM antennaRef: C02455
GSM antenna
Price: £11.64
Special Order
Qty:
22bAmbrogio Gps Antenna 051Z54700A       (Antenna Gps)Ref: 051Z54700A
Ambrogio Gps Antenna 051Z54700A (Antenna Gps)
Price: £38.52
2 in stock ready to go
Qty:
23Ambrogio Can Termination Cable 110E01100A       (Cablaggio Terminazione Can Cablaggio Bus Can Cb11_Terminatorecan.1)Ref: 110E01100A
Ambrogio Can Termination Cable 110E01100A (Cablaggio Terminazione Can Cablaggio Bus Can Cb11_Terminatorecan.1)
Price: £6.00
6 in stock ready to go
Qty:
24Ambrogio Motor Cabling Adapter 051CB04.01       (Adattatore Cablaggio Motore)Ref: 051CB04.01
Ambrogio Motor Cabling Adapter 051CB04.01 (Adattatore Cablaggio Motore)
Price: £23.64
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio L250 - Base Station

Ambrogio L250 - Base Station
--- -
1AMBELPB360-P Ambrogio Battery Charger        (PB-360-P-29,  3-12A-LT)Ref: AMBELPB360-P
AMBELPB360-P Ambrogio Battery Charger (PB-360-P-29, 3-12A-LT)
Price: £215.40
1 in stock ready to go
Qty:
1Ambrogio 5AH Battery Charger ELG-150-30  EGL-150-30  CS-CLG150-30Ref: ELG-150-30
Ambrogio 5AH Battery Charger ELG-150-30 EGL-150-30 CS-CLG150-30
Price: £141.60
2 in stock ready to go
Qty:
3Ambrogio Garage Shelter L250 >12/2019 - Shiny Black 300Z42300ARef: 110Z66200A
Ambrogio Garage Shelter L250 >12/2019 - Shiny Black 300Z42300A
Price: £148.99
2 in stock ready to go
Qty:
5Ref: CB01-23S2.V1
Not found
6Ambrogio Left Recharging Plate 030Z10900A       (Piastra Di Ricarica Sinistra Gruppo Lame Di Ricarica Sx New)Ref: 030Z10900A
Ambrogio Left Recharging Plate 030Z10900A (Piastra Di Ricarica Sinistra Gruppo Lame Di Ricarica Sx New)
Price: £37.32
Special Order
Qty:
6Ambrogio Right Recharging Plate  030Z11200A       (Piastra Di Ricarica Destra Gruppo Lame Di Ricarica Dx New)Ref: 030Z11200A
Ambrogio Right Recharging Plate 030Z11200A (Piastra Di Ricarica Destra Gruppo Lame Di Ricarica Dx New)
Price: £37.32
Special Order
Qty:
7Ambrogio Bridge Wire  CB01_PONTE       (Cavo Ponte Ricarica 2/3/4 Ponticelli (V15))Ref: CB01-PONTE
Ambrogio Bridge Wire CB01_PONTE (Cavo Ponte Ricarica 2/3/4 Ponticelli (V15))
Price: £9.06
Special Order
Qty:
8Ambrogio Transmitter 051Z30100A       (Trasmettitore  Trasmettitore Tx/C1 - Con Bluetooth)Ref: 051Z30100A
Ambrogio Transmitter 051Z30100A (Trasmettitore Trasmettitore Tx/C1 - Con Bluetooth)
Price: £169.68
1 in stock ready to go
Qty:
9Ambrogio Lateral Cap 030Z10300A       (Coperchio Laterale Carter Trasmettitore)Ref: 030Z10300A
Ambrogio Lateral Cap 030Z10300A (Coperchio Laterale Carter Trasmettitore)
Price: £18.48
2 in stock ready to go
Qty:
10Ambrogio Floor 110Z65100A       (Pianale)Ref: 110Z65100A
Ambrogio Floor 110Z65100A (Pianale)
Price: £76.68
2 in stock ready to go
Qty:
11Ambrogio Arch 030Z09800A       (Arco Sfilante Mobile L200R Gwt 850)Ref: 030Z09800A
Ambrogio Arch 030Z09800A (Arco Sfilante Mobile L200R Gwt 850)
Price: £102.84
Special Order
Qty:
12Ambrogio Spacer Distanziale 110Z56500ARef: 110Z56500A
Ambrogio Spacer Distanziale 110Z56500A
Price: £18.48
Special Order
Qty:
13Ambrogio Screw Vite C00690 Ref: C00690
Ambrogio Screw Vite C00690
Price: £7.44
Special Order
Qty:
14Ambrogio Complete Base 110Z65300A       (Base Completa)Ref: 110Z65300A
Ambrogio Complete Base 110Z65300A (Base Completa)
Price: £436.92
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Battery Test Kit

Battery Test Kit
--- -
CS-BT-USBRef: Kit test batteria - battery test Kit
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
