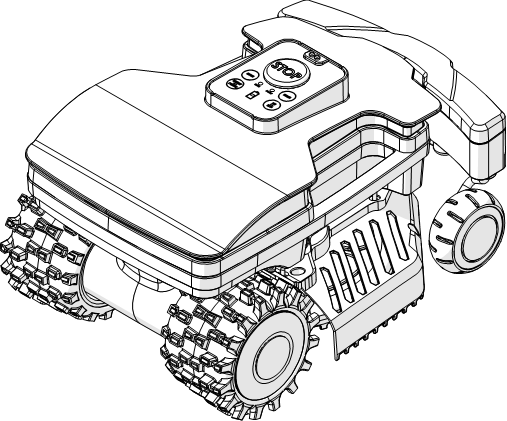

Zucchetti Ambrogio L15 Spare Parts


Zucchetti Ambrogio L15 Spare Parts
Zucchetti Ambrogio L15 Spare Parts
Ambrogio L15 - General Accessories
Ambrogio L15 - General Accessories
diagrams\Ambrogio Spares\L15\L15-2.csv
diagrams\Ambrogio Spares\L15\L15-2.csv
Ambrogio L15 - Electronics
Ambrogio L15 - Electronics
Ambrogio L15 - Base Station
Ambrogio L15 - Base Station
Zucchetti Ambrogio L15 Spare Parts

Zucchetti Ambrogio L15 Spare Parts

Previous Revision: 1.2
Current Revision: 1.3

From: 2020-01

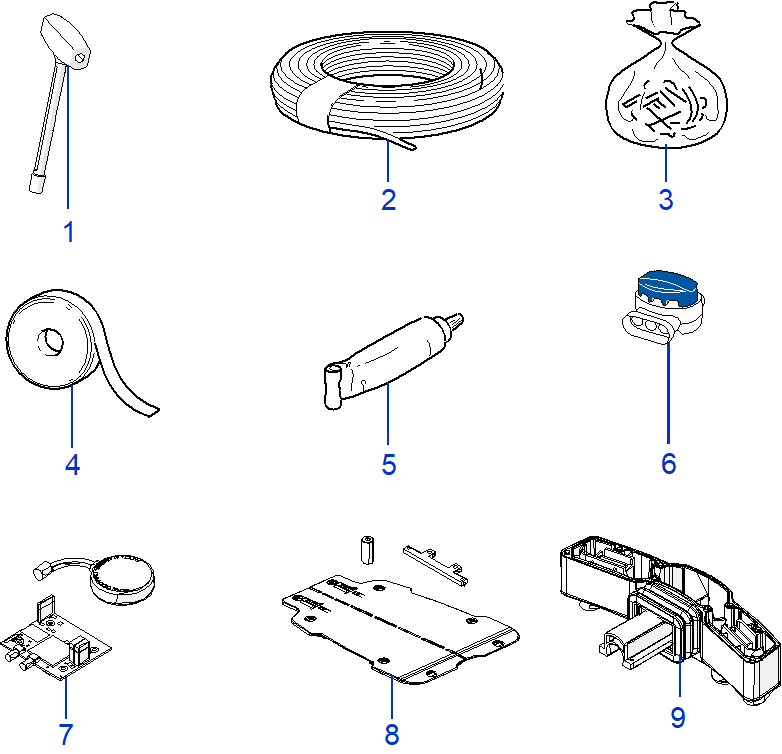

Spare Parts for Ambrogio L15 - General Accessories

Ambrogio L15 - General Accessories
--- -
1ScrewdriverRef: 015Z13700A-R
Screwdriver
Price: £15.72
Special Order
Qty:
2Ambrogio Cable CS_E025_15       (Cavo Fr/2 Wr 1X0.75Stg 2,5 Mt.150)Ref: CS-E025-15
Ambrogio Cable CS_E025_15 (Cavo Fr/2 Wr 1X0.75Stg 2,5 Mt.150)
Price: £83.52
Special Order
Qty:
2Ambrogio Cable CS_E025_1       (Cavo Fr/2 Wr 1X0.75Stg 2,35 Mt.100)Ref: CS-E025-1
Ambrogio Cable CS_E025_1 (Cavo Fr/2 Wr 1X0.75Stg 2,35 Mt.100)
Price: £55.68
Special Order
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack  (200Z22000B)Ref: 200A00200A
Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack (200Z22000B)
Price: £29.76
Not in stock
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)Ref: 200A00100A
Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)
Price: £16.08
10+ in stock ready to go
Qty:
4Ambrogio Stretch Electrical Tape CS_C0111       (Nastro Agglomerante Autoagglomerante Filo Perimetrale)Ref: CS-C0111
Ambrogio Stretch Electrical Tape CS_C0111 (Nastro Agglomerante Autoagglomerante Filo Perimetrale)
Price: £34.56
Special Order
Qty:
5Ambrogio Grease CS_C0109       (Grasso Tubetto Grasso 200Gr)Ref: CS-C0109
Ambrogio Grease CS_C0109 (Grasso Tubetto Grasso 200Gr)
Price: £27.36
Special Order
Qty:
6ConnectorRef: 200A00003
Connector
Price: £6.43
Special Order
Qty:
6Ambrogio Connector 200A00050    (50 Pcs) - Connettore 3M Scotchlok 314Ref: 200A00050
Ambrogio Connector 200A00050 (50 Pcs) - Connettore 3M Scotchlok 314
Price: £72.00
Special Order
Qty:
6Ambrogio Connector 200A00001  SINGLE ITEM - Connettore 3M ScotchlokRef: 200A00001
Ambrogio Connector 200A00001 SINGLE ITEM - Connettore 3M Scotchlok
Price: £1.80
10+ in stock ready to go
Qty:
7Ambrogio Connect Module  Kit 4G f015E01300A_R Ref: 015E01300A-R
Ambrogio Connect Module Kit 4G f015E01300A_R
Price: £432.12
1 in stock ready to go
Qty:
8To Clear - Special Price - Ambrogio L15 Upgrade Kit 015K00006A   XRef: 015K00006A
To Clear - Special Price - Ambrogio L15 Upgrade Kit 015K00006A X
Price: £34.02
1 in stock ready to go
Qty:
9Ambrogio Bellow Kit L20Z16100A       (Kit Soffietto L20)Ref: L20Z16100A
Ambrogio Bellow Kit L20Z16100A (Kit Soffietto L20)
Price: £22.68
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio L15 - Body

Ambrogio L15 - Body
--- -
1Ambrogio Keyboard 015Z06400A       (Tastiera)Ref: 015Z06400A
Ambrogio Keyboard 015Z06400A (Tastiera)
Price: £50.40
Special Order
Qty:
2Ambrogio Cap Set 015Z06500A       (Gruppo Calotta)Ref: 015Z06500A
Ambrogio Cap Set 015Z06500A (Gruppo Calotta)
Price: £124.80
Special Order
Qty:
3Ambrogio Upper Bumper Cover 015Z04500A       (Coperchio Bumper Superiore)Ref: 015Z04500A
Ambrogio Upper Bumper Cover 015Z04500A (Coperchio Bumper Superiore)
Price: £9.77
Special Order
Qty:
4Ambrogio Bumper gasket Guarnizione bumper 015Z04800ARef: 015Z04800A
Ambrogio Bumper gasket Guarnizione bumper 015Z04800A
Price: £2.40
Special Order
Qty:
5Ambrogio Seger C02268Ref: C02268
Ambrogio Seger C02268
Price: £2.40
Special Order
Qty:
7Ambrogio Front Wheel 015Z01800A       (Ruota Anteriore)Ref: 015Z01800A
Ambrogio Front Wheel 015Z01800A (Ruota Anteriore)
Price: £9.60
Special Order
Qty:
8Ambrogio Nut Dado C02293Ref: C02293
Ambrogio Nut Dado C02293
Price: £2.51
Special Order
Qty:
9Ambrogio Washer C00330       (Rondella)Ref: C00330
Ambrogio Washer C00330 (Rondella)
Price: £2.16
Special Order
Qty:
10Ambrogio Screw C01023       (Vite Vite Tcei Ribassata Din 7984 - M4X10 - A)Ref: C01023
Ambrogio Screw C01023 (Vite Vite Tcei Ribassata Din 7984 - M4X10 - A)
Price: £4.32
Special Order
Qty:
11To Clear - Special Price - Ambrogio Wheel Cap 015Z06700A       (Coperchio Ruote)Ref: 015Z06700A
To Clear - Special Price - Ambrogio Wheel Cap 015Z06700A (Coperchio Ruote)
Price: £2.16
2 in stock ready to go
Qty:
12Ref: L20Z20200AR
Not found
12Ref: L20Z19900AR
Not found
13Ambrogio Wheel 015Z00300A       (Ruota)Ref: 015Z00300A
Ambrogio Wheel 015Z00300A (Ruota)
Price: £36.00
Special Order
Qty:
14Ambrogio Spike 015Z11400A       (Artiglio)Ref: 015Z11400A
Ambrogio Spike 015Z11400A (Artiglio)
Price: £10.28
Special Order
Qty:
15Ambrogio Nut Dado CS-C0026Ref: CS-C0026
Ambrogio Nut Dado CS-C0026
Price: £2.40
Special Order
Qty:
16Ambrogio External Blade Guard 015Z07600E       (Proteggi Lama Esterno)Ref: 015Z07600E
Ambrogio External Blade Guard 015Z07600E (Proteggi Lama Esterno)
Price: £13.92
Special Order
Qty:
17Ambrogio Internal Blade Guard 015Z03400B       (Proteggi Lama Interno)Ref: 015Z03400B
Ambrogio Internal Blade Guard 015Z03400B (Proteggi Lama Interno)
Price: £12.20
Special Order
Qty:
18Ambrogio Washer Rondella C00016 (100 pack)Ref: C00016
Ambrogio Washer Rondella C00016 (100 pack)
Price: £2.40
Special Order
Qty:
19Ambrogio Screw Vite C01933Ref: C01933
Ambrogio Screw Vite C01933
Price: £2.40
Special Order
Qty:
20Ambrogio Blade 015Z03700A       (Lama )Ref: 015Z03700A
Ambrogio Blade 015Z03700A (Lama )
Price: £21.60
Special Order
Qty:
21Ambrogio Screw Vite C00212Ref: C00212
Ambrogio Screw Vite C00212
Price: £2.40
8 in stock ready to go
Qty:
22Ambrogio Washer Rondella C00070 Ref: C00070
Ambrogio Washer Rondella C00070
Price: £2.40
Special Order
Qty:
23Ambrogio Screw Vite C00029Ref: C00029
Ambrogio Screw Vite C00029
Price: £2.40
Special Order
Qty:
24Ambrogio Seger C01936 Ref: C01936
Ambrogio Seger C01936
Price: £2.40
Special Order
Qty:
25Ambrogio Gasket Guarnizione C01440 Ref: C01440
Ambrogio Gasket Guarnizione C01440
Price: £2.40
Special Order
Qty:
26EccentricRef: 051Z00900B
Eccentric
Price: £13.68
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio L15 - Electronics

Ambrogio L15 - Electronics
--- -
1Ambrogio Blade Motor C02264_R       (Motore Lama)Ref: C02264-R
Ambrogio Blade Motor C02264_R (Motore Lama)
Price: £213.24
5 in stock ready to go
Qty:
2Ambrogio Gasket Guarnizione 051Z15700B (single)Ref: 051Z15700B
Ambrogio Gasket Guarnizione 051Z15700B (single)
Price: £2.40
8 in stock ready to go
Qty:
3Ambrogio Motor Support 015Z03600A       (Supporto Motore)Ref: 015Z03600A
Ambrogio Motor Support 015Z03600A (Supporto Motore)
Price: £9.34
Special Order
Qty:
4Ambrogio Spring 015Z07300A       (Molla)Ref: 015Z07300A
Ambrogio Spring 015Z07300A (Molla)
Price: £43.68
Special Order
Qty:
5Ambrogio Screw Vite C00691Ref: C00691
Ambrogio Screw Vite C00691
Price: £2.40
Special Order
Qty:
6Ambrogio Washer Rondella C00026Ref: C00026
Ambrogio Washer Rondella C00026
Price: £2.40
Special Order
Qty:
7Ref: 075Z60900A-R
Not found
8Ambrogio Battery Support 015Z09900A       (Supporto Batteria)Ref: 015Z09900A
Ambrogio Battery Support 015Z09900A (Supporto Batteria)
Price: £4.10
Special Order
Qty:
9MotherboardRef: 015E00400A
Motherboard
Price: £620.16
Special Order
Qty:
10Ambrogio Motherboard Support Supporto scheda madre 015Z06000ARef: 015Z06000A
Ambrogio Motherboard Support Supporto scheda madre 015Z06000A
Price: £2.40
Special Order
Qty:
11Ambrogio Lift Board Group 015E00100A       (Gruppo Scheda Lift)Ref: 015E00100A
Ambrogio Lift Board Group 015E00100A (Gruppo Scheda Lift)
Price: £19.56
2 in stock ready to go
Qty:
12Ambrogio Coil 015E00200A       (Bobina)Ref: 015E00200A
Ambrogio Coil 015E00200A (Bobina)
Price: £54.48
3 in stock ready to go
Qty:
13Ambrogio Lower Bumper Cover 015Z08000A       (Coperchio Bumper Inferiore)Ref: 015Z08000A
Ambrogio Lower Bumper Cover 015Z08000A (Coperchio Bumper Inferiore)
Price: £72.84
Special Order
Qty:
14Ambrogio Bellow Soffietto 015Z03300BRef: 015Z03300B
Ambrogio Bellow Soffietto 015Z03300B
Price: £2.65
Special Order
Qty:
15Ambrogio Screw Vite C02269Ref: C02269
Ambrogio Screw Vite C02269
Price: £2.40
10+ in stock ready to go
Qty:
16Ambrogio Nut Dado C02293Ref: C02293
Ambrogio Nut Dado C02293
Price: £2.51
Special Order
Qty:
17Ambrogio Bumper Stop 015Z04300B       (Battuta Bumper)Ref: 015Z04300B
Ambrogio Bumper Stop 015Z04300B (Battuta Bumper)
Price: £10.80
Special Order
Qty:
18Ambrogio Screw Vite C00032Ref: C00032
Ambrogio Screw Vite C00032
Price: £2.40
Special Order
Qty:
19Ambrogio Magnet Support L20Z05300C       (Supporto Magnete)Ref: L20Z05300C
Ambrogio Magnet Support L20Z05300C (Supporto Magnete)
Price: £24.36
Special Order
Qty:
20Ambrogio Bump Group Support 015Z04600B       (Supporto Gruppo Urto)Ref: 015Z04600B
Ambrogio Bump Group Support 015Z04600B (Supporto Gruppo Urto)
Price: £10.80
Special Order
Qty:
21Ambrogio Spring 042Z01700A       (Molla )Ref: 042Z01700A
Ambrogio Spring 042Z01700A (Molla )
Price: £2.82
Special Order
Qty:
22Ambrogio Chassis 015Z04000C       (Chassis)Ref: 015Z04000C
Ambrogio Chassis 015Z04000C (Chassis)
Price: £91.68
Special Order
Qty:
23Ambrogio Main Gasket / Guarnizione Principale 015Z10100ARef: 015Z10100A
Ambrogio Main Gasket / Guarnizione Principale 015Z10100A
Price: £2.40
10+ in stock ready to go
Qty:
24Ambrogio Screw Vite C02297Ref: C02297
Ambrogio Screw Vite C02297
Price: £2.51
10+ in stock ready to go
Qty:
25Ambrogio Gasket Guarnizione L20Z06700BRef: L20Z06700B
Ambrogio Gasket Guarnizione L20Z06700B
Price: £2.40
10+ in stock ready to go
Qty:
27Ambrogio Recharge Cable 015CB01.01       (Cablaggio Ricarica)Ref: 015CB01.01
Ambrogio Recharge Cable 015CB01.01 (Cablaggio Ricarica)
Price: £7.86
1 in stock ready to go
Qty:
28Ambrogio Wheel Motor 015Z13600A_R       (Motoriduttore)Ref: 015Z13600A-R
Ambrogio Wheel Motor 015Z13600A_R (Motoriduttore)
Price: £209.88
2 in stock ready to go
Qty:
29Ambrogio Counterweight 015Z13000A       (Zavorra)Ref: 015Z13000A
Ambrogio Counterweight 015Z13000A (Zavorra)
Price: £37.20
Special Order
Qty:
30Ambrogio Flange 015Z05100E       (Flangia)Ref: 015Z05100E
Ambrogio Flange 015Z05100E (Flangia)
Price: £20.28
Special Order
Qty:
31Ambrogio Screw Vite C00032Ref: C00032
Ambrogio Screw Vite C00032
Price: £2.40
Special Order
Qty:
32Ambrogio Screw Vite C02297Ref: C02297
Ambrogio Screw Vite C02297
Price: £2.51
10+ in stock ready to go
Qty:
33Ambrogio Bump Board CS_E0031_A       (Scheda Sensore Urto Con Cavo 33Cm)Ref: CS-E0031-A
Ambrogio Bump Board CS_E0031_A (Scheda Sensore Urto Con Cavo 33Cm)
Price: £26.04
3 in stock ready to go
Qty:
34Ref: L20Z06300A
Not found
35Ref: 015Z07400B
Not found
36Ambrogio Gasket Guarnizione 015Z14700ARef: 015Z14700A
Ambrogio Gasket Guarnizione 015Z14700A
Price: £2.40
10+ in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio L15 - Base Station

Ambrogio L15 - Base Station
--- -
2WasherRef: C02204
Washer
Price: £2.40
Special Order
Qty:
3Ambrogio Screw Vite CS-C0031Ref: CS-C0031
Ambrogio Screw Vite CS-C0031
Price: £2.40
Special Order
Qty:
4Ambrogio Right Upright 015Z11700C       (Montante Destro )Ref: 015Z11700C
Ambrogio Right Upright 015Z11700C (Montante Destro )
Price: £33.60
Special Order
Qty:
4Ambrogio Left Upright 015Z11701C       (Montante Sinistro)Ref: 015Z11701C
Ambrogio Left Upright 015Z11701C (Montante Sinistro)
Price: £33.60
Special Order
Qty:
5Ambrogio Screw Vite C02188Ref: C02188
Ambrogio Screw Vite C02188
Price: £2.40
10+ in stock ready to go
Qty:
6Ambrogio Turret Box 015Z08700A   Clearance XRef: 015Z08700A
Ambrogio Turret Box 015Z08700A Clearance X
Price: £12.12
2 in stock ready to go
Qty:
7015Z08900A Ambrogio Turret Gasket  XRef: 015Z08900A
015Z08900A Ambrogio Turret Gasket X
Price: £2.40
10+ in stock ready to go
Qty:
8Ambrogio Transmitter 015E00700A_R       (Trasmettitore)Ref: 015E00700A-R
Ambrogio Transmitter 015E00700A_R (Trasmettitore)
Price: £164.88
1 in stock ready to go
Qty:
9Ambrogio Connector A222522       (Connettore Terminals 2 Poli Rohs Cod.10Ht021)Ref: A222522
Ambrogio Connector A222522 (Connettore Terminals 2 Poli Rohs Cod.10Ht021)
Price: £7.72
1 in stock ready to go
Qty:
10To Clear - Special Price - Ambrogio Screw Vite C00364Ref: C00364
To Clear - Special Price - Ambrogio Screw Vite C00364
Price: £1.68
2 in stock ready to go
Qty:
11Ambrogio Transmitter Box with Spring Contacts L20Z22584A_R   (was L20Z22559A_R)  Ref: L20Z22584A-R
Ambrogio Transmitter Box with Spring Contacts L20Z22584A_R (was L20Z22559A_R)
Price: £82.44
3 in stock ready to go
Qty:
12Ambrogio Docking Station Wiring 042CHS01.04       (Cablaggio Base Ricarica)Ref: 042CHS01.04
Ambrogio Docking Station Wiring 042CHS01.04 (Cablaggio Base Ricarica)
Price: £51.60
1 in stock ready to go
Qty:
13Ambrogio Docking Station Botton 015Z08300G       (Pianale Base Ricarica)Ref: 015Z08300G
Ambrogio Docking Station Botton 015Z08300G (Pianale Base Ricarica)
Price: £85.20
8 in stock ready to go
Qty:
14Ambrogio Power Supply C02311   OWA60E30    (Alimentatore)Ref: C02311
Ambrogio Power Supply C02311 OWA60E30 (Alimentatore)
Price: £133.56
4 in stock ready to go
Qty:
15Complete baseRef: 015Z09100A-R
Complete base
Price: £340.08
Special Order
Qty:
16015Z10400B-R Transmitter Box Complete   Twenty 20Ref: 015Z10400B-R
015Z10400B-R Transmitter Box Complete Twenty 20
Price: £268.80
5 in stock ready to go
Qty:
17015A00700A Primary Transmittor TX L15Ref: 015A00700A
015A00700A Primary Transmittor TX L15
Price: £7.63
1 in stock ready to go
Qty:
18coil holderRef: L20Z22571A
coil holder
Price: £9.60
Special Order
Qty:
19Ambrogio Gasket Guarnizione L20Z04400ARef: L20Z04400A
Ambrogio Gasket Guarnizione L20Z04400A
Price: £2.40
Special Order
Qty:
20Recharge contactsRef: L20Z22549A
Recharge contacts
Price: £46.80
Special Order
Qty:
1Ambrogio Cover Tettoia 015Z09000ARef: 015Z09000A
Ambrogio Cover Tettoia 015Z09000A
Price: £2.40
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
