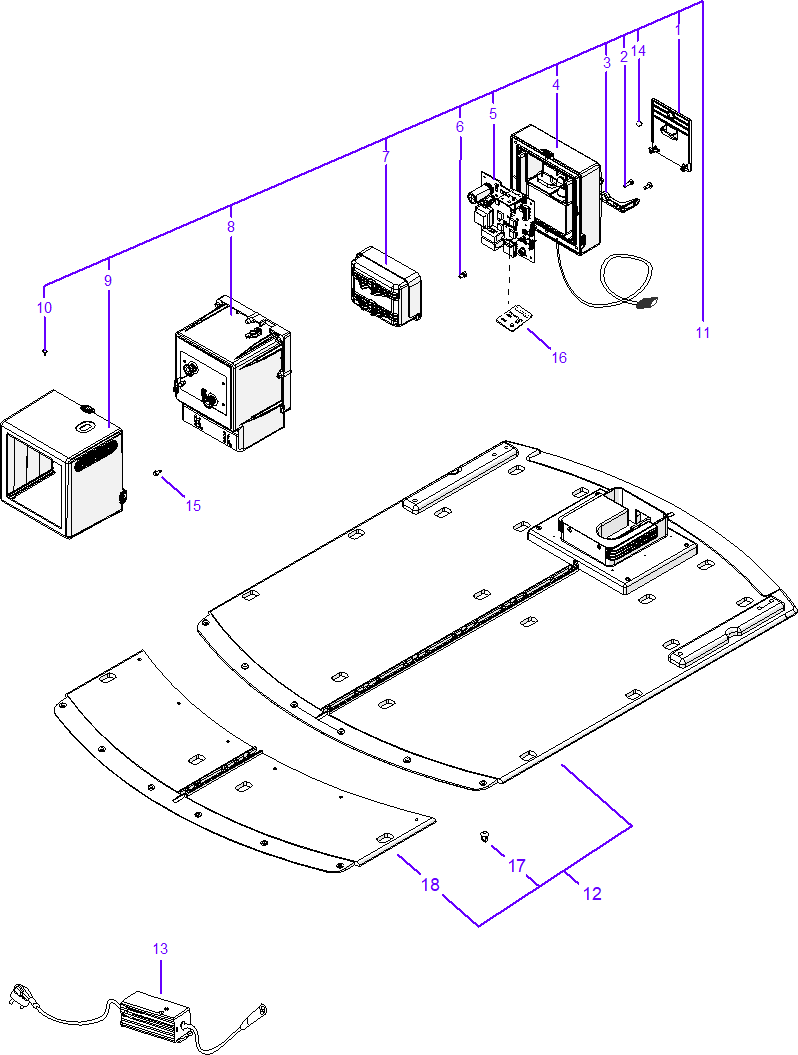

Ambrogio 4.0 B - Base Station
Ambrogio 4.0 B - Base Station

Spare Parts for Zucchetti Ambrogio 4.0 B Spare Parts

Zucchetti Ambrogio 4.0 B Spare Parts
Current Revision: 2.3
From: 2023-12

Models Included:
8040BA0: 4.0 Basic Light
8040BA0: 4.0 Basic Medium
8040BA0: 4.0 Basic Premium
--- -

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

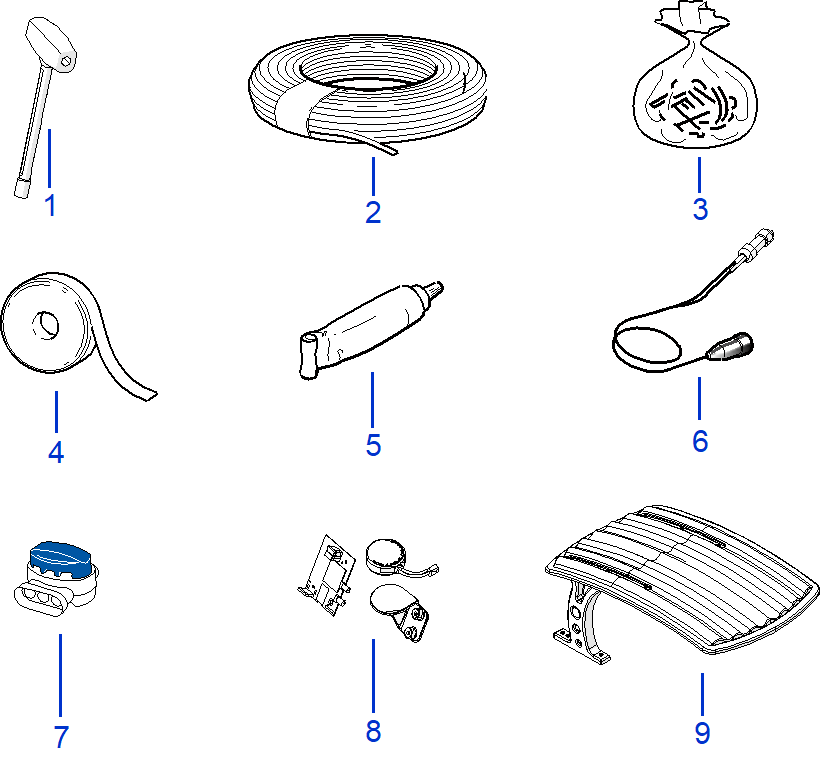

Spare Parts for Ambrogio 4.0 B - General Accessories

Ambrogio 4.0 B - General Accessories
--- -
1Ambrogio Screwdriver C01416       (Chiave Cacciavite T 1/4 + Ph1)Ref: C01416
Ambrogio Screwdriver C01416 (Chiave Cacciavite T 1/4 + Ph1)
Price: £14.28
3 in stock ready to go
Qty:
2Ambrogio Cable CS_E0002_10       (Cavo Tipo Fr/2 Mt.1000)Ref: CS-E0002-10
Ambrogio Cable CS_E0002_10 (Cavo Tipo Fr/2 Mt.1000)
Price: £648.84
Special Order
Qty:
2Ambrogio Cable CS_E0002_5       (Cavo Tipo Fr/2 Mt.500 (Bobina Cartone))Ref: CS-E0002-5
Ambrogio Cable CS_E0002_5 (Cavo Tipo Fr/2 Mt.500 (Bobina Cartone))
Price: £324.36
Special Order
Qty:
2Ambrogio Cable CS_E0002       (Cavo Tipo Fr/2 Mt.150)Ref: CS-E0002
Ambrogio Cable CS_E0002 (Cavo Tipo Fr/2 Mt.150)
Price: £94.44
Special Order
Qty:
2Ambrogio Cable CS_E0002OS       (Cavo Tipo Fr/2 Mt.100)Ref: CS-E0002OS
Ambrogio Cable CS_E0002OS (Cavo Tipo Fr/2 Mt.100)
Price: £63.24
Special Order
Qty:
2Ambrogio Cable CS_E0002_3       (Cavo Tipo Fr/2 Mt.300)Ref: CS-E0002-3
Ambrogio Cable CS_E0002_3 (Cavo Tipo Fr/2 Mt.300)
Price: £191.04
Special Order
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack  (200Z22000B)Ref: 200A00200A
Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack (200Z22000B)
Price: £27.84
10+ in stock ready to go
Qty:
3Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)Ref: 200A00100A
Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)
Price: £15.00
10+ in stock ready to go
Qty:
4Ambrogio Stretch Electrical Tape CS_C0111       (Nastro Agglomerante Autoagglomerante Filo Perimetrale)Ref: CS-C0111
Ambrogio Stretch Electrical Tape CS_C0111 (Nastro Agglomerante Autoagglomerante Filo Perimetrale)
Price: £32.88
Special Order
Qty:
5Ambrogio Grease CS_C0109       (Grasso Tubetto Grasso 200Gr)Ref: CS-C0109
Ambrogio Grease CS_C0109 (Grasso Tubetto Grasso 200Gr)
Price: £26.04
Special Order
Qty:
6Ambrogio External Recharge CB0_RICEX  Ref: CB01-RICEX
Ambrogio External Recharge CB0_RICEX
Price: £34.08
1 in stock ready to go
Qty:
7Ambrogio Connector 200A00050    (50 Pcs) - Connettore 3M Scotchlok 314Ref: 200A00050
Ambrogio Connector 200A00050 (50 Pcs) - Connettore 3M Scotchlok 314
Price: £72.60
Special Order
Qty:
7ConnectorRef: 200A00003
Connector
Price: £6.00
Special Order
Qty:
7Ambrogio Connector 200A00001  SINGLE ITEM - Connettore 3M ScotchlokRef: 200A00001
Ambrogio Connector 200A00001 SINGLE ITEM - Connettore 3M Scotchlok
Price: £1.75
10+ in stock ready to go
Qty:
8Ambrogio Connect Module  Kit 4G f015E01300A_R Ref: 015E01300A-R
Ambrogio Connect Module Kit 4G f015E01300A_R
Price: £407.64
3 in stock ready to go
Qty:
9Ambrogio 4.0 ,4.36 Docking Cover Shelter  075Z45800A from 2020-onRef: 075Z45800A
Ambrogio 4.0 ,4.36 Docking Cover Shelter 075Z45800A from 2020-on
Price: £199.00
Not in stock
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

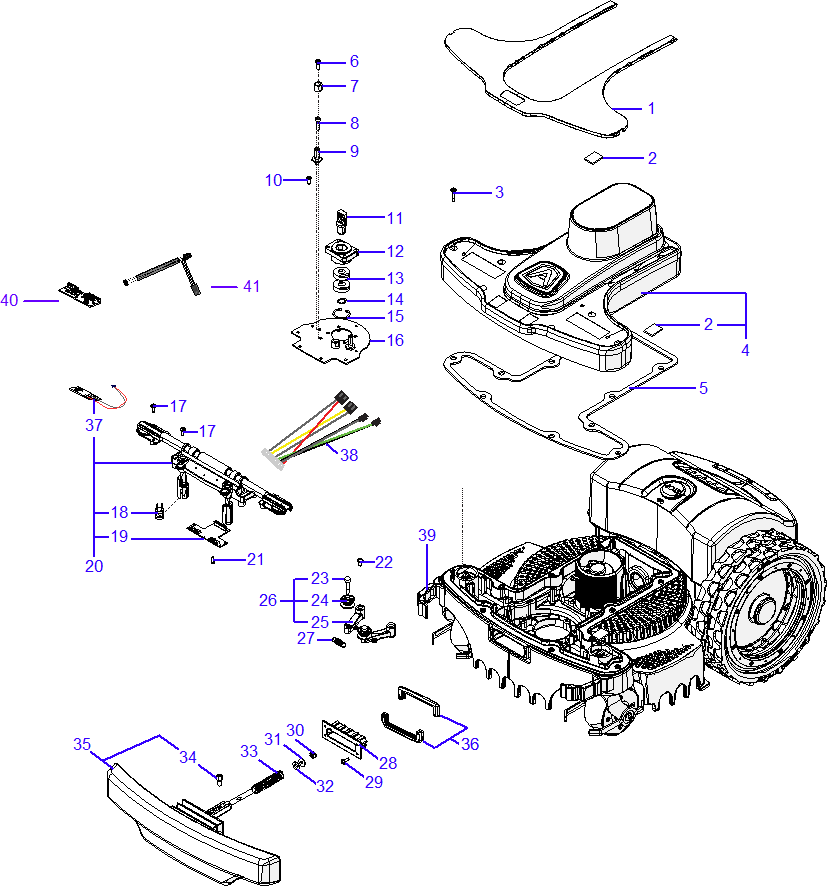

Spare Parts for Ambrogio 4.0 B - Body

Ambrogio 4.0 B - Body
--- -
1Ambrogio Screw Cover (White) 042Z20200A       (Copertura Viti (Bianco))Ref: 042Z20200A
Ambrogio Screw Cover (White) 042Z20200A (Copertura Viti (Bianco))
Price: £28.32
1 in stock ready to go
Qty:
2Ambrogio Adhesive strip Striscia adesiva 042Z22600ARef: 042Z22600A
Ambrogio Adhesive strip Striscia adesiva 042Z22600A
Price: £15.60
Special Order
Qty:
3Ambrogio Screw Vite 042Z17800ARef: 042Z17800A
Ambrogio Screw Vite 042Z17800A
Price: £1.44
8 in stock ready to go
Qty:
4Ambrogio Front Carter (White) 042Z20300A       (Carter Anteriore (Bianco))Ref: 042Z20300A
Ambrogio Front Carter (White) 042Z20300A (Carter Anteriore (Bianco))
Price: £66.84
Special Order
Qty:
5Ambrogio Front Gasket 042Z17600A       (Guarnizione Frontale )Ref: 042Z17600A
Ambrogio Front Gasket 042Z17600A (Guarnizione Frontale )
Price: £10.28
10+ in stock ready to go
Qty:
6Ambrogio Locking Ring C02211       (Vite )Ref: C02211
Ambrogio Locking Ring C02211 (Vite )
Price: £3.91
Special Order
Qty:
7Ambrogio Bumper frame Battuta bumper 042Z21100ARef: 042Z21100A
Ambrogio Bumper frame Battuta bumper 042Z21100A
Price: £13.20
Special Order
Qty:
8Ambrogio Metric screw Vite metrica C02222Ref: C02222
Ambrogio Metric screw Vite metrica C02222
Price: £10.32
Special Order
Qty:
9Ambrogio Thread Pivot 042Z17500A       (Perno Filettato )Ref: 042Z17500A
Ambrogio Thread Pivot 042Z17500A (Perno Filettato )
Price: £9.06
Special Order
Qty:
10Ambrogio Screw Vite C02177Ref: C02177
Ambrogio Screw Vite C02177
Price: £5.16
10+ in stock ready to go
Qty:
11Ambrogio Bearing Pivot 042Z18700A       (Perno Cuscinetto )Ref: 042Z18700A
Ambrogio Bearing Pivot 042Z18700A (Perno Cuscinetto )
Price: £18.00
Special Order
Qty:
12Ambrogio Bearing Support 042Z01200B       (Supporto Cuscinetto )Ref: 042Z01200B
Ambrogio Bearing Support 042Z01200B (Supporto Cuscinetto )
Price: £23.16
Special Order
Qty:
13Ambrogio Bearing C00119       (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)Ref: C00119
Ambrogio Bearing C00119 (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)
Price: £7.96
Not in stock
Qty:
14Ambrogio Seger C02171Ref: C02171
Ambrogio Seger C02171
Price: £5.16
Special Order
Qty:
15Ambrogio Seger C02203Ref: C02203
Ambrogio Seger C02203
Price: £2.52
Special Order
Qty:
16Ambrogio Bumper Plate 042Z01100B       (Piastra Bumper )Ref: 042Z01100B
Ambrogio Bumper Plate 042Z01100B (Piastra Bumper )
Price: £15.48
Special Order
Qty:
17Ambrogio Screw Vite C02177Ref: C02177
Ambrogio Screw Vite C02177
Price: £5.16
10+ in stock ready to go
Qty:
18Ambrogio Coil 046E02000A       (Bobina )Ref: 046E02000A
Ambrogio Coil 046E02000A (Bobina )
Price: £51.36
Special Order
Qty:
19Ambrogio Front Sensors Board 042E00100A       (Scheda Sensori Anteriore )Ref: 042E00100A
Ambrogio Front Sensors Board 042E00100A (Scheda Sensori Anteriore )
Price: £36.00
2 in stock ready to go
Qty:

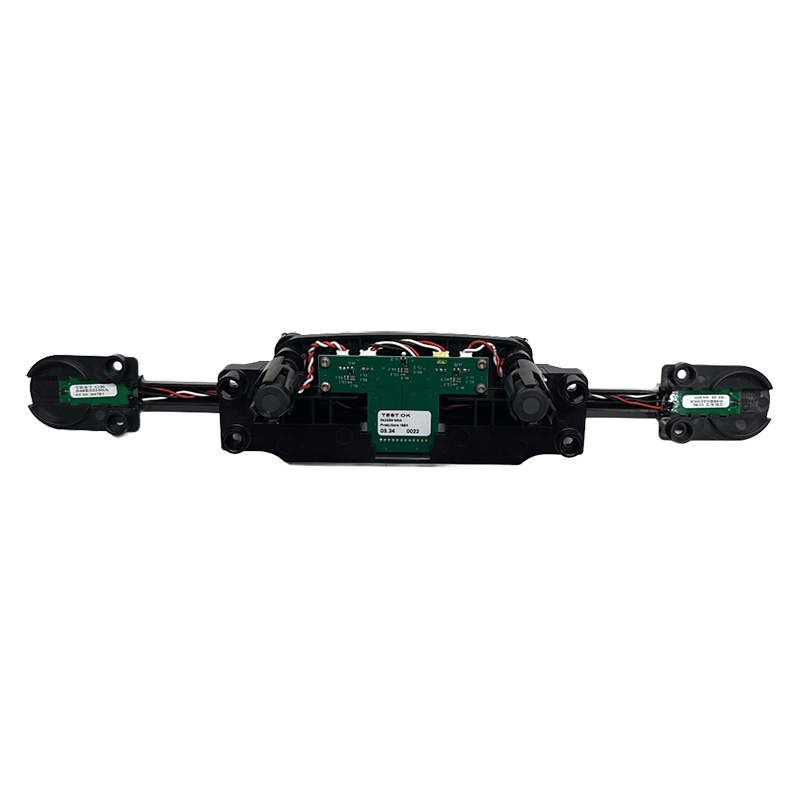

20Ambrogio Front Sensors Group 042Z03000A       (Gruppo Sensori Anteriore )Ref: 042Z03000A
Ambrogio Front Sensors Group 042Z03000A (Gruppo Sensori Anteriore )
Price: £159.36
3 in stock ready to go
Qty:
21Ambrogio Screw Vite C00162Ref: C00162
Ambrogio Screw Vite C00162
Price: £4.68
Special Order
Qty:
22Ambrogio Screw C00908       (Vite T.Larga.-M4X10 A4 Torx)Ref: C00908
Ambrogio Screw C00908 (Vite T.Larga.-M4X10 A4 Torx)
Price: £2.40
5 in stock ready to go
Qty:
23Ambrogio Screw Vite C02198Ref: C02198
Ambrogio Screw Vite C02198
Price: £24.00
Special Order
Qty:
24Ambrogio Bumper Roll 042Z17100B       (Rullino Bumper )Ref: 042Z17100B
Ambrogio Bumper Roll 042Z17100B (Rullino Bumper )
Price: £2.82
Special Order
Qty:
25Ambrogio Bumper Hinge Shaft 042Z16800B       (Staffa Cerniera Bumper)Ref: 042Z16800B
Ambrogio Bumper Hinge Shaft 042Z16800B (Staffa Cerniera Bumper)
Price: £11.87
Special Order
Qty:
26Ambrogio Bumper Shafts Group 042Z17000B       (Gruppo Braccetti Bumper )Ref: 042Z17000B
Ambrogio Bumper Shafts Group 042Z17000B (Gruppo Braccetti Bumper )
Price: £19.32
Special Order
Qty:
27Ambrogio Spring 042Z01700A       (Molla )Ref: 042Z01700A
Ambrogio Spring 042Z01700A (Molla )
Price: £2.57
Special Order
Qty:
28Ambrogio Bellow Protection 042Z16400A       (Protezione Soffietto )Ref: 042Z16400A
Ambrogio Bellow Protection 042Z16400A (Protezione Soffietto )
Price: £4.16
Special Order
Qty:
29Ambrogio Screw Vite C02177Ref: C02177
Ambrogio Screw Vite C02177
Price: £5.16
10+ in stock ready to go
Qty:
30Ambrogio Nuts Dado C02223 Ref: C02223
Ambrogio Nuts Dado C02223
Price: £3.96
Special Order
Qty:
31Ambrogio Washer Rondella C01040 Ref: C01040
Ambrogio Washer Rondella C01040
Price: £3.96
Special Order
Qty:
32Ref: C02220
Not found
33Ambrogio Spring 042Z01600A       (Molla )Ref: 042Z01600A
Ambrogio Spring 042Z01600A (Molla )
Price: £2.57
Special Order
Qty:
34Pin with magnetRef: 042Z01400A
Pin with magnet
Price: £5.04
Special Order
Qty:
35Ambrogio Bump Group 042Z11700A       (Assieme Bumper)Ref: 042Z11700A
Ambrogio Bump Group 042Z11700A (Assieme Bumper)
Price: £61.68
Special Order
Qty:
36Ambrogio Bellow Closing 042Z15500A       (Chiusura Soffietto)Ref: 042Z15500A
Ambrogio Bellow Closing 042Z15500A (Chiusura Soffietto)
Price: £10.28
Special Order
Qty:
37Ambrogio Lift Sensor 046E02100A       (Sensore Lift)Ref: 046E02100A
Ambrogio Lift Sensor 046E02100A (Sensore Lift)
Price: £15.48
Special Order
Qty:
38Ambrogio Bump Sensor Cable 042CB02.02       (Cablaggio Scheda Urto)Ref: 042CB02.02
Ambrogio Bump Sensor Cable 042CB02.02 (Cablaggio Scheda Urto)
Price: £24.84
Special Order
Qty:
39Ambrogio Hinge Right  042Z19900B       (Cerniera)Ref: 042Z19900B
Ambrogio Hinge Right 042Z19900B (Cerniera)
Price: £5.14
4 in stock ready to go
Qty:
39Ambrogio Hinge Left 042Z19800B       (Cerniera)Ref: 042Z19800B
Ambrogio Hinge Left 042Z19800B (Cerniera)
Price: £5.14
5 in stock ready to go
Qty:
40Ref: 042E40404A
Not found
41Ref: 042CB23.01
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

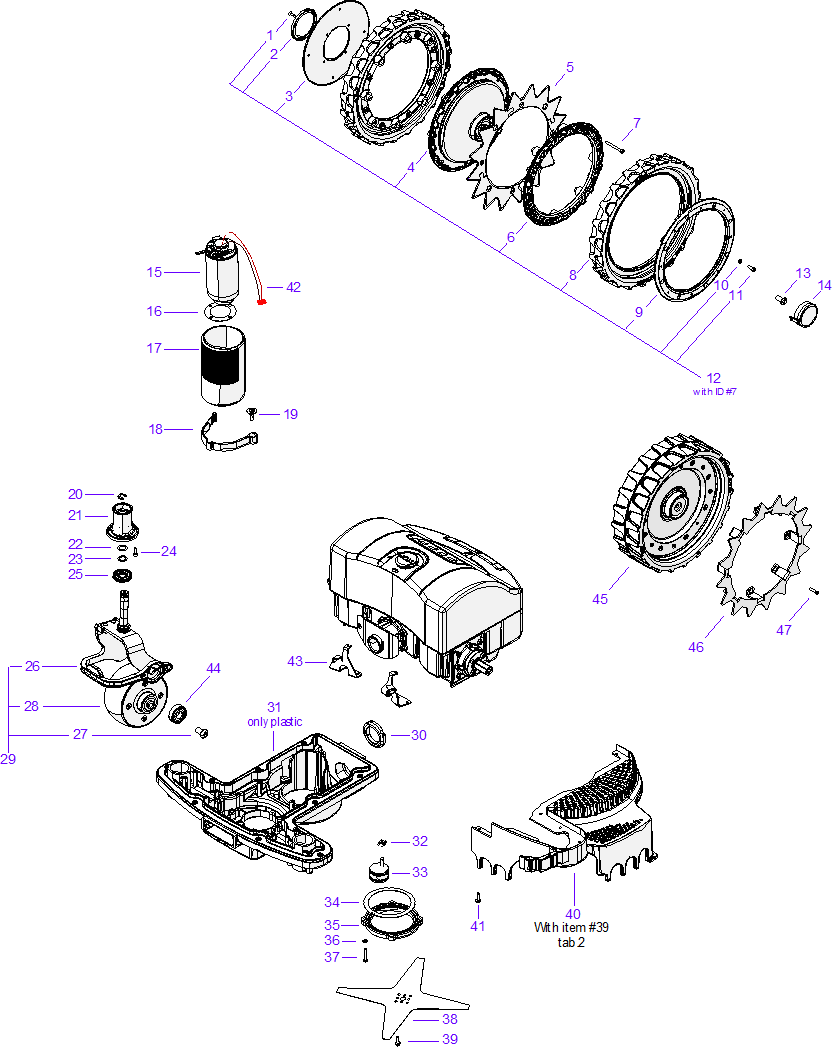

Spare Parts for Ambrogio 4.0 B - Wheels & Blade Assembly

Ambrogio 4.0 B - Wheels & Blade Assembly
--- -
1Ambrogio Screw Vite C02176 Ref: C02176
Ambrogio Screw Vite C02176
Price: £3.96
Special Order
Qty:
2Ambrogio Oring VCW50625       (Oring Anello Guarnizione Vc-W50-62-5)Ref: VCW50625
Ambrogio Oring VCW50625 (Oring Anello Guarnizione Vc-W50-62-5)
Price: £10.03
Special Order
Qty:
3Ambrogio Internal Wheel Cover 042Z17900A       (Coperchio Ruota Interno )Ref: 042Z17900A
Ambrogio Internal Wheel Cover 042Z17900A (Coperchio Ruota Interno )
Price: £3.30
Special Order
Qty:
4Ambrogio External Wheel Cover 042Z11900A       (Coperchio Ruota Esterno )Ref: 042Z11900A
Ambrogio External Wheel Cover 042Z11900A (Coperchio Ruota Esterno )
Price: £27.00
Special Order
Qty:
5Ambrogio Spike Wheel Kit 042Z21900A       (Kit Artiglio Ruota)Ref: 042Z21900A
Ambrogio Spike Wheel Kit 042Z21900A (Kit Artiglio Ruota)
Price: £28.32
Not in stock
Qty:
6Ambrogio Internal Ring 042Z12200A       (Anello Interno )Ref: 042Z12200A
Ambrogio Internal Ring 042Z12200A (Anello Interno )
Price: £15.48
Special Order
Qty:
7Ambrogio Srew Vite C02173 Ref: C02173
Ambrogio Srew Vite C02173
Price: £7.68
Special Order
Qty:
8Ambrogio Tire 046Z16400A       (Copertone )Ref: 046Z16400A
Ambrogio Tire 046Z16400A (Copertone )
Price: £18.00
Special Order
Qty:
9Ambrogio Esteranl Ring 042Z11600A       (Anello Esterno )Ref: 042Z11600A
Ambrogio Esteranl Ring 042Z11600A (Anello Esterno )
Price: £10.28
Special Order
Qty:
10Ambrogio Washer Rondella C01837Ref: C01837
Ambrogio Washer Rondella C01837
Price: £2.40
Special Order
Qty:
11Ambrogio Screw Vite C02172   SINGLERef: C02172
Ambrogio Screw Vite C02172 SINGLE
Price: £2.52
10+ in stock ready to go
Qty:
12Ambrogio Wheel With Tire 042Z12000A       (Ruota Con Copertone )Ref: 042Z12000A
Ambrogio Wheel With Tire 042Z12000A (Ruota Con Copertone )
Price: £105.36
4 in stock ready to go
Qty:
13ScrewRef: C02218
Screw
Price: £5.04
Special Order
Qty:
14Wheel cupRef: 042Z41600A
Wheel cup
Price: £3.84
Special Order
Qty:
15Ambrogio Motore lama (no cablaggio)  -  Blade motor (no cable)Ref: 042A35000A
Ambrogio Motore lama (no cablaggio) - Blade motor (no cable)
Price: £308.40
Not in stock
Qty:
16Ambrogio Gasket Guarnizione 051Z15700B (single)Ref: 051Z15700B
Ambrogio Gasket Guarnizione 051Z15700B (single)
Price: £5.40
5 in stock ready to go
Qty:
17Ambrogio Motor  Support 200Z18500A       (Supporto Motore Contenitore Lama)Ref: 200Z18500A
Ambrogio Motor Support 200Z18500A (Supporto Motore Contenitore Lama)
Price: £16.92
Special Order
Qty:
18Ambrogio Elastic Plate 110Z29200A       (Piastra Elastica Molla Freno Con Guarnizione)Ref: 110Z29200A
Ambrogio Elastic Plate 110Z29200A (Piastra Elastica Molla Freno Con Guarnizione)
Price: £51.36
Special Order
Qty:
19Ambrogio Screw Vite C00691Ref: C00691
Ambrogio Screw Vite C00691
Price: £6.00
Special Order
Qty:
20Ambrogio Seger CS-C0030  - SINGLE ITEMRef: CS-C0030
Ambrogio Seger CS-C0030 - SINGLE ITEM
Price: £1.56
10+ in stock ready to go
Qty:
21Ambrogio Shaft Guide 051Z31000A       (Guida Albero Supporto Ruota L30 Ant.Boccole Inserite)Ref: 051Z31000A
Ambrogio Shaft Guide 051Z31000A (Guida Albero Supporto Ruota L30 Ant.Boccole Inserite)
Price: £15.84
2 in stock ready to go
Qty:
22Ambrogio Washer Rondella C00616 Single ItemRef: C00616
Ambrogio Washer Rondella C00616 Single Item
Price: £4.32
10+ in stock ready to go
Qty:
23Ambrogio Washer Rondella C02049Ref: C02049
Ambrogio Washer Rondella C02049
Price: £4.32
7 in stock ready to go
Qty:
24Ambrogio Screw Vite C02172   SINGLERef: C02172
Ambrogio Screw Vite C02172 SINGLE
Price: £2.52
10+ in stock ready to go
Qty:
25Ambrogio Bellows 110Z43500A       (Soffietto Per Lift Con Labbro Interno)Ref: 110Z43500A
Ambrogio Bellows 110Z43500A (Soffietto Per Lift Con Labbro Interno)
Price: £4.04
Not in stock
Qty:
26Ambrogio Fork 042Z13600C    042Z13600C_R   (Forcella)Ref: 042Z13600C-R
Ambrogio Fork 042Z13600C 042Z13600C_R (Forcella)
Price: £59.16
Special Order
Qty:
26Ref: 042Z13900C-R
Not found
27Ambrogio Screw Vite C00678 (C02218)Ref: C00678
Ambrogio Screw Vite C00678 (C02218)
Price: £13.44
10+ in stock ready to go
Qty:
28Ambrogio Front Wheel 110Z34200A       ((No Magn.) Ruota Anteriore Assieme Ruota Anteriore Senza Magneti)Ref: 110Z34200A
Ambrogio Front Wheel 110Z34200A ((No Magn.) Ruota Anteriore Assieme Ruota Anteriore Senza Magneti)
Price: £49.32
1 in stock ready to go
Qty:
29Ambrogio Left Wheel  042Z14700C_R     (Gruppo Ruota Sinistro)Ref: 042Z14700C-R
Ambrogio Left Wheel 042Z14700C_R (Gruppo Ruota Sinistro)
Price: £81.60
3 in stock ready to go
Qty:
29Ambrogio Right Wheel  042Z13700C_R   (Gruppo Ruota Destro)Ref: 042Z13700C-R
Ambrogio Right Wheel 042Z13700C_R (Gruppo Ruota Destro)
Price: £84.00
1 in stock ready to go
Qty:
30Ambrogio Locking Ring C02211       (Vite )Ref: C02211
Ambrogio Locking Ring C02211 (Vite )
Price: £3.91
Special Order
Qty:
31Ambrogio Front Lowe Rcover 042Z06800A       (Copertura Inferiore Frontale )Ref: 042Z06800A
Ambrogio Front Lowe Rcover 042Z06800A (Copertura Inferiore Frontale )
Price: £61.68
Special Order
Qty:
32Ambrogio Seger C01936 Ref: C01936
Ambrogio Seger C01936
Price: £9.84
Special Order
Qty:
33Ambrogio Fixing Plate 042Z23000B       (Piastra Fissaggio )Ref: 042Z23000B
Ambrogio Fixing Plate 042Z23000B (Piastra Fissaggio )
Price: £18.00
Special Order
Qty:
34Ambrogio Gasket 051Z21900B       (Guarnizione Per Motore Lama L30)Ref: 051Z21900B
Ambrogio Gasket 051Z21900B (Guarnizione Per Motore Lama L30)
Price: £2.57
Special Order
Qty:
35Ambrogio Plate 051Z24600B       (Piastra Ghiera Per Tenuta Guarnizione L30)Ref: 051Z24600B
Ambrogio Plate 051Z24600B (Piastra Ghiera Per Tenuta Guarnizione L30)
Price: £7.96
Special Order
Qty:
36Ambrogio Fixing washer Rondella fissaggio C00900 Ref: C00900
Ambrogio Fixing washer Rondella fissaggio C00900
Price: £2.52
Special Order
Qty:
37Ambrogio Screw Vite C00208Ref: C00208
Ambrogio Screw Vite C00208
Price: £24.00
Special Order
Qty:
38Ambrogio Standard Blade - 25cm 4 Knives Flat 075Z07800A       (Lama Piana A 4 Punte Di Taglio)Ref: 075Z07800A-R
Ambrogio Standard Blade - 25cm 4 Knives Flat 075Z07800A (Lama Piana A 4 Punte Di Taglio)
Price: £28.08
10+ in stock ready to go
Qty:
39Ambrogio Screw Vite C01322Ref: C01322
Ambrogio Screw Vite C01322
Price: £25.20
Special Order
Qty:
40Ambrogio Blade Guard 042Z23600A       (Protezione Lama)Ref: 042Z23600A
Ambrogio Blade Guard 042Z23600A (Protezione Lama)
Price: £33.36
Special Order
Qty:
40Ambrogio Blade Guard 042Z23400A       (Protezione Lama)Ref: 042Z23400A
Ambrogio Blade Guard 042Z23400A (Protezione Lama)
Price: £33.36
Special Order
Qty:
41Ambrogio Screw Vite C02231Ref: C02231
Ambrogio Screw Vite C02231
Price: £3.96
10+ in stock ready to go
Qty:
42Ref: 042CB17.03
Not found
43042A20650A Ambrogio Bracket KitRef: 042A20650A
042A20650A Ambrogio Bracket Kit
Price: £36.00
Not in stock
Qty:
44Ambrogio Bearing C00119       (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)Ref: C00119
Ambrogio Bearing C00119 (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)
Price: £7.96
Not in stock
Qty:
45Ref: 042Z95211A
Not found
46Ref: 042Z00105A-R
Not found
47Torx screw 4X20Ref: C02571
Torx screw 4X20
Price: £5.04
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio 4.0 B - Electronics

Ambrogio 4.0 B - Electronics
--- -
1Stop keyRef: 110E01300A
Stop key
Price: £38.76
Special Order
Qty:
2Ambrogio Keyboard 042Z32600A       (Tastiera )Ref: 042Z32600A
Ambrogio Keyboard 042Z32600A (Tastiera )
Price: £41.16
Special Order
Qty:
3Ambrogio Back Carter Grouop (White) 042Z35400A       (Gruppo Carter Posteriore (Bianco) )Ref: 042Z35400A
Ambrogio Back Carter Grouop (White) 042Z35400A (Gruppo Carter Posteriore (Bianco) )
Price: £164.52
Special Order
Qty:
4Ambrogio Back Main Washer Gasket 042Z10800ARef: 042Z10800A
Ambrogio Back Main Washer Gasket 042Z10800A
Price: £4.16
10+ in stock ready to go
Qty:
5Ambrogio Battery Contact Cable 4.0   (was 042ZCB05.02 )Ref: 042CB05.02
Ambrogio Battery Contact Cable 4.0 (was 042ZCB05.02 )
Price: £32.64
2 in stock ready to go
Qty:
6Ambrogio Recharging Cable 042CB13.01       (Cablaggio Ricarica)Ref: 042CB13.01
Ambrogio Recharging Cable 042CB13.01 (Cablaggio Ricarica)
Price: £49.80
Special Order
Qty:
7042Z08700A Lower Chassis 4.0 4.36Ref: 042Z08700A
042Z08700A Lower Chassis 4.0 4.36
Price: £193.44
Not in stock
Qty:
8Ambrogio Handle 042Z31300A       (Maniglia )Ref: 042Z31300A
Ambrogio Handle 042Z31300A (Maniglia )
Price: £20.52
Special Order
Qty:
9Ambrogio Screw 042Z04600A       (Vite )Ref: 042Z04600A
Ambrogio Screw 042Z04600A (Vite )
Price: £5.39
Special Order
Qty:
10Ambrogio Protection 042Z19300A       (Protezione )Ref: 042Z19300A
Ambrogio Protection 042Z19300A (Protezione )
Price: £2.82
Special Order
Qty:
10Ambrogio Protection 042Z19400A       (Protezione )Ref: 042Z19400A
Ambrogio Protection 042Z19400A (Protezione )
Price: £2.82
Special Order
Qty:
11Ambrogio Screw Vite C02272 Ref: C02272
Ambrogio Screw Vite C02272
Price: £5.16
Special Order
Qty:
12Ambrogio Contact Recharge Group 042Z08500A       (Gruppo Ricarica Contatto )Ref: 042Z08500A
Ambrogio Contact Recharge Group 042Z08500A (Gruppo Ricarica Contatto )
Price: £138.84
1 in stock ready to go
Qty:
13Ambrogio Screw Vite 042Z17800ARef: 042Z17800A
Ambrogio Screw Vite 042Z17800A
Price: £1.44
8 in stock ready to go
Qty:
14Ambrogio Motor Reducer 042Z22400A_R  (Brushless - Motoriduttore)Ref: 042Z22400A-R
Ambrogio Motor Reducer 042Z22400A_R (Brushless - Motoriduttore)
Price: £252.00
9 in stock ready to go
Qty:
15Ambrogio Screw Vite C02177Ref: C02177
Ambrogio Screw Vite C02177
Price: £5.16
10+ in stock ready to go
Qty:
16Ambrogio Mother Board 042E40300A       (Scheda Madre )Ref: 042E40300A
Ambrogio Mother Board 042E40300A (Scheda Madre )
Price: £585.48
Not in stock
Qty:
17Ambrogio Can Termination Cable 110E01100A       (Cablaggio Terminazione Can Cablaggio Bus Can Cb11_Terminatorecan.1)Ref: 110E01100A
Ambrogio Can Termination Cable 110E01100A (Cablaggio Terminazione Can Cablaggio Bus Can Cb11_Terminatorecan.1)
Price: £6.00
6 in stock ready to go
Qty:
18Ambrogio Screw Vite C02231Ref: C02231
Ambrogio Screw Vite C02231
Price: £3.96
10+ in stock ready to go
Qty:
19Ambrogio Pin 042Z19100A       (Perno )Ref: 042Z19100A
Ambrogio Pin 042Z19100A (Perno )
Price: £2.57
Special Order
Qty:
20Ambrogio Motherboard Support 042Z08900A       (Supporto Scheda Madre )Ref: 042Z08900A
Ambrogio Motherboard Support 042Z08900A (Supporto Scheda Madre )
Price: £5.14
Special Order
Qty:
27Ambrogio Screw Vite C02176 Ref: C02176
Ambrogio Screw Vite C02176
Price: £3.96
Special Order
Qty:
28Ambrogio Gasket 042Z25900A       (Guarnizione )Ref: 042Z25900A
Ambrogio Gasket 042Z25900A (Guarnizione )
Price: £2.57
Special Order
Qty:
29Ambrogio Plate 042Z04400A       (Piastra )Ref: 042Z04400A
Ambrogio Plate 042Z04400A (Piastra )
Price: £5.14
Special Order
Qty:
31Zucchetti Ambrogio Battery 10.35Ah - 4.36  4.0    (was 042Z09000A)Ref: 042Z70100A
Zucchetti Ambrogio Battery 10.35Ah - 4.36 4.0 (was 042Z09000A)
Price: £399.00
10+ in stock ready to go
Qty:
32Ambrogio Screw Vite 042Z17800ARef: 042Z17800A
Ambrogio Screw Vite 042Z17800A
Price: £1.44
8 in stock ready to go
Qty:
33Ambrogio Motor Reducer 042Z44800A       (Brushless  Motoriduttore)Ref: 042Z44800A
Ambrogio Motor Reducer 042Z44800A (Brushless Motoriduttore)
Price: £259.56
Special Order
Qty:
34Ambrogio Coil 110E00700A       (Bobina )Ref: 110E00700A-R
Ambrogio Coil 110E00700A (Bobina )
Price: £51.36
5 in stock ready to go
Qty:
35Ambrogio Rain Sensor Cabling CB13_L400.1       (Cablaggio Sensorer Pioggia)Ref: CB13-L400.1
Ambrogio Rain Sensor Cabling CB13_L400.1 (Cablaggio Sensorer Pioggia)
Price: £6.61
Special Order
Qty:
36Ambrogio Stop Cabling 042CB03.02       (Cablaggio Stop)Ref: 042CB03.02
Ambrogio Stop Cabling 042CB03.02 (Cablaggio Stop)
Price: £20.88
Special Order
Qty:
37Ref: 042CB09.03
Not found
38Ambrogio Cable  CB01_MRB4_V01Ref: CB01-MRB4-V01
Ambrogio Cable CB01_MRB4_V01
Price: £15.72
4 in stock ready to go
Qty:
39Ambrogio Hexagon 042Z18100A       (Esagono Motore)Ref: 042Z18100A
Ambrogio Hexagon 042Z18100A (Esagono Motore)
Price: £7.72
Special Order
Qty:
39Ref: 042Z95084A
Not found
40Ref: C01304
Not found
41Ambrogio Screw Vite C00364Ref: C00364
Ambrogio Screw Vite C00364
Price: £14.40
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Ambrogio 4.0 B - Base Station

Ambrogio 4.0 B - Base Station
--- -
1Ambrogio Back Cap 042Z37200A       (Coperchio Posteriore)Ref: 042Z37200A
Ambrogio Back Cap 042Z37200A (Coperchio Posteriore)
Price: £11.63
1 in stock ready to go
Qty:
2Ambrogio Screw Vite C02172   SINGLERef: C02172
Ambrogio Screw Vite C02172 SINGLE
Price: £2.52
10+ in stock ready to go
Qty:
3Ambrogio Cable Clamp 042Z24500A       (Fermacavo)Ref: 042Z24500A
Ambrogio Cable Clamp 042Z24500A (Fermacavo)
Price: £4.16
Special Order
Qty:
4Ambrogio Docking Station Closing 042Z27300A       (Chiusura Base Ricarica)Ref: 042Z27300A
Ambrogio Docking Station Closing 042Z27300A (Chiusura Base Ricarica)
Price: £90.00
Special Order
Qty:
5Ambrogio Transmitter 042E00500A       (Trasmettitore )Ref: 042E00500A
Ambrogio Transmitter 042E00500A (Trasmettitore )
Price: £155.52
Not in stock
Qty:
6Ambrogio Screw Vite C02224 Ref: C02224
Ambrogio Screw Vite C02224
Price: £2.52
Special Order
Qty:
7Ambrogio Recharging Contact Group 042Z24800A       (Gruppo Contatti Ricarica)Ref: 042Z24800A
Ambrogio Recharging Contact Group 042Z24800A (Gruppo Contatti Ricarica)
Price: £74.52
Special Order
Qty:
8Ambrogio Docking Station Tower 042Z44500A       (Torretta Base Di Ricarica)Ref: 042Z44500A
Ambrogio Docking Station Tower 042Z44500A (Torretta Base Di Ricarica)
Price: £56.52
Special Order
Qty:
9Ref: 042Z53000A
Not found
10Ambrogio Screw Vite C02244Ref: C02244
Ambrogio Screw Vite C02244
Price: £2.52
Special Order
Qty:
11Transmitter box (White)Ref: 042Z26500A
Transmitter box (White)
Price: £277.20
Special Order
Qty:
12042Z52800A Base Station PlateRef: 042Z52800A
042Z52800A Base Station Plate
Price: £115.56
Special Order
Qty:
13Ambrogio 5AH Battery Charger ELG-150-30  EGL-150-30  CS-CLG150-30Ref: ELG-150-30
Ambrogio 5AH Battery Charger ELG-150-30 EGL-150-30 CS-CLG150-30
Price: £141.60
4 in stock ready to go
Qty:
13Ambrogio Battery Charger ELG-240-30       ((8A) Caricabatteria)Ref: ELG-240-30
Ambrogio Battery Charger ELG-240-30 ((8A) Caricabatteria)
Price: £169.68
2 in stock ready to go
Qty:
13Ambrogio Battery Charger 2.0Ah Caricabatteria  Owa-60 29.4V/2.1A 60WRef: OWA60E30
Ambrogio Battery Charger 2.0Ah Caricabatteria Owa-60 29.4V/2.1A 60W
Price: £127.20
Special Order
Qty:
14Ambrogio Magnet 042Z32000A       (Magnete)Ref: 042Z32000A
Ambrogio Magnet 042Z32000A (Magnete)
Price: £3.91
10+ in stock ready to go
Qty:
15Ambrogio Screw C00908       (Vite T.Larga.-M4X10 A4 Torx)Ref: C00908
Ambrogio Screw C00908 (Vite T.Larga.-M4X10 A4 Torx)
Price: £2.40
5 in stock ready to go
Qty:
16015A00700A Primary Transmittor TX L15Ref: 015A00700A
015A00700A Primary Transmittor TX L15
Price: £12.56
Not in stock
Qty:
17Ref: C01294
Not found
18Ref: 042Z49600A
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
