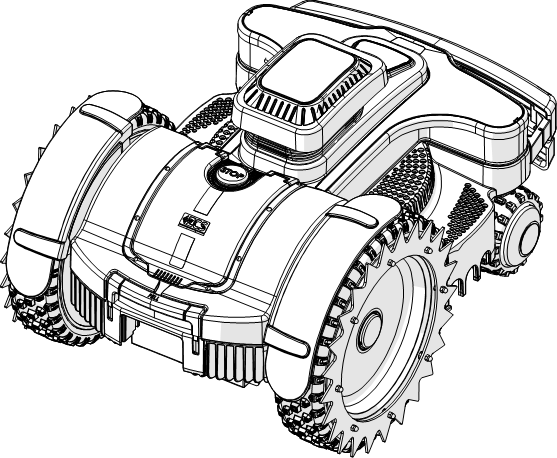

Zucchetti Ambrogio 4.0 4WD Elite Spare Parts

Name: Zucchetti Ambrogio 4.0 4WD Elite Spare Parts
Brand: Ambrogio

Zucchetti Ambrogio 4.0 4WD Elite - General Accessories

Zucchetti Ambrogio 4.0 4WD Elite - Body

Zucchetti Ambrogio 4.0 4WD Elite - Wheels & Blade Assembly

Zucchetti Ambrogio 4.0 4WD Elite - Electronics

Zucchetti Ambrogio 4.0 4WD Elite - Base Station

Spare Parts for Zucchetti Ambrogio 4.0 4WD Elite Spare Parts

MD-CO-RO-42- Rev. 1.1 - 30/10/2023 - Ambrogio 4.0 4WD Elite Current Revision: 1.1
From: 2023-11

Models Type Included :
C040EL4 Elite
AM040L4I3Z AMBROGIO 4.0 ELITE 4WD

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

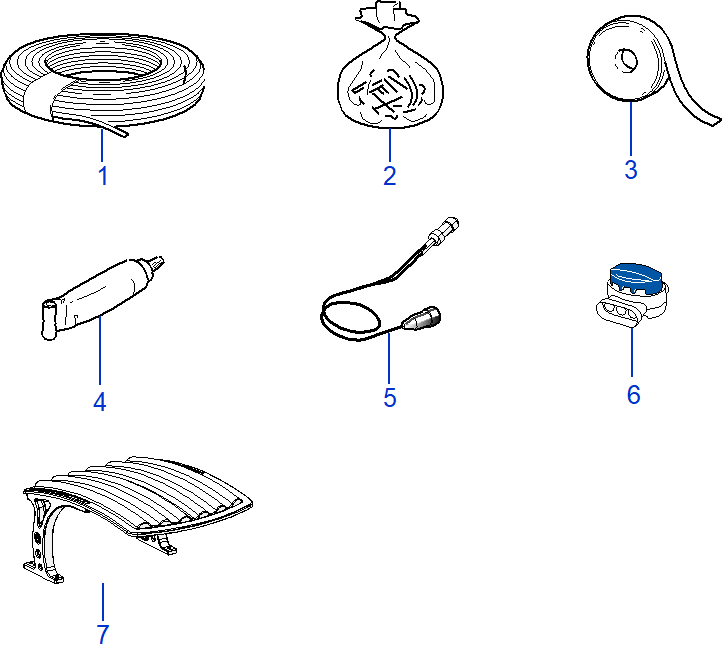

Spare Parts for Zucchetti Ambrogio 4.0 4WD Elite - General Accessories

Quick link to the part:
-	-	-	-
1		Ref: CS-E0002-10 Ambrogio Cable CS_E0002_10 (Cavo Tipo Fr/2 Mt.1000)	Price: £746.16 Special Order	Qty:
1		Ref: CS-E0002-5 Ambrogio Cable CS_E0002_5 (Cavo Tipo Fr/2 Mt.500 (Bobina Cartone))	Price: £358.08 Special Order	Qty:
1		Ref: CS-E0002-3 Ambrogio Cable CS_E0002_3 (Cavo Tipo Fr/2 Mt.300)	Price: £210.96 Special Order	Qty:
1		Ref: CS-E0002 Ambrogio Cable CS_E0002 (Cavo Tipo Fr/2 Mt.150)	Price: £104.28 Special Order	Qty:
1		Ref: CS-E0002OS Ambrogio Cable CS_E0002OS (Cavo Tipo Fr/2 Mt.100)	Price: £69.84 Special Order	Qty:
2		Ref: 200A00200A Ambrogio Universal Pegs / Nails For Robot Mower 200 Pack (200Z22000B)	Price: £29.76 10+ in stock ready to go	Qty:
2		Ref: 200A00100A Ambrogio Universal Pegs / Nails For Robot Mower 100 Pack (200Z22000B)	Price: £16.08 10+ in stock ready to go	Qty:
3		Ref: CS-C0111 Ambrogio Stretch Electrical Tape CS_C0111 (Nastro Agglomerante Autoagglomerante Filo Perimetrale)	Price: £34.56 Special Order	Qty:
4		Ref: CS-C0109 Ambrogio Grease CS_C0109 (Grasso Tubetto Grasso 200Gr)	Price: £27.36 Special Order	Qty:
5		Ref: CB01-RICEX Ambrogio External Recharge CB0_RICEX	Price: £36.48 1 in stock ready to go	Qty:
6		Ref: 200A00050 Ambrogio Connector 200A00050 (50 Pcs) - Connettore 3M Scotchlok 314	Price: £76.20 Special Order	Qty:
6		Ref: 200A00001 Ambrogio Connector 200A00001 SINGLE ITEM - Connettore 3M Scotchlok	Price: £1.80 10+ in stock ready to go	Qty:
6		Ref: 200A00003 Connector	Price: £6.43 Special Order	Qty:
7		Ref: 042Z58600A 042Z58600A Ambrogio Station Cover HC / 4WD / Quad	Price: £180.00 Not in stock	Qty:

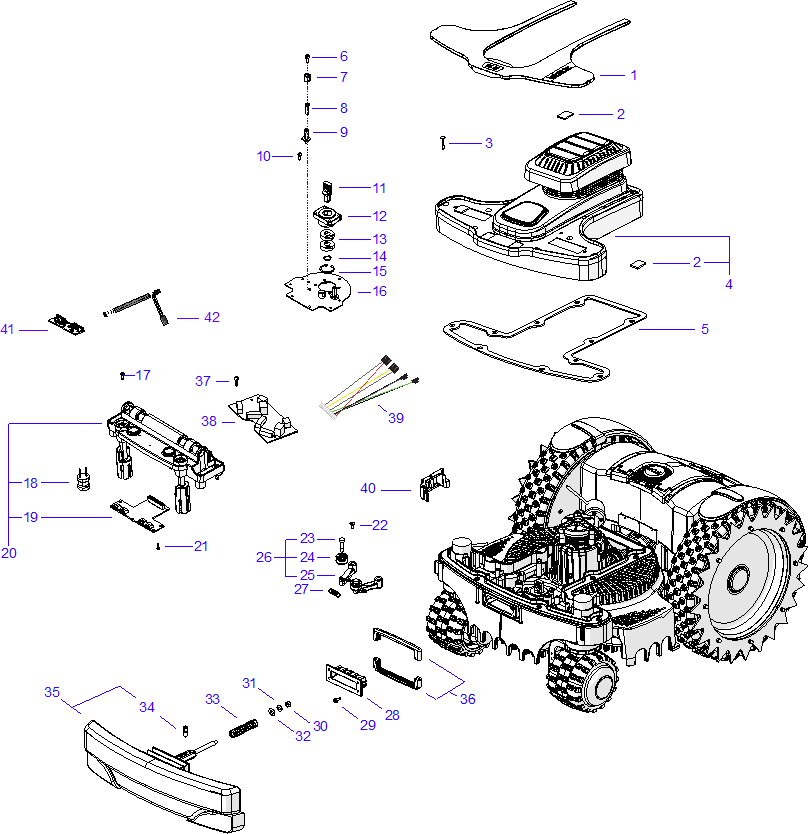

Spare Parts for Zucchetti Ambrogio 4.0 4WD Elite - Body

Quick link to the part:
-	-	-	-
1		Ref: 042Z20200A Ambrogio Screw Cover (White) 042Z20200A (Copertura Viti (Bianco))	Price: £30.84 1 in stock ready to go	Qty:
2		Ref: 042Z22600A Ambrogio Adhesive strip Striscia adesiva 042Z22600A	Price: £2.40 Special Order	Qty:
3		Ref: 042Z17800A Ambrogio Screw Vite 042Z17800A	Price: £2.40 9 in stock ready to go	Qty:
4		Ref: 042Z25200A Ambrogio Front Carter (White) 042Z25200A (Carter Anteriore (Bianco))	Price: £83.64 Special Order	Qty:
5		Ref: 042Z17600A Ambrogio Front Gasket 042Z17600A (Guarnizione Frontale )	Price: £10.80 2 in stock ready to go	Qty:
6		Ref: C02221 Screw	Price: £2.40 Special Order	Qty:
7		Ref: 042Z21100A Ambrogio Bumper frame Battuta bumper 042Z21100A	Price: £2.40 Special Order	Qty:

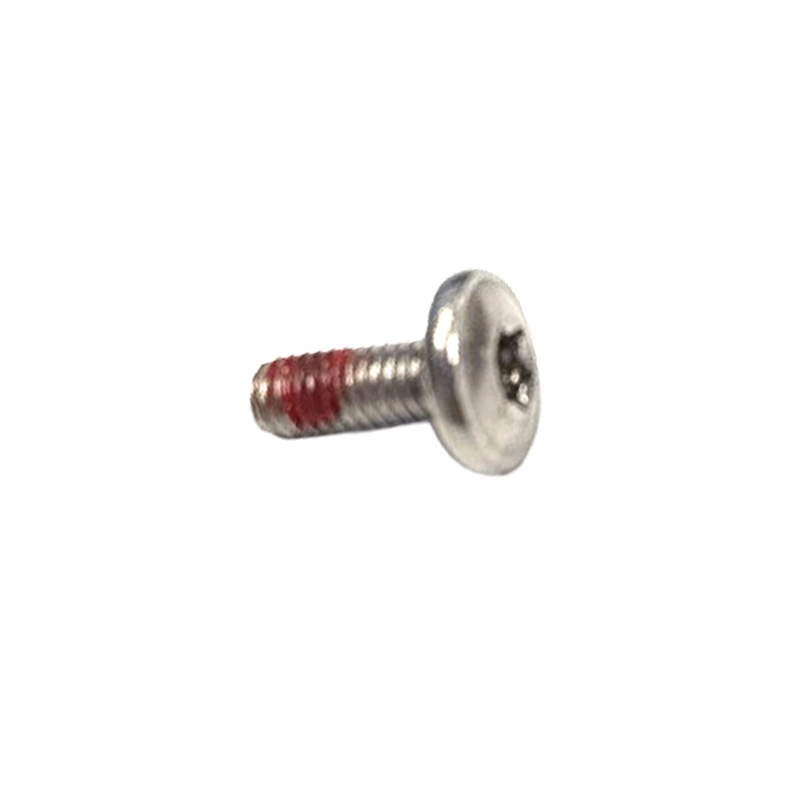

8		Ref: C00908 Ambrogio Screw C00908 (Vite T.Larga.-M4X10 A4 Torx)	Price: £2.40 9 in stock ready to go	Qty:
9		Ref: 042Z17500A Ambrogio Thread Pivot 042Z17500A (Perno Filettato )	Price: £9.52 Special Order	Qty:

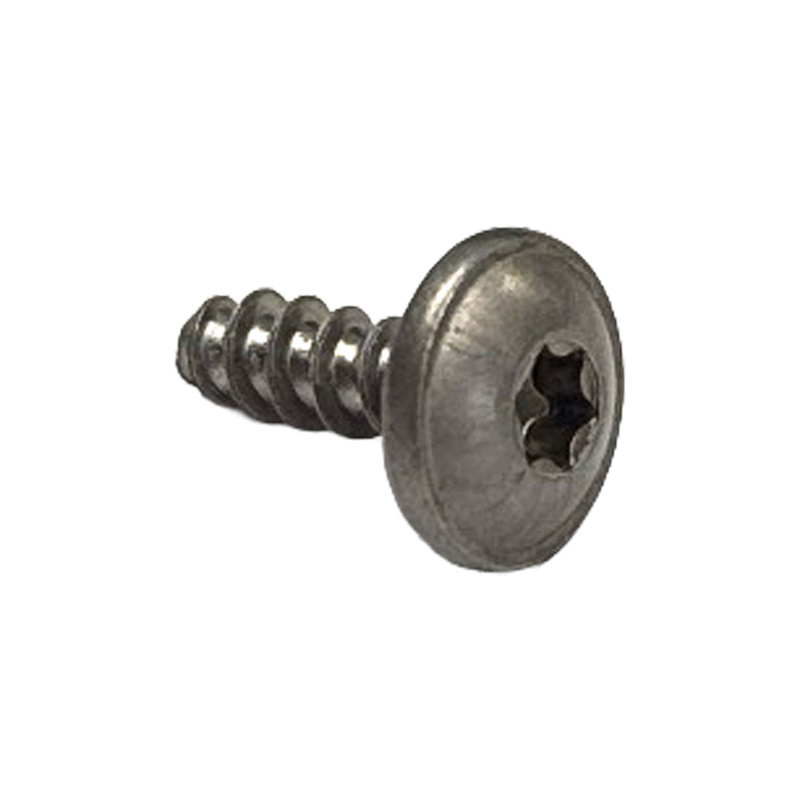

10		Ref: C02231 Ambrogio Screw Vite C02231	Price: £2.40 10+ in stock ready to go	Qty:
11		Ref: 042Z18700A Ambrogio Bearing Pivot 042Z18700A (Perno Cuscinetto )	Price: £19.44 Special Order	Qty:
12		Ref: 042Z01200B Ambrogio Bearing Support 042Z01200B (Supporto Cuscinetto )	Price: £24.96 Special Order	Qty:
13		Ref: C00119 Ambrogio Bearing C00119 (Cuscinetto Cuscinetto Rad. W6001-2Rs1 Isb)	Price: £8.59 Not in stock	Qty:
14		Ref: C02171 Ambrogio Seger C02171	Price: £2.40 Special Order	Qty:
15		Ref: C02203 Ambrogio Seger C02203	Price: £2.40 Special Order	Qty:

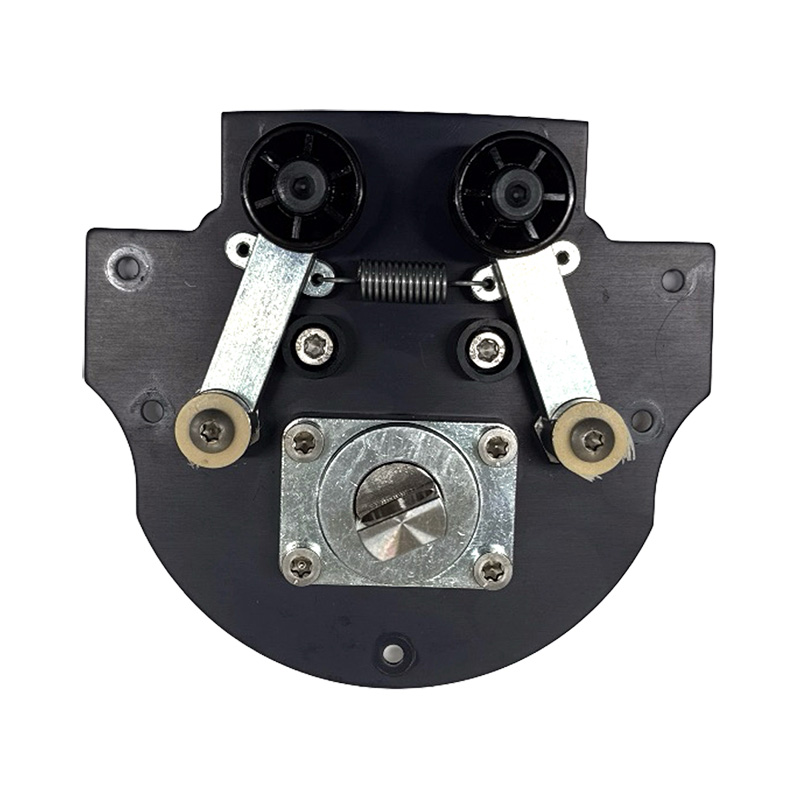

16		Ref: 042Z01100B Ambrogio Bumper Plate 042Z01100B (Piastra Bumper )	Price: £16.20 Special Order	Qty:
17		Ref: C02231 Ambrogio Screw Vite C02231	Price: £2.40 10+ in stock ready to go	Qty:
18		Ref: 046E02000A Ambrogio Coil 046E02000A (Bobina )	Price: £54.48 Not in stock	Qty:
19		Ref: 042E00100A Ambrogio Front Sensors Board 042E00100A (Scheda Sensori Anteriore )	Price: £38.16 2 in stock ready to go	Qty:
20		Ref: 042Z03600A-R Front sensors group	Price: £149.88 Special Order	Qty:
21		Ref: C02175 Torx screw 3X10	Price: £2.40 Special Order	Qty:
22		Ref: C00908 Ambrogio Screw C00908 (Vite T.Larga.-M4X10 A4 Torx)	Price: £2.40 9 in stock ready to go	Qty:
23		Ref: C02198 Ambrogio Screw Vite C02198	Price: £2.64 Special Order	Qty:
24		Ref: 042Z17100B Ambrogio Bumper Roll 042Z17100B (Rullino Bumper )	Price: £2.96 Special Order	Qty:
25		Ref: 042Z16800B Ambrogio Bumper Hinge Shaft 042Z16800B (Staffa Cerniera Bumper)	Price: £12.46 Special Order	Qty:
26		Ref: 042Z17000B Ambrogio Bumper Shafts Group 042Z17000B (Gruppo Braccetti Bumper )	Price: £20.28 Special Order	Qty:
27		Ref: 042Z01700A Ambrogio Spring 042Z01700A (Molla )	Price: £2.82 Special Order	Qty:
28		Ref: 042Z16400A Ambrogio Bellow Protection 042Z16400A (Protezione Soffietto )	Price: £4.37 Special Order	Qty:
29		Ref: C02177 Ambrogio Screw Vite C02177	Price: £2.40 10+ in stock ready to go	Qty:
30		Ref: C02223 Ambrogio Nuts Dado C02223	Price: £2.40 Special Order	Qty:
31		Ref: C02349 Ambrogio Flat washer Rosetta C02349	Price: £2.40 Special Order	Qty:
32		Ref: C02220 Bearing	Price: £4.88 Special Order	Qty:
33		Ref: 042Z01600A Ambrogio Spring 042Z01600A (Molla )	Price: £2.82 Special Order	Qty:
34		Ref: 042Z01400A Pin with magnet	Price: £5.39 Special Order	Qty:
35		Ref: 042Z21500A Front bumper	Price: £64.80 Special Order	Qty:
36		Ref: 042Z15500A Ambrogio Bellow Closing 042Z15500A (Chiusura Soffietto)	Price: £10.80 Special Order	Qty:
37		Ref: C02175 Torx screw 3X10	Price: £2.40 Special Order	Qty:
38		Ref: 075E02000A-R 075E02000A_R Circuit Board	Price: £171.60 8 in stock ready to go	Qty:
39		Ref: 042CB02.02 Ambrogio Bump Sensor Cable 042CB02.02 (Cablaggio Scheda Urto)	Price: £26.52 Special Order	Qty:
40		Ref: 042Z19900B Ambrogio Hinge Right 042Z19900B (Cerniera)	Price: £5.39 8 in stock ready to go	Qty:
40		Ref: 042Z19800B Ambrogio Hinge Left 042Z19800B (Cerniera)	Price: £5.39 5 in stock ready to go	Qty:
41		Ref: 042E00099A-R Zucchetti Mims Board 042E00099A-R	Price: £72.00 1 in stock ready to go	Qty:
42		Ref: 042CB23.01 Cable	Price: £26.52 Special Order	Qty:

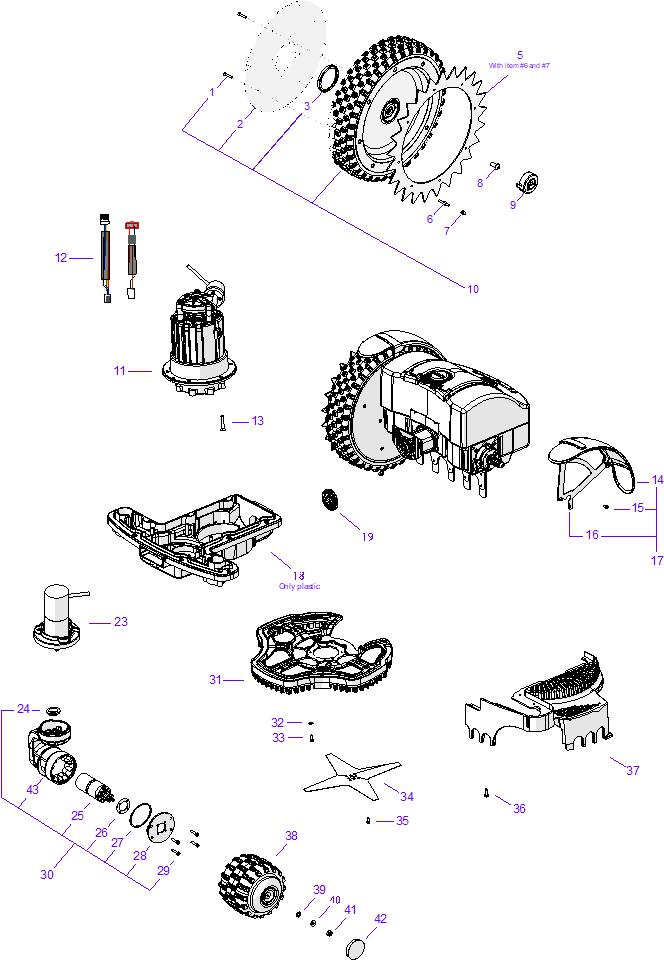

Spare Parts for Zucchetti Ambrogio 4.0 4WD Elite - Wheels & Blade Assembly

Quick link to the part:
-	-	-	-
1		Ref: C02571 Torx screw 4X20	Price: £2.40 Special Order	Qty:
2		Ref: 042Z55800A Wheel cover	Price: £8.51 Special Order	Qty:
3		Ref: VCW50625 Ambrogio Oring VCW50625 (Oring Anello Guarnizione Vc-W50-62-5)	Price: £10.54 Special Order	Qty:
5		Ref: 042Z60200A-R 042Z60200A_R SINGLE HOOK KIT 4.0 /4.36 USA	Price: £146.40 4 in stock ready to go	Qty:
6		Ref: 042Z60100A Spacer	Price: £3.73 Special Order	Qty:
7		Ref: C01273 Ambrogio Nut Dado C01273	Price: £2.40 Special Order	Qty:
8		Ref: C02218 Screw	Price: £2.40 Special Order	Qty:

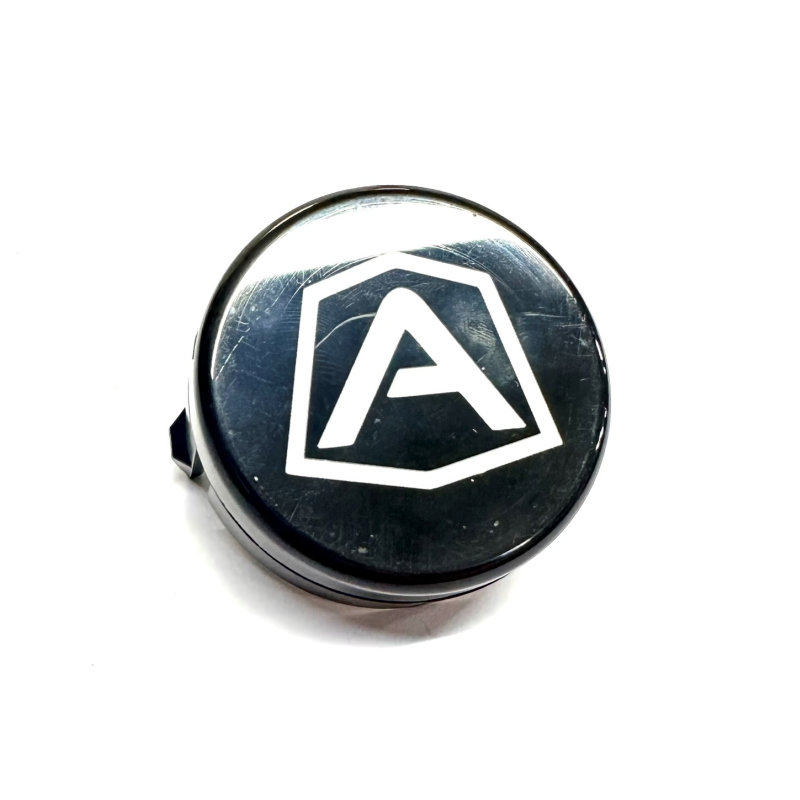

9		Ref: 042Z41600A Wheel cup	Price: £4.10 Special Order	Qty:

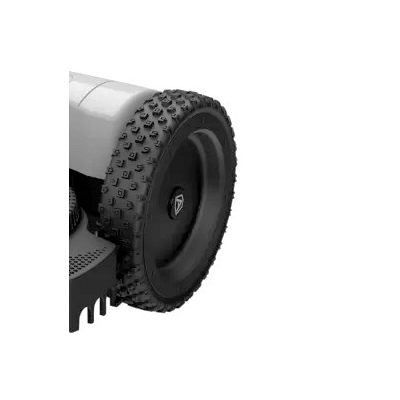

10		Ref: 042Z54800A-R Wheel with tire	Price: £86.04 Special Order	Qty:

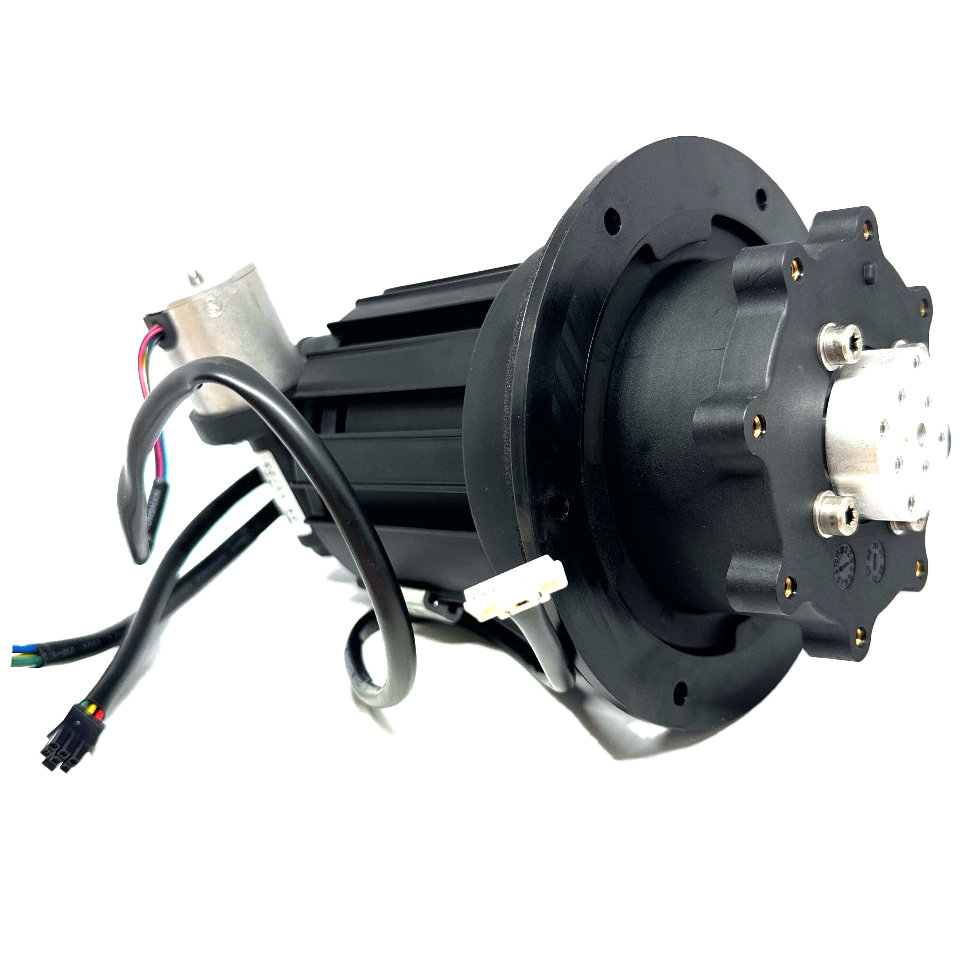

11		Ref: 042Z95033A 042Z95033A ASSIEME MOTOR LAMA AUTOMATICO CORSA MODIFICATA 4.0 ELITE 4WD EUROPA	Price: £377.88 2 in stock ready to go	Qty:

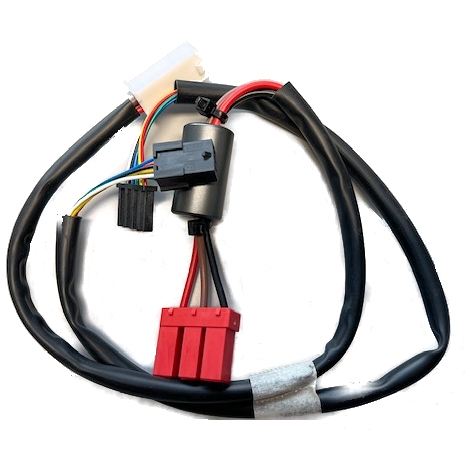

12		Ref: 042CB17.01 Ambrogio Motor Wiring 042CB17.01 (Cablaggio Motore)	Price: £25.32 Special Order	Qty:
13		Ref: C02819 Screw	Price: £2.40 Special Order	Qty:
14		Ref: 075Z41500A Ambrogio Wheel Arch 075Z41500A (Passaruota)	Price: £9.70 Special Order	Qty:
15		Ref: C02224 Ambrogio Screw Vite C02224	Price: £2.40 Special Order	Qty:
16		Ref: 042Z56300A Ambrogio Wheel Arch Support 042Z56300A (Supporto Passaruota)	Price: £14.88 Special Order	Qty:
17		Ref: 042Z56500A Ambrogio Right Wheel Arch Group 042Z56500A (Gruppo Passaruota Destro)	Price: £23.04 Special Order	Qty:
17		Ref: 042Z56400A Ambrogio Left Wheel Arch Group 042Z56400A (Gruppo Passaruota Sinistro)	Price: £23.04 Special Order	Qty:
18		Ref: 042Z79100A Front chassis	Price: £79.20 Special Order	Qty:
19		Ref: C02211 Ambrogio Locking Ring C02211 (Vite )	Price: £4.10 Special Order	Qty:
23		Ref: 042Z65400A Ambrogio Right Wheel Steering Drive Assembly (042Z65400A)	Price: £78.12 1 in stock ready to go	Qty:
23		Ref: 042Z76500A Ambrogio Left Wheel Steering Drive Assembly (042Z76500A)	Price: £78.12 2 in stock ready to go	Qty:
24		Ref: 042Z76300A Bushing	Price: £6.94 Special Order	Qty:
25		Ref: 075Z60400A-R	Not found

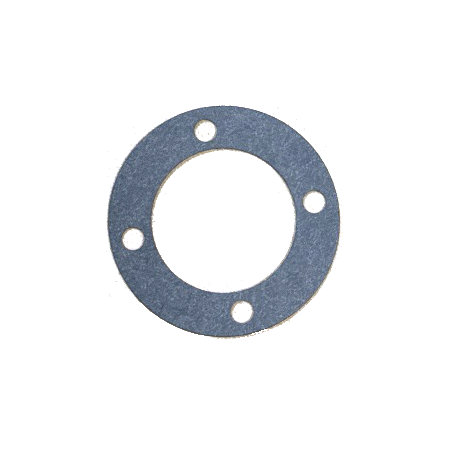

26		Ref: 015Z14700A Ambrogio Gasket Guarnizione 015Z14700A	Price: £2.40 Not in stock	Qty:
27		Ref: 042Z61900A Gasket	Price: £2.40 Special Order	Qty:
28		Ref: 075Z55000A Flange	Price: £14.16 Special Order	Qty:
29		Ref: C02272 Ambrogio Screw Vite C02272	Price: £2.40 Special Order	Qty:

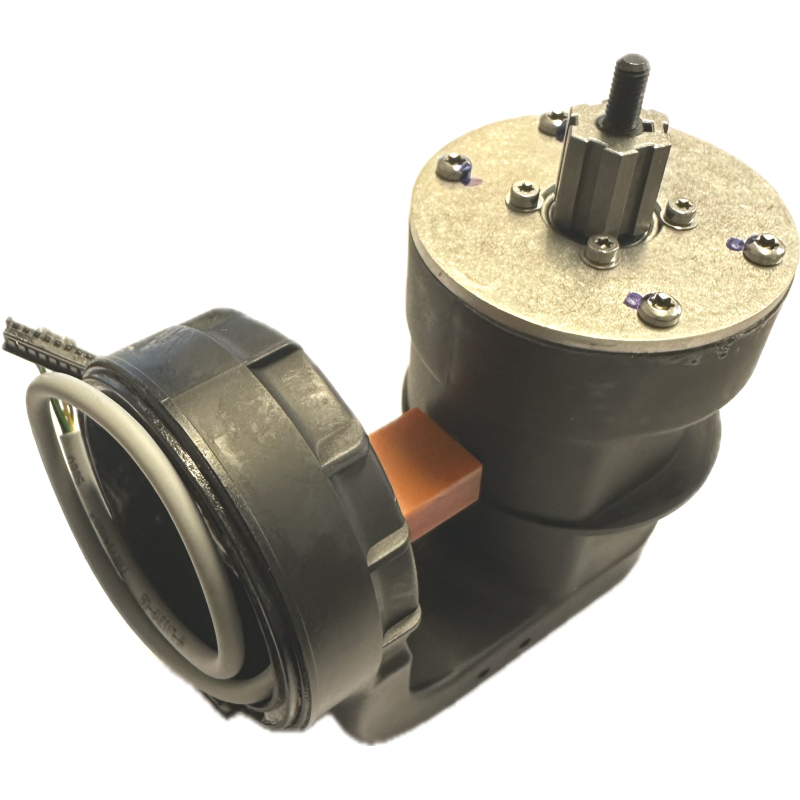

30		Ref: 042Z95463A Ambrogio Wheel Motor Arm Assembly (excludes motor) 042Z95463A	Price: £96.00 Not in stock	Qty:
31		Ref: 042Z79300A 4.0 4Wd Blade Guard 042Z79300A	Price: £37.20 2 in stock ready to go	Qty:
32		Ref: A850215 Washer	Price: £2.40 Special Order	Qty:
33		Ref: C02798 C02798 Screw	Price: £2.40 Special Order	Qty:
34		Ref: 075Z07800A-R Ambrogio Standard Blade - 25cm 4 Knives Flat 075Z07800A (Lama Piana A 4 Punte Di Taglio)	Price: £29.16 10+ in stock ready to go	Qty:
35		Ref: C00980 Ambrogio Screw Vite C00980	Price: £2.40 10+ in stock ready to go	Qty:
36		Ref: C02231 Ambrogio Screw Vite C02231	Price: £2.40 10+ in stock ready to go	Qty:
37		Ref: 042Z60700A-R Blade guard	Price: £36.00 Special Order	Qty:
37		Ref: 042Z60600A-R Blade guard	Price: £36.00 Special Order	Qty:
38		Ref: 042Z72500A-R Ambrogio Front Wheel 042Z72500A-R (Ruota Anteriore)	Price: £51.48 7 in stock ready to go	Qty:
39		Ref: C00128 Ambrogio Toothed washer Rosetta dentellata C00128	Price: £2.40 Special Order	Qty:
40		Ref: C02349 Ambrogio Flat washer Rosetta C02349	Price: £2.40 Special Order	Qty:
41		Ref: C00000001 nut	Price: £2.40 Special Order	Qty:
42		Ref: 075Z51900A Wheel plug	Price: £3.08 Special Order	Qty:
43		Ref: 042Z95463A-R Front wheel arm	Price: £48.00 Special Order	Qty:
44		Ref: 042Z6463704N Ambrogio 4.0 - 4.36 4WD Steering Cap	Price: £3.60 3 in stock ready to go	Qty:

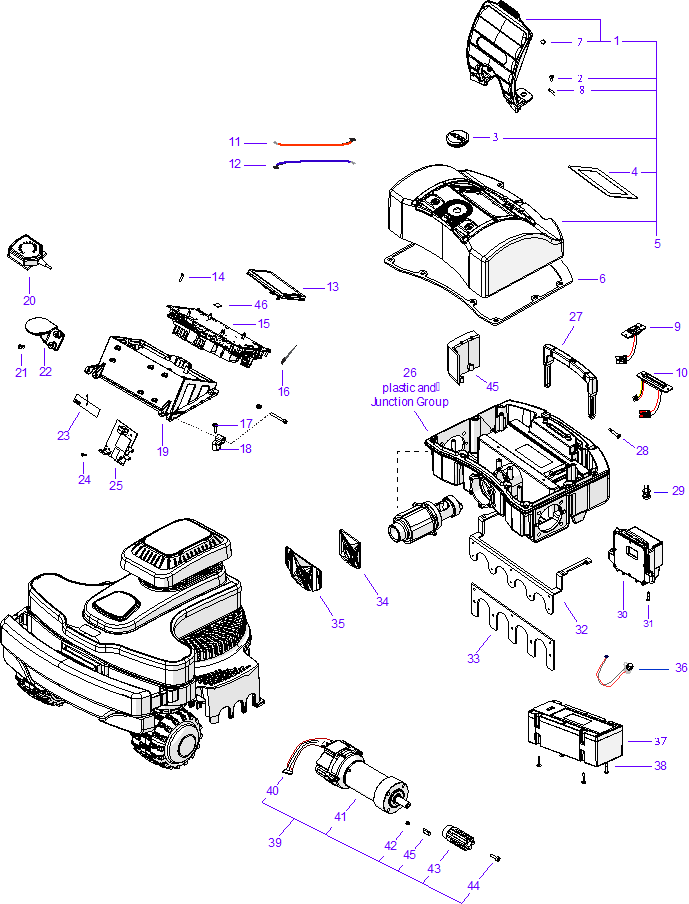

Spare Parts for Zucchetti Ambrogio 4.0 4WD Elite - Electronics

Quick link to the part:
-	-	-	-
1		Ref: 042Z35200A Ambrogio Keyboard Cap 042Z35200A (Coperchio Tastiera)	Price: £25.56 1 in stock ready to go	Qty:
2		Ref: C02224 Ambrogio Screw Vite C02224	Price: £2.40 Special Order	Qty:
3		Ref: 110E01300A Stop key	Price: £41.40 Special Order	Qty:
4		Ref: 042Z43100A Ambrogio Keyboard 042Z43100A (Tastiera)	Price: £16.44 Special Order	Qty:

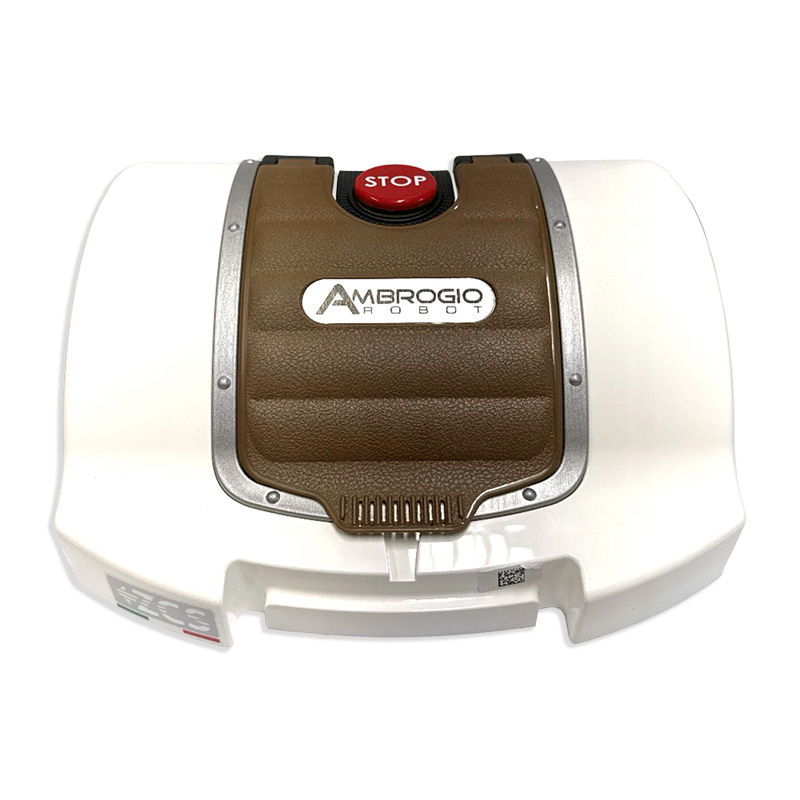

5		Ref: 042Z27100A Ambrogio Back Carter Group (White) 042Z27100A (Gruppo Carter Posteriore (Bianco))	Price: £209.04 Not in stock	Qty:
6		Ref: 042Z10800A Ambrogio Back Main Washer Gasket 042Z10800A	Price: £4.37 10+ in stock ready to go	Qty:
7		Ref: 042Z32000A Ambrogio Magnet 042Z32000A (Magnete)	Price: £4.10 10+ in stock ready to go	Qty:
8		Ref: C02238 Ambrogio Pivot Rod C02238 - SINGLE	Price: £2.40 Not in stock	Qty:
9		Ref: 042CB05.04 Ambrogio Battery Contact Cable 4.0 (was 042ZCB05.02 )	Price: £21.96 1 in stock ready to go	Qty:
10		Ref: 042CB07.02 Ambrogio Recharge Cabling 042CB07.02 (Cablaggio Ricarica )	Price: £53.28 1 in stock ready to go	Qty:

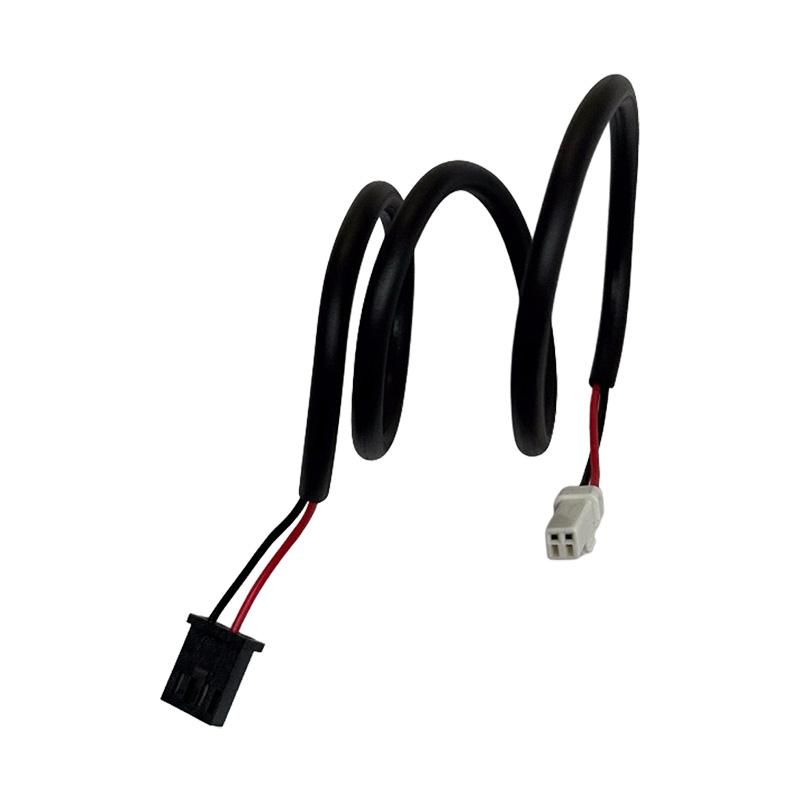

11		Ref: 042CB03.02 Ambrogio Stop Cabling 042CB03.02 (Cablaggio Stop)	Price: £22.32 Special Order	Qty:
12		Ref: CB13-L400.1 Ambrogio Rain Sensor Cabling CB13_L400.1 (Cablaggio Sensorer Pioggia)	Price: £7.08 Special Order	Qty:
13		Ref: 110E00800A Ambrogio Display 110E00800A (Display Display Touch Ps258R00 X Am4000)	Price: £206.04 Not in stock	Qty:
14		Ref: C02231 Ambrogio Screw Vite C02231	Price: £2.40 10+ in stock ready to go	Qty:
15		Ref: 042E40300A Ambrogio Mother Board 042E40300A (Scheda Madre )	Price: £620.64 Not in stock	Qty:
16		Ref: 110E01100A Ambrogio Can Termination Cable 110E01100A (Cablaggio Terminazione Can Cablaggio Bus Can Cb11_Terminatorecan.1)	Price: £5.50 6 in stock ready to go	Qty:
17		Ref: C02231 Ambrogio Screw Vite C02231	Price: £2.40 10+ in stock ready to go	Qty:
18		Ref: 042Z19100A Ambrogio Pin 042Z19100A (Perno )	Price: £2.70 Special Order	Qty:
19		Ref: 042Z27200A Ambrogio Motherboard Support 042Z27200A (Supporto Scheda Madre)	Price: £64.80 Special Order	Qty:
20		Ref: C01219-R GPS Antenna	Price: £40.80 Special Order	Qty:
21		Ref: C02177 Ambrogio Screw Vite C02177	Price: £2.40 10+ in stock ready to go	Qty:
22		Ref: 042Z19200A Ambrogio Support 042Z19200A (Supporto )	Price: £4.10 Special Order	Qty:
23		Ref: C02455 GSM antenna	Price: £12.58 Special Order	Qty:
24		Ref: C00162 Ambrogio Screw Vite C00162	Price: £2.40 Special Order	Qty:
25		Ref: 015E01300A Ambrogio Connect Module 4G 015E00800A (PCB only)	Price: £406.80 Not in stock	Qty:
26		Ref: 042Z55300A-R Lower chassis	Price: £210.60 Special Order	Qty:

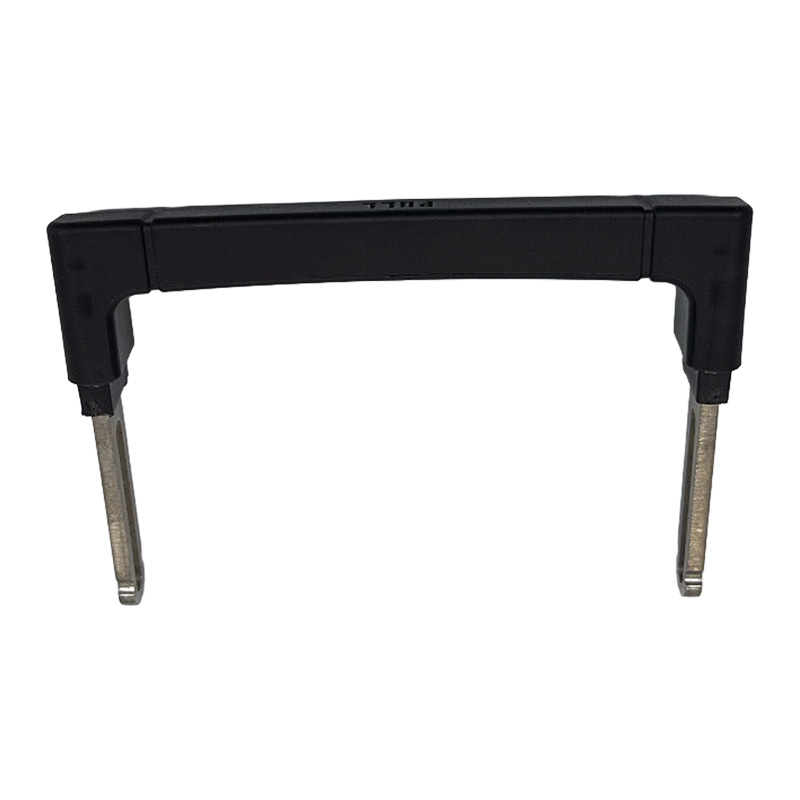

27		Ref: 042Z31300A Ambrogio Handle 042Z31300A (Maniglia )	Price: £21.60 Special Order	Qty:
28		Ref: 042Z04600A Ambrogio Screw 042Z04600A (Vite )	Price: £5.93 Special Order	Qty:
29		Ref: 110E00700A-R Ambrogio Coil 110E00700A (Bobina )	Price: £51.36 2 in stock ready to go	Qty:
30		Ref: 042Z08000A Ambrogio Inductive Protection 042Z08000A (Protezione Induttivo)	Price: £307.68 Special Order	Qty:

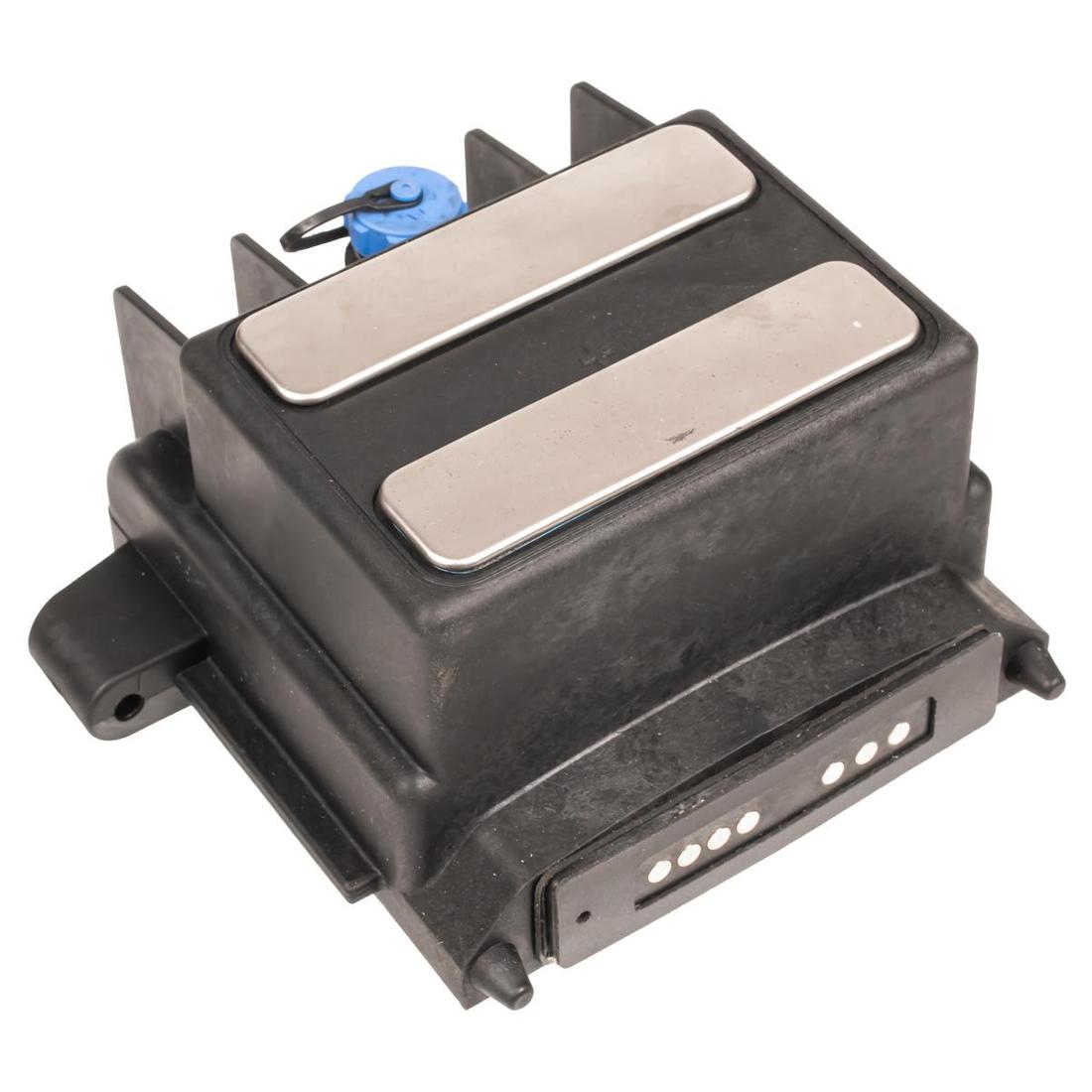

30		Ref: 042Z08500A Ambrogio Contact Recharge Group 042Z08500A (Gruppo Ricarica Contatto )	Price: £145.80 Not in stock	Qty:
31		Ref: 042Z17800A Ambrogio Screw Vite 042Z17800A	Price: £2.40 9 in stock ready to go	Qty:
32		Ref: 042Z55900A Ambrogio Metal Blade Guard 042Z55900A (Protezione Lama In Metallo)	Price: £24.36 Special Order	Qty:
33		Ref: 042Z95082A rear guard extension	Price: £7.20 Special Order	Qty:
34		Ref: 042Z25900A Ambrogio Gasket 042Z25900A (Guarnizione )	Price: £2.70 Special Order	Qty:
35		Ref: 042Z04400A Ambrogio Plate 042Z04400A (Piastra )	Price: £5.65 Special Order	Qty:

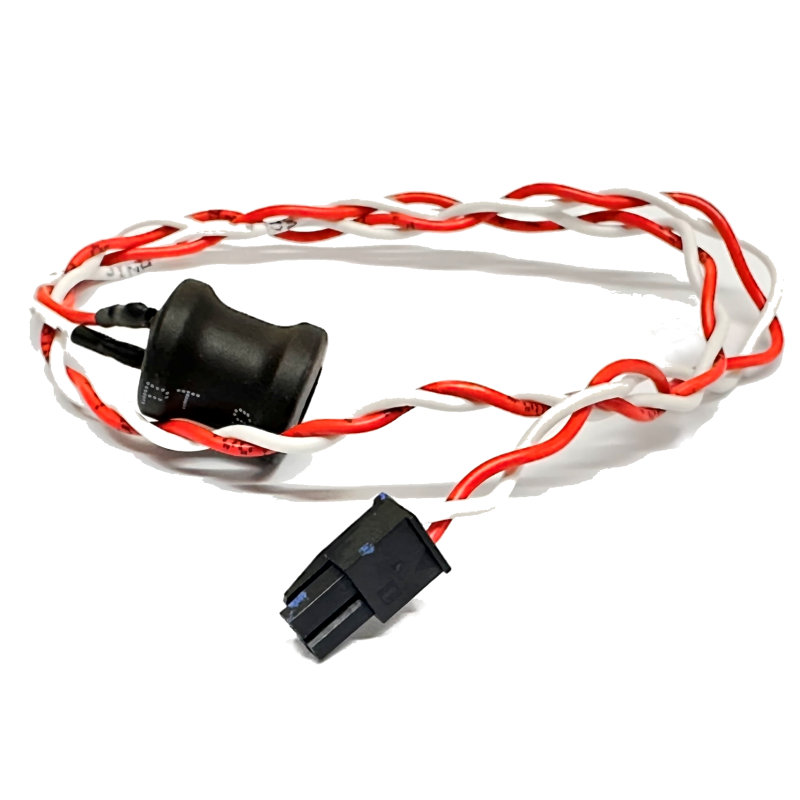

36		Ref: 042CB09.03	Not found
37		Ref: 042Z70100A Zucchetti Ambrogio Battery 10.35Ah - 4.36 4.0 (was 042Z09000A)	Price: £399.00 10+ in stock ready to go	Qty:
37		Ref: 042Z41100A	Not found
38		Ref: 042Z17800A Ambrogio Screw Vite 042Z17800A	Price: £2.40 9 in stock ready to go	Qty:
39		Ref: 042Z22400A-R Ambrogio Motor Reducer 042Z22400A_R (Brushless - Motoriduttore)	Price: £282.24 Not in stock	Qty:
40		Ref: CB01-MRB4-V01 Ambrogio Cable CB01_MRB4_V01	Price: £16.92 3 in stock ready to go	Qty:
41		Ref: 042Z44800A Ambrogio Motor Reducer 042Z44800A (Brushless Motoriduttore)	Price: £272.52 Special Order	Qty:
42		Ref: C01009 Ambrogio Grain Grano C01009	Price: £2.40 6 in stock ready to go	Qty:
43		Ref: 042Z95084A motor hexagon	Price: £8.26 Special Order	Qty:
44		Ref: C00364 Ambrogio Screw Vite C00364	Price: £2.40 Special Order	Qty:

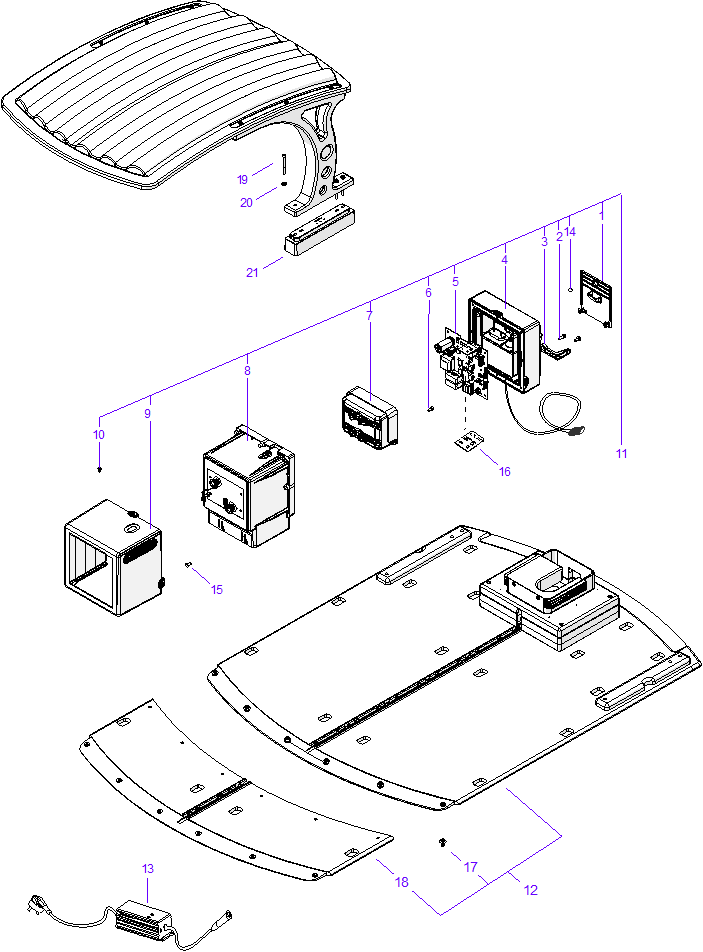

Spare Parts for Zucchetti Ambrogio 4.0 4WD Elite - Base Station

Quick link to the part:
-	-	-	-
1		Ref: 042Z37200A Ambrogio Back Cap 042Z37200A (Coperchio Posteriore)	Price: £12.20 1 in stock ready to go	Qty:
2		Ref: C02172 Ambrogio Screw Vite C02172 SINGLE	Price: £2.40 10+ in stock ready to go	Qty:
3		Ref: 042Z24500A Ambrogio Cable Clamp 042Z24500A (Fermacavo)	Price: £4.37 Special Order	Qty:
4		Ref: 042Z36100A Ambrogio Docking Station Closing 042Z36100A (Chiusura Base Ricarica)	Price: £133.56 Special Order	Qty:
4		Ref: 042Z27300A Ambrogio Docking Station Closing 042Z27300A (Chiusura Base Ricarica)	Price: £96.36 Special Order	Qty:
5		Ref: 042E00400A Ambrogio Trasmitter With Inductive 042E00400A (Trasmettitore Con Induttivo)	Price: £531.36 Special Order	Qty:
5		Ref: 042E00500A Ambrogio Transmitter 042E00500A (Trasmettitore )	Price: £164.88 2 in stock ready to go	Qty:
6		Ref: C02224 Ambrogio Screw Vite C02224	Price: £2.40 Special Order	Qty:
7		Ref: 042Z24800D Ambrogio Recharging Contact 042Z24800D (Gruppo Contatti Ricarica)	Price: £78.00 1 in stock ready to go	Qty:
8		Ref: 042Z24100A Ambrogio Inductive Recharge Contact Housing 042Z24100A (Sede Contatto Ricarica Induttiva)	Price: £43.20 Special Order	Qty:
8		Ref: 042Z44500A Ambrogio Docking Station Tower 042Z44500A (Torretta Base Di Ricarica)	Price: £59.40 Special Order	Qty:
9		Ref: 042Z53000A Zucchetti AESTHETIC COVER WHITE 042Z53000A	Price: £24.00 1 in stock ready to go	Qty:
10		Ref: C02244 Ambrogio Screw Vite C02244	Price: £2.40 Special Order	Qty:
11		Ref: 042Z24000A Ambrogio Transmitter Box (White) 042Z24000A (Box Trasmettitore (Bianco)	Price: £607.32 Special Order	Qty:
11		Ref: 042Z26500A Transmitter box (White)	Price: £296.88 Special Order	Qty:
12		Ref: 042Z58800A 042Z58800A FLOOR	Price: £115.56 Special Order	Qty:
13		Ref: C02398 Ambrogio Battery Charger C02398 ((10A) Caricabatteria)	Price: £201.60 2 in stock ready to go	Qty:
14		Ref: 042Z32000A Ambrogio Magnet 042Z32000A (Magnete)	Price: £4.10 10+ in stock ready to go	Qty:
15		Ref: C00908 Ambrogio Screw C00908 (Vite T.Larga.-M4X10 A4 Torx)	Price: £2.40 9 in stock ready to go	Qty:
16		Ref: 015A00700A 015A00700A Primary Transmittor TX L15	Price: £7.63 1 in stock ready to go	Qty:
17		Ref: C01294 Rivet	Price: £2.40 Special Order	Qty:
18		Ref: 042Z49600A Charging base extension	Price: £17.28 Special Order	Qty:
