V35 (M150/RV150/SV150) 2008 onwards


V35 (M150 / RV150 / SV150 / RV40), 1
V35 (M150 / RV150 / SV150 / RV40), 1
V35 (M150 / RV150 / SV150 / RV40), 2
V35 (M150 / RV150 / SV150 / RV40), 2

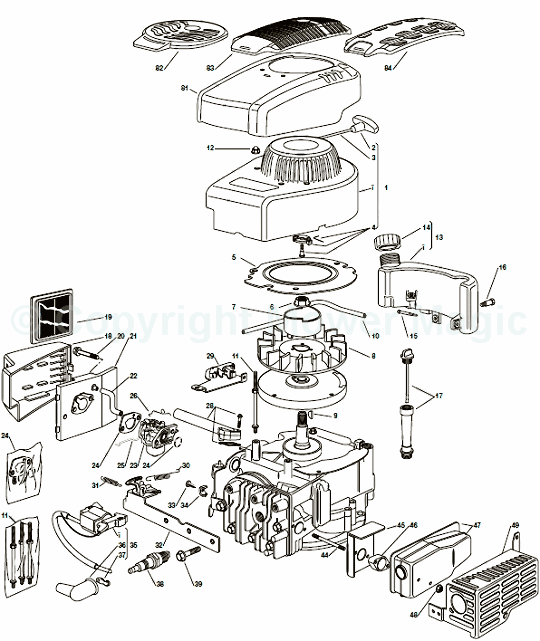

Spare Parts for V35 (M150 / RV150 / SV150 / RV40), 1

V35 (M150 / RV150 / SV150 / RV40), 1
Stock last checked Apr 17 2025 06:10.
--- -
1Mountfield RV150 / SV150 / RV40 / V35 Recoil Engine Starter AssyRef: 118550139/1
Mountfield RV150 / SV150 / RV40 / V35 Recoil Engine Starter Assy
Price: £29.66
1 in stock ready to go
Qty:
2Recoil HandleRef: 118550768/0
Recoil Handle
Price: £11.51
Special Order
Can be ordered (5 at manufacturer)
Qty:
3RECOIL CORD 3.5MM @ 2.5MRef: 118550053/0
RECOIL CORD 3.5MM @ 2.5M
Price: £2.22
Special Order
Qty:
4Mountfield Stiga GGP STARTER PAWL SET 118550004/1Ref: 118550004/1
Mountfield Stiga GGP STARTER PAWL SET 118550004/1
Price: £4.94
3 in stock ready to go
Qty:
5Deflector PlateRef: 118550138/0
Deflector Plate
Price: £4.07
Special Order
Qty:
6Ref: 18550056/0
Not found
7Starter CupRef: 118550140/0
Starter Cup
Price: £4.34
Special Order
Can be ordered (9 at manufacturer)
Qty:
8FLYWHEEL FANRef: 118550154/0
FLYWHEEL FAN
Price: £5.32
Special Order
Qty:
9Ref: 118550197/0
Not found
10Ref: 18550005/0
Not found
11Ref: 118550142/0
Not found
12Mountfield Stiga MacAllister NUT RV150 / SV150 / V35  118550007/0Ref: 118550007/0
Mountfield Stiga MacAllister NUT RV150 / SV150 / V35 118550007/0
Price: £1.86
5 in stock ready to go
Qty:
13Mountfield Fuel Tank RV/150 / SV150 / RM45 118550143/0Ref: 118550143/0
Mountfield Fuel Tank RV/150 / SV150 / RM45 118550143/0
Price: £30.90
1 in stock ready to go
Qty:
14Mountfield Stiga GGP MacAllister  Petrol Fuel Filler Cap   18550001/0  SV150 R150  V35   RV40Ref: 118550001/0
Mountfield Stiga GGP MacAllister Petrol Fuel Filler Cap 18550001/0 SV150 R150 V35 RV40
Price: £4.08
Not in stock
Qty:
15Ref: 118550141/0
Not found
17GGP Engine Dipstick Assembly   18550008/0Ref: 118550008/0
GGP Engine Dipstick Assembly 18550008/0
Price: £5.06
Special Order
Qty:
18Ref: 18550144/0
Not found
19GGP / Castlegarden / Mountfield Air Filter RM45, SV150, RV150 18550147/0Ref: 118550147/0
GGP / Castlegarden / Mountfield Air Filter RM45, SV150, RV150 18550147/0
Price: £4.57
1 in stock ready to go
Qty:
20Ref: 118550010/0
Not found
21Ref: 118550125/1
Not found
22Ref: 118550013/0
Not found
23Mountfield Stiga GGP CARBURETTOR V35  RV150 / SV150 M150 118550148/0Ref: 118550148/0
Mountfield Stiga GGP CARBURETTOR V35 RV150 / SV150 M150 118550148/0
Price: £51.91
1 in stock ready to go
Qty:
24Ref: 118550019/0
Not found
25Ref: 18550017/0
Not found
26Governor Link Sv150Ref: 118550149/0
Governor Link Sv150
Price: £1.63
Special Order
Can be ordered (5 at manufacturer)
Qty:
28Intake ManifoldRef: 118550129/0
Intake Manifold
Price: £9.76
Special Order
Can be ordered (2 at manufacturer)
Qty:
29Engine BrakeRef: 118550021/0
Engine Brake
Price: £32.51
Special Order
Can be ordered (3 at manufacturer)
Qty:
30Mountfield / Stiga / GGP Governor Spring 57mm 118550151/0   V150 SV150 M150 V35Ref: 118550151/0
Mountfield / Stiga / GGP Governor Spring 57mm 118550151/0 V150 SV150 M150 V35
Price: £1.61
1 in stock ready to go
Qty:
31Mountfield MacAllister Castel Garden GGP LINKING SPRING 118550150/0Ref: 118550150/0
Mountfield MacAllister Castel Garden GGP LINKING SPRING 118550150/0
Price: £1.61
1 in stock ready to go
Qty:
32Control BracketRef: 118550152/0
Control Bracket
Price: £10.16
Special Order
Qty:
33ScrewRef: 118550023/0
Screw
Price: £1.90
Special Order
Qty:
34Ref: 18550022/0
Not found
35GGP / Mountfield RV150 SV150 M150 V35 V40  Ignition Coil / Magneto Armature 18550126/0Ref: 118550126/0
GGP / Mountfield RV150 SV150 M150 V35 V40 Ignition Coil / Magneto Armature 18550126/0
Price: £48.20
1 in stock ready to go
Qty:
36Ref: 118550127/0
Not found
37Ref: 18550071/0
Not found
38Champion Spark Plug RJ19LM / QJ19LM Ref: CPRJ19LM
Champion Spark Plug RJ19LM / QJ19LM
Price: £3.60
10+ in stock ready to go
Qty:
39Ref: 118550128/0
Not found
44Pin Bolt-MufflerRef: 118550027/0
Pin Bolt-Muffler
Price: £4.74
Special Order
Qty:
45118550028/0 MUFFLER GASKETRef: 118550028/0
118550028/0 MUFFLER GASKET
Price: £4.20
Special Order
Qty:
46Muffler SpacerRef: 118550030/0
Muffler Spacer
Price: £4.48
Special Order
Qty:
47Ref: 118550031/1
Not found
48Muffler Fixing NutRef: 118550032/0
Muffler Fixing Nut
Price: £1.49
Special Order
Can be ordered (2 at manufacturer)
Qty:
49118550033/0 MUFFLER GUARDRef: 118550033/0
118550033/0 MUFFLER GUARD
Price: £19.78
Special Order
Qty:
81Ref: 118550145/0
Not found
82Top Engine Cover [Black-Round]Ref: 322055439/0
Top Engine Cover [Black-Round]
Price: £3.79
Special Order
Qty:
83Top Engine Cover [Black-Oblong]Ref: 322055452/0
Top Engine Cover [Black-Oblong]
Price: £4.87
Special Order
Can be ordered (1 at manufacturer)
Qty:
84Top Engine Cover [Black-Oblong]Ref: 322055450/0
Top Engine Cover [Black-Oblong]
Price: £5.54
Special Order
Can be ordered (2 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

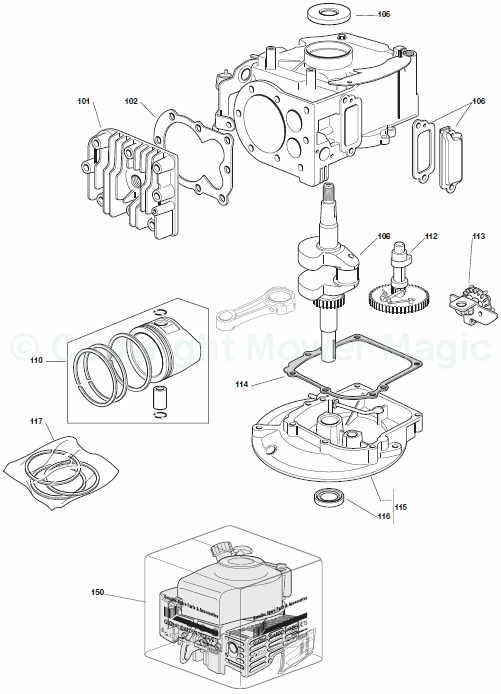

Spare Parts for V35 (M150 / RV150 / SV150 / RV40), 2

V35 (M150 / RV150 / SV150 / RV40), 2
Stock last checked Apr 17 2025 06:10.
--- -
101Cylinder HeadRef: 118550360/0
Cylinder Head
Price: £17.94
Special Order
Can be ordered (1 at manufacturer)
Qty:
102GGP Sumec Stiga Mountfield CYLINDER HEAD GASKET SV150 RV150Ref: 118550359/0
GGP Sumec Stiga Mountfield CYLINDER HEAD GASKET SV150 RV150
Price: £5.69
Not in stock
Qty:
105Seal RingRef: 118550131/0
Seal Ring
Price: £8.40
Special Order
Can be ordered (2 at manufacturer)
Qty:
106Breather AssemblyRef: 118550364/0
Breather Assembly
Price: £7.91
Special Order
Qty:
108CrankshaftRef: 118550361/0
Crankshaft
Price: £56.47
Special Order
Qty:
110Piston AssemblyRef: 118550357/0
Piston Assembly
Price: £43.43
Special Order
Can be ordered (1 at manufacturer)
Qty:
112Camshaft AssemblyRef: 118550356/0
Camshaft Assembly
Price: £21.12
Special Order
Qty:
113Ref: 118550363/0
Not found
114Crankcase GasketRef: 118550130/0
Crankcase Gasket
Price: £6.10
Special Order
Can be ordered (2 at manufacturer)
Qty:
115Ref: 118550362/0
Not found
116Seal RingRef: 118550131/0
Seal Ring
Price: £8.40
Special Order
Can be ordered (2 at manufacturer)
Qty:
117Piston AssemblyRef: 118550357/0
Piston Assembly
Price: £43.43
Special Order
Can be ordered (1 at manufacturer)
Qty:
150Engine C/W Cat Muffler 150Cc [M150]Ref: 118550157/1
Engine C/W Cat Muffler 150Cc [M150]
Price: £406.32
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
