Stiga Combi 340c (2023) - 294380068/ST2


Stiga Combi 340c - Deck - 294380068/ST2
Stiga Combi 340c - Deck - 294380068/ST2
Stiga Combi 340c - Deck and Height Adjusting
Stiga Combi 340c - Deck and Height Adjusting
Stiga Combi 340c - Handle Upper Part
Stiga Combi 340c - Handle Upper Part
Stiga Combi 336c - Electric Motor / Blade
Stiga Combi 336c - Electric Motor / Blade

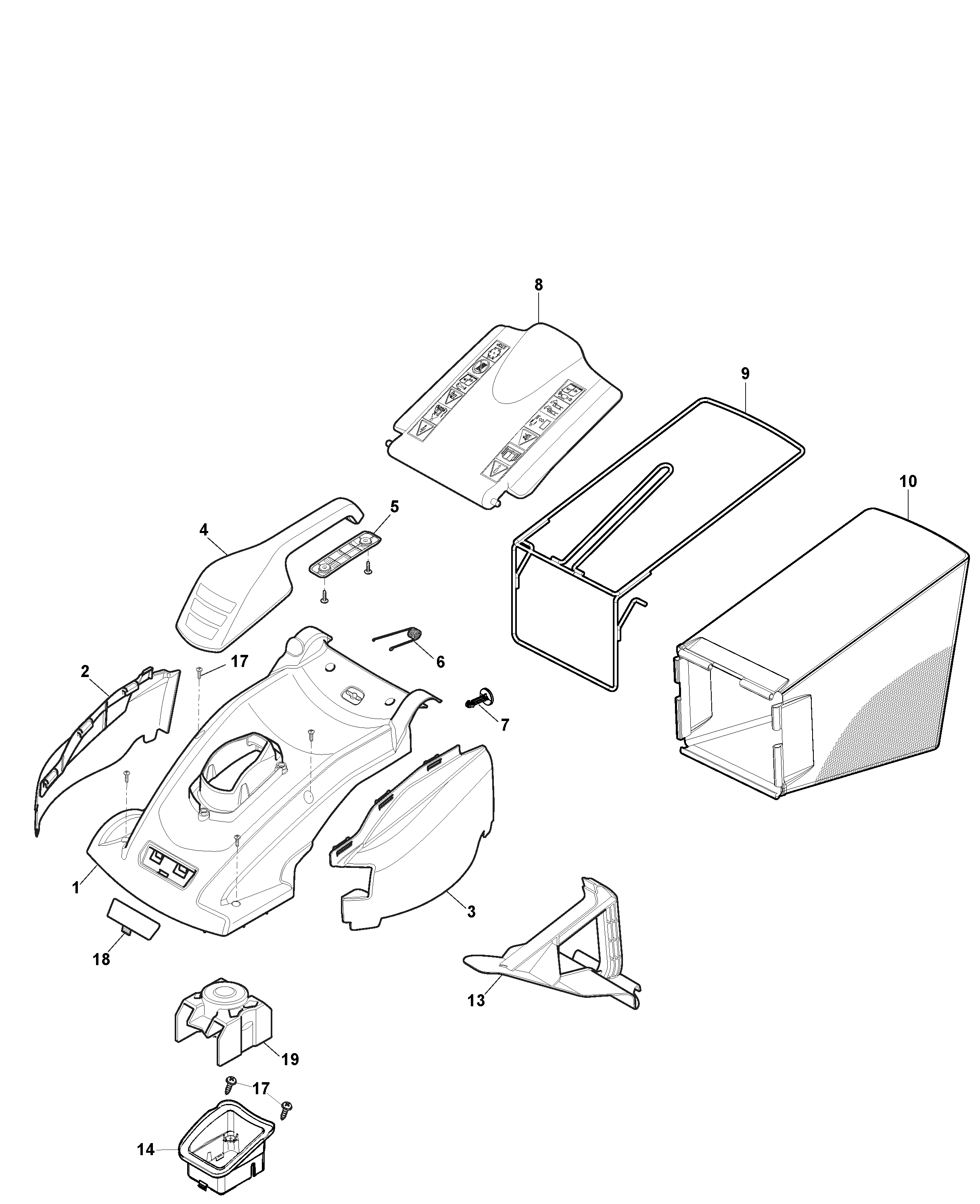

Spare Parts for Stiga Combi 340c - Deck - 294380068/ST2

Stiga Combi 340c - Deck - 294380068/ST2
Stock last checked Apr 19 2025 06:11.
--- -
1Delta Cover El 380 Stiga YellowRef: 322055175/0
Delta Cover El 380 Stiga Yellow
Price: £22.48
Special Order
Qty:
2Right Side Cover [Grey]Ref: 322109565/0
Right Side Cover [Grey]
Price: £6.23
Special Order
Qty:
3Ref: 322109899/0
Not found
4Ref: 322393720/0
Not found
5Lower Handle CoverRef: 322393659/0
Lower Handle Cover
Price: £7.32
Special Order
Can be ordered (1 at manufacturer)
Qty:
6SpringRef: 122450470/0
Spring
Price: £2.30
Special Order
Can be ordered (4 at manufacturer)
Qty:
7Security PinRef: 322524356/0
Security Pin
Price: £1.36
Special Order
Can be ordered (2 at manufacturer)
Qty:
8Deflector El380 [Grey]Ref: 322600291/0
Deflector El380 [Grey]
Price: £9.76
Special Order
Can be ordered (1 at manufacturer)
Qty:
9181006435/0 GRASSCATCHER FRAMERef: 181006435/0
181006435/0 GRASSCATCHER FRAME
Price: £36.00
1 in stock ready to go
Qty:
10Stiga Grass Bag 181102461/0Ref: 181102461/0
Stiga Grass Bag 181102461/0
Price: £47.53
1 in stock ready to go
Qty:
13Mulching Plug [El380]Ref: 322140242/0
Mulching Plug [El380]
Price: £12.86
Special Order
Can be ordered (6 at manufacturer)
Qty:
14Motor CaseRef: 322393672/0
Motor Case
Price: £8.27
Special Order
Qty:
17112728714/0 SELF TAPPING SCREWRef: 112728714/0
112728714/0 SELF TAPPING SCREW
Price: £1.66
Special Order
Qty:
18Cover Plate El34/38/42 P.L. Stiga GreyRef: 322055252/0
Cover Plate El34/38/42 P.L. Stiga Grey
Price: £1.49
Special Order
Qty:
19Brush CoverRef: 322393774/0
Brush Cover
Price: £2.70
Special Order
Can be ordered (5 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

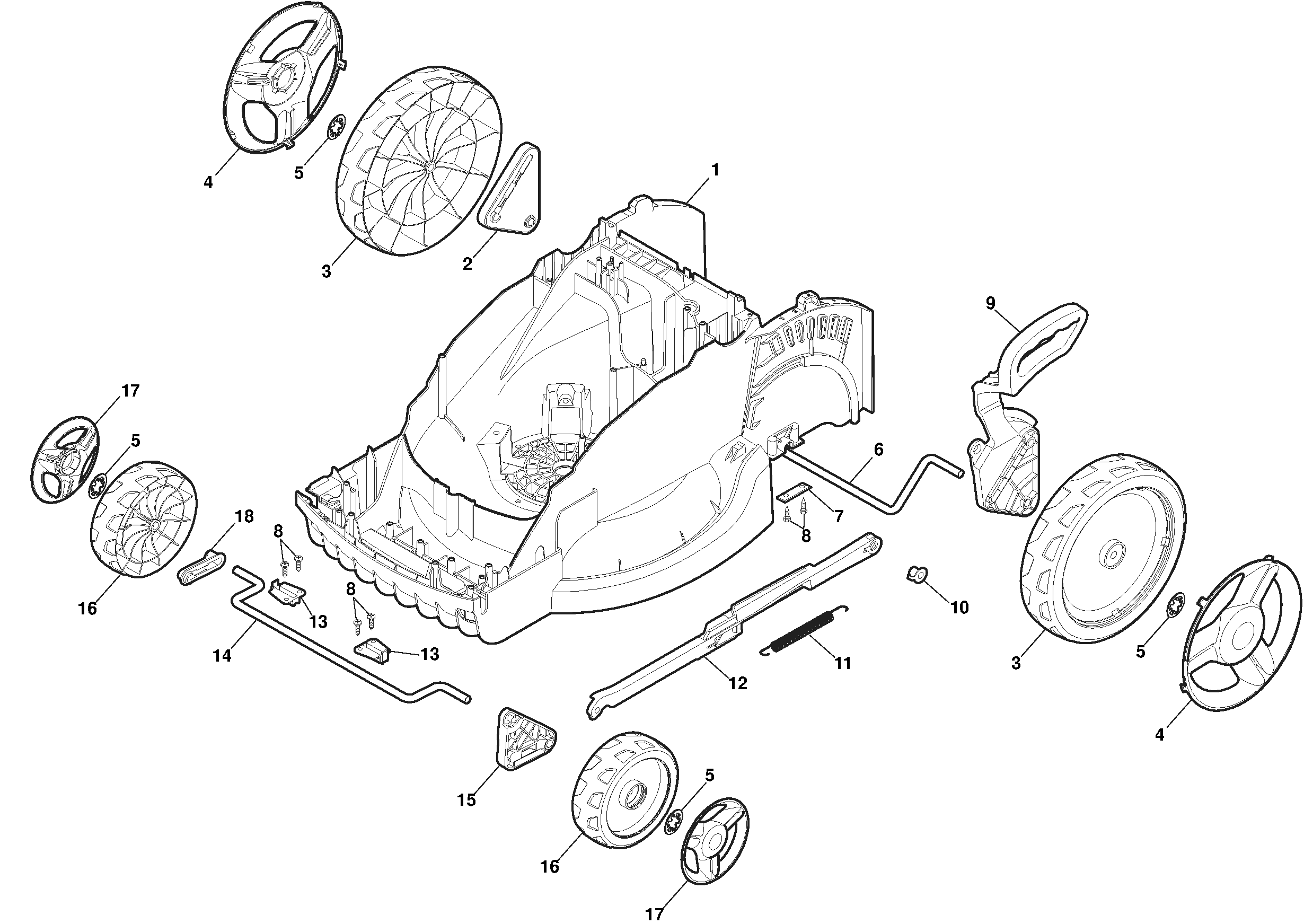

Spare Parts for Stiga Combi 340c - Deck and Height Adjusting

Stiga Combi 340c - Deck and Height Adjusting
Stock last checked Apr 19 2025 06:11.
--- -
1Plastic Deck [Grey] El380Ref: 322066783/0
Plastic Deck [Grey] El380
Price: £86.69
Special Order
Qty:
2Right Rear Support Plate [Grey]Ref: 322785450/1
Right Rear Support Plate [Grey]
Price: £1.90
Special Order
Can be ordered (1 at manufacturer)
Qty:
2Ref: 322785450/0
Not found
2322785387/0 R/H REAR WHEEL SUPPORT PLATE (GREY)Ref: 322785387/0
322785387/0 R/H REAR WHEEL SUPPORT PLATE (GREY)
Price: £1.98
1 in stock ready to go
Qty:
3Wheel D=250 [Black]Ref: 322686105/0
Wheel D=250 [Black]
Price: £8.74
Special Order
Can be ordered (2 at manufacturer)
Qty:
4Stiga Hub Cap D=240 [Grey]Ref: 322110745/0
Stiga Hub Cap D=240 [Grey]
Price: £4.20
Special Order
Qty:
5PUSH ON FIXING / STAR WASHER   112604903/0Ref: 112604903/0
PUSH ON FIXING / STAR WASHER 112604903/0
Price: £1.61
10+ in stock ready to go
Qty:
6Rear Wheels AxleRef: 122033425/0
Rear Wheels Axle
Price: £9.22
Special Order
Qty:
7Axle Stop PlateRef: 322545142/0
Axle Stop Plate
Price: £1.49
Special Order
Can be ordered (3 at manufacturer)
Qty:
8112728714/0 SELF TAPPING SCREWRef: 112728714/0
112728714/0 SELF TAPPING SCREW
Price: £1.66
Special Order
Qty:
9Ref: 322785414/1
Not found
9Height Adjust Lever [Yellow]Ref: 322785414/2
Height Adjust Lever [Yellow]
Price: £15.50
Special Order
Qty:
9Centraliz.Lever El380-420 Yellow StigaRef: 322785414/0
Centraliz.Lever El380-420 Yellow Stiga
Price: £14.09
Special Order
Qty:
10322524354/0 BUSHRef: 322524354/0
322524354/0 BUSH
Price: £1.61
Special Order
Qty:
11SpringRef: 122446195/0
Spring
Price: £2.70
Special Order
Can be ordered (5 at manufacturer)
Qty:
12Ref: 322869680/0
Not found
12Height Adjust Rod [Grey]Ref: 322869690/0
Height Adjust Rod [Grey]
Price: £7.72
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
13Front Axle PlateRef: 322785415/0
Front Axle Plate
Price: £1.90
Special Order
Can be ordered (10 at manufacturer)
Qty:
14Front Wheel AxleRef: 122033424/0
Front Wheel Axle
Price: £8.93
Special Order
Qty:
15322785438/0 LEFT FRONT SUPPORTRef: 322785438/0
322785438/0 LEFT FRONT SUPPORT
Price: £2.93
Special Order
Qty:
15Ref: 322785386/0
Not found
16Wheel D=150 [Black]Ref: 322686104/0
Wheel D=150 [Black]
Price: £5.28
Special Order
Can be ordered (6 at manufacturer)
Qty:
17Front Hub Cap D=150 [Grey]Ref: 322110826/0
Front Hub Cap D=150 [Grey]
Price: £2.17
Special Order
Qty:
18Front Wheel Support [Grey]Ref: 322785449/0
Front Wheel Support [Grey]
Price: £1.49
Special Order
Qty:
18Ref: 322785385/0
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

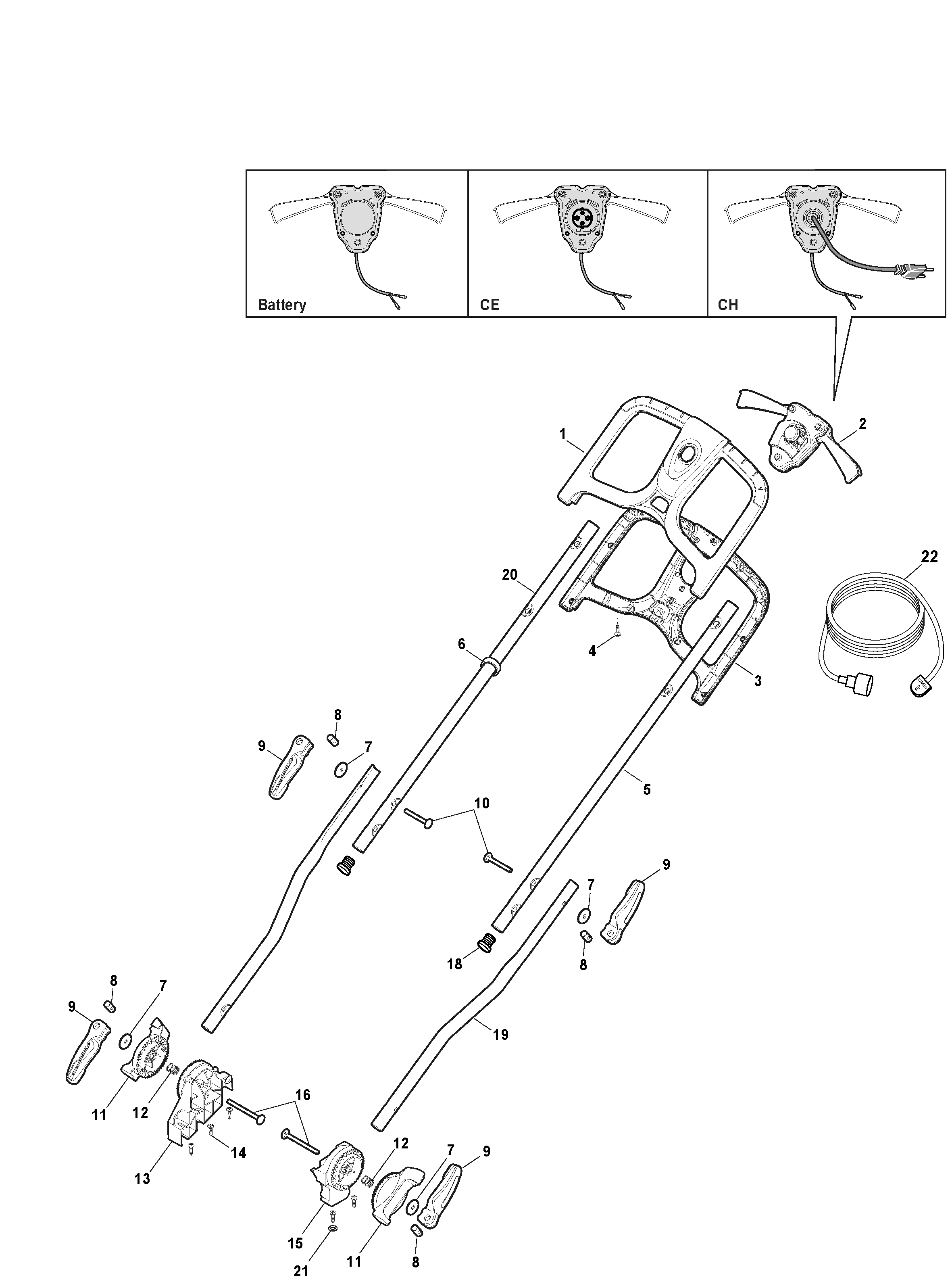

Spare Parts for Stiga Combi 340c - Handle Upper Part

Stiga Combi 340c - Handle Upper Part
Stock last checked Apr 19 2025 06:11.
--- -
1Upper Half Handgrip SwitchRef: 322291070/0
Upper Half Handgrip Switch
Price: £21.06
Special Order
Qty:
2Switch Box Assembly [Yellow] CeRef: 381600521/1
Switch Box Assembly [Yellow] Ce
Price: £43.33
Special Order
Can be ordered (1 at manufacturer)
Qty:
3Lower Half Handgrip SwitchRef: 322291071/0
Lower Half Handgrip Switch
Price: £20.58
Special Order
Qty:
4Self-Tap Screw K40 X 20Ref: 112728713/0
Self-Tap Screw K40 X 20
Price: £1.36
Special Order
Can be ordered (10 at manufacturer)
Qty:
5Lh-Rh Upper Handle [Black]Ref: 381007514/1
Lh-Rh Upper Handle [Black]
Price: £10.70
Special Order
Can be ordered (2 at manufacturer)
Qty:
6Cable ClampRef: 122192000/1
Cable Clamp
Price: £1.75
Special Order
Can be ordered (2 at manufacturer)
Qty:
7Mountfield Stiga Castel WASHER M6 6.6 X 24 X 2     112523050/0Ref: 112523050/0
Mountfield Stiga Castel WASHER M6 6.6 X 24 X 2 112523050/0
Price: £1.61
2 in stock ready to go
Qty:
8Handle PinRef: 122524352/0
Handle Pin
Price: £3.38
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
9Handle Lever [Yellow]Ref: 322319519/1
Handle Lever [Yellow]
Price: £2.30
Special Order
Can be ordered (1 at manufacturer)
Qty:
10Carriage Bolt M6 X 50Ref: 122943016/0
Carriage Bolt M6 X 50
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
11Handle Joint [Grey]Ref: 322246102/0
Handle Joint [Grey]
Price: £3.92
Special Order
Can be ordered (1 at manufacturer)
Qty:
12SpringRef: 122430210/0
Spring
Price: £1.63
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
13Right Handle Joint [Grey]Ref: 322745055/0
Right Handle Joint [Grey]
Price: £7.03
Special Order
Qty:
14112728714/0 SELF TAPPING SCREWRef: 112728714/0
112728714/0 SELF TAPPING SCREW
Price: £1.66
Special Order
Qty:
15Left Handle Joint [Grey]Ref: 322745056/0
Left Handle Joint [Grey]
Price: £7.03
Special Order
Can be ordered (1 at manufacturer)
Qty:
16Carriage Bolt M6 X 65Ref: 122943017/0
Carriage Bolt M6 X 65
Price: £1.63
Special Order
Can be ordered (6 at manufacturer)
Qty:
18Handle Cap D=21 [Black]Ref: 118566116/0
Handle Cap D=21 [Black]
Price: £2.17
Special Order
Qty:
19Lower Handle El 380-420 BlackRef: 381007513/0
Lower Handle El 380-420 Black
Price: £10.56
Special Order
Can be ordered (2 at manufacturer)
Qty:
20Lh-Rh Upper Handle [Black]Ref: 381007514/1
Lh-Rh Upper Handle [Black]
Price: £10.70
Special Order
Can be ordered (2 at manufacturer)
Qty:
21Washer M5 5.3 X 10 X 1 Uni 6592Ref: 112521320/0
Washer M5 5.3 X 10 X 1 Uni 6592
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
22Universal / Stiga / Euro Mains Power Extension Lead 15mRef: 1911-9291-01
Universal / Stiga / Euro Mains Power Extension Lead 15m
Price: £24.00
2 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

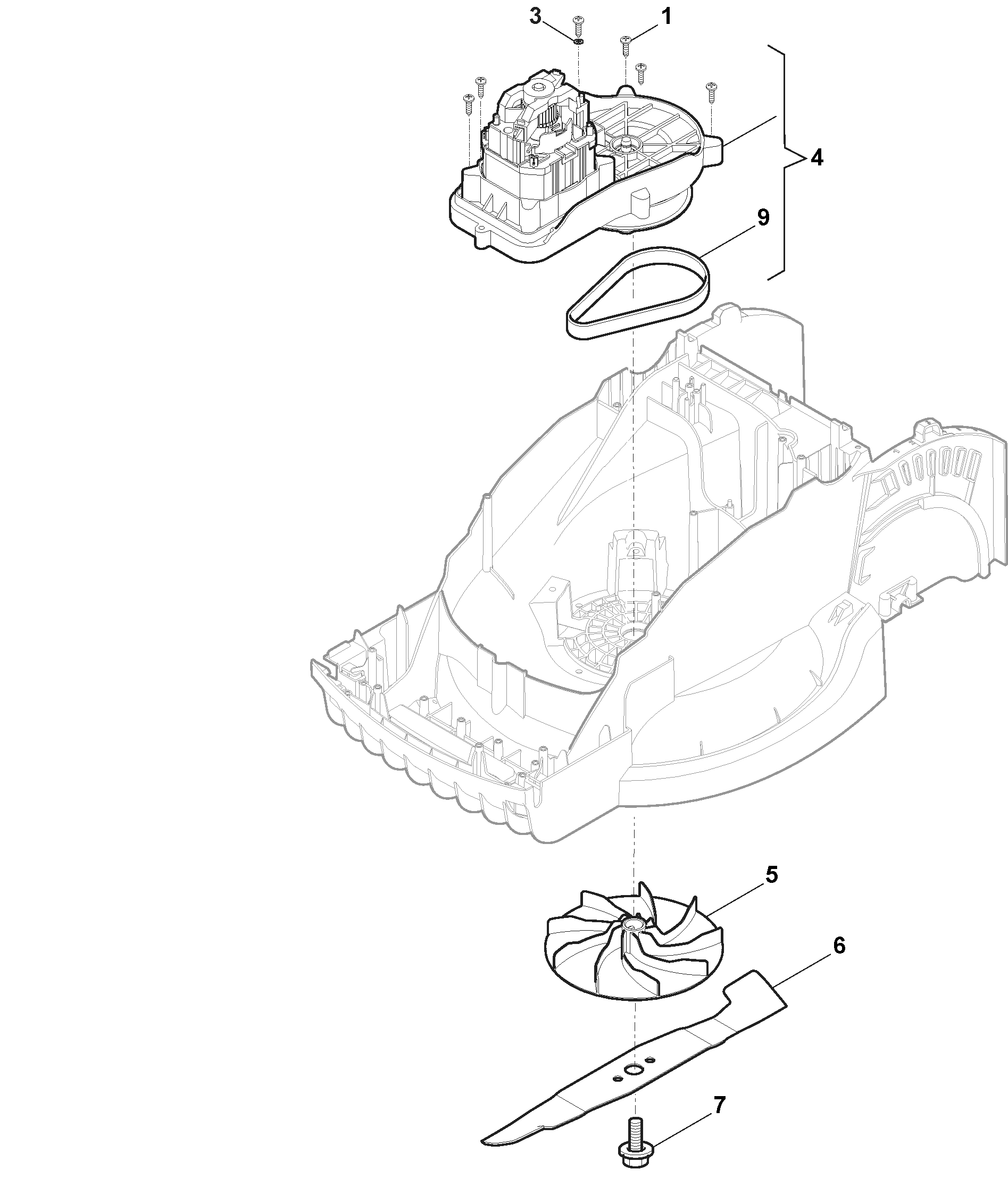

Spare Parts for Stiga Combi 336c - Electric Motor / Blade

Stiga Combi 336c - Electric Motor / Blade
Stock last checked Apr 19 2025 06:11.
--- -
1Self-Tapping Screw K60 X 22 Wm1451Ref: 112728904/0
Self-Tapping Screw K60 X 22 Wm1451
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
3Washer M5 5.5 X 15 X 1.6 Uni 6593Ref: 112523020/0
Washer M5 5.5 X 15 X 1.6 Uni 6593
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
4Ref: 118563697/1
Not found
4Ref: 118563697/0
Not found
4Ref: 118563697/1
Not found
5Fan/Blade HolderRef: 322465644/1
Fan/Blade Holder
Price: £5.63
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
5Ref: 322465644/0
Not found
6Ref: 181004155/0
Not found
6Mountfield / ATCO / Stiga Spare Mower Blade Princess 42   EL420  16E   181004161/0Ref: 181004161/0
Mountfield / ATCO / Stiga Spare Mower Blade Princess 42 EL420 16E 181004161/0
Price: £17.05
2 in stock ready to go
Qty:
7381004352/1 BLADE BOLT (was 81004352/0)Ref: 381004352/1
381004352/1 BLADE BOLT (was 81004352/0)
Price: £3.83
Special Order
Qty:
9Belt-Electric MotorRef: 118810092/0
Belt-Electric Motor
Price: £14.53
Special Order
Can be ordered (4 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
