Stiga Combi 336e - 294344068/ST2


Stiga Combi 336e - Deck Wheels and Height Adj - 294344068/ST2
Stiga Combi 336e - Deck Wheels and Height Adj - 294344068/ST2
Stiga Combi 336e - Body Work
Stiga Combi 336e - Body Work
Stiga Combi 336e - Handle
Stiga Combi 336e - Handle
Stiga Combi 336e - Electric Motor / Blade
Stiga Combi 336e - Electric Motor / Blade
Stiga Combi 336e - Battery
Stiga Combi 336e - Battery

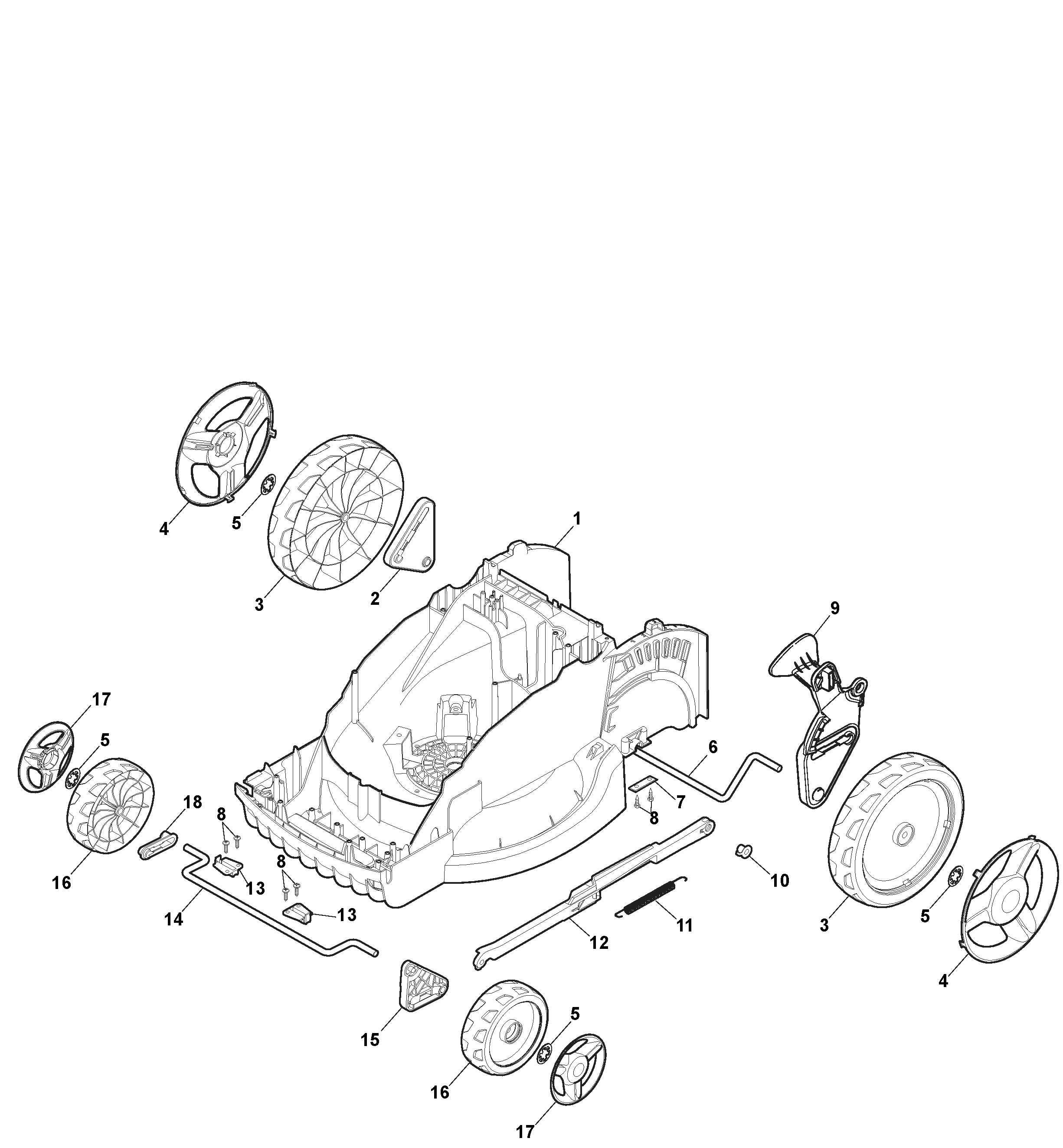

Spare Parts for Stiga Combi 336e - Deck Wheels and Height Adj - 294344068/ST2

Stiga Combi 336e - Deck Wheels and Height Adj - 294344068/ST2
Stock last checked Apr 23 2025 11:36.
--- -
1Plastic Deck [Grey] El340Ref: 322066782/0
Plastic Deck [Grey] El340
Price: £56.88
Special Order
Qty:
2Right Rear Support Plate [Grey]Ref: 322785448/1
Right Rear Support Plate [Grey]
Price: £2.98
Special Order
Can be ordered (7 at manufacturer)
Qty:
3Wheel D=170Ref: 322686107/0
Wheel D=170
Price: £5.96
Special Order
Can be ordered (3 at manufacturer)
Qty:
4Rear Hub Cap D=170 [Grey]Ref: 322110827/0
Rear Hub Cap D=170 [Grey]
Price: £2.30
Special Order
Qty:
5PUSH ON FIXING / STAR WASHER   112604903/0Ref: 112604903/0
PUSH ON FIXING / STAR WASHER 112604903/0
Price: £1.61
10+ in stock ready to go
Qty:
6Wheel AxleRef: 122033422/0
Wheel Axle
Price: £7.03
Special Order
Qty:
7Axle Stop PlateRef: 322545142/0
Axle Stop Plate
Price: £1.49
Special Order
Can be ordered (3 at manufacturer)
Qty:
8112728714/0 SELF TAPPING SCREWRef: 112728714/0
112728714/0 SELF TAPPING SCREW
Price: £1.66
Special Order
Qty:
9Height Adjust Lever [Yellow]Ref: 322785430/0
Height Adjust Lever [Yellow]
Price: £5.28
Special Order
Can be ordered (3 at manufacturer)
Qty:
10322524354/0 BUSHRef: 322524354/0
322524354/0 BUSH
Price: £1.61
Special Order
Qty:
11122450425/0 SPRINGRef: 122450425/0
122450425/0 SPRING
Price: £2.84
1 in stock ready to go
Qty:
12322869689/0 HEIGHT ADJUST RODRef: 322869689/0
322869689/0 HEIGHT ADJUST ROD
Price: £8.36
Special Order
Qty:
13Front Axle PlateRef: 322785415/0
Front Axle Plate
Price: £1.90
Special Order
Can be ordered (10 at manufacturer)
Qty:
14Wheel AxleRef: 122033422/0
Wheel Axle
Price: £7.03
Special Order
Qty:
15322785437/0 LEFT FRONT SUPPORT PLATE (GREY)Ref: 322785437/0
322785437/0 LEFT FRONT SUPPORT PLATE (GREY)
Price: £1.98
Special Order
Qty:
16Wheel D=140Ref: 322686106/0
Wheel D=140
Price: £5.02
Special Order
Can be ordered (5 at manufacturer)
Qty:
17Front Hub Cap D=150 [Grey]Ref: 322110826/0
Front Hub Cap D=150 [Grey]
Price: £2.17
Special Order
Qty:
18Front Wheel Support [Grey]Ref: 322785447/0
Front Wheel Support [Grey]
Price: £1.90
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

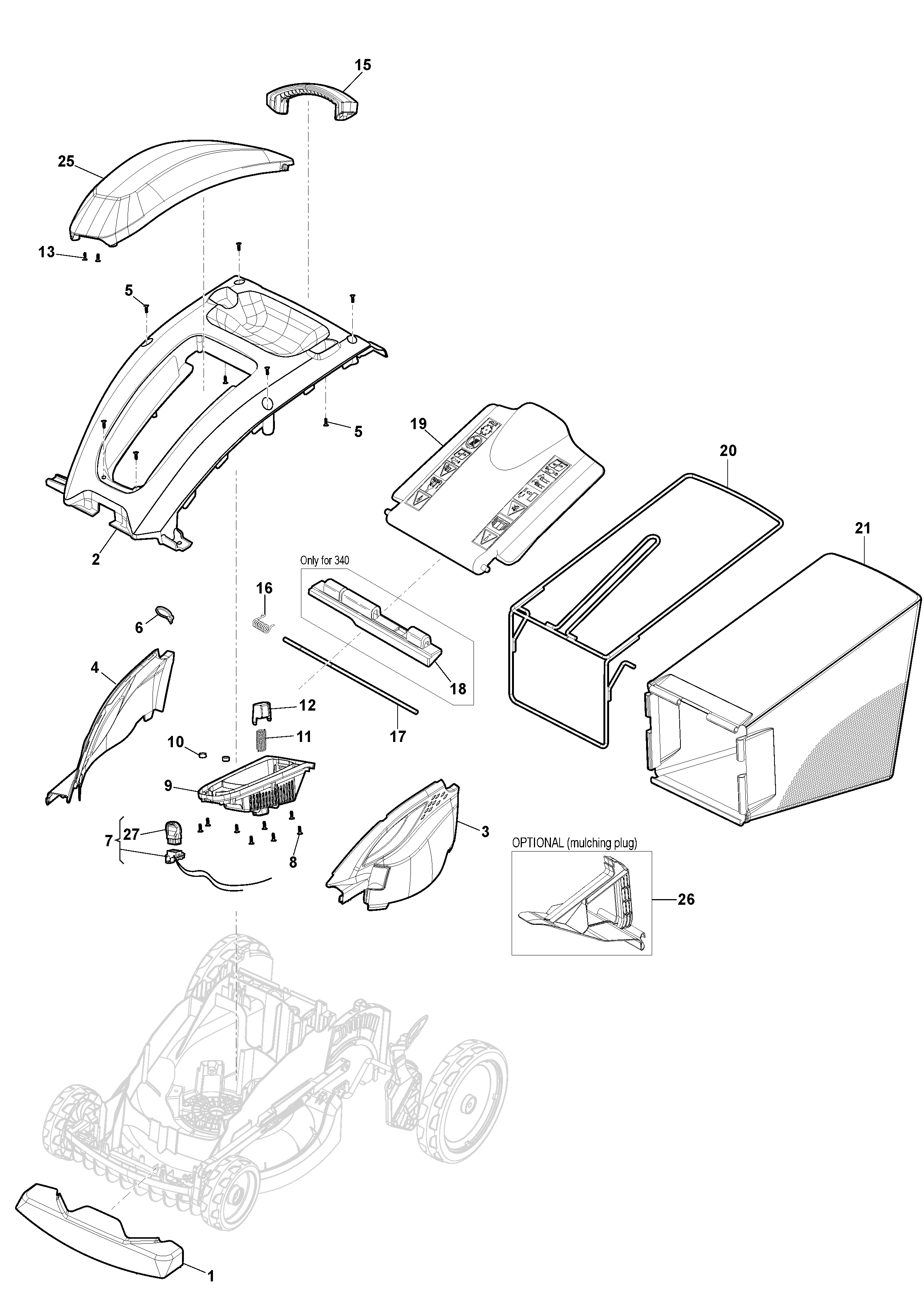

Spare Parts for Stiga Combi 336e - Body Work

Stiga Combi 336e - Body Work
Stock last checked Apr 23 2025 11:36.
--- -
1Front Cover Slm 34 Grey Ncs Ref: 322226305/1
Front Cover Slm 34 Grey Ncs '21
Price: £5.02
Special Order
Qty:
2Deck Cover Slm340 [Yellow]Ref: 322055651/0
Deck Cover Slm340 [Yellow]
Price: £10.97
Special Order
Qty:
3Left Side Cover Slm340 [Grey]Ref: 322110830/0
Left Side Cover Slm340 [Grey]
Price: £6.10
Special Order
Qty:
4Right Side Cover Slm340 [Grey]Ref: 322110829/0
Right Side Cover Slm340 [Grey]
Price: £6.10
Special Order
Qty:
5112728714/0 SELF TAPPING SCREWRef: 112728714/0
112728714/0 SELF TAPPING SCREW
Price: £1.66
Special Order
Qty:
6Fastpoint Clamp Art. 0384.Aa01 L=160Ref: 133320022/0
Fastpoint Clamp Art. 0384.Aa01 L=160
Price: £1.49
Special Order
Qty:
7118210030/0 SAFETY KEY SET  2020/2021Ref: 118210030/0
118210030/0 SAFETY KEY SET 2020/2021
Price: £43.26
Special Order
Qty:
8112728696/0 Self-Tapping ScrewwRef: 112728696/0
112728696/0 Self-Tapping Screww
Price: £1.48
2 in stock ready to go
Qty:
9Ref: 322722863/0
Not found
10Magnet Ndfeb D8X4 N30 ZnbRef: 118551525/0
Magnet Ndfeb D8X4 N30 Znb
Price: £1.36
Special Order
Qty:
11SpringRef: 1134-3262-01
Spring
Price: £8.12
Special Order
Qty:
12Battery Pack Butt. Slm 34-38-42 Grey NcsRef: 322602041/0
Battery Pack Butt. Slm 34-38-42 Grey Ncs
Price: £1.49
Special Order
Qty:
13112728696/0 Self-Tapping ScrewwRef: 112728696/0
112728696/0 Self-Tapping Screww
Price: £1.48
2 in stock ready to go
Qty:
15Cover Handle [Grey]Ref: 322393719/0
Cover Handle [Grey]
Price: £4.07
Special Order
Qty:
16SpringRef: 122450250/0
Spring
Price: £1.49
Special Order
Qty:
17Deflector RodRef: 122512603/0
Deflector Rod
Price: £2.44
Special Order
Can be ordered (1 at manufacturer)
Qty:
18Deflector Support [Grey]Ref: 322600287/0
Deflector Support [Grey]
Price: £4.20
Special Order
Qty:
19Deflector [Grey]Ref: 322600299/0
Deflector [Grey]
Price: £7.51
Special Order
Qty:
20Grasscatcher FrameRef: 181006434/0
Grasscatcher Frame
Price: £49.80
Special Order
Can be ordered (5 at manufacturer)
Qty:
21Grassbag [El340]Ref: 181102460/0
Grassbag [El340]
Price: £44.80
Special Order
Can be ordered (2 at manufacturer)
Qty:
25Battery Cover Slm Tamp.E-Power (Stiga)Ref: 322055650/0A
Battery Cover Slm Tamp.E-Power (Stiga)
Price: £12.34
Special Order
Qty:
26Mulching Plug [El340]Ref: 322140241/0
Mulching Plug [El340]
Price: £8.06
Special Order
Can be ordered (7 at manufacturer)
Qty:
27Safety Key - El 340-380-420 Li48LRef: 118806442/0
Safety Key - El 340-380-420 Li48L
Price: £5.69
Special Order
Can be ordered (2 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

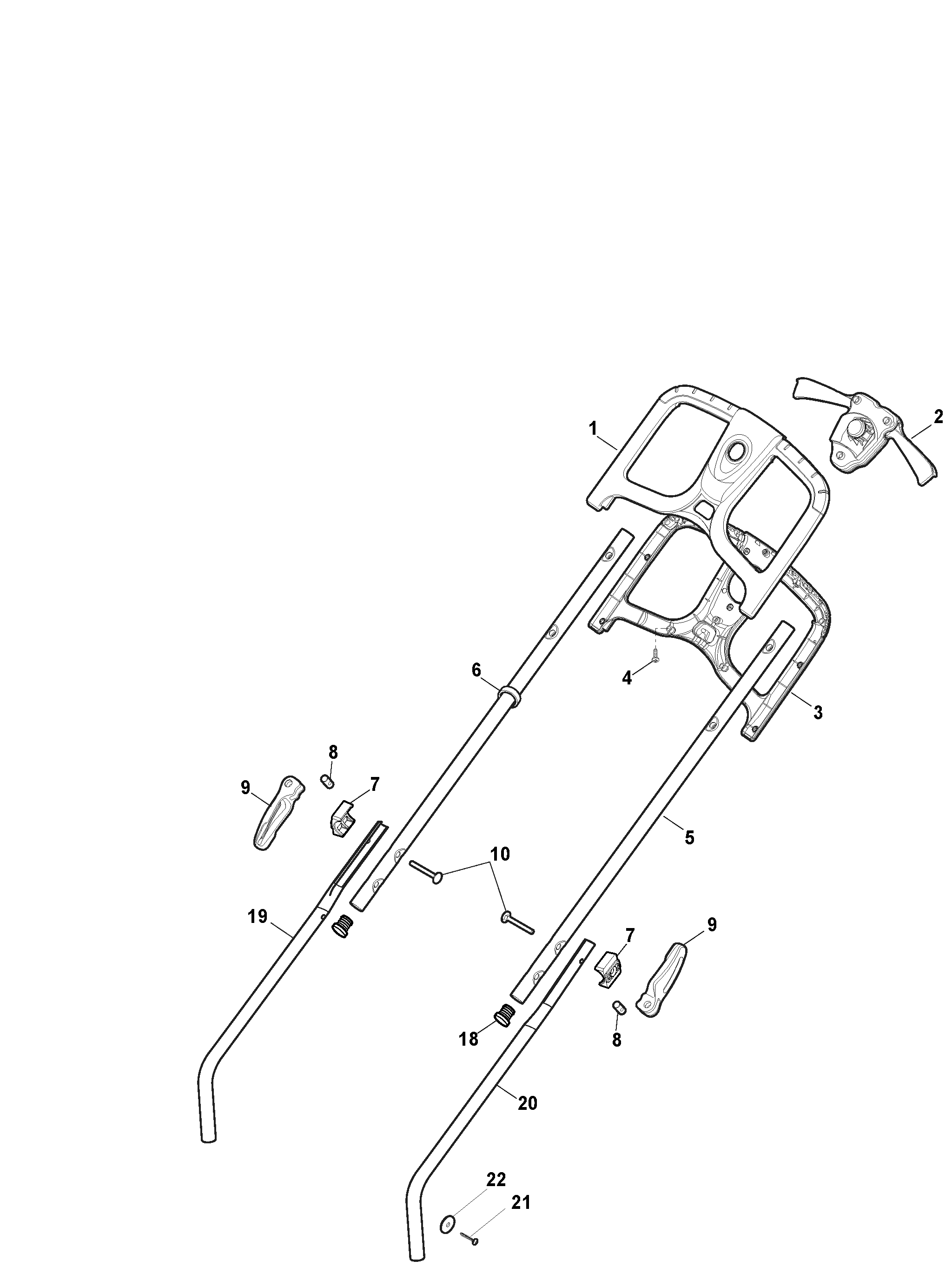

Spare Parts for Stiga Combi 336e - Handle

Stiga Combi 336e - Handle
Stock last checked Apr 23 2025 11:36.
--- -
1Upper Half Handgrip SwitchRef: 322291068/0
Upper Half Handgrip Switch
Price: £13.40
Special Order
Qty:
2Opc Switch Assembly [Yellow]Ref: 381600561/0
Opc Switch Assembly [Yellow]
Price: £39.28
Special Order
Can be ordered (2 at manufacturer)
Qty:
3Lower Half Handgrip SwitchRef: 322291069/0
Lower Half Handgrip Switch
Price: £12.34
Special Order
Can be ordered (1 at manufacturer)
Qty:
4Self-Tap Screw K40 X 20Ref: 112728713/0
Self-Tap Screw K40 X 20
Price: £1.36
Special Order
Can be ordered (10 at manufacturer)
Qty:
5Upper Handle El 340 BlackRef: 381007532/0
Upper Handle El 340 Black
Price: £6.50
Special Order
Qty:
5Upper Handle El 340 Alpina Astral GreyRef: 381007549/0
Upper Handle El 340 Alpina Astral Grey
Price: £6.50
Special Order
Qty:
6Cable ClampRef: 122192000/1
Cable Clamp
Price: £1.75
Special Order
Can be ordered (2 at manufacturer)
Qty:
7Handle ClampRef: 322680022/1
Handle Clamp
Price: £2.30
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
8Handle PinRef: 122524352/0
Handle Pin
Price: £3.38
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
9Quick Lock Lever [Grey]Ref: 322319550/0
Quick Lock Lever [Grey]
Price: £1.56
Special Order
Can be ordered (7 at manufacturer)
Qty:
10Carriage Bolt M6 X 50Ref: 122943016/0
Carriage Bolt M6 X 50
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
18Handle Cap D=21 [Black]Ref: 118566116/0
Handle Cap D=21 [Black]
Price: £2.17
Special Order
Qty:
19R/H Lower Handle [Astral Grey]Ref: 381007534/0
R/H Lower Handle [Astral Grey]
Price: £7.38
Special Order
Qty:
19R/H Lower Handle [Black]Ref: 381007529/0
R/H Lower Handle [Black]
Price: £8.81
Special Order
Can be ordered (2 at manufacturer)
Qty:
20L/H Lower Handle [Astral Grey]Ref: 381007535/0
L/H Lower Handle [Astral Grey]
Price: £8.53
Special Order
Can be ordered (1 at manufacturer)
Qty:
20L/H Lower Handle [Black]Ref: 381007530/0
L/H Lower Handle [Black]
Price: £8.66
Special Order
Can be ordered (3 at manufacturer)
Qty:
21112728450/0 SELF-TAPPING SCREW 4.8 x 19 UNI 6954 C15Ref: 112728450/0
112728450/0 SELF-TAPPING SCREW 4.8 x 19 UNI 6954 C15
Price: £1.48
Special Order
Qty:
22Washer M5 5.5 X 15 X 1.6 Uni 6593Ref: 112523020/0
Washer M5 5.5 X 15 X 1.6 Uni 6593
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

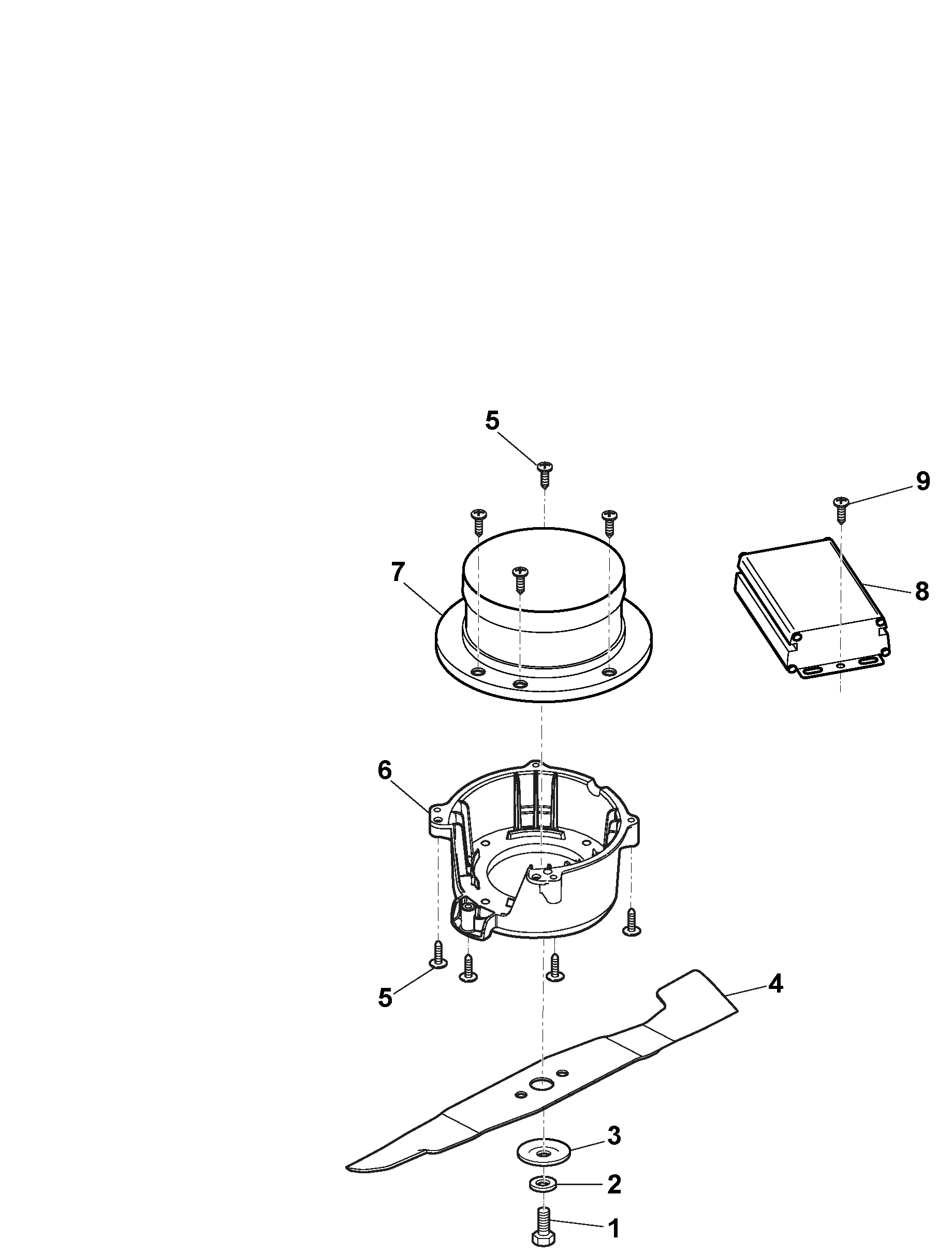

Spare Parts for Stiga Combi 336e - Electric Motor / Blade

Stiga Combi 336e - Electric Motor / Blade
Stock last checked Apr 23 2025 11:36.
--- -
1112793312/0 BOLT  M8 X 1 X 25  Ref: 112793312/0
112793312/0 BOLT M8 X 1 X 25
Price: £1.61
10+ in stock ready to go
Qty:
2WASHERRef: 122671651/0
WASHER
Price: £1.86
8 in stock ready to go
Qty:
3Spring Washer 8.2 X 23 X 0.9Ref: 112508122/0
Spring Washer 8.2 X 23 X 0.9
Price: £1.49
Special Order
Can be ordered (2 at manufacturer)
Qty:
4181004465/0 Blade - Mountfield Stiga BladeRef: 181004465/0
181004465/0 Blade - Mountfield Stiga Blade
Price: £15.84
1 in stock ready to go
Qty:
5Self-Tapping Screw K60 X 22 Wm1451Ref: 112728904/0
Self-Tapping Screw K60 X 22 Wm1451
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6Motor FlangeRef: 322207230/0
Motor Flange
Price: £6.50
Special Order
Qty:
7Battery Motor 48VRef: 118563519/0
Battery Motor 48V
Price: £120.55
Special Order
Can be ordered (2 at manufacturer)
Qty:
8Controller Li 48V 20ARef: 118206013/0
Controller Li 48V 20A
Price: £169.31
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
9112728714/0 SELF TAPPING SCREWRef: 112728714/0
112728714/0 SELF TAPPING SCREW
Price: £1.66
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

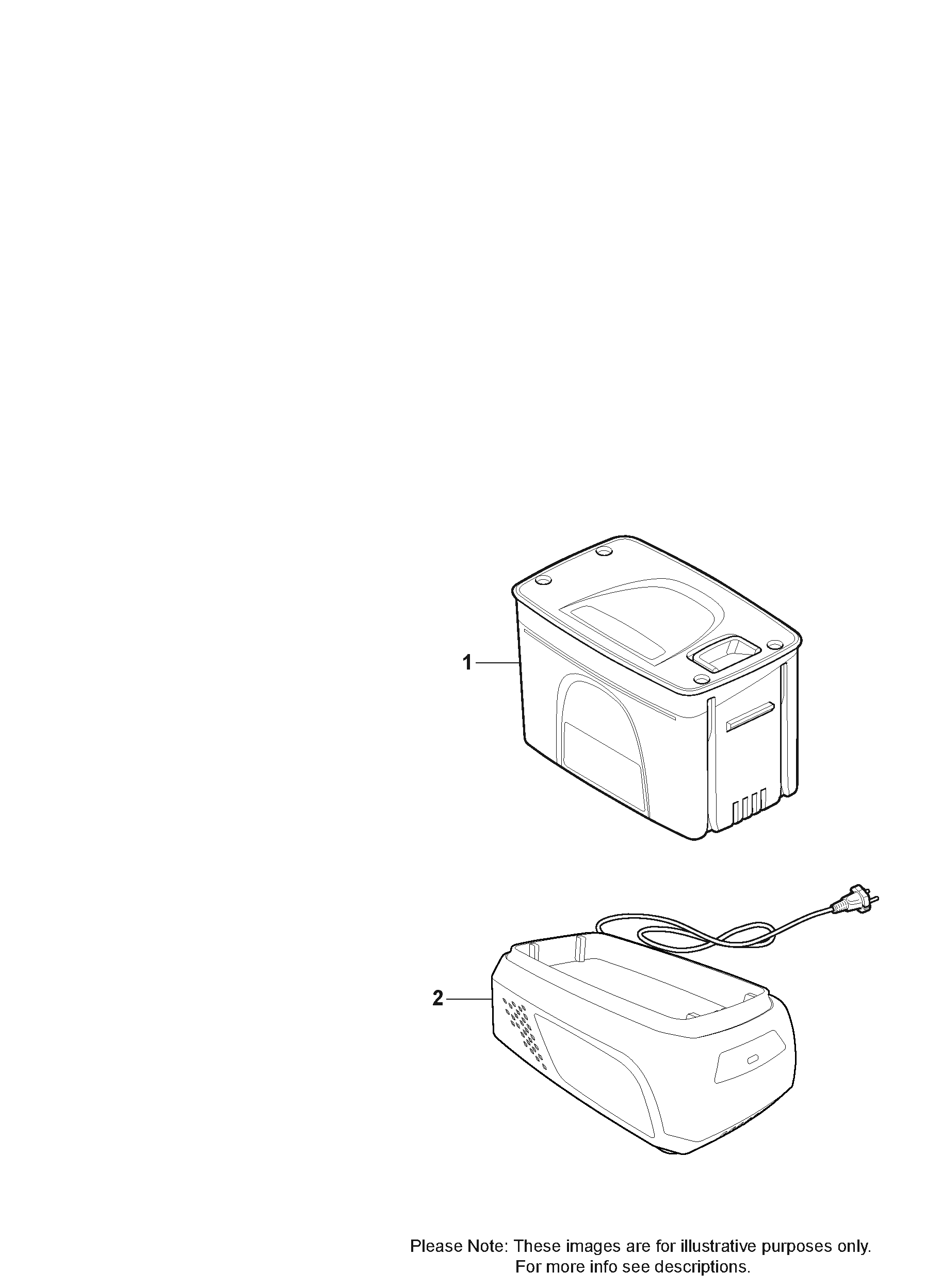

Spare Parts for Stiga Combi 336e - Battery

Stiga Combi 336e - Battery
Stock last checked Apr 23 2025 11:36.
--- -
1Stiga Mountfield E 420 Battery 2.0 Ah 48v  (B 420 / SBT520 AE)Ref: 277012008/ST1
Stiga Mountfield E 420 Battery 2.0 Ah 48v (B 420 / SBT520 AE)
Price: £99.00
Not in stock
Qty:
2Ref: 277030008/ST1
Not found
2Stiga Mountfield C 430 FU Single Battery Fast Charger 48v 3Ah 2025Ref: 274031004/ST1
Stiga Mountfield C 430 FU Single Battery Fast Charger 48v 3Ah 2025
Price: £45.00
Not in stock
Qty:
2Ref: 277021208/ST1
Not found
2Stiga Mountfield C 430 FU Single Battery Fast Charger 48v 3Ah 2025Ref: 274031004/ST1
Stiga Mountfield C 430 FU Single Battery Fast Charger 48v 3Ah 2025
Price: £45.00
Not in stock
Qty:
2Ref: 277020008/ST1
Not found
2Ref: 277020208/ST1
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
