SERIES 7500 WM14 OHV (TRE0701)


SERIES 7500 WM14 OHV (TRE0701), 1
SERIES 7500 WM14 OHV (TRE0701), 1
SERIES 7500 WM14 OHV (TRE0701), 2
SERIES 7500 WM14 OHV (TRE0701), 2
SERIES 7500 WM14 OHV (TRE0701), 3
SERIES 7500 WM14 OHV (TRE0701), 3

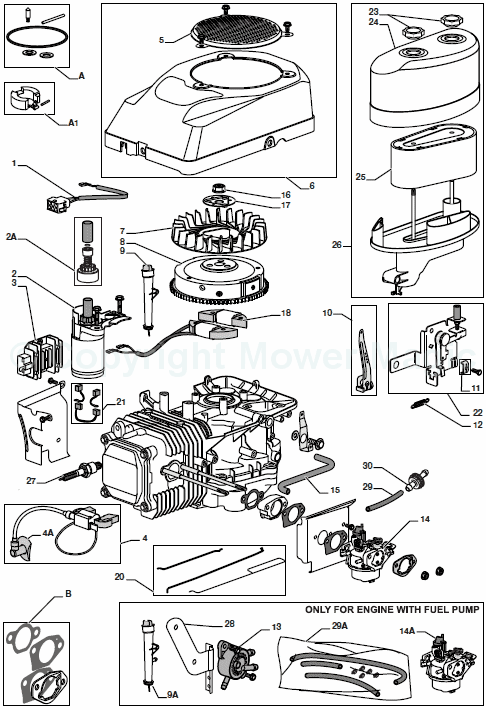

Spare Parts for SERIES 7500 WM14 OHV (TRE0701), 1

SERIES 7500 WM14 OHV (TRE0701), 1
Stock last checked Apr 17 2025 06:10.
--- -
1Output Wire-AlternatorRef: 118550207/0
Output Wire-Alternator
Price: £6.60
Special Order
Qty:
14ACarburettorRef: 118550375/1
Carburettor
Price: £95.48
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
2118550214/0 Starter Motor Assy Ref: 118550214/0
118550214/0 Starter Motor Assy
Price: £153.60
Special Order
Qty:
3RectifierRef: 118550208/1
Rectifier
Price: £47.06
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
4Ignition Coil  118550209/1Ref: 118550209/1
Ignition Coil 118550209/1
Price: £39.55
Special Order
Qty:
5Fan Cover InsertRef: 118550203/0
Fan Cover Insert
Price: £41.99
Special Order
Qty:
6Cover HousingRef: 118550215/0
Cover Housing
Price: £98.87
Special Order
Qty:
7Flywheel FanRef: 118550235/0
Flywheel Fan
Price: £24.08
Special Order
Qty:
8FlywheelRef: 118550234/2
Flywheel
Price: £209.38
Special Order
Can be ordered (4 at manufacturer)
Qty:
9Ref: 118550205/1
Not found
10Ref: 118550330/1
Not found
11Casing ClampRef: 118550212/0
Casing Clamp
Price: £15.50
Special Order
Qty:
12118550213/0   SPRINGRef: 118550213/0
118550213/0 SPRING
Price: £1.98
Special Order
Qty:
13Fuel PumpRef: 118551578/0
Fuel Pump
Price: £59.59
Special Order
Can be ordered (2 at manufacturer)
Qty:
14CarburettorRef: 118550375/1
Carburettor
Price: £95.48
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
15Breather Fuel PipeRef: 118550225/1
Breather Fuel Pipe
Price: £8.53
Special Order
Can be ordered (2 at manufacturer)
Qty:
16NutRef: 118550237/0
Nut
Price: £3.25
Special Order
Qty:
17Starter CupRef: 118550236/0
Starter Cup
Price: £5.89
Special Order
Qty:
18Charge Coil AssemblyRef: 118550210/1
Charge Coil Assembly
Price: £54.96
Special Order
Can be ordered (9 at manufacturer)
Qty:
20Governor RodRef: 118550239/1
Governor Rod
Price: £13.28
Special Order
Can be ordered (1 at manufacturer)
Qty:
21Brush HoldRef: 118550332/1
Brush Hold
Price: £33.86
Special Order
Can be ordered (2 at manufacturer)
Qty:
22Remote Control AssemblyRef: 118550331/1
Remote Control Assembly
Price: £40.63
Special Order
Qty:
23Ref: 118550201/0
Not found
24Air Filter CoverRef: 118550200/0
Air Filter Cover
Price: £16.12
Special Order
Qty:
25Mountfield / Stiga AIR FILTER  18550199/0   TRE0701   TornadoRef: 118550199/0
Mountfield / Stiga AIR FILTER 18550199/0 TRE0701 Tornado
Price: £22.37
Not in stock
Qty:
26Air Cleaner Assembly  118550202/2Ref: 118550202/2
Air Cleaner Assembly 118550202/2
Price: £43.26
Special Order
Qty:
27Champion Spark Plug RC12YC Ref: CPOE013
Champion Spark Plug RC12YC
Price: £3.60
10+ in stock ready to go
Qty:
28Fuel Pump BracketRef: 118550348/1
Fuel Pump Bracket
Price: £23.44
Special Order
Can be ordered (3 at manufacturer)
Qty:
29118550432/0 FUEL PIPERef: 118550432/0
118550432/0 FUEL PIPE
Price: £2.59
Special Order
Qty:
29ARef: 118550441/0
Not found
2AStarter Drive KitRef: 118550365/1
Starter Drive Kit
Price: £48.76
Special Order
Can be ordered (4 at manufacturer)
Qty:
30Mountfield Stiga Fuel Filter 118550427/0   (was118550354/1)Ref: 118550427/0
Mountfield Stiga Fuel Filter 118550427/0 (was118550354/1)
Price: £5.06
Not in stock
Qty:
4A118550448/0 SPARK PLUG CAPRef: 118550448/0
118550448/0 SPARK PLUG CAP
Price: £15.32
Special Order
Qty:
9AOil Dipstick AssemblyRef: 118550444/0
Oil Dipstick Assembly
Price: £28.44
Special Order
Can be ordered (1 at manufacturer)
Qty:
ACarburettor Gasket SetRef: 118550442/0
Carburettor Gasket Set
Price: £15.18
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
A1Carburettor Float KitRef: 118550440/0
Carburettor Float Kit
Price: £10.02
Special Order
Can be ordered (2 at manufacturer)
Qty:
B118550217/1 CARBURETTOR GASKET KITRef: 118550217/1
118550217/1 CARBURETTOR GASKET KIT
Price: £9.89
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

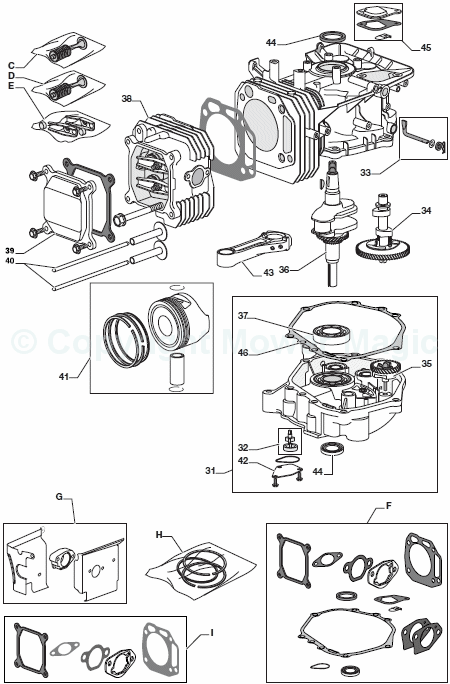

Spare Parts for SERIES 7500 WM14 OHV (TRE0701), 2

SERIES 7500 WM14 OHV (TRE0701), 2
Stock last checked Apr 17 2025 06:10.
--- -
31Crankcase Cover AssemblyRef: 118550445/0
Crankcase Cover Assembly
Price: £182.84
Special Order
Qty:
32Oil PumpRef: 118550224/1
Oil Pump
Price: £20.11
Special Order
Qty:
33Governor Arm ShaftRef: 118550226/0
Governor Arm Shaft
Price: £10.43
Special Order
Qty:
34Camshaft AssemblyRef: 118550243/0
Camshaft Assembly
Price: £107.68
Special Order
Can be ordered (2 at manufacturer)
Qty:
35Speed Governor AssemblyRef: 118550347/0
Speed Governor Assembly
Price: £18.96
Special Order
Qty:
36CrankshaftRef: 118550232/0
Crankshaft
Price: £189.62
Special Order
Qty:
37Ball BearingRef: 118550227/0
Ball Bearing
Price: £20.58
Special Order
Qty:
38Cylinder HeadRef: 118550233/0
Cylinder Head
Price: £230.26
Special Order
Qty:
39Ref: 118550206/0
Not found
40Push RodRef: 118550242/1
Push Rod
Price: £5.50
Special Order
Can be ordered (8 at manufacturer)
Qty:
41Piston AssemblyRef: 118550329/1
Piston Assembly
Price: £92.11
Special Order
Qty:
42Oil Pump CoverRef: 118550223/0
Oil Pump Cover
Price: £5.42
Special Order
Qty:
43Connecting RodRef: 118550231/1
Connecting Rod
Price: £54.18
Special Order
Can be ordered (2 at manufacturer)
Qty:
44Oil SealRef: 118551418/0
Oil Seal
Price: £11.51
Special Order
Can be ordered (5 at manufacturer)
Qty:
45Breather Chamber KitRef: 118550446/0
Breather Chamber Kit
Price: £20.65
Special Order
Can be ordered (1 at manufacturer)
Qty:
46Crankcase GasketRef: 118550355/1
Crankcase Gasket
Price: £16.25
Special Order
Can be ordered (4 at manufacturer)
Qty:
CInlet ValveRef: 118550240/0
Inlet Valve
Price: £37.93
Special Order
Can be ordered (1 at manufacturer)
Qty:
DExhaust ValveRef: 118550241/0
Exhaust Valve
Price: £35.21
Special Order
Qty:
ERef: 118550334/0
Not found
FEngine Gasket Set Tre0701Ref: 118550450/1
Engine Gasket Set Tre0701
Price: £88.04
Special Order
Can be ordered (2 at manufacturer)
Qty:
GEngine Guard AssemblyRef: 118550220/0
Engine Guard Assembly
Price: £31.15
Special Order
Can be ordered (2 at manufacturer)
Qty:
HPiston Ring Set (Tre0701)Ref: 118550447/0
Piston Ring Set (Tre0701)
Price: £29.80
Special Order
Can be ordered (2 at manufacturer)
Qty:
I118550449/0 VALVE GASKET SET (TRE0701)Ref: 118550449/0
118550449/0 VALVE GASKET SET (TRE0701)
Price: £45.73
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for SERIES 7500 WM14 OHV (TRE0701), 3

SERIES 7500 WM14 OHV (TRE0701), 3
Stock last checked Apr 17 2025 06:10.
--- -
100Ref: 118550451/1
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
