RM55 ES 196CC OHV/ SERIES 5500 RM65 (WBE0704ES)


RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 1
RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 1
RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 2
RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 2
RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 3
RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 3

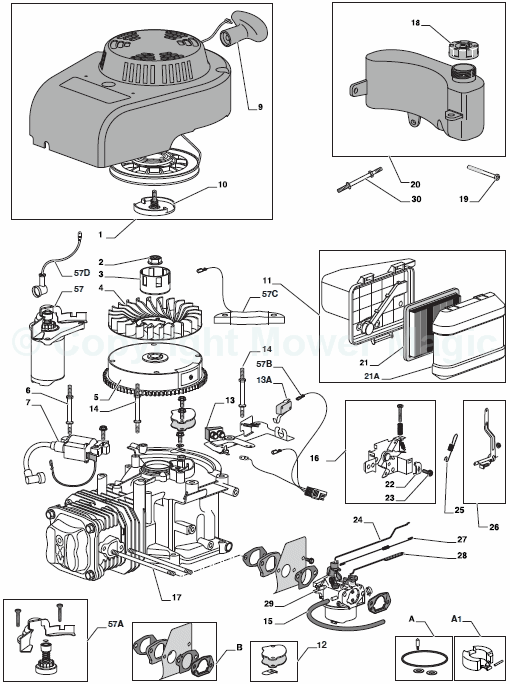

Spare Parts for RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 1

RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 1
Stock last checked Apr 17 2025 06:10.
--- -
1Recoil Assembly 196Cc Ohv [Wbe0704]Ref: 118550277/1
Recoil Assembly 196Cc Ohv [Wbe0704]
Price: £93.46
Special Order
Can be ordered (1 at manufacturer)
Qty:
2NutRef: 118550336/0
Nut
Price: £5.82
Special Order
Qty:
3Starter CupRef: 118550335/0
Starter Cup
Price: £21.67
Special Order
Can be ordered (1 at manufacturer)
Qty:
4Flywheel FanRef: 118550254/0
Flywheel Fan
Price: £19.43
Special Order
Qty:
5Ref: 118550392/0
Not found
6Stud BoltRef: 118550301/0
Stud Bolt
Price: £6.37
Special Order
Qty:
7GGP/ Mountfield RM55 Ignition Coil / Magneto Armature 18550255/0Ref: 118550255/1
GGP/ Mountfield RM55 Ignition Coil / Magneto Armature 18550255/0
Price: £49.44
Special Order
Qty:
9Recoil HandleRef: 118550274/0
Recoil Handle
Price: £14.89
Special Order
Can be ordered (3 at manufacturer)
Qty:
10118550275/1 STARTER PAWL KITRef: 118550275/1
118550275/1 STARTER PAWL KIT
Price: £11.24
1 in stock ready to go
Qty:
11Mountfield / ATCO / GGP / STIGA Air Filter Assembly RM45 RM55 ST55 Engines Ref: 118550737/0
Mountfield / ATCO / GGP / STIGA Air Filter Assembly RM45 RM55 ST55 Engines
Price: £22.37
1 in stock ready to go
Qty:
12Ref: 118550305/0
Not found
13Flywheel BrakeRef: 118550373/0
Flywheel Brake
Price: £40.39
Special Order
Can be ordered (3 at manufacturer)
Qty:
13AMicro Switch [Key Start]Ref: 118550400/0
Micro Switch [Key Start]
Price: £23.77
Special Order
Qty:
14Ref: 118550302/0
Not found
15Fuel PipeRef: 118550428/0
Fuel Pipe
Price: £6.97
Special Order
Can be ordered (6 at manufacturer)
Qty:
16118550259/0 THROTTLE CONTROL ASSEMBLYRef: 118550259/0
118550259/0 THROTTLE CONTROL ASSEMBLY
Price: £28.43
1 in stock ready to go
Qty:
17Stud BoltRef: 118550299/0
Stud Bolt
Price: £7.58
Special Order
Qty:
18GGP / Mountfield Stiga FUEL CAP RM45 RM55Ref: 118550943/1
GGP / Mountfield Stiga FUEL CAP RM45 RM55
Price: £6.02
4 in stock ready to go
Qty:
19118550314/0 FUEL FILTER    WBE0701  WBE0702   WBE140Ref: 118550314/0
118550314/0 FUEL FILTER WBE0701 WBE0702 WBE140
Price: £4.08
Special Order
Qty:
20118550316/1 - Fuel Tank  RM45 / RM55 Fuel Tank 118550316/0   WBE0701 WBE0702Ref: 118550316/1
118550316/1 - Fuel Tank RM45 / RM55 Fuel Tank 118550316/0 WBE0701 WBE0702
Price: £38.32
Special Order
Qty:
21Stiga Mountfield / GGP Paper Air Filter Element for RM55 ST170Ref: 118550257/0
Stiga Mountfield / GGP Paper Air Filter Element for RM55 ST170
Price: £10.63
5 in stock ready to go
Qty:
21AAir Filter CoverRef: 118550396/0
Air Filter Cover
Price: £23.70
Special Order
Qty:
22Casing ClampRef: 118550337/0
Casing Clamp
Price: £10.56
Special Order
Can be ordered (1 at manufacturer)
Qty:
23ScrewRef: 118550338/0
Screw
Price: £6.77
Special Order
Qty:
24Governor Link RodRef: 118550424/0
Governor Link Rod
Price: £2.30
Special Order
Qty:
25Governor SpringRef: 118550261/0
Governor Spring
Price: £2.70
Special Order
Qty:
26Ref: 118550267/0
Not found
27SpringRef: 118550263/0
Spring
Price: £2.70
Special Order
Can be ordered (7 at manufacturer)
Qty:
28Ref: 118550265/0
Not found
29CarburettorRef: 118550252/0
Carburettor
Price: £67.73
Special Order
Can be ordered (1 at manufacturer)
Qty:
30Stud BoltRef: 118550315/0
Stud Bolt
Price: £7.45
Special Order
Qty:
57Starter MotorRef: 118550401/1
Starter Motor
Price: £143.95
Special Order
Can be ordered (6 at manufacturer)
Qty:
57AStarter Drive KitRef: 118550402/0
Starter Drive Kit
Price: £40.63
Special Order
Qty:
57BSwitch WiresRef: 118550393/0
Switch Wires
Price: £33.86
Special Order
Qty:
57C118550420/0 CHARGE COIL  WBE0704Ref: 118550420/0
118550420/0 CHARGE COIL WBE0704
Price: £40.80
1 in stock ready to go
Qty:
57DStarter Motor CableRef: 118550395/0
Starter Motor Cable
Price: £33.86
Special Order
Qty:
A118550389/0 CARB REPAIR KITRef: 118550389/0
118550389/0 CARB REPAIR KIT
Price: £9.00
Special Order
Qty:
A1Carburettor Float KitRef: 118550388/0
Carburettor Float Kit
Price: £14.09
Special Order
Can be ordered (2 at manufacturer)
Qty:
BCarburettor Gasket SetRef: 118550249/0
Carburettor Gasket Set
Price: £17.74
Special Order
Can be ordered (4 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

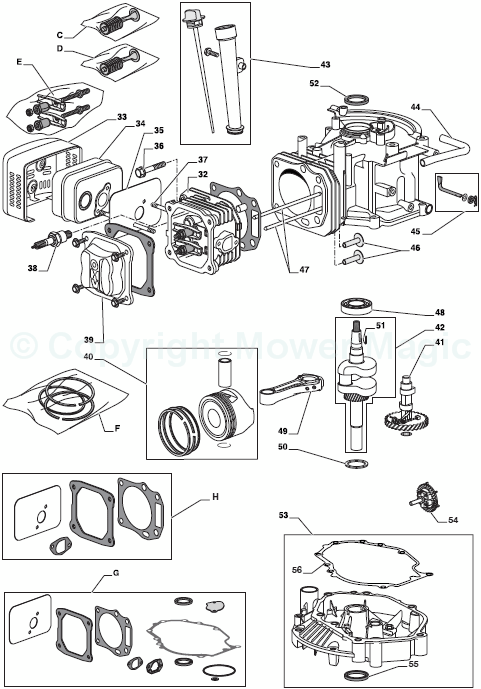

Spare Parts for RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 2

RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 2
Stock last checked Apr 17 2025 06:10.
--- -
32Cylinder Head AssemblyRef: 118550245/0
Cylinder Head Assembly
Price: £130.02
Special Order
Qty:
33Muffler GuardRef: 118550268/1
Muffler Guard
Price: £39.28
Special Order
Qty:
34MufflerRef: 118550269/0
Muffler
Price: £33.86
Special Order
Qty:
35118550270/0 MUFFLER GASKETRef: 118550270/0
118550270/0 MUFFLER GASKET
Price: £11.12
Special Order
Qty:
36118550297/0 SCREWRef: 118550297/0
118550297/0 SCREW
Price: £5.81
1 in stock ready to go
Qty:
37Stud BoltRef: 118550298/0
Stud Bolt
Price: £6.50
Special Order
Can be ordered (3 at manufacturer)
Qty:
38Champion Spark Plug RC12YC Ref: CPOE013
Champion Spark Plug RC12YC
Price: £3.60
10+ in stock ready to go
Qty:
39Cylinder Head CoverRef: 118550296/1
Cylinder Head Cover
Price: £14.09
Special Order
Qty:
40Ref: 118550279/0
Not found
41CamshaftRef: 118550272/0
Camshaft
Price: £52.82
Special Order
Qty:
42Crankshaft AssemblyRef: 118550282/0
Crankshaft Assembly
Price: £125.95
Special Order
Can be ordered (1 at manufacturer)
Qty:
43Ref: 118550311/0
Not found
44Ref: 118550307/0
Not found
45Governor Arm ShaftRef: 118550308/0
Governor Arm Shaft
Price: £9.96
Special Order
Qty:
46Valve LifterRef: 118550291/0
Valve Lifter
Price: £9.35
Special Order
Qty:
47Ref: 118550290/0
Not found
48Ball BearingRef: 118550280/0
Ball Bearing
Price: £22.48
Special Order
Can be ordered (2 at manufacturer)
Qty:
49Connecting Rod AssemblyRef: 118550285/0
Connecting Rod Assembly
Price: £39.00
Special Order
Qty:
50WasherRef: 118550283/0
Washer
Price: £3.25
Special Order
Qty:
51Woodruff KeyRef: 118550288/0
Woodruff Key
Price: £5.96
Special Order
Can be ordered (2 at manufacturer)
Qty:
52118550300/0 OIL SEALRef: 118550300/0
118550300/0 OIL SEAL
Price: £6.72
Special Order
Qty:
53Ref: 118550310/0
Not found
54Engine 196Cc Ohv Es Wbe0704 EsRef: 118550431/0
Engine 196Cc Ohv Es Wbe0704 Es
Price: £744.94
Special Order
Can be ordered (1 at manufacturer)
Qty:
55118550379/0 OIL SEALRef: 118550379/0
118550379/0 OIL SEAL
Price: £6.18
Special Order
Qty:
56Crankcase GasketRef: 118550414/1
Crankcase Gasket
Price: £16.19
Special Order
Can be ordered (4 at manufacturer)
Qty:
CRef: 118550293/0
Not found
DRef: 118550295/0
Not found
EValve Arm SetRef: 118550273/0
Valve Arm Set
Price: £13.28
Special Order
Qty:
FPiston Ring SetRef: 118550287/0
Piston Ring Set
Price: £26.41
Special Order
Can be ordered (1 at manufacturer)
Qty:
GEngine Gasket SetRef: 118550247/0
Engine Gasket Set
Price: £54.18
Special Order
Can be ordered (2 at manufacturer)
Qty:
HCylinder Head GasketRef: 118550429/0
Cylinder Head Gasket
Price: £26.54
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

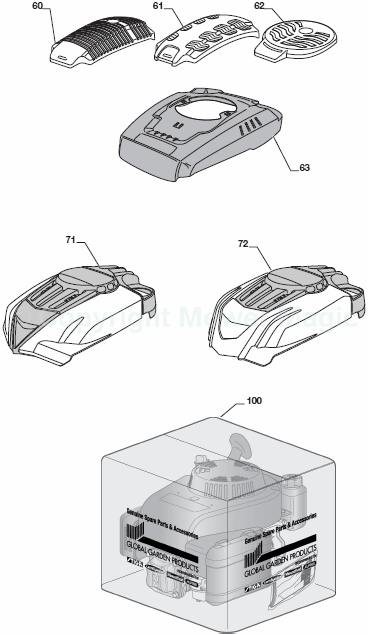

Spare Parts for RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 3

RM55 ES 196CC OHN/ SERIES 5500 RM65 (WBE0704ES), 3
Stock last checked Apr 17 2025 06:10.
--- -
60Top Engine Cover [Black-Oblong]Ref: 322055452/0
Top Engine Cover [Black-Oblong]
Price: £4.87
Special Order
Can be ordered (1 at manufacturer)
Qty:
61Top Engine Cover [Black-Oblong]Ref: 322055450/0
Top Engine Cover [Black-Oblong]
Price: £5.54
Special Order
Can be ordered (2 at manufacturer)
Qty:
62Top Engine Cover [Black-Round]Ref: 322055439/0
Top Engine Cover [Black-Round]
Price: £3.79
Special Order
Qty:
63Ref: 322055477/0
Not found
71Ref: 381002068/0
Not found
72Engine Cover [Black/Yellow]Ref: 381002067/0
Engine Cover [Black/Yellow]
Price: £29.06
Special Order
Qty:
100Ref: 118550318/0
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
