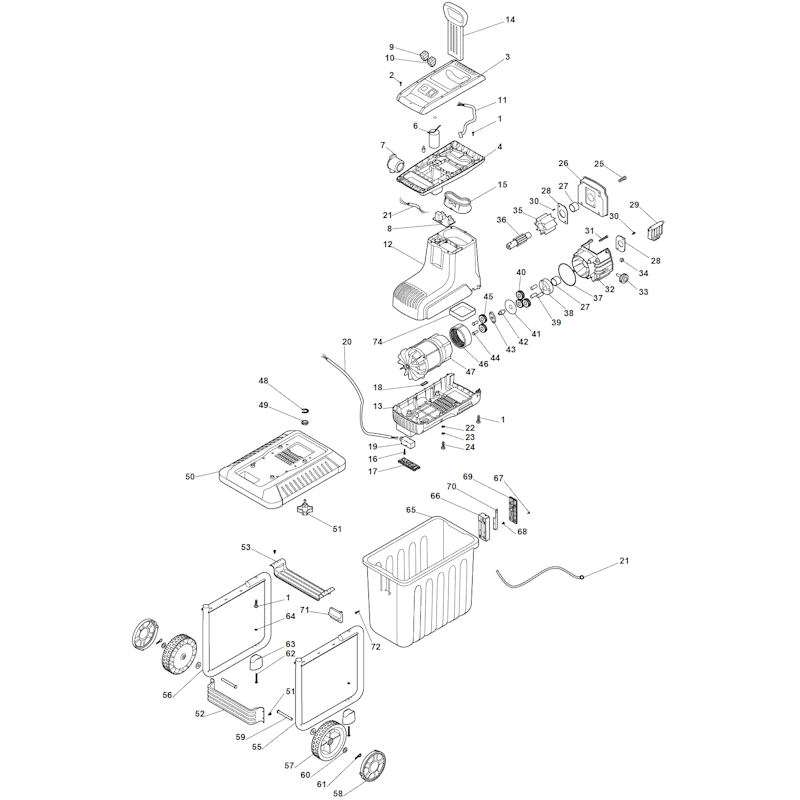

Quick link to the part: Choose 1 2 3 4 6 7 8 9 10 11 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 50 51 52 53 55 56 57 58 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 74 Stock last checked Apr 28 2025 06:10. - - - - 1 Ref: 112728099/1Self-Tapping Screw 4.2 X 16
Special Order Can be ordered (8 at manufacturer)
Qty: 2 Ref: 112728099/1Self-Tapping Screw 4.2 X 16
Special Order Can be ordered (8 at manufacturer)
Qty: 3 Ref: 118802168/0Top Handle
Special Order Qty: 4 Ref: 118802169/0Bottom Handle
Special Order Qty: 6 Ref: 118802170/0Capacitor
Special Order Can be ordered (1 at manufacturer)
Qty: 7 Ref: 118802171/0Plug
Special Order Can be ordered (1 at manufacturer)
Qty: 8 Ref: 118802172/0Pcb Electronic Card
Special Order Qty: 9 Ref: 118802173/0Main Switch
Special Order Qty: 10 Ref: 118802174/0Reverse Switch
Special Order Qty: 11 Ref: 118802175/0Switch Wire
Special Order Qty: 13 Ref: 118802178/0Bottom Housing
Special Order Qty: 14 Ref: 118802179/0Prodder
Special Order Qty: 15 Ref: 118802180/0Feed Intake
Special Order Qty: 16 Ref: 112728526/0 Not found 17 Ref: 118802181/0Safety Switch Cover
Special Order Qty: 18 Ref: 118802182/0Motor Gasket
Special Order Qty: 19 Ref: 118802183/0Safety Switch
Special Order Qty: 20 Ref: 118802184/0Safety Switch Cable
Special Order Qty: 21 Ref: 118802185/0Cable
Special Order Qty: 22 Ref: 2312010Flat Washer 6.4 X 12 X 1.6
Special Order Qty: 23 Ref: 112582100/0112582100/0 SPRING LOCK WASHER M6 UNI 1751
Not in stock Qty: 24 Ref: 112727791/0Cross-Head Screw M6X20 Uni 7687 Acc.4.8
Special Order Can be ordered ( >10 at manufacturer)
Qty: 25 Ref: 2132180Screw Tcce M6 X 25
Special Order Qty: 26 Ref: 118802186/0Plate
Special Order Qty: 27 Ref: 118802187/0Bearing
Special Order Qty: 28 Ref: 118802188/0Wearable Gasket
Special Order Qty: 29 Ref: 118802189/0Pressure Plate
Special Order Qty: 30 Ref: 2125010Screw Tc M4 X 10
Special Order Qty: 31 Ref: 2132230 Not found 32 Ref: 118802190/0Transmission Body
Special Order Qty: 33 Ref: 118802191/0Adjustment Knob
Special Order Qty: 34 Ref: 112156602/0Mountfield Stiga NYLOC LOCKING NUT 12156602/0
3 in stock ready to go Qty: 35 Ref: 118805061/0Knife And Transmission Shaft Kit
Special Order Qty: 36 Ref: 118805061/0Knife And Transmission Shaft Kit
Special Order Qty: 37 Ref: 118802194/0Airproof Gasket
Special Order Qty: 38 Ref: 118802195/0Support Washer
Special Order Qty: 39 Ref: 118802196/0Gear Pin
Special Order Qty: 40 Ref: 118802197/0Planet Gear
Special Order Qty: 41 Ref: 118802198/0Gear Wearable Gasket
Special Order Qty: 42 Ref: 118802199/0Gear
Special Order Qty: 43 Ref: 118802200/0Support Plate
Special Order Qty: 44 Ref: 118802201/0Gear Pin
Special Order Qty: 45 Ref: 118802202/0Planet Gear
Special Order Qty: 46 Ref: 118802203/0Ring Gear
Special Order Qty: 47 Ref: 118802204/0Electric Motor
Special Order Qty: 48 Ref: 112000930/0112000930/0 CIRCLIP D=6
1 in stock ready to go Qty: 49 Ref: 112292100/0Mountfield Stiga Castel NUT 12292100/0
2 in stock ready to go Qty: 50 Ref: 118802206/0Base Cover [Black]
Special Order Qty: 50 Ref: 118802205/0 Not found 51 Ref: 118802207/0Clamping Knob
Special Order Qty: 52 Ref: 118802208/0Back Strengthen Board
Special Order Qty: 53 Ref: 118802209/0Bottom Reinforcement Plate
Special Order Can be ordered (1 at manufacturer)
Qty: 55 Ref: 118802210/0Left Frame
Special Order Qty: 56 Ref: 118802211/0Right Frame
Special Order Can be ordered (1 at manufacturer)
Qty: 57 Ref: 118802212/0Wheel
Special Order Can be ordered (1 at manufacturer)
Qty: 58 Ref: 118802214/0Hub Cap [White]
Special Order Qty: 58 Ref: 118802213/0 Not found 59 Ref: 118802215/0Wheel Axle
Special Order Qty: 60 Ref: 118802216/0Flat Washer
Special Order Can be ordered (3 at manufacturer)
Qty: 61 Ref: 118802217/0Cotter Pin
Special Order Qty: 62 Ref: 112792425/0Hex-Head Screw M6 X 55
Special Order Can be ordered (5 at manufacturer)
Qty: 63 Ref: 118802218/0Support Foot
Special Order Qty: 64 Ref: 112292100/0Mountfield Stiga Castel NUT 12292100/0
2 in stock ready to go Qty: 65 Ref: 118805222/0Collection Box [Grey]
Special Order Qty: 66 Ref: 118802220/0Key Box
Special Order Qty: 67 Ref: 123878023/0Torx Screw 4 X 12
Special Order Can be ordered (6 at manufacturer)
Qty: 68 Ref: 112728525/0Self-Tap Screw Tcb 4 X 25
Special Order Can be ordered (5 at manufacturer)
Qty: 69 Ref: 118802221/0Key Box Cover
Special Order Qty: 70 Ref: 118802222/0Safety Switch Key
Special Order Qty: 71 Ref: 118802223/0Key Handle [Red]
Special Order Qty: 72 Ref: 2125010Screw Tc M4 X 10
Special Order Qty: 74 Ref: 118802224/0 Not found
