Mountfield HP474 (2007 - 2011) 299184648/BQ


Mountfield HP474, Deck and Height Adjustment
Mountfield HP474, Deck and Height Adjustment
Mountfield HP474, Front Conveyor Assembly
Mountfield HP474, Front Conveyor Assembly
Mountfield HP474, Handle Lower Part
Mountfield HP474, Handle Lower Part
Mountfield HP474, Handle Upper Part
Mountfield HP474, Handle Upper Part
Mountfield HP474, Controls
Mountfield HP474, Controls
Mountfield HP474, Wheel and Hub Cap
Mountfield HP474, Wheel and Hub Cap
Mountfield HP474, Blade
Mountfield HP474, Blade

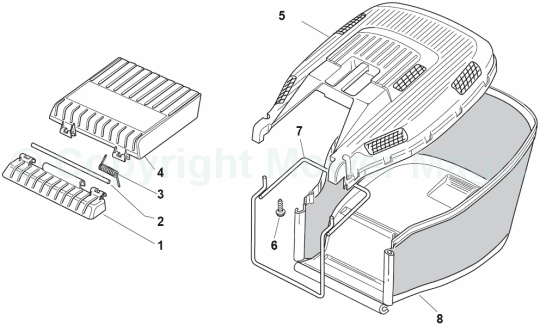

Mountfield HP474, Grass-Catcher
Mountfield HP474, Grass-Catcher
Mountfield HP474, Engine
Mountfield HP474, Engine

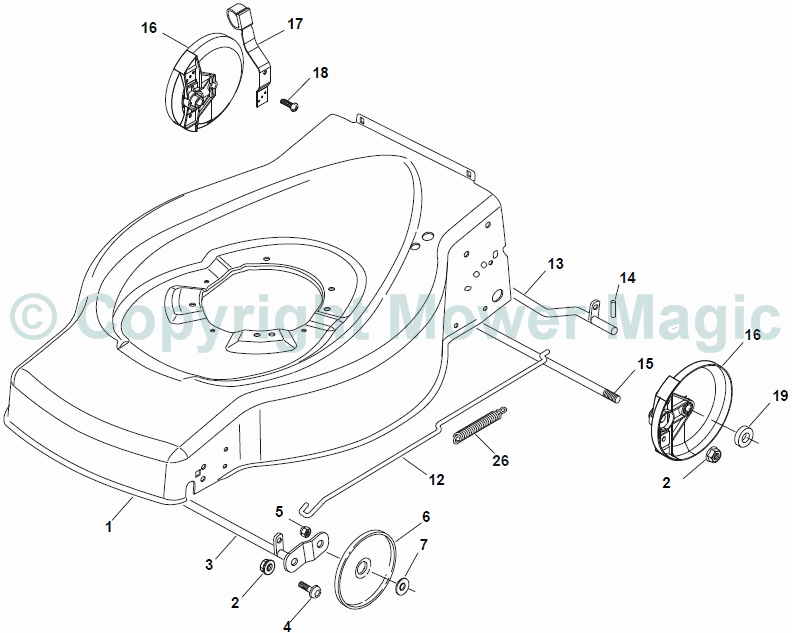

Spare Parts for Mountfield HP474, Deck and Height Adjustment

Mountfield HP474, Deck and Height Adjustment
Stock last checked Apr 28 2025 06:10.
--- -
1Steel Deck Es/Esl46 [Red]Ref: 381002538/0
Steel Deck Es/Esl46 [Red]
Price: £105.64
Special Order
Can be ordered (1 at manufacturer)
Qty:
2122131750/0 FLANGED NUT   Mountfield Castelgarden Stiga Hayter  Ref: 122131750/0
122131750/0 FLANGED NUT Mountfield Castelgarden Stiga Hayter
Price: £1.86
7 in stock ready to go
Qty:
3381000153/0 FRONT WHEELS AXLERef: 381000153/0
381000153/0 FRONT WHEELS AXLE
Price: £36.00
1 in stock ready to go
Qty:
4Screw M8 X 16 Geo321ARef: 112760600/1
Screw M8 X 16 Geo321A
Price: £2.17
Special Order
Can be ordered (1 at manufacturer)
Qty:
5112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:
6322600095/0 INNER WHEEL COVER D=165Ref: 322600095/0
322600095/0 INNER WHEEL COVER D=165
Price: £1.61
Special Order
Qty:
7WASHERRef: 325670011/0
WASHER
Price: £1.61
5 in stock ready to go
Qty:
12Height Adjust Tie RodRef: 122033317/0
Height Adjust Tie Rod
Price: £18.01
Special Order
Qty:
13Rear Wheels AxleRef: 381000159/0
Rear Wheels Axle
Price: £23.16
Special Order
Can be ordered (4 at manufacturer)
Qty:
14Pin D=4 X 32Ref: 122753001/0
Pin D=4 X 32
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
15Rear Axle RodRef: 122033369/0
Rear Axle Rod
Price: £19.04
Special Order
Qty:
16Inner Wheel Cover D=190Ref: 322600106/1
Inner Wheel Cover D=190
Price: £6.50
Special Order
Can be ordered (3 at manufacturer)
Qty:
17Stiga Mountfield / Castelgarden / MacAllister Height Adjust Lever 381003303/0Ref: 381003303/0
Stiga Mountfield / Castelgarden / MacAllister Height Adjust Lever 381003303/0
Price: £15.95
Special Order
Qty:
18Screw Ka50 X 12Ref: 112728689/0
Screw Ka50 X 12
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
19Wheel SpacerRef: 322170622/0
Wheel Spacer
Price: £1.36
Special Order
Can be ordered (6 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

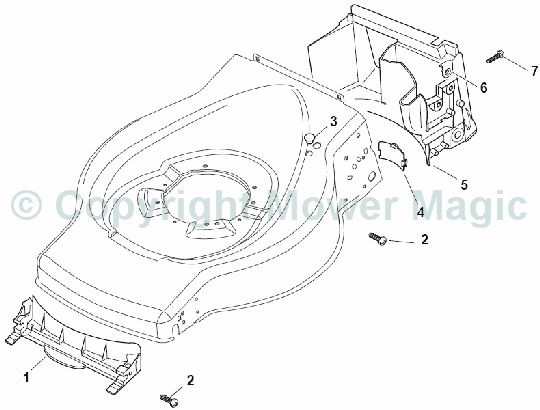

Spare Parts for Mountfield HP474, Front Conveyor Assembly

Mountfield HP474, Front Conveyor Assembly
Stock last checked Apr 28 2025 06:10.
--- -
1FRONT BAFFLERef: 322108271/0
FRONT BAFFLE
Price: £12.36
Not in stock
Qty:
2112728686/0 SELF-TAPPING SCREW KA50 X 16Ref: 112728686/0
112728686/0 SELF-TAPPING SCREW KA50 X 16
Price: £1.61
Special Order
Qty:
3Pvc Deck Cap For Drive Cable HoleRef: 322820077/1
Pvc Deck Cap For Drive Cable Hole
Price: £1.49
Special Order
Qty:
4Gearbox CoverRef: 322109532/0
Gearbox Cover
Price: £1.36
Special Order
Can be ordered (2 at manufacturer)
Qty:
5REAR BAFFLERef: 322108272/2
REAR BAFFLE
Price: £17.18
Not in stock
Qty:
6Mountfield Handle Fixing Plate 322545189/0Ref: 322545189/0
Mountfield Handle Fixing Plate 322545189/0
Price: £1.61
4 in stock ready to go
Qty:
7112728686/0 SELF-TAPPING SCREW KA50 X 16Ref: 112728686/0
112728686/0 SELF-TAPPING SCREW KA50 X 16
Price: £1.61
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

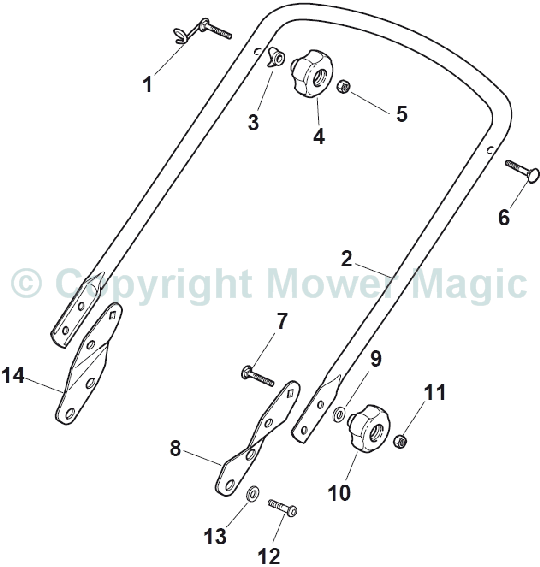

Spare Parts for Mountfield HP474, Handle Lower Part

Mountfield HP474, Handle Lower Part
Stock last checked Apr 28 2025 06:10.
--- -
1Lawnmower Pull Cord Guide / Retainer    81003801/1Ref: 181003801/1
Lawnmower Pull Cord Guide / Retainer 81003801/1
Price: £3.10
2 in stock ready to go
Qty:
2381006686/0 Stiga / Mountfield Lower HandleRef: 381006686/0
381006686/0 Stiga / Mountfield Lower Handle
Price: £33.60
6 in stock ready to go
Qty:
3PLASTIC WASHERRef: 122680006/1
PLASTIC WASHER
Price: £1.49
2 in stock ready to go
Qty:
4Mountfield HANDWHEEL Knob Handle w/o nutRef: 122399900/0
Mountfield HANDWHEEL Knob Handle w/o nut
Price: £1.61
4 in stock ready to go
Qty:
5Nut 112293200/0Ref: 112293200/0
Nut 112293200/0
Price: £1.61
1 in stock ready to go
Qty:
6Mountfield Stiga CARRIAGE BOLT M8 x 60  112819201/0Ref: 112819201/0
Mountfield Stiga CARRIAGE BOLT M8 x 60 112819201/0
Price: £2.59
2 in stock ready to go
Qty:
7Bolt   M8 x 35Ref: 112818900/0
Bolt M8 x 35
Price: £1.61
4 in stock ready to go
Qty:
8L/H Lower Handle BracketRef: 322778425/0
L/H Lower Handle Bracket
Price: £9.55
Special Order
Can be ordered (1 at manufacturer)
Qty:
9Stiga Mountfield Atco Washer  8.3 X 20 X 3Ref: 122671653/0
Stiga Mountfield Atco Washer 8.3 X 20 X 3
Price: £1.61
2 in stock ready to go
Qty:
10Mountfield HANDWHEEL Knob Handle w/o nutRef: 122399900/0
Mountfield HANDWHEEL Knob Handle w/o nut
Price: £1.61
4 in stock ready to go
Qty:
11Nut 112293200/0Ref: 112293200/0
Nut 112293200/0
Price: £1.61
1 in stock ready to go
Qty:
12Mountfield Stiga ATCO  Screw Bolt M8 x 20   112760605/0Ref: 112760605/0
Mountfield Stiga ATCO Screw Bolt M8 x 20 112760605/0
Price: £3.10
10+ in stock ready to go
Qty:
13WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
7 in stock ready to go
Qty:
14Ref: 322778423/0
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

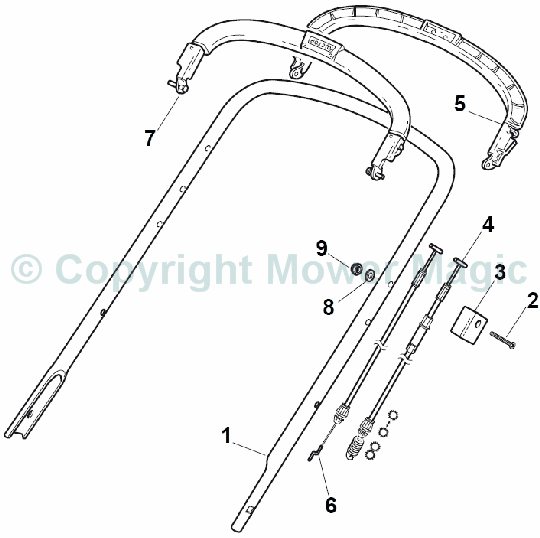

Spare Parts for Mountfield HP474, Handle Upper Part

Mountfield HP474, Handle Upper Part
Stock last checked Apr 28 2025 06:10.
--- -
1Upper Handle [Black]Ref: 381006579/1
Upper Handle [Black]
Price: £15.84
Special Order
Qty:
2Mountfield Stiga Castel Alpina BOLT SCREW M6 x 40    112689500/0Ref: 112689500/0
Mountfield Stiga Castel Alpina BOLT SCREW M6 x 40 112689500/0
Price: £1.61
1 in stock ready to go
Qty:
3322551685/0 Cable Holder  22551640/0, 518925Ref: 322551685/0
322551685/0 Cable Holder 22551640/0, 518925
Price: £6.96
2 in stock ready to go
Qty:
4Mountfield Stiga  Clutch Cable 381000659/0Ref: 381000659/0
Mountfield Stiga Clutch Cable 381000659/0
Price: £17.56
2 in stock ready to go
Qty:
5Drive Control LeverRef: 381003297/1
Drive Control Lever
Price: £21.26
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6181030002/0 ENGINE BRAKE OPC CABLERef: 181030002/0
181030002/0 ENGINE BRAKE OPC CABLE
Price: £14.40
Special Order
Qty:
7Mountfield / Stiga OPC Engine Stop Lever Handle - Plastic EndsRef: 381003298/1
Mountfield / Stiga OPC Engine Stop Lever Handle - Plastic Ends
Price: £30.90
Special Order
Qty:
8Stiga Mountfield Alpina Castel    WASHER  M6 6.4 X 12 X 1.6     12521330/0Ref: 112521330/0
Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0
Price: £1.61
Not in stock
Qty:
9Mountfield Stiga Castel NUT  12292100/0 Ref: 112292100/0
Mountfield Stiga Castel NUT 12292100/0
Price: £1.36
2 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

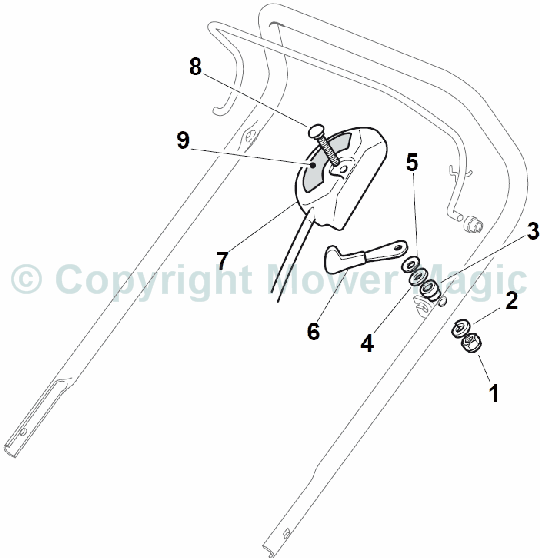

Spare Parts for Mountfield HP474, Controls

Mountfield HP474, Controls
Stock last checked Apr 28 2025 06:10.
--- -
1112291000/0 NUT (was 12291000/0)Ref: 112291000/0
112291000/0 NUT (was 12291000/0)
Price: £1.61
Special Order
Qty:
2Grower Washer M5 Uni 1751 Type A WzRef: 112581500/0
Grower Washer M5 Uni 1751 Type A Wz
Price: £1.49
Special Order
Can be ordered (3 at manufacturer)
Qty:
3Ref: 122171005/0
Not found
4112521360/0 WASHERRef: 112521360/0
112521360/0 WASHER
Price: £1.61
2 in stock ready to go
Qty:
5Spring Washer 10.2 X 20 X 0.8Ref: 112508100/0
Spring Washer 10.2 X 20 X 0.8
Price: £1.49
Special Order
Can be ordered (3 at manufacturer)
Qty:
6381007279/1 THROTTLE LEVERRef: 381007279/1
381007279/1 THROTTLE LEVER
Price: £1.61
1 in stock ready to go
Qty:
7Mountfield Throttle Cable 81007080/0Ref: 481007080/0
Mountfield Throttle Cable 81007080/0
Price: £22.37
Not in stock
Qty:
8Carriage Bolt M5 X 45Ref: 112815000/0
Carriage Bolt M5 X 45
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
9Throttle DecalRef: 114356702/0
Throttle Decal
Price: £1.90
Special Order
Can be ordered (3 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

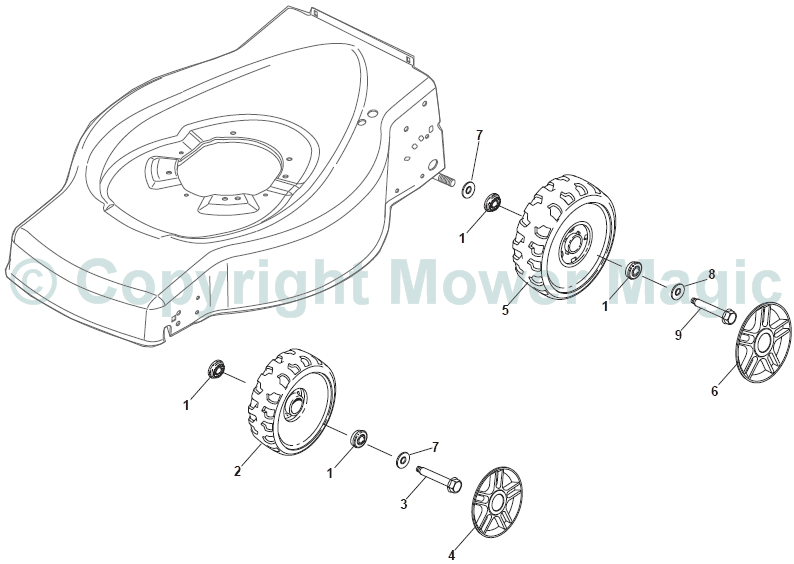

Spare Parts for Mountfield HP474, Wheel and Hub Cap

Mountfield HP474, Wheel and Hub Cap
Stock last checked Apr 28 2025 06:10.
--- -
1Ref: 122122200/0
Not found
2Lawnmower Wheel 165mm approxRef: 322686091/1
Lawnmower Wheel 165mm approx
Price: £6.18
1 in stock ready to go
Qty:
3Mountfield Stiga WHEEL BOLT  122524341/0Ref: 122524341/0
Mountfield Stiga WHEEL BOLT 122524341/0
Price: £2.35
2 in stock ready to go
Qty:
4322110721/0   HUB CAP   (was 322110491/0)Ref: 322110721/0
322110721/0 HUB CAP (was 322110491/0)
Price: £2.35
4 in stock ready to go
Qty:
5322686092/0 WHEEL-190mmRef: 322686092/0
322686092/0 WHEEL-190mm
Price: £5.44
Special Order
Qty:
6Ref: 322110492/0
Not found
7Washer D=12.6 X 24 X 0.6Ref: 122675100/0
Washer D=12.6 X 24 X 0.6
Price: £1.75
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
8Mountfield Stiga Castel WASHER M6 6.6 X 24 X 2     112523050/0Ref: 112523050/0
Mountfield Stiga Castel WASHER M6 6.6 X 24 X 2 112523050/0
Price: £1.61
2 in stock ready to go
Qty:
9112735599/0 SELF-TAPPING SCREW M6 x 16 (BOLT)Ref: 112735599/0
112735599/0 SELF-TAPPING SCREW M6 x 16 (BOLT)
Price: £1.46
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

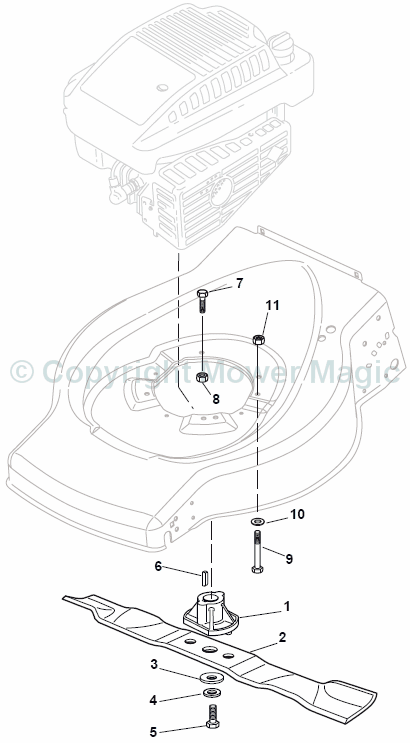

Spare Parts for Mountfield HP474, Blade

Mountfield HP474, Blade
Stock last checked Apr 28 2025 06:10.
--- -
1Mountfield / Castelgarden / Champion Blade Boss 122463012/2Ref: 122463012/4
Mountfield / Castelgarden / Champion Blade Boss 122463012/2
Price: £7.67
5 in stock ready to go
Qty:
2Mountfield / Castelgarden / Homelite Lawnmower Blade 81004365/3Ref: 181004365/3
Mountfield / Castelgarden / Homelite Lawnmower Blade 81004365/3
Price: £12.85
Not in stock
Qty:
3Spring Washer Elastic Washer 50x2x10.2Ref: 122160400/0
Spring Washer Elastic Washer 50x2x10.2
Price: £1.73
Not in stock
Qty:
4Washer   M10 11 X 30 X 2.5        112523080/0Ref: 112523080/0
Washer M10 11 X 30 X 2.5 112523080/0
Price: £1.61
Not in stock
Qty:
5Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2  12735698/0Ref: 112735698/0
Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2 12735698/0
Price: £1.49
7 in stock ready to go
Qty:
6Mountfield / Castelgarden / Hayter  Stiga Woodruff Key 22.2mm 112139100/0   1662Ref: 112139100/0
Mountfield / Castelgarden / Hayter Stiga Woodruff Key 22.2mm 112139100/0 1662
Price: £1.61
10+ in stock ready to go
Qty:
7Mountfield Stiga CastelGarden SCREW BOLT M8 x 30   112793701/0  12793700/0Ref: 112793701/0
Mountfield Stiga CastelGarden SCREW BOLT M8 x 30 112793701/0 12793700/0
Price: £1.61
3 in stock ready to go
Qty:
8Mountfield Stiga Castel  FLANGED NUT M8 112293201/0Ref: 112293201/0
Mountfield Stiga Castel FLANGED NUT M8 112293201/0
Price: £1.61
6 in stock ready to go
Qty:
9Hex-Head Screw M8 X 60 Uni 5737Ref: 112691800/0
Hex-Head Screw M8 X 60 Uni 5737
Price: £1.49
Special Order
Qty:
10WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
7 in stock ready to go
Qty:
11112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Mountfield HP474, Grass-Catcher

Mountfield HP474, Grass-Catcher
Stock last checked Apr 28 2025 06:10.
--- -
1Deflector Support [Black]Ref: 322785136/1
Deflector Support [Black]
Price: £3.12
Special Order
Can be ordered (3 at manufacturer)
Qty:
2Deflector RodRef: 122517858/0
Deflector Rod
Price: £5.15
Special Order
Qty:
3Deflector SpringRef: 122450431/0
Deflector Spring
Price: £4.82
Special Order
Qty:
4322600099/2 DEFLECTOR [BLACK]Ref: 322600099/2
322600099/2 DEFLECTOR [BLACK]
Price: £4.45
Not in stock
Qty:
5UPPER GRASSTOP-BLACK    (was 22486122/0)Ref: 322486122/0
UPPER GRASSTOP-BLACK (was 22486122/0)
Price: £24.47
Special Order
Qty:
6112728686/0 SELF-TAPPING SCREW KA50 X 16Ref: 112728686/0
112728686/0 SELF-TAPPING SCREW KA50 X 16
Price: £1.61
Special Order
Qty:
7Frame for Grassbox 181006419/0Ref: 181006419/0
Frame for Grassbox 181006419/0
Price: £19.66
Special Order
Qty:
8181002229/1 Fabric GrassbagRef: 181002229/1
181002229/1 Fabric Grassbag
Price: £36.00
1 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Mountfield HP474, Engine

Mountfield HP474, Engine
Stock last checked Apr 28 2025 06:10.
--- -
1Mountfield RV150 / SV150 / RV40 / V35 Recoil Engine Starter AssyRef: 118550139/1
Mountfield RV150 / SV150 / RV40 / V35 Recoil Engine Starter Assy
Price: £29.66
Not in stock
Qty:
2Recoil HandleRef: 118550768/0
Recoil Handle
Price: £11.51
Special Order
Can be ordered (5 at manufacturer)
Qty:
3RECOIL CORD 3.5MM @ 2.5MRef: 118550053/0
RECOIL CORD 3.5MM @ 2.5M
Price: £2.22
Special Order
Qty:
4Mountfield Stiga GGP STARTER PAWL SET 118550004/1Ref: 118550004/1
Mountfield Stiga GGP STARTER PAWL SET 118550004/1
Price: £4.94
3 in stock ready to go
Qty:
5Deflector PlateRef: 118550138/0
Deflector Plate
Price: £4.07
Special Order
Qty:
6Ref: 18550056/0
Not found
7Starter CupRef: 118550140/0
Starter Cup
Price: £4.34
Special Order
Can be ordered (9 at manufacturer)
Qty:
8FLYWHEEL FANRef: 118550154/0
FLYWHEEL FAN
Price: £5.32
Special Order
Qty:
9Ref: 118550197/0
Not found
10Ref: 18550005/0
Not found
11Ref: 118550142/0
Not found
12Mountfield Stiga MacAllister NUT RV150 / SV150 / V35  118550007/0Ref: 118550007/0
Mountfield Stiga MacAllister NUT RV150 / SV150 / V35 118550007/0
Price: £1.86
5 in stock ready to go
Qty:
13Mountfield Fuel Tank RV/150 / SV150 / RM45 118550143/0Ref: 118550143/0
Mountfield Fuel Tank RV/150 / SV150 / RM45 118550143/0
Price: £30.90
1 in stock ready to go
Qty:
14Mountfield Stiga GGP MacAllister  Petrol Fuel Filler Cap   18550001/0  SV150 R150  V35   RV40Ref: 118550001/0
Mountfield Stiga GGP MacAllister Petrol Fuel Filler Cap 18550001/0 SV150 R150 V35 RV40
Price: £4.08
2 in stock ready to go
Qty:
15Ref: 118550141/0
Not found
16Ref: 18550165/0
Not found
17GGP Engine Dipstick Assembly   18550008/0Ref: 118550008/0
GGP Engine Dipstick Assembly 18550008/0
Price: £5.06
Special Order
Qty:
18Ref: 18550144/0
Not found
19Mountfield Foam Air Filter Element for RV150, SV150, RV40 18550011/0Ref: 118550011/0
Mountfield Foam Air Filter Element for RV150, SV150, RV40 18550011/0
Price: £2.96
4 in stock ready to go
Qty:
20Ref: 118550010/0
Not found
21Ref: 118550125/1
Not found
22Ref: 118550013/0
Not found
23Mountfield Stiga GGP CARBURETTOR V35  RV150 / SV150 M150 118550148/0Ref: 118550148/0
Mountfield Stiga GGP CARBURETTOR V35 RV150 / SV150 M150 118550148/0
Price: £51.91
1 in stock ready to go
Qty:
24Ref: 118550019/0
Not found
25Ref: 18550017/0
Not found
26Governor Link Sv150Ref: 118550149/0
Governor Link Sv150
Price: £1.63
Special Order
Can be ordered (5 at manufacturer)
Qty:
28Intake ManifoldRef: 118550129/0
Intake Manifold
Price: £9.76
Special Order
Can be ordered (2 at manufacturer)
Qty:
29Engine BrakeRef: 118550021/0
Engine Brake
Price: £32.51
Special Order
Can be ordered (3 at manufacturer)
Qty:
30Mountfield / Stiga / GGP Governor Spring 57mm 118550151/0   V150 SV150 M150 V35Ref: 118550151/0
Mountfield / Stiga / GGP Governor Spring 57mm 118550151/0 V150 SV150 M150 V35
Price: £1.61
3 in stock ready to go
Qty:
31Mountfield MacAllister Castel Garden GGP LINKING SPRING 118550150/0Ref: 118550150/0
Mountfield MacAllister Castel Garden GGP LINKING SPRING 118550150/0
Price: £1.61
3 in stock ready to go
Qty:
32Control BracketRef: 118550152/0
Control Bracket
Price: £10.16
Special Order
Qty:
33ScrewRef: 118550023/0
Screw
Price: £1.90
Special Order
Qty:
34Ref: 18550022/0
Not found
35GGP / Mountfield RV150 SV150 M150 V35 V40  Ignition Coil / Magneto Armature 18550126/0Ref: 118550126/0
GGP / Mountfield RV150 SV150 M150 V35 V40 Ignition Coil / Magneto Armature 18550126/0
Price: £48.20
1 in stock ready to go
Qty:
36Ref: 118550127/0
Not found
37Ref: 18550071/0
Not found
38Champion Spark Plug RJ19LM / QJ19LM Ref: CPRJ19LM
Champion Spark Plug RJ19LM / QJ19LM
Price: £3.60
10+ in stock ready to go
Qty:
39Ref: 118550128/0
Not found
40GGP Sumec Stiga Mountfield CYLINDER HEAD GASKET SV150 RV150Ref: 118550359/0
GGP Sumec Stiga Mountfield CYLINDER HEAD GASKET SV150 RV150
Price: £5.69
1 in stock ready to go
Qty:
41Crankcase GasketRef: 118550130/0
Crankcase Gasket
Price: £6.10
Special Order
Can be ordered (2 at manufacturer)
Qty:
42Seal RingRef: 118550131/0
Seal Ring
Price: £8.40
Special Order
Can be ordered (2 at manufacturer)
Qty:
44Pin Bolt-MufflerRef: 118550027/0
Pin Bolt-Muffler
Price: £4.74
Special Order
Qty:
45118550028/0 MUFFLER GASKETRef: 118550028/0
118550028/0 MUFFLER GASKET
Price: £4.20
Special Order
Qty:
46Muffler SpacerRef: 118550030/0
Muffler Spacer
Price: £4.48
Special Order
Qty:
47Ref: 118550031/1
Not found
48Muffler Fixing NutRef: 118550032/0
Muffler Fixing Nut
Price: £1.49
Special Order
Can be ordered (2 at manufacturer)
Qty:
49118550033/0 MUFFLER GUARDRef: 118550033/0
118550033/0 MUFFLER GUARD
Price: £19.78
Special Order
Qty:
71Ref: 322055437/0
Not found
72Ref: 322055437/0
Not found
99Engine C/W Cat Muffler 150Cc [M150]Ref: 118550157/1
Engine C/W Cat Muffler 150Cc [M150]
Price: £406.32
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
