Name: Chassis - Mountfield (2009 - 2010) 1540H 2T5544483 / 1640H 2T0930483/M10 / 1840H 2T566483 / 2040H 2T5672483
Brand: Mountfield

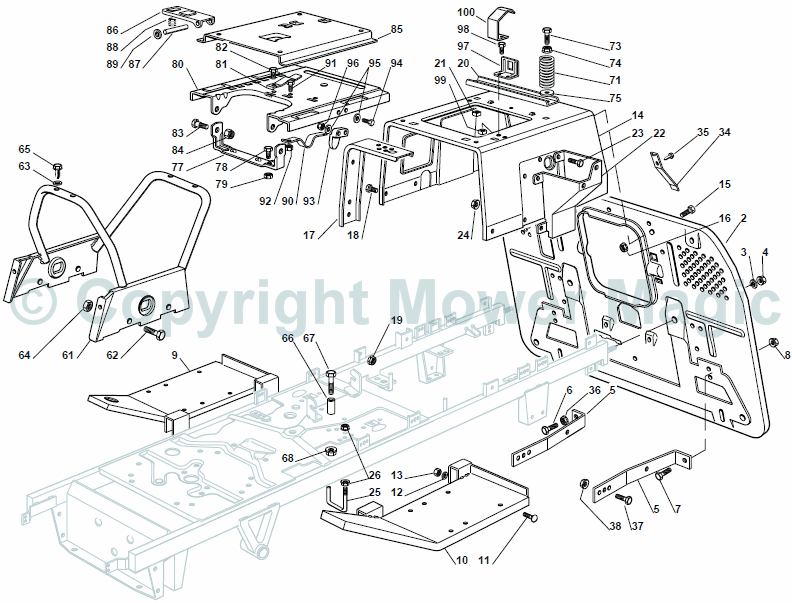

Spare Parts for Chassis - Mountfield (2009 - 2010) 1540H 2T5544483 / 1640H 2T0930483/M10 / 1840H 2T566483 / 2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
2		Ref: 382547053/1 Rear Plate	Price: £142.21 Special Order	Qty:
2		Ref: 382547053/1 Rear Plate	Price: £142.21 Special Order	Qty:
3		Ref: 112585100/0 Spring Lock Washer M10 Uni1751 Type A Wz	Price: £1.49 Special Order	Qty:
4		Ref: 112295200/0 112295200/0 HEXAGON NUT M10 UNI 5588 (WZ)	Price: £1.75 Special Order	Qty:
5		Ref: 325774273/2 Reinforcing Bracket	Price: £8.53 Special Order	Qty:
6		Ref: 112691100/0 112691100/0 HEX-HEAD SCREW M8 X 35	Price: £1.92 Special Order	Qty:
7		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
8		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
9		Ref: 382510041/2 Right Footboard Support	Price: £78.56 Special Order	Qty:
10		Ref: 382510043/2 Left Footboard Support	Price: £78.56 Special Order	Qty:
11		Ref: 112815245/0 Screw M6 X 45	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
12		Ref: 112523040/0 Washer M6 6.6 X 18 X 1.6	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
13		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
14		Ref: 325785133/5 Seat Support	Price: £66.37 Special Order Can be ordered (2 at manufacturer)	Qty:
15		Ref: 112791011/0 Hex-Head Screw M6 X 14 Uni 5739 8.8 Wz	Price: £1.36 Special Order Can be ordered ( >10 at manufacturer)	Qty:
16		Ref: 112292102/0 112292102/0 NUT (was 12292102/0)	Price: £1.61 Special Order	Qty:
17		Ref: 325650065/1 Reinforcing Bracket	Price: £8.93 Special Order	Qty:
18		Ref: 112791011/0 Hex-Head Screw M6 X 14 Uni 5739 8.8 Wz	Price: £1.36 Special Order Can be ordered ( >10 at manufacturer)	Qty:
19		Ref: 112292102/0 112292102/0 NUT (was 12292102/0)	Price: £1.61 Special Order	Qty:
20		Ref: 325650067/1 Reinforcing Plate	Price: £5.69 Special Order	Qty:
21		Ref: 112360420/0 Nut	Price: £1.49 Special Order Can be ordered (3 at manufacturer)	Qty:
22		Ref: 325785137/1 Support Plate	Price: £33.86 Special Order Can be ordered (1 at manufacturer)	Qty:
23		Ref: 112791011/0 Hex-Head Screw M6 X 14 Uni 5739 8.8 Wz	Price: £1.36 Special Order Can be ordered ( >10 at manufacturer)	Qty:
24		Ref: 112292102/0 112292102/0 NUT (was 12292102/0)	Price: £1.61 Special Order	Qty:
25		Ref: 125580019/1 Belt Guide	Price: £3.79 Special Order Can be ordered (2 at manufacturer)	Qty:
26		Ref: 112292102/0 112292102/0 NUT (was 12292102/0)	Price: £1.61 Special Order	Qty:
34		Ref: 125430238/1 Spring	Price: £3.92 Special Order Can be ordered (9 at manufacturer)	Qty:
35		Ref: 112731580/0 Self-Tap Screw Te 4.8 X 9.5 C15 Bz	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
36		Ref: 112293200/0 Nut 112293200/0	Price: £1.61 3 in stock ready to go	Qty:
37		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
38		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
61		Ref: 382650041/1	Not found
62		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
63		Ref: 112521330/0 Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0	Price: £1.61 Not in stock	Qty:
64		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
65		Ref: 112731350/0 Self-Tap Screw 5.5 X 19 Uni 6949 C15	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
66		Ref: 122167840/0 Spacer Bushing Di=9 De=15 H=29.3 Wz	Price: £1.49 Special Order Can be ordered (3 at manufacturer)	Qty:
67		Ref: 112691200/0 Hex-Head Screw M8 X 45 Uni 5737 8.8	Price: £1.63 Special Order Can be ordered (10 at manufacturer)	Qty:
68		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
71		Ref: 125430205/1 Seat Shock Absorber Spring	Price: £5.69 Special Order Can be ordered (2 at manufacturer)	Qty:
73		Ref: 125943001/1 Screw	Price: £1.90 Special Order Can be ordered (2 at manufacturer)	Qty:
74		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
75		Ref: 112523070/0 112523070/0 WASHER M8 8.5 X 32 X 2.5	Price: £1.61 Special Order	Qty:
77		Ref: 382774305/0 Seat Support Bracket Tc/He Ctp	Price: £11.24 Special Order Can be ordered (4 at manufacturer)	Qty:
78		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
79		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
80		Ref: 325785149/2	Not found
81		Ref: 125430203/1 Spring	Price: £3.25 Special Order	Qty:
82		Ref: 112731580/0 Self-Tap Screw Te 4.8 X 9.5 C15 Bz	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
83		Ref: 122524970/2 Seat Fulcrum Pin	Price: £1.82 Special Order Can be ordered (4 at manufacturer)	Qty:
84		Ref: 112155010/0 LOCK NUT	Price: £1.98 4 in stock ready to go	Qty:
85		Ref: 325785147/2 Moving Seat Support	Price: £39.28 Special Order	Qty:
86		Ref: 325318109/1 Stop Lever	Price: £4.33 Special Order	Qty:
87		Ref: 125510000/0 Pin	Price: £1.36 Special Order	Qty:
88		Ref: 125430202/1 Spring	Price: £1.63 Special Order Can be ordered (4 at manufacturer)	Qty:
89		Ref: 112604897/0 Starlock Washer D=5	Price: £1.49 Special Order Can be ordered (10 at manufacturer)	Qty:
90		Ref: 125430223/2 Seat Lifting Spring	Price: £5.96 Special Order Can be ordered (2 at manufacturer)	Qty:
91		Ref: 112789000/0 Hex-Head Screw M5 X 12 Uni 5739 8.8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
92		Ref: 112154330/0 Low Self-Locking Nut M5 Uni7474 Acc.6S	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
93		Ref: 325060033/0	Not found
94		Ref: 112815050/0 Screw M5 X 25	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
95		Ref: 112521320/0 Washer M5 5.3 X 10 X 1 Uni 6592	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
96		Ref: 112154330/0 Low Self-Locking Nut M5 Uni7474 Acc.6S	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
97		Ref: 325755025/2	Not found
98		Ref: 112735110/0 Flanged Self-Tap Screw 4.8X13 Uni6950 Bz	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
99		Ref: 112437502/0 112437502/0 PLATE (was 12437502/0)	Price: £1.61 2 in stock ready to go	Qty:
100		Ref: 325430255/0 Seat Protection Spring	Price: £3.79 Special Order Can be ordered (4 at manufacturer)	Qty:
101		Ref: 112735120/0 Flanged Self-Tap Screw 6.3 X 16	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
102		Ref: 125430235/0 Spring	Price: £3.65 Special Order Can be ordered (1 at manufacturer)	Qty:
103		Ref: 325755016/0 Plate (Blade Switch)	Price: £1.90 Special Order Can be ordered (1 at manufacturer)	Qty:
104		Ref: 112789000/0 Hex-Head Screw M5 X 12 Uni 5739 8.8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
105		Ref: 112154330/0 Low Self-Locking Nut M5 Uni7474 Acc.6S	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
106		Ref: 125486020/0 Lever Guide Shoe Tc	Price: £7.33 Special Order	Qty:
107		Ref: 112789000/0 Hex-Head Screw M5 X 12 Uni 5739 8.8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
108		Ref: 112154330/0 Low Self-Locking Nut M5 Uni7474 Acc.6S	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
109		Ref: 125580014/0	Not found
110		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
111		Ref: 112360425/0 Square Nut M8	Price: £1.75 Special Order Can be ordered (10 at manufacturer)	Qty:
112		Ref: 125580022/0 Belt Guide	Price: £4.48 Special Order	Qty:
113		Ref: 125160032/0 Spacer	Price: £1.90 Special Order	Qty:
114		Ref: 125430241/0 Spring	Price: £2.58 Special Order	Qty:
115		Ref: 112689515/0 112689515/0 HEX-HEAD SCREW M6 X 45	Price: £1.92 Special Order	Qty:
116		Ref: 112523050/0 Mountfield Stiga Castel WASHER M6 6.6 X 24 X 2 112523050/0	Price: £1.61 2 in stock ready to go	Qty:
117		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

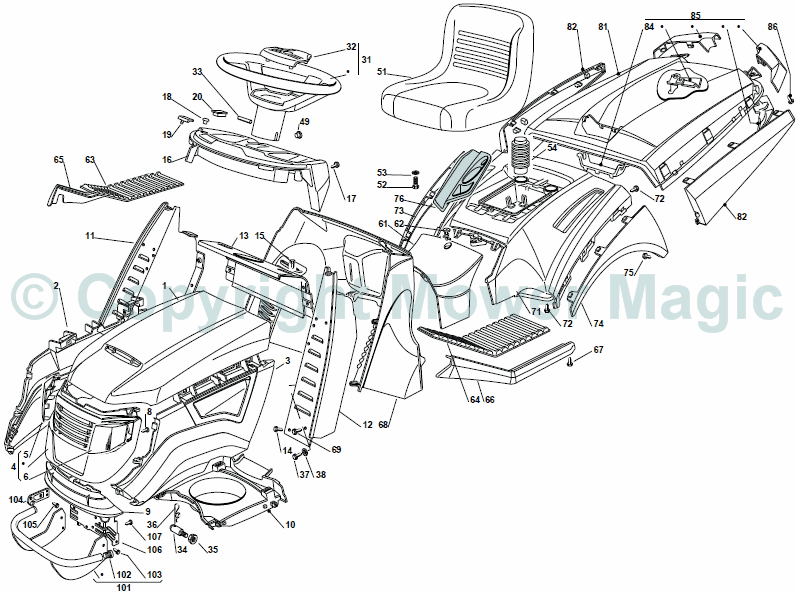

Spare Parts for Body - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 325076871/0	Not found
2		Ref: 382394614/0 Right Upper Hood [Red]	Price: £77.20 Special Order	Qty:
3		Ref: 382394615/0	Not found
4		Ref: 382394613/0 Front Hood [Black]	Price: £80.58 Special Order Can be ordered (2 at manufacturer)	Qty:
5		Ref: 325410876/0 Right Headlights Grill	Price: £8.46 Special Order	Qty:
6		Ref: 325410877/0 Left Headlights Grill	Price: £8.46 Special Order	Qty:
8		Ref: 112735403/0	Not found
9		Ref: 325076870/1 Lower Front Hood [Black]	Price: £15.84 Special Order Can be ordered (4 at manufacturer)	Qty:
10		Ref: 325108031/0 Intake Conveyor	Price: £54.18 Special Order	Qty:
11		Ref: 382785022/8 Right Dashboard Support	Price: £28.44 Special Order	Qty:
12		Ref: 382785021/7 Left Dashboard Support	Price: £28.44 Special Order	Qty:
13		Ref: 382785137/1 Central Dashboard Support	Price: £12.92 Special Order	Qty:
14		Ref: 112735110/0 Flanged Self-Tap Screw 4.8X13 Uni6950 Bz	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
15		Ref: 112735110/0 Flanged Self-Tap Screw 4.8X13 Uni6950 Bz	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
16		Ref: 325120253/0	Not found
16		Ref: 325120197/1	Not found
17		Ref: 112728440/0 Self-Tapping Screw 4.8 X 13	Price: £1.36 Special Order Can be ordered (3 at manufacturer)	Qty:
18		Ref: 125120200/0 Cap	Price: £1.36 Special Order	Qty:
19		Ref: 125260000/0 Anti-Vibration Rubber Grommet	Price: £2.84 Special Order Can be ordered (2 at manufacturer)	Qty:
20		Ref: 25120234/0	Not found
31		Ref: 125961217/1 Steering Wheel [Black]	Price: £94.81 Special Order	Qty:
32		Ref: 325580501/0 Centre Steering Wheel Cap	Price: £7.32 Special Order Can be ordered (1 at manufacturer)	Qty:
33		Ref: 112620300/0 Spirol Pin 6 X 50	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
34		Ref: 125510068/0 Bonnet Fulcrum Pin	Price: £1.90 Special Order Can be ordered (4 at manufacturer)	Qty:
35		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
36		Ref: 124487998/0 Mountfield Stiga Alpina Castel LawnKing TwinCut R-CLIP PIN 24487998/0	Price: £1.61 5 in stock ready to go	Qty:
37		Ref: 112731350/0 Self-Tap Screw 5.5 X 19 Uni 6949 C15	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
38		Ref: 112521330/0 Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0	Price: £1.61 Not in stock	Qty:
49		Ref: 325120233/0 Cap	Price: £3.12 Special Order Can be ordered (3 at manufacturer)	Qty:
51		Ref: 125722471/0	Not found
52		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
53		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
54		Ref: 325737002/0 Protection Cover	Price: £16.43 Special Order	Qty:
61		Ref: 25110306/0	Not found
61		Ref: 25110303/0	Not found
62		Ref: 125580020/2 Spring Tensioned Screw	Price: £7.98 Special Order Can be ordered ( >10 at manufacturer)	Qty:
63		Ref: 325110278/1 R/H Footboard Cover [Black]	Price: £29.80 Special Order	Qty:
64		Ref: 325110279/0 L/H Footboard Cover [Black]	Price: £29.80 Special Order	Qty:
65		Ref: 25599004/0	Not found
66		Ref: 25599005/0	Not found
67		Ref: 112731580/0 Self-Tap Screw Te 4.8 X 9.5 C15 Bz	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
68		Ref: 325785449/0 Dashboard Support [Grey]	Price: £72.46 Special Order	Qty:
69		Ref: 112735403/0	Not found
71		Ref: 325109744/0 Wheels Cover [Red] Tc	Price: £125.95 Special Order	Qty:
72		Ref: 112735402/0 Flanged Hex-Head Screw D=6 X 18	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
73		Ref: 325109758/0 R/H Wheel Cover [Black]	Price: £17.27 Special Order Can be ordered (3 at manufacturer)	Qty:
74		Ref: 325109757/0 L/H Wheel Cover [Black]	Price: £17.27 Special Order Can be ordered (3 at manufacturer)	Qty:
75		Ref: 112728686/0 112728686/0 SELF-TAPPING SCREW KA50 X 16	Price: £1.61 Special Order	Qty:
76		Ref: 325207129/0	Not found
81		Ref: 325110302/0 Grasscatcher Top [Red]	Price: £161.18 Special Order	Qty:
82		Ref: 382110254/0 Rear Wheel Cover Kit [Tcp]	Price: £48.76 Special Order	Qty:
84		Ref: 325394009/0	Not found
85		Ref: 382110289/0	Not found
86		Ref: 112735403/0	Not found
101		Ref: 382869025/0 Front Bumper Bar	Price: £120.55 Special Order Can be ordered (1 at manufacturer)	Qty:
102		Ref: 2 118737860/0	Not found
103		Ref: 112735120/0 Flanged Self-Tap Screw 6.3 X 16	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
104		Ref: 325547159/1 Plate	Price: £4.48 Special Order	Qty:
105		Ref: 112731580/0 Self-Tap Screw Te 4.8 X 9.5 C15 Bz	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
106		Ref: 25774301/1	Not found
107		Ref: 112735403/0	Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

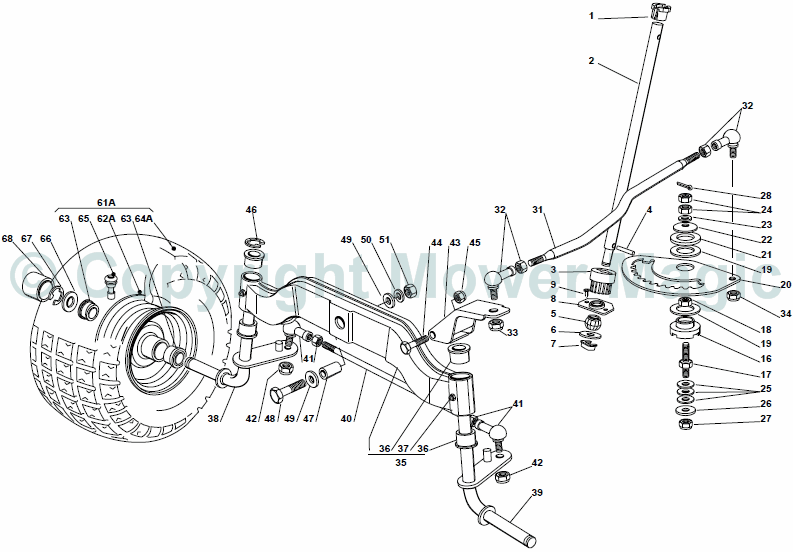

Spare Parts for Steering - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 325038004/0 Bush [Black]	Price: £2.30 Special Order Can be ordered (6 at manufacturer)	Qty:
2		Ref: 125520005/0	Not found
3		Ref: 125570000/2 Steering Pinion	Price: £12.34 Special Order Can be ordered (2 at manufacturer)	Qty:
4		Ref: 112622650/0 Cylindrical Pin D=6 X 35	Price: £1.63 Special Order Can be ordered (7 at manufacturer)	Qty:
5		Ref: 325743000/0 Joint	Price: £2.58 Special Order Can be ordered ( >10 at manufacturer)	Qty:
6		Ref: 112521370/0 WASHER M12	Price: £1.61 2 in stock ready to go	Qty:
7		Ref: 112436030/0 Pin Plate	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
8		Ref: 325785213/1 Steering Joint Support	Price: £2.30 Special Order Can be ordered ( >10 at manufacturer)	Qty:
9		Ref: 112729601/1	Not found
16		Ref: 125040617/0 Bush	Price: £10.30 Special Order Can be ordered (1 at manufacturer)	Qty:
17		Ref: 125510065/3 Pin	Price: £10.02 Special Order Can be ordered (1 at manufacturer)	Qty:
18		Ref: 112295200/0 112295200/0 HEXAGON NUT M10 UNI 5588 (WZ)	Price: £1.75 Special Order	Qty:
19		Ref: 325670012/0 Washer	Price: £2.30 Special Order Can be ordered (1 at manufacturer)	Qty:
20		Ref: 325735507/0 Steering Quadrant	Price: £51.26 Special Order	Qty:
21		Ref: 325670014/1 Washer	Price: £4.33 Special Order	Qty:
22		Ref: 122160400/0 Spring Washer Elastic Washer 50x2x10.2	Price: £1.73 Not in stock	Qty:
23		Ref: 112521360/0 112521360/0 WASHER	Price: £1.61 2 in stock ready to go	Qty:
24		Ref: 112295200/0 112295200/0 HEXAGON NUT M10 UNI 5588 (WZ)	Price: £1.75 Special Order	Qty:
25		Ref: 322672150/0 Anti-Friction Washer 10.2 X 30 X 0.8 C70	Price: £1.75 Special Order Can be ordered (1 at manufacturer)	Qty:
26		Ref: 112523080/0 Washer M10 11 X 30 X 2.5 112523080/0	Price: £1.61 Not in stock	Qty:
27		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
28		Ref: 112141418/0 Split Pin 3 X 20	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
31		Ref: 125033003/1 Steering Rod	Price: £37.93 Special Order Can be ordered (4 at manufacturer)	Qty:
32		Ref: 122746609/0 Angular Joint M10	Price: £21.00 Special Order Can be ordered ( >10 at manufacturer)	Qty:
33		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
34		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
35		Ref: 382034001/3 Front Axle Assembly	Price: £169.31 Special Order Can be ordered (2 at manufacturer)	Qty:
36		Ref: 125034002/1 Bush	Price: £3.65 Special Order Can be ordered ( >10 at manufacturer)	Qty:
37		Ref: 112379511/0 GREASE NIPPLE	Price: £1.61 Special Order	Qty:
38		Ref: 382230361/1 Right Stub Axle	Price: £36.56 Special Order	Qty:
39		Ref: 382230359/1 Left Stub Axle	Price: £41.99 Special Order	Qty:
40		Ref: 325840001/1 Tie Rod	Price: £14.23 Special Order Can be ordered (5 at manufacturer)	Qty:
41		Ref: 122746609/0 Angular Joint M10	Price: £21.00 Special Order Can be ordered ( >10 at manufacturer)	Qty:
42		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
43		Ref: 382318185/0 Bz Steering Control Lever Tc 2000 Mul	Price: £23.44 Special Order	Qty:
44		Ref: 112692395/0	Not found
45		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
46		Ref: 112001000/0 Circlip Id=15 Th=1.5 Din 6799	Price: £1.75 Special Order Can be ordered (8 at manufacturer)	Qty:
47		Ref: 125160005/1 Spacer	Price: £5.15 Special Order	Qty:
48		Ref: 112694100/0 Hex-Head Screw M16 X 80	Price: £3.92 Special Order	Qty:
49		Ref: 112521390/0 Stiga Mountfield Alpina Castel WASHER M16 17 X 30 X 3 112521390/0	Price: £1.49 4 in stock ready to go	Qty:
50		Ref: 112587900/0 Washer	Price: £1.49 Special Order	Qty:
51		Ref: 112295800/0 Hexagon Nut	Price: £1.75 Special Order Can be ordered (2 at manufacturer)	Qty:
61A		Ref: 382680007/1 Wheel Assembly 15" Clm+Carlisle Pr2	Price: £123.25 Special Order	Qty:
62A		Ref: 182000590/1 Front Wheel Rim 4"X6" Tc	Price: £66.37 Special Order	Qty:
63		Ref: 125122200/2 Wheel Bearing D=20	Price: £11.38 Special Order Can be ordered ( >10 at manufacturer)	Qty:
64A		Ref: 125590020/0 Tyre 15 X 6.00-6 Pr2 Tl P519	Price: £66.37 Special Order Can be ordered ( >10 at manufacturer)	Qty:
65		Ref: 125950000/0 Pneumatic Valve	Price: £5.15 Special Order Can be ordered (6 at manufacturer)	Qty:
66		Ref: 125670005/2 Spindle Washer	Price: £3.92 Special Order Can be ordered (7 at manufacturer)	Qty:
67		Ref: 112001000/0 Circlip Id=15 Th=1.5 Din 6799	Price: £1.75 Special Order Can be ordered (8 at manufacturer)	Qty:
68		Ref: 122110230/0 Mountfiled Stiga Atco Hub Cover 22110230/0	Price: £1.61 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Brake and Gearbox Controls - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 82500011/2	Not found
2		Ref: 125110267/0 Brake Pedal Cover	Price: £3.65 Special Order Can be ordered (1 at manufacturer)	Qty:
3		Ref: 325547081/2 Bracket	Price: £4.87 Special Order	Qty:
4		Ref: 112731601/0 Self-Tap Screw 4.8 X 16	Price: £1.90 Special Order Can be ordered (6 at manufacturer)	Qty:
5		Ref: 382000487/1 Brake Control Lever	Price: £33.86 Special Order	Qty:
6		Ref: 25510052/0	Not found
7		Ref: 25430236/0 Brake Rod Spring	Price: £2.17 Special Order	Qty:
8		Ref: 112521360/0 112521360/0 WASHER	Price: £1.61 2 in stock ready to go	Qty:
9		Ref: 112295200/0 112295200/0 HEXAGON NUT M10 UNI 5588 (WZ)	Price: £1.75 Special Order	Qty:
10		Ref: 325774275/1 Clamp Bracket	Price: £3.38 Special Order Can be ordered (1 at manufacturer)	Qty:
11		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
12		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
14		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
15		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
16		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
21		Ref: 25785143/0	Not found
22		Ref: 112815210/0 Screw M6 X 20	Price: £1.49 Special Order Can be ordered (5 at manufacturer)	Qty:
23		Ref: 112523040/0 Washer M6 6.6 X 18 X 1.6	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
24		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
25		Ref: 325253001/0 Hook	Price: £3.92 Special Order	Qty:
26		Ref: 122524970/2 Seat Fulcrum Pin	Price: £1.82 Special Order Can be ordered (4 at manufacturer)	Qty:
27		Ref: 325670011/0 WASHER	Price: £1.61 5 in stock ready to go	Qty:
28		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
29		Ref: 125033047/0 Brake Control Rod	Price: £7.03 Special Order	Qty:
30		Ref: 125394509/1 Brake Knob	Price: £2.44 Special Order Can be ordered ( >10 at manufacturer)	Qty:
31		Ref: 125430213/0 Spring	Price: £1.63 Special Order Can be ordered (3 at manufacturer)	Qty:
32		Ref: 112523020/0 Washer M5 5.5 X 15 X 1.6 Uni 6593	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
41		Ref: 382500013/0 Pedal Tch	Price: £36.56 Special Order	Qty:
42		Ref: 125110265/0	Not found
43		Ref: 125110266/0 Clamp Cover	Price: £10.84 Special Order	Qty:
44		Ref: 382000481/0 Axle	Price: £71.80 Special Order	Qty:
45		Ref: 122034523/0 Bush	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
46		Ref: 322672153/0 Anti-Friction Washer 20.2 X 30 X 0.8	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
47		Ref: 112609260/0 Circlip D=20 Uni 7435 C60	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
48		Ref: 112760600/1 Screw M8 X 16 Geo321A	Price: £2.17 Special Order Can be ordered (1 at manufacturer)	Qty:
49		Ref: 112583501/0 Spring Lock Washer M8 Uni 1751 Type A Bz	Price: £1.49 Special Order Can be ordered (10 at manufacturer)	Qty:
50		Ref: 25033031/0	Not found
51		Ref: 125510054/1 Pin	Price: £3.92 Special Order	Qty:
52		Ref: 112293200/0 Nut 112293200/0	Price: £1.61 3 in stock ready to go	Qty:
53		Ref: 112521360/0 112521360/0 WASHER	Price: £1.61 2 in stock ready to go	Qty:
54		Ref: 112523040/0 Washer M6 6.6 X 18 X 1.6	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
55		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
56		Ref: 125510054/1 Pin	Price: £3.92 Special Order	Qty:
57		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
58		Ref: 112523040/0 Washer M6 6.6 X 18 X 1.6	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
59		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Engine B&S 15.5 - 16.5 - 17.5 - 18.5HP - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref:	Not found
2		Ref: 325869016/1 Connecting Tube	Price: £7.72 Special Order	Qty:
3		Ref: 118375051/1	Not found
5		Ref: 125598050/0 Oil Discharge Tube	Price: £7.72 Special Order	Qty:
6		Ref: 118737849/0 Oil Drain Plug	Price: £2.44 Special Order Can be ordered (1 at manufacturer)	Qty:
7		Ref: 118401001/1 Oil Drain Seal	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
8		Ref: 112691100/0 112691100/0 HEX-HEAD SCREW M8 X 35	Price: £1.92 Special Order	Qty:
9		Ref: 112540260/0 Inner Toothed Washer M8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
10		Ref: 112154210/0 112154210/0 SELF-LOCK NUT WINGED	Price: £1.61 Special Order	Qty:
11		Ref: 112154210/0 112154210/0 SELF-LOCK NUT WINGED	Price: £1.61 Special Order	Qty:
12		Ref: 118738206/0 Exhaust Pipe	Price: £78.56 Special Order	Qty:
13		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
14		Ref: 112735530/0 Screw 5/16" X 3/4"	Price: £1.75 Special Order	Qty:
15		Ref: 112691115/0 Hex-Head Screw M8 X 40	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
31		Ref: 182750010/0 Muffler	Price: £119.18 Special Order Can be ordered (2 at manufacturer)	Qty:
32		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
33		Ref: 112540260/0 Inner Toothed Washer M8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
34		Ref: 112360425/0 Square Nut M8	Price: £1.75 Special Order Can be ordered (10 at manufacturer)	Qty:
35		Ref: 382598009/2 Muffler Guard [B&S]	Price: £40.63 Special Order	Qty:
36		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
37		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
41		Ref: 182000200/1 182000200/1 THROTTLE CABLE (was 82000200/1)	Price: £22.37 Special Order	Qty:
42		Ref: 125943012/0 Flanged Screw M4 X 10	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
44		Ref: 125394501/0 Throttle Handle [Black]	Price: £1.49 Special Order	Qty:
45		Ref: 112726388/0 Cross-Head Screw M4X12 Uni 7687 Acc.4.8	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
46		Ref: 112290800/0 Hexagon Nut M4 Uni 5588 Acc.6S	Price: £1.49 Special Order Can be ordered (3 at manufacturer)	Qty:
51		Ref: 325735111/3 Fuel Tank	Price: £51.47 Special Order	Qty:
51		Ref: 125735110/3 Fuel Tank [7 Litres]	Price: £51.68 Special Order Can be ordered (1 at manufacturer)	Qty:
52		Ref: 125795000/1 125795000/1 PETROL FUEL TANK CAP COVER	Price: £7.20 Special Order	Qty:
53		Ref: 112788910/0 Hex-Head Screw M5X16 Uni 5739 8.8 Bz	Price: £1.49 Special Order Can be ordered (1 at manufacturer)	Qty:
54		Ref: 112500092/0 Rivet D=7	Price: £1.49 Special Order	Qty:
55		Ref: 125290000/0 Fuel Level Indicator	Price: £52.55 Special Order Can be ordered (1 at manufacturer)	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Engine B&S 20 - 22 - 24HP - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: —	Not found
2		Ref: 325869016/1 Connecting Tube	Price: £7.72 Special Order	Qty:
3		Ref: 118375051/1	Not found
5		Ref: 125598050/0 Oil Discharge Tube	Price: £7.72 Special Order	Qty:
6		Ref: 118737849/0 Oil Drain Plug	Price: £2.44 Special Order Can be ordered (1 at manufacturer)	Qty:
7		Ref: 118401001/1 Oil Drain Seal	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
8		Ref: 112691115/0 Hex-Head Screw M8 X 40	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
9		Ref: 112540260/0 Inner Toothed Washer M8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
10		Ref: 112154210/0 112154210/0 SELF-LOCK NUT WINGED	Price: £1.61 Special Order	Qty:
11		Ref: 112691100/0 112691100/0 HEX-HEAD SCREW M8 X 35	Price: £1.92 Special Order	Qty:
12		Ref: 112154210/0 112154210/0 SELF-LOCK NUT WINGED	Price: £1.61 Special Order	Qty:
13		Ref: 118738214/0	Not found
14		Ref: 118738215/0	Not found
15		Ref: 112735530/0 Screw 5/16" X 3/4"	Price: £1.75 Special Order	Qty:
16		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
17		Ref: 112791400/0 Hex-Head Screw M6 X 20 Uni 5739 4.8 Wz	Price: £1.36 Special Order Can be ordered ( >10 at manufacturer)	Qty:
18		Ref: 112582100/0 112582100/0 SPRING LOCK WASHER M6 UNI 1751	Price: £1.48 Not in stock	Qty:
31		Ref: 182750003/0	Not found
32		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
33		Ref: 112540260/0 Inner Toothed Washer M8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
34		Ref: 112360425/0 Square Nut M8	Price: £1.75 Special Order Can be ordered (10 at manufacturer)	Qty:
35		Ref: 382598005/2 Muffler Protection Guard	Price: £39.28 Special Order	Qty:
36		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
37		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
41		Ref: 182000211/2 Throttle Cable	Price: £25.33 Special Order Can be ordered (4 at manufacturer)	Qty:
42		Ref: 125943012/0 Flanged Screw M4 X 10	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
44		Ref: 125394501/0 Throttle Handle [Black]	Price: £1.49 Special Order	Qty:
45		Ref: 112726388/0 Cross-Head Screw M4X12 Uni 7687 Acc.4.8	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
46		Ref: 112290800/0 Hexagon Nut M4 Uni 5588 Acc.6S	Price: £1.49 Special Order Can be ordered (3 at manufacturer)	Qty:
51		Ref: 325735111/3 Fuel Tank	Price: £51.47 Special Order	Qty:
52		Ref: 125795000/1 125795000/1 PETROL FUEL TANK CAP COVER	Price: £7.20 Special Order	Qty:
53		Ref: 112788910/0 Hex-Head Screw M5X16 Uni 5739 8.8 Bz	Price: £1.49 Special Order Can be ordered (1 at manufacturer)	Qty:
54		Ref: 112500092/0 Rivet D=7	Price: £1.49 Special Order	Qty:
55		Ref: 125290000/0 Fuel Level Indicator	Price: £52.55 Special Order Can be ordered (1 at manufacturer)	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Engine GGP 13.5 - 14 . 14.5 - 16HP - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: —	Not found
2		Ref: 325869057/0 Fuel Tube L=1000	Price: £19.78 Special Order Can be ordered (8 at manufacturer)	Qty:
3		Ref: 118375051/1	Not found
4		Ref: 118738231/1	Not found
5		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
6		Ref: 112737450/0 Screw 5/16 X 3/4 18 Thread	Price: £3.65 Special Order Can be ordered (6 at manufacturer)	Qty:
7		Ref: 112735108/1 Telf-Form Screw 3/8" X 1¼" Unc	Price: £2.04 Special Order Can be ordered ( >10 at manufacturer)	Qty:
8		Ref: 112735599/0 112735599/0 SELF-TAPPING SCREW M6 x 16 (BOLT)	Price: £1.46 Special Order	Qty:
10		Ref: 127598060/0 Oil Drain Extension Pipe	Price: £7.86 Special Order	Qty:
11		Ref: 118737849/0 Oil Drain Plug	Price: £2.44 Special Order Can be ordered (1 at manufacturer)	Qty:
12		Ref: 118401001/1 Oil Drain Seal	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
14		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
15		Ref: 112540260/0 Inner Toothed Washer M8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
16		Ref: 182750010/0 Muffler	Price: £119.18 Special Order Can be ordered (2 at manufacturer)	Qty:
17		Ref: 112360425/0 Square Nut M8	Price: £1.75 Special Order Can be ordered (10 at manufacturer)	Qty:
18		Ref: 382598039/0 Muffler Guard	Price: £66.37 Special Order	Qty:
19		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
20		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
41		Ref: 182000212/0 Throttle Cable	Price: £22.62 Special Order Can be ordered (4 at manufacturer)	Qty:
42		Ref: 125943012/0 Flanged Screw M4 X 10	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
44		Ref: 125394501/0 Throttle Handle [Black]	Price: £1.49 Special Order	Qty:
45		Ref: 112726388/0 Cross-Head Screw M4X12 Uni 7687 Acc.4.8	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
46		Ref: 112290800/0 Hexagon Nut M4 Uni 5588 Acc.6S	Price: £1.49 Special Order Can be ordered (3 at manufacturer)	Qty:
51		Ref: 325735111/3 Fuel Tank	Price: £51.47 Special Order	Qty:
51		Ref: 125735110/3 Fuel Tank [7 Litres]	Price: £51.68 Special Order Can be ordered (1 at manufacturer)	Qty:
52		Ref: 125795000/1 125795000/1 PETROL FUEL TANK CAP COVER	Price: £7.20 Special Order	Qty:
53		Ref: 112788910/0 Hex-Head Screw M5X16 Uni 5739 8.8 Bz	Price: £1.49 Special Order Can be ordered (1 at manufacturer)	Qty:
54		Ref: 112500092/0 Rivet D=7	Price: £1.49 Special Order	Qty:
55		Ref: 125290000/0 Fuel Level Indicator	Price: £52.55 Special Order Can be ordered (1 at manufacturer)	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Transmission - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 125601566/1 Motor Pulley	Price: £29.53 Special Order Can be ordered (1 at manufacturer)	Qty:
2		Ref: 112737320/0 Threaded Screw 7/16" X 3" 20 Unf	Price: £4.20 Special Order Can be ordered ( >10 at manufacturer)	Qty:
3		Ref: 112543000/0 Safety Washer D=7/16	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
4		Ref: 135062001/0 135062001/0 TRANSMISSION BELT A96	Price: £42.00 Special Order	Qty:
5		Ref: 382318165/2 Lever	Price: £26.69 Special Order	Qty:
6		Ref: 112692000/0 Screw M8 X 75	Price: £1.90 Special Order	Qty:
7		Ref: 125038002/1 Bush	Price: £1.49 Special Order Can be ordered (10 at manufacturer)	Qty:
8		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
9		Ref: 125160027/0 Spacer	Price: £2.44 Special Order	Qty:
10		Ref: 125601554/0 125601554/0 PULLEY T100	Price: £23.65 Not in stock	Qty:
11		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
12		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
13		Ref: 125840010/1 Tie Rod	Price: £1.90 Special Order	Qty:
14		Ref: 112293200/0 Nut 112293200/0	Price: £1.61 3 in stock ready to go	Qty:
15		Ref: 125430219/1 Spring	Price: £3.53 Special Order Can be ordered (4 at manufacturer)	Qty:
17		Ref: 125601555/0 125601555/0 PULLEY	Price: £27.60 Special Order	Qty:
18		Ref: 125510036/2	Not found
19		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
20		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
21		Ref: 325601570/1 Belt Pulley	Price: £23.44 Special Order Can be ordered ( >10 at manufacturer)	Qty:
22		Ref: 125160030/2 125160030/2 PULLEY SPACER (was 125160030/1)	Price: £6.06 Special Order	Qty:
23		Ref: 125160024/2 Pulley Spacer	Price: £7.98 Special Order Can be ordered (6 at manufacturer)	Qty:
24		Ref: 112691115/0 Hex-Head Screw M8 X 40	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
25		Ref: 112691400/0 Hex-Head Screw M8 X 50 Uni 5737 8.8	Price: £1.49 Special Order Can be ordered (6 at manufacturer)	Qty:
26		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
27		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
28		Ref: 125109521/1 Cover	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
29		Ref: 125160059/0 125160059/0 SPACER (was 25160021/0)	Price: £5.81 Special Order	Qty:
30		Ref: 118399062/0	Not found
31		Ref: 125430210/1 Brake Spring	Price: £2.58 Special Order Can be ordered (4 at manufacturer)	Qty:
41		Ref: 118400950/1 Hydro Transaxle K46F	Price: £842.11 Special Order Can be ordered (2 at manufacturer)	Qty:
42		Ref: 112691800/0 Hex-Head Screw M8 X 60 Uni 5737	Price: £1.49 Special Order	Qty:
44		Ref: 112154210/0 112154210/0 SELF-LOCK NUT WINGED	Price: £1.61 Special Order	Qty:
45		Ref: 382785109/1 Support Bracket	Price: £19.24 Special Order	Qty:
46		Ref: 112691200/0 Hex-Head Screw M8 X 45 Uni 5737 8.8	Price: £1.63 Special Order Can be ordered (10 at manufacturer)	Qty:
47		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
48		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
49		Ref: 112735120/0 Flanged Self-Tap Screw 6.3 X 16	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
50		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
51		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
52		Ref: 325318157/0 Lever	Price: £5.15 Special Order	Qty:
53		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
54		Ref: 112369500/0 Spring Washer D=8	Price: £1.36 Special Order Can be ordered (7 at manufacturer)	Qty:
55		Ref: 325670011/0 WASHER	Price: £1.61 5 in stock ready to go	Qty:
56		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
57		Ref: 125033033/1 Rod	Price: £2.04 Special Order	Qty:
58		Ref: 112604896/0 Starlock Washer D=6	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
71		Ref: 382680022/0	Not found
72		Ref: 182000590/1 Front Wheel Rim 4"X6" Tc	Price: £66.37 Special Order	Qty:
73		Ref: 125590011/0	Not found
74		Ref: 125950000/0 Pneumatic Valve	Price: £5.15 Special Order Can be ordered (6 at manufacturer)	Qty:
75		Ref: 125670005/2 Spindle Washer	Price: £3.92 Special Order Can be ordered (7 at manufacturer)	Qty:
76		Ref: 125160023/0 Wheels Spacer Tuff Torq Tc Hy	Price: £7.03 Special Order	Qty:
77		Ref: 325670025/0 Spacer Washer	Price: £3.92 Special Order Can be ordered (2 at manufacturer)	Qty:
78		Ref: 112001010/0 Circlip Id=0.580" Th=0.050"	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
79		Ref: 122110230/0 Mountfiled Stiga Atco Hub Cover 22110230/0	Price: £1.61 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Cutting Plate Lifting - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 382300002/1 Lever	Price: £58.25 Special Order	Qty:
2		Ref: 382318139/1 Deck Lifting Lever Tcj/Tc	Price: £39.28 Special Order	Qty:
3		Ref: 125605000/1 Button	Price: £2.17 Special Order Can be ordered (2 at manufacturer)	Qty:
4		Ref: 325470901/1 Dog Plate	Price: £11.10 Special Order Can be ordered (1 at manufacturer)	Qty:
5		Ref: 25510011/0	Not found
6		Ref: 125033002/1 Push Rod	Price: £4.07 Special Order Can be ordered (1 at manufacturer)	Qty:
7		Ref: 125394504/1 Knob	Price: £2.44 Special Order Can be ordered (1 at manufacturer)	Qty:
8		Ref: 125430208/1 Spring	Price: £3.38 Special Order Can be ordered (3 at manufacturer)	Qty:
9		Ref: 112604899/0 PUSH ON FIXING	Price: £1.61 Not in stock	Qty:
10		Ref: 382000551/0 Lifting Axle	Price: £23.70 Special Order	Qty:
11		Ref: 122034523/0 Bush	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
12		Ref: 25160025/0	Not found
13		Ref: 322672153/0 Anti-Friction Washer 20.2 X 30 X 0.8	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
16		Ref: 112620206/0 Pin	Price: £1.36 Special Order Can be ordered (4 at manufacturer)	Qty:
17		Ref: 325735506/2 Height Adjust Quadrant	Price: £21.26 Special Order	Qty:
18		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
19		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
31		Ref: 382318155/0 Front R/H Fulcrum Lever	Price: £25.86 Special Order Can be ordered ( >10 at manufacturer)	Qty:
32		Ref: 382318157/0 Front L/H Fulcrum Lever	Price: £23.57 Special Order Can be ordered ( >10 at manufacturer)	Qty:
33		Ref: 125040605/0 125040605/0 Bush	Price: £1.61 1 in stock ready to go	Qty:
34		Ref: 325318161/1 Lever	Price: £8.66 Special Order Can be ordered (1 at manufacturer)	Qty:
35		Ref: 112691700/0 Hex-Head Screw M8 X 55 Uni 5737 8.8	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
36		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
37		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
38		Ref: 125510056/1 Pin	Price: £5.15 Special Order Can be ordered (8 at manufacturer)	Qty:
39		Ref: 112295200/0 112295200/0 HEXAGON NUT M10 UNI 5588 (WZ)	Price: £1.75 Special Order	Qty:
40		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
41		Ref: 325670008/1 325670008/1 ANTI-FRICTION WASHER (was 25670008/1)	Price: £1.61 2 in stock ready to go	Qty:
42		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
43		Ref: 382000477/3 Connecting Rod	Price: £17.62 Special Order Can be ordered ( >10 at manufacturer)	Qty:
44		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
45		Ref: 125510055/1 Pin	Price: £3.92 Special Order Can be ordered (3 at manufacturer)	Qty:
46		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
47		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
48		Ref: 325318153/2 Rear Cutter Deck Lever	Price: £13.94 Special Order Can be ordered (7 at manufacturer)	Qty:
49		Ref: 112609255/0 Circlip D=19 Uni 7435 C60	Price: £1.49 Special Order Can be ordered (6 at manufacturer)	Qty:
50		Ref: 325033071/0 Connecting Rod	Price: £11.78 Special Order Can be ordered (1 at manufacturer)	Qty:
51		Ref: 325670011/0 WASHER	Price: £1.61 5 in stock ready to go	Qty:
52		Ref: 125510053/2 Lift Deck Rod Fixing Pin	Price: £1.90 Special Order Can be ordered (3 at manufacturer)	Qty:
54		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
55		Ref: 112436050/0 Mountfield Stiga Castel Alpina LOCK PLATE 112436050/0	Price: £1.49 5 in stock ready to go	Qty:
56		Ref: 125510056/1 Pin	Price: £5.15 Special Order Can be ordered (8 at manufacturer)	Qty:
57		Ref: 325670008/1 325670008/1 ANTI-FRICTION WASHER (was 25670008/1)	Price: £1.61 2 in stock ready to go	Qty:
58		Ref: 112156602/0 Mountfield Stiga NYLOC LOCKING NUT 12156602/0	Price: £2.40 3 in stock ready to go	Qty:
59		Ref: 112794980/0 Hex-Head Screw M10 X 100 Uni5739 8.8	Price: £2.04 Special Order Can be ordered (4 at manufacturer)	Qty:
60		Ref: 112295200/0 112295200/0 HEXAGON NUT M10 UNI 5588 (WZ)	Price: £1.75 Special Order	Qty:
61		Ref: 125510070/1 Pin	Price: £5.96 Special Order Can be ordered ( >10 at manufacturer)	Qty:
62		Ref: 112523090/0 Washer M10 11 X 40 X 2.5	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
63		Ref: 124487998/0 Mountfield Stiga Alpina Castel LawnKing TwinCut R-CLIP PIN 24487998/0	Price: £1.61 5 in stock ready to go	Qty:
64		Ref: 125430218/1 Deck Lift Spring	Price: £5.54 Special Order Can be ordered (9 at manufacturer)	Qty:
66		Ref: 112293200/0 Nut 112293200/0	Price: £1.61 3 in stock ready to go	Qty:
71		Ref: 125510048/1 Fixing Pin	Price: £2.30 Special Order Can be ordered ( >10 at manufacturer)	Qty:
72		Ref: 325318223/0 Connecting Lift Lever	Price: £6.50 Special Order	Qty:
73		Ref: 382000547/0	Not found
74		Ref: 112815240/0 Screw M6 X 40	Price: £2.06 Special Order Can be ordered ( >10 at manufacturer)	Qty:
75		Ref: 325547203/0 Plate Fix Axle	Price: £5.28 Special Order	Qty:
76		Ref: 325785292/0 Support Block	Price: £11.04 Special Order	Qty:
77		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Cutting Plate (1) - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 382547003/2 Transmission Plate	Price: £94.81 Special Order	Qty:
2		Ref: 112792611/0 Screw Te M8 X 16 Un 112792611/0	Price: £1.48 Special Order	Qty:
3		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
4		Ref: 382785084/3 Pulley Support Plate	Price: £31.15 Special Order Can be ordered (1 at manufacturer)	Qty:
5		Ref: 125601559/1 Toothed Pulley Z20 Tc102	Price: £39.28 Special Order Can be ordered ( >10 at manufacturer)	Qty:
6		Ref: 119216048/0 119216048/0 - Bearing 6202 2RS C3	Price: £17.41 Special Order	Qty:
7		Ref: 112610800/0 112610800/0 CIRCLIP	Price: £1.61 Special Order	Qty:
8		Ref: 112609200/0 CIRCLIP	Price: £1.61 2 in stock ready to go	Qty:
9		Ref: 325650037/1 Reinforcement Plate	Price: £8.12 Special Order	Qty:
10		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
11		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
12		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
13		Ref: 125160003/2 Spacer	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
14		Ref: 125038000/0 125038000/0 Plastic Bush	Price: £1.61 6 in stock ready to go	Qty:
15		Ref: 112691700/0 Hex-Head Screw M8 X 55 Uni 5737 8.8	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
16		Ref: 112691200/0 Hex-Head Screw M8 X 45 Uni 5737 8.8	Price: £1.63 Special Order Can be ordered (10 at manufacturer)	Qty:
17		Ref: 112521350/0 WASHER was 12521350/0	Price: £1.61 7 in stock ready to go	Qty:
18		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
19		Ref: 112793900/0 Hex-Head Screw M8 X 60	Price: £1.49 Special Order Can be ordered (6 at manufacturer)	Qty:
20		Ref: 112293200/0 Nut 112293200/0	Price: £1.61 3 in stock ready to go	Qty:
21		Ref: 125601560/0 Toothed Pulley Z28	Price: £52.82 Special Order Can be ordered ( >10 at manufacturer)	Qty:
22		Ref: 112139480/0 Mountfield Stiga Alpina Castel FLAT KEY 6 x 6 x 20mm 112139480/0	Price: £1.61 2 in stock ready to go	Qty:
23		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
24		Ref: 125670007/0 Fixing Washer	Price: £1.90 Special Order Can be ordered ( >10 at manufacturer)	Qty:
25		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
26		Ref: 135065605/0 135065605/0 TOOTHED BELT 102cm Blade Engagement	Price: £87.76 Not in stock	Qty:
27		Ref: 112815200/0 Screw Ttdq M6X16 Uni 5732 8.8 Wz	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
28		Ref: 112292102/0 112292102/0 NUT (was 12292102/0)	Price: £1.61 Special Order	Qty:
29		Ref: 325060128/0 Belt Transmission Case	Price: £20.86 Special Order Can be ordered (3 at manufacturer)	Qty:
30		Ref: 112735110/0 Flanged Self-Tap Screw 4.8X13 Uni6950 Bz	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
31		Ref: 125601550/0 Blade Shaft Pulley	Price: £41.84 Special Order Can be ordered (1 at manufacturer)	Qty:
32		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
33		Ref: 125670007/0 Fixing Washer	Price: £1.90 Special Order Can be ordered ( >10 at manufacturer)	Qty:
34		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
35		Ref: 125160002/1 Spacer	Price: £4.20 Special Order Can be ordered (7 at manufacturer)	Qty:
36		Ref: 325318115/2 Blade Brake Lever	Price: £23.90 Special Order Can be ordered (2 at manufacturer)	Qty:
40		Ref: 125601555/0 125601555/0 PULLEY	Price: £27.60 Special Order	Qty:
41		Ref: 125160007/1 Pulley Spacer	Price: £3.12 Special Order Can be ordered (2 at manufacturer)	Qty:
42		Ref: 112818900/0 Bolt M8 x 35	Price: £1.61 4 in stock ready to go	Qty:
43		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
44		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
45		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
46		Ref: 112523070/0 112523070/0 WASHER M8 8.5 X 32 X 2.5	Price: £1.61 Special Order	Qty:
47		Ref: 112583500/0 Spring Lock Washer M8 Uni 1751 Type A	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
48		Ref: 135062813/1 135062813/1 Ride-On Tractor Cutter Deck Drive Belt B55 K	Price: £38.32 Special Order	Qty:
48		Ref: 135062811/0 Belt B 55	Price: £22.12 Special Order	Qty:
50		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
61		Ref: 125600049/0 Belt Guard	Price: £13.10 Special Order	Qty:
62		Ref: 112735403/0	Not found
63		Ref: 325060113/0 Right Belt Guard	Price: £12.40 Special Order	Qty:
64		Ref: 325060114/0 Left Belt Guard	Price: £12.60 Special Order Can be ordered (1 at manufacturer)	Qty:
65		Ref: 112735403/0	Not found
91		Ref: 182004608/0 Blade Engage Cable	Price: £22.36 Special Order Can be ordered (6 at manufacturer)	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Cutting Plate (2) - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 382564131/0	Not found
2		Ref: 125033060/0 Washing Cutting Deck Connection	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
3		Ref: 119035000/0 119035000/0 O-Ring	Price: £3.60 Special Order	Qty:
4		Ref: 112500030/0 Plastic Rivet 2494 Aa01	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
8		Ref: 382207200/1LC	Not found
9		Ref: 382207201/2LC	Not found
10		Ref: 125020800/1 Main Blade Shaft	Price: £44.70 Special Order Can be ordered (5 at manufacturer)	Qty:
11		Ref: 125020801/2 Secondary Blade Shaft	Price: £40.63 Special Order Can be ordered ( >10 at manufacturer)	Qty:
13		Ref: 119216047/0 Bearing 6204-C-2Hrs	Price: £15.18 Special Order Can be ordered ( >10 at manufacturer)	Qty:
14		Ref: 325160501/1 Dust Cover Washer	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
15		Ref: 112609260/0 Circlip D=20 Uni 7435 C60	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
16		Ref: 112818700/0 Screw M8 X 25 Uni 5732 8.8	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
17		Ref: 112154210/0 112154210/0 SELF-LOCK NUT WINGED	Price: £1.61 Special Order	Qty:
18		Ref: 125463200/0 Mountfield Stiga Blade Boss Hub Holder 125463200/0	Price: £8.65 2 in stock ready to go	Qty:
19		Ref: 112139100/0 Mountfield / Castelgarden / Hayter Stiga Woodruff Key 22.2mm 112139100/0 1662	Price: £1.61 10+ in stock ready to go	Qty:
20		Ref: 182004348/0 Stiga Mountfield Right Mulching Blade Winged 102cm 182004348/0	Price: £30.90 Special Order	Qty:
21		Ref: 182004347/0 Stiga Mountfield Left Mulching Blade Winged 102cm 182004347/0	Price: £30.90 Special Order	Qty:
22		Ref: 122160400/0 Spring Washer Elastic Washer 50x2x10.2	Price: £1.73 Not in stock	Qty:
23		Ref: 112523080/0 Washer M10 11 X 30 X 2.5 112523080/0	Price: £1.61 Not in stock	Qty:
24		Ref: 112735694/0 Mountfield Stiga Castel GGP BLADE BOLT 3/8in x 1 1/2in 112735694/0	Price: £1.61 1 in stock ready to go	Qty:
25		Ref: 112735695/1 BLADE BOLT 3/8in x 1 1/2in L/H Thread	Price: £3.59 9 in stock ready to go	Qty:
26		Ref: 182700002/0 Anti-Scalp Wheel D=80Mm	Price: £4.60 Special Order Can be ordered (1 at manufacturer)	Qty:
26		Ref: 182700001/0 182700001/0 ANTI-SCALP WHEEL D=100mm	Price: £5.06 Not in stock	Qty:
27		Ref: 125510072/1 Wheel Spacer	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
28		Ref: 112692050/0 Mountfield Stiga Castel Alpina HEX-HEAD BOLT SCREW M8 x 80 112692050/0	Price: £1.49 2 in stock ready to go	Qty:
29		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
30		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:
41		Ref: 182004341/1 Stiga Mountfield Right Blade Winged 102cm 182004341/1	Price: £29.66 Special Order	Qty:
42		Ref: 182004340/1 Stiga Mountfield Left Blade Winged 102cm 182004340/1	Price: £29.66 Special Order	Qty:
51		Ref: 325140100/0 Internal Deflector 102	Price: £19.57 Special Order Can be ordered ( >10 at manufacturer)	Qty:
52		Ref: 112815210/0 Screw M6 X 20	Price: £1.49 Special Order Can be ordered (5 at manufacturer)	Qty:
53		Ref: 125038002/1 Bush	Price: £1.49 Special Order Can be ordered (10 at manufacturer)	Qty:
54		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
61		Ref: 382108016/1 Discharge Chute	Price: £62.30 Special Order	Qty:
62		Ref: 325774373/0 325774373/0 RELEASE CLAMP (was 25774373/0)	Price: £2.81 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Grass-Catcher - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 382800079/1 Upper Grasscatcher Frame	Price: £182.84 Special Order	Qty:
2		Ref: 382800089/1 Front Grasscatcher Frame	Price: £76.52 Special Order	Qty:
3		Ref: 325800017/0	Not found
4		Ref: 118566112/0 118566112/0 HANDLE CAP D=20	Price: £1.92 Special Order	Qty:
5		Ref: 382650043/0 Lower Reinforcement Bar	Price: £19.98 Special Order	Qty:
6		Ref: 325547131/0 Stopping Plate	Price: £3.53 Special Order	Qty:
7		Ref: 112815220/0 Screw M6 X 35	Price: £1.49 Special Order Can be ordered (3 at manufacturer)	Qty:
8		Ref: 112815245/0 Screw M6 X 45	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
9		Ref: 112521330/0 Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0	Price: £1.61 Not in stock	Qty:
10		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
11		Ref: 325032013/0 Grasscatcher R/H Angle Support	Price: £15.24 Special Order	Qty:
12		Ref: 325032015/0 Grasscatcher L/H Angle Support	Price: £15.24 Special Order	Qty:
13		Ref: 112689500/0 Mountfield Stiga Castel Alpina BOLT SCREW M6 x 40 112689500/0	Price: £1.61 1 in stock ready to go	Qty:
14		Ref: 112521330/0 Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0	Price: £1.61 Not in stock	Qty:
15		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
16		Ref: 182105980/0	Not found
17		Ref: 125869029/1 Tipping Lever	Price: £28.44 Special Order Can be ordered (2 at manufacturer)	Qty:
18		Ref: 125394508/0 Knob	Price: £4.87 Special Order Can be ordered (7 at manufacturer)	Qty:
19		Ref: 112674550/0 Hex-Head Screw M6 X 30 Uni 5737 8.8	Price: £1.49 Special Order Can be ordered (9 at manufacturer)	Qty:
20		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
24		Ref: 112735410/0 Flanged Hex-Head Screw D=6 X 35	Price: £1.49 Special Order	Qty:
25		Ref: 112815220/0 Screw M6 X 35	Price: £1.49 Special Order Can be ordered (3 at manufacturer)	Qty:
26		Ref: 112521330/0 Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0	Price: £1.61 Not in stock	Qty:
27		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
35		Ref: 382180037/3 Grasscatcher Screw Outfit	Price: £65.02 Special Order	Qty:
41		Ref: 325774315/1 Grasscatcher Lower Hooking Clamp	Price: £3.79 Special Order Can be ordered (3 at manufacturer)	Qty:
42		Ref: 25755031/0	Not found
43		Ref: 125510080/2 Clamp Pin	Price: £1.36 Special Order Can be ordered (6 at manufacturer)	Qty:
44		Ref: 112292102/0 112292102/0 NUT (was 12292102/0)	Price: £1.61 Special Order	Qty:
45		Ref: 125430210/1 Brake Spring	Price: £2.58 Special Order Can be ordered (4 at manufacturer)	Qty:
46		Ref: 112735122/0	Not found
51		Ref: 125600041/0 Micro Protection Cover	Price: £3.77 Special Order Can be ordered (3 at manufacturer)	Qty:
52		Ref: 125600042/0 125600042/0 Micro Protection	Price: £2.81 1 in stock ready to go	Qty:
53		Ref: 125318124/0 Micro Control Lever	Price: £1.90 Special Order Can be ordered ( >10 at manufacturer)	Qty:
54		Ref: 112400030/0 Pin D=3 L=30	Price: £1.75 Special Order Can be ordered (5 at manufacturer)	Qty:
55		Ref: 112728510/0	Not found
56		Ref: 125600047/0 Micro Switch Protection Cover	Price: £1.63 Special Order	Qty:
57		Ref: 125600048/0 Micro Switch Cover	Price: £1.49 Special Order	Qty:
58		Ref: 112728450/0 112728450/0 SELF-TAPPING SCREW 4.8 x 19 UNI 6954 C15	Price: £1.48 Special Order	Qty:
61		Ref: 182774225/1 Grasscatcher Support Clamp	Price: £32.51 Special Order Can be ordered (7 at manufacturer)	Qty:
62		Ref: 112793102/0 Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0	Price: £1.61 1 in stock ready to go	Qty:
63		Ref: 112523060/0 Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0	Price: £1.61 8 in stock ready to go	Qty:
64		Ref: 112293201/0 Mountfield Stiga Castel FLANGED NUT M8 112293201/0	Price: £1.61 6 in stock ready to go	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Electrical Parts - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 382722423/2 Pc Board Assembly Tcx High End	Price: £387.90 Special Order Can be ordered (2 at manufacturer)	Qty:
1		Ref: 382722422/3 Pc Board Assembly Tcx High-End	Price: £442.33 Special Order	Qty:
1		Ref: 382722421/2 Pc Board Assembly	Price: £306.24 Special Order	Qty:
1		Ref: 382722420/2 Pc Board Assembly	Price: £202.80 Special Order	Qty:
2		Ref: 112521320/0 Washer M5 5.3 X 10 X 1 Uni 6592	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
3		Ref: 112154330/0 Low Self-Locking Nut M5 Uni7474 Acc.6S	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:
4		Ref: 325031501/0 Buzzer Sound Amplifier	Price: £6.10 Special Order	Qty:
8		Ref: 133340035/0 Fuse 15A	Price: £1.49 Special Order	Qty:
8		Ref: 133340040/0 Fuse 10A Mta	Price: £2.17 Special Order Can be ordered (3 at manufacturer)	Qty:
8		Ref: 133340036/0 Fuse 25A	Price: £1.63 Special Order Can be ordered (3 at manufacturer)	Qty:
9		Ref: 133215000/0 Fuse Holder Cover	Price: £3.38 Special Order Can be ordered (3 at manufacturer)	Qty:
9		Ref: 133215000/0 Fuse Holder Cover	Price: £3.38 Special Order Can be ordered (3 at manufacturer)	Qty:
10		Ref: 133500007/0 Fuse Holder	Price: £7.03 Special Order Can be ordered (1 at manufacturer)	Qty:
10		Ref: 133500007/0 Fuse Holder	Price: £7.03 Special Order Can be ordered (1 at manufacturer)	Qty:
11		Ref: 182040147/0 Wiring Harness	Price: £322.68 Special Order	Qty:
12		Ref: 118450072/0 Ignition Switch	Price: £29.80 Special Order Can be ordered ( >10 at manufacturer)	Qty:
13		Ref: 118550136/0 Plastic Ring Nut	Price: £1.49 Special Order Can be ordered (4 at manufacturer)	Qty:
14		Ref: 118550135/0 Ring Nut Washer	Price: £1.90 Special Order Can be ordered (5 at manufacturer)	Qty:
15		Ref: 118400862/0 Threaded Ring Nut	Price: £5.02 Special Order Can be ordered (6 at manufacturer)	Qty:
16		Ref: 118210022/0 Ignition Key [Pair]	Price: £9.76 Special Order Can be ordered ( >10 at manufacturer)	Qty:
17		Ref: 118120068/0 Universal Ride-On Mower Battery 12v / 18ah	Price: £93.94 5 in stock ready to go	Qty:
18		Ref: 125430230/0 Spring Rod	Price: £3.65 Special Order Can be ordered (2 at manufacturer)	Qty:
19		Ref: 125065030/0 Cable,Electric Grassbox Lifting	Price: £38.22 Special Order	Qty:
21		Ref: 118736113/0 Solenoid 118736113/0	Price: £36.16 Special Order	Qty:
22		Ref: 112791011/0 Hex-Head Screw M6 X 14 Uni 5739 8.8 Wz	Price: £1.36 Special Order Can be ordered ( >10 at manufacturer)	Qty:
23		Ref: 112292102/0 112292102/0 NUT (was 12292102/0)	Price: £1.61 Special Order	Qty:
24		Ref: 9743-5121-32 Lock Nut 5/16"	Price: £1.36 Special Order Can be ordered (4 at manufacturer)	Qty:
25		Ref: 125065002/0 Solenoid Starting Cable	Price: £10.09 Special Order	Qty:
31		Ref: 119410622/1 119410622/1 MICRO SWITCH N.O. T100	Price: £6.00 3 in stock ready to go	Qty:
31		Ref: 119410622/1 119410622/1 MICRO SWITCH N.O. T100	Price: £6.00 3 in stock ready to go	Qty:
32		Ref: 119410605/1 Micro Switch Matsushita Abv1210513	Price: £37.93 Special Order Can be ordered ( >10 at manufacturer)	Qty:
33		Ref: 119410609/1LC Micro Switch Kedu 115021017	Price: £26.14 Special Order Can be ordered ( >10 at manufacturer)	Qty:
34		Ref: 119410608/1 119410608/1 NEUTRAL SWITCH	Price: £58.00 Not in stock	Qty:
35		Ref: 125065026/0 Cable	Price: £8.27 Special Order	Qty:
36		Ref: 118450084/0 Light Switch	Price: £4.33 Special Order Can be ordered (5 at manufacturer)	Qty:
38		Ref: 118450068/1 Stiga Clutch Switch 118450068/1	Price: £49.55 1 in stock ready to go	Qty:
41		Ref: 182040073/0	Not found
42		Ref: 133500030/0 Lamp Holder	Price: £3.65 Special Order Can be ordered (2 at manufacturer)	Qty:
43		Ref: 118459100/0 Headlight Bulb	Price: £2.04 Special Order Can be ordered ( >10 at manufacturer)	Qty:
44		Ref: 112361005/0 Mountfield Castel Stiga Alpina NUT HEXAGON NUT 1/4 UNC 12361005/0	Price: £3.83 1 in stock ready to go	Qty:
46		Ref: 133500010/1 Fuse Holder Plate	Price: £1.63 Special Order	Qty:
47		Ref: 12735170/0	Not found
51		Ref: 133320506/0 Cable Clip	Price: £1.36 Special Order Can be ordered (3 at manufacturer)	Qty:
52		Ref: 133320504/0 Cable Clip	Price: £1.90 Special Order	Qty:
53		Ref: 118564861/2 Rubber Terminal Cover [Red]	Price: £6.50 Special Order Can be ordered (1 at manufacturer)	Qty:
54		Ref: 118564864/1 Rubber Terminal Cover [Red]	Price: £5.69 Special Order Can be ordered (5 at manufacturer)	Qty:
61		Ref: 382394853/0LC Micro Switch Assembly	Price: £54.18 Special Order	Qty:
62		Ref: 119410609/1LC Micro Switch Kedu 115021017	Price: £26.14 Special Order Can be ordered ( >10 at manufacturer)	Qty:
63		Ref: 112735602/0 Taptite Self-Forming Screw M3 X 20	Price: £1.49 Special Order	Qty:
64		Ref: 112581100/0 Spring Lock Washer M3 Uni 1751 Type A Wz	Price: £1.28 Special Order Can be ordered (2 at manufacturer)	Qty:
65		Ref: 112290791/0 Hexagon Nut M3 Uni 5588 Acc.6S	Price: £1.49 Special Order	Qty:
66		Ref: 112735110/0 Flanged Self-Tap Screw 4.8X13 Uni6950 Bz	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Optionals on Request - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
2		Ref: 382400003/1 Deflector Guard	Price: £59.59 Special Order Can be ordered (4 at manufacturer)	Qty:
3		Ref: 325869043/0 Support Rod	Price: £17.88 Special Order Can be ordered (3 at manufacturer)	Qty:
4		Ref: 118566112/0 118566112/0 HANDLE CAP D=20	Price: £1.92 Special Order	Qty:
5		Ref: 112689515/0 112689515/0 HEX-HEAD SCREW M6 X 45	Price: £1.92 Special Order	Qty:
6		Ref: 112154510/0 NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0	Price: £1.61 9 in stock ready to go	Qty:
7		Ref: 125510022/1 125510022/1 PIN	Price: £3.83 Special Order	Qty:
8		Ref: 124487998/0 Mountfield Stiga Alpina Castel LawnKing TwinCut R-CLIP PIN 24487998/0	Price: £1.61 5 in stock ready to go	Qty:
9		Ref: 124487999/0 R Clip D=3	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
22		Ref: 25519997/1	Not found
23		Ref: 112760520/0 Hexagon Socket Head Screw M8 X 45	Price: £1.49 Special Order	Qty:
24		Ref: 112155000/0 112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally	Price: £1.61 10+ in stock ready to go	Qty:
42		Ref: 382735502/0 382735502/0 BRACKET RH TOW BAR (was 82735502/0)	Price: £10.63 1 in stock ready to go	Qty:
43		Ref: 325774213/0 Bracket L/H	Price: £5.42 Special Order	Qty:
44		Ref: 382033115/0 Support Rod	Price: £41.99 Special Order	Qty:
45		Ref: 125510021/1 Hitch Pin	Price: £10.70 Special Order Can be ordered ( >10 at manufacturer)	Qty:
46		Ref: 124487999/0 R Clip D=3	Price: £1.75 Special Order Can be ordered ( >10 at manufacturer)	Qty:
51		Ref: 182180090/0	Not found
51		Ref: 1134-9250-01 Mountfield / Stiga / Atco / Castelgarden Universal CB01 Battery Charger 70mA 16W	Price: £57.14 Not in stock	Qty:
72		Ref: 325140097/0 Mulch Deflector Shoe	Price: £32.51 Special Order Can be ordered (3 at manufacturer)	Qty:
73		Ref: 325394005/0 Handle	Price: £21.00 Special Order	Qty:
74		Ref: 125510077/0 Fulcrum Pin	Price: £3.25 Special Order	Qty:
75		Ref: 125430245/0 Spring	Price: £3.38 Special Order	Qty:
76		Ref: 112735405/0 Flanged Self-Tap Screw D=6 X 30	Price: £1.49 Special Order	Qty:
77		Ref: 325280000/1 Hand Grip	Price: £2.98 Special Order Can be ordered (9 at manufacturer)	Qty:
78		Ref: 125840011/1 Locking Rubber Tie	Price: £6.91 Special Order Can be ordered ( >10 at manufacturer)	Qty:
79		Ref: 125253004/0 Fixing Hook	Price: £1.49 Special Order Can be ordered ( >10 at manufacturer)	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Labels - Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483

Quick link to the part:			Stock last checked Apr 25 2025 06:10.
-	-	-	-
1		Ref: 114357428/1 6 Pictographs Warning Decal	Price: £3.92 Special Order Can be ordered (7 at manufacturer)	Qty:
2		Ref: 114356756/2 Throttle Decal	Price: £5.82 Special Order	Qty:
3		Ref: 14356177/2	Not found
4		Ref: 114356184/3 Throttle Decal Tc-Twin Cylinder	Price: £5.82 Special Order	Qty:
5		Ref: 114357906/0 Blade Engage Decal	Price: £5.82 Special Order	Qty:
6		Ref: 114357967/0 Deck Engage Decal	Price: £2.30 Special Order	Qty:
7		Ref: 114357905/1 Cutting Height Decal	Price: £2.04 Special Order Can be ordered (5 at manufacturer)	Qty:
8		Ref: 114357526/1	Not found
9		Ref: 114357423/2	Not found
10		Ref: 114356699/1 Cutting Deck Danger Decal	Price: £1.49 Special Order Can be ordered (2 at manufacturer)	Qty:
11		Ref: 114356754/1 Throttle Decal	Price: £3.79 Special Order	Qty:
12		Ref: 114357907/0 Blade Engage Decal	Price: £2.17 Special Order	Qty:
13		Ref: 114357913/0 Height Guide Decal	Price: £1.36 Special Order Can be ordered (2 at manufacturer)	Qty:
15		Ref: 114360717/0	Not found
16		Ref: 114360716/0 Throttle Decal	Price: £5.69 Special Order	Qty:
17		Ref: 14360719/0	Not found
18		Ref: 114360715/2 Clutch Engage Decal	Price: £5.82 Special Order	Qty:
19		Ref: 14360912/0	Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Call us now on:01522 690005

Mountfield (2009 - 10) 1540H 2T5544483/1640H 2T0930483/M10/1840H 2T566483/2040H 2T5672483
