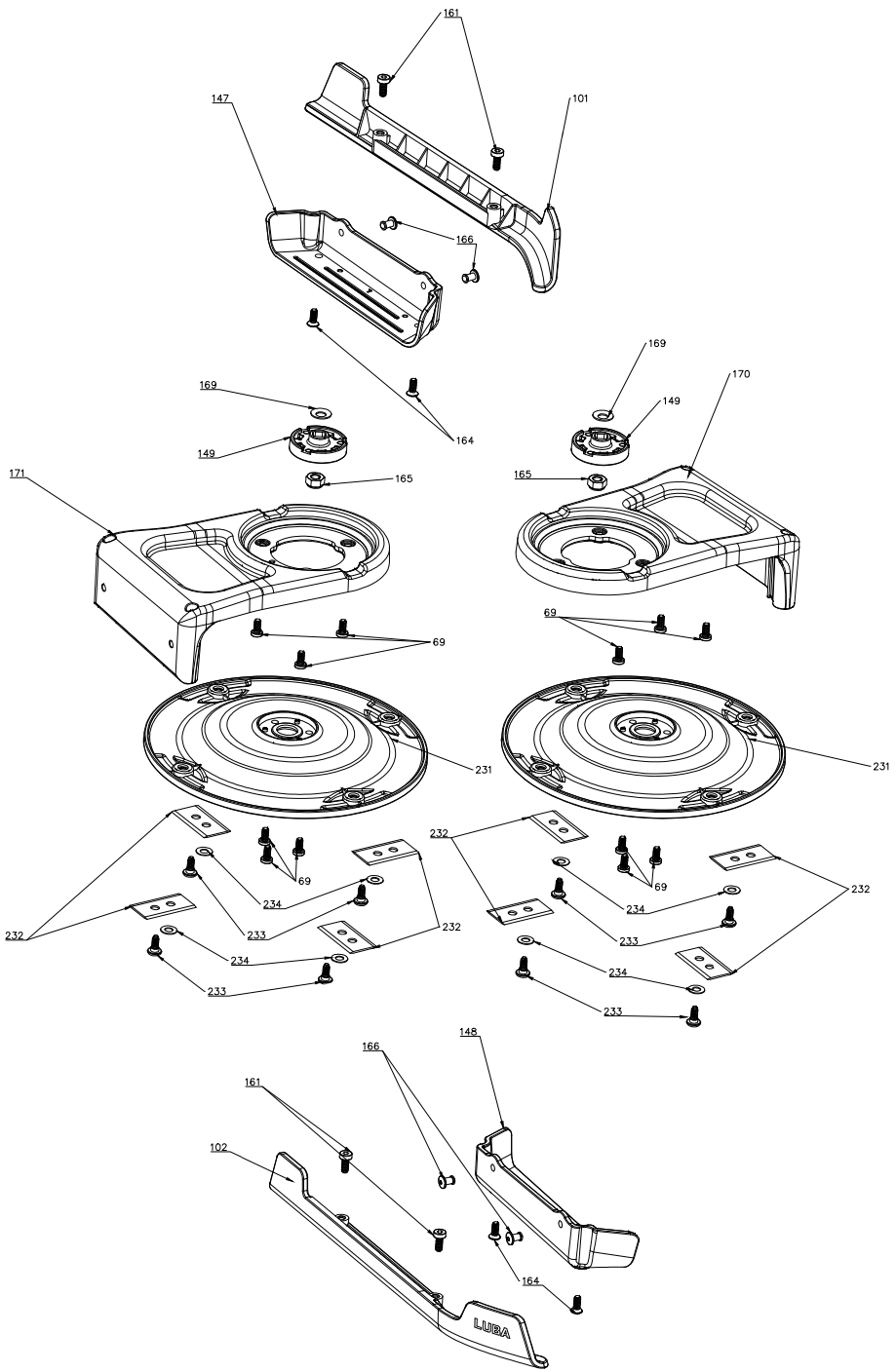

Spare Parts for LUBA 2 - Cutting Plate and Blade

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

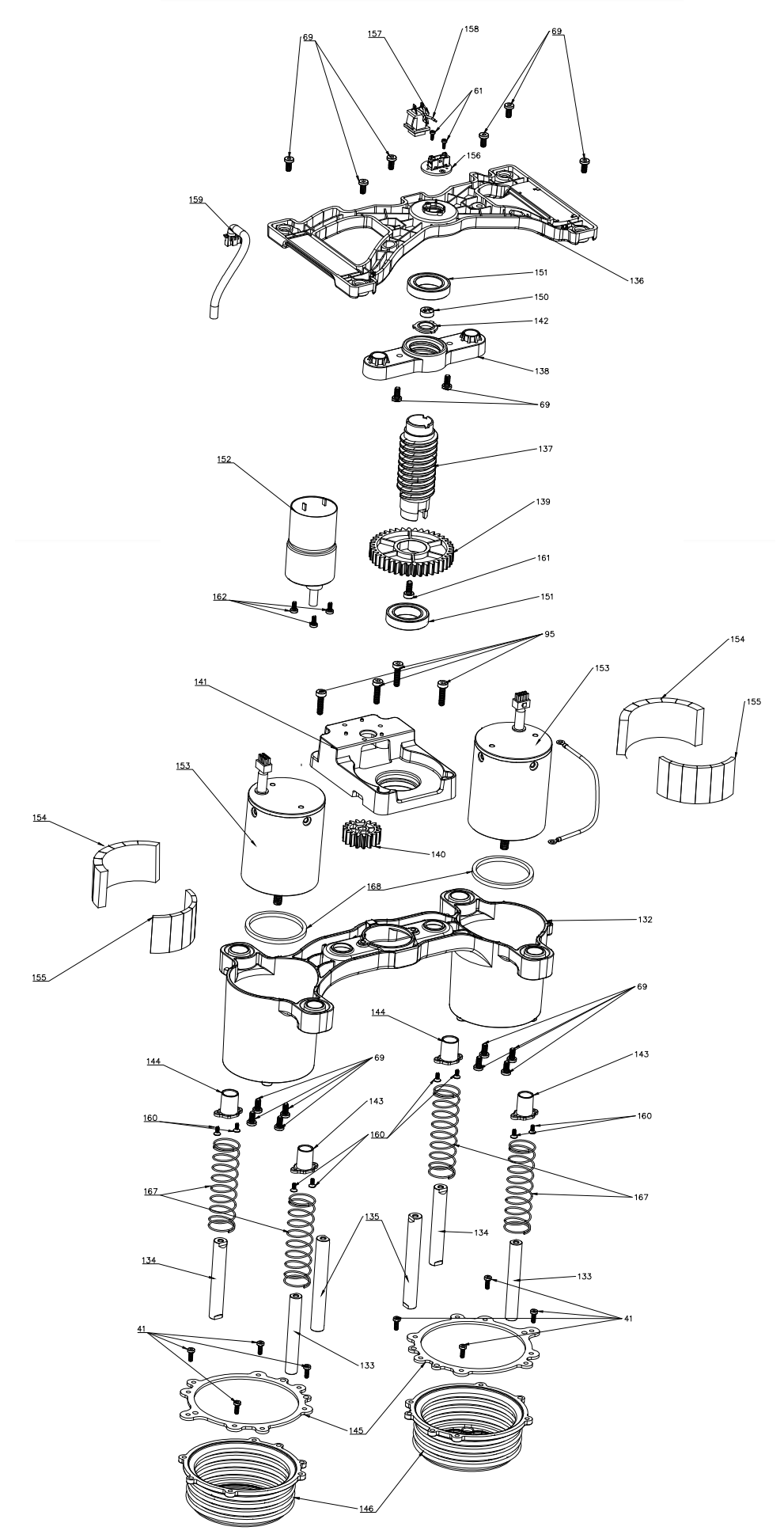

Spare Parts for LUBA 2 - Cutting and Lifting Structure

Quick link to the part:
-	-	-	-
1		Ref: F.100.SZ0510 Luba Hexagon socket head self-tapping flat tail screw; M2*5.5 F.100.SZ0510	Price: £1.12 Special Order	Qty:

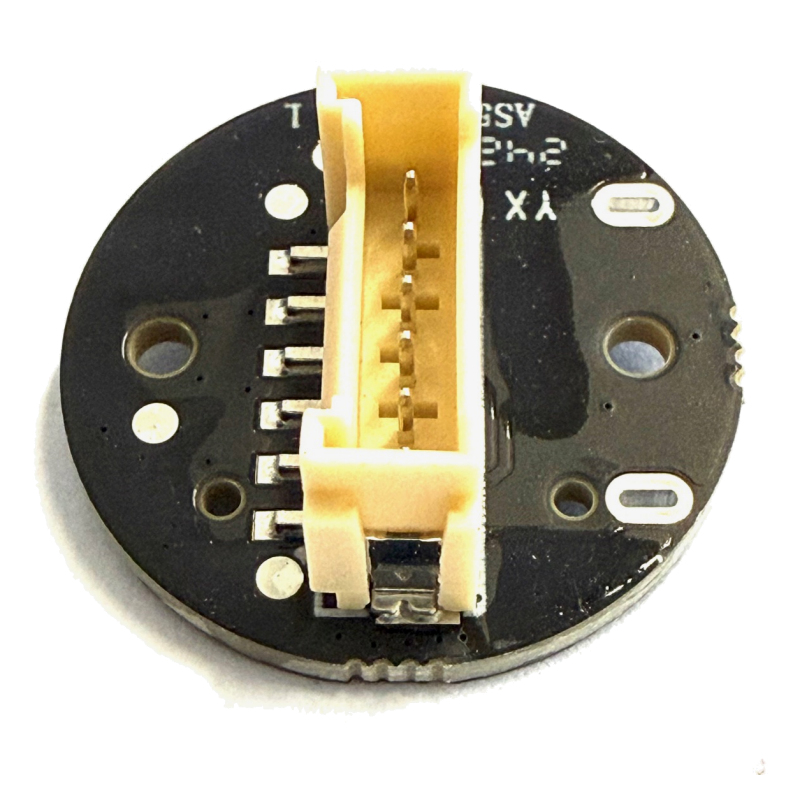

2		Ref: D.015.SZ0097 Luba Magnetic-coding adapter cable D.015.SZ0097	Price: £13.46 Special Order	Qty:
3		Ref: Z.001.SZ0126	Not found
4		Ref: D.015.SZ0099 Luba Switch wire (limit sensor) D.015.SZ0099	Price: £3.32 Special Order	Qty:
5		Ref: Z.121.SZ0031 Luba Switch Z.121.SZ0031	Price: £12.05 Special Order	Qty:
6		Ref: F.100.SZ0515 Luba Hexagon socket head machine screw; M4*8 F.100.SZ0515	Price: £1.31 Special Order	Qty:
7		Ref: C.700.0096 Luba Lifting structure mounting bracket C.700.0096	Price: £20.51 Special Order	Qty:
8		Ref: F.100.SZ0315 Luba Magnet F.100.SZ0315	Price: £12.18 Special Order	Qty:
9		Ref: C.700.0125 Luba Magnet bracket C.700.0125	Price: £11.71 Special Order	Qty:
10		Ref: M.300.SZ0058 Luba Deep groove ball bearing M.300.SZ0058	Price: £12.32 Special Order	Qty:
11		Ref: F.100.SZ0875	Not found
12		Ref: F.100.SZ0876	Not found
13		Ref: D.015.SZ0163	Not found
14		Ref: C.700.0097	Not found
15		Ref: C.700.0241 Luba Slideway kit-1 C.700.0241	Price: £11.57 Special Order	Qty:
16		Ref: C.700.0256 Luba Hexagon countersunk head machine screw; M2.5*6 C.700.0256	Price: £1.12 Special Order	Qty:
17		Ref: M.300.SZ0061 Luba Spring of cutting disk M.300.SZ0061	Price: £12.23 Special Order	Qty:
18		Ref: M.300.SZ0060 Luba Lifting guideway-3 M.300.SZ0060	Price: £13.72 Special Order	Qty:
19		Ref: C.700.0099 Luba Lifting guideway-2 C.700.0099	Price: £13.64 Special Order	Qty:
20		Ref: C.700.0098 Luba Lifting guideway-1 C.700.0098	Price: £13.64 Special Order	Qty:
21		Ref: F.100.SZ0506 Luba Hexagon socket head self-tapping flat tail screw; M3*8 F.100.SZ0506	Price: £1.13 Special Order	Qty:
22		Ref: F.100.SZ0786	Not found
23		Ref: C.700.0109	Not found
24		Ref: C.700.0507	Not found
25		Ref: C.700.0487	Not found
26		Ref: F.100.SZ1300	Not found
27		Ref: F.100.SZ0516 Luba Hexagon countersunk head machine screw; M4*10 F.100.SZ0516	Price: £1.21 Special Order	Qty:
28		Ref: C.700.0492	Not found
29		Ref: F.100.SZ0505 Luba Hexagon socket head self-tapping flat tail screw; M4.2*10 F.100.SZ0505	Price: £1.32 Special Order	Qty:
30		Ref: C.700.0104	Not found
31		Ref: F.100.SZ0504 Luba Hexagon socket head self-tapping flat tail screw; M4.2*16 F.100.SZ0504	Price: £1.40 Special Order	Qty:
32		Ref: F.100.SZ0690 Luba Lock nut F.100.SZ0690	Price: £1.22 Special Order	Qty:
33		Ref: F.100.SZ0787	Not found
34		Ref: C.700.0111	Not found
35		Ref: C.700.0493	Not found
36		Ref: C.700.0488	Not found
37		Ref: C.700.0102 Luba Lifting Gear C.700.0102	Price: £11.98 Special Order	Qty:
38		Ref: C.700.0103 Luba Lifting Pinion C.700.0103	Price: £11.64 Special Order	Qty:
39		Ref: F.100.SZ0513 Luba Hexagon socket head machine screw; M3*6 F.100.SZ0513	Price: £1.18 Special Order	Qty:
40		Ref: C.700.0100 Luba Lifting Screw C.700.0100	Price: £18.54 Special Order	Qty:
41		Ref: D.015.SZ0066 Luba Lift Motor D.015.SZ0066	Price: £49.74 Special Order	Qty:
42		Ref: C.700.0101 Luba Lifting Nut C.700.0101	Price: £12.25 Special Order	Qty:
43		Ref: C.700.0242 Luba Slideway kit-2 C.700.0242	Price: £11.57 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

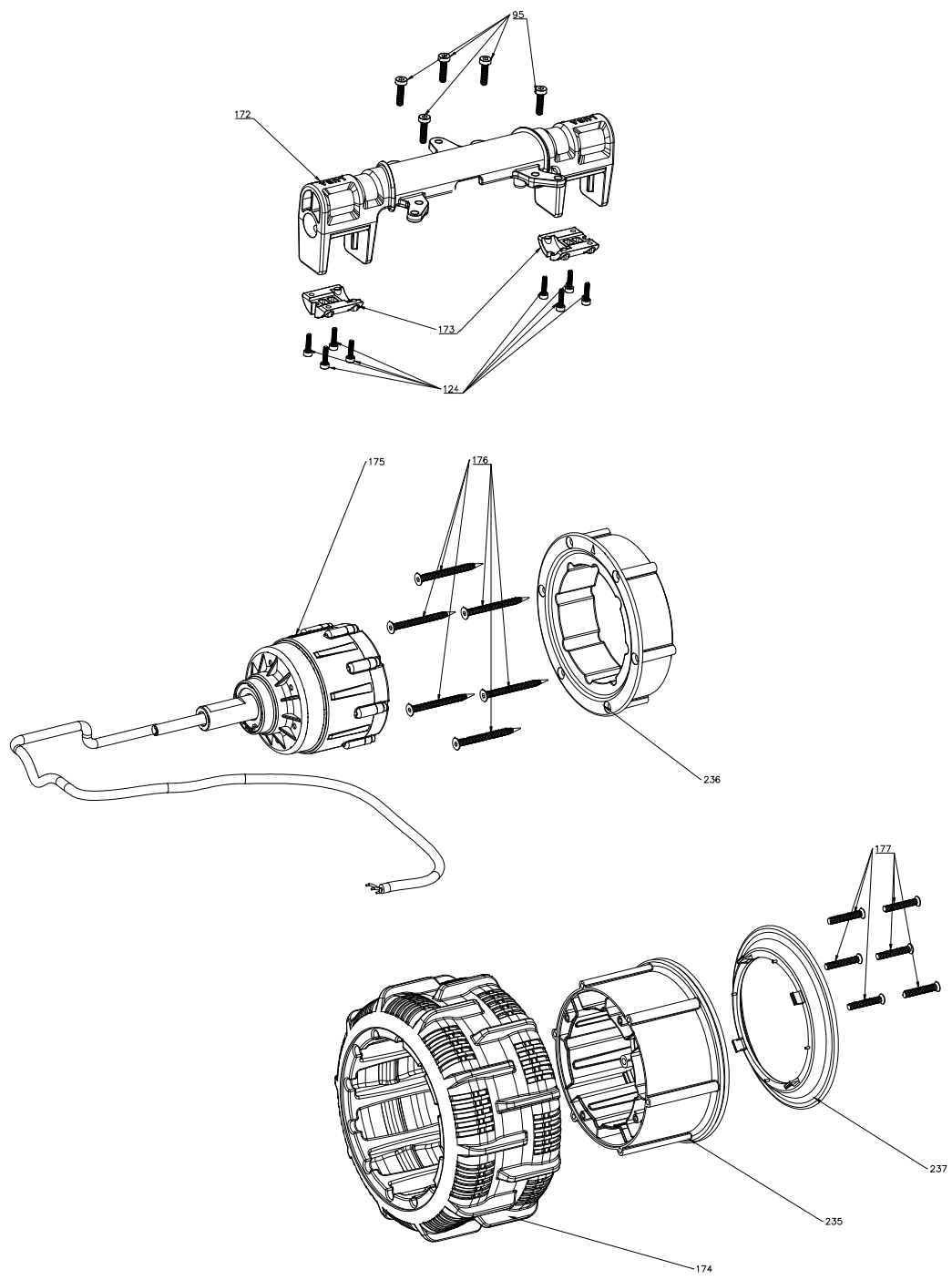

Spare Parts for LUBA 2 - Offroad Front Axle

Quick link to the part:
-	-	-	-
1		Ref: F.100.SZ0780 Luba Hexagonal countersunk head screw; M4*40 F.100.SZ0780	Price: £1.78 Special Order	Qty:
2		Ref: M.015.SZ0056 Luba Wheel White Circle Trim(off-road) M.015.SZ0056	Price: £11.41 Special Order	Qty:
3		Ref: C.700.0234	Not found
4		Ref: D.015.SZ0014	Not found
5		Ref: C.700.0114	Not found
6		Ref: M.015.SZ0034 Luba Fisheye Rod Ends M.015.SZ0034	Price: £17.23 Special Order	Qty:
7		Ref: J.015.SZ0068 Luba Shock absorber step screw J.015.SZ0068	Price: £1.67 Special Order	Qty:
8		Ref: C.700.0093 Luba Guide pillar C.700.0093	Price: £13.19 Special Order	Qty:
9		Ref: F.100.SZ0685 Luba O-ring?D13*1.5mm? F.100.SZ0685	Price: £1.28 Special Order	Qty:
10		Ref: C.700.0090 Luba Upper lifting bracket C.700.0090	Price: £16.85 Special Order	Qty:
11		Ref: F.100.SZ0518 Luba Hexagon socket head machine screw; M5*14 F.100.SZ0518	Price: £1.42 Special Order	Qty:
12		Ref: C.700.0257 Luba Hexagon socket head machine screw; M8*28 C.700.0257	Price: £2.62 Special Order	Qty:
13		Ref: C.700.0095	Not found
14		Ref: C.700.0094 Luba Spin axle C.700.0094	Price: £15.95 Special Order	Qty:
15		Ref: C.700.0490	Not found
16		Ref: C.700.0113	Not found
17		Ref: C.700.0235	Not found
18		Ref: C.700.0160	Not found
19		Ref: F.100.SZ0514 Luba Hexagon socket head machine screw; M3*12 F.100.SZ0514	Price: £1.24 Special Order	Qty:
20		Ref: F.100.SZ0511 Luba Hexagon socket head machine screw; M2*6 F.100.SZ0511	Price: £1.15 Special Order	Qty:
21		Ref: C.700.0092 Luba lifting slide block C.700.0092	Price: £26.23 Special Order	Qty:
22		Ref: C.700.0091 Luba Lower lifting bracket C.700.0091	Price: £21.18 Special Order	Qty:
23		Ref: F.100.SZ0944 Luba Front axle floor rubber pad F.100.SZ0944	Price: £1.33 Special Order	Qty:
24		Ref: M.015.SZ0054 Luba Lifting support spring M.015.SZ0054	Price: £11.82 Special Order	Qty:
25		Ref: C.700.0328	Not found
26		Ref: D.015.SZ0132 Luba Self resetting switch D.015.SZ0132	Price: £18.86 Special Order	Qty:
27		Ref: 0.015.SZ0096	Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for LUBA 2 - Offroad Rear Axle

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

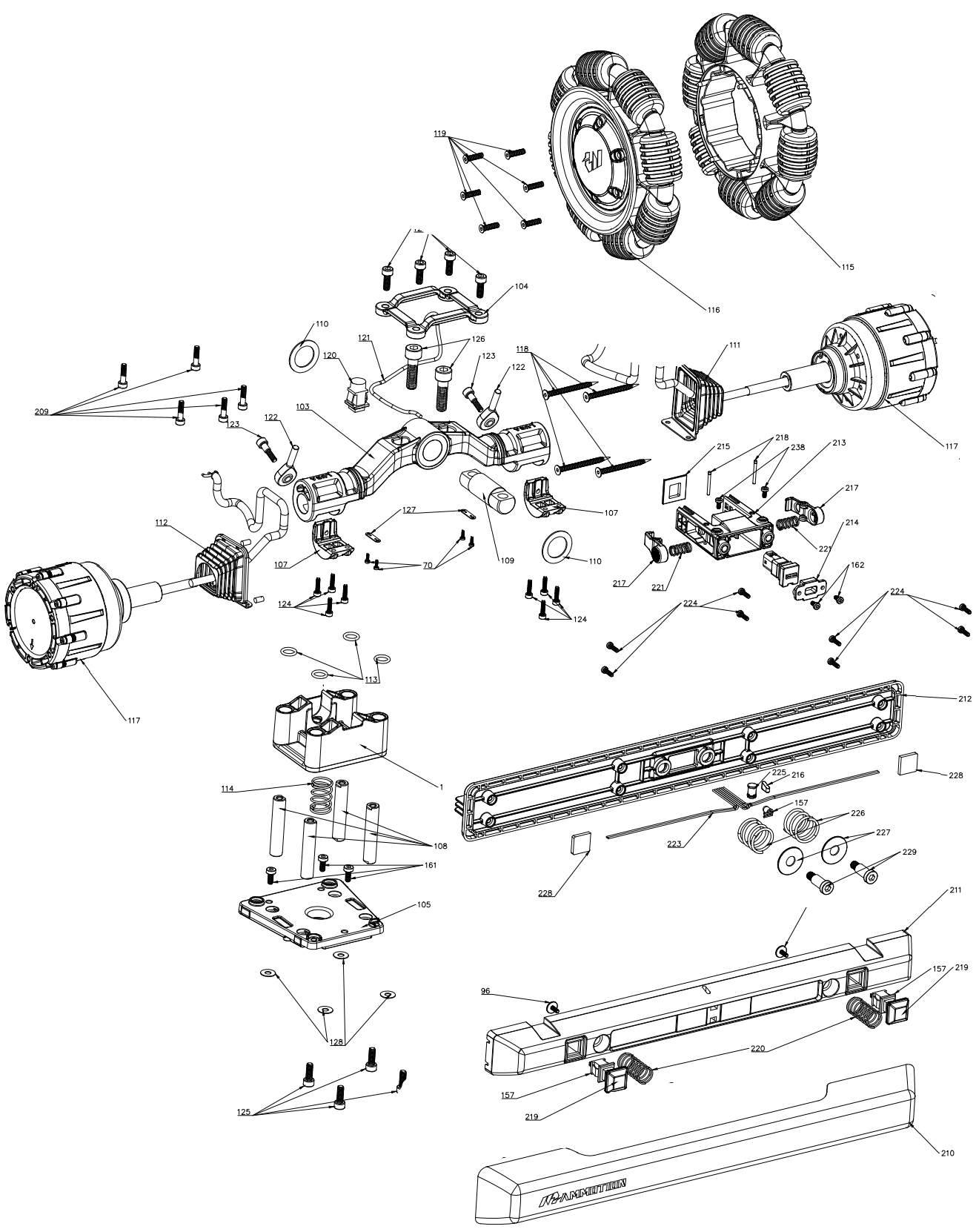

Spare Parts for LUBA 2 - Omni Front Axle

Quick link to the part:
-	-	-	-
1		Ref: F.100.SZ1318 Luba Hexagon countersunk head machine screw; M4*18 F.100.SZ1318	Price: £1.26 Special Order	Qty:
2		Ref: C.700.0402	Not found
3		Ref: C.700.0484	Not found

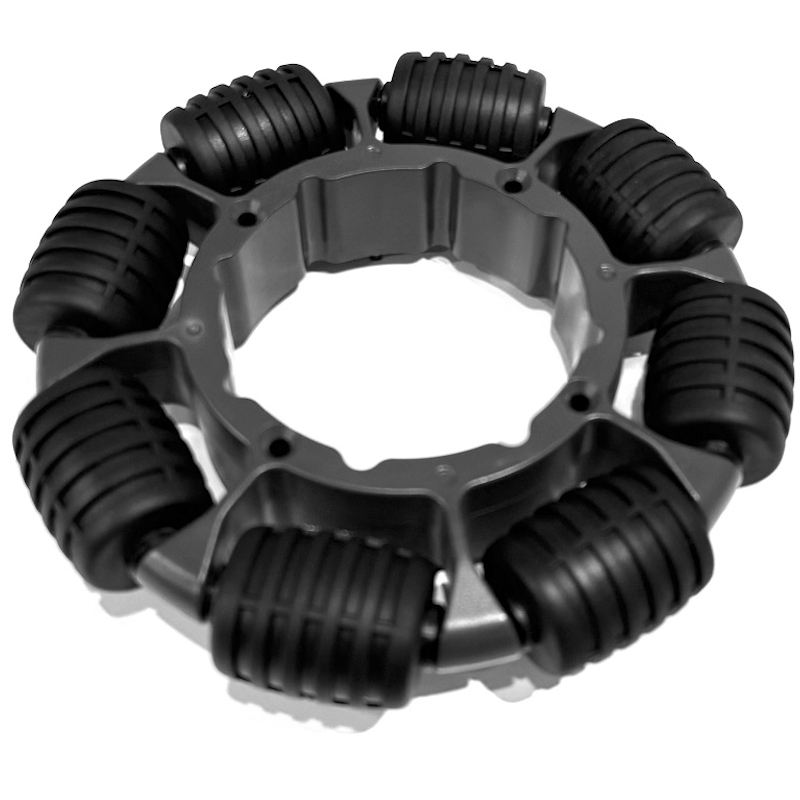

4		Ref: C.700.0479 Luba Inner Shell Wheel(omni) C.700.0479	Price: £31.02 Special Order	Qty:
5		Ref: F.100.SZ0974 Luba Hexagon countersunk head self-tapping screw; M4*50 F.100.SZ0974	Price: £1.33 Special Order	Qty:
6		Ref: D.015.SZ0158	Not found
7		Ref: C.700.0114	Not found
8		Ref: M.015.SZ0034 Luba Fisheye Rod Ends M.015.SZ0034	Price: £17.23 Special Order	Qty:
9		Ref: J.015.SZ0068 Luba Shock absorber step screw J.015.SZ0068	Price: £1.67 Special Order	Qty:
10		Ref: C.700.0093 Luba Guide pillar C.700.0093	Price: £13.19 Special Order	Qty:
11		Ref: F.100.SZ0685 Luba O-ring?D13*1.5mm? F.100.SZ0685	Price: £1.28 Special Order	Qty:
12		Ref: C.700.0090 Luba Upper lifting bracket C.700.0090	Price: £16.85 Special Order	Qty:
13		Ref: F.100.SZ0518 Luba Hexagon socket head machine screw; M5*14 F.100.SZ0518	Price: £1.42 Special Order	Qty:
14		Ref: C.700.0257 Luba Hexagon socket head machine screw; M8*28 C.700.0257	Price: £2.62 Special Order	Qty:
15		Ref: C.700.0095	Not found
16		Ref: C.700.0094 Luba Spin axle C.700.0094	Price: £15.95 Special Order	Qty:
17		Ref: C.700.0490	Not found
18		Ref: C.700.0113	Not found
19		Ref: C.700.0160	Not found
20		Ref: F.100.SZ0514 Luba Hexagon socket head machine screw; M3*12 F.100.SZ0514	Price: £1.24 Special Order	Qty:
21		Ref: C.700.0328	Not found
22		Ref: C.700.0092 Luba lifting slide block C.700.0092	Price: £26.23 Special Order	Qty:
23		Ref: C.700.0091 Luba Lower lifting bracket C.700.0091	Price: £21.18 Special Order	Qty:
24		Ref: F.100.SZ0944 Luba Front axle floor rubber pad F.100.SZ0944	Price: £1.33 Special Order	Qty:
25		Ref: M.015.SZ0054 Luba Lifting support spring M.015.SZ0054	Price: £11.82 Special Order	Qty:
26		Ref: F.100.SZ0511 Luba Hexagon socket head machine screw; M2*6 F.100.SZ0511	Price: £1.15 Special Order	Qty:
27		Ref: D.015.SZ0132 Luba Self resetting switch D.015.SZ0132	Price: £18.86 Special Order	Qty:
28		Ref: D.015.SZ0096	Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for LUBA 2 - Omni Rear Axle

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

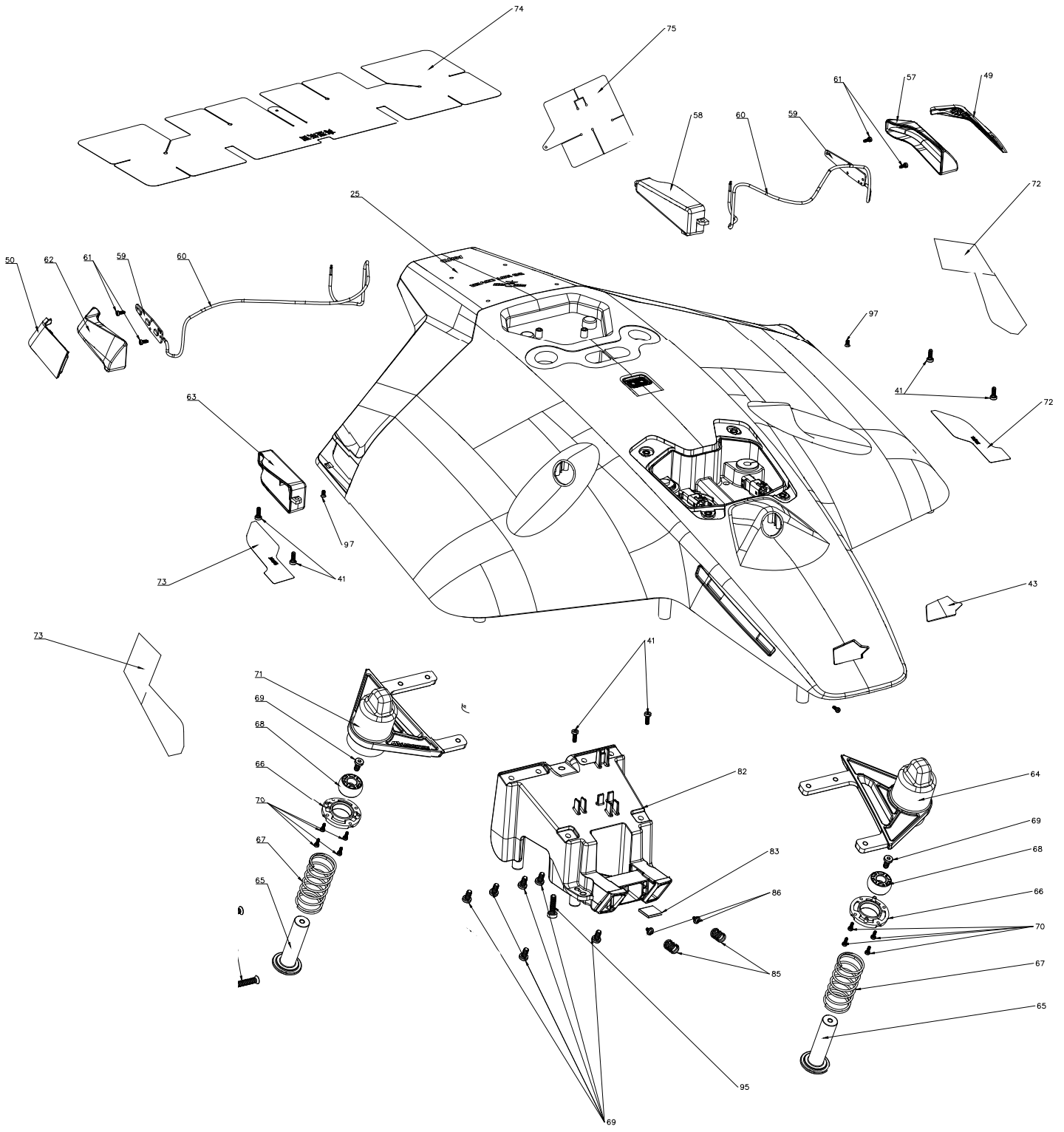

Spare Parts for LUBA 2 - Top Cover

Quick link to the part:
-	-	-	-
1		Ref: F.100.SZ0508 Luba Hexagon socket pan head with self-tapping flat tail screw; M3*8 F.100.SZ0508	Price: £1.15 Special Order	Qty:
2		Ref: F.100.SZ0302	Not found
3		Ref: C.700.0053	Not found
4		Ref: C.700.0508	Not found

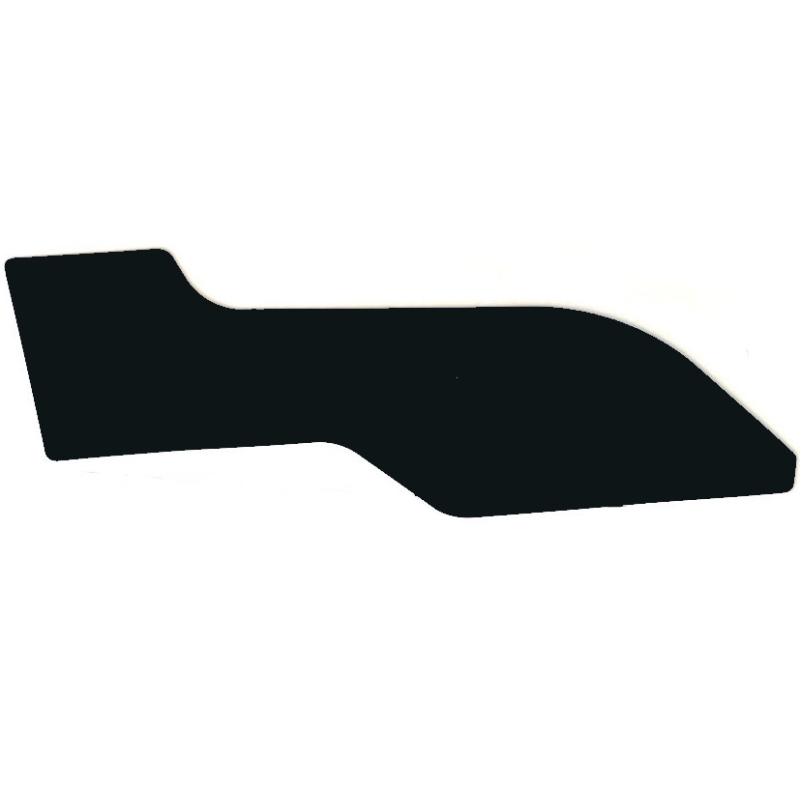

5		Ref: F.100.SZO683	Not found
6		Ref: P.015.SZ0015	Not found
7		Ref: C.700.0065 Luba Right lampshade C.700.0065	Price: £11.82 Special Order	Qty:
8		Ref: P.015.SZ0013	Not found
9		Ref: F.100.SZ0506 Luba Hexagon socket head self-tapping flat tail screw; M3*8 F.100.SZ0506	Price: £1.13 Special Order	Qty:
10		Ref: C.700.0061 Luba Key sealing strip C.700.0061	Price: £2.28 Special Order	Qty:
11		Ref: C.700.0062 Luba START button silicone C.700.0062	Price: £1.38 Special Order	Qty:
12		Ref: C.700.0084 Luba Double button silicone C.700.0084	Price: £1.69 Special Order	Qty:
13		Ref: C.700.0059 Luba Upper shell over the line silicone C.700.0059	Price: £1.38 Special Order	Qty:
14		Ref: F.100.SZ0508 Luba Hexagon socket pan head with self-tapping flat tail screw; M3*8 F.100.SZ0508	Price: £1.15 Special Order	Qty:
15		Ref: f.100.SZ0303	Not found
16		Ref: C.700.0163	Not found
17		Ref: C.700.0172	Not found
18		Ref: C.700.0240	Not found
19		Ref: C.700.0173	Not found
20		Ref: F.100.SZ0511 Luba Hexagon socket head machine screw; M2*6 F.100.SZ0511	Price: £1.15 Special Order	Qty:
21		Ref: M.015.SZ0032	Not found
22		Ref: C.700.0174	Not found
23		Ref: M.015.SZ0034 Luba Fisheye Rod Ends M.015.SZ0034	Price: £17.23 Special Order	Qty:
24		Ref: J.015.SZ0068 Luba Shock absorber step screw J.015.SZ0068	Price: £1.67 Special Order	Qty:
25		Ref: IF.100.SZ0509	Not found
26		Ref: C.700.0176	Not found
27		Ref: Z.121.SZ0022	Not found
28		Ref: C.700.0074	Not found
29		Ref: C.700.0063	Not found
30		Ref: F.100.SZ0504 Luba Hexagon socket head self-tapping flat tail screw; M4.2*16 F.100.SZ0504	Price: £1.40 Special Order	Qty:
31		Ref: D.015SZ0107	Not found
32		Ref: Z.001.SZ0117	Not found
33		Ref: C.700.0509	Not found
34		Ref: C.700.0168	Not found
35		Ref: 0.015.SZ0085	Not found
36		Ref: F.100.SZ0511 Luba Hexagon socket head machine screw; M2*6 F.100.SZ0511	Price: £1.15 Special Order	Qty:
37		Ref: Z.001.SZ0108	Not found
38		Ref: M.015.SZ0033 Luba Support spring of front bumper M.015.SZ0033	Price: £11.54 Special Order	Qty:
39		Ref: F100.SZ05.0515	Not found
40		Ref: C.700.0162	Not found
41		Ref: C.700.0070	Not found
42		Ref: C.700.0165	Not found
43		Ref: C1015.SZ0077	Not found
44		Ref: 0.015.SZ0101	Not found
45		Ref: C.700.0058 Luba Ultrasonic mounting bracket C.700.0058	Price: £11.57 Special Order	Qty:
46		Ref: C.700.0057	Not found

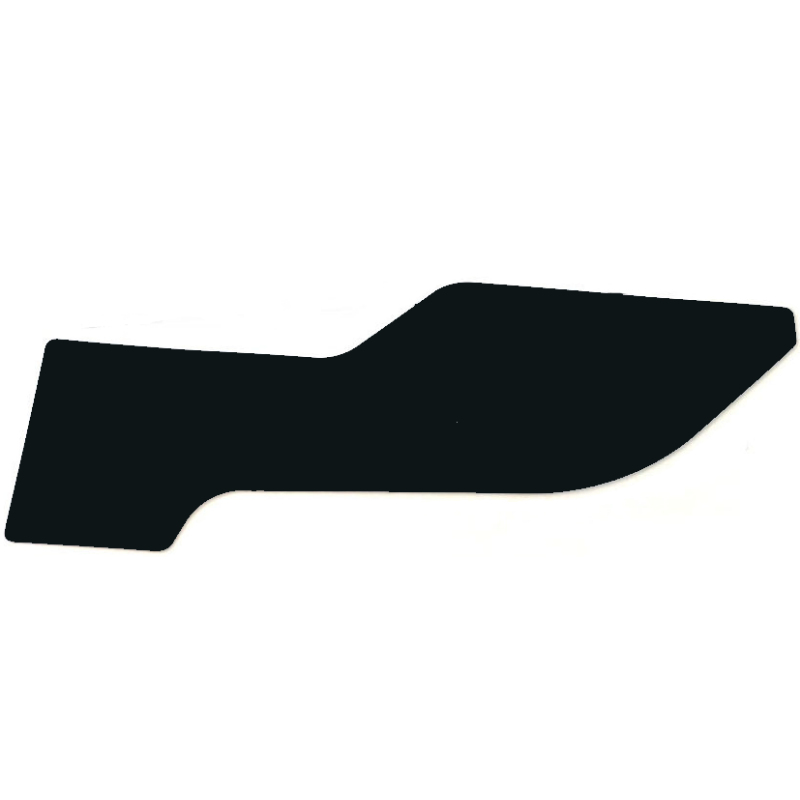

47		Ref: F.100.SZC682	Not found
48		Ref: C.700.0064 Luba Left lampshade C.700.0064	Price: £11.82 Special Order	Qty:
49		Ref: P.015.SZ0014	Not found
50		Ref: C.700.0060	Not found
51		Ref: C.700.0177	Not found
52		Ref: C.700.0085	Not found
53		Ref: C.700.0054	Not found
54		Ref: C.700.0052	Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Call us now on:
01522 690005

LUBA 2 Robotic Mower

Spare Parts for LUBA 2 - Cutting Plate and Blade

Spare Parts for LUBA 2 - Cutting and Lifting Structure

Spare Parts for LUBA 2 - Offroad Front Axle

Spare Parts for LUBA 2 - Offroad Rear Axle

Spare Parts for LUBA 2 - Omni Front Axle

Spare Parts for LUBA 2 - Omni Rear Axle

Spare Parts for LUBA 2 - Top Cover

Quick link to the part:
-	-	-	-
1		Ref: MTL23CTH0002 Mammotion Luba Cutting Disc Set	Price: £69.00 -1 in stock ready to go	Qty:
2		Ref: MTL23RB24002 Mammotion Luba Blade Kit - 24 Pcs	Price: £55.00 3 in stock ready to go	Qty:
2		Ref: MTL23RB08002 Mammotion Luba Blade Kit - 8 Pcs	Price: £29.00 -5 in stock ready to go	Qty:
3		Ref: F.100.SZ0899 Luba Gasket F.100.SZ0899	Price: £1.13 Special Order	Qty:
4		Ref: F.100.SZ1314 Luba Blades mounting screws; M4x8 F.100.SZ1314	Price: £1.69 Special Order	Qty:
