Hayter Harrier 56 with Blade Brake Clutch 343

Harrier 56 BBC 343 1

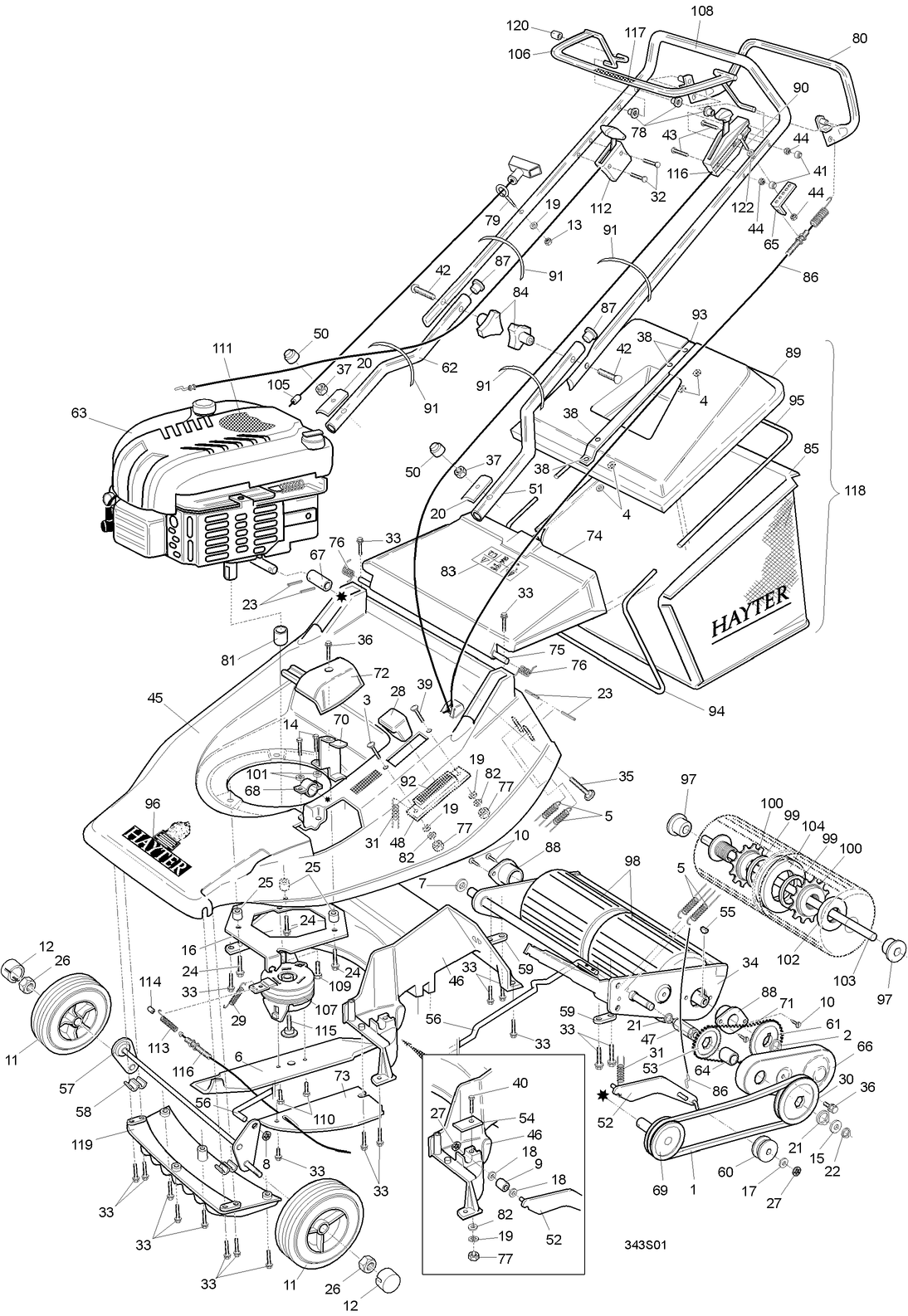

Spare Parts for Harrier 56 BBC 343 1

Quick link to the part:
-	-	-	-
1		Ref: 340049 HAYTER TORO BELT	Price: £22.43 Special Order	Qty:
2		Ref: 1428 HAYTER TORO CIRCLIP EXT 5/8in 1400 SERIES	Price: £1.63 Special Order	Qty:
3		Ref: 9735	Not found
4		Ref: 9257 HAYTER TORO WASHER 3/16 X 1/2 X 17G PLATED	Price: £1.63 Special Order	Qty:
5		Ref: 5421	Not found
6		Ref: 343034 HAYTER TORO CUTTERBAR BBC 22in	Price: £60.06 Special Order	Qty:
7		Ref: 9286	Not found
8		Ref: 4020 HAYTER TORO SPRING GRIP FIX EXT 5/16in	Price: £1.62 Special Order	Qty:
9		Ref: HY4452 HAYTER TORO BUSH 1/2 X 5/8 X 3/4	Price: £3.41 Special Order	Qty:
10		Ref: 9545 HAYTER TORO SCREW M6 X 12 C/SK POZI TAP	Price: £1.62 Special Order	Qty:
11		Ref: 111-1250 WHEEL 180 x 45mm Ribbed 111-1250	Price: £30.24 Not in stock	Qty:
12		Ref: 219143 CAP HUB 219143	Price: £6.40 3 in stock ready to go	Qty:
13		Ref: 9438 HAYTER TORO NUT M6 X 1.5 PLAIN	Price: £1.62 Special Order	Qty:
14		Ref: 9575 HAYTER TORO SCREW TAPTITE M6*20 WASHER	Price: £1.62 Special Order	Qty:
15		Ref: 2575 HAYTER TORO WASHER 1/2in X 7/8in X 22G	Price: £1.63 Special Order	Qty:
16		Ref: 343012W	Not found
17		Ref: 9266 HAYTER TORO WASHER 5/16 X 5/8 X 19G PLAIN	Price: £1.44 Special Order	Qty:
18		Ref: 9280 HAYTER TORO WASHER 1/2 X 1 X 18G PLAIN	Price: £1.56 Special Order	Qty:
19		Ref: 9472 HAYTER TORO WASHER-PLAIN	Price: £1.46 Special Order	Qty:
20		Ref: 340028 HAYTER TORO HANDLEBAR CLAMP PLATE	Price: £6.26 Special Order	Qty:
21		Ref: 2708 HAYTER TORO CIRCLIP EXT 3/4in	Price: £1.56 Special Order	Qty:
22		Ref: 3096 HAYTER TORO CIRCLIP EXT 1/2in	Price: £1.63 Special Order	Qty:
23		Ref: 3997 HAYTER TORO ROLL PIN 3/16 X 3/4 LG	Price: £1.62 Special Order	Qty:
24		Ref: 9591	Not found
25		Ref: 321034	Not found
26		Ref: 4486	Not found
27		Ref: 201086 HAYTER TORO WASHER STARLOCK 5/16	Price: £1.62 Special Order	Qty:
28		Ref: 330053 HAYTER TORO COVER LEVER	Price: £5.60 Special Order	Qty:
29		Ref: 343011 SPRING BLADE BRAKE TENSION 343011	Price: £8.42 Special Order	Qty:
30		Ref: 219111	Not found
31		Ref: 1246 HAYTER TORO SPRING CLUTCH SHOE RETURN	Price: £3.24 Special Order	Qty:
32		Ref: 9780 HAYTER TORO SETSCREW M6*55 POSI PAN	Price: £1.87 Special Order	Qty:
33		Ref: 9365 HAYTER TORO SCREW M6 X 16 TAPTITE HEX HD	Price: £1.63 Special Order	Qty:
34		Ref: 340044	Not found
35		Ref: 9379 HAYTER TORO BOLT COACH M8 X 45 C/SQ GD 4.8	Price: £1.62 Special Order	Qty:
36		Ref: 9546 HAYTER TORO SCREW M6 X 12 HEX W/HD POZI TP	Price: £1.64 Special Order	Qty:
37		Ref: 9441 HAYTER TORO NUT M8 NYL INSERT T TYPE	Price: £1.62 Special Order	Qty:
38		Ref: 9320 HAYTER TORO RIVET 3/16 X 5/8	Price: £1.63 Special Order	Qty:
39		Ref: 9668 HAYTER TORO BOLT COACH M6*20 CUP SQ	Price: £1.56 Special Order	Qty:
40		Ref: 9547 HAYTER TORO WASHER-THRUST	Price: £7.01 Special Order	Qty:
41		Ref: 343025 HAYTER TORO NUT CAP PLASTIC M6	Price: £1.63 Special Order	Qty:
42		Ref: HY226024 Hayter Toro Handle Bar Bolt HY226024	Price: £2.62 5 in stock ready to go	Qty:
43		Ref: 9384	Not found
44		Ref: 9657 HAYTER TORO NUT M8 HX.NYL/INSERT T TYPE ZP	Price: £1.63 Special Order	Qty:
45		Ref: 340205V	Not found
46		Ref: 340011	Not found
47		Ref: 219095 HAYTER TORO IDLER SPROCKET SLEEVE ASSY	Price: £21.82 Special Order	Qty:
48		Ref: 340102 HAYTER TORO PLATE RATCHET 9 TOOTH	Price: £32.80 Special Order	Qty:
50		Ref: HY234051 CAP - NUT BLACK M8 HY234051	Price: £1.80 4 in stock ready to go	Qty:
51		Ref: 340103 HAYTER TORO HANDLEBAR LOWER N/S	Price: £11.80 Special Order	Qty:
52		Ref: HY219023 HAYTER TORO LEVER JOCKEY	Price: £56.76 Special Order	Qty:
53		Ref: 219106 HAYTER TORO SPROCKET 10T	Price: £12.89 Special Order	Qty:
54		Ref: 219028	Not found
55		Ref: 5321 HAYTER TORO KEY WOODRUFF NO 305 5/8 X 3/32	Price: £1.56 Special Order	Qty:
56		Ref: 340014	Not found
57		Ref: 340020 HAYTER TORO FRONT AXLE ASSY	Price: £52.31 Special Order	Qty:
58		Ref: 219036 MOULDING FRONT AXLE BEARING 219036	Price: £5.40 3 in stock ready to go	Qty:
59		Ref: 219037 HAYTER TORO PLATE SECURING	Price: £1.62 Special Order	Qty:
60		Ref: 219156 PULLEY JOCKEY MOULDED 219156	Price: £2.40 Special Order	Qty:
61		Ref: 219051 17T SPROCKET ASSY 219051	Price: £18.59 Special Order	Qty:
62		Ref: 340104 HAYTER TORO HANDLEBAR LOWER O/S	Price: £11.40 Special Order	Qty:
63		Ref: 343045	Not found
64		Ref: 219053 HAYTER TORO SLEEVE SPROCKET TUBE	Price: £9.47 Special Order	Qty:
65		Ref: 306108	Not found
66		Ref: 219055	Not found

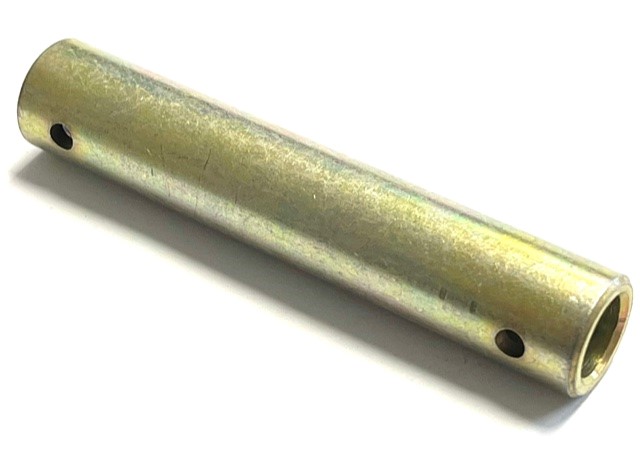

67		Ref: 340109 HAYTER TORO COUPLING (4in)	Price: £46.19 Special Order	Qty:
68		Ref: 219060 BEARING 219060	Price: £8.99 1 in stock ready to go	Qty:
69		Ref: 340105 HAYTER TORO PULLEY ASSY	Price: £65.76 Special Order	Qty:
70		Ref: 219064 HAYTER TORO BRACKET BELT GUIDE	Price: £8.27 Special Order	Qty:
71		Ref: 219054 CHAIN 30 PITCH 1/2 X 1/8 219054	Price: £12.72 Special Order	Qty:
72		Ref: 340050	Not found
73		Ref: 343015W	Not found
74		Ref: 340022 HAYTER TORO REAR DEFLECTOR	Price: £72.66 Special Order	Qty:
75		Ref: 340024	Not found
76		Ref: 340052 SPRING 340052 each	Price: £5.27 1 in stock ready to go	Qty:
77		Ref: 9437 HAYTER TORO NUT M6 PLAIN	Price: £1.63 Special Order	Qty:
78		Ref: 226034 HAYTER TORO BUSH CLUTCH LEVER	Price: £2.20 Special Order	Qty:
79		Ref: 305093 HAYTER TORO GUIDE ROPE	Price: £1.62 Special Order	Qty:
80		Ref: 219090 HAYTER TORO LEVER CLUTCH	Price: £42.82 Special Order	Qty:
81		Ref: 485006	Not found
82		Ref: 9474 HAYTER TORO WASHER M6 SC SPRING	Price: £1.56 Special Order	Qty:
83		Ref: 219189	Not found
84		Ref: 226013 Hayter Triangular Handle Bar Knob Handwheel 226013	Price: £5.88 1 in stock ready to go	Qty:
85		Ref: 340071 HAYTER TORO GRASSBAG FABRIC	Price: £50.59 Special Order	Qty:

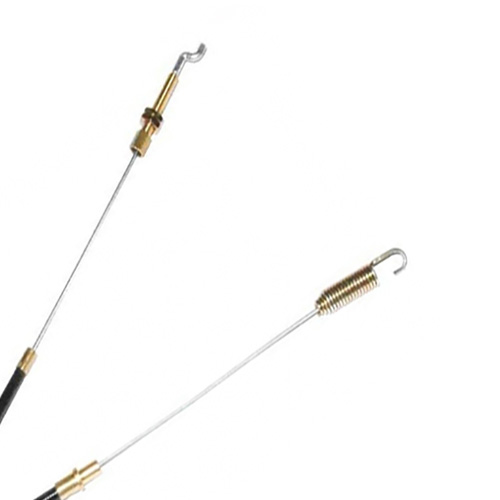

86		Ref: 340056 CLUTCH CABLE 340056	Price: £27.60 2 in stock ready to go	Qty:
87		Ref: 300160 HAYTER TORO TUBE PLUG	Price: £1.62 Special Order	Qty:
88		Ref: 219102 HAYTER TORO HOUSING BEARING ROLLER	Price: £12.67 Special Order	Qty:
89		Ref: 340072 HAYTER TORO GRASSBAG COVER	Price: £80.84 Special Order	Qty:
90		Ref: 9704 HAYTER TORO SETSCREW M4X35	Price: £1.63 Special Order	Qty:
91		Ref: 3966	Not found
92		Ref: 340082	Not found
93		Ref: 340073 HAYTER TORO HANDLE GRASSBAG	Price: £19.94 Special Order	Qty:
94		Ref: 340075 HAYTER TORO GRASSBAG FRAME WELD ASSY	Price: £46.50 Special Order	Qty:
95		Ref: 340078 HAYTER TORO U TUBE	Price: £15.92 Special Order	Qty:
96		Ref: 410087 HAYTER LOGO (03) 410087	Price: £4.44 Special Order	Qty:
97		Ref: 340129 HAYTER TORO OILITE BUSH ROLLER	Price: £9.67 Special Order	Qty:
98		Ref: 340139 HAYTER TORO ROLLER SHELL ASSEMBLY	Price: £81.83 Special Order	Qty:
99		Ref: 340149	Not found
100		Ref: 340150 ROLLER FREEWHEEL-ROCKET 340150	Price: £13.12 1 in stock ready to go	Qty:
101		Ref: 340154 HAYTER TORO BUSH	Price: £5.66 Special Order	Qty:
102		Ref: 340163 HAYTER TORO LOCKNUT	Price: £25.58 Special Order	Qty:
103		Ref: 340162 HAYTER TORO ROLLER SHAFT W/A	Price: £59.48 Special Order	Qty:
104		Ref: 340168 HAYTER TORO SHROUD - FREEWHEEL	Price: £11.57 Special Order	Qty:
105		Ref: MU42189 HAYTER TORO STOP ROPE (HB)	Price: £5.00 Special Order	Qty:
106		Ref: 319006W	Not found
107		Ref: 485007 BLADE BRAKE CLUTCH 485007	Price: £214.87 Special Order	Qty:
108		Ref: 341029 HAYTER TORO HANDLEBAR UPPER - MOULDED	Price: £91.08 Special Order	Qty:
109		Ref: ZIS8L030S HAYTER TORO SCREW SOC SHLD M10* DIA 12*30 RAW	Price: £12.11 Special Order	Qty:
110		Ref: 9747 HAYTER TORO SCREW SOCKET HD	Price: £5.66 Special Order	Qty:
111		Ref: 340224	Not found
112		Ref: 343047 HAYTER TORO THROTTLE CONTROL TYPE T60	Price: £27.95 Special Order	Qty:
113		Ref: 319018	Not found
114		Ref: 510118 HAYTER TORO NIPPLE SPLIT	Price: £17.40 Special Order	Qty:
115		Ref: 343029 BOLT CENTRE BBC 343029	Price: £5.66 Special Order	Qty:
116		Ref: 343030 HAYTER TORO CONTROL BBC ASSY	Price: £74.11 Special Order	Qty:
117		Ref: 343019 HAYTER TORO DECAL - OPERATION	Price: £3.02 Special Order	Qty:
118		Ref: 340070 HAYTER TORO GRASSBAG ASSY	Price: £232.14 Special Order	Qty:
119		Ref: 340190 HAYTER TORO FRONT FIN INSERT	Price: £14.21 Special Order	Qty:
120		Ref: 305115	Not found
122		Ref: 9658 HAYTER TORO WASHER M4 X 9 X 0.8 Z/P	Price: £1.63 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
