Hayter Harrier 48 Pro Autodrive with BBC 479A 404000000 and UP

Name: Hayter Harrier 48 Pro Autodrive with BBC 479A - Deck and Grassbag
Brand: Hayter

Hayter Harrier 48 Pro Autodrive with BBC 479A - Deck and Grassbag

Hayter Harrier 48 Pro Autodrive with BBC 479A - Engine and Blade

Hayter Harrier 48 Pro Autodrive with BBC 479A - Handlebar and Controls

Hayter Harrier 48 Pro Autodrive with BBC 479A - Traction Suspension and HoC

Spare Parts for Hayter Harrier 48 Pro Autodrive with BBC 479A - Deck and Grassbag

Quick link to the part:
-	-	-	-
1		Ref: 111-8612-07 HAYTER TORO HARRIER 48 DECK	Price: £257.60 Special Order	Qty:
2		Ref: 134-2901 HAYTER TORO FRONT FIN	Price: £9.19 Special Order	Qty:
3		Ref: 111-8614 HAYTER TORO THROW PLATE (48)	Price: £13.80 Special Order	Qty:
4		Ref: 111-8615 HAYTER TORO TOP TRIM (48)	Price: £10.73 Special Order	Qty:
5		Ref: 111-8541 HAYTER TORO MOUNT-DEFLECTOR LEFT	Price: £2.16 Special Order	Qty:
6		Ref: 111-8542 HAYTER TORO DEFLECTOR MOUNT RIGHT	Price: £2.16 Special Order	Qty:
7		Ref: 111-8728 HAYTER TORO ROD-DEFLECTOR	Price: £1.99 Special Order	Qty:
8		Ref: 111-8647 HAYTER HARRIER REAR DEFLECTOR GRASS FLAP	Price: £19.70 1 in stock ready to go	Qty:
9		Ref: 111-8543 HAYTER TORO SPRING-DEFLECTOR LEFT	Price: £2.16 Special Order	Qty:
10		Ref: 111-8544 HAYTER TORO SPRING-DEFLECTOR RIGHT	Price: £2.16 Special Order	Qty:
11		Ref: 111-8648 HAYTER TORO DEFLECTOR-SEAL REAR	Price: £5.58 Special Order	Qty:
12		Ref: 111-8616 HAYTER TORO BELT COVER (48)	Price: £17.53 Special Order	Qty:
13		Ref: 111-8659 HAYTER TORO WASHPORT ADAPTER ASSEMBLY	Price: £1.46 Special Order	Qty:
16		Ref: 134-0396	Not found
17		Ref: 134-0395-03 HAYTER TORO FRAME GRASSBAG (70L)	Price: £33.46 Special Order	Qty:
18		Ref: 134-2255 HAYTER TORO ROD-SUPPORT	Price: £2.87 Special Order	Qty:
21		Ref: 9575 HAYTER TORO SCREW TAPTITE M6*20 WASHER	Price: £1.62 Special Order	Qty:
22		Ref: 134-0051	Not found
23		Ref: 111-7722 HAYTER TORO MADE IN BRITAIN DECAL	Price: £1.45 Special Order	Qty:
25		Ref: 134-2137 HAYTER TORO DECAL-SAFETY	Price: £5.21 Special Order	Qty:
26		Ref: 111-9937 HAYTER TORO DECAL-EASY WASH	Price: £2.58 Special Order	Qty:
27		Ref: 134-2263 HAYTER TORO FIR TREE CABLE TIE	Price: £2.12 Special Order	Qty:
29		Ref: 134-2626-03 HAYTER TORO FRONT BUMPER STUB PLATE	Price: £5.66 Special Order	Qty:
30		Ref: 134-3475 HAYTER TORO FRONT BUMPER KIT LOOSE	Price: £25.31 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Hayter Harrier 48 Pro Autodrive with BBC 479A - Engine and Blade

Quick link to the part:
-	-	-	-
1		Ref: 134-2013 HAYTER TORO HONDA GCV160 BBC/TAPERED CRANK	Price: £259.60 Special Order	Qty:
2		Ref: 9349 HAYTER TORO SCREW UNC 3/8inX 1.1/4inTAPTITE	Price: £1.62 Special Order	Qty:
3		Ref: 134-3161	Not found
4		Ref: 111-9226 PULLEY FIXED SPEED 111-9226	Price: £21.92 1 in stock ready to go	Qty:
5		Ref: 410057W HAYTER TORO FRICTION DISC	Price: £27.11 Special Order	Qty:
7		Ref: 111-8828 HAYTER TORO SPACER-RETAINING	Price: £4.00 Special Order	Qty:
8		Ref: HY4014 DISTANCE PIECE CUTTERBAR HY4014	Price: £8.40 1 in stock ready to go	Qty:
9		Ref: 134-3191 HAYTER TORO WASHER-LOCK	Price: £0.60 Special Order	Qty:
11		Ref: 134-2544	Not found

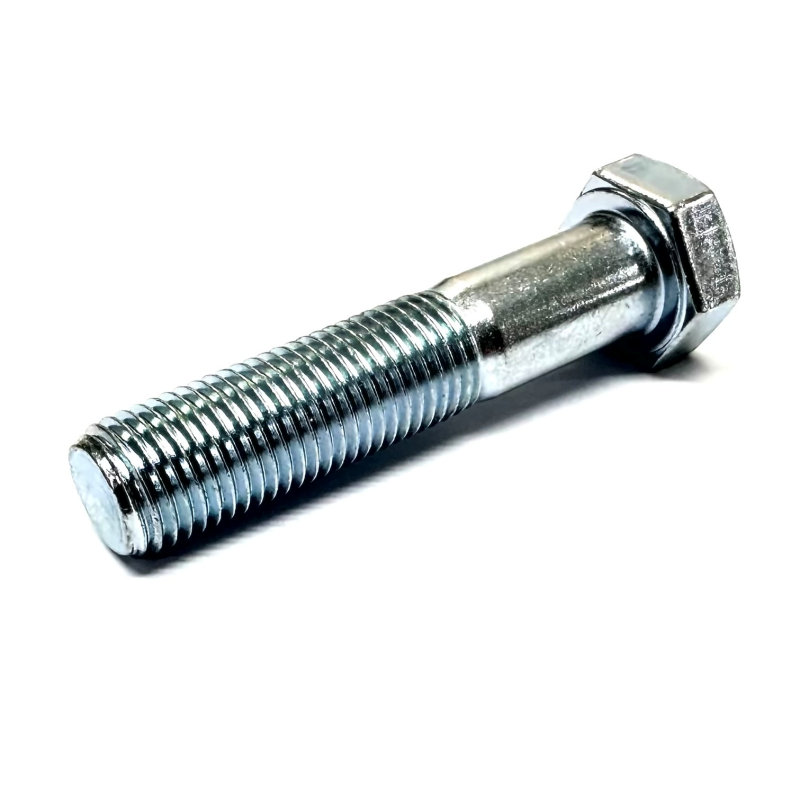

12		Ref: 9119 HAYTER TORO BOLT UNF 3/8 X 1.3/4 S QUAL	Price: £1.63 Special Order	Qty:
13		Ref: 9575 HAYTER TORO SCREW TAPTITE M6*20 WASHER	Price: £1.62 Special Order	Qty:
14		Ref: 134-2648 HAYTER TORO NUT-RETAINING	Price: £8.42 Special Order	Qty:
16		Ref: 9619 HAYTER TORO GRUBSCREW M6*10 SKT HD FLAT PT	Price: £1.63 Special Order	Qty:
18		Ref: 134-2252 HAYTER TORO SPACER-BLADE BBC	Price: £14.60 Special Order	Qty:
19		Ref: 134-2590 HAYTER TORO DRUM-BBC	Price: £31.49 Special Order	Qty:
20		Ref: 107-0759 HAYTER TORO BOLT-SHOULDER	Price: £11.12 Special Order	Qty:
21		Ref: 110-1790 HAYTER TORO BELT	Price: £33.41 Special Order	Qty:
22		Ref: 125-1063 HAYTER TORO PLATE-BRAKE	Price: £25.98 Special Order	Qty:
23		Ref: 107-0758 HAYTER TORO SPACER-BEARING	Price: £3.32 Special Order	Qty:
24		Ref: 38-7820 BALL BEARING 38-7820	Price: £13.80 1 in stock ready to go	Qty:
25		Ref: 138-3217 HAYTER TORO RETAINER-BELT	Price: £3.20 Special Order	Qty:
26		Ref: 605256 HAYTER TORO SPACER	Price: £2.09 Special Order	Qty:
27		Ref: 111-8855 HAYTER TORO PLATE-TENSIONER	Price: £2.78 Special Order	Qty:
28		Ref: 119-4162 HAYTER TORO SCREW-CARR	Price: £1.92 Special Order	Qty:
29		Ref: 603773 HAYTER TORO NUT-HEX LOCK	Price: £2.46 Special Order	Qty:
30		Ref: 130-2377 HAYTER TORO BUSHING-FLANGE	Price: £2.14 Special Order	Qty:
31		Ref: 111-8653 HAYTER TORO ANCHOR PLATE ASSEMBLY	Price: £13.80 Special Order	Qty:
32		Ref: 137-3005 HAYTER TORO NUT-HF	Price: £0.60 Special Order	Qty:
33		Ref: 134-0325 HAYTER TORO BEARING	Price: £22.34 Special Order	Qty:
34		Ref: 111-8895 HAYTER TORO BBC SHAFT NUT	Price: £7.67 Special Order	Qty:
35		Ref: 108-3792 HAYTER TORO SPRING-TENSION BRAKE	Price: £12.36 Special Order	Qty:
38		Ref: 9216 HAYTER TORO NUT-HEX NI	Price: £1.63 Special Order	Qty:
43		Ref: 134-2919 HAYTER TORO DECAL ENGINE CODE479A	Price: £5.66 Special Order	Qty:
45		Ref: ZWQ1J000U HAYTER TORO PLAIN HEAVY WASHER M10	Price: £1.61 Special Order	Qty:

Spare Parts for Hayter Harrier 48 Pro Autodrive with BBC 479A - Handlebar and Controls

Quick link to the part:
-	-	-	-
1		Ref: 134-3571-03 HAYTER TORO UPPER HANDLEBAR	Price: £32.23 Special Order	Qty:
3		Ref: 111-9381-03 HAYTER TORO LEVER-CLUTCH GEARBOX	Price: £16.27 Special Order	Qty:
4		Ref: 111-8716 HAYTER TORO HANDLE SOFT GRIP	Price: £11.60 Special Order	Qty:
5		Ref: 340182 HAYTER TORO PIVOT PIN	Price: £1.62 Special Order	Qty:
6		Ref: 09688 WASHER NYLON 19111.6 09688	Price: £1.20 Special Order	Qty:
7		Ref: 9687 HAYTER TORO SCREW 06*20 PT PAN FLANGE	Price: £1.62 Special Order	Qty:
8		Ref: 134-3569 HAYTER TORO GUIDE-ROPE	Price: £3.66 Special Order	Qty:
9		Ref: 410037 HAYTER TORO GUIDE CABLE	Price: £1.46 Special Order	Qty:
10		Ref: 9544 HAYTER TORO NUT M6 NYL INS GD 8	Price: £1.56 Special Order	Qty:
12		Ref: 134-2608 HAYTER TORO ARM-BAIL	Price: £17.53 Special Order	Qty:
13		Ref: 111-8903 HAYTER TORO LEVER-CATCH	Price: £2.20 Special Order	Qty:
14		Ref: 134-2609 HAYTER TORO BBC LATCH BUTTON	Price: £0.74 Special Order	Qty:
15		Ref: 111-8990 HAYTER TORO CLAMP-BAR	Price: £0.64 Special Order	Qty:
16		Ref: 111-8908 HAYTER TORO LATCH-PIN	Price: £1.79 Special Order	Qty:
17		Ref: 111-8906 HAYTER TORO LEVER-BAIL SPRING	Price: £0.74 Special Order	Qty:
18		Ref: 134-2284 HAYTER TORO LEVER-BAIL ARM SPRING	Price: £4.57 Special Order	Qty:
20		Ref: 111-0718 HAYTER TORO STARLOCK PUSH-ON FASTENER	Price: £1.46 Special Order	Qty:
21		Ref: 134-2027 HAYTER TORO CLIP-TREE	Price: £0.60 Special Order	Qty:
24		Ref: 134-2297 HAYTER TORO CABLE BBC	Price: £48.90 Special Order	Qty:
27		Ref: 134-0306 HAYTER TORO CONTROL THROTTLE (HONDA)	Price: £27.91 Special Order	Qty:
29		Ref: 134-0312 HAYTER TORO CABLE CLUTCH	Price: £12.73 Special Order	Qty:
30		Ref: 9780 HAYTER TORO SETSCREW M6*55 POSI PAN	Price: £1.87 Special Order	Qty:
31		Ref: 9438 HAYTER TORO NUT M6 X 1.5 PLAIN	Price: £1.62 Special Order	Qty:
32		Ref: 5010 HAYTER TORO BOLT UNC 1/4 X 1/3/4 HEX HD	Price: £1.63 Special Order	Qty:
33		Ref: 137-3088 HAYTER TORO NUT-HEX	Price: £0.60 Special Order	Qty:
34		Ref: 111-9837-03 HAYTER TORO HANDLEBAR LOWER	Price: £2.98 Special Order	Qty:
36		Ref: 340028 HAYTER TORO HANDLEBAR CLAMP PLATE	Price: £6.26 Special Order	Qty:
37		Ref: 134-3353 HAYTER TORO BOLT-COACH	Price: £1.06 Special Order	Qty:
38		Ref: 9441 HAYTER TORO NUT M8 NYL INSERT T TYPE	Price: £1.62 Special Order	Qty:
40		Ref: 480088 Hayter Handle Bar Knob 480088	Price: £4.70 Not in stock	Qty:
41		Ref: 9785 HAYTER TORO BOLT HANDLEBAR M8*50	Price: £3.83 Special Order	Qty:
42		Ref: 111-8688-03 HAYTER TORO BRACE HANDLEBAR	Price: £5.47 Special Order	Qty:
43		Ref: 111-8864-03 HAYTER TORO REAR LIFTING HANDLE (48)	Price: £8.23 Special Order	Qty:
45		Ref: 9373 HAYTER TORO BOLT COACH M8 X 25 PLATED	Price: £1.52 Special Order	Qty:
46		Ref: 9267 HAYTER TORO WASHER 5/16 X 7/8 X 15G GALV	Price: £1.62 Special Order	Qty:
47		Ref: 300160 HAYTER TORO TUBE PLUG	Price: £1.62 Special Order	Qty:
48		Ref: 111-8696 HAYTER TORO CLIP-CONDUIT TWIN	Price: £1.04 Special Order	Qty:
49		Ref: 134-2612	Not found
50		Ref: 134-2646	Not found
51		Ref: 201086 HAYTER TORO WASHER STARLOCK 5/16	Price: £1.62 Special Order	Qty:
52		Ref: 4020 HAYTER TORO SPRING GRIP FIX EXT 5/16in	Price: £1.62 Special Order	Qty:
53		Ref: 134-3208 HAYTER TORO STARLOCK-DOMED	Price: £0.60 Special Order	Qty:
55		Ref: 134-3328 HAYTER TORO TAPE - TOFFEE	Price: £0.74 Special Order	Qty:
56		Ref: ZWQ1J000U HAYTER TORO PLAIN HEAVY WASHER M10	Price: £1.61 Special Order	Qty:
57		Ref: HY3966 HAYTER TORO STRAP CABLE	Price: £1.56 Special Order	Qty:

Spare Parts for Hayter Harrier 48 Pro Autodrive with BBC 479A - Traction Suspension and HoC

Quick link to the part:
-	-	-	-
1		Ref: 111-8670 HAYTER TORO AXLE- SUPPORT REAR	Price: £2.36 Special Order	Qty:
2		Ref: 111-8576 HAYTER TORO REAR FRAME BEARING MOUNT	Price: £7.27 Special Order	Qty:
3		Ref: 134-2889 HAYTER TORO BEARING-BALL	Price: £10.73 Special Order	Qty:
4		Ref: 134-2261 HAYTER TORO GEARBOX BRACKET ASSEMBLY	Price: £6.67 Special Order	Qty:
5		Ref: 111-8675 HAYTER TORO HOC TOWER ASSEMBLY	Price: £13.93 Special Order	Qty:
6		Ref: 111-8710	Not found
7		Ref: 111-8623-03 HAYTER TORO REAR AXLE FRAME ASSEMBLY (48)	Price: £81.98 Special Order	Qty:
8		Ref: 134-2282 HAYTER TORO LEVER HOC ASSY	Price: £6.12 Special Order	Qty:
9		Ref: 480134 KNOB HOC 480134	Price: £2.40 Special Order	Qty:
10		Ref: 134-3805 HAYTER TORO SPROCKET 10T	Price: £12.10 Special Order	Qty:
11		Ref: 111-8216 HAYTER TORO WASHER-THRUST	Price: £1.10 Special Order	Qty:
12		Ref: 134-0254 HAYTER TORO CIRCLIP-EXTERNAL HD	Price: £0.60 Special Order	Qty:
13		Ref: 134-2655 Chain 42 Pitches 3/8" Inc Link 134-2655	Price: £11.80 3 in stock ready to go	Qty:
14		Ref: 134-3771 HAYTER TORO CHAIN GUARD	Price: £1.84 Special Order	Qty:
15		Ref: 410069 Hayter Toro BEARING FRONT AXLE 410069	Price: £2.64 1 in stock ready to go	Qty:
16		Ref: 111-8729 HAYTER TORO CONNECTING ROD WA (48)	Price: £10.38 Special Order	Qty:
17		Ref: 134-2254 HAYTER TORO SPRING LOAD LEVER	Price: £1.86 Special Order	Qty:
18		Ref: 111-8617	Not found
19		Ref: 9575 HAYTER TORO SCREW TAPTITE M6*20 WASHER	Price: £1.62 Special Order	Qty:
20		Ref: 9363 HAYTER TORO SETSCREW M6 X 20	Price: £1.54 Special Order	Qty:
21		Ref: 9472 HAYTER TORO WASHER-PLAIN	Price: £1.46 Special Order	Qty:
22		Ref: 9544 HAYTER TORO NUT M6 NYL INS GD 8	Price: £1.56 Special Order	Qty:
23		Ref: 111-9270 HAYTER TORO WHEEL ASM-8INCH SEMI-PNEU	Price: £26.26 Special Order	Qty:
24		Ref: 9479 HAYTER TORO WASHER M10 X 21 X 1.45 THK (P)	Price: £1.62 Special Order	Qty:
25		Ref: 9447 HAYTER TORO NUT M10 X 1.5 NYL INS	Price: £1.63 Special Order	Qty:
26		Ref: 480132 HAYTER TORO SPRING TORSION HOL	Price: £1.16 Special Order	Qty:
27		Ref: 111-8709 HAYTER TORO V BELT ZX/X10 772 DAT LENGTH	Price: £16.79 Special Order	Qty:
28		Ref: 134-0262 HAYTER TORO RIVET-PUSH PLASTIC	Price: £1.16 Special Order	Qty:
29		Ref: 134-0388 HAYTER TORO SPRING COUNTER BALANCE	Price: £16.87 Special Order	Qty:
30		Ref: 9263 HAYTER TORO WASHER 1/4 X 7/8 X .08in THK	Price: £1.56 Special Order	Qty:
32		Ref: 111-8587 HAYTER TORO SPRING-MOUNTING GEARBOX	Price: £13.26 Special Order	Qty:
33		Ref: 111-8994 HAYTER TORO BBC CABLE ANCHOR	Price: £1.36 Special Order	Qty:
34		Ref: 134-0050 HAYTER TORO SCREW-TAPTITE	Price: £0.60 Special Order	Qty:
36		Ref: 480097 Washer [Dia 16.5301 Plain Steel] 480097	Price: £1.64 2 in stock ready to go	Qty:
37		Ref: 111-8602 HAYTER TORO WASHER-THRUST	Price: £1.07 Special Order	Qty:
38		Ref: 134-2924 HAYTER TORO CAM-DRIVE	Price: £7.26 Special Order	Qty:
39		Ref: 134-3806 HAYTER TORO SPROCKET	Price: £7.67 Special Order	Qty:
40		Ref: 134-2034 Key Drive 134-2034	Price: £2.60 5 in stock ready to go	Qty:
41		Ref: 134-0049	Not found
42		Ref: 134-0314 HAYTER TORO SPACER-ROLLER	Price: £3.17 Special Order	Qty:
44		Ref: 111-8722 HAYTER TORO ROLLER SHAFT (48)	Price: £39.90 Special Order	Qty:
45		Ref: 340129 HAYTER TORO OILITE BUSH ROLLER	Price: £9.67 Special Order	Qty:
47		Ref: 4020 HAYTER TORO SPRING GRIP FIX EXT 5/16in	Price: £1.62 Special Order	Qty:
48		Ref: 201086 HAYTER TORO WASHER STARLOCK 5/16	Price: £1.62 Special Order	Qty:
49		Ref: 134-2299 HAYTER TORO SCREW-HWH	Price: £0.60 Special Order	Qty:
50		Ref: 134-2272-03 HAYTER TORO ROLLER_SHELL_ASSEMBLY	Price: £36.74 Special Order	Qty:
51		Ref: 134-0342 HAYTER TORO ROLLER END CAP	Price: £4.16 Special Order	Qty:
52		Ref: 134-2623 HAYTER TORO WASHER-THRUST	Price: £0.60 Special Order	Qty:
