Hayter Harrier 48 Autodrive BBC 493F 493F280000001 to 493F290999999

Name: Harrier 48 Autodrive BBC 493F (280000001 to 290999999) 1
Brand: Hayter

Harrier 48 Autodrive BBC 493F (280000001 to 290999999) 1

Harrier 48 Autodrive BBC 493F (280000001 to 290999999) 2

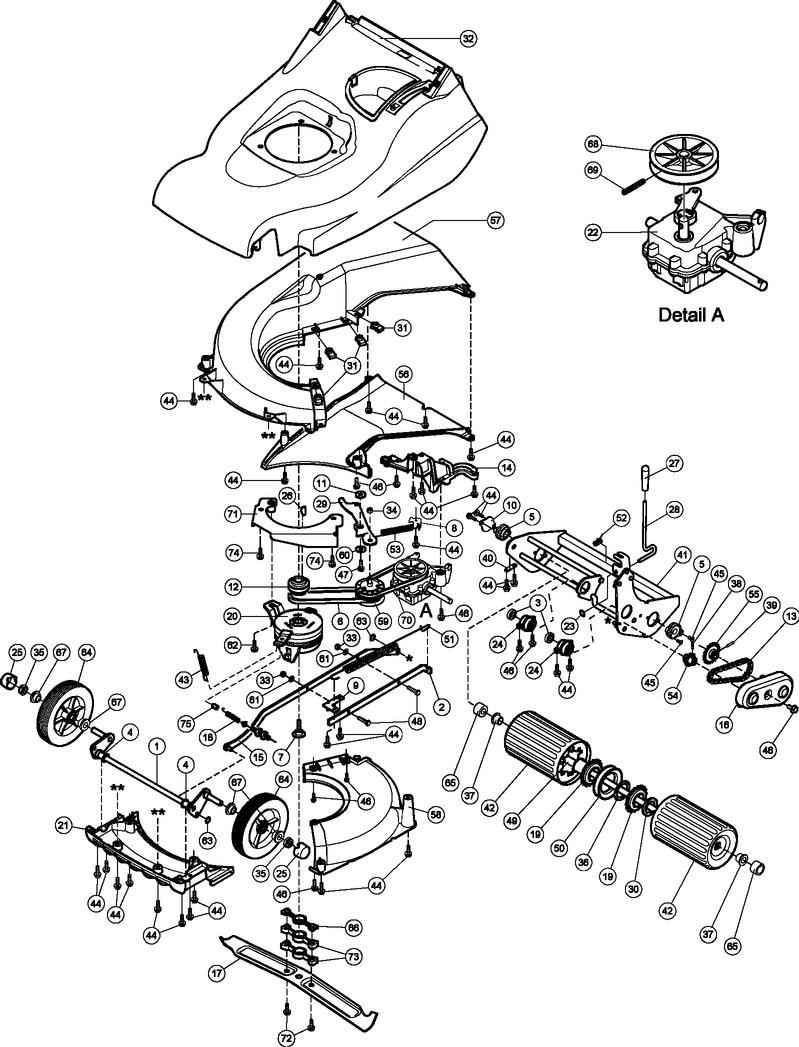

Spare Parts for Harrier 48 Autodrive BBC 493F (280000001 to 290999999) 1

Quick link to the part:
-	-	-	-
1		Ref: 111-0588 HAYTER TORO FRONT AXLE W/A	Price: £61.33 Special Order	Qty:
2		Ref: 111-0672 HAYTER TORO BAR SPRING TENSION	Price: £10.88 Special Order	Qty:
3		Ref: 111-1276 BEARING 111-1276	Price: £4.97 1 in stock ready to go	Qty:
4		Ref: 410069 Hayter Toro BEARING FRONT AXLE 410069	Price: £2.64 3 in stock ready to go	Qty:
5		Ref: 111-1492 ROLLER BEARING 111-1492	Price: £19.20 2 in stock ready to go	Qty:
6		Ref: 111-0771 HAYTER TORO BELT VARIATOR 536	Price: £11.45 Special Order	Qty:
7		Ref: 343029 BOLT CENTRE BBC 343029	Price: £5.66 Special Order	Qty:
8		Ref: HY412003 HAYTER TORO BRACKET CABLE	Price: £4.60 Special Order	Qty:
9		Ref: 111-0699 HAYTER TORO BRACKET CONN ROD	Price: £9.34 Special Order	Qty:
10		Ref: 111-1861 HAYTER TORO DUST COVER PLATE	Price: £2.09 Special Order	Qty:
11		Ref: 411031 411031 BUSHING PIVOT	Price: £10.09 2 in stock ready to go	Qty:
12		Ref: 111-0822 HAYTER TORO PULLEY 51MM PCD	Price: £72.05 Special Order	Qty:
13		Ref: 411016 CHAIN 40 PITCHES 3/8 INC LINK 411016	Price: £10.21 Special Order	Qty:
14		Ref: 111-1807	Not found
15		Ref: 111-0202 HAYTER TORO CONNECTING ROD	Price: £19.55 Special Order	Qty:
16		Ref: 411013 COVER DRIVE 411013	Price: £3.25 1 in stock ready to go	Qty:
17		Ref: 485005 HAYTER TORO CUTTERBAR BBC	Price: £35.44 Special Order	Qty:
18		Ref: 111-0527 111-0527 HAYTER TORO SPRING - Anchor Cable Spring	Price: £7.92 Special Order	Qty:
19		Ref: 340150 ROLLER FREEWHEEL-ROCKET 340150	Price: £13.12 1 in stock ready to go	Qty:
20		Ref: 485007 BLADE BRAKE CLUTCH 485007	Price: £214.87 Special Order	Qty:
21		Ref: 111-0594 HAYTER TORO FRONT FINS	Price: £27.08 Special Order	Qty:
22		Ref: 111-1273	Not found
23		Ref: 04020	Not found
24		Ref: 410048 HOUSING PIVOT BEARING LH 410048	Price: £7.34 Special Order	Qty:
25		Ref: 111-1251 111-1251 HUB CAP	Price: £1.80 2 in stock ready to go	Qty:
26		Ref: 1662 Hayter Woodruff Key HA1662 1662	Price: £1.80 8 in stock ready to go	Qty:
27		Ref: 480134 KNOB HOC 480134	Price: £2.40 Special Order	Qty:
28		Ref: 480128 HAYTER TORO LEVER HOC	Price: £8.16 Special Order	Qty:
29		Ref: 111-1480 HAYTER TORO LEVER VARIABLE SPEED	Price: £12.11 Special Order	Qty:
30		Ref: 340163 HAYTER TORO LOCKNUT	Price: £25.58 Special Order	Qty:
31		Ref: 410076 LUG NUT 410076	Price: £1.56 2 in stock ready to go	Qty:
32		Ref: 111-1650-08 HAYTER TORO MAINFRAME HARRIER 48	Price: £445.62 Special Order	Qty:
33		Ref: 09544	Not found
34		Ref: 09441	Not found
35		Ref: HY4486 HAYTER TORO NUT UNF 1/2inNYLOC EXT THIN5/16	Price: £1.58 Special Order	Qty:
36		Ref: 340157 HAYTER TORO SPACER STEEL 4941.52	Price: £2.09 Special Order	Qty:
37		Ref: 340129 HAYTER TORO OILITE BUSH ROLLER	Price: £9.67 Special Order	Qty:
38		Ref: 03997 Hayter Roll Pin 3/16 X 3/4 LG 03997	Price: £1.80 7 in stock ready to go	Qty:
39		Ref: HY03354 HAYTER TORO PIN SELLOC SPRING 3/16 X 1 HD	Price: £1.58 Special Order	Qty:
40		Ref: 219037 HAYTER TORO PLATE SECURING	Price: £1.62 Special Order	Qty:
41		Ref: 111-1187-03 HAYTER TORO FRAME REAR ROLLER W/A H48	Price: £194.33 Special Order	Qty:
42		Ref: 111-0592-03 HAYTER TORO ROLLER REAR W/A HARRIER 48	Price: £79.93 Special Order	Qty:
43		Ref: 343011 SPRING BLADE BRAKE TENSION 343011	Price: £8.42 Special Order	Qty:
44		Ref: 09365 SCREW M6x16 TAPTITE HEX HD 9365	Price: £2.64 1 in stock ready to go	Qty:
45		Ref: 09545	Not found
46		Ref: 09575 AL-KO Premium 48BWR Spare Lawnmower Blade	Price: £23.33 Special Order	Qty:
47		Ref: 09787	Not found
48		Ref: 09364	Not found
49		Ref: 111-1727 HAYTER TORO ROLLER SHAFT W/A H48	Price: £50.89 Special Order	Qty:
50		Ref: 340168 HAYTER TORO SHROUD - FREEWHEEL	Price: £11.57 Special Order	Qty:
51		Ref: 410050 SPRING COUNTER BALANCE 410050	Price: £6.61 Special Order	Qty:
52		Ref: 480132 HAYTER TORO SPRING TORSION HOL	Price: £1.16 Special Order	Qty:
53		Ref: HY412004 Hayter SPRING VARIATOR HY412004	Price: £5.65 3 in stock ready to go	Qty:
54		Ref: 411011 HAYTER TORO SPROCKET GEARBOX 10T*3/8in	Price: £13.43 Special Order	Qty:
55		Ref: 111-1552 HAYTER TORO 18T SPROCKET	Price: £24.71 Special Order	Qty:
56		Ref: 111-0218 THROWPLATE 111-0218	Price: £20.93 Special Order	Qty:
57		Ref: 111-0131 UNDERDECK CHUTE 111-0131	Price: £72.49 1 in stock ready to go	Qty:
58		Ref: 111-0133 UNDERDECK COVER 111-0133	Price: £25.28 Special Order	Qty:
59		Ref: 411001 PULLEY VARIATOR 411001	Price: £51.55 Not in stock	Qty:
60		Ref: 09270	Not found
61		Ref: 09472	Not found
62		Ref: ZIS8L030S HAYTER TORO SCREW SOC SHLD M10* DIA 12*30 RAW	Price: £12.11 Special Order	Qty:
63		Ref: 0201086	Not found
64		Ref: 111-1250 WHEEL 180 x 45mm Ribbed 111-1250	Price: £30.24 Not in stock	Qty:
65		Ref: 111-1860 HAYTER TORO DUST COVER BUSH	Price: £7.64 Special Order	Qty:
66		Ref: 111-0819	Not found
67		Ref: 111-1252	Not found
68		Ref: 111-1941 PULLEY GEARBOX 111-1941	Price: £8.56 Special Order	Qty:
69		Ref: 411023 HAYTER TORO PIN	Price: £1.56 Special Order	Qty:
70		Ref: 411025 Hayter Gearbox Variator Belt 411025	Price: £9.60 10+ in stock ready to go	Qty:
71		Ref: 111-0180-03 HAYTER TORO BRACKET BBC W/A	Price: £83.28 Special Order	Qty:
72		Ref: 111-0820	Not found
73		Ref: 111-0707	Not found
74		Ref: 09349	Not found
75		Ref: 510118 HAYTER TORO NIPPLE SPLIT	Price: £17.40 Special Order	Qty:
76		Ref:	Not found
77		Ref:	Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

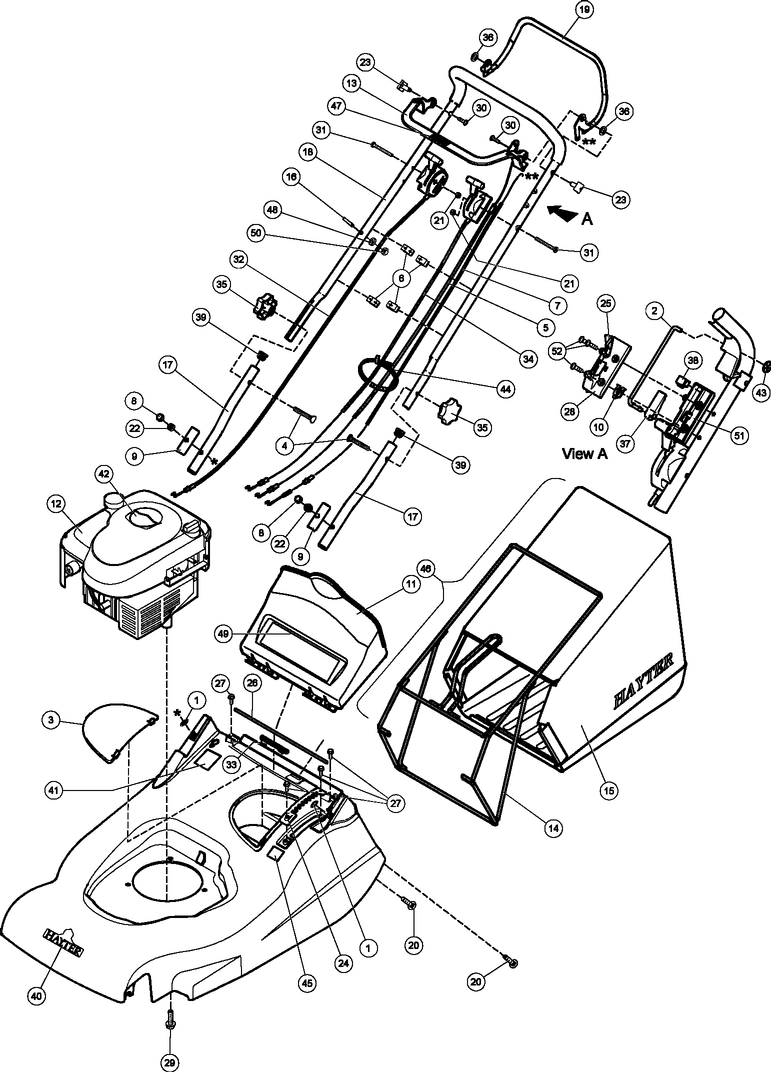

Spare Parts for Harrier 48 Autodrive BBC 493F (280000001 to 290999999) 2

Quick link to the part:
-	-	-	-
1		Ref: 04020	Not found
2		Ref: 111-0187 HAYTER TORO ROD CONNECTING	Price: £4.24 Special Order	Qty:
3		Ref: 111-0595 BATTERY COVER 111-0595	Price: £9.62 1 in stock ready to go	Qty:
4		Ref: HY226024 Hayter Toro Handle Bar Bolt HY226024	Price: £2.62 6 in stock ready to go	Qty:
5		Ref: 111-0748 HAYTER TORO CABLE BBC	Price: £21.82 Special Order	Qty:
6		Ref: 410037 HAYTER TORO GUIDE CABLE	Price: £1.46 Special Order	Qty:
7		Ref: 111-1548 HAYTER TORO CLUTCH CABLE	Price: £29.71 Special Order	Qty:
8		Ref: HY234051 CAP - NUT BLACK M8 HY234051	Price: £1.80 4 in stock ready to go	Qty:
9		Ref: 340028 HAYTER TORO HANDLEBAR CLAMP PLATE	Price: £6.26 Special Order	Qty:
10		Ref: 111-1065 HAYTER TORO MOULDING SECURING	Price: £1.62 Special Order	Qty:
11		Ref: 111-1714 REAR DEFLECTOR GRASS FLAP 111-1714	Price: £26.33 Special Order	Qty:
12		Ref: 111-0204 (Discontinued)	Not found
13		Ref: 340179	Not found
14		Ref: 111-1497-03 HAYTER TORO FRAME GRASSBAG	Price: £55.75 Special Order	Qty:
15		Ref: 111-1715	Not found
16		Ref: 305093 HAYTER TORO GUIDE ROPE	Price: £1.62 Special Order	Qty:
17		Ref: 111-1913-03 HAYTER TORO LOWER HANDLEBAR H48	Price: £10.27 Special Order	Qty:
18		Ref: 111-0519 HAYTER TORO HANDLEBAR UPPER MOULDED	Price: £102.91 Special Order	Qty:
19		Ref: 111-1921-03 HAYTER Spare Clutch Lever 111-1921-03	Price: £38.83 Special Order	Qty:
20		Ref: 09379	Not found
21		Ref: 09438	Not found
22		Ref: 09441	Not found
23		Ref: 340182 HAYTER TORO PIVOT PIN	Price: £1.62 Special Order	Qty:
24		Ref: 111-0201 HAYTER TORO RATCHET PLATE HOC	Price: £6.61 Special Order	Qty:
25		Ref: 111-0185	Not found
26		Ref: 560017 HAYTER TORO ROD DEFLECTOR	Price: £5.12 Special Order	Qty:
27		Ref: 09365 SCREW M6x16 TAPTITE HEX HD 9365	Price: £2.64 1 in stock ready to go	Qty:
28		Ref: 111-0183 HAYTER TORO TOP MOULDING CONTROL	Price: £2.78 Special Order	Qty:
29		Ref: 09349	Not found
30		Ref: 09687	Not found
31		Ref: 09780	Not found
32		Ref: 111-3704 HAYTER TORO CONTROL THROTTLE AND STOP	Price: £33.67 Special Order	Qty:
33		Ref: 410030 SPRING - DEFLECTOR 410030	Price: £6.00 Special Order	Qty:
34		Ref: 111-1193 CABLE VARIATOR 111-1193	Price: £30.05 Special Order	Qty:
35		Ref: 480088 Hayter Handle Bar Knob 480088	Price: £4.70 9 in stock ready to go	Qty:
36		Ref: 09688 WASHER NYLON 19111.6 09688	Price: £1.20 Special Order	Qty:
37		Ref: 111-0186 HAYTER TORO ACTUATOR MOULDING CONTROL	Price: £1.94 Special Order	Qty:
38		Ref: 111-0184 HAYTER TORO ANCHOR MOULDING CONTROL	Price: £1.56 Special Order	Qty:
39		Ref: 300160 HAYTER TORO TUBE PLUG	Price: £1.62 Special Order	Qty:
40		Ref: 410087 HAYTER LOGO (03) 410087	Price: £4.44 Special Order	Qty:
41		Ref: --------	Not found
42		Ref: 111-0759	Not found
43		Ref: 111-0718 HAYTER TORO STARLOCK PUSH-ON FASTENER	Price: £1.46 Special Order	Qty:
44		Ref: HY3966 HAYTER TORO STRAP CABLE	Price: £1.56 Special Order	Qty:
45		Ref: 320006 HAYTER TORO LABEL HEIGHT OF CUT	Price: £1.62 Special Order	Qty:
46		Ref: 111-1551 HAYTER TORO KIT GRASSBAG ASSEMBLY	Price: £138.86 Special Order	Qty:
47		Ref: 111-0745	Not found
48		Ref: 09472	Not found
49		Ref: 111-0083 HAYTER TORO DECAL - SAFETY	Price: £2.30 Special Order	Qty:
50		Ref: 09544	Not found
51		Ref: 111-0182 HAYTER TORO BASE MOULDING CONTROL	Price: £2.87 Special Order	Qty:
52		Ref: 70-11-012 HAYTER TORO POZI DRIVE S/T NO10*3/4	Price: £1.66 Special Order	Qty:
