Hayter Harrier 48 Autodrive BBC 493D 493D260000001 to 493D260999999

Name: Harrier 48 Autodrive BBC 493D (260000001 to 260999999) 1
Brand: Hayter

Harrier 48 Autodrive BBC 493D (260000001 to 260999999) 1

Harrier 48 Autodrive BBC 493D (260000001 to 260999999) 2

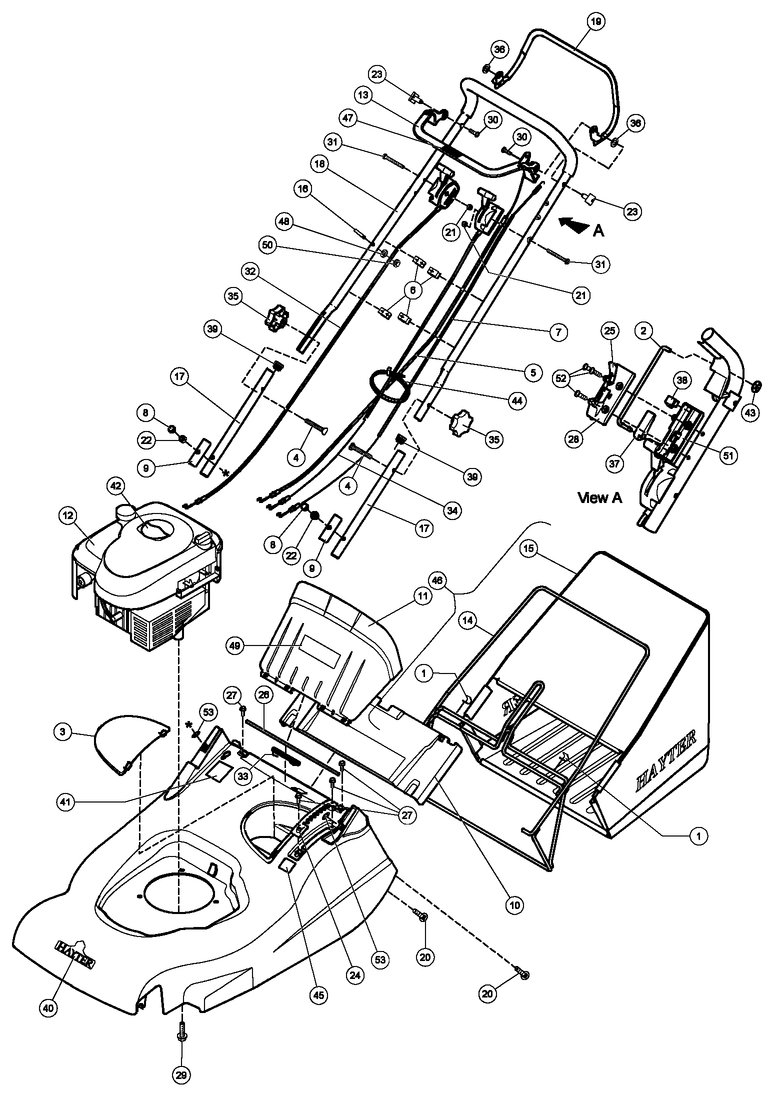

Spare Parts for Harrier 48 Autodrive BBC 493D (260000001 to 260999999) 1

Quick link to the part:
-	-	-	-
1		Ref: 111-0588 HAYTER TORO FRONT AXLE W/A	Price: £61.33 Special Order	Qty:
2		Ref: 111-0672 HAYTER TORO BAR SPRING TENSION	Price: £10.88 Special Order	Qty:
3		Ref: 411027	Not found
4		Ref: 410069 Hayter Toro BEARING FRONT AXLE 410069	Price: £2.64 3 in stock ready to go	Qty:
5		Ref: 219102 HAYTER TORO HOUSING BEARING ROLLER	Price: £12.67 Special Order	Qty:
6		Ref: 111-0771 HAYTER TORO BELT VARIATOR 536	Price: £11.45 Special Order	Qty:
7		Ref: 343029 BOLT CENTRE BBC 343029	Price: £5.66 Special Order	Qty:
8		Ref: 412003	Not found
9		Ref: 111-0699 HAYTER TORO BRACKET CONN ROD	Price: £9.34 Special Order	Qty:
10		Ref: 340154 HAYTER TORO BUSH	Price: £5.66 Special Order	Qty:
11		Ref: 411031 411031 BUSHING PIVOT	Price: £10.09 2 in stock ready to go	Qty:
12		Ref: 111-0634	Not found
13		Ref: 411016 CHAIN 40 PITCHES 3/8 INC LINK 411016	Price: £10.21 Special Order	Qty:
14		Ref: 111-0426	Not found
15		Ref: 111-0202 HAYTER TORO CONNECTING ROD	Price: £19.55 Special Order	Qty:
16		Ref: 411013 COVER DRIVE 411013	Price: £3.25 1 in stock ready to go	Qty:
17		Ref: 485005 HAYTER TORO CUTTERBAR BBC	Price: £35.44 Special Order	Qty:
18		Ref: 111-0527 111-0527 HAYTER TORO SPRING - Anchor Cable Spring	Price: £7.92 Special Order	Qty:
19		Ref: 340150 ROLLER FREEWHEEL-ROCKET 340150	Price: £13.12 1 in stock ready to go	Qty:
20		Ref: 485007 BLADE BRAKE CLUTCH 485007	Price: £214.87 Special Order	Qty:
21		Ref: 111-0594 HAYTER TORO FRONT FINS	Price: £27.08 Special Order	Qty:
22		Ref: 411002 GEARBOX M 411002	Price: £103.09 Special Order	Qty:
23		Ref: 04020	Not found
24		Ref: 410048 HOUSING PIVOT BEARING LH 410048	Price: £7.34 Special Order	Qty:
25		Ref: 219143 CAP HUB 219143	Price: £6.40 3 in stock ready to go	Qty:
26		Ref: 1662 Hayter Woodruff Key HA1662 1662	Price: £1.80 8 in stock ready to go	Qty:
27		Ref: 480134 KNOB HOC 480134	Price: £2.40 Special Order	Qty:
28		Ref: 480128 HAYTER TORO LEVER HOC	Price: £8.16 Special Order	Qty:
29		Ref: 411014 HAYTER TORO LEVER VARIABLE PULLEY	Price: £10.57 Special Order	Qty:
30		Ref: 340163 HAYTER TORO LOCKNUT	Price: £25.58 Special Order	Qty:
31		Ref: 410076 LUG NUT 410076	Price: £1.56 2 in stock ready to go	Qty:
32		Ref: 111-0548-08	Not found
33		Ref: 09544	Not found
34		Ref: 09441	Not found
35		Ref: 4486	Not found
36		Ref: 340149	Not found
37		Ref: 340129 HAYTER TORO OILITE BUSH ROLLER	Price: £9.67 Special Order	Qty:
38		Ref: 03997 Hayter Roll Pin 3/16 X 3/4 LG 03997	Price: £1.80 7 in stock ready to go	Qty:
39		Ref: HY03354 HAYTER TORO PIN SELLOC SPRING 3/16 X 1 HD	Price: £1.58 Special Order	Qty:
40		Ref: 219037 HAYTER TORO PLATE SECURING	Price: £1.62 Special Order	Qty:
41		Ref: 111-0585-03	Not found
42		Ref: 111-0592-03 HAYTER TORO ROLLER REAR W/A HARRIER 48	Price: £79.93 Special Order	Qty:
43		Ref: 343011 SPRING BLADE BRAKE TENSION 343011	Price: £8.42 Special Order	Qty:
44		Ref: 09365 SCREW M6x16 TAPTITE HEX HD 9365	Price: £2.64 1 in stock ready to go	Qty:
45		Ref: 09545	Not found
46		Ref: 09575 AL-KO Premium 48BWR Spare Lawnmower Blade	Price: £23.33 Special Order	Qty:
47		Ref: 09787	Not found
48		Ref: 09364	Not found
49		Ref: 111-0589 HAYTER TORO ROLLER SHAFT W/A ##	Price: £66.92 Special Order	Qty:
50		Ref: 340168 HAYTER TORO SHROUD - FREEWHEEL	Price: £11.57 Special Order	Qty:
51		Ref: 410050 SPRING COUNTER BALANCE 410050	Price: £6.61 Special Order	Qty:
52		Ref: 480132 HAYTER TORO SPRING TORSION HOL	Price: £1.16 Special Order	Qty:
53		Ref: 412004	Not found
54		Ref: 411011 HAYTER TORO SPROCKET GEARBOX 10T*3/8in	Price: £13.43 Special Order	Qty:
55		Ref: 411010 HAYTER TORO SPROCKET ROLLER 18T*3/8in	Price: £22.60 Special Order	Qty:
56		Ref: 111-0218 THROWPLATE 111-0218	Price: £20.93 Special Order	Qty:
57		Ref: 111-0131 UNDERDECK CHUTE 111-0131	Price: £72.49 1 in stock ready to go	Qty:
58		Ref: 111-0133 UNDERDECK COVER 111-0133	Price: £25.28 Special Order	Qty:
59		Ref: 411001 PULLEY VARIATOR 411001	Price: £51.55 Not in stock	Qty:
60		Ref: 09270	Not found
61		Ref: 09472	Not found
62		Ref: ZIS8L030S HAYTER TORO SCREW SOC SHLD M10* DIA 12*30 RAW	Price: £12.11 Special Order	Qty:
63		Ref: 0201086	Not found
64		Ref: 111-1250 WHEEL 180 x 45mm Ribbed 111-1250	Price: £30.24 Not in stock	Qty:
65		Ref: ZNN1J000U HAYTER TORO HEX.NUT NYLOC M10	Price: £1.66 Special Order	Qty:
66		Ref: 411020 HAYTER TORO LEVER CLUTCH	Price: £7.78 Special Order	Qty:
67		Ref: 411021 HAYTER TORO CLUTCH SPRING	Price: £2.20 Special Order	Qty:
68		Ref: 411019 PULLEY 411019	Price: £12.00 Special Order	Qty:
69		Ref: 411023 HAYTER TORO PIN	Price: £1.56 Special Order	Qty:
70		Ref: 411025 Hayter Gearbox Variator Belt 411025	Price: £9.60 10+ in stock ready to go	Qty:
71		Ref: 111-0180-03 HAYTER TORO BRACKET BBC W/A	Price: £83.28 Special Order	Qty:

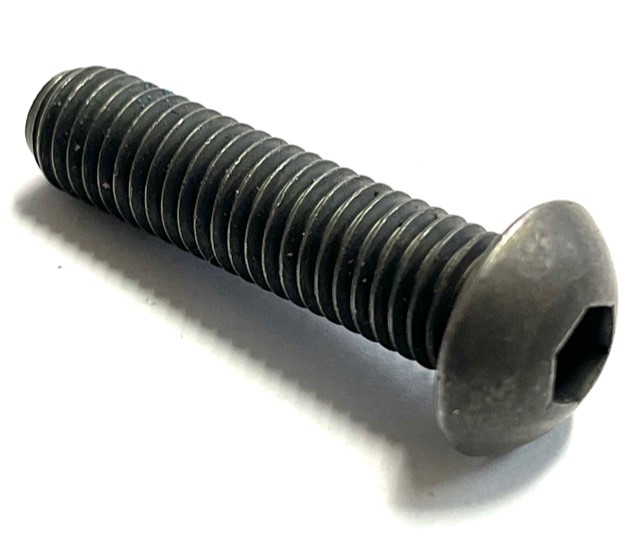

72		Ref: 111-0717 HAYTER TORO SCREW SOC HD BUTTON	Price: £2.16 Special Order	Qty:
73		Ref: 111-0707	Not found
74		Ref: 09349	Not found
75		Ref: 510118 HAYTER TORO NIPPLE SPLIT	Price: £17.40 Special Order	Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Harrier 48 Autodrive BBC 493D (260000001 to 260999999) 2

Quick link to the part:
-	-	-	-
1		Ref: 111-0458 HAYTER TORO CLIP GRASSBAG FLAP	Price: £1.46 Special Order	Qty:
2		Ref: 111-0187 HAYTER TORO ROD CONNECTING	Price: £4.24 Special Order	Qty:
3		Ref: 111-0595 BATTERY COVER 111-0595	Price: £9.62 1 in stock ready to go	Qty:
4		Ref: HY226024 Hayter Toro Handle Bar Bolt HY226024	Price: £2.62 5 in stock ready to go	Qty:
5		Ref: 111-0748 HAYTER TORO CABLE BBC	Price: £21.82 Special Order	Qty:
6		Ref: 410037 HAYTER TORO GUIDE CABLE	Price: £1.46 Special Order	Qty:
7		Ref: 111-0701 Cable Clutch 111-0701	Price: £24.97 Special Order	Qty:
8		Ref: HY234051 CAP - NUT BLACK M8 HY234051	Price: £1.80 4 in stock ready to go	Qty:
9		Ref: 340028 HAYTER TORO HANDLEBAR CLAMP PLATE	Price: £6.26 Special Order	Qty:
10		Ref: 111-0196 FLAP GRASSBAG 111-0196	Price: £20.14 Special Order	Qty:
11		Ref: 111-0633 DEFLECTOR 111-0633 (WAS 560016)	Price: £16.73 Special Order	Qty:
12		Ref: 111-0204 (Discontinued)	Not found
13		Ref: 340179	Not found
14		Ref: 111-0194-03	Not found
15		Ref: 111-0197	Not found
16		Ref: 305093 HAYTER TORO GUIDE ROPE	Price: £1.62 Special Order	Qty:
17		Ref: 410034W HAYTER TORO HANDLEBAR LOWER	Price: £6.89 Special Order	Qty:
18		Ref: 111-0519 HAYTER TORO HANDLEBAR UPPER MOULDED	Price: £102.91 Special Order	Qty:
19		Ref: 306094W	Not found
20		Ref: 09379	Not found
21		Ref: 09438	Not found
22		Ref: 09441	Not found
23		Ref: 340182 HAYTER TORO PIVOT PIN	Price: £1.62 Special Order	Qty:
24		Ref: 111-0201 HAYTER TORO RATCHET PLATE HOC	Price: £6.61 Special Order	Qty:
25		Ref: 111-0185	Not found
26		Ref: 560017 HAYTER TORO ROD DEFLECTOR	Price: £5.12 Special Order	Qty:
27		Ref: 09365 SCREW M6x16 TAPTITE HEX HD 9365	Price: £2.64 1 in stock ready to go	Qty:
28		Ref: 111-0183 HAYTER TORO TOP MOULDING CONTROL	Price: £2.78 Special Order	Qty:
29		Ref: 09349	Not found
30		Ref: 09687	Not found
31		Ref: 09780	Not found
32		Ref: 111-0747	Not found
33		Ref: 410030 SPRING - DEFLECTOR 410030	Price: £6.00 Special Order	Qty:
34		Ref: 111-0702	Not found
35		Ref: 480088 Hayter Handle Bar Knob 480088	Price: £4.70 9 in stock ready to go	Qty:
36		Ref: 09688 WASHER NYLON 19111.6 09688	Price: £1.20 Special Order	Qty:
37		Ref: 111-0186 HAYTER TORO ACTUATOR MOULDING CONTROL	Price: £1.94 Special Order	Qty:
38		Ref: 111-0184 HAYTER TORO ANCHOR MOULDING CONTROL	Price: £1.56 Special Order	Qty:
39		Ref: 300160 HAYTER TORO TUBE PLUG	Price: £1.62 Special Order	Qty:
40		Ref: 410087 HAYTER LOGO (03) 410087	Price: £4.44 Special Order	Qty:
41		Ref: --------	Not found
42		Ref: 486005	Not found
43		Ref: 111-0718 HAYTER TORO STARLOCK PUSH-ON FASTENER	Price: £1.46 Special Order	Qty:
44		Ref: 3966	Not found
45		Ref: 320006 HAYTER TORO LABEL HEIGHT OF CUT	Price: £1.62 Special Order	Qty:
46		Ref: 111-0764	Not found
47		Ref: 111-0745	Not found
48		Ref: 09472	Not found
49		Ref: 111-0083 HAYTER TORO DECAL - SAFETY	Price: £2.30 Special Order	Qty:
50		Ref: 09544	Not found
51		Ref: 111-0182 HAYTER TORO BASE MOULDING CONTROL	Price: £2.87 Special Order	Qty:
52		Ref: 70-11-012 HAYTER TORO POZI DRIVE S/T NO10*3/4	Price: £1.66 Special Order	Qty:
53		Ref: 04020	Not found
