Stiga Collector 35 E 297330068/ST1 (2018-Onwards)


297330068/ST1 Wheels, Blade, Body Works, Engine
297330068/ST1 Wheels, Blade, Body Works, Engine
297330068/ST1 Handle
297330068/ST1 Handle
297330068/ST1 Grass-Catcher
297330068/ST1 Grass-Catcher

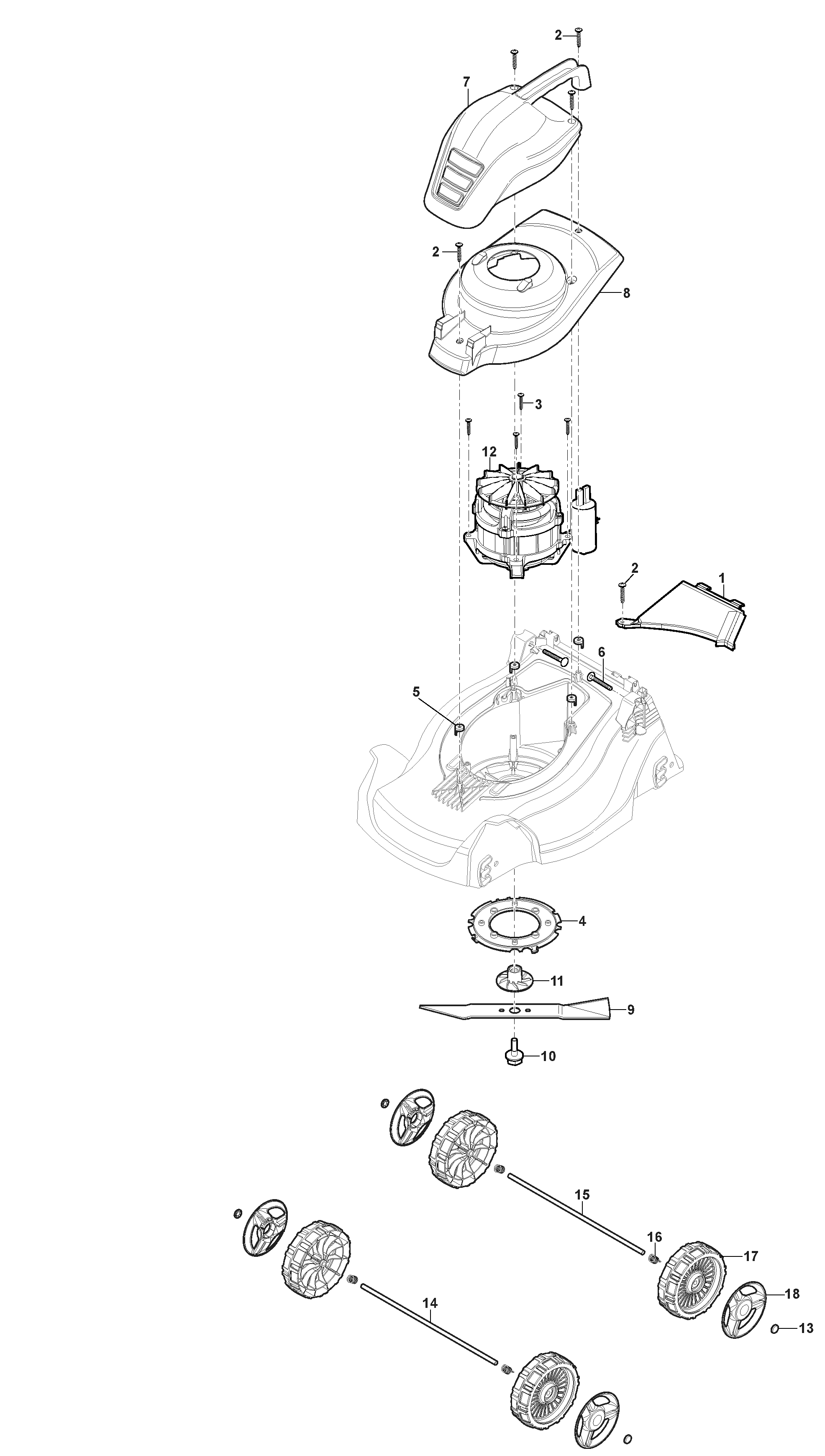

Spare Parts for 297330068/ST1 Wheels, Blade, Body Works, Engine

297330068/ST1 Wheels, Blade, Body Works, Engine
Stock last checked Apr 25 2025 06:10.
--- -
1Plastic Rear Conveyor Ew 330Ref: 322108326/0
Plastic Rear Conveyor Ew 330
Price: £8.20
Special Order
Qty:
2112728714/0 SELF TAPPING SCREWRef: 112728714/0
112728714/0 SELF TAPPING SCREW
Price: £1.66
Special Order
Qty:
3Flanged Hex-Head Screw D=6 X 35Ref: 112735410/0
Flanged Hex-Head Screw D=6 X 35
Price: £1.49
Special Order
Qty:
4Ventilation ScreenRef: 322720360/2
Ventilation Screen
Price: £3.12
Special Order
Qty:
5Insulation SpacerRef: 122167700/0
Insulation Spacer
Price: £1.49
Special Order
Qty:
6Screw Ttdq M8 X 70Ref: 112819203/0
Screw Ttdq M8 X 70
Price: £1.49
Special Order
Qty:
7Cover Ew33 Grig.Stiga Spr.+Tamp.Stig 35ERef: 322055587/0A
Cover Ew33 Grig.Stiga Spr.+Tamp.Stig 35E
Price: £10.30
Special Order
Qty:
8Engine Cover [Yellow]Ref: 322055580/0
Engine Cover [Yellow]
Price: £6.23
Special Order
Qty:
9Stiga Spare Lawnmower Blade - Collector 35E  1111-9156-02Ref: 1111-9156-02
Stiga Spare Lawnmower Blade - Collector 35E 1111-9156-02
Price: £13.10
Special Order
Qty:
10381004352/1 BLADE BOLT (was 81004352/0)Ref: 381004352/1
381004352/1 BLADE BOLT (was 81004352/0)
Price: £3.83
Special Order
Qty:
11Fan/Blade HolderRef: 322465663/0
Fan/Blade Holder
Price: £6.73
Special Order
Qty:
11Ref: 1111-9250-01
Not found
11Ref: 1111-9250-02
Not found
12Electric Motor 230V-50Hz 1000WRef: 118563725/0
Electric Motor 230V-50Hz 1000W
Price: £79.24
Special Order
Qty:
13Starlock Washer D=8Ref: 112604911/0
Starlock Washer D=8
Price: £1.49
Special Order
Can be ordered (1 at manufacturer)
Qty:
14Wheels AxleRef: 122033443/1
Wheels Axle
Price: £3.12
Special Order
Qty:
14Ref: 122033443/0
Not found
15Wheels AxleRef: 122033443/1
Wheels Axle
Price: £3.12
Special Order
Qty:
15Ref: 122033443/0
Not found
16Axis Spring Ew 330 - Ew 370Ref: 122446196/0
Axis Spring Ew 330 - Ew 370
Price: £1.28
Special Order
Qty:
17Wheel D=140 Ew-330/370 BlackRef: 322686108/0
Wheel D=140 Ew-330/370 Black
Price: £3.12
Special Order
Qty:
18Delta Hub Cap D=150 [Grey]Ref: 322110683/0
Delta Hub Cap D=150 [Grey]
Price: £1.49
Special Order
Can be ordered (5 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

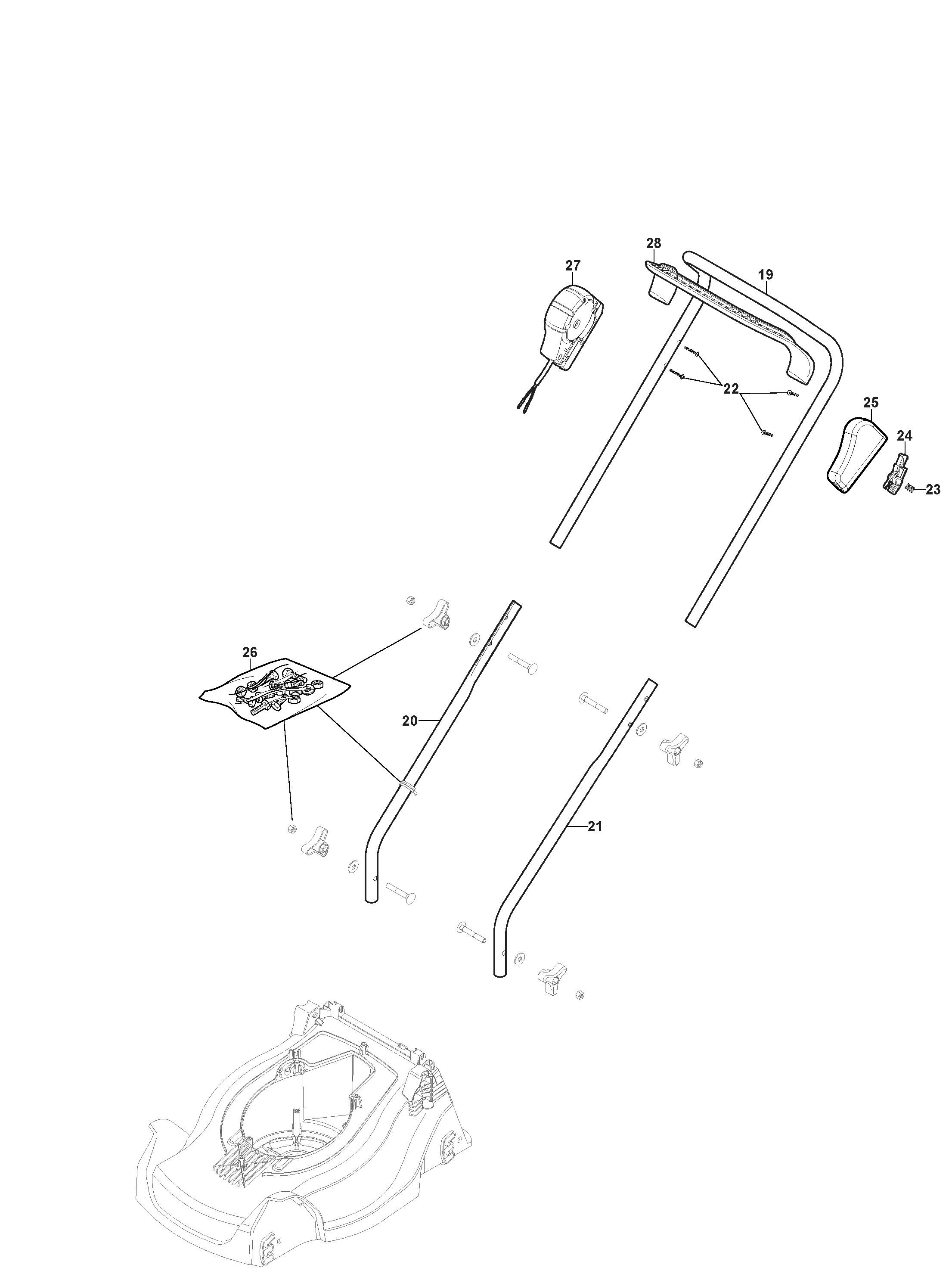

Spare Parts for 297330068/ST1 Handle

297330068/ST1 Handle
Stock last checked Apr 25 2025 06:10.
--- -
19Upper Handle Kiwi/CiaoRef: 381006941/4
Upper Handle Kiwi/Ciao
Price: £26.54
Special Order
Qty:
20Lower R/H HandleRef: 381007597/0
Lower R/H Handle
Price: £8.20
Special Order
Qty:
21Lower L/H HandleRef: 381007598/0
Lower L/H Handle
Price: £8.20
Special Order
Can be ordered (1 at manufacturer)
Qty:
22Self-Tap Screw Pt Torx Wn1451 K40X25Ref: 112728701/0
Self-Tap Screw Pt Torx Wn1451 K40X25
Price: £1.36
Special Order
Can be ordered (5 at manufacturer)
Qty:
23Dead-Hand Switch Lever SpringRef: 122450115/0
Dead-Hand Switch Lever Spring
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
24Lh Fulcrum Engaging Dead-Hand SwitchRef: 322230350/2
Lh Fulcrum Engaging Dead-Hand Switch
Price: £1.90
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
25Lh Dead-Hand Switch Lever Support Wbh ElRef: 322785144/1
Lh Dead-Hand Switch Lever Support Wbh El
Price: £2.70
Special Order
Qty:
26Screw Assembly Kit Ew33-37Ref: 381008790/0
Screw Assembly Kit Ew33-37
Price: £7.86
Special Order
Qty:
27Opc Switch Assembly L=1130MmRef: 381600564/0
Opc Switch Assembly L=1130Mm
Price: £39.28
Special Order
Can be ordered (1 at manufacturer)
Qty:
28Dead Hand Switch Lever Stiga YellowRef: 322322883/2
Dead Hand Switch Lever Stiga Yellow
Price: £7.98
Special Order
Qty:
28Dead Hand Switch Lever [Yellow]Ref: 322322883/1
Dead Hand Switch Lever [Yellow]
Price: £6.59
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

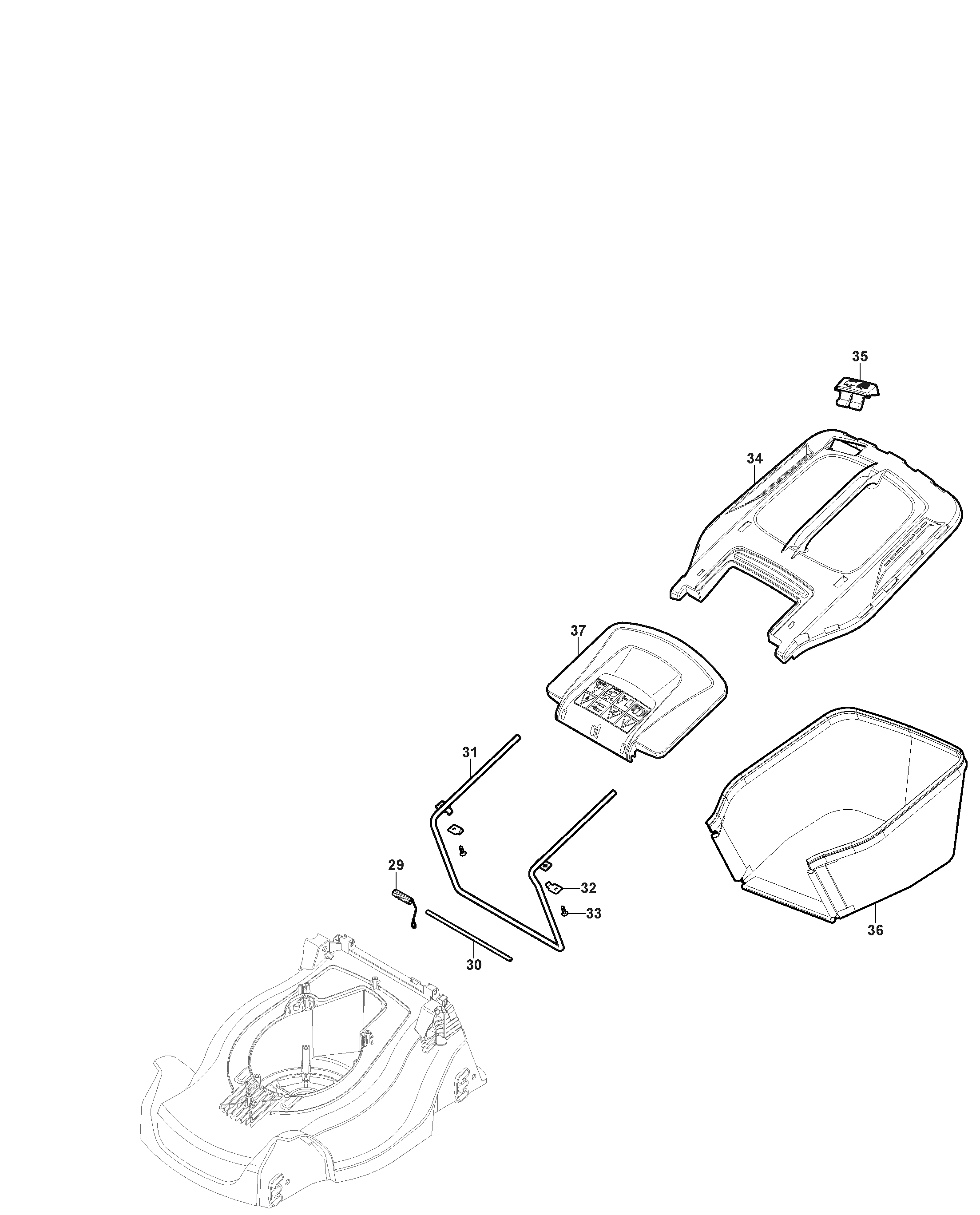

Spare Parts for 297330068/ST1 Grass-Catcher

297330068/ST1 Grass-Catcher
Stock last checked Apr 25 2025 06:10.
--- -
29SpringRef: 122450250/0
Spring
Price: £1.49
Special Order
Qty:
30Deflector RodRef: 122512603/0
Deflector Rod
Price: £2.44
Special Order
Can be ordered (1 at manufacturer)
Qty:
31Grasscatcher Frame Ew330Ref: 122608572/0
Grasscatcher Frame Ew330
Price: £11.24
Special Order
Qty:
32Fixing PlateRef: 322545159/0
Fixing Plate
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
33Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
34Upper Grasscatcher Top [Grey]Ref: 322486469/0
Upper Grasscatcher Top [Grey]
Price: £17.74
Special Order
Qty:
35Ref: 322486470/0
Not found
36Ref: 181102398/0
Not found
37Stone Guard Ew 330 Yellow StigaRef: 322600344/0
Stone Guard Ew 330 Yellow Stiga
Price: £6.10
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
