Stiga Combi 55 SQ DAE (2020) - 294557878/ST1


Combi 55 SQ DAE (2020) -  Deck and Height Adjusting - 294557878/ST1
Combi 55 SQ DAE (2020) - Deck and Height Adjusting - 294557878/ST1
Combi 55 SQ DAE (2020) -  Mask
Combi 55 SQ DAE (2020) - Mask
Combi 55 SQ DAE (2020) -  Handle
Combi 55 SQ DAE (2020) - Handle
Combi 55 SQ DAE (2020) -  Digit Dash Board
Combi 55 SQ DAE (2020) - Digit Dash Board

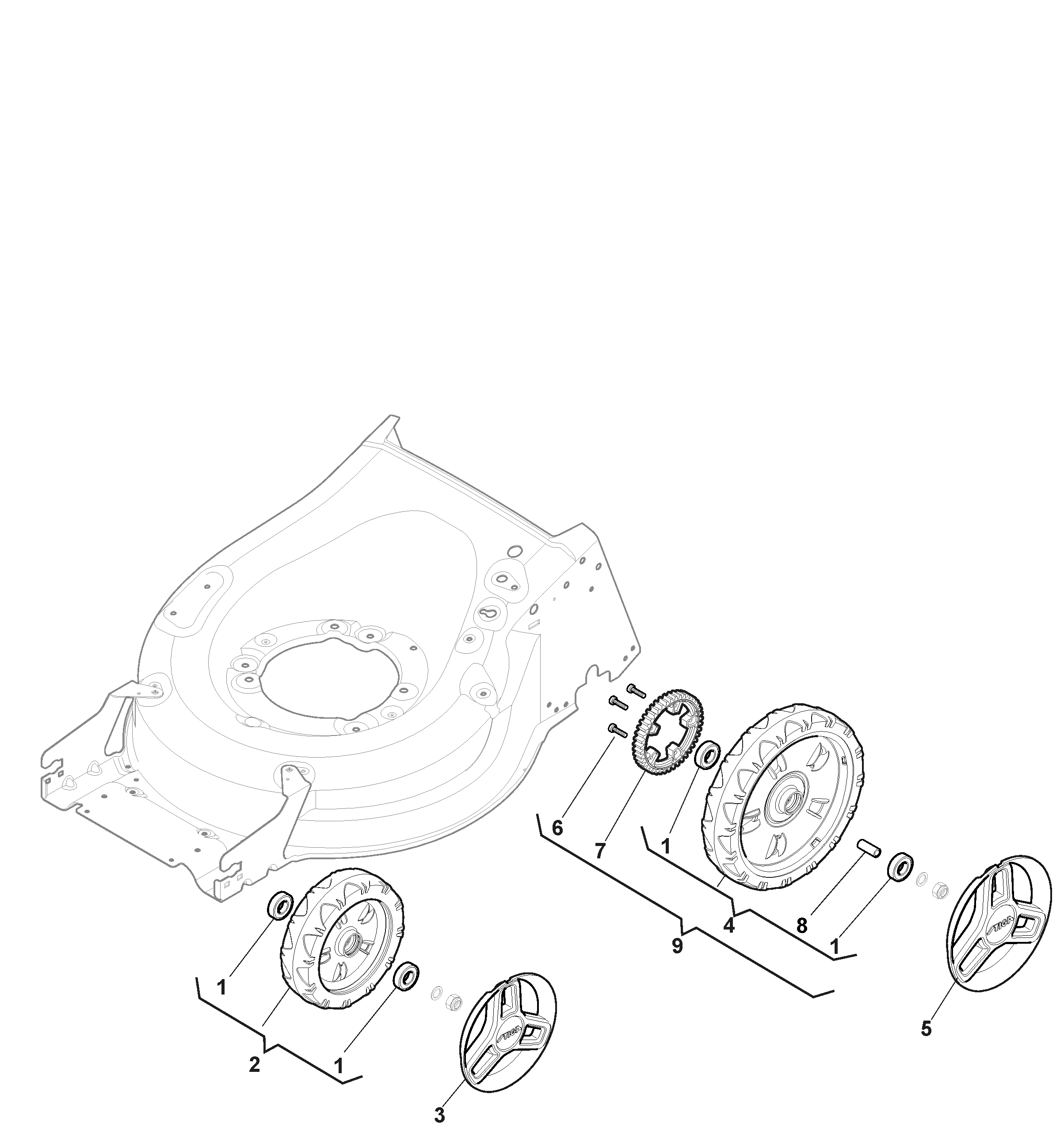

Combi 55 SQ DAE (2020) -  Wheels and Hubcaps
Combi 55 SQ DAE (2020) - Wheels and Hubcaps

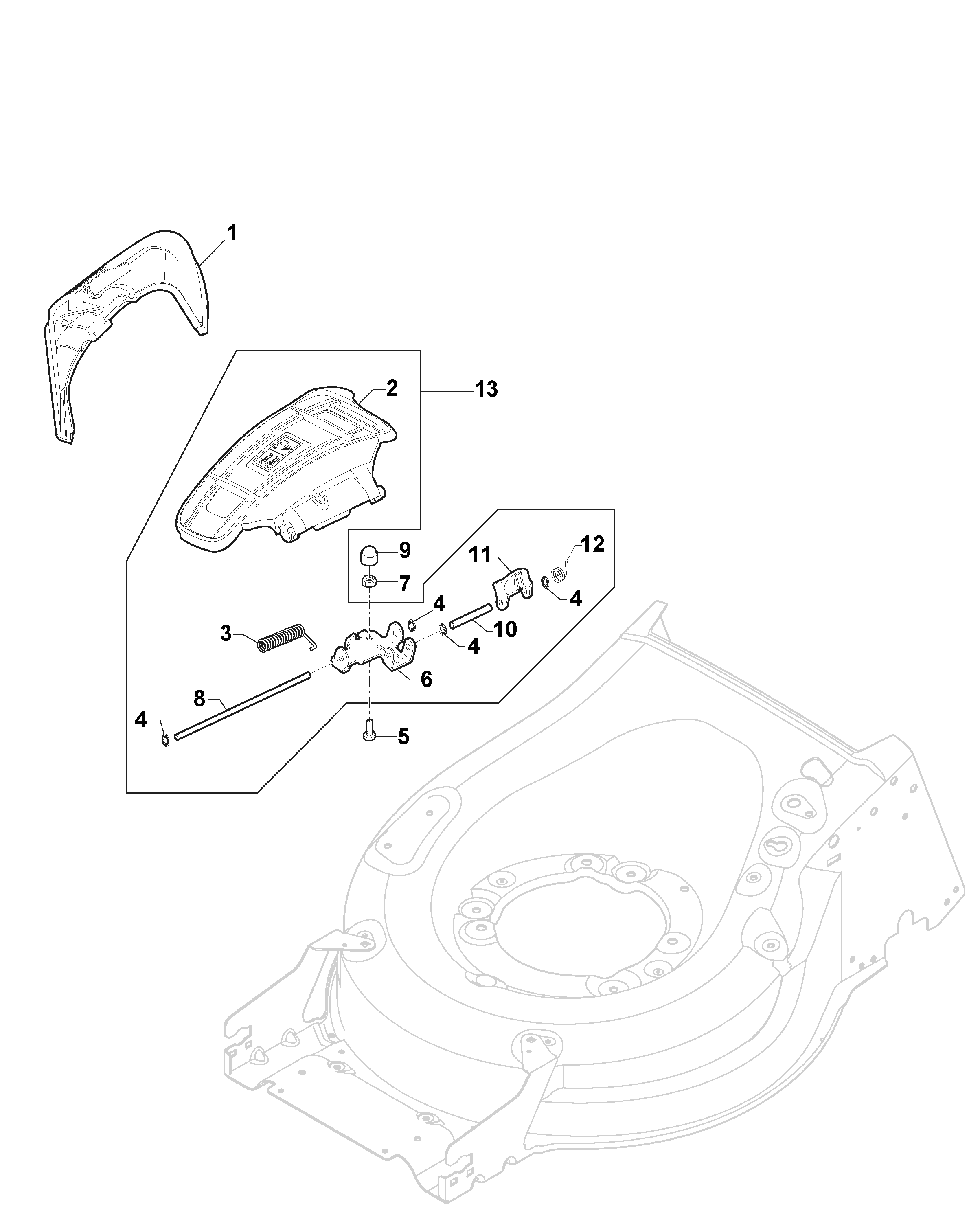

Combi 55 SQ DAE (2020) -  Ejection Guard
Combi 55 SQ DAE (2020) - Ejection Guard

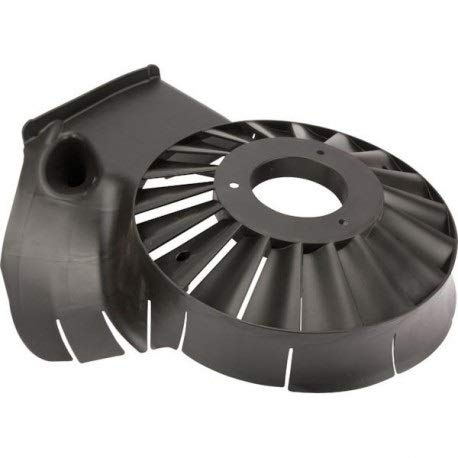

Combi 55 SQ DAE (2020) -  Protection Belt
Combi 55 SQ DAE (2020) - Protection Belt

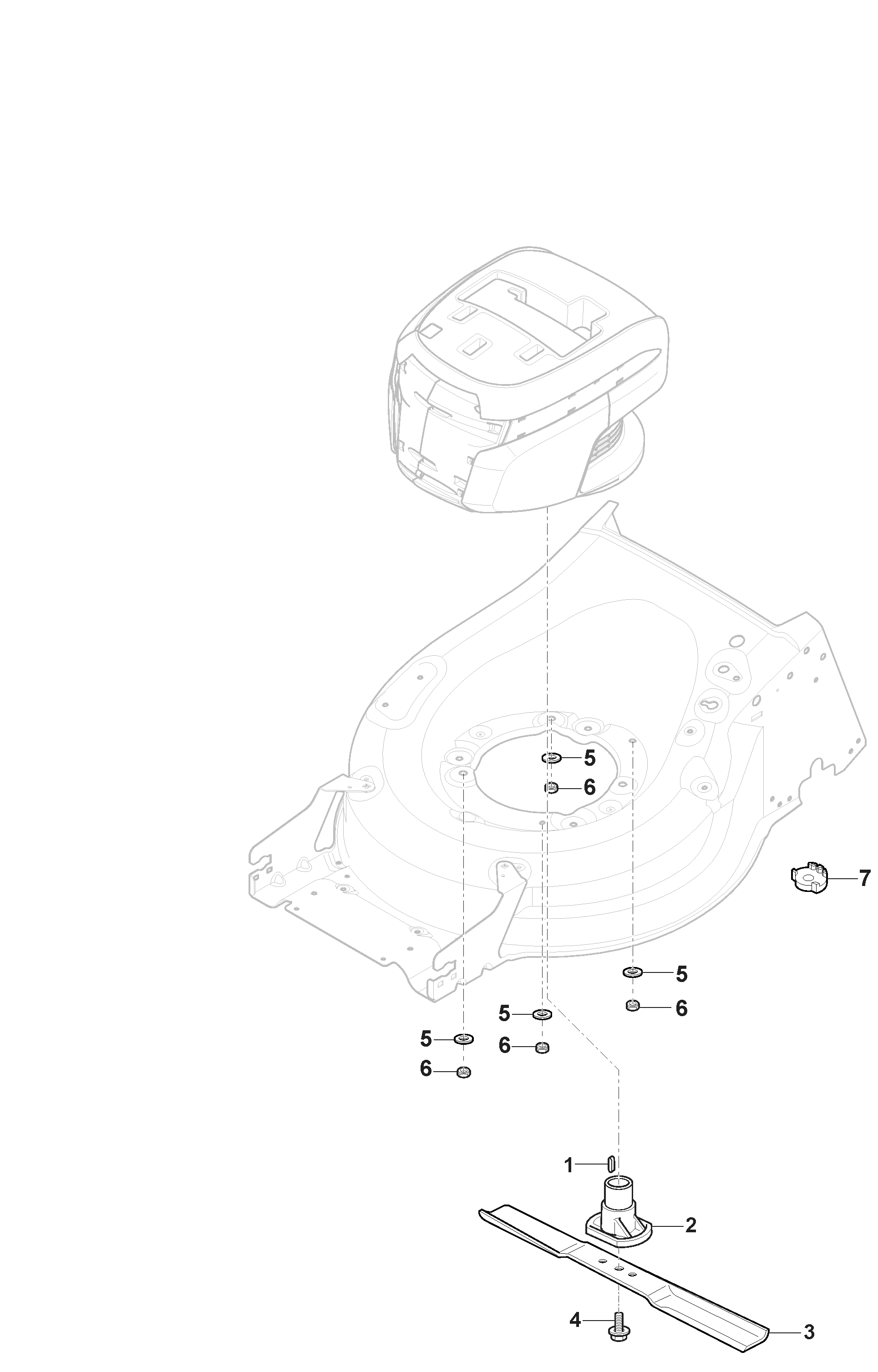

Combi 55 SQ DAE (2020) -  Blade and Hub
Combi 55 SQ DAE (2020) - Blade and Hub

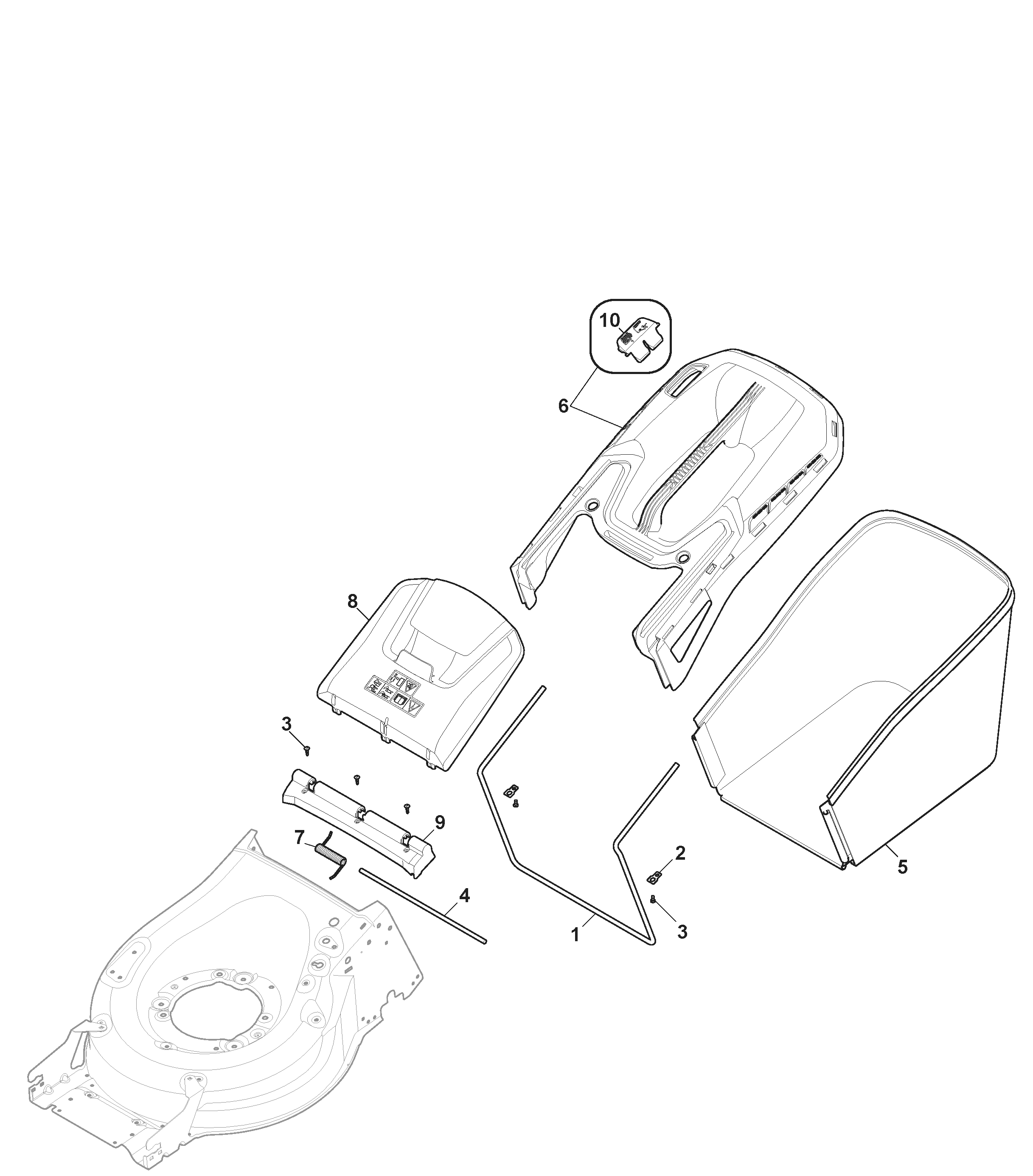

Combi 55 SQ DAE (2020) -  Grass Catcher
Combi 55 SQ DAE (2020) - Grass Catcher

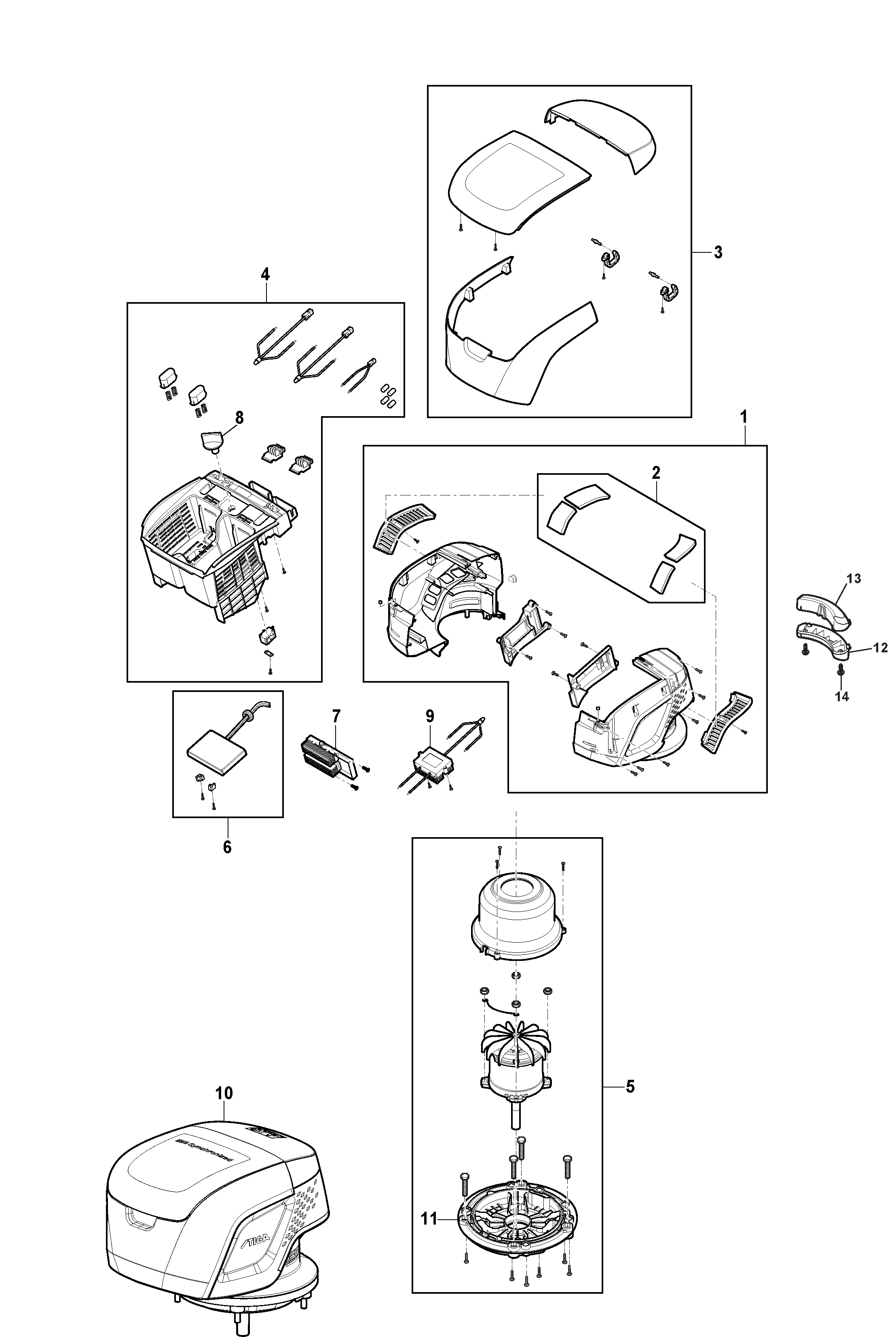

Combi 55 SQ DAE (2020) -  Electric Motor
Combi 55 SQ DAE (2020) - Electric Motor

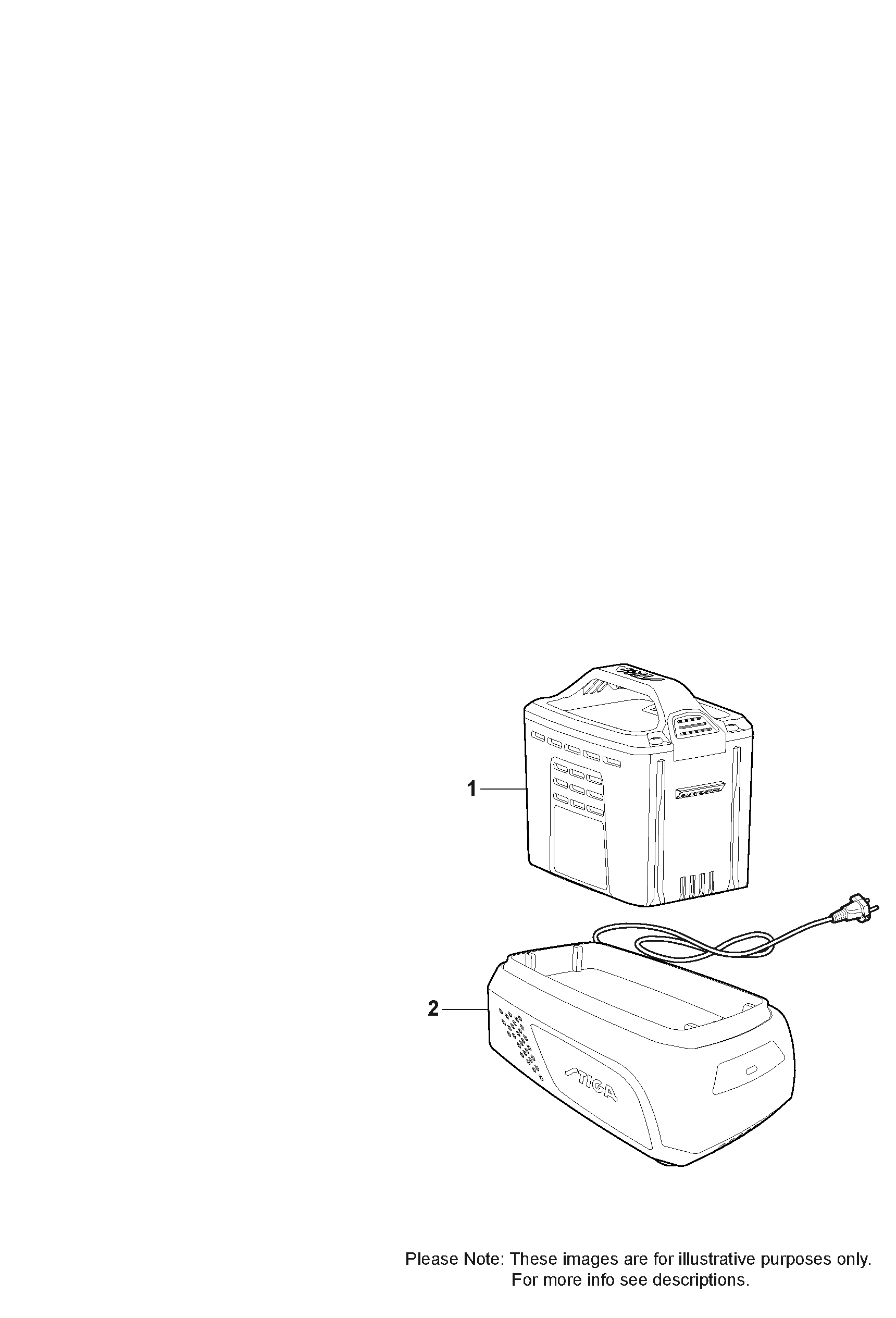

Combi 55 SQ DAE (2020) -  Battery
Combi 55 SQ DAE (2020) - Battery

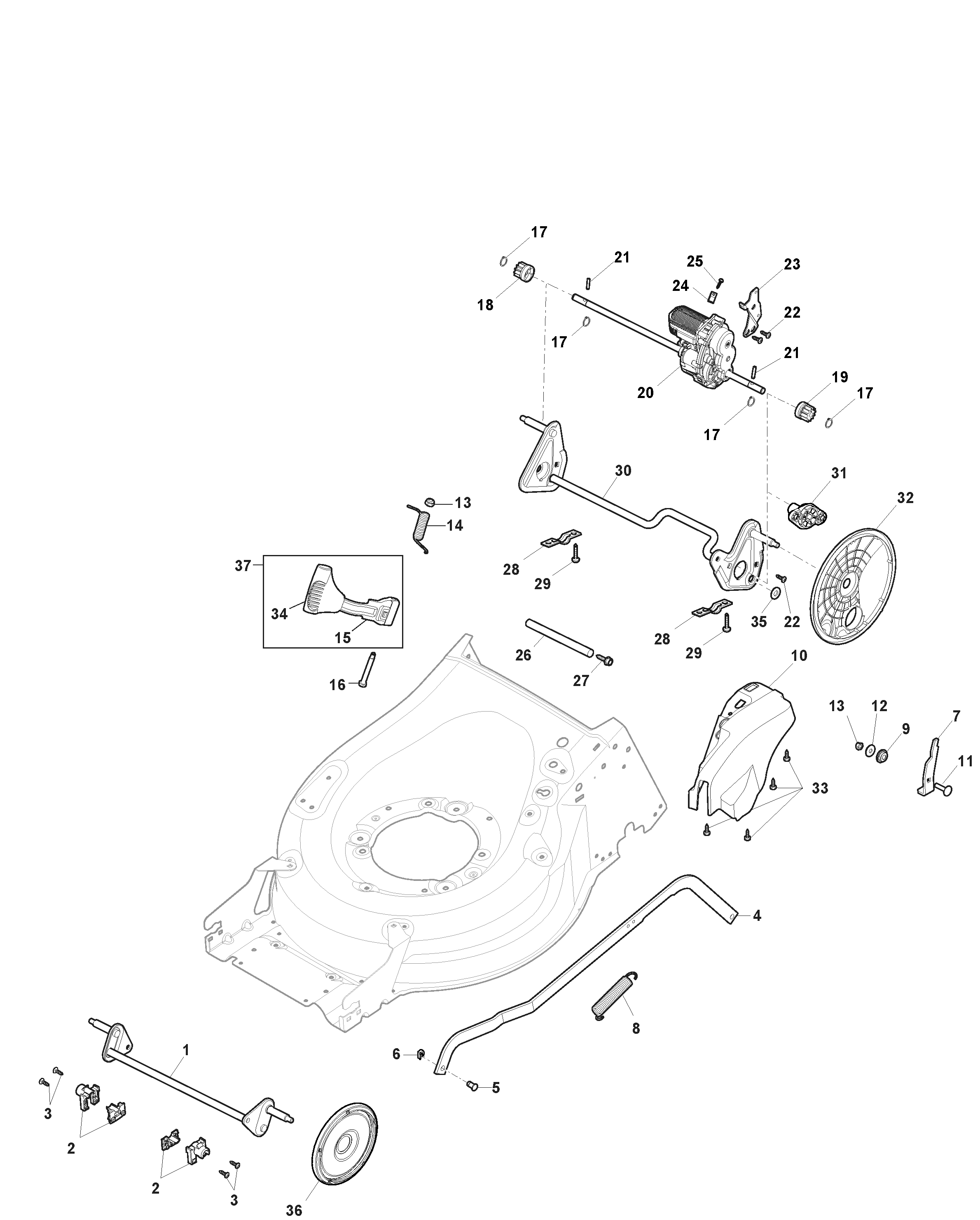

Spare Parts for Combi 55 SQ DAE (2020) - Deck and Height Adjusting - 294557878/ST1

Combi 55 SQ DAE (2020) -  Deck and Height Adjusting - 294557878/ST1
Stock last checked Apr 19 2025 06:11.
--- -
1Front Wheels Axle D=200Ref: 381302915/1
Front Wheels Axle D=200
Price: £31.15
Special Order
Qty:
1Front Wheels Axle D=200Ref: 381302915/0
Front Wheels Axle D=200
Price: £32.51
Special Order
Qty:
2Axle SupportRef: 322785305/1
Axle Support
Price: £2.58
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
3Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
4Height Adjust Rod 200/280Ref: 322869693/2
Height Adjust Rod 200/280
Price: £32.38
Special Order
Qty:
4Height Adjust Rod 200/280Ref: 322869693/1
Height Adjust Rod 200/280
Price: £33.86
Special Order
Qty:
5122519823/0    PINRef: 122519823/0
122519823/0 PIN
Price: £2.22
8 in stock ready to go
Qty:
6Mountfield Stiga Castel Alpina LOCK PLATE   112436050/0Ref: 112436050/0
Mountfield Stiga Castel Alpina LOCK PLATE 112436050/0
Price: £1.49
6 in stock ready to go
Qty:
7Height Adjust BracketRef: 322778475/0
Height Adjust Bracket
Price: £2.70
Special Order
Can be ordered (1 at manufacturer)
Qty:
8SpringRef: 122450480/0
Spring
Price: £2.30
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
9BushRef: 122517873/0
Bush
Price: £2.84
Special Order
Can be ordered (1 at manufacturer)
Qty:
10Height Adjust Cover [Black]Ref: 322055330/0
Height Adjust Cover [Black]
Price: £9.96
Special Order
Qty:
11Screw M6 X 25Ref: 112815270/0
Screw M6 X 25
Price: £1.49
Special Order
Qty:
12Washer M6 6.6 X 18 X 1.6Ref: 112523040/0
Washer M6 6.6 X 18 X 1.6
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
13NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
10+ in stock ready to go
Qty:
14SpringRef: 122446192/0
Spring
Price: £2.04
Special Order
Can be ordered (3 at manufacturer)
Qty:
15Ref: 381003418/0
Not found
15381003399/0 HEIGHT ADJUST LEVER (was 381003398/0)Ref: 381003399/0
381003399/0 HEIGHT ADJUST LEVER (was 381003398/0)
Price: £5.70
1 in stock ready to go
Qty:
16PinRef: 122534131/0
Pin
Price: £1.49
Special Order
Can be ordered (1 at manufacturer)
Qty:
17112608600/0 Circlip D=12 Uni 7435 C60Ref: 112608600/0
112608600/0 Circlip D=12 Uni 7435 C60
Price: £1.48
8 in stock ready to go
Qty:
18Right Pinion Z12 GearRef: 122570133/0
Right Pinion Z12 Gear
Price: £7.24
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
19Left Pinion Z12 GearRef: 122570134/0
Left Pinion Z12 Gear
Price: £7.24
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
20Gearbox Gt-Me512 36VRef: 181003128/0
Gearbox Gt-Me512 36V
Price: £196.39
Special Order
Qty:
21Mountfield Stiga Castel Alpina  PIN   D=5.2 x 25.65Ref: 122753000/0
Mountfield Stiga Castel Alpina PIN D=5.2 x 25.65
Price: £1.61
10+ in stock ready to go
Qty:
22Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
23Gearbox Bracket Cr48-Mp1/2Ref: 322778523/1
Gearbox Bracket Cr48-Mp1/2
Price: £6.84
Special Order
Qty:
23Ref: 322778523/0
Not found
24Conduit ClipRef: 118390022/0
Conduit Clip
Price: £1.49
Special Order
Qty:
25Screw Torx M4 X 10Ref: 112728210/0
Screw Torx M4 X 10
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
26Ref: 322608567/0
Not found
26Reinforcement Bar Mp1 50-55Ref: 322608567/1
Reinforcement Bar Mp1 50-55
Price: £7.45
Special Order
Qty:
27Flanged Self-Tap Screw 6.3 X 16Ref: 112735120/0
Flanged Self-Tap Screw 6.3 X 16
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
28322545152/0 BRACKET (was 22545152/0)Ref: 322545152/0
322545152/0 BRACKET (was 22545152/0)
Price: £1.61
Special Order
Qty:
29Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
30Rear Wheels Axle D=280Ref: 381302887/1
Rear Wheels Axle D=280
Price: £23.02
Special Order
Qty:
30Ref: 381302887/0
Not found
31322042063/1 AXLE BUSHRef: 322042063/1
322042063/1 AXLE BUSH
Price: £2.35
Special Order
Qty:
32Inner Wheel Cover D=280Ref: 322600208/0
Inner Wheel Cover D=280
Price: £4.20
Special Order
Qty:
33Self-Tapping Screw K60 X 22 Wm1451Ref: 112728904/0
Self-Tapping Screw K60 X 22 Wm1451
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
34Ref: 322394527/0
Not found
35Washer M12 13 X 20 X 2Ref: 112521371/0
Washer M12 13 X 20 X 2
Price: £1.49
Special Order
Can be ordered (2 at manufacturer)
Qty:
36322600145/0 INNER WHEEL COVER D=200 Ref: 322600145/0
322600145/0 INNER WHEEL COVER D=200
Price: £1.61
Special Order
Qty:
37Height Adjust Lever D=280 CrRef: 381003459/1
Height Adjust Lever D=280 Cr
Price: £12.94
Special Order
Qty:
37Ref: 381003459/0
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

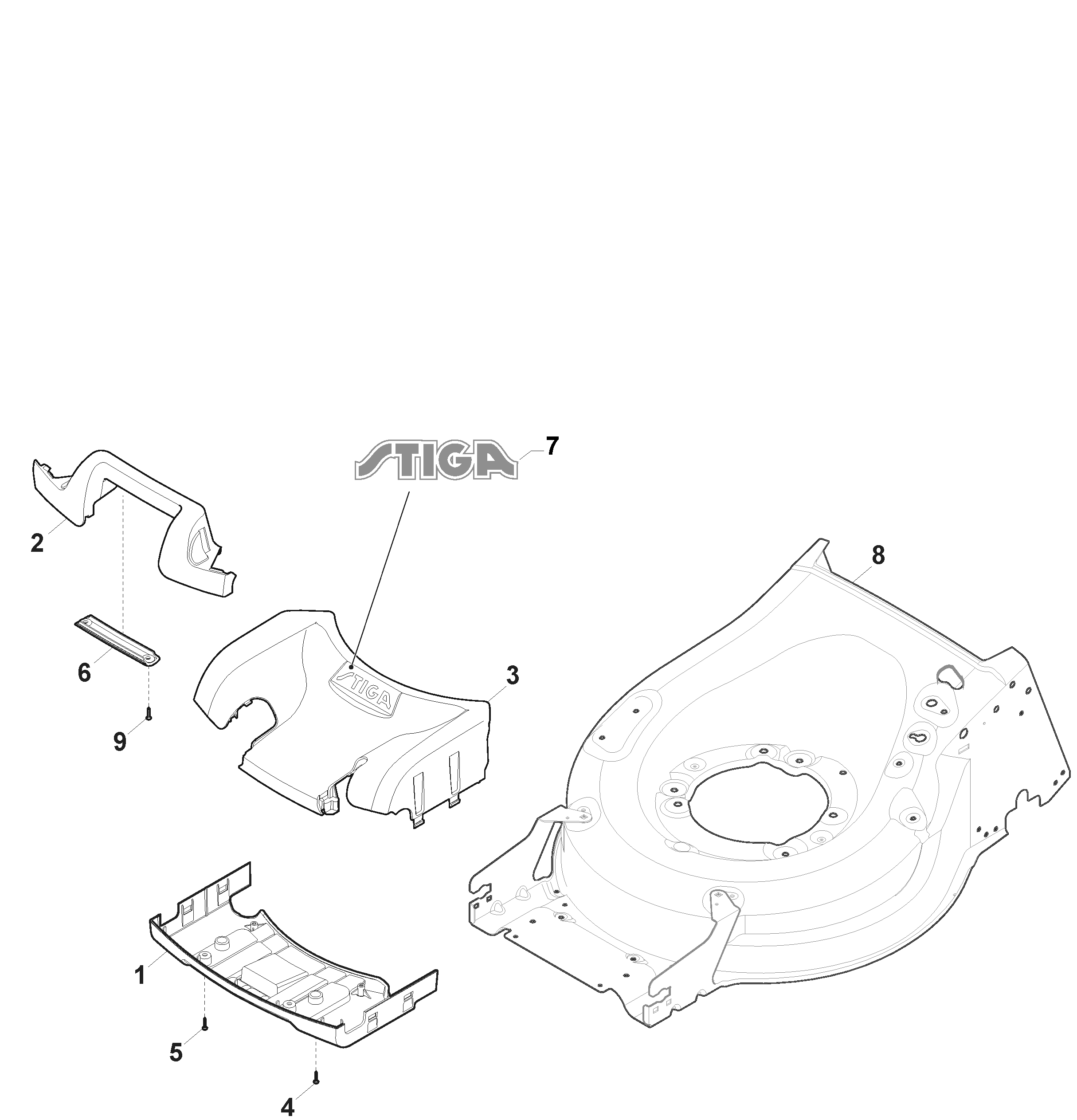

Spare Parts for Combi 55 SQ DAE (2020) - Mask

Combi 55 SQ DAE (2020) -  Mask
Stock last checked Apr 19 2025 06:11.
--- -
1Plastic Front Comb [Black] Mp1 55Ref: 322500113/0
Plastic Front Comb [Black] Mp1 55
Price: £9.22
Special Order
Can be ordered (4 at manufacturer)
Qty:
2Front Handle [Grey]Ref: 381393704/0
Front Handle [Grey]
Price: £36.56
Special Order
Can be ordered (1 at manufacturer)
Qty:
3322226241/0  Front Top Cover (GREY) MP2 55Ref: 322226241/0
322226241/0 Front Top Cover (GREY) MP2 55
Price: £20.03
Special Order
Qty:
4Ref: 112735654/0
Not found
5Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
6Front Handle Grip [Yellow]Ref: 322393756/0
Front Handle Grip [Yellow]
Price: £5.02
Special Order
Qty:
7Emblem Decal Stiga 3D 93 X 19MmRef: 114367494/2
Emblem Decal Stiga 3D 93 X 19Mm
Price: £8.81
Special Order
Can be ordered (4 at manufacturer)
Qty:
8Steel Deck Mp2 554 Ul [Grey]Ref: 381004856/0
Steel Deck Mp2 554 Ul [Grey]
Price: £230.26
Special Order
Qty:
8Ref: 381004837/0
Not found
9Screw Torx M4 X 10Ref: 112728210/0
Screw Torx M4 X 10
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

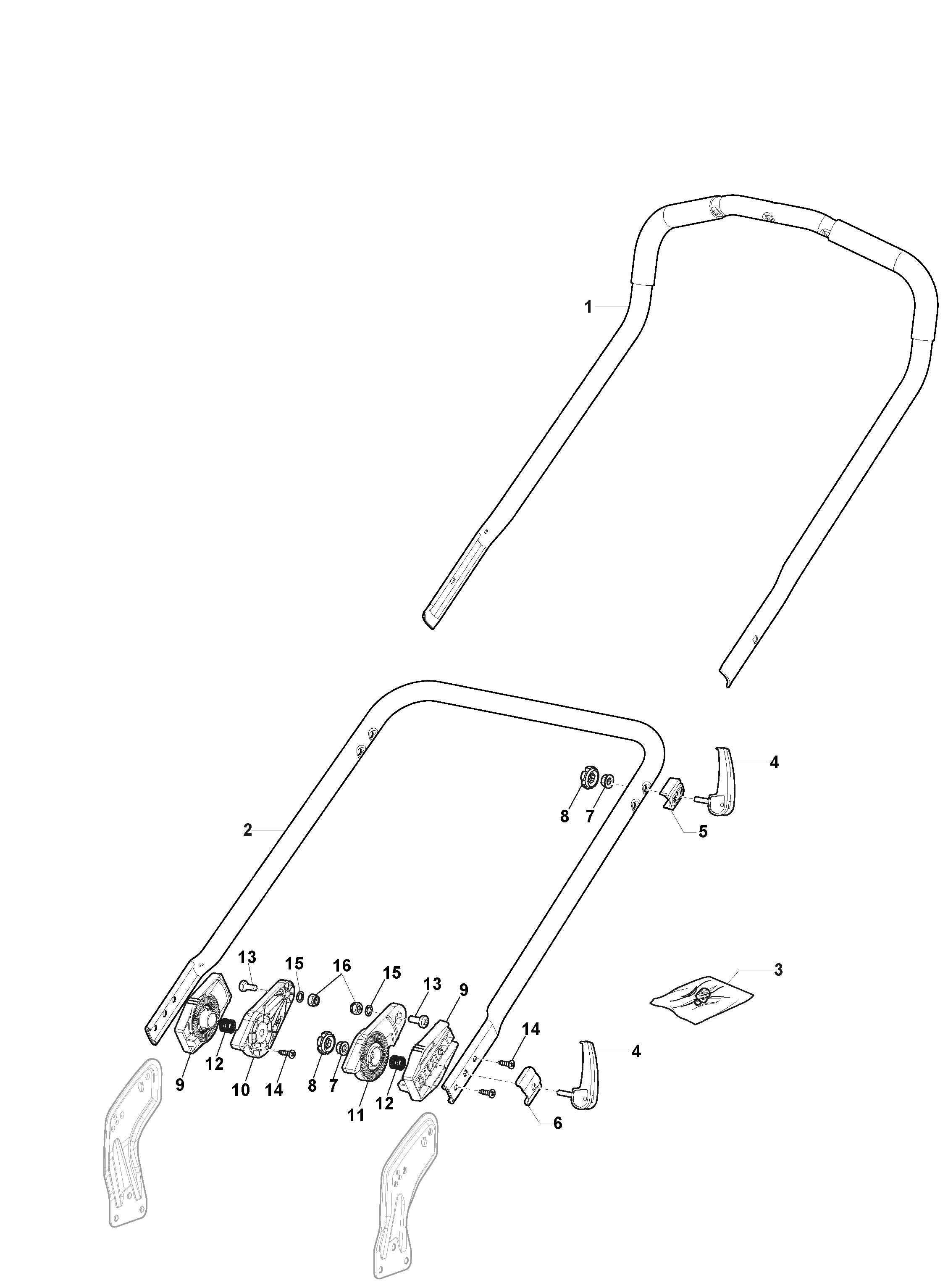

Spare Parts for Combi 55 SQ DAE (2020) - Handle

Combi 55 SQ DAE (2020) -  Handle
Stock last checked Apr 19 2025 06:11.
--- -
1Upper Handle [Yellow]Ref: 381007633/0
Upper Handle [Yellow]
Price: £56.88
Special Order
Can be ordered (1 at manufacturer)
Qty:
2Lower Handle [Yellow]Ref: 381007622/0
Lower Handle [Yellow]
Price: £26.41
Special Order
Qty:
3Plastic PinRef: 381008735/0
Plastic Pin
Price: £2.17
Special Order
Qty:
4Locking Handle Lever L=70 [Black]Ref: 381103360/0
Locking Handle Lever L=70 [Black]
Price: £5.28
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
5Handle BracketRef: 322680017/0
Handle Bracket
Price: £1.90
Special Order
Can be ordered (1 at manufacturer)
Qty:
6Handle BracketRef: 322981477/0
Handle Bracket
Price: £2.98
Special Order
Qty:
7122131750/0 FLANGED NUT   Mountfield Castelgarden Stiga Hayter  Ref: 122131750/0
122131750/0 FLANGED NUT Mountfield Castelgarden Stiga Hayter
Price: £1.86
8 in stock ready to go
Qty:
8Ref: 322399835/0
Not found
9Teethed Handle SupportRef: 322785499/1
Teethed Handle Support
Price: £3.92
Special Order
Qty:
9Teethed Handle SupportRef: 322785499/0
Teethed Handle Support
Price: £4.07
Special Order
Qty:
10R/H Handle SupportRef: 322785497/1
R/H Handle Support
Price: £4.60
Special Order
Qty:
10Ref: 322785497/0
Not found
11L/H Handle SupportRef: 322785498/1
L/H Handle Support
Price: £4.60
Special Order
Qty:
11Ref: 322785498/0
Not found
12122430215/0 SpringRef: 122430215/0
122430215/0 Spring
Price: £3.08
Special Order
Qty:
13Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0Ref: 112793102/0
Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0
Price: £1.61
6 in stock ready to go
Qty:
14Screw Ka50 X 12Ref: 112728689/0
Screw Ka50 X 12
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
15WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
1 in stock ready to go
Qty:
16112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

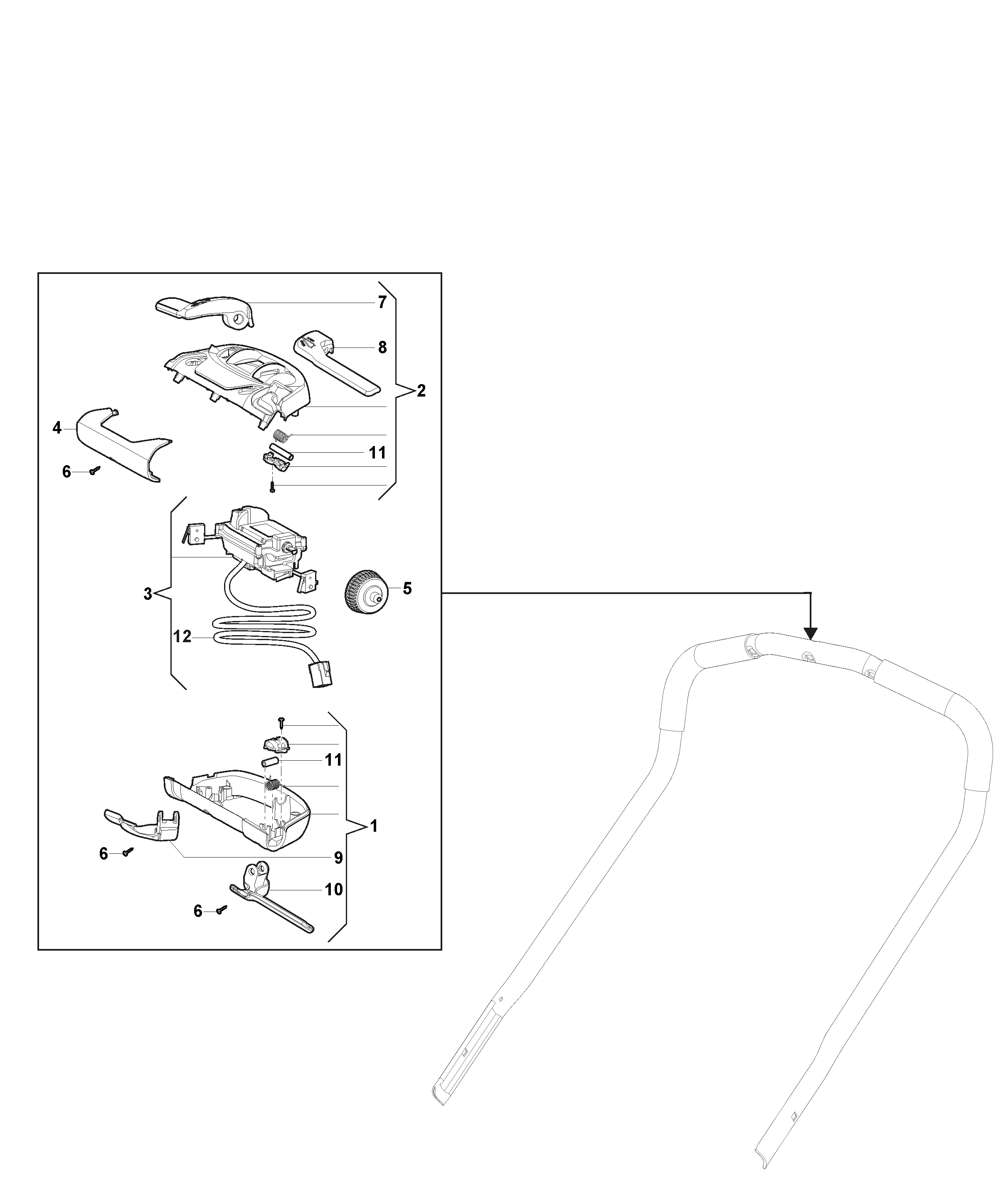

Spare Parts for Combi 55 SQ DAE (2020) - Digit Dash Board

Combi 55 SQ DAE (2020) -  Digit Dash Board
Stock last checked Apr 19 2025 06:11.
--- -
1Ref: 381119754/0
Not found
1Lower Cover Handle AssemblyRef: 381119754/1
Lower Cover Handle Assembly
Price: £18.29
Special Order
Can be ordered (1 at manufacturer)
Qty:
2Upper Cover AssemblyRef: 381119757/1
Upper Cover Assembly
Price: £20.11
Special Order
Qty:
2Ref: 381119757/0
Not found
3Opc Switch AssemblyRef: 381600565/1
Opc Switch Assembly
Price: £216.71
Special Order
Can be ordered (2 at manufacturer)
Qty:
3Ref: 381600565/0
Not found
4Central Cover Handle Tract.Wbh Bat.GreyRef: 322291086/0
Central Cover Handle Tract.Wbh Bat.Grey
Price: £5.15
Special Order
Qty:
5Knob Speed Regol. Wbh Bat. Overinj.BlackRef: 322399868/0
Knob Speed Regol. Wbh Bat. Overinj.Black
Price: £2.17
Special Order
Qty:
6Self-Tapping Screw Torx K40 X 18 Wn1451Ref: 112728711/0
Self-Tapping Screw Torx K40 X 18 Wn1451
Price: £1.36
Special Order
Can be ordered (3 at manufacturer)
Qty:
7Opc Lever R/H [Yellow]Ref: 322322907/1
Opc Lever R/H [Yellow]
Price: £6.23
Special Order
Qty:
7Ref: 322322907/0
Not found
8Opc Lever L/H [Yellow]Ref: 322322906/1
Opc Lever L/H [Yellow]
Price: £6.23
Special Order
Qty:
8Ref: 322322906/0
Not found
9Clutch Lever R/H [Grey]Ref: 322321720/1
Clutch Lever R/H [Grey]
Price: £6.23
Special Order
Qty:
9Ref: 322321720/0
Not found
10Clutch Lever L/H [Grey]Ref: 322321719/1
Clutch Lever L/H [Grey]
Price: £6.23
Special Order
Qty:
10Ref: 322321719/0
Not found
11Cylindrical Pin D=6 X 26Ref: 112622640/1
Cylindrical Pin D=6 X 26
Price: £1.49
Special Order
Qty:
12Connecting CableRef: 118810814/0
Connecting Cable
Price: £28.18
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Combi 55 SQ DAE (2020) - Wheels and Hubcaps

Combi 55 SQ DAE (2020) -  Wheels and Hubcaps
Stock last checked Apr 19 2025 06:11.
--- -
1119216035/0 BEARINGRef: 119216035/0
119216035/0 BEARING
Price: £3.22
Not in stock
Qty:
2381007416/3 WHEEL ASSEMBLY c/w BEARINGS D=200Ref: 381007416/3
381007416/3 WHEEL ASSEMBLY c/w BEARINGS D=200
Price: £16.74
Special Order
Qty:
2Ref: 381007416/2
Not found
3Stiga Hub Cap D=180/200 [Grey]Ref: 322110744/0
Stiga Hub Cap D=180/200 [Grey]
Price: £3.38
Special Order
Can be ordered (2 at manufacturer)
Qty:
4Ref: 381007417/3
Not found
5Stiga Hub Cap [Grey] D=280Ref: 322110746/0
Stiga Hub Cap [Grey] D=280
Price: £4.33
Special Order
Can be ordered (2 at manufacturer)
Qty:
6112728706/0 SCREWRef: 112728706/0
112728706/0 SCREW
Price: £1.61
Special Order
Qty:
7Ref: 322120115/0
Not found
8Ref: 122170845/0
Not found
9381007472/2 WHEEL ASSEMBLY D=280Ref: 381007472/2
381007472/2 WHEEL ASSEMBLY D=280
Price: £46.91
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Combi 55 SQ DAE (2020) - Ejection Guard

Combi 55 SQ DAE (2020) -  Ejection Guard
Stock last checked Apr 19 2025 06:11.
--- -
1Side Discharge Flap [Black]Ref: 322108315/0
Side Discharge Flap [Black]
Price: £11.38
Special Order
Can be ordered (9 at manufacturer)
Qty:
2Ref: 322600309/2
Not found
2Ref: 322600309/1
Not found
3Deflector SpringRef: 122450456/1
Deflector Spring
Price: £3.12
Special Order
Qty:
3Ref: 122450456/0
Not found
4Starlock Washer D=6Ref: 112604896/0
Starlock Washer D=6
Price: £1.49
Special Order
Can be ordered (2 at manufacturer)
Qty:
5Screw Tcb Torx M6 X 14 Acc.8.8 BzRef: 112727803/0
Screw Tcb Torx M6 X 14 Acc.8.8 Bz
Price: £1.49
Special Order
Can be ordered (8 at manufacturer)
Qty:
6Ref: 322806659/0
Not found
7NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
10+ in stock ready to go
Qty:
8Deflector RodRef: 122517869/1
Deflector Rod
Price: £3.65
Special Order
Qty:
9Nut Cap M6 [Black]Ref: 118203853/0
Nut Cap M6 [Black]
Price: £2.58
Special Order
Can be ordered (1 at manufacturer)
Qty:
10Safety PinRef: 122517876/0
Safety Pin
Price: £1.36
Special Order
Qty:
11Safety LockRef: 322783013/0
Safety Lock
Price: £2.04
Special Order
Qty:
12Safety SpringRef: 122450493/0
Safety Spring
Price: £1.28
Special Order
Qty:
13Side Discharge Flap Assembly [Black]Ref: 381008162/1
Side Discharge Flap Assembly [Black]
Price: £18.29
Special Order
Qty:
13Ref: 381008162/0
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Combi 55 SQ DAE (2020) - Protection Belt

Combi 55 SQ DAE (2020) -  Protection Belt
Stock last checked Apr 19 2025 06:11.
--- -
1Ref: 381005235/0
Not found
1R/H Handle Support Mp1 [Grey]Ref: 381005235/2
R/H Handle Support Mp1 [Grey]
Price: £8.12
Special Order
Qty:
1Ref: 381005235/1
Not found
2Ref: 381005237/1
Not found
2L/H Handle Support Mp1 [Grey]Ref: 381005237/2
L/H Handle Support Mp1 [Grey]
Price: £8.12
Special Order
Qty:
2L/H Handle Support Mp1 [Grey]Ref: 381005237/0
L/H Handle Support Mp1 [Grey]
Price: £6.97
Special Order
Qty:
3Screw Tcb Torx M6X20 Acc.8.8 BzRef: 112727801/0
Screw Tcb Torx M6X20 Acc.8.8 Bz
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
4Fixing PlateRef: 322545213/0
Fixing Plate
Price: £1.90
Special Order
Can be ordered (3 at manufacturer)
Qty:
5Rear DoorRef: 322600310/0
Rear Door
Price: £4.87
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6Rear Baffle AssemblyRef: 381102204/1
Rear Baffle Assembly
Price: £26.08
Special Order
Can be ordered (2 at manufacturer)
Qty:
6Ref: 381102204/0
Not found
7Ref: 112728699/0
Not found
8Belt Protection Guard [Mp1 55]Ref: 322060271/2
Belt Protection Guard [Mp1 55]
Price: £11.10
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
8Ref: 322060271/1
Not found
9112735645/0 ScrewRef: 112735645/0
112735645/0 Screw
Price: £1.74
1 in stock ready to go
Qty:
10NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
10+ in stock ready to go
Qty:
11Ref: 112815205/0
Not found
12Stiga Mountfield Alpina Castel    WASHER  M6 6.4 X 12 X 1.6     12521330/0Ref: 112521330/0
Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0
Price: £1.61
Not in stock
Qty:
13Ref: 322820087/0
Not found
14Lower Motor CoverRef: 322055341/0
Lower Motor Cover
Price: £4.60
Special Order
Qty:
15Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
16Mulching Plug [Mp1 55]Ref: 322140246/0
Mulching Plug [Mp1 55]
Price: £12.86
Special Order
Can be ordered (4 at manufacturer)
Qty:
18Belt Guard BushRef: 122042073/0
Belt Guard Bush
Price: £1.63
Special Order
Can be ordered ( >10 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Combi 55 SQ DAE (2020) - Blade and Hub

Combi 55 SQ DAE (2020) -  Blade and Hub
Stock last checked Apr 19 2025 06:11.
--- -
1Key 5 X 5 X 20Ref: 112139440/0
Key 5 X 5 X 20
Price: £1.90
Special Order
Can be ordered (4 at manufacturer)
Qty:
2Long Blade Boss D=17Ref: 322463190/0
Long Blade Boss D=17
Price: £9.49
Special Order
Can be ordered (8 at manufacturer)
Qty:
2Long Blade Hub D.17Ref: 1111-9259-01
Long Blade Hub D.17
Price: £12.43
Special Order
Qty:
3181004464/0 Mulching Blade 55 MP1 (1111-9277-02)Ref: 181004464/0
181004464/0 Mulching Blade 55 MP1 (1111-9277-02)
Price: £16.81
Not in stock
Qty:
3181004464/0 Mulching Blade 55 MP1 (1111-9277-02)Ref: 181004464/0
181004464/0 Mulching Blade 55 MP1 (1111-9277-02)
Price: £16.81
Not in stock
Qty:
4381004352/1 BLADE BOLT (was 81004352/0)Ref: 381004352/1
381004352/1 BLADE BOLT (was 81004352/0)
Price: £3.83
Special Order
Qty:
5Spring Lock Washer M8 Uni 1751 Type ARef: 112583500/0
Spring Lock Washer M8 Uni 1751 Type A
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6Nut 112293200/0Ref: 112293200/0
Nut 112293200/0
Price: £1.61
3 in stock ready to go
Qty:
7SpacerRef: 322171009/0
Spacer
Price: £1.49
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Combi 55 SQ DAE (2020) - Grass Catcher

Combi 55 SQ DAE (2020) -  Grass Catcher
Stock last checked Apr 19 2025 06:11.
--- -
1Grasscatcher Frame Mp1 50-55Ref: 181006411/1
Grasscatcher Frame Mp1 50-55
Price: £12.73
Special Order
Can be ordered (5 at manufacturer)
Qty:
1Ref: 181006411/0
Not found
2Fixing PlateRef: 322557177/0
Fixing Plate
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
3Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
4Deflector RodRef: 122517884/0
Deflector Rod
Price: £4.87
Special Order
Can be ordered (1 at manufacturer)
Qty:
5Grassbag Mp1 [Black] StigaRef: 181102383/0
Grassbag Mp1 [Black] Stiga
Price: £39.20
Special Order
Qty:
6Grasscatcher Top-Full Indicator [Grey]Ref: 381486052/0
Grasscatcher Top-Full Indicator [Grey]
Price: £28.44
Special Order
Qty:
7Deflector SpringRef: 122450479/0
Deflector Spring
Price: £3.25
Special Order
Can be ordered (7 at manufacturer)
Qty:
8Deflector Mp1 [Yellow]Ref: 322600339/0
Deflector Mp1 [Yellow]
Price: £13.88
Special Order
Qty:
9Deflector Support Mp1 [Yellow]Ref: 322109584/0
Deflector Support Mp1 [Yellow]
Price: £3.38
Special Order
Qty:
10322486424/0 GRASSCATCHER FULL INDICATOR FLAPRef: 322486424/0
322486424/0 GRASSCATCHER FULL INDICATOR FLAP
Price: £2.40
1 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Combi 55 SQ DAE (2020) - Electric Motor

Combi 55 SQ DAE (2020) -  Electric Motor
Stock last checked Apr 19 2025 06:11.
--- -
148V Power Head Housing KitRef: 118810821/0
48V Power Head Housing Kit
Price: £78.56
Special Order
Qty:
2Air Filters Kit [48V Motor]Ref: 118810822/0
Air Filters Kit [48V Motor]
Price: £1.49
Special Order
Qty:
348V Motor Cover KitRef: 118810823/0
48V Motor Cover Kit
Price: £25.86
Special Order
Qty:
448V Motor Battery Housing KitRef: 118810824/0
48V Motor Battery Housing Kit
Price: £79.92
Special Order
Qty:
5Ref: 118810825/0
Not found
6Transmission Pc Board Kit V2Ref: 118810826/1
Transmission Pc Board Kit V2
Price: £118.51
Special Order
Qty:
748V Motor Control Board PcbRef: 118810818/0
48V Motor Control Board Pcb
Price: £230.26
Special Order
Can be ordered (3 at manufacturer)
Qty:
8Safety Key Powerhead 48VRef: 322076572/0
Safety Key Powerhead 48V
Price: £8.74
Special Order
Can be ordered (8 at manufacturer)
Qty:
9Parallel ModuleRef: 118810819/0
Parallel Module
Price: £63.96
Special Order
Qty:
10Ref: 381270010/0
Not found
1148V Motor SeatRef: 118810872/0
48V Motor Seat
Price: £10.09
Special Order
Can be ordered (3 at manufacturer)
Qty:
12Upper Cables GuardRef: 322722834/0
Upper Cables Guard
Price: £2.04
Special Order
Qty:
12Ref: 322722833/0
Not found
13Lower GuardRef: 322722860/0
Lower Guard
Price: £2.04
Special Order
Qty:
13Upper GuardRef: 322722861/0
Upper Guard
Price: £1.75
Special Order
Qty:
14112728706/0 SCREWRef: 112728706/0
112728706/0 SCREW
Price: £1.61
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Combi 55 SQ DAE (2020) - Battery

Combi 55 SQ DAE (2020) -  Battery
Stock last checked Apr 19 2025 06:11.
--- -
1Ref: 278012008/ST1
Not found
1Ref: 278015008/ST1
Not found
1Ref: 278014008/ST1
Not found
2Ref: 278030008/ST1
Not found
2Ref: 278031008/ST1
Not found
2Ref: 278021208/ST1
Not found
2Ref: 278020208/ST1
Not found
2Ref: 278020008/ST1
Not found
2Ref: 278021008/ST1
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Stock quanties shown for Special Order Items are those available at the manufacturer, lasted checked as per the date at the top of the list, and would usually take just a few days to process. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
