ATCO Quattro 20S (2012) 299532027/AT2


Quattro 20S Grasscatcher
Quattro 20S Grasscatcher
Quattro 20S Wheels
Quattro 20S Transmission
Quattro 20S Transmission
Quattro 20S Handles
Quattro 20S Handles
Quattro 20S Chassis
Quattro 20S Chassis

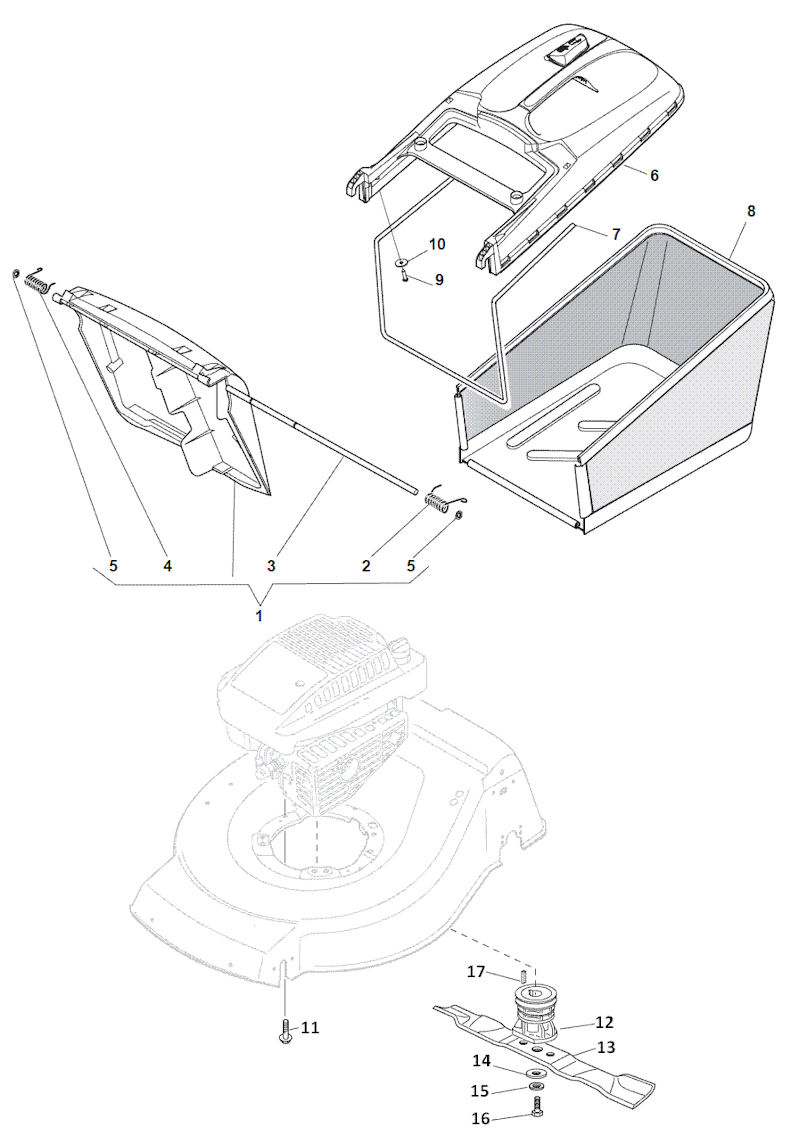

Spare Parts for Quattro 20S Grasscatcher

Quattro 20S Grasscatcher
Stock last checked Apr 25 2025 06:10.
--- -
1Telf-Form Screw 3/8" X 1¼" UncRef: 112735108/1
Telf-Form Screw 3/8" X 1¼" Unc
Price: £2.04
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
2Stiga / Castelgarden / Mountfield / Homelite / Tuffcut Blade Boss Hub Holder  122465607/4Ref: 122465607/4
Stiga / Castelgarden / Mountfield / Homelite / Tuffcut Blade Boss Hub Holder 122465607/4
Price: £8.90
10+ in stock ready to go
Qty:
3Mountfield / Castelgarden / Alpina / Champion / Tuffcut Blade 51cm 81004381/1Ref: 181004381/1
Mountfield / Castelgarden / Alpina / Champion / Tuffcut Blade 51cm 81004381/1
Price: £16.32
3 in stock ready to go
Qty:
4Spring Washer Elastic Washer 50x2x10.2Ref: 122160400/0
Spring Washer Elastic Washer 50x2x10.2
Price: £1.73
Not in stock
Qty:
5Washer   M10 11 X 30 X 2.5        112523080/0Ref: 112523080/0
Washer M10 11 X 30 X 2.5 112523080/0
Price: £1.61
Not in stock
Qty:
6Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2  12735698/0Ref: 112735698/0
Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2 12735698/0
Price: £1.49
8 in stock ready to go
Qty:
7Mountfield / Castelgarden / Hayter  Stiga Woodruff Key 22.2mm 112139100/0   1662Ref: 112139100/0
Mountfield / Castelgarden / Hayter Stiga Woodruff Key 22.2mm 112139100/0 1662
Price: £1.61
10+ in stock ready to go
Qty:
8381008081/2 DEFLECTOR ASSEMBLY BLACKRef: 381008081/2
381008081/2 DEFLECTOR ASSEMBLY BLACK
Price: £20.40
Special Order
Qty:
9L/H Deflector SpringRef: 122450466/0
L/H Deflector Spring
Price: £1.75
Special Order
Can be ordered (2 at manufacturer)
Qty:
10Deflector RodRef: 122517882/0
Deflector Rod
Price: £6.37
Special Order
Qty:
11R/H Deflector SpringRef: 122450465/0
R/H Deflector Spring
Price: £1.75
Special Order
Can be ordered (2 at manufacturer)
Qty:
12PUSH ON FIXINGRef: 112604899/0
PUSH ON FIXING
Price: £1.61
Not in stock
Qty:
13381486013/0 GRASSCATCHER TOP   [BLACK]  (Was 381486008/0)Ref: 381486013/0
381486013/0 GRASSCATCHER TOP [BLACK] (Was 381486008/0)
Price: £20.40
Special Order
Qty:
14Ref: 122608525/1
Not found
15Grassbag [Black]Ref: 181002211/0
Grassbag [Black]
Price: £51.47
Special Order
Can be ordered (7 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Quattro 20S Wheels

Stock last checked Apr 25 2025 06:10.
--- -
1119216035/0 BEARINGRef: 119216035/0
119216035/0 BEARING
Price: £3.22
Not in stock
Qty:
2381007416/3 WHEEL ASSEMBLY c/w BEARINGS D=200Ref: 381007416/3
381007416/3 WHEEL ASSEMBLY c/w BEARINGS D=200
Price: £16.74
Special Order
Qty:
3Atco Hub Cap D=180/200 [Grey]Ref: 322110706/0
Atco Hub Cap D=180/200 [Grey]
Price: £2.58
Special Order
Can be ordered (3 at manufacturer)
Qty:
4Mountfield Rubber InsertRef: 322291150/0
Mountfield Rubber Insert
Price: £1.61
Special Order
Qty:
5Belt Protection Guard Nt53Ref: 322060197/3
Belt Protection Guard Nt53
Price: £10.30
Special Order
Can be ordered (4 at manufacturer)
Qty:
6Mountfield Castel Stiga   SELF-TAP SCREW 4.8 x 25   112728531/0Ref: 112728903/0
Mountfield Castel Stiga SELF-TAP SCREW 4.8 x 25 112728531/0
Price: £1.36
9 in stock ready to go
Qty:
7Mulching Plug R/Td/Nt 53Ref: 122140222/0
Mulching Plug R/Td/Nt 53
Price: £14.70
Special Order
Can be ordered ( >10 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

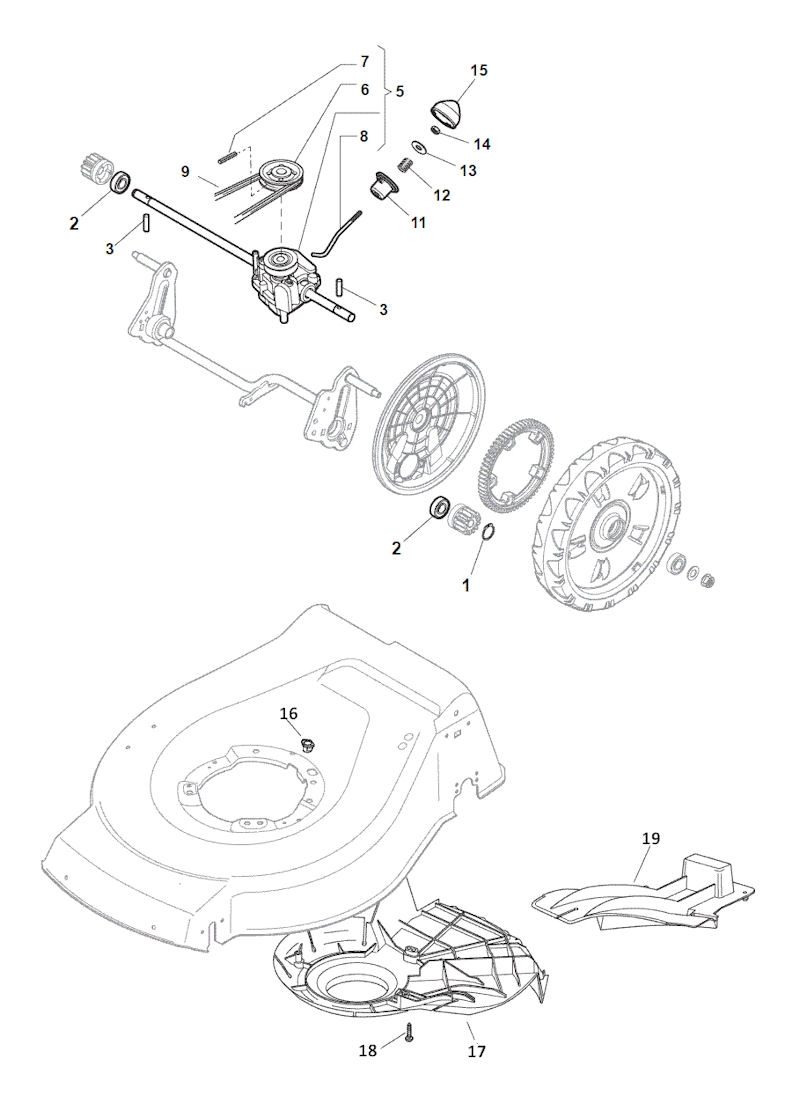

Spare Parts for Quattro 20S Transmission

Quattro 20S Transmission
Stock last checked Apr 25 2025 06:10.
--- -
1112608600/0 Circlip D=12 Uni 7435 C60Ref: 112608600/0
112608600/0 Circlip D=12 Uni 7435 C60
Price: £1.48
Not in stock
Qty:
2Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
3322042063/1 AXLE BUSHRef: 322042063/1
322042063/1 AXLE BUSH
Price: £2.35
Special Order
Qty:
4Mountfield Stiga Castel Alpina  PIN   D=5.2 x 25.65Ref: 122753000/0
Mountfield Stiga Castel Alpina PIN D=5.2 x 25.65
Price: £1.61
8 in stock ready to go
Qty:
5Gearbox G.T.Ref: 181003092/0
Gearbox G.T.
Price: £109.02
Special Order
Can be ordered (9 at manufacturer)
Qty:
6PulleyRef: 122601909/0
Pulley
Price: £5.42
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
7PinRef: 112645700/0
Pin
Price: £1.49
Special Order
Can be ordered (4 at manufacturer)
Qty:
8122033283/0 GEARBOX ADJUSTING RODRef: 122033283/0
122033283/0 GEARBOX ADJUSTING ROD
Price: £5.74
Special Order
Qty:
9Stiga / Castelgarden / Lawn-King / Mountfield / Sovereign Belt 51cm 35063902/0Ref: 135063902/1
Stiga / Castelgarden / Lawn-King / Mountfield / Sovereign Belt 51cm 35063902/0
Price: £9.14
Not in stock
Qty:
11Spring Guide BushRef: 122041957/1
Spring Guide Bush
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
12SpringRef: 122450063/0
Spring
Price: £1.49
Special Order
Can be ordered (10 at manufacturer)
Qty:
13Flat Washer 6.5 X 32 X 4Ref: 322680009/0
Flat Washer 6.5 X 32 X 4
Price: £1.75
Special Order
Can be ordered (10 at manufacturer)
Qty:
14NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
15Mountfiled Stiga Atco Hub Cover  22110230/0Ref: 122110230/0
Mountfiled Stiga Atco Hub Cover 22110230/0
Price: £1.61
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

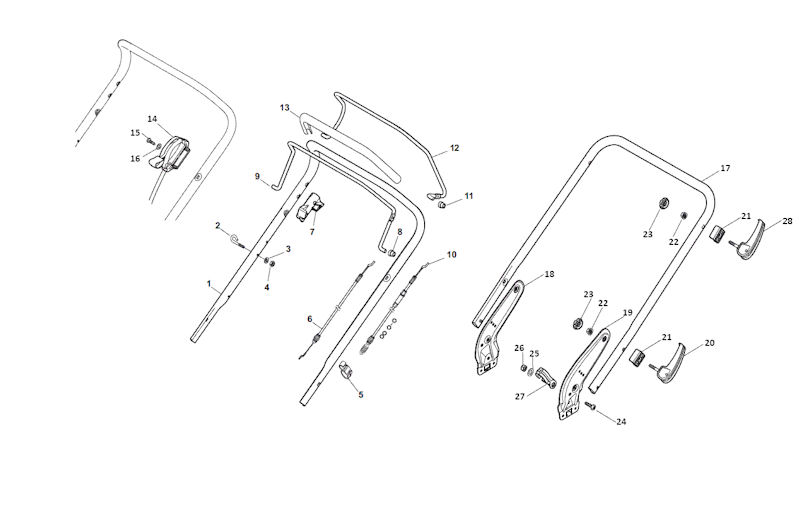

Spare Parts for Quattro 20S Handles

Quattro 20S Handles
Stock last checked Apr 25 2025 06:10.
--- -
1Upper Handle [Black] NtRef: 381007522/0
Upper Handle [Black] Nt
Price: £40.63
Special Order
Qty:
2122430313/0 PULL CORD GUIDE            T100Ref: 122430313/0
122430313/0 PULL CORD GUIDE T100
Price: £3.60
Special Order
Qty:
3Stiga Mountfield Alpina Castel    WASHER  M6 6.4 X 12 X 1.6     12521330/0Ref: 112521330/0
Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0
Price: £1.61
Not in stock
Qty:
4NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
5Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037Ref: 118390020/0
Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037
Price: £1.49
10+ in stock ready to go
Qty:
6181030053/0  OPC CABLERef: 181030053/0
181030053/0 OPC CABLE
Price: £14.34
2 in stock ready to go
Qty:
7322545204/0 LEVER FULCRUM PLATERef: 322545204/0
322545204/0 LEVER FULCRUM PLATE
Price: £1.37
Not in stock
Qty:
8122041966/0 Control Lever BushRef: 122041966/0
122041966/0 Control Lever Bush
Price: £2.40
Special Order
Qty:
9Engine Brake Lever [Black]Ref: 181003300/1
Engine Brake Lever [Black]
Price: £14.63
Special Order
Can be ordered (3 at manufacturer)
Qty:
10381030051/1 CLUTCH CABLE   SP53HRef: 381030051/1
381030051/1 CLUTCH CABLE SP53H
Price: £15.70
Not in stock
Qty:
11122041966/0 Control Lever BushRef: 122041966/0
122041966/0 Control Lever Bush
Price: £2.40
Special Order
Qty:
12181003301/0 DRIVE CONTROL LEVERRef: 181003301/0
181003301/0 DRIVE CONTROL LEVER
Price: £14.18
Special Order
Qty:
13Soft Hand Grip [Black]Ref: 122291050/0
Soft Hand Grip [Black]
Price: £13.68
Special Order
Can be ordered (3 at manufacturer)
Qty:
14181005502/1 THROTTLE CABLE L=1440Ref: 181005502/1
181005502/1 THROTTLE CABLE L=1440
Price: £23.44
Special Order
Qty:
15Self-Tap Screw 6.3 X 45Ref: 112735103/0
Self-Tap Screw 6.3 X 45
Price: £1.75
Special Order
Qty:
16Washer M6 6.6 X 18 X 1.6Ref: 112523040/0
Washer M6 6.6 X 18 X 1.6
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
17381006719/0 LOWER HANDLE NTD [BLACK]Ref: 381006719/0
381006719/0 LOWER HANDLE NTD [BLACK]
Price: £43.26
1 in stock ready to go
Qty:
18Right Handle BracketRef: 381005149/0
Right Handle Bracket
Price: £14.63
Special Order
Qty:
19Left Handle BracketRef: 381005151/0
Left Handle Bracket
Price: £14.63
Special Order
Can be ordered (1 at manufacturer)
Qty:
20LOCKING HANDLE L 381103359/1Ref: 381103359/1
LOCKING HANDLE L 381103359/1
Price: £4.69
Not in stock
Qty:
21GGP Mountfield Castel Stiga HANDLE BRACKET   322680016/0Ref: 322680016/0
GGP Mountfield Castel Stiga HANDLE BRACKET 322680016/0
Price: £1.61
1 in stock ready to go
Qty:
22122131750/0 FLANGED NUT   Mountfield Castelgarden Stiga Hayter  Ref: 122131750/0
122131750/0 FLANGED NUT Mountfield Castelgarden Stiga Hayter
Price: £1.86
7 in stock ready to go
Qty:
23Ref: 322399835/0
Not found
24Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0Ref: 112793102/0
Mountfield Stiga Atco Hex Bolt SCREW TE M8x20 UNI 5739 - 112793102/0
Price: £1.61
1 in stock ready to go
Qty:
25BushRef: 125038002/1
Bush
Price: £1.49
Special Order
Can be ordered (10 at manufacturer)
Qty:
26112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:
27Cable Holder ClampRef: 322192156/0
Cable Holder Clamp
Price: £1.90
Special Order
Can be ordered (1 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

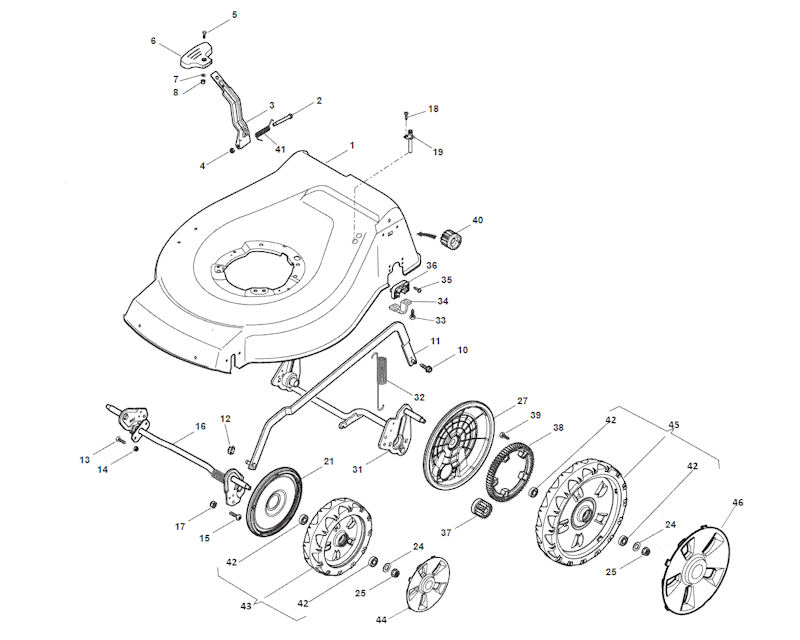

Spare Parts for Quattro 20S Chassis

Quattro 20S Chassis
Stock last checked Apr 25 2025 06:10.
--- -
1Ref: 381004647/0
Not found
2PinRef: 122534131/0
Pin
Price: £1.49
Special Order
Can be ordered (1 at manufacturer)
Qty:
3322322851/0 HEIGHT ADJUST LEVER 180/200 CR/NTLRef: 322322851/0
322322851/0 HEIGHT ADJUST LEVER 180/200 CR/NTL
Price: £6.18
1 in stock ready to go
Qty:
4NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
5Screw M4X12 Uni 5739 Steel 8.8 WzRef: 112788512/0
Screw M4X12 Uni 5739 Steel 8.8 Wz
Price: £1.49
Special Order
Can be ordered (6 at manufacturer)
Qty:
6Height Adjust KnobRef: 322394503/0
Height Adjust Knob
Price: £1.75
Special Order
Can be ordered (1 at manufacturer)
Qty:
7Washer M4 4,3X9X0,8 Uni 6592 WzRef: 112521310/0
Washer M4 4,3X9X0,8 Uni 6592 Wz
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
8Self-Locking Nut M4Ref: 112150000/0
Self-Locking Nut M4
Price: £1.36
Special Order
Qty:
9Spring Washer D=8Ref: 112369500/0
Spring Washer D=8
Price: £1.36
Special Order
Can be ordered (7 at manufacturer)
Qty:
10122943013/0 SCREW 1/4 WITH COLLARRef: 122943013/0
122943013/0 SCREW 1/4 WITH COLLAR
Price: £4.45
Special Order
Qty:
11Height Adjust Tie Bar D=200 Ntl 53Ref: 381002050/0
Height Adjust Tie Bar D=200 Ntl 53
Price: £36.30
Special Order
Qty:
12Mountfield Stiga Castel Alpina LOCK PLATE   112436050/0Ref: 112436050/0
Mountfield Stiga Castel Alpina LOCK PLATE 112436050/0
Price: £1.49
5 in stock ready to go
Qty:
13Screw Tcb Torx M6 X 14 Acc.8.8 BzRef: 112727803/0
Screw Tcb Torx M6 X 14 Acc.8.8 Bz
Price: £1.49
Special Order
Can be ordered (8 at manufacturer)
Qty:
14NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
15Screw Tcb Torx M6X20 Acc.8.8 BzRef: 112727801/0
Screw Tcb Torx M6X20 Acc.8.8 Bz
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
16Front Wheels AxleRef: 381302923/0
Front Wheels Axle
Price: £37.93
Special Order
Qty:
17NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
21322600145/0 INNER WHEEL COVER D=200 Ref: 322600145/0
322600145/0 INNER WHEEL COVER D=200
Price: £1.61
Special Order
Qty:
24WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
7 in stock ready to go
Qty:
25112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:
27Inner Wheel Cover D=200Ref: 322600207/0
Inner Wheel Cover D=200
Price: £2.30
Special Order
Qty:
31Rear Wheels AxleRef: 381302829/0
Rear Wheels Axle
Price: £80.21
Special Order
Qty:
33Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
34322545152/0 BRACKET (was 22545152/0)Ref: 322545152/0
322545152/0 BRACKET (was 22545152/0)
Price: £1.61
Special Order
Qty:
35Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
36Rear Axle SupportRef: 322785304/1
Rear Axle Support
Price: £2.17
Special Order
Can be ordered (7 at manufacturer)
Qty:
37L/H Pinion Gear Z10 (Metal) 122570120/1Ref: 122570120/1
L/H Pinion Gear Z10 (Metal) 122570120/1
Price: £7.03
Not in stock
Qty:
38Plastic Drive Gear D=200Ref: 322120114/0
Plastic Drive Gear D=200
Price: £6.64
Special Order
Can be ordered (8 at manufacturer)
Qty:
39112728706/0 SCREWRef: 112728706/0
112728706/0 SCREW
Price: £1.61
Special Order
Qty:
40R/H Pinion Gear Z10 (Metal) 122570110/1Ref: 122570110/1
R/H Pinion Gear Z10 (Metal) 122570110/1
Price: £7.03
Not in stock
Qty:
41SpringRef: 122446192/0
Spring
Price: £2.04
Special Order
Can be ordered (3 at manufacturer)
Qty:
42322500103/0 UNDER DECK COVER 51cmRef: 322500103/0
322500103/0 UNDER DECK COVER 51cm
Price: £4.57
Special Order
Qty:
43Washer M4 4.3 X 12 X 1 Uni 6593 BzRef: 112523000/1
Washer M4 4.3 X 12 X 1 Uni 6593 Bz
Price: £1.49
Special Order
Can be ordered (7 at manufacturer)
Qty:
44Self-Tap Screw Tcb Torx 4.2 X 16Ref: 112728124/0
Self-Tap Screw Tcb Torx 4.2 X 16
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
45Front Cover [Black] Nt53Ref: 322226158/0
Front Cover [Black] Nt53
Price: £6.64
Special Order
Qty:
46Front Bumper [Grey]Ref: 322393642/0
Front Bumper [Grey]
Price: £3.92
Special Order
Can be ordered (8 at manufacturer)
Qty:
47Screw Tcb Torx M6 X 35Ref: 112727799/0
Screw Tcb Torx M6 X 35
Price: £1.75
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
48NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
