ATCO Quattro 19SA (2012) 292502027/AT2


Quattro 19SA Grasscatcher
Quattro 19SA Grasscatcher
Quattro 19SA Wheels
Quattro 19SA Wheels
Quattro 19SA Handles
Quattro 19SA Handles
Quattro 19SA Chassis
Quattro 19SA Chassis

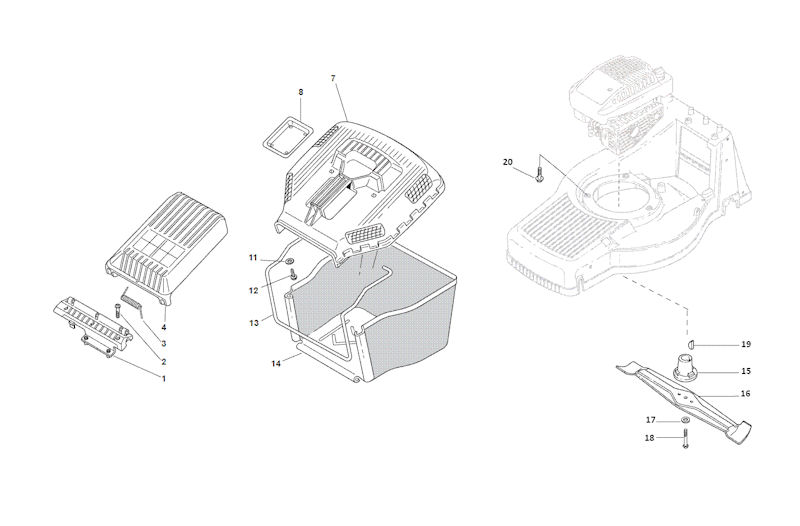

Spare Parts for Quattro 19SA Grasscatcher

Quattro 19SA Grasscatcher
Stock last checked Apr 24 2025 06:11.
--- -
1Deflector Clamp [Black]Ref: 322785179/0
Deflector Clamp [Black]
Price: £40.07
Special Order
Can be ordered (2 at manufacturer)
Qty:
2Screw M6 X 16Ref: 112735664/0
Screw M6 X 16
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
3Ref: 22450443/0
Not found
4Deflector [Black]Ref: 322600068/2
Deflector [Black]
Price: £11.89
Special Order
Qty:
7Grasscatcher Top [Black]Ref: 322486095/0
Grasscatcher Top [Black]
Price: £54.18
Special Order
Qty:
8Grasstop InsertRef: 322486098/0
Grasstop Insert
Price: £5.42
Special Order
Can be ordered (3 at manufacturer)
Qty:
11Stiga Mountfield Castel Alpina WASHER  M6    112521460/0Ref: 112521460/0
Stiga Mountfield Castel Alpina WASHER M6 112521460/0
Price: £1.36
3 in stock ready to go
Qty:
12112728300/0 SCREWRef: 112728300/0
112728300/0 SCREW
Price: £1.61
Special Order
Qty:
13Ref: 122608528/0
Not found
14Grassbag [Black]Ref: 181002235/0
Grassbag [Black]
Price: £58.25
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
15Mountfield / Castelgarden / Atco  Blade Boss Holder 22mm 122465618/0Ref: 122465618/0
Mountfield / Castelgarden / Atco Blade Boss Holder 22mm 122465618/0
Price: £8.65
1 in stock ready to go
Qty:
16Mountfield /  Castelgarden R480 / 480R / CSPR48R Spare BladeRef: 181004143/0
Mountfield / Castelgarden R480 / 480R / CSPR48R Spare Blade
Price: £23.48
Special Order
Qty:
17Mountfield Stiga Curved Washer M10    112530140/0Ref: 112530140/0
Mountfield Stiga Curved Washer M10 112530140/0
Price: £1.86
Not in stock
Qty:
18Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2  12735698/0Ref: 112735698/0
Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2 12735698/0
Price: £1.49
8 in stock ready to go
Qty:
19Mountfield / Castelgarden / Hayter  Stiga Woodruff Key 22.2mm 112139100/0   1662Ref: 112139100/0
Mountfield / Castelgarden / Hayter Stiga Woodruff Key 22.2mm 112139100/0 1662
Price: £1.61
10+ in stock ready to go
Qty:
20Telf-Form Screw 3/8" X 1¼" UncRef: 112735108/1
Telf-Form Screw 3/8" X 1¼" Unc
Price: £2.04
Special Order
Can be ordered ( >10 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Quattro 19SA Wheels

Quattro 19SA Wheels
Stock last checked Apr 24 2025 06:11.
--- -
1Upper Handle [Black]Ref: 381006618/1
Upper Handle [Black]
Price: £48.76
Special Order
Can be ordered (1 at manufacturer)
Qty:
2Mountfield / Stiga OPC Engine Stop Lever Handle - Plastic EndsRef: 381003298/1
Mountfield / Stiga OPC Engine Stop Lever Handle - Plastic Ends
Price: £30.90
Special Order
Qty:
3Engine Brake Cable L=1277Ref: 181000692/0
Engine Brake Cable L=1277
Price: £12.80
Special Order
Can be ordered (4 at manufacturer)
Qty:
4Mountfield Stiga Clutch Cable for M6/480/550 Series 181000697/0Ref: 381000697/0
Mountfield Stiga Clutch Cable for M6/480/550 Series 181000697/0
Price: £18.42
3 in stock ready to go
Qty:
5Drive Control LeverRef: 381003297/1
Drive Control Lever
Price: £21.26
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)Ref: 112727783/0
112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)
Price: £1.61
Special Order
Qty:
7322551685/0 Cable Holder  22551640/0, 518925Ref: 322551685/0
322551685/0 Cable Holder 22551640/0, 518925
Price: £6.96
4 in stock ready to go
Qty:
8NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
9Throttle Cable L=1270Ref: 181007127/1
Throttle Cable L=1270
Price: £47.54
Special Order
Qty:
10Washer M6 6.6 X 18 X 1.6Ref: 112523040/0
Washer M6 6.6 X 18 X 1.6
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
11Cross-Head Screw M6 X 70Ref: 112727787/0
Cross-Head Screw M6 X 70
Price: £1.75
Special Order
Can be ordered (5 at manufacturer)
Qty:
12112820655/0 SCREWRef: 112820655/0
112820655/0 SCREW
Price: £1.36
Special Order
Qty:
13Attachment PlateRef: 322551635/0
Attachment Plate
Price: £3.97
Special Order
Can be ordered (9 at manufacturer)
Qty:
14Lower Handle Support ClampRef: 322778405/0
Lower Handle Support Clamp
Price: £22.99
Special Order
Qty:
15Mountfield Stiga Castel Alpina Twincut ALLEN SCREW M8 x 20   112760515/0Ref: 112760515/0
Mountfield Stiga Castel Alpina Twincut ALLEN SCREW M8 x 20 112760515/0
Price: £1.61
3 in stock ready to go
Qty:
16WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
Not in stock
Qty:
17WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
Not in stock
Qty:
18Handwheel W/O Nut [Black]Ref: 322399810/0
Handwheel W/O Nut [Black]
Price: £7.98
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
19Mountfield Castel Stiga Alpina   NUT HEXAGON NUT 1/4 UNC   12361005/0Ref: 112361005/0
Mountfield Castel Stiga Alpina NUT HEXAGON NUT 1/4 UNC 12361005/0
Price: £3.83
1 in stock ready to go
Qty:
20Lower Pro Handle [Black]Ref: 381006613/0
Lower Pro Handle [Black]
Price: £36.56
Special Order
Qty:
21Cable ClampRef: 322192001/0
Cable Clamp
Price: £1.49
Special Order
Qty:
22Ref: 112728691/0
Not found
23112820655/0 SCREWRef: 112820655/0
112820655/0 SCREW
Price: £1.36
Special Order
Qty:
24Pull Cord GuideRef: 122430311/0
Pull Cord Guide
Price: £6.64
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
25Handle Clamp PlateRef: 322545137/0
Handle Clamp Plate
Price: £1.49
Special Order
Can be ordered (5 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

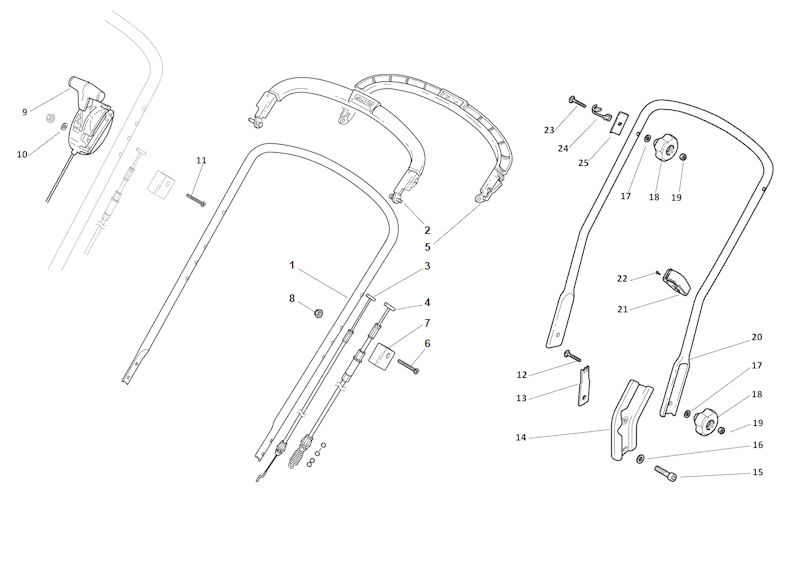

Spare Parts for Quattro 19SA Handles

Quattro 19SA Handles
Stock last checked Apr 24 2025 06:11.
--- -
1Upper Handle [Black]Ref: 381006618/1
Upper Handle [Black]
Price: £48.76
Special Order
Can be ordered (1 at manufacturer)
Qty:
2Mountfield / Stiga OPC Engine Stop Lever Handle - Plastic EndsRef: 381003298/1
Mountfield / Stiga OPC Engine Stop Lever Handle - Plastic Ends
Price: £30.90
Special Order
Qty:
3Engine Brake Cable L=1277Ref: 181000692/0
Engine Brake Cable L=1277
Price: £12.80
Special Order
Can be ordered (4 at manufacturer)
Qty:
4Mountfield Stiga Clutch Cable for M6/480/550 Series 181000697/0Ref: 381000697/0
Mountfield Stiga Clutch Cable for M6/480/550 Series 181000697/0
Price: £18.42
3 in stock ready to go
Qty:
5Drive Control LeverRef: 381003297/1
Drive Control Lever
Price: £21.26
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)Ref: 112727783/0
112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)
Price: £1.61
Special Order
Qty:
7322551685/0 Cable Holder  22551640/0, 518925Ref: 322551685/0
322551685/0 Cable Holder 22551640/0, 518925
Price: £6.96
4 in stock ready to go
Qty:
8NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
9Throttle Cable L=1270Ref: 181007127/1
Throttle Cable L=1270
Price: £47.54
Special Order
Qty:
10Washer M6 6.6 X 18 X 1.6Ref: 112523040/0
Washer M6 6.6 X 18 X 1.6
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
11Cross-Head Screw M6 X 70Ref: 112727787/0
Cross-Head Screw M6 X 70
Price: £1.75
Special Order
Can be ordered (5 at manufacturer)
Qty:
12112820655/0 SCREWRef: 112820655/0
112820655/0 SCREW
Price: £1.36
Special Order
Qty:
13Attachment PlateRef: 322551635/0
Attachment Plate
Price: £3.97
Special Order
Can be ordered (9 at manufacturer)
Qty:
14Lower Handle Support ClampRef: 322778405/0
Lower Handle Support Clamp
Price: £22.99
Special Order
Qty:
15Mountfield Stiga Castel Alpina Twincut ALLEN SCREW M8 x 20   112760515/0Ref: 112760515/0
Mountfield Stiga Castel Alpina Twincut ALLEN SCREW M8 x 20 112760515/0
Price: £1.61
3 in stock ready to go
Qty:
16WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
Not in stock
Qty:
17WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
Not in stock
Qty:
18Handwheel W/O Nut [Black]Ref: 322399810/0
Handwheel W/O Nut [Black]
Price: £7.98
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
19Mountfield Castel Stiga Alpina   NUT HEXAGON NUT 1/4 UNC   12361005/0Ref: 112361005/0
Mountfield Castel Stiga Alpina NUT HEXAGON NUT 1/4 UNC 12361005/0
Price: £3.83
1 in stock ready to go
Qty:
20Lower Pro Handle [Black]Ref: 381006613/0
Lower Pro Handle [Black]
Price: £36.56
Special Order
Qty:
21Cable ClampRef: 322192001/0
Cable Clamp
Price: £1.49
Special Order
Qty:
22Ref: 112728691/0
Not found
23112820655/0 SCREWRef: 112820655/0
112820655/0 SCREW
Price: £1.36
Special Order
Qty:
24Pull Cord GuideRef: 122430311/0
Pull Cord Guide
Price: £6.64
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
25Handle Clamp PlateRef: 322545137/0
Handle Clamp Plate
Price: £1.49
Special Order
Can be ordered (5 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

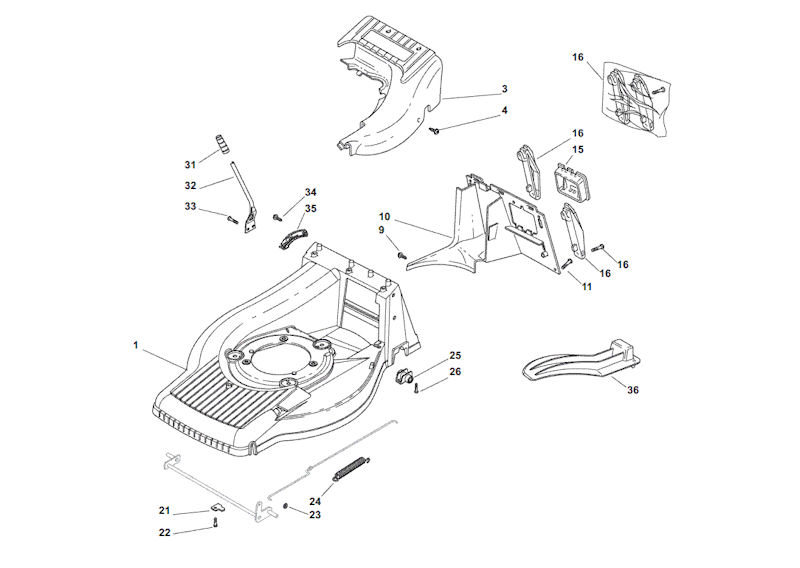

Spare Parts for Quattro 19SA Chassis

Quattro 19SA Chassis
Stock last checked Apr 24 2025 06:11.
--- -
1Ref: 381004675/0
Not found
3Ref: 322060255/0
Not found
4112728300/0 SCREWRef: 112728300/0
112728300/0 SCREW
Price: £1.61
Special Order
Qty:
9112728300/0 SCREWRef: 112728300/0
112728300/0 SCREW
Price: £1.61
Special Order
Qty:
10Plastic Rear BaffleRef: 322108277/0
Plastic Rear Baffle
Price: £47.40
Special Order
Can be ordered (3 at manufacturer)
Qty:
11Screw M6 X 16Ref: 112735664/0
Screw M6 X 16
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
15Battery CoverRef: 322109531/0
Battery Cover
Price: £48.79
Special Order
Can be ordered (2 at manufacturer)
Qty:
16381008658/1 BAG-GRASSCATCHER FITTINGSRef: 381008658/1
381008658/1 BAG-GRASSCATCHER FITTINGS
Price: £15.95
Special Order
Qty:
21Ref: 322545160/0
Not found
22Screw M6 X 16Ref: 112735664/0
Screw M6 X 16
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
23Starlock Washer D=7Ref: 112604898/0
Starlock Washer D=7
Price: £1.49
Special Order
Qty:
24SpringRef: 122446181/0
Spring
Price: £7.72
Special Order
Can be ordered (1 at manufacturer)
Qty:
25Castelgarden CSPR53R Roller Bushing   22785153/0Ref: 322785153/0
Castelgarden CSPR53R Roller Bushing 22785153/0
Price: £14.34
Special Order
Qty:
26Screw M6 X 16Ref: 112735664/0
Screw M6 X 16
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
31Mountfield HEIGHT ADJUST LEVER KNOB   22399808/0Ref: 322399808/0
Mountfield HEIGHT ADJUST LEVER KNOB 22399808/0
Price: £2.35
Special Order
Qty:
32Ref: 1111-2816-01
Not found
33Screw Tcb Torx M6 X 10Ref: 112735661/0
Screw Tcb Torx M6 X 10
Price: £1.49
Special Order
Can be ordered (2 at manufacturer)
Qty:
34112728300/0 SCREWRef: 112728300/0
112728300/0 SCREW
Price: £1.61
Special Order
Qty:
35Height Adjust QuadrantRef: 322735563/0
Height Adjust Quadrant
Price: £14.42
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
36Ref: 322140231/0
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
