ATCO Quattro 15S (2012) 297412027/AT2


Quattro 15S Transmission
Quattro 15S Transmission
Quattro 15S Handles
Quattro 15S Handles
Quattro 15S Chassis
Quattro 15S Chassis

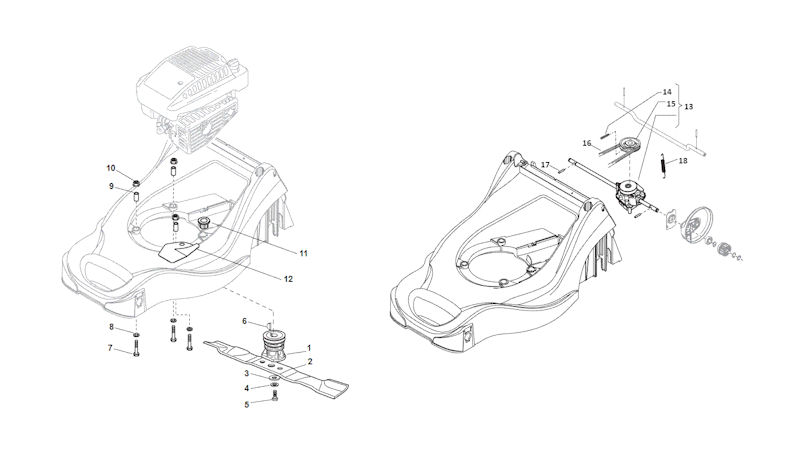

Spare Parts for Quattro 15S Transmission

Quattro 15S Transmission
Stock last checked Apr 25 2025 06:10.
--- -
1Stiga / Castelgarden / Mountfield / Homelite / Tuffcut Blade Boss Hub Holder  122465607/4Ref: 122465607/4
Stiga / Castelgarden / Mountfield / Homelite / Tuffcut Blade Boss Hub Holder 122465607/4
Price: £8.90
10+ in stock ready to go
Qty:
2Mountfield / ATCO / Stiga Spare Mower Blade  414 Quattro 15 181004360/3Ref: 181004360/3
Mountfield / ATCO / Stiga Spare Mower Blade 414 Quattro 15 181004360/3
Price: £11.75
Not in stock
Qty:
3Spring Washer Elastic Washer 50x2x10.2Ref: 122160400/0
Spring Washer Elastic Washer 50x2x10.2
Price: £1.73
Not in stock
Qty:
4Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2  12735698/0Ref: 112735698/0
Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2 12735698/0
Price: £1.49
8 in stock ready to go
Qty:
5Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2  12735698/0Ref: 112735698/0
Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2 12735698/0
Price: £1.49
8 in stock ready to go
Qty:
6Mountfield / Castelgarden / Hayter  Stiga Woodruff Key 22.2mm 112139100/0   1662Ref: 112139100/0
Mountfield / Castelgarden / Hayter Stiga Woodruff Key 22.2mm 112139100/0 1662
Price: £1.61
10+ in stock ready to go
Qty:
7Ref: 112691900/0
Not found
8Mountfield Stiga WASHER  M8 8.4 X 24 X 2    12523060/0Ref: 112523060/0
Mountfield Stiga WASHER M8 8.4 X 24 X 2 12523060/0
Price: £1.61
8 in stock ready to go
Qty:
9Spacer Bushing Di=9 De=15 H=30.8 WzRef: 122167842/0
Spacer Bushing Di=9 De=15 H=30.8 Wz
Price: £3.25
Special Order
Qty:
10112154210/0 SELF-LOCK NUT WINGEDRef: 112154210/0
112154210/0 SELF-LOCK NUT WINGED
Price: £1.61
Special Order
Qty:
11Motor BushRef: 122040265/0
Motor Bush
Price: £1.36
Special Order
Qty:
12Muffler Guard PlateRef: 322484070/1
Muffler Guard Plate
Price: £2.17
Special Order
Qty:
13Mountfield Stiga Castel Alpina ROLL PIN 5 x 32mm   112645705/0Ref: 112645705/0
Mountfield Stiga Castel Alpina ROLL PIN 5 x 32mm 112645705/0
Price: £1.61
Special Order
Qty:
14Mountfield Stiga Castel Alpina ROLL PIN 5 x 32mm   112645705/0Ref: 112645705/0
Mountfield Stiga Castel Alpina ROLL PIN 5 x 32mm 112645705/0
Price: £1.61
Special Order
Qty:
15PulleyRef: 122601909/0
Pulley
Price: £5.42
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
16STIGA / MOUNTFIELD / GGP TRAPEZOIDAL BELT Z26 SP164 / SP414 135063730/0Ref: 135063730/0
STIGA / MOUNTFIELD / GGP TRAPEZOIDAL BELT Z26 SP164 / SP414 135063730/0
Price: £8.28
1 in stock ready to go
Qty:
17Mountfield Stiga Castel Alpina  PIN   D=5.2 x 25.65Ref: 122753000/0
Mountfield Stiga Castel Alpina PIN D=5.2 x 25.65
Price: £1.61
8 in stock ready to go
Qty:
18122430217/0 SPRINGRef: 122430217/0
122430217/0 SPRING
Price: £11.65
1 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

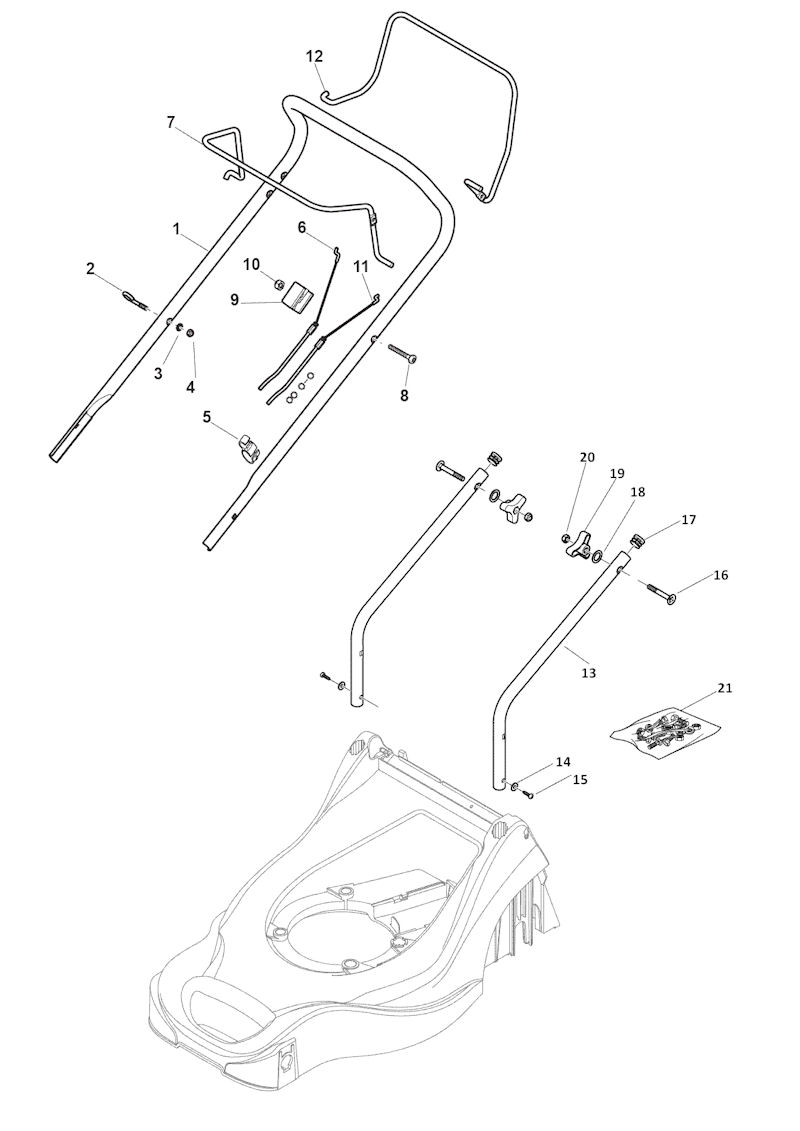

Spare Parts for Quattro 15S Handles

Quattro 15S Handles
Stock last checked Apr 25 2025 06:10.
--- -
1381006739/2 UPPER HANDLERef: 381006739/2
381006739/2 UPPER HANDLE
Price: £21.01
Special Order
Qty:
2122430313/0 PULL CORD GUIDE            T100Ref: 122430313/0
122430313/0 PULL CORD GUIDE T100
Price: £3.60
Special Order
Qty:
3Stiga Mountfield Alpina Castel    WASHER  M6 6.4 X 12 X 1.6     12521330/0Ref: 112521330/0
Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0
Price: £1.61
Not in stock
Qty:
4NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
5Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037Ref: 118390020/0
Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037
Price: £1.49
10+ in stock ready to go
Qty:
6181030079/0 ENGINE BRAKE CABLE L=995Ref: 181030079/0
181030079/0 ENGINE BRAKE CABLE L=995
Price: £11.75
Special Order
Qty:
7181003363/1 BRAKE CONTROL LEVERRef: 181003363/1
181003363/1 BRAKE CONTROL LEVER
Price: £14.20
Special Order
Qty:
8112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)Ref: 112727783/0
112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)
Price: £1.61
Special Order
Qty:
9322551685/0 Cable Holder  22551640/0, 518925Ref: 322551685/0
322551685/0 Cable Holder 22551640/0, 518925
Price: £6.96
4 in stock ready to go
Qty:
10NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
11Mountfield Clutch Cable SP164  381030080/0   81030080/0Ref: 381030080/0
Mountfield Clutch Cable SP164 381030080/0 81030080/0
Price: £17.05
Not in stock
Qty:
12Drive Control Lever [Black] 181003364/0Ref: 181003364/0
Drive Control Lever [Black] 181003364/0
Price: £20.24
1 in stock ready to go
Qty:
13Mountfield LOWER HANDLE - 1 Side - HP414 HP164 SP414Ref: 381006769/0
Mountfield LOWER HANDLE - 1 Side - HP414 HP164 SP414
Price: £8.40
Not in stock
Qty:
14Washer M5 5.5 X 15 X 1.6 Uni 6593Ref: 112523020/0
Washer M5 5.5 X 15 X 1.6 Uni 6593
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
15112728450/0 SELF-TAPPING SCREW 4.8 x 19 UNI 6954 C15Ref: 112728450/0
112728450/0 SELF-TAPPING SCREW 4.8 x 19 UNI 6954 C15
Price: £1.48
Special Order
Qty:
16Screw Ttdq M8 X 50 Uni 5732Ref: 112819110/0
Screw Ttdq M8 X 50 Uni 5732
Price: £1.75
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
17Handle Cap D=22 [Black]Ref: 118566110/0
Handle Cap D=22 [Black]
Price: £1.49
Special Order
Qty:
18WASHERRef: 122671651/0
WASHER
Price: £1.86
8 in stock ready to go
Qty:
19Mountfield HANDWHEEL Knob Handle w/o nutRef: 122399900/0
Mountfield HANDWHEEL Knob Handle w/o nut
Price: £1.61
6 in stock ready to go
Qty:
20Nut 112293200/0Ref: 112293200/0
Nut 112293200/0
Price: £1.61
3 in stock ready to go
Qty:
21Handle Screws Outfit Ep414 (Black Knobs)Ref: 381008687/0
Handle Screws Outfit Ep414 (Black Knobs)
Price: £7.98
Special Order
Can be ordered (7 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

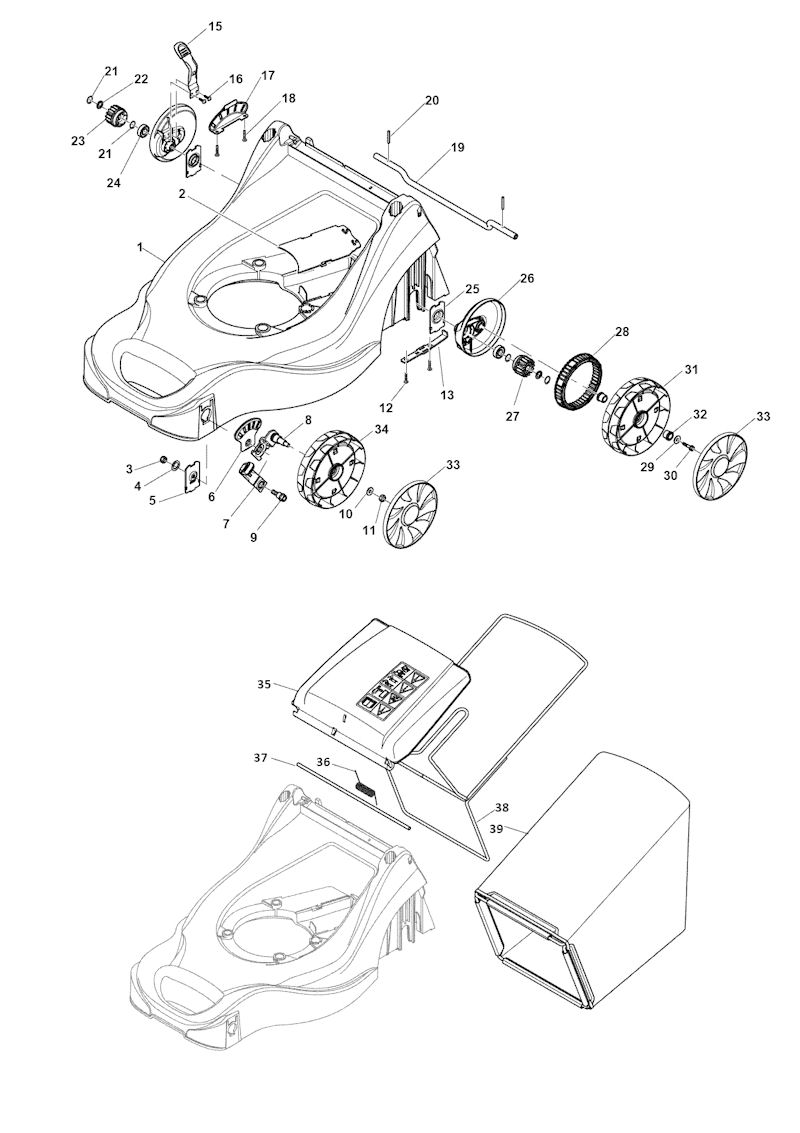

Spare Parts for Quattro 15S Chassis

Quattro 15S Chassis
Stock last checked Apr 25 2025 06:10.
--- -
1Ref: 322066770/0
Not found
2Belt Protection Guard Ep41Ref: 322060245/0
Belt Protection Guard Ep41
Price: £3.12
Special Order
Can be ordered (5 at manufacturer)
Qty:
3112154210/0 SELF-LOCK NUT WINGEDRef: 112154210/0
112154210/0 SELF-LOCK NUT WINGED
Price: £1.61
Special Order
Qty:
4Serrated Lock Washer M8Ref: 112540060/0
Serrated Lock Washer M8
Price: £1.49
Special Order
Can be ordered (4 at manufacturer)
Qty:
5Support PlateRef: 322785361/0
Support Plate
Price: £2.17
Special Order
Qty:
6Height Adjust QuadrantRef: 322735599/0
Height Adjust Quadrant
Price: £3.92
Special Order
Can be ordered (7 at manufacturer)
Qty:
7381003352/0 HEIGHT ADJUST LEVERRef: 381003352/0
381003352/0 HEIGHT ADJUST LEVER
Price: £6.96
2 in stock ready to go
Qty:
8Wheel Stub AxleRef: 381005163/0
Wheel Stub Axle
Price: £6.77
Special Order
Can be ordered (8 at manufacturer)
Qty:
9Wheel Bolt 122519811/0Ref: 122519811/0
Wheel Bolt 122519811/0
Price: £1.48
1 in stock ready to go
Qty:
10WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
7 in stock ready to go
Qty:
11112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:
12Mountfield Castel Twincut SCREW  112728690/0Ref: 112728690/0
Mountfield Castel Twincut SCREW 112728690/0
Price: £1.61
Special Order
Qty:
13Rear BracketRef: 322608563/0
Rear Bracket
Price: £2.58
Special Order
Qty:
15Height Adjust LeverRef: 381003353/0
Height Adjust Lever
Price: £7.72
Special Order
Can be ordered (3 at manufacturer)
Qty:
16Screw Ka50 X 12Ref: 112728689/0
Screw Ka50 X 12
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
17Height Adjust QuadrantRef: 322735601/0
Height Adjust Quadrant
Price: £2.84
Special Order
Can be ordered (1 at manufacturer)
Qty:
18Mountfield Castel Twincut SCREW  112728690/0Ref: 112728690/0
Mountfield Castel Twincut SCREW 112728690/0
Price: £1.61
Special Order
Qty:
19Rear Wheels AxleRef: 122033417/0
Rear Wheels Axle
Price: £15.50
Special Order
Can be ordered (1 at manufacturer)
Qty:
20Pin D=4 X 32Ref: 122753001/0
Pin D=4 X 32
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
21112608600/0 Circlip D=12 Uni 7435 C60Ref: 112608600/0
112608600/0 Circlip D=12 Uni 7435 C60
Price: £1.48
Not in stock
Qty:
22WASHER M12Ref: 112521370/0
WASHER M12
Price: £1.61
2 in stock ready to go
Qty:
23Right Pinion GearRef: 322570135/0
Right Pinion Gear
Price: £3.65
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
24119216035/0 BEARINGRef: 119216035/0
119216035/0 BEARING
Price: £3.22
Not in stock
Qty:
25Axle Support PlateRef: 322785379/0
Axle Support Plate
Price: £2.17
Special Order
Can be ordered (3 at manufacturer)
Qty:
26322600203/0 INNER WHEEL COVER D=175Ref: 322600203/0
322600203/0 INNER WHEEL COVER D=175
Price: £5.04
Special Order
Qty:
27322570136/0 LEFT PINION GEARRef: 322570136/0
322570136/0 LEFT PINION GEAR
Price: £3.59
Special Order
Qty:
28322120118/0  PLASTIC DRIVE GEARRef: 322120118/0
322120118/0 PLASTIC DRIVE GEAR
Price: £10.01
Special Order
Qty:
29Washer M6 6.6 X 18 X 1.6Ref: 112523040/0
Washer M6 6.6 X 18 X 1.6
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
30Self-Tap Screw M6 X 20Ref: 112735592/0
Self-Tap Screw M6 X 20
Price: £1.90
Special Order
Can be ordered (2 at manufacturer)
Qty:
31Wheel C/W Bush D=175MmRef: 381007475/0
Wheel C/W Bush D=175Mm
Price: £6.23
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
32322034516/0 WHEEL BUSH D=175Ref: 322034516/0
322034516/0 WHEEL BUSH D=175
Price: £1.61
Special Order
Qty:
33322110642/0 HUB CAP D=175 [GREY]Ref: 322110642/0
322110642/0 HUB CAP D=175 [GREY]
Price: £2.22
2 in stock ready to go
Qty:
34Delta Wheel D=175Ref: 322686100/0
Delta Wheel D=175
Price: £6.10
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
35Deflector [Black]Ref: 322600212/0
Deflector [Black]
Price: £9.76
Special Order
Can be ordered (9 at manufacturer)
Qty:
36Deflector SpringRef: 122450467/0
Deflector Spring
Price: £2.04
Special Order
Can be ordered (2 at manufacturer)
Qty:
37Deflector RodRef: 122517870/0
Deflector Rod
Price: £1.90
Special Order
Can be ordered (1 at manufacturer)
Qty:
38Grasscatcher FrameRef: 181006420/1
Grasscatcher Frame
Price: £29.80
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
39181002320/0 GRASSBAGRef: 181002320/0
181002320/0 GRASSBAG
Price: £29.46
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
