ATCO Classic 20S (2023) 2L0536047/MC


Classic 20S - Deck
Classic 20S - Deck
Classic 20S - Height Adjusting
Classic 20S - Height Adjusting
Classic 20S - Mask
Classic 20S - Mask
Classic 20S - Handle, Lower Part
Classic 20S - Handle, Lower Part
Classic 20S - Handle, Upper Part
Classic 20S - Handle, Upper Part
Classic 20S - Wheel and Hub Cap
Classic 20S - Wheel and Hub Cap

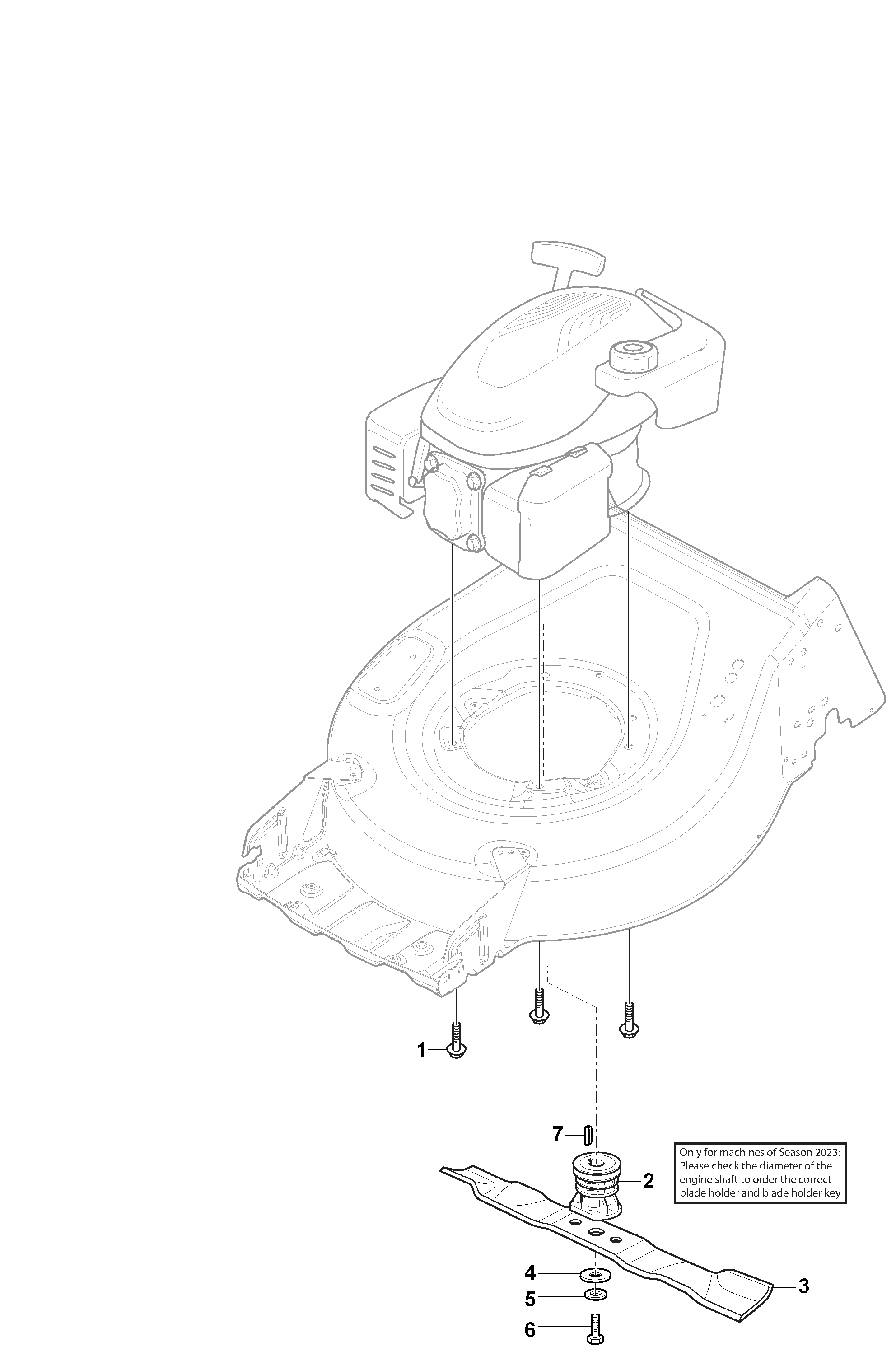

Classic 20S - Blade
Classic 20S - Blade

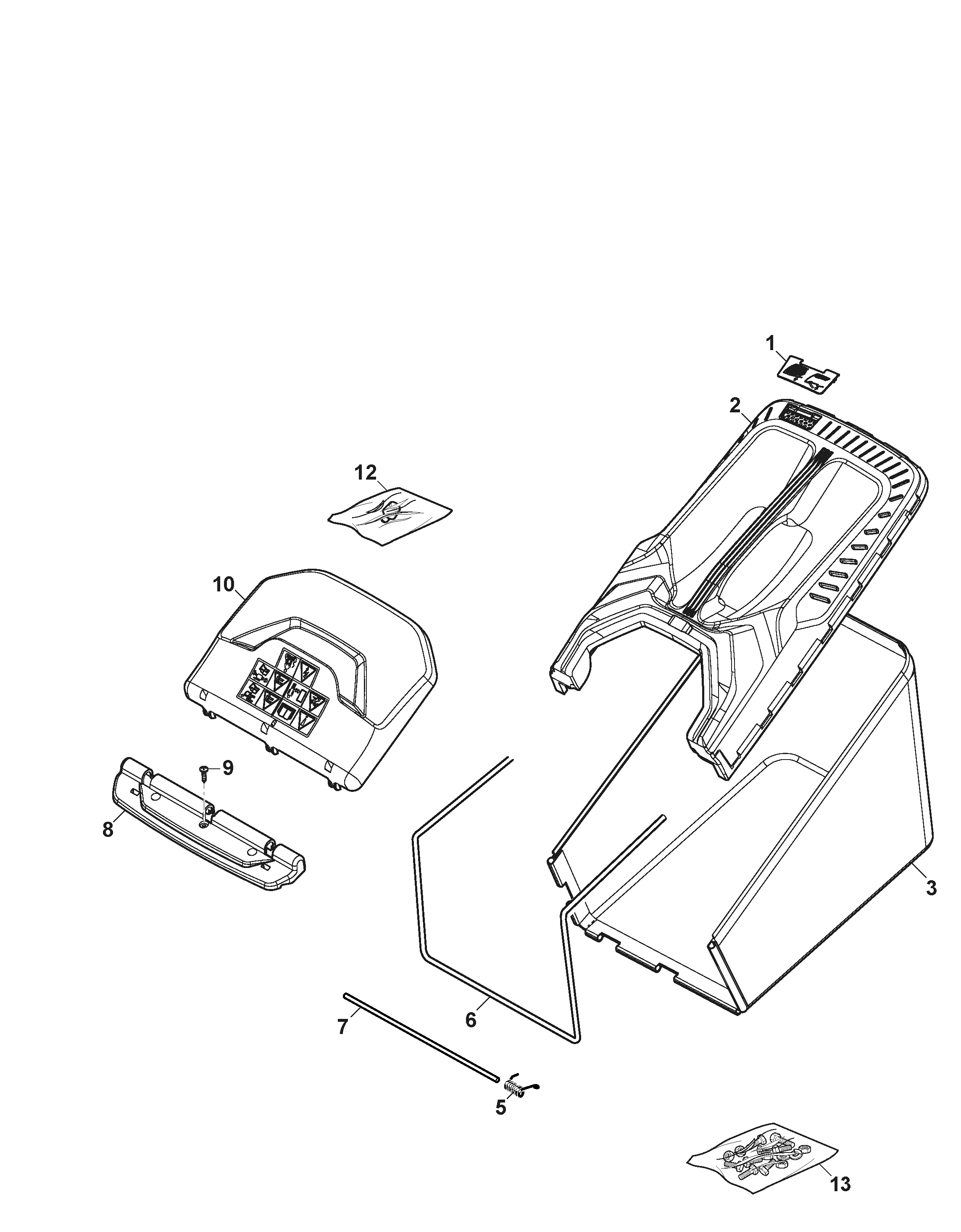

Classic 20S - Grass-Catcher
Classic 20S - Grass-Catcher

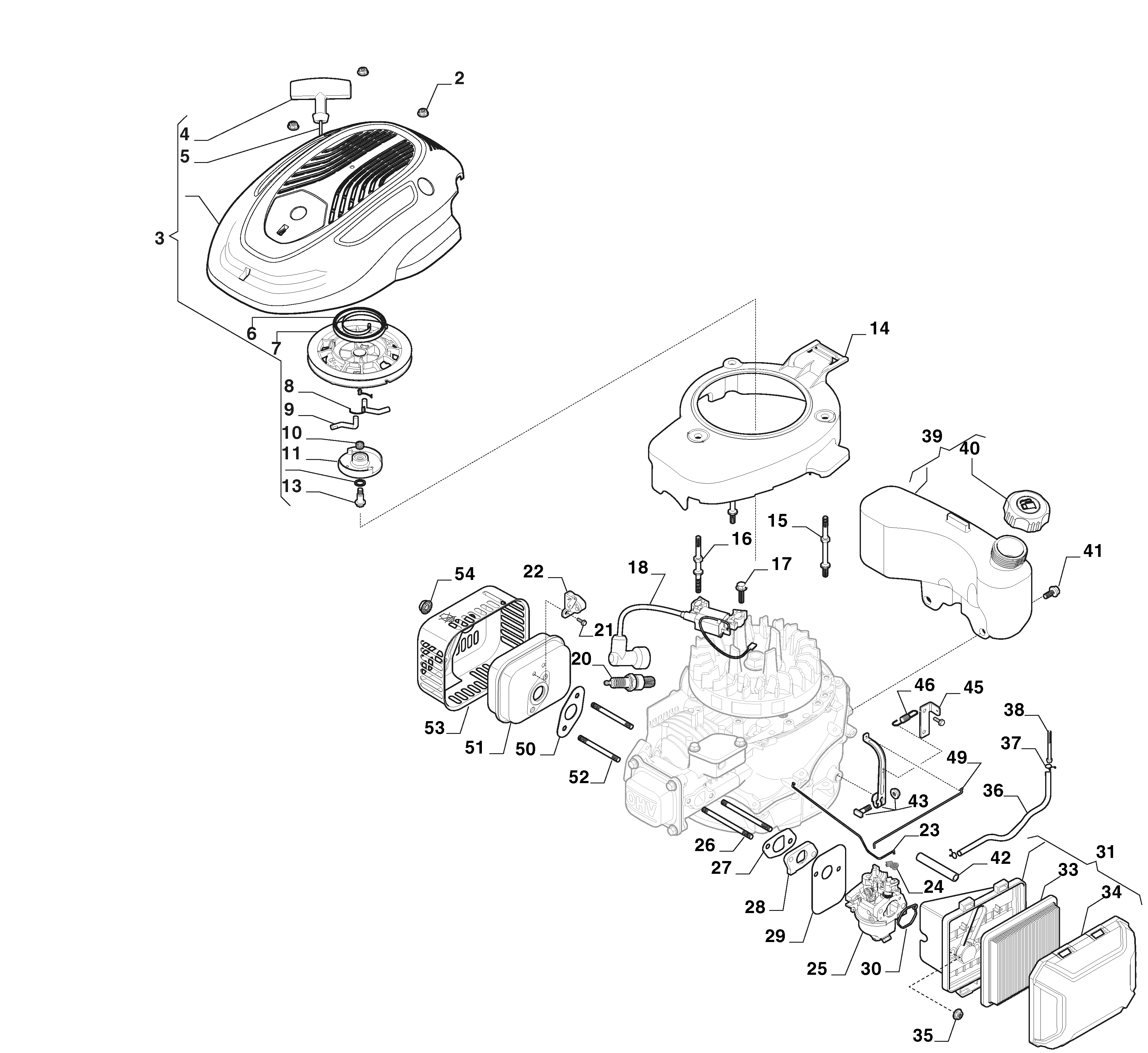

Classic 20S - Engine - Carburettor, Tank
Classic 20S - Engine - Carburettor, Tank

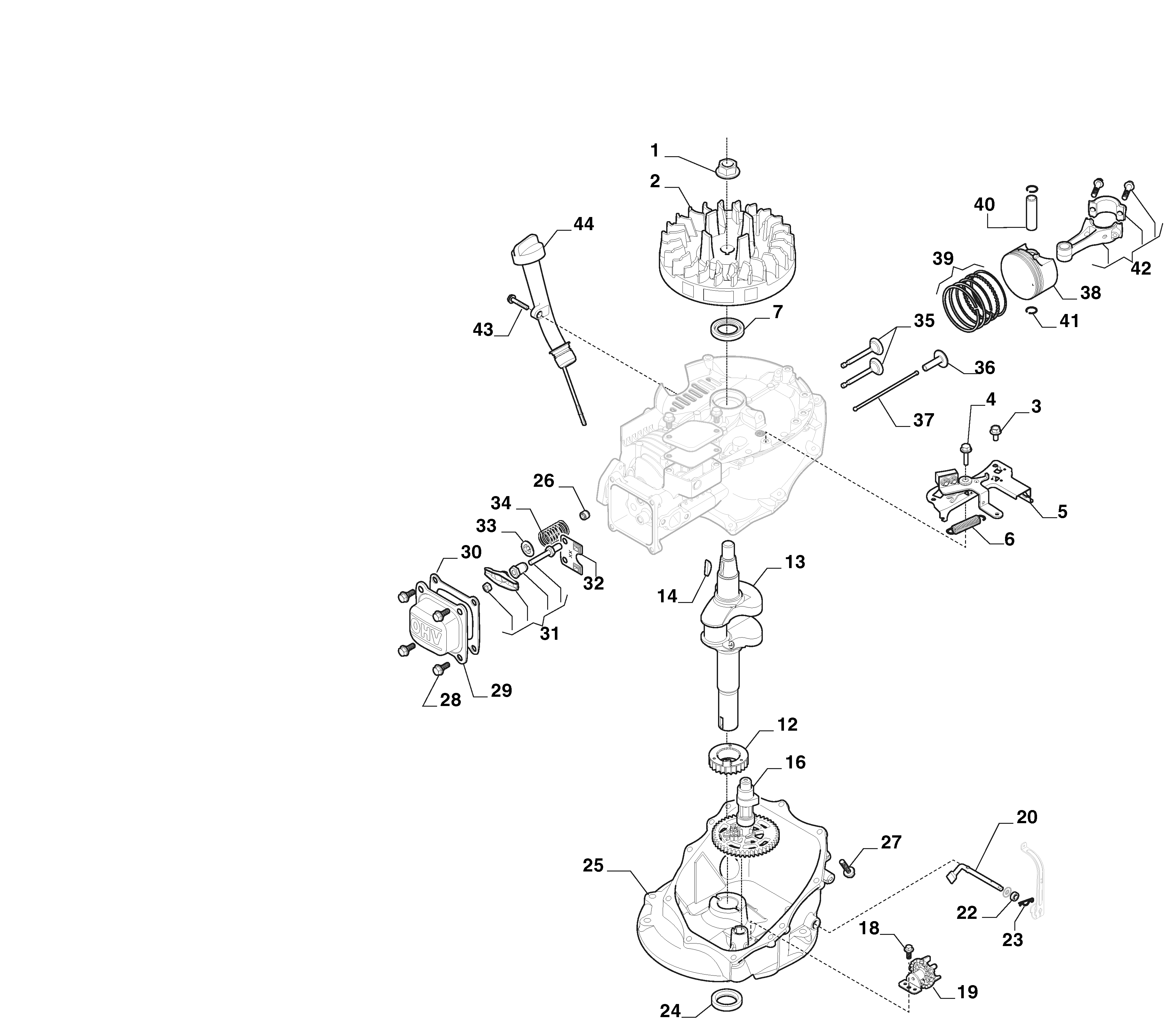

Classic 20S - Engine - Piston, Crankshaft
Classic 20S - Engine - Piston, Crankshaft

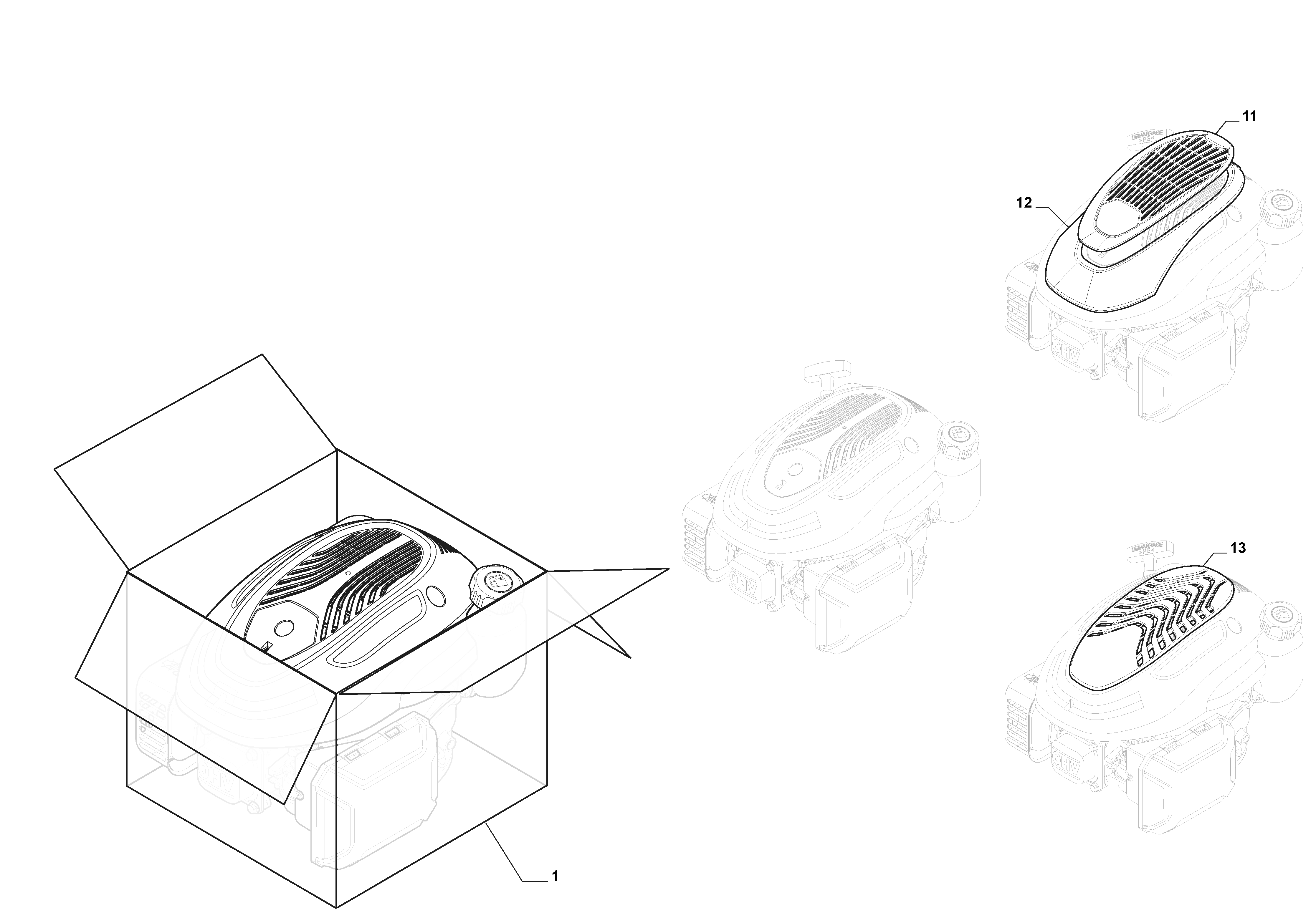

Classic 20S - Engine Cover
Classic 20S - Engine Cover

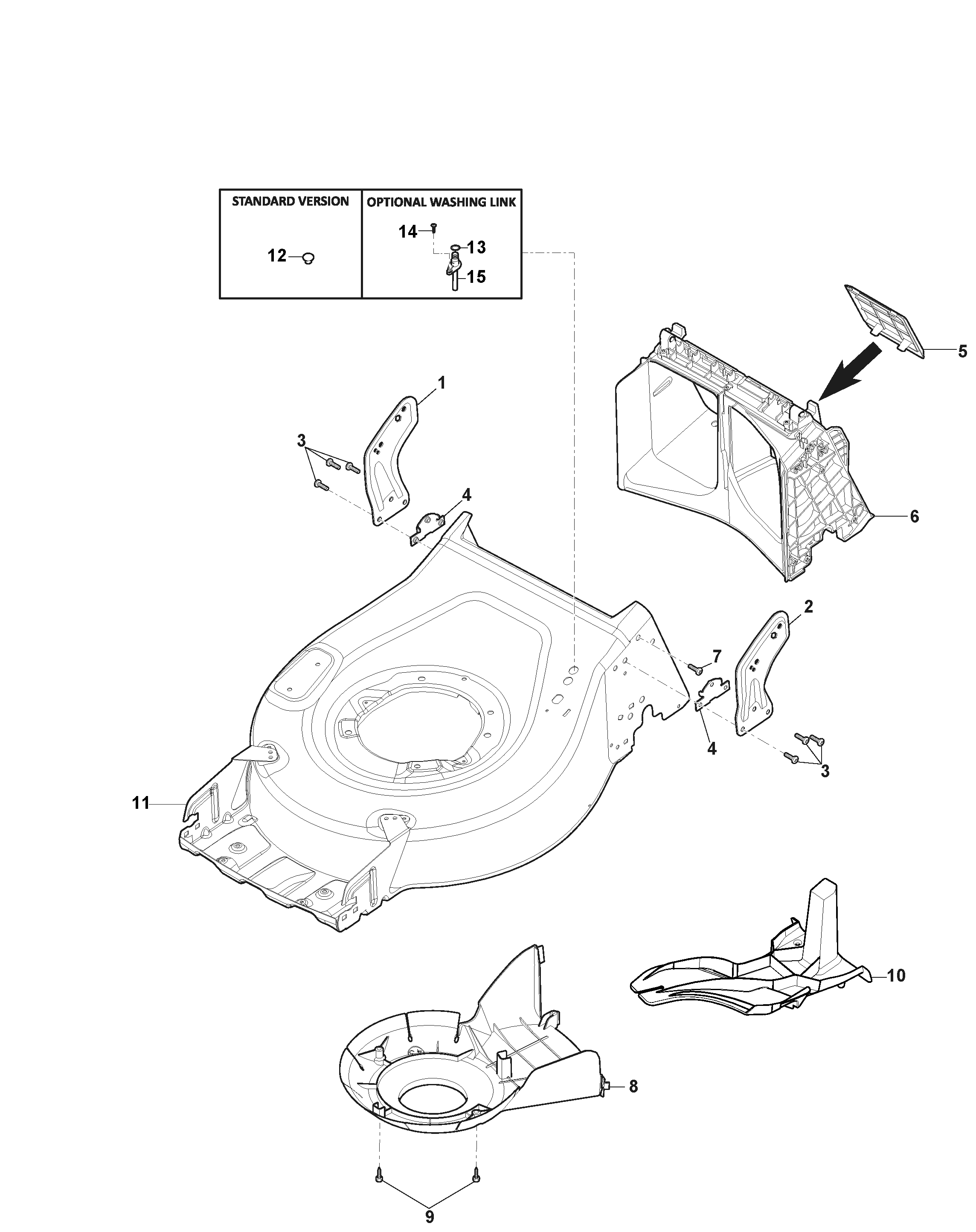

Spare Parts for Classic 20S - Deck

Classic 20S - Deck
Stock last checked Apr 25 2025 06:10.
--- -
1R/H Handle Bracket [Black]Ref: 381005195/2
R/H Handle Bracket [Black]
Price: £6.97
Special Order
Qty:
2L/H Handle Bracket [Black]Ref: 381005197/2
L/H Handle Bracket [Black]
Price: £6.97
Special Order
Qty:
3Ref: 112727802/0
Not found
4Fixing PlateRef: 322545213/0
Fixing Plate
Price: £1.90
Special Order
Can be ordered (3 at manufacturer)
Qty:
5Rear DoorRef: 322600310/0
Rear Door
Price: £4.87
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6Plastic Rear Baffle 322108329/0Ref: 322108329/0
Plastic Rear Baffle 322108329/0
Price: £19.15
Special Order
Qty:
7Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
8322060250/1 STIGA / MOUNTFIELD / BELT PROTECTION GUARD CR53 322060250/0Ref: 322060250/1
322060250/1 STIGA / MOUNTFIELD / BELT PROTECTION GUARD CR53 322060250/0
Price: £9.89
Not in stock
Qty:
9Mountfield Castel Stiga   SELF-TAP SCREW 4.8 x 25   112728531/0Ref: 112728903/0
Mountfield Castel Stiga SELF-TAP SCREW 4.8 x 25 112728531/0
Price: £1.36
9 in stock ready to go
Qty:
10Ref: 322140251/0
Not found
11Steel Deck Cp1 53 [Grey]Ref: 381005632/0
Steel Deck Cp1 53 [Grey]
Price: £169.31
Special Order
Qty:
12Pvc Deck Cap For Drive Cable HoleRef: 322820077/1
Pvc Deck Cap For Drive Cable Hole
Price: £1.49
Special Order
Qty:
13119035000/0 O-RingRef: 119035000/0
119035000/0 O-Ring
Price: £3.60
Special Order
Qty:
14112728450/0 SELF-TAPPING SCREW 4.8 x 19 UNI 6954 C15Ref: 112728450/0
112728450/0 SELF-TAPPING SCREW 4.8 x 19 UNI 6954 C15
Price: £1.48
Special Order
Qty:
15322034002/0 WASHING CONNECTORRef: 322034002/0
322034002/0 WASHING CONNECTOR
Price: £1.61
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

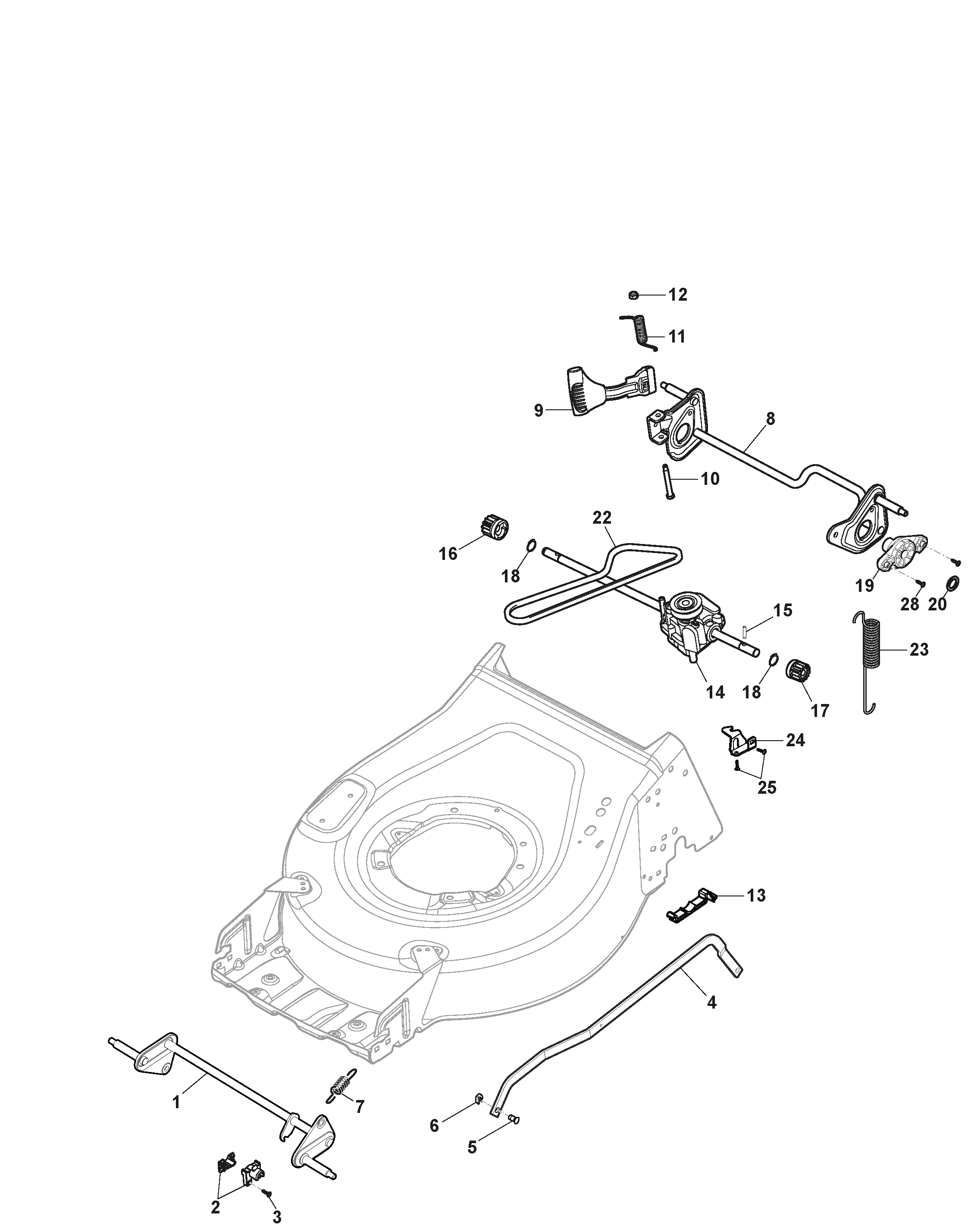

Spare Parts for Classic 20S - Height Adjusting

Classic 20S - Height Adjusting
Stock last checked Apr 25 2025 06:10.
--- -
1Front Wheels Axle D=200 Cp1 53Ref: 381302947/0
Front Wheels Axle D=200 Cp1 53
Price: £28.44
Special Order
Qty:
2Axle SupportRef: 322785305/1
Axle Support
Price: £2.58
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
3Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
4Height Adjust Rod 200/280Ref: 322869735/0
Height Adjust Rod 200/280
Price: £15.04
Special Order
Can be ordered (1 at manufacturer)
Qty:
5122519823/0    PINRef: 122519823/0
122519823/0 PIN
Price: £2.22
7 in stock ready to go
Qty:
6112000930/0 CIRCLIP D=6Ref: 112000930/0
112000930/0 CIRCLIP D=6
Price: £1.66
2 in stock ready to go
Qty:
7SpringRef: 122450494/0
Spring
Price: £4.60
Special Order
Can be ordered (1 at manufacturer)
Qty:
8Rear Wheels Axle D=280Ref: 381302849/1
Rear Wheels Axle D=280
Price: £48.76
Special Order
Can be ordered (1 at manufacturer)
Qty:
9Height Adjust Lever D=280Ref: 381003458/1
Height Adjust Lever D=280
Price: £10.43
Special Order
Can be ordered (1 at manufacturer)
Qty:
10PinRef: 122534131/0
Pin
Price: £1.49
Special Order
Can be ordered (1 at manufacturer)
Qty:
11SpringRef: 122446192/0
Spring
Price: £2.04
Special Order
Can be ordered (3 at manufacturer)
Qty:
12NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
13Stiga Rear Axle Support 322785500/0Ref: 322785500/0
Stiga Rear Axle Support 322785500/0
Price: £2.40
Not in stock
Qty:
14Gearbox [Dog Clutch Monospeed]Ref: 181003134/0
Gearbox [Dog Clutch Monospeed]
Price: £94.81
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
15Mountfield Stiga Castel Alpina  PIN   D=5.2 x 25.65Ref: 122753000/0
Mountfield Stiga Castel Alpina PIN D=5.2 x 25.65
Price: £1.61
8 in stock ready to go
Qty:
16Right Pinion Z12 GearRef: 122570133/0
Right Pinion Z12 Gear
Price: £7.24
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
17Left Pinion Z12 GearRef: 122570134/0
Left Pinion Z12 Gear
Price: £7.24
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
18112608600/0 Circlip D=12 Uni 7435 C60Ref: 112608600/0
112608600/0 Circlip D=12 Uni 7435 C60
Price: £1.48
Not in stock
Qty:
19322042067/0 AXLE BUSHRef: 322042067/0
322042067/0 AXLE BUSH
Price: £3.83
5 in stock ready to go
Qty:
20Washer M12 13 X 20 X 2Ref: 112521371/0
Washer M12 13 X 20 X 2
Price: £1.49
Special Order
Can be ordered (2 at manufacturer)
Qty:
22135064196/0 TRAPEZOIDAL BELT Z29          T100Ref: 135064196/0
135064196/0 TRAPEZOIDAL BELT Z29 T100
Price: £8.75
Not in stock
Qty:
22Stiga Transmission Belt 135064196/0Ref: 1111-9296-01
Stiga Transmission Belt 135064196/0
Price: £14.39
Special Order
Qty:
23Tension SpringRef: 122430254/0
Tension Spring
Price: £3.92
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
24Stop BracketRef: 322778473/1
Stop Bracket
Price: £2.04
Special Order
Can be ordered (5 at manufacturer)
Qty:
25Ref: 112728699/0
Not found
28Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

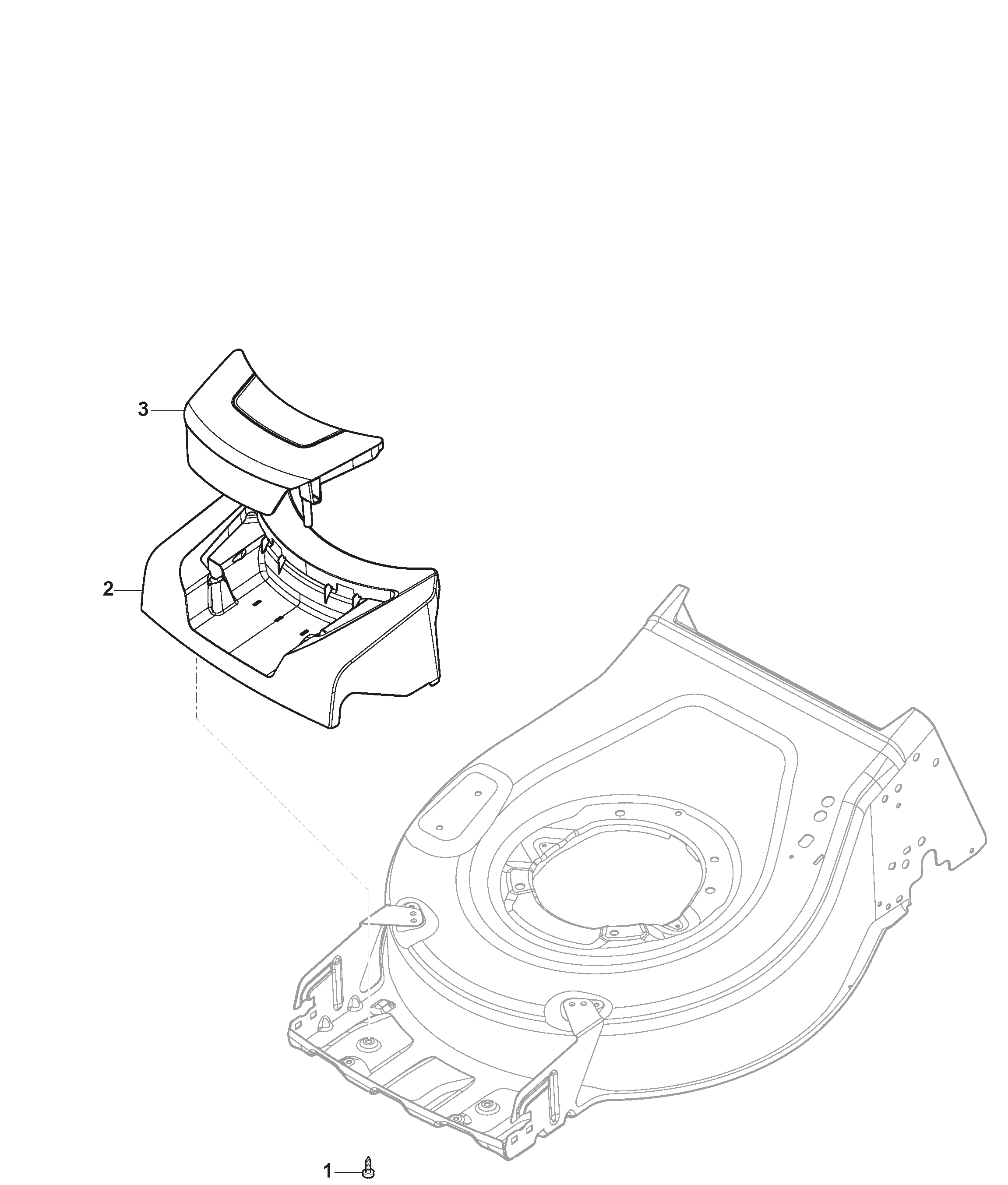

Spare Parts for Classic 20S - Mask

Classic 20S - Mask
Stock last checked Apr 25 2025 06:10.
--- -
1Flanged Hex-Head Screw D=6 X 35Ref: 112735410/0
Flanged Hex-Head Screw D=6 X 35
Price: £1.49
Special Order
Qty:
2Plastic Front Cover [Black] Cp1 53Ref: 322226313/0
Plastic Front Cover [Black] Cp1 53
Price: £7.86
Special Order
Qty:
3Ref: 322393780/0
Not found

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

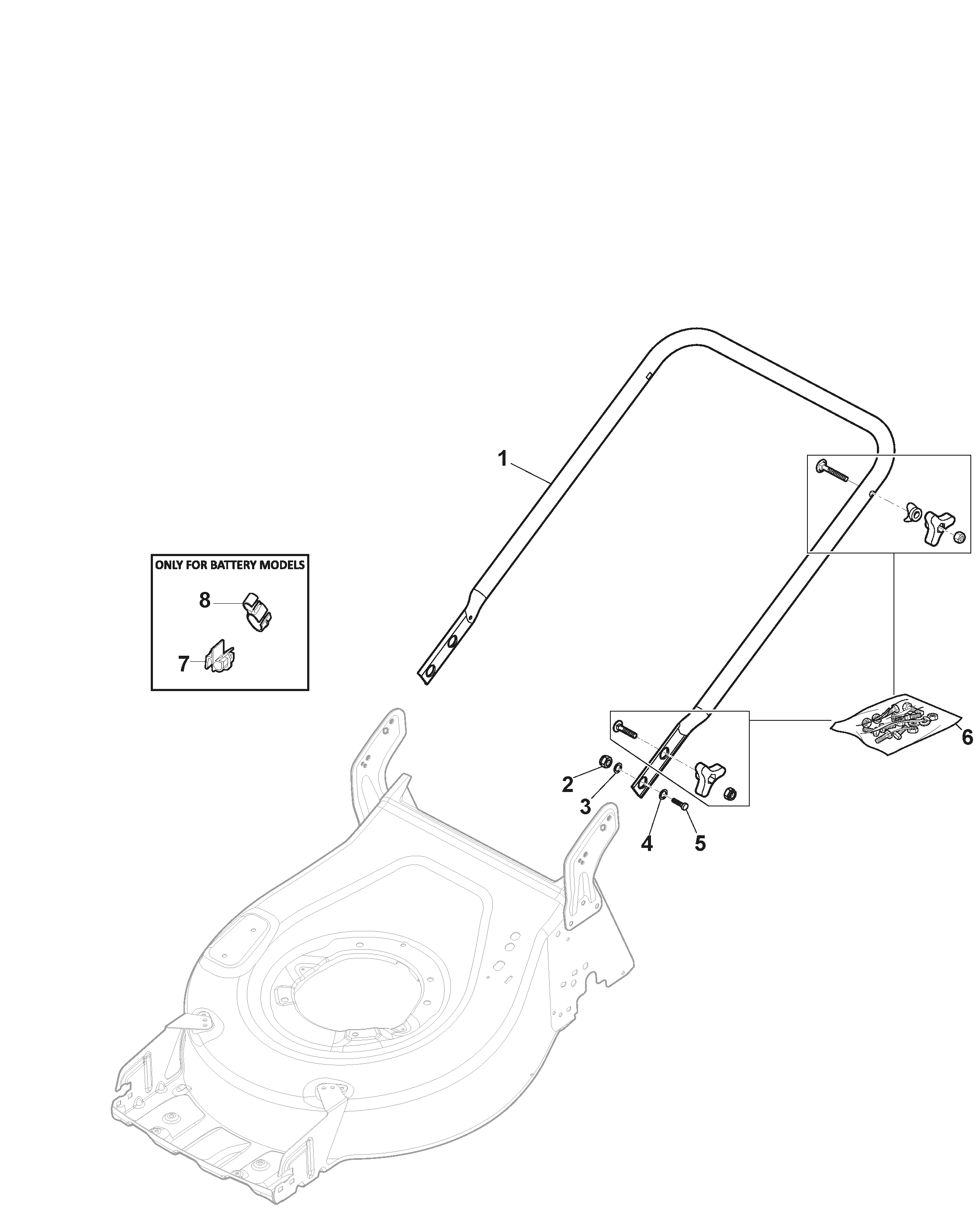

Spare Parts for Classic 20S - Handle, Lower Part

Classic 20S - Handle, Lower Part
Stock last checked Apr 25 2025 06:10.
--- -
1Mountfield / MacAllister / Stiga LOWER HANDLE S421HP S421PD S460 S461   (was 381006737/0)Ref: 381006785/0
Mountfield / MacAllister / Stiga LOWER HANDLE S421HP S421PD S460 S461 (was 381006737/0)
Price: £23.48
2 in stock ready to go
Qty:
2112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:
3WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
7 in stock ready to go
Qty:
4Spring Washer D=8Ref: 112369500/0
Spring Washer D=8
Price: £1.36
Special Order
Can be ordered (7 at manufacturer)
Qty:
5Mountfield Stiga ATCO  Screw Bolt M8 x 20   112760605/0Ref: 112760605/0
Mountfield Stiga ATCO Screw Bolt M8 x 20 112760605/0
Price: £3.10
10+ in stock ready to go
Qty:
6381008691/0 SCREWS ASSEMBLY KITRef: 381008691/0
381008691/0 SCREWS ASSEMBLY KIT
Price: £7.91
Not in stock
Qty:
7Cable ClipRef: 133320504/0
Cable Clip
Price: £1.90
Special Order
Qty:
8Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037Ref: 118390020/0
Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037
Price: £1.49
10+ in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

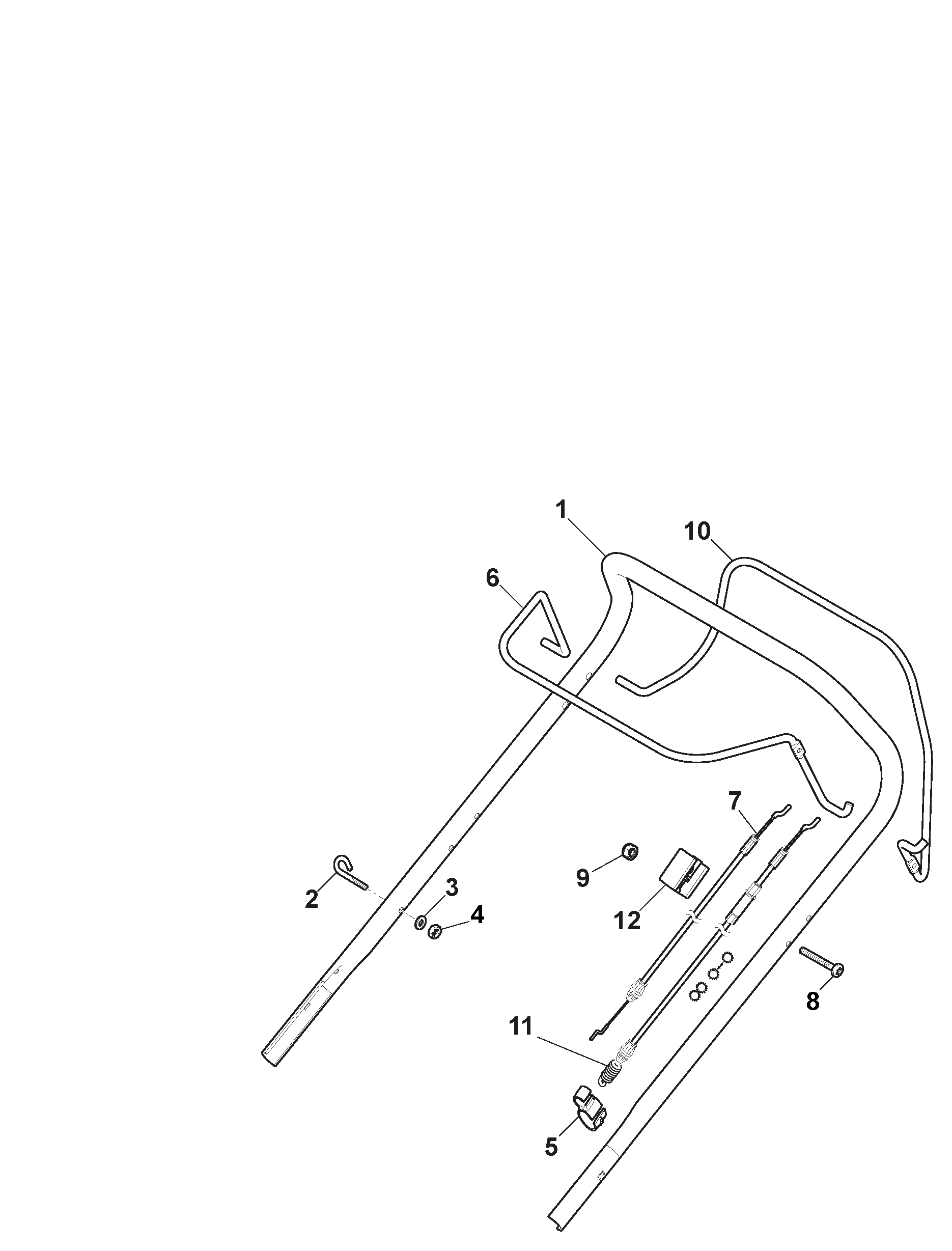

Spare Parts for Classic 20S - Handle, Upper Part

Classic 20S - Handle, Upper Part
Stock last checked Apr 25 2025 06:10.
--- -
1Upper Handle C/W Handgrip [Black]Ref: 381007571/2
Upper Handle C/W Handgrip [Black]
Price: £37.93
Special Order
Can be ordered (5 at manufacturer)
Qty:
2122430313/0 PULL CORD GUIDE            T100Ref: 122430313/0
122430313/0 PULL CORD GUIDE T100
Price: £3.60
Special Order
Qty:
3Stiga Mountfield Alpina Castel    WASHER  M6 6.4 X 12 X 1.6     12521330/0Ref: 112521330/0
Stiga Mountfield Alpina Castel WASHER M6 6.4 X 12 X 1.6 12521330/0
Price: £1.61
Not in stock
Qty:
4NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
5Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037Ref: 118390020/0
Mountfield Stiga Atco Alpina MacAllister Cable Clip 118390020 410037
Price: £1.49
10+ in stock ready to go
Qty:
6181003363/1 BRAKE CONTROL LEVERRef: 181003363/1
181003363/1 BRAKE CONTROL LEVER
Price: £14.20
Special Order
Qty:
7Engine Brake Cable (X=1115 Y=163)Ref: 181030087/0
Engine Brake Cable (X=1115 Y=163)
Price: £12.94
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
8112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)Ref: 112727783/0
112727783/0 CROSS-HEAD SCREW M6x40 (was 12727783/0)
Price: £1.61
Special Order
Qty:
9NUT  LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0Ref: 112154510/0
NUT LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S 12154510/0
Price: £1.61
9 in stock ready to go
Qty:
10Drive Control Lever [Black] 181003364/0Ref: 181003364/0
Drive Control Lever [Black] 181003364/0
Price: £20.24
1 in stock ready to go
Qty:
11381030139/0 CLUTCH DRIVE CABLE GT CP1Ref: 381030139/0
381030139/0 CLUTCH DRIVE CABLE GT CP1
Price: £18.35
1 in stock ready to go
Qty:
12322551685/0 Cable Holder  22551640/0, 518925Ref: 322551685/0
322551685/0 Cable Holder 22551640/0, 518925
Price: £6.96
4 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

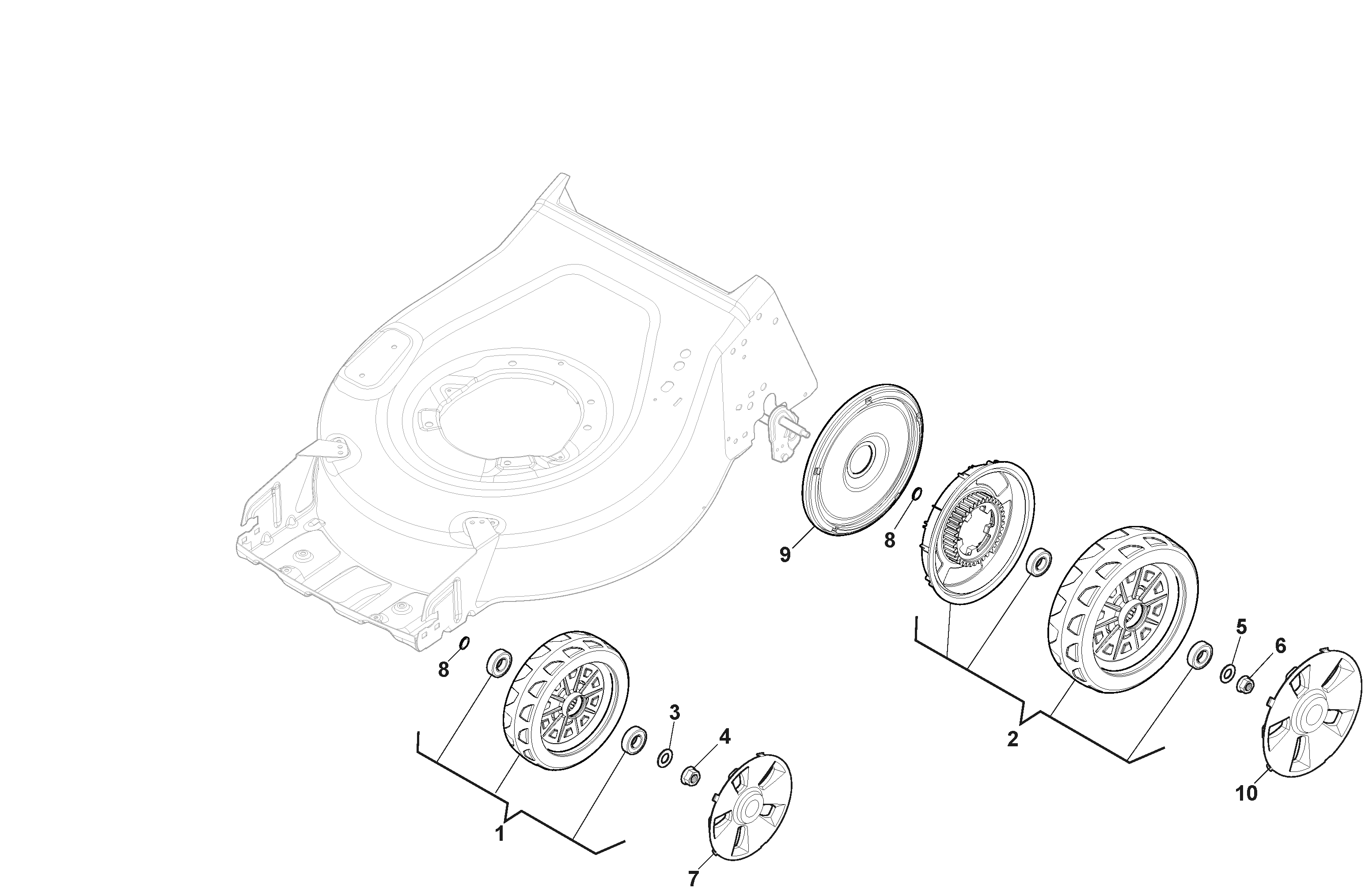

Spare Parts for Classic 20S - Wheel and Hub Cap

Classic 20S - Wheel and Hub Cap
Stock last checked Apr 25 2025 06:10.
--- -
1Eco Delta Wheel Ass.Y D200 Cp1 BearingsRef: 381007814/0
Eco Delta Wheel Ass.Y D200 Cp1 Bearings
Price: £17.20
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
2Wheel Assembly D=280Ref: 381007817/0
Wheel Assembly D=280
Price: £23.96
Special Order
Qty:
3Mountfield Stiga Castel WASHER M6 6.6 X 24 X 2     112523050/0Ref: 112523050/0
Mountfield Stiga Castel WASHER M6 6.6 X 24 X 2 112523050/0
Price: £1.61
2 in stock ready to go
Qty:
4112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:
5WASHER   was 12521350/0Ref: 112521350/0
WASHER was 12521350/0
Price: £1.61
7 in stock ready to go
Qty:
6112155000/0 LOCK NUT M8     Mountfield Stiga Alpina Atco Castel Alpina Rally Ref: 112155000/0
112155000/0 LOCK NUT M8 Mountfield Stiga Alpina Atco Castel Alpina Rally
Price: £1.61
10+ in stock ready to go
Qty:
7322110643/0 HUB CAP D=200/210 (GREY)Ref: 322110643/0
322110643/0 HUB CAP D=200/210 (GREY)
Price: £2.35
Special Order
Qty:
8Thrust Washer 13 X 22 X 0.5Ref: 321660100/0
Thrust Washer 13 X 22 X 0.5
Price: £1.90
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
9Inner Wheel Cover D=280Ref: 322600240/0
Inner Wheel Cover D=280
Price: £5.15
Special Order
Can be ordered (3 at manufacturer)
Qty:
10322110644/0 AVIO HUB CAP D=280/300 GREYRef: 322110644/0
322110644/0 AVIO HUB CAP D=280/300 GREY
Price: £3.60
1 in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Classic 20S - Blade

Classic 20S - Blade
Stock last checked Apr 25 2025 06:10.
--- -
1Telf-Form Screw 3/8" X 1¼" UncRef: 112735108/1
Telf-Form Screw 3/8" X 1¼" Unc
Price: £2.04
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
2Mountfield Atco Stiga Castel Blade Boss 25mm 122465608/3Ref: 122465608/3
Mountfield Atco Stiga Castel Blade Boss 25mm 122465608/3
Price: £8.90
10+ in stock ready to go
Qty:
2Stiga / Castelgarden / Mountfield / Homelite / Tuffcut Blade Boss Hub Holder  122465607/4Ref: 122465607/4
Stiga / Castelgarden / Mountfield / Homelite / Tuffcut Blade Boss Hub Holder 122465607/4
Price: £8.90
10+ in stock ready to go
Qty:
2Blade HolderRef: 1111-9180-01
Blade Holder
Price: £20.94
Special Order
Qty:
2Blade HolderRef: 1111-9120-01
Blade Holder
Price: £20.94
Special Order
Qty:
3Mountfield Stiga Mulching Blade CR53 181004459/0Ref: 181004459/0
Mountfield Stiga Mulching Blade CR53 181004459/0
Price: £16.07
10+ in stock ready to go
Qty:
3Mulching Blade L=506 [Stiga Pack]Ref: 1111-9293-01
Mulching Blade L=506 [Stiga Pack]
Price: £23.42
Special Order
Can be ordered (10 at manufacturer)
Qty:
4Spring Washer Elastic Washer 50x2x10.2Ref: 122160400/0
Spring Washer Elastic Washer 50x2x10.2
Price: £1.73
Not in stock
Qty:
5Washer   M10 11 X 30 X 2.5        112523080/0Ref: 112523080/0
Washer M10 11 X 30 X 2.5 112523080/0
Price: £1.61
Not in stock
Qty:
6Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2  12735698/0Ref: 112735698/0
Mountfield / Castelgarden / Lawn-King Blade Bolt HEX-HEAD 3/8 X 2 12735698/0
Price: £1.49
8 in stock ready to go
Qty:
7Mountfield / Stiga / MacAllister WOODRUFF KEY Feather D=25mm    12139150/0Ref: 112139150/0
Mountfield / Stiga / MacAllister WOODRUFF KEY Feather D=25mm 12139150/0
Price: £1.92
10+ in stock ready to go
Qty:
7Mountfield / Castelgarden / Hayter  Stiga Woodruff Key 22.2mm 112139100/0   1662Ref: 112139100/0
Mountfield / Castelgarden / Hayter Stiga Woodruff Key 22.2mm 112139100/0 1662
Price: £1.61
10+ in stock ready to go
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Classic 20S - Grass-Catcher

Classic 20S - Grass-Catcher
Stock last checked Apr 25 2025 06:10.
--- -
1Grasscatcher Full Indicator [Grey] Cp1Ref: 322486497/0
Grasscatcher Full Indicator [Grey] Cp1
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
2322486496/0 GRASSBOX TOPRef: 322486496/0
322486496/0 GRASSBOX TOP
Price: £29.40
Special Order
Qty:
3181102422/0 Fabric Grassbag Ref: 181102422/0
181102422/0 Fabric Grassbag
Price: £40.18
1 in stock ready to go
Qty:
5Deflector SpringRef: 122450479/0
Deflector Spring
Price: £3.25
Special Order
Can be ordered (7 at manufacturer)
Qty:
6122608525/2 GRASSCATCHER FRAMERef: 122608525/2
122608525/2 GRASSCATCHER FRAME
Price: £12.36
Special Order
Qty:
6Ref: 122608525/1
Not found
7Deflector RodRef: 122517884/0
Deflector Rod
Price: £4.87
Special Order
Can be ordered (1 at manufacturer)
Qty:
8Deflector Support [Black] Cp1Ref: 322109594/0
Deflector Support [Black] Cp1
Price: £5.82
Special Order
Qty:
9Self-Tapping Screw K50 X 16  112728697/0Ref: 112728697/0
Self-Tapping Screw K50 X 16 112728697/0
Price: £1.48
Special Order
Qty:
10Stone Guard Cp1 Black ColourRef: 322600355/1
Stone Guard Cp1 Black Colour
Price: £11.78
Special Order
Can be ordered (2 at manufacturer)
Qty:
12Plastic PinRef: 381008735/0
Plastic Pin
Price: £2.17
Special Order
Qty:
13381008639/0  GRASSCATCHER SCREWS KITRef: 381008639/0
381008639/0 GRASSCATCHER SCREWS KIT
Price: £1.61
Not in stock
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Classic 20S - Engine - Carburettor, Tank

Classic 20S - Engine - Carburettor, Tank
Stock last checked Apr 25 2025 06:10.
--- -
2112292102/0 NUT (was 12292102/0)Ref: 112292102/0
112292102/0 NUT (was 12292102/0)
Price: £1.61
Special Order
Qty:
3Recoil AssemblyRef: 118551468/0
Recoil Assembly
Price: £69.76
Special Order
Can be ordered (5 at manufacturer)
Qty:
4Recoil HandleRef: 118551619/0
Recoil Handle
Price: £8.66
Special Order
Can be ordered (6 at manufacturer)
Qty:
5Recoil RopeRef: 118550779/0
Recoil Rope
Price: £6.91
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
6Recoil Starter SpringRef: 118551621/0
Recoil Starter Spring
Price: £9.76
Special Order
Can be ordered (3 at manufacturer)
Qty:
7Recoil PulleyRef: 118551620/0
Recoil Pulley
Price: £14.89
Special Order
Can be ordered (5 at manufacturer)
Qty:
8Return Spring RatchetRef: 118551626/0
Return Spring Ratchet
Price: £2.30
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
9Starter RatchetRef: 118551622/0
Starter Ratchet
Price: £2.84
Special Order
Can be ordered (5 at manufacturer)
Qty:
10SpringRef: 118551625/0
Spring
Price: £2.98
Special Order
Can be ordered (1 at manufacturer)
Qty:
11CoverRef: 118551623/0
Cover
Price: £7.58
Special Order
Qty:
13Recoil Pulley BoltRef: 118551624/0
Recoil Pulley Bolt
Price: £4.07
Special Order
Can be ordered (1 at manufacturer)
Qty:
14Fan CoverRef: 118551788/0
Fan Cover
Price: £37.93
Special Order
Qty:
15Stud BoltRef: 118550907/0
Stud Bolt
Price: £5.00
Special Order
Qty:
16Stud BoltRef: 118550906/0
Stud Bolt
Price: £4.60
Special Order
Can be ordered (2 at manufacturer)
Qty:
17Screw M6 X 25 Uni 5739 Acc.8.8Ref: 112791500/0
Screw M6 X 25 Uni 5739 Acc.8.8
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
18Ignition CoilRef: 118551474/0
Ignition Coil
Price: £48.16
Special Order
Can be ordered (6 at manufacturer)
Qty:
20Spark Plug [ Rc12Yc]Ref: 1111-9206-01
Spark Plug [ Rc12Yc]
Price: £8.11
Special Order
Qty:
21Hex-Head Screw M5 X 12 Uni 5739 8.8Ref: 112789000/0
Hex-Head Screw M5 X 12 Uni 5739 8.8
Price: £1.49
Special Order
Can be ordered (9 at manufacturer)
Qty:
22Auto-Choke ControlRef: 118551456/0
Auto-Choke Control
Price: £22.75
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
23Choke Control RodRef: 118551459/0
Choke Control Rod
Price: £8.06
Special Order
Can be ordered (7 at manufacturer)
Qty:
24Retainer ClipRef: 118551352/0
Retainer Clip
Price: £3.53
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
25CarburettorRef: 118552610/0
Carburettor
Price: £67.61
Special Order
Can be ordered (5 at manufacturer)
Qty:
26Stud BoltRef: 118552545/0
Stud Bolt
Price: £12.80
Special Order
Qty:
27GasketRef: 118550929/0
Gasket
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
28Carburettor InsulatorRef: 118552513/0
Carburettor Insulator
Price: £3.79
Special Order
Can be ordered (4 at manufacturer)
Qty:
29GasketRef: 118550927/0
Gasket
Price: £4.60
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
30GasketRef: 118551124/0
Gasket
Price: £4.60
Special Order
Can be ordered (9 at manufacturer)
Qty:
31Air Filter AssemblyRef: 118551462/0
Air Filter Assembly
Price: £32.51
Special Order
Can be ordered (2 at manufacturer)
Qty:
33Stiga Mountfield / GGP Paper Air Filter Element for RM55 ST170Ref: 118550257/0
Stiga Mountfield / GGP Paper Air Filter Element for RM55 ST170
Price: £10.63
4 in stock ready to go
Qty:
34Air Filter CoverRef: 118551463/0
Air Filter Cover
Price: £23.16
Special Order
Can be ordered (2 at manufacturer)
Qty:
35112292102/0 NUT (was 12292102/0)Ref: 112292102/0
112292102/0 NUT (was 12292102/0)
Price: £1.61
Special Order
Qty:
36Fuel PipeRef: 118551480/1
Fuel Pipe
Price: £6.10
Special Order
Can be ordered (10 at manufacturer)
Qty:
37Pipe Clip ClampRef: 118550918/0
Pipe Clip Clamp
Price: £1.61
Not in stock
Qty:
38118550314/0 FUEL FILTER    WBE0701  WBE0702   WBE140Ref: 118550314/0
118550314/0 FUEL FILTER WBE0701 WBE0702 WBE140
Price: £4.08
Special Order
Qty:
39Fuel Tank AssemblyRef: 118551453/0
Fuel Tank Assembly
Price: £40.63
Special Order
Qty:
40GGP / Mountfield Stiga FUEL CAP RM45 RM55Ref: 118550943/1
GGP / Mountfield Stiga FUEL CAP RM45 RM55
Price: £6.02
2 in stock ready to go
Qty:
41Hex-Head Screw M6 X 20 Uni 5739 4.8 WzRef: 112791400/0
Hex-Head Screw M6 X 20 Uni 5739 4.8 Wz
Price: £1.36
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
42Breather Fuel PipeRef: 118551479/0
Breather Fuel Pipe
Price: £7.38
Special Order
Qty:
43Governor ArmRef: 118550933/0
Governor Arm
Price: £5.96
Special Order
Qty:
45BracketRef: 118552542/0
Bracket
Price: £17.62
Special Order
Qty:
46Governor SpringRef: 118551458/0
Governor Spring
Price: £1.75
Special Order
Can be ordered (1 at manufacturer)
Qty:
49Throttle RodRef: 118551457/0
Throttle Rod
Price: £7.32
Special Order
Qty:
50Muffler GasketRef: 118550898/0
Muffler Gasket
Price: £2.30
Special Order
Can be ordered (2 at manufacturer)
Qty:
51MufflerRef: 118551465/0
Muffler
Price: £31.15
Special Order
Qty:
52Stud BoltRef: 118552544/0
Stud Bolt
Price: £8.41
Special Order
Qty:
53Muffler GuardRef: 118551466/0
Muffler Guard
Price: £22.90
Special Order
Can be ordered (1 at manufacturer)
Qty:
54NutRef: 118550806/0
Nut
Price: £1.49
Special Order
Can be ordered (3 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Classic 20S - Engine - Piston, Crankshaft

Classic 20S - Engine - Piston, Crankshaft
Stock last checked Apr 25 2025 06:10.
--- -
1NutRef: 118550336/0
Nut
Price: £5.82
Special Order
Qty:
2FlywheelRef: 118550905/0
Flywheel
Price: £77.86
Special Order
Can be ordered (1 at manufacturer)
Qty:
3Screw M6 X 14Ref: 118551277/0
Screw M6 X 14
Price: £1.28
Special Order
Qty:
4Screw M6 X 25 Uni 5739 Acc.8.8Ref: 112791500/0
Screw M6 X 25 Uni 5739 Acc.8.8
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
5Engine BrakeRef: 118552643/0
Engine Brake
Price: £25.62
Special Order
Qty:
6Tension SpringRef: 118551522/0
Tension Spring
Price: £2.30
Special Order
Qty:
7118550300/0 OIL SEALRef: 118550300/0
118550300/0 OIL SEAL
Price: £6.72
Special Order
Qty:
12Bevel GearRef: 118552533/0
Bevel Gear
Price: £11.96
Special Order
Qty:
13CrankshaftRef: 118552583/0
Crankshaft
Price: £104.27
Special Order
Can be ordered (4 at manufacturer)
Qty:
14Woodruff KeyRef: 118550288/0
Woodruff Key
Price: £5.96
Special Order
Can be ordered (2 at manufacturer)
Qty:
16CamshaftRef: 118551448/0
Camshaft
Price: £35.21
Special Order
Qty:
18Hex-Head Screw M5 X 12 Uni 5739 8.8Ref: 112789000/0
Hex-Head Screw M5 X 12 Uni 5739 8.8
Price: £1.49
Special Order
Can be ordered (9 at manufacturer)
Qty:
19Speed Governor AssemblyRef: 118551460/0
Speed Governor Assembly
Price: £15.96
Special Order
Qty:
20Governor Arm ShaftRef: 118552541/0
Governor Arm Shaft
Price: £3.05
Special Order
Qty:
22Oil SealRef: 118550935/0
Oil Seal
Price: £4.36
Special Order
Qty:
23Lock PinRef: 118550856/0
Lock Pin
Price: £1.40
Special Order
Qty:
24Oil SealRef: 118552654/0
Oil Seal
Price: £2.76
Special Order
Can be ordered (5 at manufacturer)
Qty:
25CrankcaseRef: 118552569/0
Crankcase
Price: £89.59
Special Order
Qty:
26Valve Stem SealRef: 118551117/0
Valve Stem Seal
Price: £7.58
Special Order
Qty:
27Screw M6 X 25 Uni 5739 Acc.8.8Ref: 112791500/0
Screw M6 X 25 Uni 5739 Acc.8.8
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
28Ref: 118552647/0
Not found
29Head Cover CompleteRef: 118552577/0
Head Cover Complete
Price: £5.53
Special Order
Qty:
30Head Cover GasketRef: 118550892/0
Head Cover Gasket
Price: £3.12
Special Order
Can be ordered (4 at manufacturer)
Qty:
31Rocker Valve Arm SetRef: 118550893/0
Rocker Valve Arm Set
Price: £12.66
Special Order
Can be ordered (1 at manufacturer)
Qty:
32PlateRef: 118552593/0
Plate
Price: £3.95
Special Order
Qty:
33Retainer Valve SpringRef: 118550895/0
Retainer Valve Spring
Price: £4.36
Special Order
Qty:
34Valve SpringRef: 118550896/0
Valve Spring
Price: £2.70
Special Order
Qty:
35Intake/Exhaust Valve KitRef: 118550910/0
Intake/Exhaust Valve Kit
Price: £20.72
Special Order
Qty:
36Lifter ValveRef: 118551449/0
Lifter Valve
Price: £9.28
Special Order
Qty:
37Push RodRef: 118551251/0
Push Rod
Price: £3.92
Special Order
Qty:
38PistonRef: 118552551/0
Piston
Price: £30.23
Special Order
Qty:
39Piston Ring SetRef: 118552553/0
Piston Ring Set
Price: £25.22
Special Order
Qty:
40Piston PinRef: 118550915/0
Piston Pin
Price: £5.15
Special Order
Qty:
41Piston Pin ClipRef: 118550914/0
Piston Pin Clip
Price: £1.49
Special Order
Qty:
42Connecting RodRef: 118551446/0
Connecting Rod
Price: £36.56
Special Order
Qty:
43Screw M6 X 25 Uni 5739 Acc.8.8Ref: 112791500/0
Screw M6 X 25 Uni 5739 Acc.8.8
Price: £1.49
Special Order
Can be ordered ( >10 at manufacturer)
Qty:
44Oil DipstickRef: 118551444/0
Oil Dipstick
Price: £12.19
Special Order
Can be ordered ( >10 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.

Spare Parts for Classic 20S - Engine Cover

Classic 20S - Engine Cover
Stock last checked Apr 25 2025 06:10.
--- -
1Engine Assembly St 170 OhvRef: 118552674/0
Engine Assembly St 170 Ohv
Price: £267.31
Special Order
Can be ordered (9 at manufacturer)
Qty:
11Ref: 322055631/0
Not found
12Engine Hood Cover [Yellow] St170Ref: 322055632/0
Engine Hood Cover [Yellow] St170
Price: £6.50
Special Order
Qty:
13Insert Engine Cover [Grey] St170Ref: 322055628/0
Insert Engine Cover [Grey] St170
Price: £4.87
Special Order
Can be ordered (3 at manufacturer)
Qty:

PLEASE NOTE: Items listed as Special Order are not stocked and will be called in from the manufacturer on-demand. Items that manufacturers do not keep in the UK, or with no stock figure, could be delayed. We will provide no updates until either the order is shipped or we receive additional information from the supplier. Items listed as AVAILABLE mean they exist at the manufacturers warehouse and will be ordered in on-demand, which usually takes just a few days. Be prepared to be patient when purchasing Special Order Items. All Special Order items are non-returnable.
