7263-12-14 CLASSIC 4 STROKE TILLER

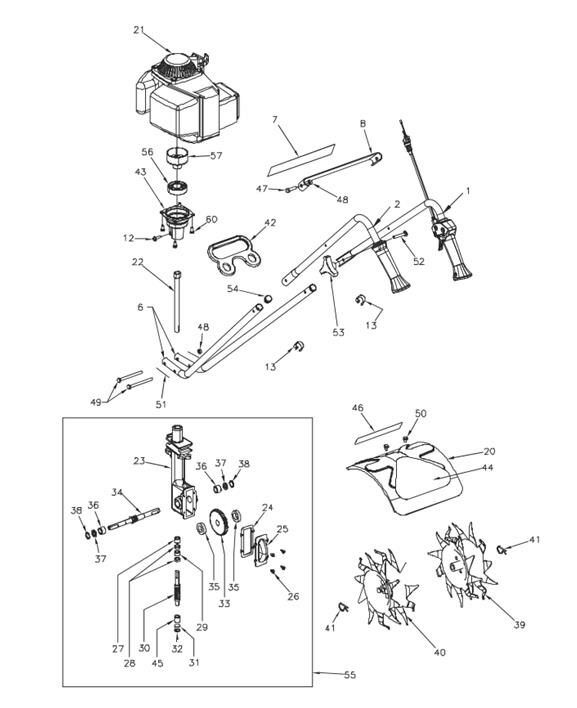

1 Handle Assembly RH Honda 25cc 400290 2 Handle assy LH 400263 6 Handle Fold Down Cult 400224 4 label 400620 8 handle brace 148 12 Screw 10-32 x 1" 910502 13 throttle clip 478 20 fender guard 465 21 Motor 25cc 400142 22 drive shaft 468 23 housing assy. 466 24 Washer, gear 436 25 housing cover 437A 26 screw 8-32x« 651 27 Roller bearing 423 28 Worm bearing race 425 29 Worm thrust bearing 424 30 worm 422 31 Worm disc 426 32 Worm retainer ring 428 33 Worm gear 429 34 Tiller wheel shaft 431 35 Worm gear thrust washer 430 36 Worm gear bush 432 37 Bearing seal 434 38 bearing seal retainer 435 39 tiller wheel assy. right 438RA 40 tiller wheel assy. left 438LA 41 Pin 418-1 42 Honda Carry Handle 400133 43 Engine Adaptor 22/25ccm 400130 44 Label 400609 45 roller bearing 458 46 Label ID Mantis 4058 47 cap screw ¼-20x1 410 48 lock nut ¼-20 972 49 cap screw ¼-20x3 470 50 bolt ¼-20x3/8 140 51 handle clamp 377 52 bolt carriage 1/4-20 x 1 5/8 400509 53 Knob Straight Tiller FDH 400523 54 plug handle 400230 55 Gearbox new 400010 56 bearing 400132 57 clutch drum 4T 22/25ccm 400131 60 Screw M6x1x12mm Serr Flange 400511 Is there an issue with this image or diagram? Report it by clicking here.
