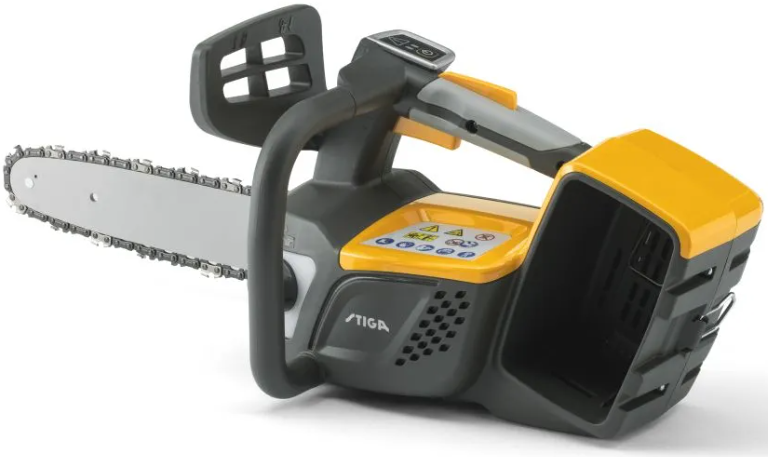

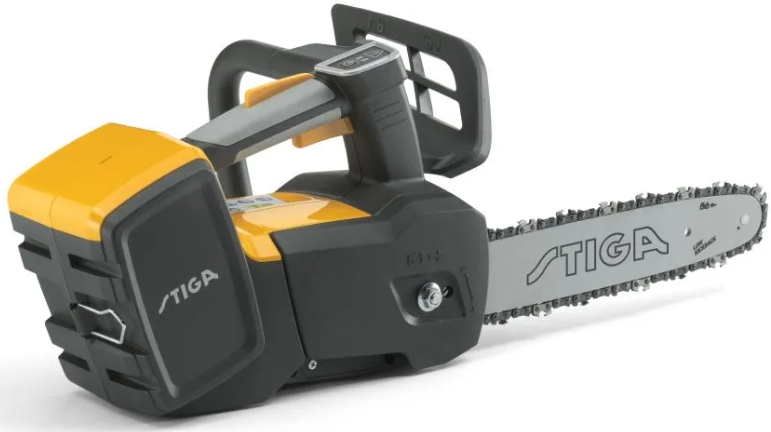

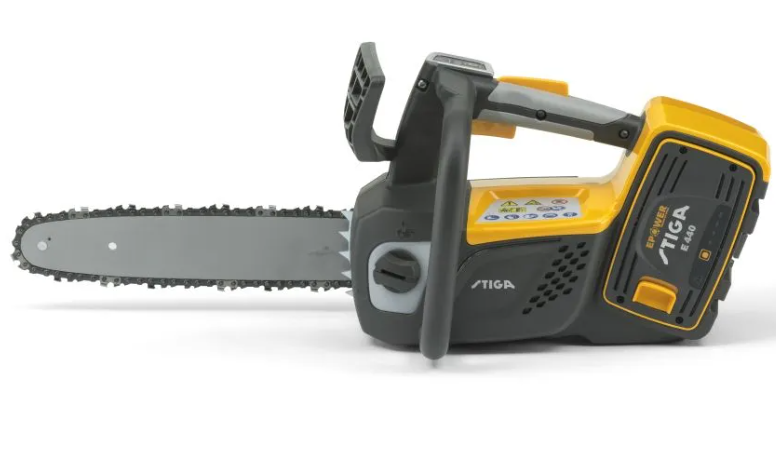

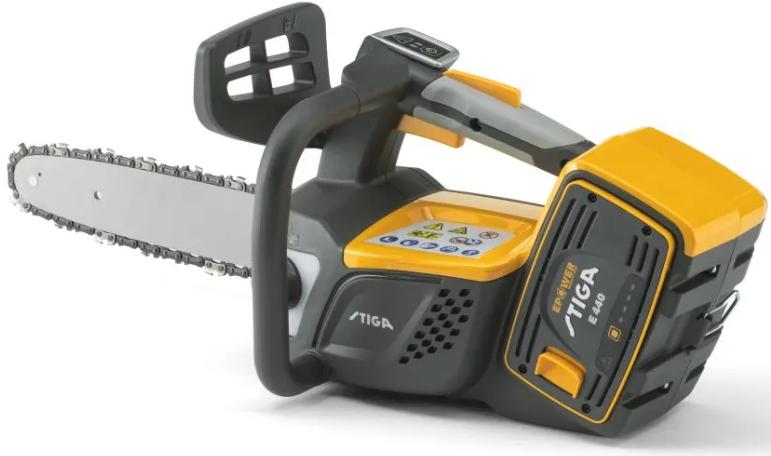

Stiga PR 700e Cordless Chainsaw / 48v (Bare Tool)
A powerful but compact and easy handling 30cm top-handle cordless chainsaw. Compatible only with a 48V / 4Ah or 5Ah battery, that is suitable also for all the tools in the 5 Series System lineup. Battery not included.
Special Features Stiga PR 700e Cordless Chainsaw / 48v / 4Ah
Cordless battery-powered engine, for easy handling
Less noise and vibrations, so you can work longer and stress-free
High-quality chain for maximum cutting precision
Top- and wide side-handle, for safe and comfortable work
Transparent oil tank window for easier maintenance
With the 48v battery-powered STIGA PR 700e Chainsaw you'll enjoy unrestricted movement with less noise, less vibration, zero emissions and only few engine maintenance requirements!
A precision machine ideal for in-tree work, the PR 700e is compact and lightweight enough to be highly maneuverable where space is limited; and has been equipped with a metal hook that makes climbing with the machine easier and safer.
Further boosting safety is a fast-acting chain brake that's activated either manually, or automatically when the inertia caused by kick-back is detected.
The SPR 500 AE features a wide side-handle and an ergonomic soft-touch top handle, that combine to ensure the operator will find it comfortable and easy to control.
A transparent window makes it simple to keep track of the oil tank fill-level; while a thumb-support area enables a stronger forward thrust and a faster, smoother cut (a high-performance chain also contributes to smoothness of cut).
The Battery and Charger are NOT supplied with the PR 700e.
WARNING: This chain-saw is for use by trained tree service operators only. Use without proper training can result in severe injuries.
Specifications Stiga PR 700e Cordless Chainsaw / 48v / 4Ah
POWER
ePower - Yes
Battery capacity - 4 Ah
Power source - Lithium-ion battery
Suggested battery capacity - 4 Ah
Power - 1 kW
Battery kit - Not included
Motor type - Brushless
Maximum motor speed - 11000 rpm
Overload protection - Yes
Voltage - 48 V
Lithium battery nominal energy - 172.8 Wh
Working time (+/- 20%) - 12 min
Maximum working area - 0m^2
CUTTING SYSTEM
Bar type - Sprocket nose
Bar length - 30 cm
Bar length (inches) - 12 in
Chain type - 3/8" .050" (91PX045E)
Chain speed - 20 m/s
Chain brake - Manual
Chain oil tank capacity - 0.18 l
Chain oil pump - Automatic
Chain tensioning system - Side screw tensioning
EQUIPMENT
Handle type - Top handle
Soft grip handle - Yes
TOOLS KIT
Battery charger - Single standard
Battery charger output current - 1.5 A
VIBRATION AND NOISE DATA
Measured sound power level dB(A) - 101.9
Guaranteed sound power level (LwA) - dB(A) - 105
Measured sound pressure level at operator ear dB(A) - 93.5
Vibration level rear handle (m/s2) - 3.72
Vibration level front handle (m/s2) - 4.37
OVERALL DIMENSIONS
Pack weight - 4.9 kg
Product weight without battery - 3.45 kg
Product weight - 3.45 kg
Product weight without bar and chain - 3.15 kg
Product length - 600 mm
Product width - 215 mm
Product height - 243 mm
