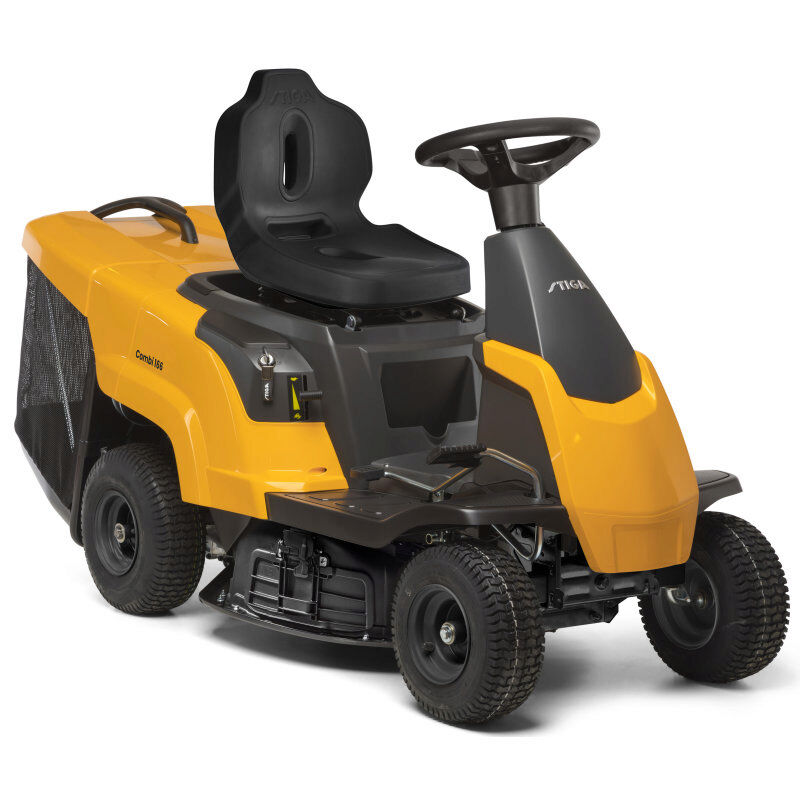

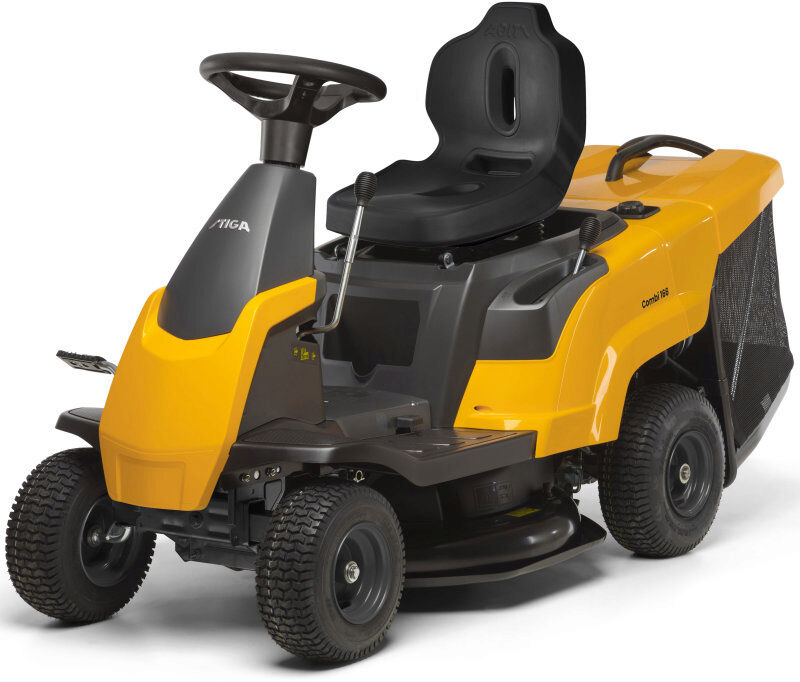

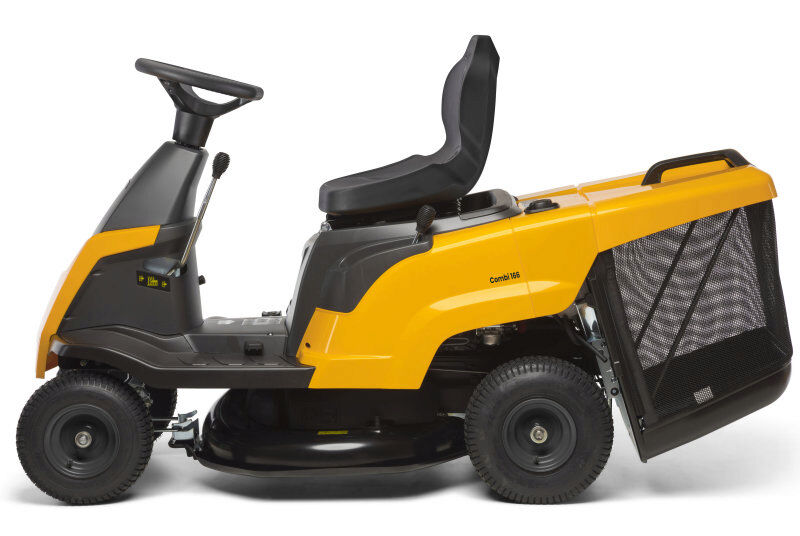

Stiga Combi 166 Compact Ride-On Lawnmower 224cc / 66cm / Auto - Complete with 5 Year Warranty
The Stiga Combi 166 ride-on mower is ideal for gardens with tricky twists, sharp turns and complex designs. It's small enough to fit through tight gaps, while its narrow turning circle makes it easy to manoeuvre around obstacles. Plus, its 224cc single-cylinder engine, 66cm cutting width and spacious 150L grass collector make it perfect for mowing areas up to 1500sqm.
A flexible 3-in-1 cutting system including 6 height positions lets you choose between collecting, side discharging and mulching, to match the lawn and season. For a smooth, safe drive, the Combi 166 also features an easy-to-reach speed variator and pedal-operated hydrostatic drive. Simply sit down, switch on, and away you go. Mulching kit sold separately.
NOTE: This model is not designed to tow accessories, or have a tow hitch fitted.
Special Features Stiga Combi 166 Ride-On Lawnmower 224cc / 66cm
Powered by a STIGA 224cc single-cylinder engine
Compact and highly manoeuvrable
Easy-to-reach speed variator and smooth speed control
Side discharge and mulching are available with optional.
Spacious 150l grass collector
Includes Mulching plug and side deflector kit
Compact, flexible and a breeze to handle: that's the Stiga Combi 166 rider. It's compact enough to fit easily through narrow gates and passages; and highly manoeuvrable, thanks to its narrow turning circle. Featuring a Powered by STIGA 224cc single-cylinder engine, this riding lawn mower is ideal for mowing areas up to 1500sqm around the size of seven tennis courts. STIGA classic seat
Part of the Stiga Essential Range
Developed for all gardening newbies or those gardeners who want to act quick and achieve a certain gardening standard.
* Lightweight tools
* Easy to start, adjust, use, clean and store
* Simple and intuitive functions
STIGA engines (petrol)
STIGA petrol engines are the power behind a whole range of machines from lawn mowers and tractors to swift-to-start sweepers. Meticulously designed and rigorously tested – only the ones with maximum performance and minimum emissions make the cut.
Specification Stiga Combi 166 Ride-On Lawnmower 224cc / 66cm
Power Source: Petrol
Number of Cylinders: 1
Engine Brand: STIGA
Engine Model: ST 250 ES Powered by STIGA - Here is the Engine Service Kit
Capacity: 224cc
Battery Voltage: 12.0000
Battery Capacity: 9 Ah
Choke: Automatic
Engine Cooling: Air
Fuel tank capacity: 3.8L
Cutting Method: Collecting, Side discharge, Mulching
Cutting Width: 66 cm
Cutting height adjustment: Manual with lever
Cutting height positions: 6 positions
Cutting height range: 30 - 76 mm
Blade engagement type: Manual
Number of blades: 1
Reverse mowing: Yes
Mulching kit: Included
Trailer hitch kit: Not applicable
Traction: Rear-wheel drive
Transmission type: Hydrostatic
Transmission method: Pedal-operated
Front wheel size: 13x5.00-6
Rear wheel size: 15x6.00-6
Battery charger: Single standard
Product weight: 131kg
Product height: 1047mm
Product width: 722mm
Product length: 1825mm
What Is The Proper Way To Clean The Lawn Tractor After Mowing The Grass?
The exterior of the tractor mower must be cleaned with water and detergent, paying attention not to get water in the electrical system, motor and circuit board located under the instrument panel. The collection bag should be emptied and cleaned of residue, then remounted so the cutting assembly can be washed, and then removed, rinsed and allowed to dry. When washing the cutting device assembly and the expulsion chute, the collection bag must be fitted, the operator must be seated, the cutting device assembly must be in position "1", the engine running, transmission placed in neutral and the cutting device must be connected. Then connect a water hose to the appropriate pipe fittings and allow the water to flow for a few minutes while keeping the cutting devices in motion.
What Action Should Be Carried Out Before Winter Storage Or Before Storing It For A Period Longer Than 30 Days?
After allowing the engine to cool down and fully recharging the battery, disconnect the battery cables and store it in a cool and dry place. Empty the fuel tank, clean the machine thoroughly, check the condition of the cutting device assembly, and, if necessary, contact the service centre. Then store the lawn tractor with the cutting deck in a lowered position, in a sheltered environment and, if possible, covered with a sheet.
What Action Should Be Carried Out Before Initially Using A Riding Tractor That Has Been Stored Over A Winter Or For A Period Longer Than 30 Days?
Refuel it and check the oil level, air filter and petrol filter. Check that the tyres are correctly pressurised and then set up the lawn mower tractor according to how you intend to carry out the mowing (side discharge, collection, rear discharge, mulching). For further information about the preliminary operations and safety checks, please refer to the designated sections of the instructions manual.
What Standard Maintenance Operations Does The Lawn Mower Tractor Need?
Before each use, we recommend that you perform safety and control checks, check the tyre pressure, and replenish the fuel and oil tank, if necessary. After each use, arrange for a general cleaning of the riding tractor. Please refer to the designated section of the instruction manual ("maintenance table") for the regular actions recommended to ensure optimal use of the machine.
What Are The Cutting Functions Of The Lawn Tractor?
The riding tractor can be set up in different cutting modes: rear bag collection, or mowing and chopping the grass using the special "mulching kit" function. The mulching cutting system allows you to mow the grass into fine particles, which remain on the lawn, restore nutrients and support growth.
What Kinds Of Parts And Accessories Can The Tractor Mower Be Equipped With?
The lawn tractor can be equipped with various parts and accessories to increase its functions and ensure maximum versatility all year round. For the complete list of parts and accessories, please refer to the relevant product page on the website.
Replaces 2T0070481/ST1 COMBI 1066 HQ ST 250 ES 224cc
