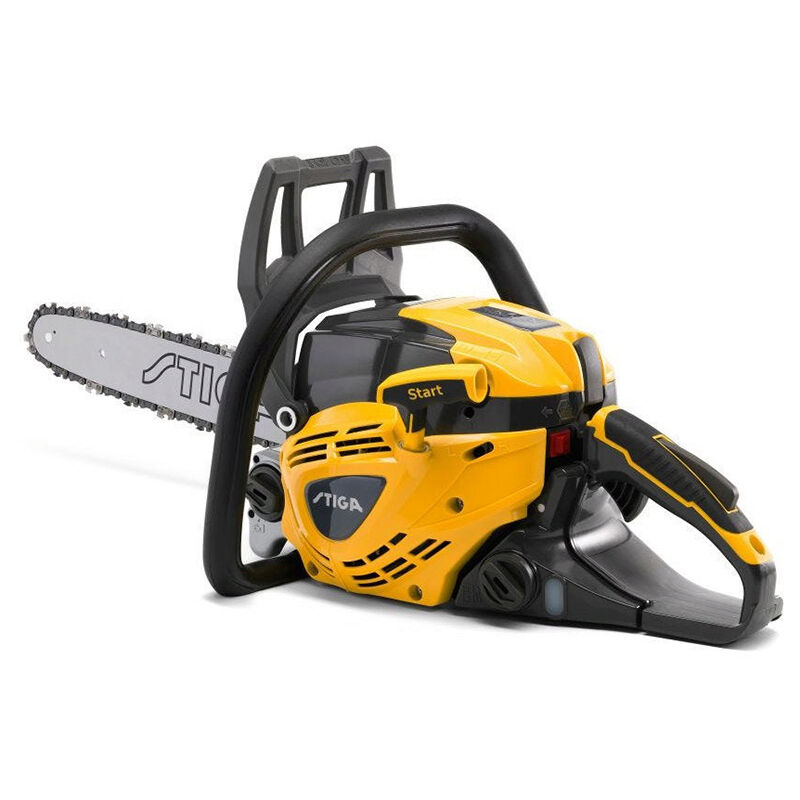

Stiga CS 540 Petrol Chainsaw 35cm / 14in 38cc - Complete with 5 Year Warranty
The STIGA CS 540 (14")chainsaw with 35 cm (14") bar is powered by a 38.5 cc (1.6 kW) engine, making it reliable and powerful yet lightweight. The magnesium engine cover ensures robustness, reliability and quick cooling.
The oil pump is automatic and adjustable. Maintenance operations can be performed quickly and easily thanks to a number of features; such as the tool-less handle on the air filter cover without the need for additional tools, the tensioning wrench located under the rear handle and the fuel tank level monitoring window.
The ergonomic soft-touch handle and spring system ensure reduced vibrations and greater comfort.
Built today for tomorrow, a 5-year manufacturer's warranty is included with this model (T&C's apply).
Experience Range: CS540 (14") Petrol chainsaw
Chainsaw with 38.5 cc (1.6 kW) petrol engine and 35 cm (14") cutting bar.
38.5 cc petrol engine with a power output of 1.6 kW
35 cm (14") cutting bar
Chain speed of 22.8 m/s
Net weight of 4.9 kg without bar and chain
Vibration control system (VCS)
Tensioning wrench supplied
A step up for the larger garden or just a simple upgrade of your garden tools to take on multiple gardening tasks and activities.
* Robust tools
* Bigger jobs
* Prolonged sessions
* Diversified work
What's in the box
* CS 540 (14") Petrol chainsaw
* Screwdriver
* Chain round file
* Spark plug key
Specification Stiga CS 540 Petrol Chainsaw 35cm / 14in 38cc
POWER
Power source Petrol 2-stroke
Power 1.6 kW
Displacement 38.5 cm³
Engine rotation speed 12000 rpm
Maximum engine speed 12000 rpm
Idling speed (+/- 100) 3100 rpm
Starter Recoil
Primer Yes
Choke Manual with automatic return
Fuel tank capacity 0.51 l
Carburettor type Butterfly valve
Ignition coil type Digital
Air filter type Nylon net
CUTTING SYSTEM
Bar type Sprocket nose
Bar length 35 cm
Bar length (inches) 14 in
Chain type 3/8" .050" (91PX-53X)
Chain speed 22.8 m/s
Chain brake Manual and inertial
Chain oil tank capacity 0.26 l
Chain oil pump Automatic adjustable
Chain tensioning system Side screw tensioning
EQUIPMENT
Handle type Rear handle
Vibe Control System (VCS) Yes
Soft grip handle Yes
TOOLS KIT
Included tools kit
Screwdriver, chain round file, spark plug key
VIBRATION AND NOISE DATA
Vibration level rear handle (m/s2) 4.37
Vibration level front handle (m/s2) 5.72
Guaranteed sound power level (LwA) - dB(A) 115
Measured sound power level dB(A) 111.5
Measured sound pressure level at operator ear dB(A) 99.6
OVERALL DIMENSIONS
Pack weight 7.94 kg
Product weight 7.295 kg
Product weight without bar and chain 5.64 kg
Product length 724 mm
Product width 283 mm
Product height 315 mm
Replaces 240381402/S17 SP 386 - 14" PETROL CHAINSAW STIGA
