Sheen Replacement Wick for Flame Gun FG13

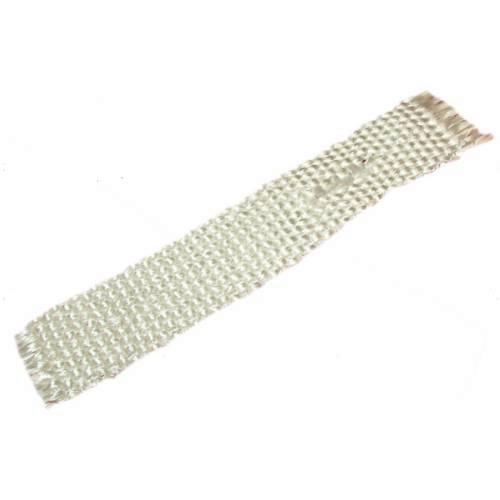

Genuine Sheen spare part - Wick for Flamegun.
* Genuine Sheen spare part
* 1 Supplied

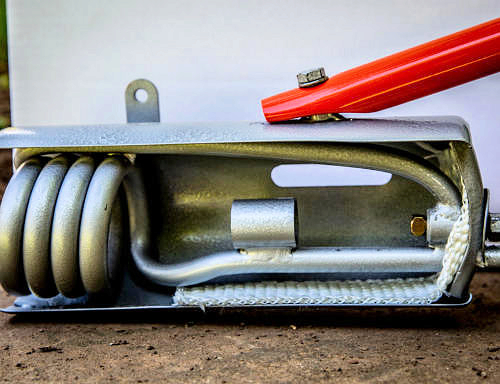

See image for the correct placement of the wick.
Instructions for removal & fitting of the wick:
1. Ensure control valve is switched off.
2. Remove bolt holding handle onto burner.
3. Remove burner from the control valve.
4. You should now be left with the burner coil tube and outer chimney, the wick is sandwiched in between the inner coil and outer chimney.
5. Remove the nut holding the chimney on to coil jet block and slide the chimney up and off the coil tube.
6. Remove the wick by standing it up and off the coil tube.
7. The new wick should come with and slit in it about ¾ the way up. Slide the new wick down the coil tube, ensuring the longer part will sit at the bottom under the jet.
8. Refit as reverse of these instructions.
