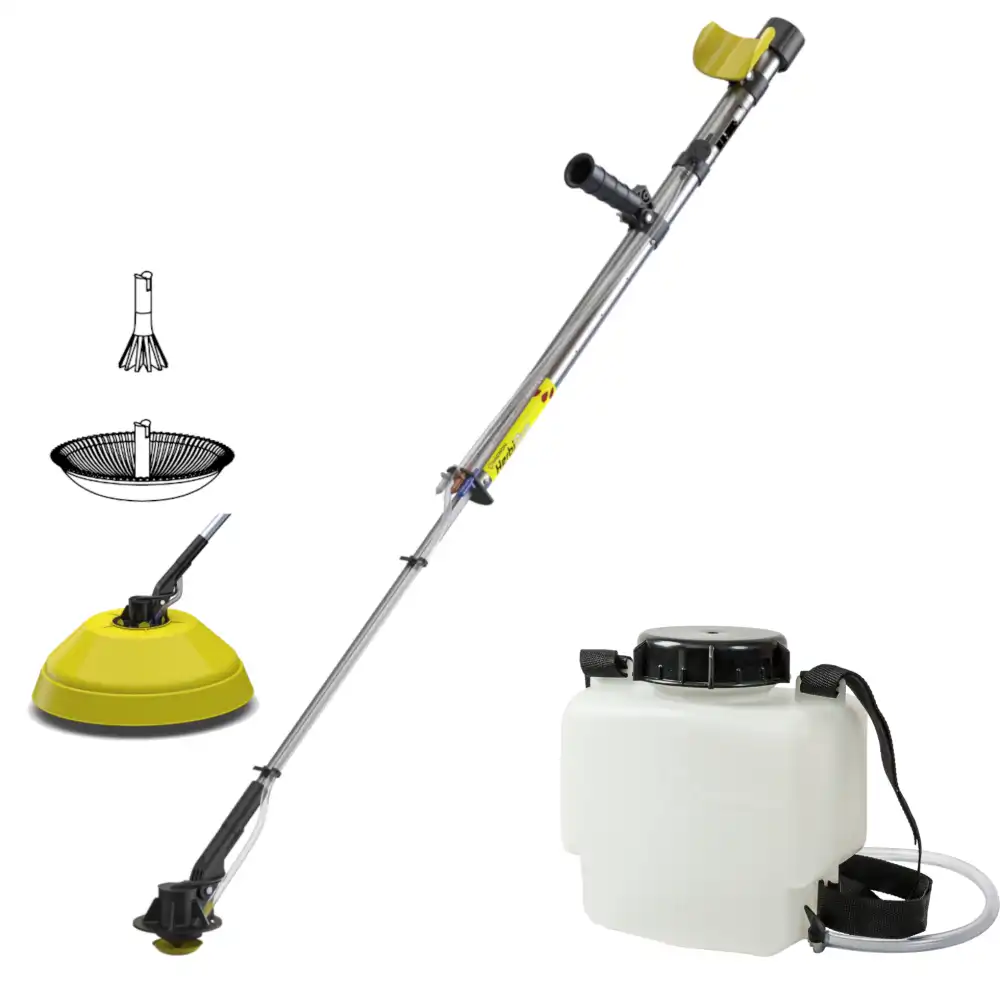

Herbi Duo Electric Handheld CDA Sprayer for Herbicides 5 Litre / 6v
Herbi Duo Electric Handheld CDA Sprayer for Herbicides.
The Herbi Duo range offer the latest development in Controlled Droplet Application (CDA) technology, enabling unparalleled drift control at very low spray volumes for herbicide application with a lightweight and ergonomic spray lance. They can be used with any herbicide which can be used at lower water volume rates (such as Glyphosate) at total spray volumes of only 15-30 litres/hectare.
All models in the Herbi Duo range offer two spray band widths of 1.0 m and 0.4 m achieved by simply changing the atomiser disc from large to small. Drop sizes at 1m band are in the range of 200-300 µm VMD and a larger drop size of 650-750 µm VMD when using the smaller 0.4m band An optional spray shield is also available when spraying with the narrow 0.4 m band which can be used to avoid any risk of spray contact with adjacent vegetation.
The Herbi Duo can treat over 3 kilometres (about 0.4 hectares) of fence line using one 5L tank mix. Applications include general clean-up, border, pathway and strip spraying (e.g. in orchards and plantations) and spraying of larger areas by making consecutive spray passes. The reduction in mixing and filling operations (with no mixing required with CDA formulations) offers operator safety advantages.
The Herbi Duo model comes with a simpler handle and armrest option with atomiser controlled via a battery switch at the end of the sprayer. The Duo is powered by 4x R20 D cell batteries.
Special Features Herbi Duo Electric Handheld CDA Sprayer for Herbicides 5 Litre
Dual band function 1m or 0.4m narrow band
Battery powered with no pumping required
Drift control
Ease of use, lightweight and ergonomic design for single handed operation
High productivity and economical. Treats up to 3km with a single 5 l tank mix
Electronic speed control on the motor ensures a constant RPM
Long battery life in excess of 40 hours (4x AA Duo+) or 100 hours (Duo)
Rechargeable batteries can be used
Interchangeable nozzles for different flow rates
Robust and simple to maintain
Optional spray shield for narrow band sprays
Specifications Herbi Duo Electric Handheld CDA Sprayer for Herbicides 5 Litre
Power supply 6 V DC
Power consumption <0.5 W
Disc speed 1450 RPM (governed)
Flow rate range 40-145 ml/min
Band width 1 m (large disc) or 0.4 m (narrow band disc)
Droplet size (VMD) 200-300 µm VMD (large disc)
650-750 µm VMD (narrow band disc)
APPLICATION
The Herbi Duo is suitable for use with non-selective herbicides at low spray volumes.
The equipment can also be used for application of other products including selective herbicides, but users should read the product labels to check spray volume and mixing rates are suitable.
- Avoid spraying in wind speeds > 3 m/sec and maintain atomiser disc around 20 cm above ground.
- Avoid flow rates exceeding 150 ml/min.
- Always wear suitable protective clothing to include gloves, boots, and face shield. Always read product labels for mixing instructions and comply with national regulations for pesticide use.
- Check electrical connections are free from corrosion every 50 hours of use including atomiser motor. Clean electrical contacts and apply appropriate lubricant to exclude moisture.
- Sprayer tank and hose pipe should be cleaned through after use with water and always dispose of residues and washings appropriately. Clean external surfaces with a damp cloth.
- Store sprayer and pesticides in secure area away from sunlight and foodstuffs. Always remove batteries during storage.
DESCRIPTION
- Easy to use, light weight, manufactured with quality materials compatible with plant protection products.
- Operates using 4 x R20 D cell batteries. Rechargeable batteries can be used.
- Battery life 100 hrs+.
- Electric motor rotates at a constant 1450 rpm. Power supply 6 V and less than 0.5 W.
- Droplet size 200 - 300 um VMD 1.0 m band and 650 - 750 um VMD narrow band 0.4 m (Glyphosate in water).
- Includes 4 nozzles 0.50- 1.0 mm diameter orifice.
- Telescopic for easy transport and storage. Extended length 1.48 m. Shortened 1.22 m.
- A protective cover is supplied to avoid damage to the spinning disc during transport and storage.
- Easy to change batteries and spinning disc. Easy access to all parts and serviced with only pliers and a Pozi No 2 screwdriver.
- Flow rate range 40 -150 ml/min depending on nozzle choice and liquid viscosity.
- High work rate wi
