Info Required: Model/Type

Format: 000X00-0000-X0

Example: 093J02-0080-H5

Newer Briggs & Stratton engines can be identified by their serial number as well, which takes this format:

Format: 0000000000000

Example: 1812213228867

On the examples shown, 0's represent a number and X's represent a letter.

These codes are a guide only, code formats may vary slightly but these are the most common formats. If in doubt, send a photo of the data plate in with your enquiry so we can find the right information.

An example Model/Type and serial number can be seen below, as well as common locations for the engine number to be found. Briggs & Stratton have made a helpful video on the subject as well, which can also be found below:
Briggs Engine Number Example

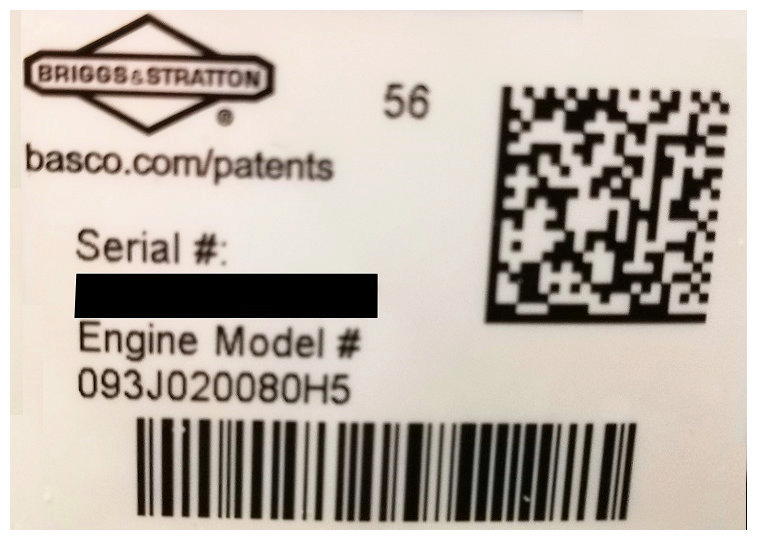

Briggs Serial Number Example Location

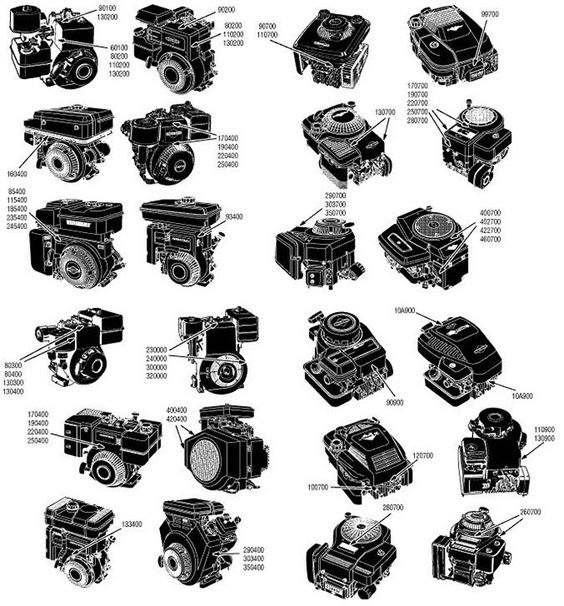

Common Model/Type Locations

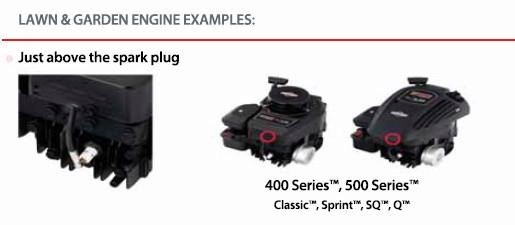

Common Model/Type Locations Part 2

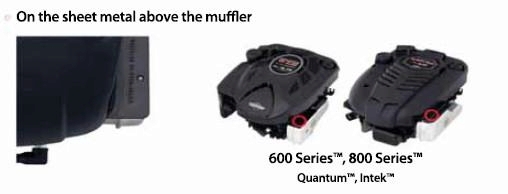

Common Model/Type Locations Part 3

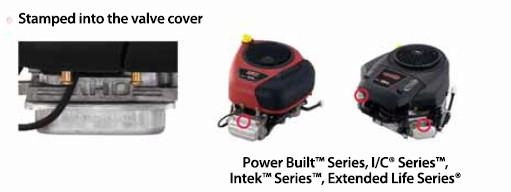

Common Model/Type Locations Part 4

Briggs and Stratton Video

Briggs and Stratton Video 2
